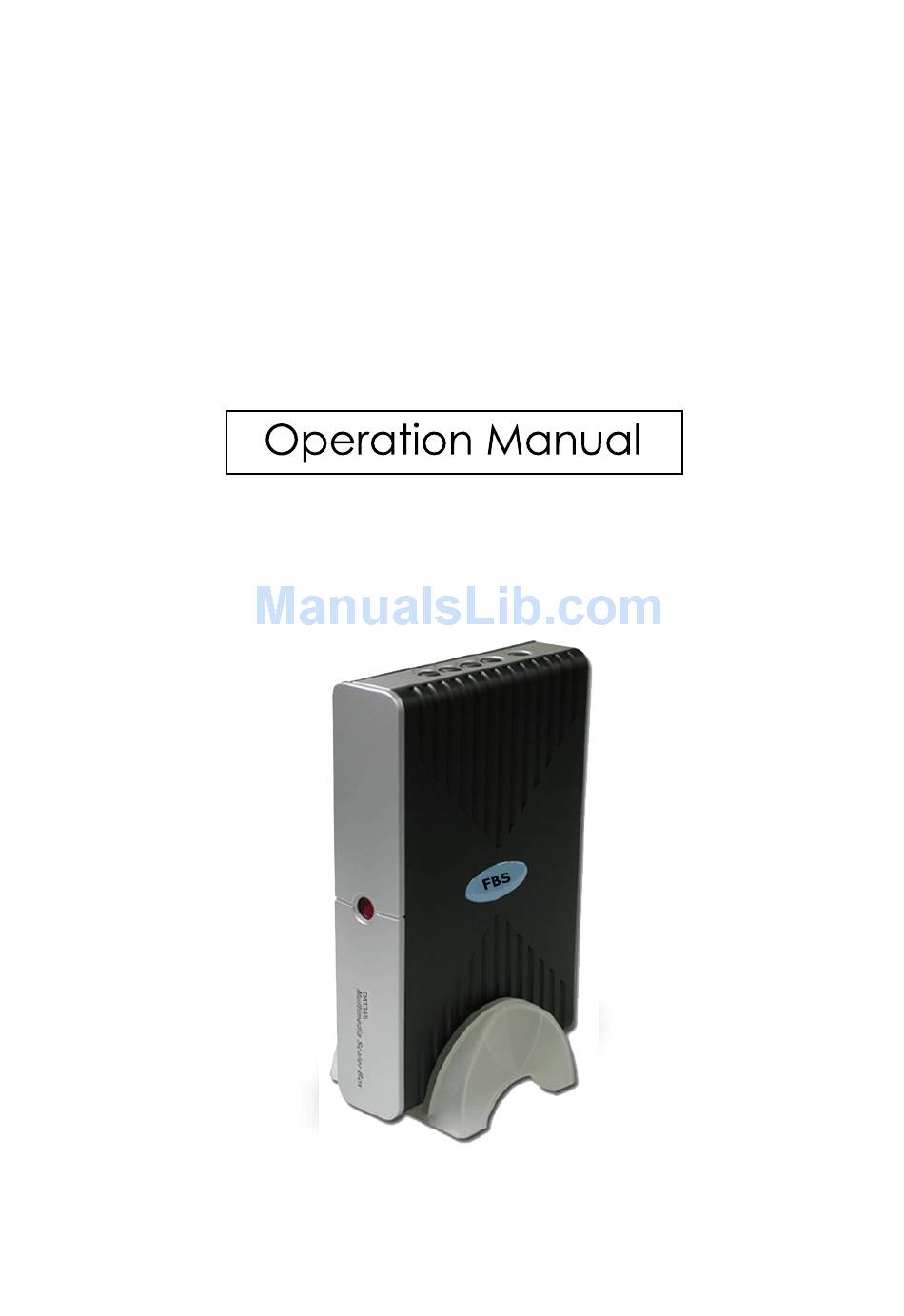

- Page 1 EXTERNAL TV TUNER BOX Model CMT345 Firebird Systems, Inc. Chatsworth, CA 91311, USA www.Firebird-systems.com...
- Page 2 Introduction Thank you for purchasing CMT345. The product you have purchased has been carefully engineered and manufactured to bring you dependable operation. Read this manual before operating this unit to get familiar with its features and obtain the performance that will bring you a lot of enjoyment for many years.
- Page 4 Input Selection: Press the button repeatedly will toggle through five input sources available for your selection. The sequence of selection by repeatedly pressing the button is as bellow: TV(RF)g Composite Videog S-VideogYCbCr gPC Bypass MENU / ENTER Press the button to enter into OSD menu or to confirm your selection of the highlighted parameter.
-
Page 5: Installation
Installation Power up the unit: 1. Plug the power jack into the power socket on the back of the unit, the power LED will illuminate in red color(Standby mode). 2. Press the power button, power LED will turn into green light.(operation mode) 3. - Page 6 Installation On the source Sub-menu, you can choose input from TV, CV, SV, YCbCr, and PC pass through. On the picture Sub-menu, you can adjust setting value of the follwing parameter. Use channel up or down to select your desired adjustment parameter. Brightness: Use volume +/- to increase or decrease brightness level.
- Page 7 Installation On the sound Sub-menu, you can adjust the volume of the audio out, or to "mute" audio out. you can also select: Mono: L+R on both left and right channel Sap: Second Audio Program Stereo: Audio output in stereo L/R EXIT...
- Page 8 Installation On channel Sub-menu, Select TV for receiving Terrestrial VHF/UHF broadcasting channel. Setect CATV if the unit is connect to a CATV coaxial cable. Auto scan - the unit will search through all channels contained in the RF cable. Once a channel is found it will be stored in the memory and can be recalled later by pressing channel up or down button or by pressing channel number directly.
- Page 9 Installation On TV system Sub-menu, find out what aerial or CATV systems are available at your premise and make sure your antenna/cable are connected to the RF input of the CM T 345. The table below shows worldwide countries and their respective TV/CATV systems. Select the correct System and Type thatcorresponds to the country you are located.
- Page 10 Installation On "OTHER" Sub-menu, there are three panameters for adjustment, PIP: To turn ON or OFF the PIP window on the screen. Sleep: Set a pre-determined time for machine to automatically turn off when timing is up. Display: Set " ON " to display the input/output information on the screen. Function Selection 1/16...
