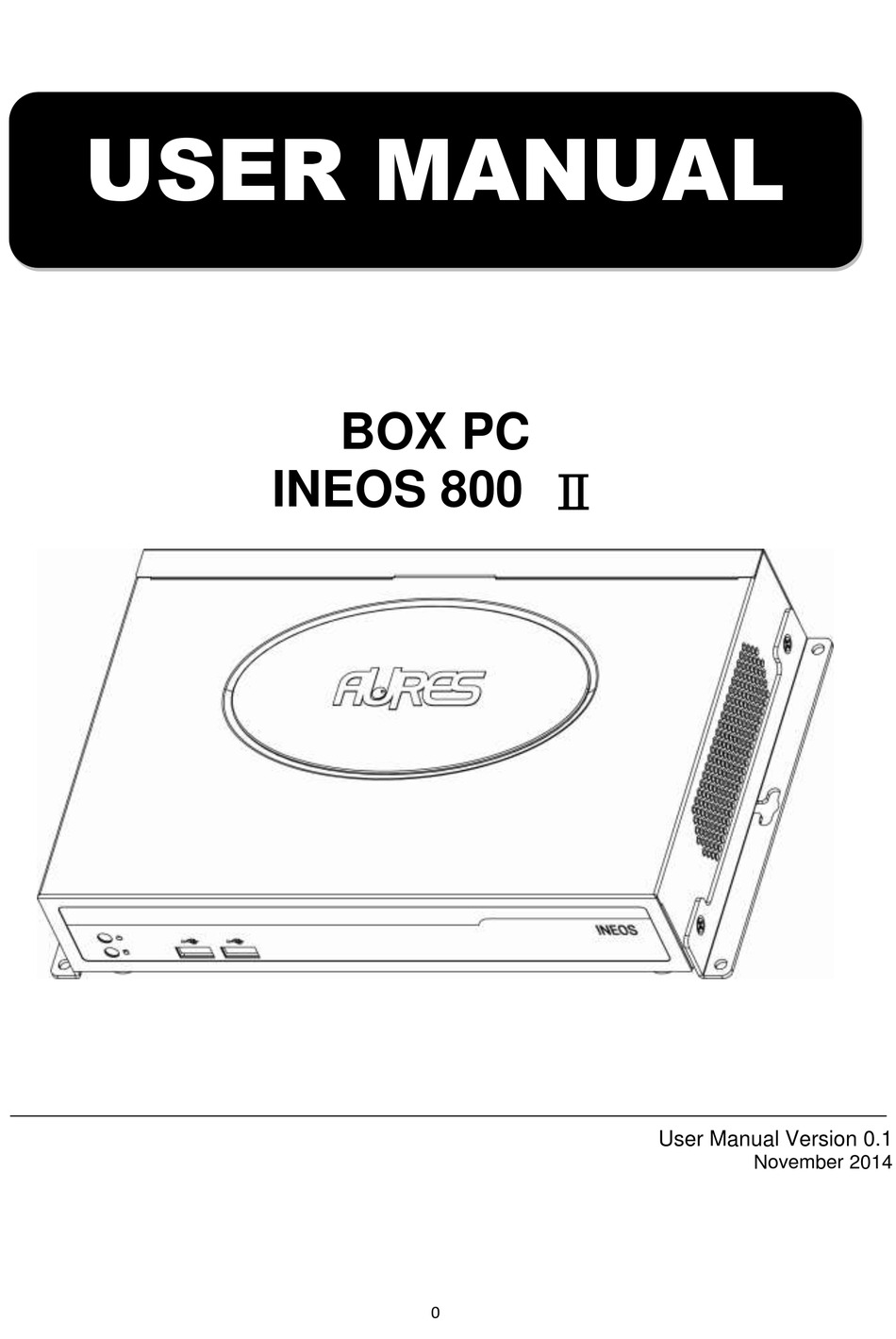

- Page 1 USER MANUAL BOX PC INEOS 800 Ⅱ User Manual Version 0.1 November 2014...
-
Page 2: Copyright Notice
Copyright Notice This document is copyrighted, 2014. All rights are reserved. The information contained in this document is subject to change without notice in advance. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 3: Important Safety Instructions
Safety IMPORTANT SAFETY INSTRUCTIONS Please read these safety instructions carefully and keep this User's Manual for later reference. Ensure to follow all warnings and instructions marked on the product. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. Disconnect this equipment from any AC outlet before cleaning. - Page 4 IMPORTANT SAFETY STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates uses and can radiate radio frequency energy.
-
Page 5: Caution On Lithium Batteries
CE MARK This device complies with the requirements of the EEC directive 2004/108/EC with regard to “Electromagnetic compatibility”. This device complies with part 15 of the FCC rules for a Class B digital device. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. -
Page 6: Revision History
Revision History Changes to the original user manual are listed below: Revision Description Date Initial release November 2014... -
Page 7: Table Of Contents
Table of Contents PACKING LIST ..............................7 1-1. Standard Accessories ............................7 System View ................................. 8 2-1. Front and Side View ............................8 2-2. I/O View ................................9 2-3. Dimensions (Unit: mm) ..........................10 Components Replacing ............................ 11 3-1. HDD Replacing ............................... 11 3-2. -
Page 8: Packing List
1. PACKING LIST 1-1. Standard Accessories a. System box b. Power adapter... -
Page 9: System View
2. System View 2-1. Front and Side View 1. I/O placement 2. Ventilation holes 3. Mounting brackets Do not leave this equipment in an uncontrolled environment where the storage temperatures is below 10 ° C(-14 ° F) or above 50 ° C (122°... -
Page 10: I/O View
2-2. I/O View Item No. Description Power & HDD LED indicators USB x 2 Line-Out DC Jack Cash Drawer Port LAN port USB 2.0 x1(black) ; USB 3.0 x1 (blue) 12V powered USB 2.0x 1 VGA port COM Port x 4 (COM1 &... -
Page 11: Dimensions (Unit: Mm)
2-3. Dimensions (Unit: mm) -
Page 12: Components Replacing
3. Components Replacing 3-1. HDD Replacing 1. Turn system unit upside down and HDD door is located in the bottom. 2. Open the HDD door by unfastening the screw (x2). 3. Disconnect the HDD connectors (x2) and replace the HDD. -
Page 13: Wall Mounting Module Installing
3-2. Wall Mounting Module Installing The box PC comes with wall mount brackets and if you do not need it. You can unfasten the screws (x4) by the side of box PC based on the direction. Likewise, you can assemble the box with mount brackets back by fastening the screws (x 4) by the side of box PC based on the direction. - Page 14 Please follow the steps to secure your own wall-mount brackets with specified screws to fix the system box onto the wall. Specified screws:M4.0*0.7P Suggested length: over 5 mm Mounting brackets installation should be operated by professional technician, please contact the service technician or your retail if you need this service.
-
Page 15: Memory Replacing
3-3. Memory Replacing 1. Unfasten 4 screws of mounting brackets and open the top cover. 2. Remove the top cover before memory replacement. 3. Use both fingers to pull the ejector clips out of the sides of the module. 4. Slide out to remove the memory module from the memory slot. 5. -
Page 16: Specification
4. Specification System ® CPU(SOC) Intel Celeron J1900 4C 2.0GHz 2M Cache Storage 1 x 2.5” SATA HDD HDD Support Memory 1 x 204-pin SO-DIMM socket DRAM Support DDR3L(1.35V) 1066/1333 MHz(Max:4GB) I/O Ports 1 x VGA D-SUB 15-pin Display 1 x HDMI port 2 x USB 2.0 port (Front side) 1 x USB 2.0 port &... -
Page 17: Jumper Setting
5. Jumper Setting 5-1. Motherboard Layout... -
Page 18: Connectors & Functions
5-2. Connectors & Functions Jumpers Location # Function Remark JSATA1 SATA2 Power ON/OFF setting 1 x 3 header CD_PWR1 Cash Drawer VCC Select 1 x 3 header CMOS1 Clear CMOS 1 x 3 header Connector Location # Function Remark COM1 RS232 DSUB-9M connector COM2... - Page 19 USB5 USB 2.0 1 x 4 wafer USB6 USB 2.0 1 x 4 wafer VGA2 VGA Header 2 x 5 header...
-
Page 20: Jumper Setting
5-3. Jumper Setting : Manufacturer Default Setting JSATA1 (Location # 20) PIN No. Description 3 2 1 CD_PWR1 (Location # 25) PIN No. Description CMOS1 (Location # 26) PIN No. Description NORMAL CLEAR CMOS... -
Page 21: Pin Define (Referring To 5-2 Table)
5-4. Pin Define (referring to 5-2 table) COM3, COM4 & COM6 (Location # 11, 12,13) PIN No. Description PIN No. Description DC_IN3 (Location # 1) PIN No. Description +24V +24V J5 (Location # 9) PIN No. Description PIN No. Description VCC3 SATALED SUSLED#... - Page 22 LINE_OUT1 (Location # 23) PIN No. Description LOUT_R LOUT_JD LOUT_L LPC1 (Location # 28) PIN No. Description PIN No. Description CLOCK LAD1 PCIRST LAD0 LFRAME VCC3 LAD3 LAD2 RJ1 Cash Drawer RJ11 connector (Location # 2) PIN No. Description Data_Out0 Data_In0 Power Data_Out1...
- Page 23 SPK_OUT1 (Location # 24) PIN No. Description SPK_R+ SPK_R- SPK_L- SPK_L+ SYS_FAN1 (Location # 22) PIN No. Description CTRL SENSE USB1,USB2,USB5,USB6 (Location # 14, 15,16,17) PIN No. Description USB_PWR USBN USBP...
-
Page 24: Drivers Installation
6. Drivers Installation 6-1. Installing Windows 7 32bit Device Driver 6-1-1.Chipset Driver Start chipset driver installing process by clicking file “SetupChipset” of folder “Chipset”. Installing process is as below (from left to right) - Page 26 6-1-2. Graphic Driver Start graphic driver installing process by clicking file “Setup” of folder “Intel Graphic Driver-32 bit”. Installing process is as below (from left to right).
- Page 28 6-1-3. Audio Driver Start audio driver installing process by clicking file “32bit_Win7_Win8_Win81_R273”of folder “audio”. Installing process is as below (From left to right)
- Page 30 6-1-4. LAN Driver Start LAN driver installing process by clicking file “QUICK_INSTALL_GUIDE” of folder “LAN”. Installing process is as below (From left to right)
-
Page 32: Installing Windows 8 32Bit Device Driver
6-2. Installing Windows 8 32bit Device Driver 6-2-1.Chipset Driver Start chipset driver installing process by clicking file “SetupChipset” of folder “Chipset”. Installing process is as below (From left to right) - Page 34 6-2-2. Graphic Driver Start graphic driver installing process by clicking file “Setup” of folder “Intel Graphic Driver-32 bit”. Installing process is as below (from left to right).
- Page 36 6-2-3. Audio Driver Start audio driver installing process by clicking file “32bit_Win7_Win8_Win81_R273”of folder “audio”. Installing process is as below (From left to right)
- Page 38 6-2-4. LAN Driver Start LAN driver installing process by clicking file “Setup” of folder “LAN”. Installing process is as below (From left to right)
-
Page 40: Appendix: Drivers Installation
Appendix: Drivers Installation To download the most recent drivers and utilities, and obtain advice regarding the installation of your equipment, please visit the AURES Technical Support Website: www.aures-support.fr (French) www.aures-support.fr/UK (English) www.aures-support.fr/GE (German)
