Xonar U5
5.1-Channel USB Audio Card
Quick Start Guide
Safety Information
1. Read and keep these instructions for future reference.
2. Follow all instructions and take note of all warnings.
3. Do not use this apparatus near water or expose the device to moisture.
4. Clean machine surface with a cloth. Avoid using detergent or cleaning fluid.
5. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
7. The polarized or grounding-type plug is for user safety. A polarized plug has two blades with one wider than the
other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement
of the outlet.
8. Protect the power cord from being stepped on or compressed particularly at the point where it exits from the
apparatus.
9. Only use attachments/accessories approved by the manufacturer.
10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When using a cart, take care to avoid tipping over the load when moving the device.
11. Unplug this apparatus during lightning storms or when not in use for a long period of time.
12. Refer all repairs to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
Package Contents
This package should contain the following:
• ASUS Xonar™ U5 5.1-Channel USB Audio Card x 1 • Quick Start Guide x 1
• Type B to A USB cable x 1 • Installation driver CD x 1
• S/PDIF TOSLINK optical adapter x 1
Q9301_Xonar U5 QSG.indd 1
System Requirements
To ensure a successful installation of the the Xonar U5 audio card, your computer must meet the following
requirements:
• IBM compatible PC with one USB1.1 (or higher) compatible port for the USB audio device
• Microsoft ® Windows ® 7 (32/64 Bit)/ Windows ® 8 (32/64 Bit)/ Windows ® 8.1 (32/64 Bit)
® ®
• Intel Pentium 4 1.4GHz, AMD Athlon 1400 CPU, or faster CPU
• 256 MB DRAM system memory
• 60 MB available HDD space for driver installation
• CD-ROM drive (or DVD-ROM drive) for software installation
• High-quality headphones, powered analog speakers, or a Dolby Digital decoder
Driver Installation
After connecting the Xonar U5 audio card to your computer, you need to install the device driver that enables the
Xonar U5 audio card to work with Windows operating system.
NOTE: Driver version and the contents of the support CD are subject to change without notice.
To install the device driver:
1. Insert the ASUS Xonar U5 support CD into your optical drive. If Autorun is enabled, the ASUS Xonar Card Driver
screen appears automatically. Go to step 4. If Autorun is not enabled in your computer, perform step 2.
2. Click Computer on your desktop and double-click the optical drive icon.
3. Double-click setup.exe located on the optical drive.
4. Click Driver to start the installation.
5. Follow the on-screen instructions to complete the installation. Read, understand, and accept the END USER
LICENSE AGREEMENT before continuing the installation.
6. When the installation finishes, you may be prompted to restart your computer. You can choose to restart the
computer at a later time.

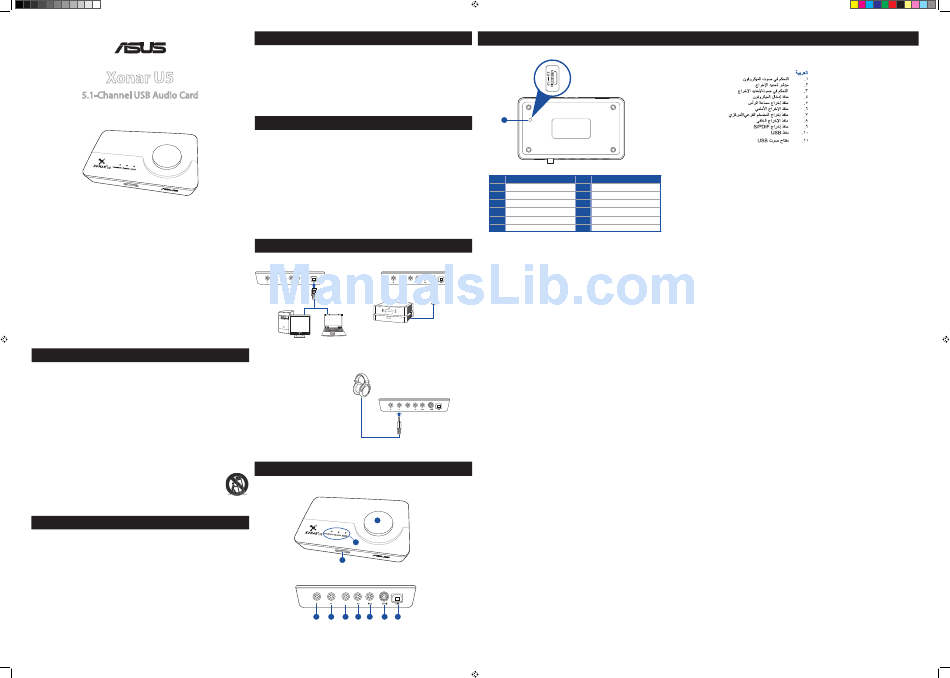

Functionality
USB DAC (Digital-to-Analog Convertor)
Stand alone DAC
Front Front
USB
S/PDIF
AVR
Laptop/Portable
Desktop PC
Headphone amplifier
Front
Hardware Features
Top view
3
2
1
Rear view
Front
4 5 6 7 8 9 10
Hardware Features
Bottom view
11
No. Item No. Item
1 Microphone Volume Control 7 Center/Subwoofer Out port
2 Output Selection Indicator 8 Rear Out port
3 Output Selection/Volume Control 9 S/PDIF Out port
4 Microphone In port 10 USB port
5 Headphone Out port 11 USB Audio 1.0/2.0 switch
6
Front Out port
繁體中文 ITALIANO
1 Controllo volume microfono
1 麥克風音量控制
2 Indicatore di selezione uscita
2 輸出選擇指示燈
3 Selezione uscita/Controllo volume
3 輸出選擇 / 音量控制
4 麥克風輸入插孔 4 Porta Ingresso Microfono
5 耳機輸出插孔 5 Porta Uscita Cuffie
6 前方喇叭輸出 6 Uscita altoparlanti anteriori
7 中央 / 重低音喇叭輸出 7 Porta Uscita Centro/Subwoofer
8. 後方喇叭輸出 8 Porta Uscita Posteriore
9 S/PDIF 輸出插孔 9 Uscita altoparlanti laterali/ Uscita S/PDIF
10 USB 連接埠 10 Porta USB
11 USB Audio 1.0/2.0 切換開關 11 Interruttore USB Audio 1.0/2.0
日本語
簡體中文
1 麥克風音量控制 1 マイクの音量調節
2 輸出選擇指示燈 2 出力選択インジケーター
3 輸出選擇 / 音量控制 3 出力選択 / 音量調節
4 マイク入力ポート
4 麥克風輸入插孔
5 ヘッドホン出力ポート
5 耳機輸出插孔
6 フロント出力ポート
6 前方揚聲器輸出
7 センター / サブウーファ
7 中央 / 重低音揚聲器輸出
出力ポート
8 後方揚聲器輸出
8 リア / バックサラウンド
9 S/PDIF 輸出插孔
出力ポート
10 USB 接口
9 S/PDIF 出力ポート
11 USB Audio 1.0/2.0 切換開
10 USB ポート
FRANÇAIS
11 USB Audio Class
スイッチ
1 Contrôle de volume du microphone
РУССКИЙ
2 Indicateur de sélection de sortie
1 Регулировка громкости микрофона
3 Sélection de sortie/Contrôle de volume
2 Индикатор выбранного выхода
4 Port d'entrée microphone
3 Выбор выхода / Регулировка громкости
5 Prise casque
4 Разъем для микрофона
6 Sortie audio avant
5 Разъем для наушников
7 Sortie centrale/caisson de basses
6 Выход фронтального канала
8 Port de sortie arrière
7 Выход центрального канала/сабвуфера
9 Sortie S/PDIF
8 Выход тылового канала
10 Port USB
9 S/PDIF-выход
11 Interrupteur USB Audio 1.0/2.0
10 USB-порт
DEUTSCH
11 Переключатель USB Audio 1.0/2.0
1 Mikrofonlautstärkeregler
한국어
2 Ausgangsauswahlanzeige
1 마이크 볼륨 조절
3 Ausgangsauswahl-/Lautstärkeregler
2 출력 선택 표시기
4 Mikrofoneingang
3 출력 선택 / 볼륨 제어
5 Kopfhörerausgang
4 마이크 입력 포트
6 Vorderer Anschluss
5 헤드폰 출력 포트
7 Center/Subwoofer-Ausgang
6 전면 출력 포트
8 Rück-Surround-Ausgang
7 센터 / 서브우퍼 출력 포트
9 S/PDIF-/Seiten-Ausgang
8 후면 출력 포트
10 USB-Port
9 S/PDIF 출력 / 측면 출력 포트
11 USB-Audio 1.0/2.0-Schalter
Q9301 / First Edition / June 2014
10 USB 포트 2 Lähtövalinnan merkkivalo
11 USB 오디오 1.0/2.0 스위치 3 Lähtövalinta / Äänenvoimakkuuden säätö
4 Mikrofonituloportti
5 Kuulokelähtöportti
6 Etulähtöportti
7 Keski-/Subwoofer-lähtöportti
8. Takalähtöportti
9. S/PDIF-lähtöportti
10. USB-portti
11. USB-audio 1.0/2.0 -kytkin
ΕΛΛΗΝΙΚΆ
БЪЛГАРСКИ
1 Ρύθμιση έντασης ήχου μικροφώνου
1 Управление на микрофона 2. Δείκτης επιλογής εξόδου
3. Επιλογή εξόδου/Έλεγχος έντασης
2. Индикатор за избор на изходен сигнала
4. Θύρα εισόδου μικροφώνου
3. Избор на изходен сигнал/управление на силата на
звука
5. Θύρα εξόδου ακουστικών
4. Вход за микрофон
6. Πρόσθια θύρα εξόδου
5. Изход за слушалки
7. Κεντρική/Subwoofer θύρα εξόδου
6. Изходен порт отпред
8. Οπίσθια θύρα εξόδου
7. Изходен порт център/събуфер
9. Θύρα εξόδου S/PDIF
8. Заден изход
10. Θύρα USB
9. S/PDIF изход
11. Διακόπτης εναλλαγής ήχου USB 1.0/2.0
10. USB порт
MAGYAR
11. Превключване на USB аудио 1,0/2,0
1 Mikrofon hangerő-szabályozó
HRVATSKI
2. Aktív kimenet kijelzője
1 Regulacija glasnoće mikrofona
3. Kimenetválasztás/Hangerő-szabályozó
2 Indikator odabranog izlaza
4. Mikrofon-csatlakozó
3 Odabir izlaza/regulator glasnoće
5. Fejhallgató-csatlakozó
4 Ulazni priključak za mikrofon
6. Első kimeneti port
5 Izlazni priključak slušalica
7. Középső/Mélysugárzó kimenet
6 Prednji izlazni priključak
8. Hátsó kimeneti port
7 Priključak izlaza srednjeg/bas zvučnika
9. S/PDIF kimeneti port
8. Stražnji izlazni priključak
10. USB-port
9 S/PDIF izlazni/bočni priključak
11. USB Audio 1.0/2.0 kapcsoló
10 USB priključak
Bahasa Indonesia
11 USB Audio 1.0/2.0 preklopnik
1 Kontrol Volume Mikrofon
ČEŠTINA
2 Indikator Pilihan Output
1 Ovládání hlasitosti mikrofonu
3 Pilihan Output/Kontrol Volume
2. Indikátor výběru výstupu
4 Port Masuk Mikrofon
3. Výběr výstupu/ovládání hlasitosti
5 Port keluar headphone
4. Port vstupu mikrofonu
6 Port output depan
5. Výstupní port pro připojení sluchátek
7 Port keluar tengah/subwoofer
6. Přední výstupní port
8 Port Belakang Keluar
7. Port výstupu středového reproduktoru/subwooferu
9 S/PDIF Out header
8. Zadní výstupní port
10 Port USB
9. Výstupní port S/PDIF
11 Sakelar audio USB 1.0/2.0
10. Port USB
NORSK
11. Přepínač USB Audio 1.0/2.0
1 Volumkontroll for mikrofon
DANSK
2. Indikator for utgangsvalg
1 Mikrofon-lydstyrkeindstilling
3. Utgangsvalg/volumkontroll
2. Indikator for valg af udgang
4. Mikrofon-inngangsport
3. Valg af udgang/Lydstyrkeindstilling
5. Hodetelefon-utgangsport
4. Mikrofonindgangsstik
6. Fremre utgangsport
5. Høretelefonudgangsstik
7. Senter/subwoofer-utgangsport
6. Udgangsstik foran
8. Bakre utgangsport
7. Midter/Subwoofer-udgangsstik
9. S/PDIF ut-port
8. Udgangsstik bagpå
10. USB-port
9. S/PDIF-udgangsstik
11. USB lyd 1.0/2.0-bryter
10. USB-port
POLSKI
11. USB-lyd 1.0/2.0 skifteknap
1 Regulacja głośności mikrofonu
NEDERLANDS
2. Wskaźnik wyboru wyjścia
1 Volumeregeling microfoon
3. Wybór wyjścia/regulacja głośności
2. Indicator uitgangsselectie
4. Port wejściowy mikrofonu
3. Uitgangsselectie/volumeregeling
5. Port wyjściowy słuchawek
4. Microfooningang
6. Port wyjściowy głośnika przedniego
5. Hoofdtelefoonuitgang
7. Port wyjściowy głośnika centralnego/subwoofera
6. Uitgang voor
8. Port wyjściowy głośnika tylnego
7. Midden/subwooferuitgang
9. Port wyjściowy S/PDIF
8. Uitgang achter
10. Port USB
9. S/PDIF-uitgang
11. Przełącznik USB Audio 1.0/2.0
10. USB-poort
PORTUGUÊS
11. USB audio 1.0/2.0-schakelaar
1 Controlo de volume do microfone
SUOMI
2 Indicador de selecção de saída
1 Mikrofonin äänenvoimakkuuden säädin 3 Selecção de saída/controlo de volume
