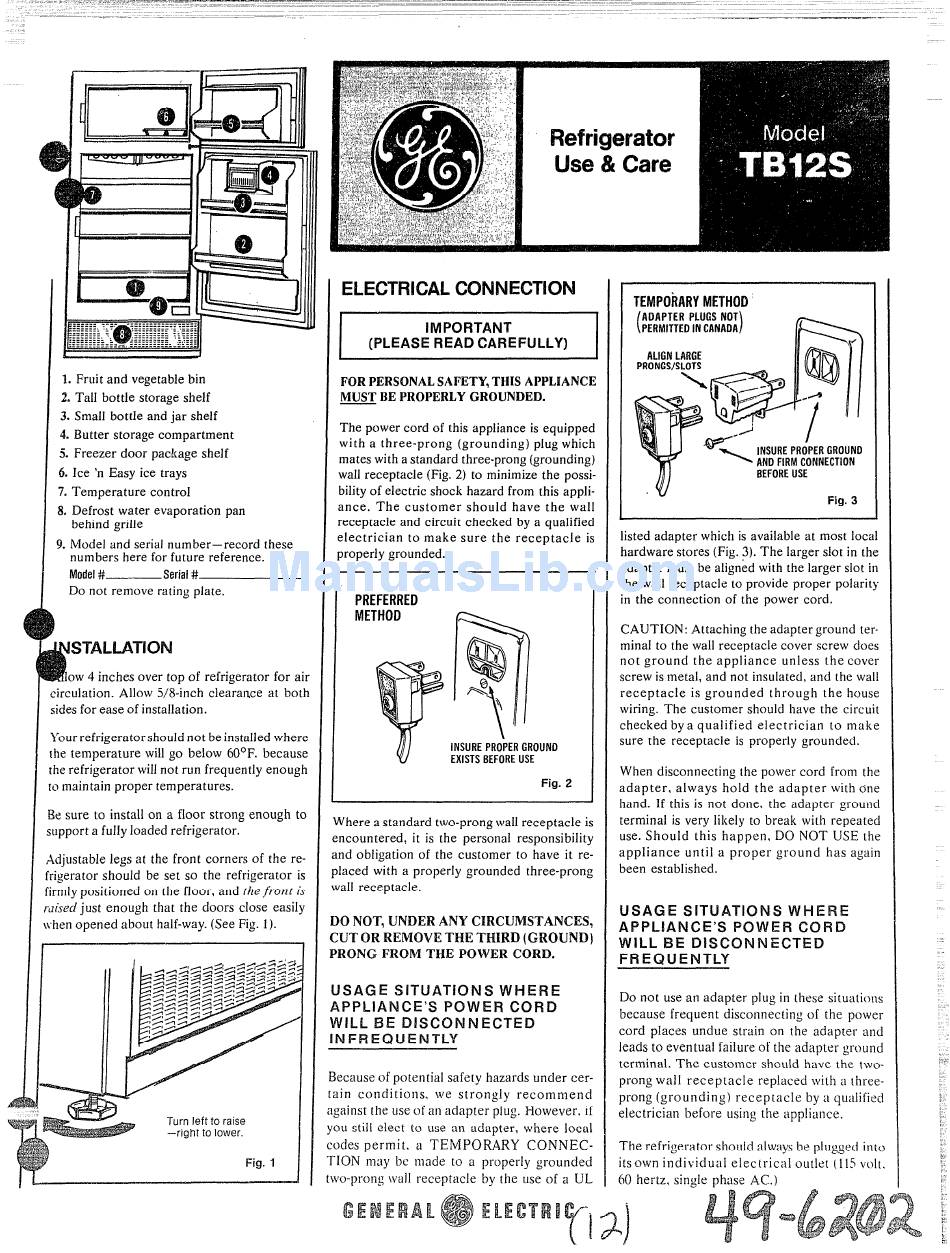

GE TB12S Use & Care Manual

F
m?7Till
1. Fruit and vegetable bin
2. Tall bottle storage shelf
3. Small bottle and jar shelf
4. Butter storage compartment
5. Freezer door package shelf
6. Ice 'n Easy ice trays
?. Temperature control
8. Defrost water evaporation pan
9.
behind grille - "
Model and serial number–record these
numbers here for future reference.
Model # Serial #
Do
not remove rating plate.
&KmuATm
I!P
low 4 inches over top of refrigerator for air
irculation. Allow 5/8-inch clearance at both
ides for ease of installation.
'ourrefrigerator should not be installed where
~etemperature will go below 60°F. because
Ie refrigerator willnot run frequently enough
~maintain proper temperatures.
e sure to install on a floor strong enough to
Ipport a fully loaded refrigerator.
djustable legs at the front corners of the re-
gerator should be set so the refrigerator is
mly positioned on the floor, and
the,fiorzt is
i.sed
just enough that the doors close easily
]en opened about half-way.(See Fig. 1).
Fig. 1
Flefrigerator I
Use & Care
ELECTRICAL
CONNECTION
liVIPOFtTANT
(PLEASE READ CAREFULLY)
FORPERSONAL SAFETY, T HISAPPLIANCE
MUSTBEPROPERLY GROUNDED.
The power cord of this appliance is equipped
with a three-prong (grounding) plug which
mates with a standard three-prong (grounding)
wall receptacle (Fig. 2) to minimize the possi-
bility of electric shock hazard from this appJi-
ance. The customer should have the wall
receptacle and circuit checked by a qua]ified
electrician to make sure the receptacle is
properly grounded.
PREFERRED
METHOD
(!
INSUREPROPER GROUND
EXISTSBEFORE USE
Fig. 2
Where a standard two-prong wall receptacle is
encountered. it is the personal responsibility
and obligation of the customer to have it re-
placed with a properly grounded three-prong
wall receptacle.
DO NOT,
UNDERANY CIRCUMSTANCES,
CUTOR REMOVETHETHIRD (GROUND)
PRONGFROM THE POWER CORD.
USAGE SITUATIONs WHERE
APPLIANCE'S PC)WEFI CO1312
WILLBE DISCONN
ECTE13
IN FFI EQ U E N T'LY
Because of potential safety hazards under cer-
tain conclitions, we strongly recommend
against the use of an adapter plug. However, if
you still elect 10 use an adapter, where local
codes permit, a TEMPORARY CONNEC-
TION may bc made to a properly grounded
we-prong ivtill receptacle by the use of a UL
TEMPORARY METHOD
(
ADAPTERPLUGSNOT
PERMITTED INCANADA
'r&>
!1
BEFORE USE
Fig. 3
listed ada~ter which is available at most local
hardware 'stores (Fig. 3). The larger slot in the
adapter must be aligned with the larger slot in
the wall receptacle to provide proper polarity
in the connection of the power cord.
CAUTION: Attaching the adapter ground ter-
minal to the wall receptacle cover screw does
not ground the appliance unless the cover
screw is metal, and not insulated, and the wall
receptacle is grounded through the house
wiring. The customer should have the circuit
checked by a qualified electrician to make
sure the receptacle is properly groundecl,
When disconnecting the power cord from the
adapter, always hold the adapt er with one
hand. If this is not done. the adapter ground
terminal is very likely to break with repeated
use. Should this happen, DO NOT USE the
appliance until a proper ground has again
been established.
USAGE SITUATIONS WI+ ERE
APPL!ANCE'S POWER CORD
WILL BE DISCONNECTED
FREQUENTLY
Do not use an adapter plug in these situatit>lls
because frequent disconnecting of the power
cord places undue strain on the adapter and
leads to eventual failure of the adapter ground
terminal. The customer should have the two-
prong wall receptacle replaced with a [hree-
prong (grounding) receptacle by a qualified
electrician before using the appliance.
The refrigerator should alwaysbe plugged int~
its own indi vidu ai elec (ric ai outlet (115v~>lt
60 hertz, single phase AC.)
