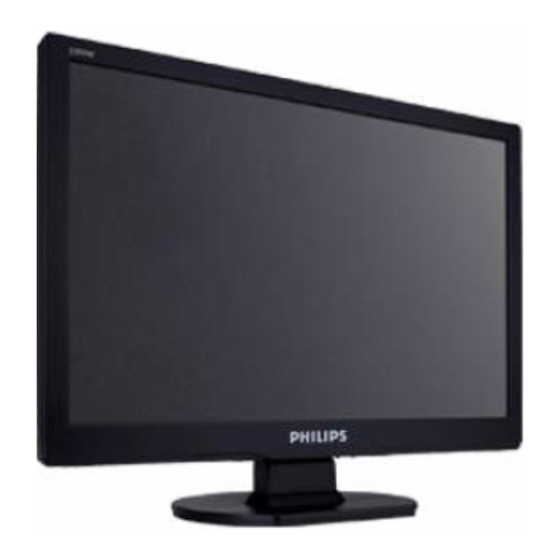

Philips 190VW9FB/97(1) Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

19" LCD Color Monitor
Service
Service
Service
Description
Table Of Contents.....................................................1
Revision List........................................................2
Important Safety Notice.............................................3
1. Monitor Specifications..............................................4
2. LCD Monitor Description..........................................6
3. Operation instructions.............................................7
3.1General Instructions........................................7
3.2 Control buttons...............................................7
3.3 Adjusting the Picture...............................................9
3.4 Connecting to the PC ........................................11
4. Input/Output Specification......................................12
4.1 Input Signal Connector.........................................12
4.2 Factory Preset Display Modes...............................12
4.3 Pixel Defect Policy..........................................13
4.4 Failure Mode Of Panel ....................................16
5. Block Diagram.................................................17
5.1 Software Flow Chart.............................................17
5.2 Electrical Block Diagram....................................19
6. Schematic Diagram.............................................21
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE
CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN
SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING
REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES
Copyright 2008 Philips Consumer Lifestyle
190VW9FB/97(1)
190VW9FB/97(2)
190VW9FB/94(1)
190VW9FB/94(2)
190VW9FB/62(1)
190VW9FB/27(2)
190VW9FB/27(1)
190VW9FB/75(2)
190VW9FB/05(1)
190VW9FB/93(2)
190VW9FB/00(1)
190VW9FB/62(2)
190VW9FB/75(1)
190VW9FB/00(2)
190VW9FB/93(1)
190VW9FB/05(2)
190VW9FB/78(1)
Page
Description
6.1 Main Board.................................................21
6.2 Power Board...............................................26
6.3 Key Board...................................................28
7. PCB Layout........................................................29
7.1 Main Board........................................................29
7.2 Power Board......................................................31
7.3 Key Board...................................................33
8. Wiring Diagram................................................34
9. Scalar Board Overview.....................................35
10. Mechanical Instructions......................................36
11. Trouble shooting...........................................41
12. Repair Flow Chart.........................................43
13. ISP Instructions....................................................49
14. DDC Instructions................................................57
16. Monitor Exploded View......................................67
17. Recommended & Spare Parts List.........................68
18. Different Parts List.............................................72
19. General Product Specification..........................76
SAFETY NOTICE
Subject to modification ○
Chassis: HUDSON 9
GB
Mar, 14, 2008
K
Page
3122 785 17860

Advertisement

Table of Contents
loading

Related Manuals for Philips 190VW9FB/97(1)

Summary of Contents for Philips 190VW9FB/97(1)

  • Page 1: Table Of Contents

    SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES. CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES Copyright 2008 Philips Consumer Lifestyle Subject to modification ○ Mar, 14, 2008 3122 785 17860...

  • Page 2: Revision List

    Initial release, Draft Version Add CTV Model 190VW9FB/00, 190VW9FB/05,190VW9FB/27, Mar.28, 2008 190VW9FB/94 and 190VW9FB/97 Apr.02, 2008 Add Philips 12NC for 190VW9FB/94 and 190VW9FB/97 Apr.16, 2008 Add CTV Model 190VW9FB/75, 190VW9FB/93 May.14, 2008 Perfect Philips 12NC for 190VW9FB/75 and 190VW9FB/94 July.09.2008...

  • Page 3: Important Safety Notice

    HUDSON 9 Important Safety Notice Proper service and repair is important to the safe, reliable operation of all Philips Company Equipment. The service procedures recommended by Philips and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose.

  • Page 4: Monitor Specifications

    HUDSON 9 1. Monitor Specifications...
  • Page 5 HUDSON 9...

  • Page 6: Lcd Monitor Description

    HUDSON 9 2. LCD Monitor Description The LCD monitor will contain a main board, a power board and a key board which house the flat panel control logic, brightness control logic and DDC. The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each voltage.

  • Page 7: Operation Instructions

    HUDSON 9 3. Operating Instructions 3.1 General Instructions Press the power button to turn the monitor on or off. The other control buttons are located at the front of the panel of the monitor. By changing these settings, the picture can be adjusted to your personal preferences. The power cord should be connected.
  • Page 8 HUDSON 9 Rear View...

  • Page 9: Adjusting The Picture

    HUDSON 9 3.3 Adjusting the Picture Description of the On Screen Display When you press the button on the front control of your monitor, the On-Screen Display (OSD) Main Controls window will pop up and you can then start making adjustments to your monitor's various features. Use the keys to make your adjustments.
  • Page 10 HUDSON 9 The OSD Tree Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on.

  • Page 11: Connecting To The Pc

    HUDSON 9 3.4 Connecting to the PC 1) Connect the power cord to the back of the monitor firmly. 2) Connect to PC (a) Turn off your computer and unplug its power cable. (b) Connect the monitor signal cable to the video connector on the back of your computer. (c) Plug the power cord of your computer and your monitor into a nearby outlet.

  • Page 12: Input/Output Specification

    HUDSON 9 4. Input/ Output Specification 4.1 Input Signal Connector Analog connectors Pin No. Description Pin No. Description Red video input Green video input Logic Ground Blue video input Ground Sense (GND) Serial data line (SDA) Cable detect (GND) H. Sync Red video ground V.

  • Page 13: Pixel Defect Policy

    HUDSON 9 4.3 Pixel Defect Policy...
  • Page 14 HUDSON 9...
  • Page 15 HUDSON 9...

  • Page 16: Failure Mode Of Panel

    HUDSON 9 4.4 Failure Mode Of Panel Quick reference for failure mode of LCD panel this page presents problems that could be made by LCD panel. It is not necessary to repair circuit board. Simply follow the mechanical Polarizer has bubbles instruction on this manual to eliminate failure by replace LCD panel.

  • Page 17: Block Diagram

    HUDSON 9 5. Block Diagram 5.1 Software Flow Chat...
  • Page 18 HUDSON 9 1) MCU initialize. 2) Is the EPROM blank? 3) Program the EPROM by default values. 4) Get the PWM value of brightness from EPROM. 5) Is the power key pressed? 6) Clear all global flags. 7) Are the AUTO and SELECT keys pressed? 8) Enter factory mode.

  • Page 19: Electrical Block Diagram

    HUDSON 9 5.2 Electrical Block Diagram 5.2.1 Main Board Panel Interface (CN403) Scalar TSUM1PFR-LF EEPROM Keypad Interface (Include MCU, ADC, OSD) M24C16 (CN401) (U401) (U403) H sync V sync Flash Memory Crystal SST25VF010A-33-4C 14.31818MHZ (U402) (X401) D-Sub Connector (CN101) VGA_R+, VGA_SDA, VGA_G+, VGA_SCL...
  • Page 20 HUDSON 9 5.2.2 Inverter/Power Board AC input Bridge Rectifier Transformer Rectifier diodes EMI filter and Filter Start Circuit: R904、R905、R906 Feedback Circuit Control IC ON/OFF Output MOSFET Circuit Transformer Lamp Over ON/OFF Feedback Voltage Control Circuit Control IC...

  • Page 21: Schematic Diagram

    HUDSON 9 6. Schematic 6.1 Main Board 715G2904-1 TSUM16FWR SCHEMATIC XGA/SXGA LVDS OUTPUT DSUB_R+ DSUB_R+ VCC1.8 DSUB_R- DSUB_R- DSUB_G+ DSUB_G+ VCC3.3 DSUB_G- DSUB_G- VCC1.8 DSUB_SOG DSUB_SOG CMVCC DSUB_B+ DSUB_B+ DSUB_5V DSUB_B- DSUB_B- VCC3.3 CMVCC1 DSUB_H DSUB_H CMVCC1 DSUB_V DSUB_V DSUB_5V DDC1_SDA DDC1_SDA CMVCC...
  • Page 22 HUDSON 9 Input H_Sync R101 0R05 1/10W 5% R102 100R 1/16W 5% DSUB_H V_Sync R103 100R 1/16W 5% FB102 DSUB_V C101 R104 VGA_B+ CN101 B3 DSUB_B+ VCC3.3 R105 R106 C102 C103 BEAD 100R 1/16W 5% C101 A7 2K2 1/16W 5% 2K2 1/16W 5% 0.047uF C102 A4...
  • Page 23 HUDSON 9 Scalar AVDD VDDP VDDC CN401 G1 VCC3.3 VDDP AVDD FB401 CN402 G7 C401 C3 U401 VCC3.3 C403 A9 300OHM C404 A9 VCTRL VCTRL C403 C404 C406 B9 LVA3P C407 B9 0.1uF/16V 0.1uF/16V DSUB_R+ RIN0P LVA3M C408 C1 DSUB_R- RIN0M PA[0..1] C409 D10...
  • Page 24 HUDSON 9 Output PANEL_VCC CN403 PA[0..1] PB[0..9] PA[0..1] PB[0..9] CN403 A5 C419 C2 C420 A4 R434 C420 C421 C3 PA[4..9] PA[4..9] FB402 C3 330 OHM 1/4W 0.1uF/16V Q404 C2 Q405 C3 R433 C2 R434 A4 R435 C1 R436 C2 CMVCC AO3401L CMVCC R433...
  • Page 25 HUDSON 9 Power Due to LG doen't request PC'99 Function. CN404 B1 C422 D6 D401 R458 C423 B7 C425 B3 0Ohm 1/16W C426 D5 C427 D7 ESD_VCC 2 C428 D5 OTHER BAV99 C432 B7 DSUB_5V D401 A2 CMVCC D402 B2 DSUB_5V 2 FB403 C6 Q406 B4...

  • Page 26: Power Board

    HUDSON 9 6.2 Power Board 715G2824-I Power 100 OHM 1/4W R918 FB904 L904 +16V 100 OHM 1/4W R919 3.5uH C912 BEAD BD901 0.001uF R946 ZD902 100 OHM 1/4W R920 150OHM2W RLZ18B KBP208G C917 C918 680uF25V 680uF25V FB902 80OHM T901 Q903 R943 POWER X'FMR PMBS3904...
  • Page 27 HUDSON 9 Inverter +16V R805 100R 1/10W 5% ON/OFF D801 1N4148W Q805 CN801 PT801 CN801 A7 CN802 A7 POWER X'FMR C819 CN803 C7 CN804 C7 R806 100R 1/8W 68pF/3KV ZD802 C816 C801 B3 C802 B3 RLZ5.6B 22pF/6KV C803 C1 C804 C1 ZD803 D802 1N4148W C805 C2...

  • Page 28: Key Board

    HUDSON 9 6.3 Key Board 715G3016-1 LED_RED# LED_GRN# LED001 CN001 R001 4.3K OHM 1% 1/8W LBADC1 R002 2.4K OHM 1% 1/8W LBADC2 DC_POWERON R003 910R 1/8W LED_GRN# LED_RED# R004 4.3K OHM 1% 1/8W C001 C002 C003 C004 C005 R005 2.4K OHM 1% 1/8W NC/0.001uF NC/0.001uF NC/0.001uF...

  • Page 29: Pcb Layout

    HUDSON 9 7. PCB Layout 7.1 Main Board 715G2904-1 C101 FB101 B2 R418 C428 C102 FB102 B2 R419 R405 C103 FB103 B2 R420 SEN4 C104 FB401 B2 R421 C429 C105 FB402 A2 R424 R406 C106 FB403 A1 R425 U102 C107 FDT2 R426 C432...
  • Page 30 HUDSON 9...

  • Page 31: Power Board

    HUDSON 9 7.2 Power Board 715G2824-I BD901 D3 J821 BD901A D3 J823 BD901B D3 J824 C604 J825 C812 J826 C816 J829 C817 J830 C819 J831 C820 J832 C821 J833 C822 J834 C824 J835 C900 J836 C901 J837 C902 J838 C903 J901 C905 J902...
  • Page 32 HUDSON 9 C601 R818 D805 R926 C602 R819 D806 R927 C603 R820 D807 R930 C606 R821 D808 R935 C608 R822 D809 R938 C609 R823 D903 R939 C610 R824 FB902 C3 R940 C611 R825 IC801 B2 R942 C612 R826 IC901 C3 R943 C613 R827...

  • Page 33: Key Board

    HUDSON 9 7.3 Key Board 715G3016-1 CN001 A3 GND1 GND2 LED001 A2 SW001 A1 SW002 A2 SW003 A1 SW004 A2 SW005 A3 C001 C002 C003 C004 C005 C006 C007 C008 C009 C010 R001 R002 R003 R004 R005 R007 ZD001 A1 ZD002 A3 ZD003 A1 ZD004 A2...

  • Page 34: Wiring Diagram

    HUDSON 9 8. Wiring Diagram Panel 89G179E30N576 FFC Cable 30 Pin CN403 CN902 CN802 CN801 Power Board Main Board CN404 TSUM1PFR-LF U401 CN804 CN401 AC IN CN803 CN101 CN901 D-SUB 6 Pin Key Board CN001...

  • Page 35: Scalar Board Overview

    HUDSON 9 HUDSON 9 9. Scalar Board Overview DC-DC Converters DC-DC Converters D-SUB Morning Star chip D-SUB Flash ROM EEPROM...

  • Page 36: Mechanical Instructions

    HUDSON 9 10. Mechanical Instructions 1. Back View as Fig1 Place the monitor face down on a smooth surface as Fig 1. Be careful to avoid scratch and injury during the uninstallation. Fig1 2. Remove the hinge as Fig2. Remove the three screws remarked in red to remove the hinge as Fig2. Fig2...
  • Page 37 HUDSON 9 3. Remove rear cover as Fig3~Fig7. Fig3 Fig4 Fig5...
  • Page 38 HUDSON 9 Fig6 Fig7 4. Remove the bezel as Fig8. Pull out the key board from the bezel Fig8...
  • Page 39 HUDSON 9 5. Remove main frame cover as Fig9~Fig10. a. Remove the two screws marked in red as Fig9. b. Disconnect the four connector marked in blue as Fig9. c. Remove the two screws marked in red as Fig10. Fig9 Fig10 6.
  • Page 40 HUDSON 9 7. Remove scalar board as Fig12~Fig13. a. Remove the screw remarked in red as Fig12. b. Disconnect the two connectors marked in blue as Fig12. c. Remove the two screws remarked in red as Fig13. Fig12 Fig13...

  • Page 41: Trouble Shooting

    HUDSON 9 11. Trouble Shooting This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these solutions, contact Philips customer service representative.
  • Page 42 HUDSON 9...

  • Page 43: Repair Flow Chart

    HUDSON 9 12. Repair Flow Chart 12.1 Main Board (1). No Power No power Press power key and look if the picture is normal Please reinsert and make sure the AC of 100-240 is normal Reinsert or check the Adapter/Inverter section Measure U404 PIN2=3.3V Q409 V =1.8V...
  • Page 44 HUDSON 9 (2). No Picture No picture The button if X401 oscillate Replace X401 under control waveform is normal Check reset circuit of Check Correspondent component U401 is normal Measure U404 PIN2=3.3V Q409 V =1.8V collector Replace U401 Check U404, Q409 and Q410 X401 oscillate waveform is normal Replace X401...
  • Page 45 HUDSON 9 (3). White screen White screen Measure Q404 base X401 oscillate waveform is normal is low level? Replace X401 Check Q404, Q405 is broken or CN403 solder? Check reset circuit of U401 is normal Check Correspondent Check Correspondent component. component.
  • Page 46 HUDSON 9 11.2. Power/Inverter Board (1) No power Check ZD902 (-) = 16V Check AC line volt 110V or 220V Check AC input Check the voltage of C905 (+) Check bridge rectified circuit and F901 circuit Check start voltage for the pin3 of IC901 Check R904, R905, R906 and Change IC901 Check the auxiliary voltage is bigger than 10V and smaller than 20V...
  • Page 47 HUDSON 9 (2) W / LED, No Backlight Check CN902 pin4 = 16V Check adapter or MB Check ON/OFF signal Check Interface board Check IC801 PIN2=5V Check Q801 and ZD801 Check IC801 PIN1, 15 have the output of square wave at short Change IC801 Check Q805 and Q806 PIN5, 6, 7, 8 have the output of square wave at short time.
  • Page 48 HUDSON 9 12.3 Key Board OSD is unstable or not working Is Key Pad Board connecting normally? Connect Key Pad Board Replace Button Switch Is Button Switch normally? Replace Key Pad Board Is Key Pad Board normally? Check Main Board...

  • Page 49: Isp Instructions

    HUDSON 9 13. ISP Instruction 1. When do the part, need the tools as follow: a. An i486 (or above) personal computer or compatible. b. Microsoft operation system Windows 95/98/2000/XP. c. “ PORT95NT.exe” program d. Software ISP SN Alignment kits The kit contents: a.
  • Page 50 HUDSON 9...
  • Page 51 HUDSON 9...
  • Page 52 HUDSON 9 Click to complete the installation.
  • Page 53 HUDSON 9 Note: After installation, you must restart the PC to take the setup to effect. 3. Connect the ISP board as follow: Connect to Connect to the the PC LPT Philips 190VW9...
  • Page 54 HUDSON 9 4. The process of ISP write is as follows. a. Double-click ，running the program as follows:...
  • Page 55 HUDSON 9 b. Click icon, search the program” 190VW9_TSUM1PFR_MT19WW1_20080229_V100”, and click open:...
  • Page 56 HUDSON 9 c. Click icon, it will auto run. If burn in success, it will show as the follow picture:...

  • Page 57: Ddc Instructions

    HUDSON 9 14. DDC Instruction General DDC Data Re-programming In case the main EEPROM with Software DDC which store all factory settings were replaced because a defect, repaired monitor’ the serial numbers have to be re-programmed. It is advised to re- soldered the main EEPROM with Software DDC from the old board onto the new board if circuit board have been replaced, in this case the DDC data does not need to be re-programmed.
  • Page 58 HUDSON 9 2. Install the “WinDDC_ setup” Second, you must install the . The processing as follows:...
  • Page 59 HUDSON 9...
  • Page 60 HUDSON 9 Click to complete the installation. 3. Connect the DDC board as follow: Connect to the PC LPT When you write analog EDID, Connect this port to the Philips 190VW9’s VGA port 12V Input...
  • Page 61 HUDSON 9 4. Take analog DDC write for example, as follow a. Double-click ，appear as follow Figs：...
  • Page 62 HUDSON 9 b. Click c. Key 14 numbers in the Serial Number blank, then click “OK”. Now analog DDC Write completes, as follow.
  • Page 63 HUDSON 9 190VW9 EDID Analog 128 bytes EDID Data (Hex): 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 00 FF FF FF FF FF FF 00 41 0C 21 C0 20 E7 04 00 16: 0C 0D 01 03 0E 28 19 78 2A A1 50 A3 57 4C 9D 25 32: 11 50 54 BF EE 80 71 4F 95 00 95 0F 01 01 01 01 48: 01 01 01 01 01 01 9A 29 A0 D0 51 84 22 30 50 98...
  • Page 64 Detailed Timing: 1440x900 @ 60Hz. <-x-Detailed Timing Descriptions-x-> <---Detailed Timing Descriptions---> Detailed Timing: FF (Monitor SN) '123131232131' Detailed Timing: FC (Monitor Name) 'Philips 190VW' Detailed Timing: FD (Monitor limits) Min. V. rate: 56Hz Max. V. rate: 76Hz Min. H. rate: 30KHz Max.

  • Page 65: White Balance, Luminance Adjustment

    HUDSON 9 15. White Balance, Luminance Adjustment 1. Apparatuses and program: analyzer CA-210, PC, tool, FGA adjustment program (PHILIPS1190VW9.DDCI), Pattern generator. 2. Equipment installation: a. Connect analyzer CA-210 to PC by USB connector, install drive program CA-SDK Ver4.00 for CA-210 and restart PC after finish installing.
  • Page 66 HUDSON 9 4. Color Temp confirmation Connect the signal to the monitor, the monitor display white-picture, use CA-210 to measure the Color Temp of the screen center and select the OSD to make sure whether the Color Temps accord with the SPEC.

  • Page 67: Monitor Exploded View

    HUDSON 9 16. Monitor Exploded View 190VW9 Description BEZEL PANEL REAR COVER19" STAND TOP HINGE STAND BASE 190VW KEY PAD KEY BOARD ASSY POWER BOARD ASSY SCALER BOARD ASSY...

  • Page 68: Recommended & Spare Parts List

    2nd source E08907 996510014811 089G179E30N576 FFC CABLE E08907 996510014812 089G179J30N576 FFC CABLE 2nd source FQ301 996510015663 089G404A15N IS POWER CORD FQ203 996510016085 Q45G 88609 77 EPE COVER FQ205 996510016083 705GQ8CS002 CUSHION ASSY FQ202 996510016084 Q44G9115813 1A 19 LCD PHILIPS CARTON...
  • Page 69 HUDSON 9 FQ103 996510014817 705GQ834046 STAND BASE ASS'Y U401 996510014825 056G 562557 IC TSUM1PFR-LF U404 996510005697 056G 563 52 IC AP1117D33LA TO252-3L ATC U102 996510014826 056G 662 13 IC AZC099-04S SOT23-6L U103 996510014826 056G 662 13 IC AZC099-04S SOT23-6L U403 996500037783 056G1133 56 M24C16-WMN6TP...
  • Page 70 E08907 996510014812 089G179J30N576 FFC CABLE F901 996510017352 084G 56 3 B FUSE 3.15A 250V F903 996510017352 084G 56 3 B FUSE 3.15A 250V FQ202 996510016084 Q44G9115813 1A 19 LCD PHILIPS CARTON FQ203 996510016085 Q45G 88609 77 EPE BAG FOR MONITOR...
  • Page 71 056G 379 98 IC LD7552DPS SOP-8 X401 996510014824 093G 22 53 J 14.31818MHZ/32PF/49US Service Kit Description PCM Codes Philips 12NC Remark DDC KIT 715L2005C2 9965 000 43197 FOR ALL MODEL OSD SN KIT 715GT033 C 9965 000 43252 FOR ALL MODEL...

  • Page 72: Different Parts List

    HUDSON 9 18. Different Part List Diversity of 190VW9FB/27(1) compared with 190VW9FB/97(1) 190VW9FB/27(1) 190VW9FB/97(1) Location Philips 12NC PCM Codes Description Philips 12NC PCM Codes Description FQ301 089G402A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD FQ201 Q40G 19N81328A RATING LABEL...
  • Page 73 POWER CORD FQ106 996510017731 Q34G0366ADTF1B0130 BEZEL 190VW9 996510017732 Q34G0366ADTE1B0130 BEZEL_190VW FQ202 996510017314 Q44G9115813 2A 19 LCD PHILIPS CARTON 996510016084 Q44G9115813 1A 19 LCD PHILIPS CARTON Diversity of 190VW9FB/78(1) compared with 190VW9FB/97(1) 190VW9FB/78(1) 190VW9FB/97(1) Location Philips 12NC PCM Codes Description Philips 12NC...
  • Page 74 E08901 089G402A15N IS POWER CORD 996510015663 089G404A15N IS POWER CORD FQ202 Q44G9115813 3A 19 LCD PHILIPS CARTON Q44G9115813 1A 19 LCD PHILIPS CARTON IC904 056G 158504AME IC AME431BAJATB25Z AME 056G 158 12 KIA431A-AT/P TO-92 Diversity of 190VW9FB/62(2) compared with 190VW9FB/97(2)
  • Page 75 089G404A15N IS POWER CORD FQ106 996510017841 Q34G0410ADTB1B0130 BEZEL(HUDSON9-190VW9) 996510017608 Q34G0410ADTA1B0130 BEZEL(HUDSON9-190VW9) FQ202 996510017314 Q44G9115813 2A 19 LCD PHILIPS CARTON 996510016084 Q44G9115813 1A 19 LCD PHILIPS CARTON FQ204 996520034251 Q70G9002813 4A CD MANUAL FQ206 996510017313 Q41G780081375A QSG FOR 190VW Diversity of 190VW9FB/00(2) compared with 190VW9FB/97(2)

  • Page 76: General Product Specification

    5.7 RESINS 5.8 IF RAINT IS USED 5.9 PLASITIC MOLD TOOLING 5.10 PLASTICS FLAMMABILITY 5.11 TEXTURE/GLOSSING OF HOUSING 5.12 TILT AND SWIVEL BASE 5.13 KENNSINGTON LOCK 5.14 LABEL 5.15 PRODUCT DIMENSION/WEIGHT/ WEIGHT (REFER TO PHILIPS APPROVED SHT 191) 5.16 TRANSPORTATION...
  • Page 77 HUDSON 9 5.17 PALLET/CONTAINER LOADING (REFER TO PHILIPS APPROVED SHT 560) ENVIRONMENTAL CHARACTERISTICS 6.1 SUSCEPTIBILITY OF DISPLAY TO EXTERNAL ENVIRONMENT 6.2 TRANSPORTATION TESTS 6.3 DISPLAY DISTURBANCES FROM EXTERNAL ENVIRONMENT 6.4 DISPLAY DISTURBANCES TO EXTERNAL ENVIRONMENT RELIABILITY 7.1 MEAN TIME BETWEEN FAILURES QUALITY ASSURANCE REQUIREMENTS 8.1 ACCEPTANCE TEST...

  • Page 78: Foreword

    30 minutes that brightness stability is optimal, and follow strictly after panel specification. 2. PRODUCT PROFILE This display monitor unit is a color display monitor enclosed in PHILIPS styling cabinet which has an integrated tilt base. 2.1 LCD Tier1: MTD, CMO 2.1.1 Type NR.

  • Page 79: Scanning Frequencies

    HUDSON 9 2.13 Type NR. : AUO, M190PW01 (TN) Outside dimensions : 428.0(W) x278.0 (H) x18.5 (D)(Typ.) Pitch (mm) : 0.2835x0.2835 Color pixel arrangement : RGB vertical stripes Display surface : Anti-glare type,Hardness 3H Color depth : 16.7M colors (RGB 6-bits+HiFRC) Backlight : CCFL edge light system Active area ( WxH )

  • Page 80: Electrical Characteristics

    HUDSON 9 3. Electrical characteristics 3.1 Interface signals 1). D-Sub Analog Input signal: Video, Hsync, Vsync Video: 0.7 Vp-p, input impedance, 75 ohm @DC Sync: Separate sync TTL level, input impedance 2.2k ohm terminate Hsync Positive/Negative Vsync Positive/Negative Composite sync TTL level, input impedance 2.2k ohm terminate (Positive/Negative) Sync on green video 0.3 Vp-p Negative (Video 0.7 Vp-p Positive) 3.2 Interface...
  • Page 81 HUDSON 9 3.2.2 Software control functions via OSD / control adjustable functions: Please refer to following Hudson8 OSD definitions Reset - No: Exit Yes: Auto adjustment for displaying timing mode and recall factory preset OSD Tree Level 1 Level 2 Level 3 Default Picture...

  • Page 82: Timing Requirement

    HUDSON 9 3.3 Timing requirement Factory Preset mode definition : 1. Perfect FOS while presenting all required timings. 2. Required timings need to be specified in User's Manual User mode 1. Can be showed (not over scalar or Panel spec.) 2.

  • Page 83: Horizontal Scanning

    Philps Smart Manage, Smart Control V6.1, and Protrait Display Tune at least. 3.10 Data for EDID & INF file 1 User visible strings on .inf file Philips 190VW (19inch WIDE LCD MONITOR 190VW9) 2 Manufacturer ID ( EDID data) 3 Product ID, "xxxx" 4 codes...

  • Page 84: Hot-Key Definition

    5 sec 5 sec for VISTA DDC/CI Off Any deviation between document and sample, please refer to Philips approved sample. 4. Visual characteristics 4.1 Test conditions Unless otherwise specified, this specification is defined under the following conditions. (1) Input signal : As defined in 3.3, 1440 x 900 non-interlaced mode (1440*900@60Hz 146.25MHz), signal...

  • Page 85: White Color Adjustment

    5. Mechanical characteristics 5.1 Cosmetic - Philips ID 5.2 Mechanical data files - ProE files required 5.3 Location of Philips logo - Per Philips make-up sheet 5.4 Gap between panel and front bezel < 1.4mm (typ) 5.5 Location of Control icons - Per Philips Graphic sheet 5.6 Color for resin/paint -...

  • Page 86: Texture/Glossing Of Housing

    HUDSON 9 5.11 Texture/Glossing of housing The texture area and texture no should follow Philips make-up sheet. The exterior surfaces shall have a uniform texture. Philips must approve the mold texturing. Detail document for texture refer to “UN-D249”, “UN-D 600”.

  • Page 87: Environmental Characteristics

    HUDSON 9 5.15 Product dimension / Weight (Refer to SHT 191 ) Unit dimension : 439(w)*363(H)*191(D) Packed unit dimension : 490(w)*375(D)*145(H) Net weight : 3.98Kg Gross weight : 4.95Kg. 5.16 Transportation Transportation standards follow TPV standard. 5.16.1 Transportation packages Packaging and wrapping shall be sufficient to protect the product against damage or loss during shipment from the supplier to the destination specified in the purchase order.

  • Page 88: Reliability

    Control II level AQL: 0.4 (major) 1.5 (minor) (Please also refer to annual quality agreement) Customer acceptance criteria: UAW0377/00 9. Philips’ Flat Panel Monitors Pixel Defect Policy Philips’ Flat Panel Monitors Pixel Defect Policy BRIGHT DOT DEFECTS ACCEPTABLE LEVEL MODEL...
  • Page 89 HUDSON 9 Fig 1: Measurement locations of Brightness Uniformity Fig 2: Cross talk pattern Gray level 46 (64 Gray level) Fig 3: Cross talk Pattern Center at Gray level 0 (Black)

  • Page 90: Regulatory Compliance

    Remark (RSO) (NSO) Logo Q'ty Standards IEC60950-1:2001. Manufacture and Group and Applicant is national World CB Report, Philips World wide differences of all wide certificate Maximum countries listed in ambient CB Bulletin No. temperature:40°C 107A European Low Voltage Directives Declaration of...
  • Page 91 2004/108/EC EN55022:2006, HDMI have to test EN55024:1998+A EMC/CE test report PC mode and 1:2001+A2:2003, DVD mode EN61000-3-2:200 EN61000-3-3:199 5+A1:2001+A2:20 Philips is OEM GERMANY EN60950-1:2001 TUV certificate Optional license holder TUV-ERG certificate LCD: ISO13406-2, Philips is OEM Optional pr EN 50279:1998...
  • Page 92 HUDSON 9 TUV MPR-II Philips is OEM TUV MPR-II Optional certificate license holder Philips is license EN60950-1:2001 SEMKO certificate Optional holder To add all sales TCO report and TCO'99 Optional name into certificate certificate SWEDEN TCO'03, or To add all sales...
  • Page 93 EMF EN 50392 EN 50392 report 1 set provide EN50392 report (test fee 750EU) Supplier ship out Certificate of 3 samples to EN60950-1:2001 Philips Conformity Hungary and pay transportation cost. Eastern Supplier to 3 sets EN55022,EN5502 Europe provide CB, EMC...
  • Page 94 HUDSON 9 Korean Safety Control law IEC EK certificate NOT REQUIRED 60950 KOREA Regulations laws: EMI 1996-78, 80. MIC certificate NOT REQUIRED EMS 1996-79,81 Supplier to SINGAPOR IEC60950 PSB certificate provide local representative Supplier have to GB4943-2001 CCC certificate check regulation information on rating label, carter label, user...
  • Page 95 1 sample to AS/NZS3548:199 AUSTRALIA Australia and pay transportation AS/NZS CB, EMC report 1 set NEW-ZEAL cost, Supplier to CISPR22: 2002 apply for C-Tick Class B through Philips Saudi EN60950-1:2001 SASO Arabia EN55022, Saudi EN61000-3-2, SASO Arabia EN61000-3-3, EN55024 VCCI class B...
  • Page 96 CSA C22.2 No CSA certificate Optional 60950 or CUL CANADA ICES-003 issue 3 Statement on label NOM-019-SCFI-1 MEXICO NOM certificate Philips NOT REQUIRED 2 sets TUV S-mark or Argentina EN60950-1:2001 IRAM UL 60950-1: UL certificate or CUL Optional 2003 FCC Part 15...
  • Page 97 8. Supplier have to check regulation information on rating label, carton label, user manual to meet all mandatory regulation 9. Suppliers need to add Philips sales name, model no into BSMI, TCO, EK, MIC certificate 10. Suppliers have to apply all mandatory regulation based on sales country.

  • Page 98: Emc Requirements

    10.2 EMC Requirements Supplier DVT EMI test result must be submitted prior to DVT samples delivery, and PVT EMI test result must be submitted again prior to PVT samples delivery, which also has to meet Philips' immunity testing specification. 10.3 RoHS Restriction on the use of certain hazardous substances.
  • Page 99 4. When the HV circuitry is operating properly there is no possibility of an x- tube must be the same type as the original, including suffix letter, or a Philips radiation problem. High voltage should always be kept at the manufacturer's approved type.

This manual is also suitable for:

190vw9fb/94(1)190vw9fb/62(1)190vw9fb/27(1)190vw9fb/05(1)190vw9fb/00(1)190vw9fb/75(1) ... Show all

Table of Contents
