Daikin FBQ-C Technical Data Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Air Conditioners

Technical Data

C o n c e a l e d C e i l i n g U n i t
E E D E N 1 0 - 1 0 0
FBQ-C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FBQ-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daikin FBQ-C

Summary of Contents for Daikin FBQ-C

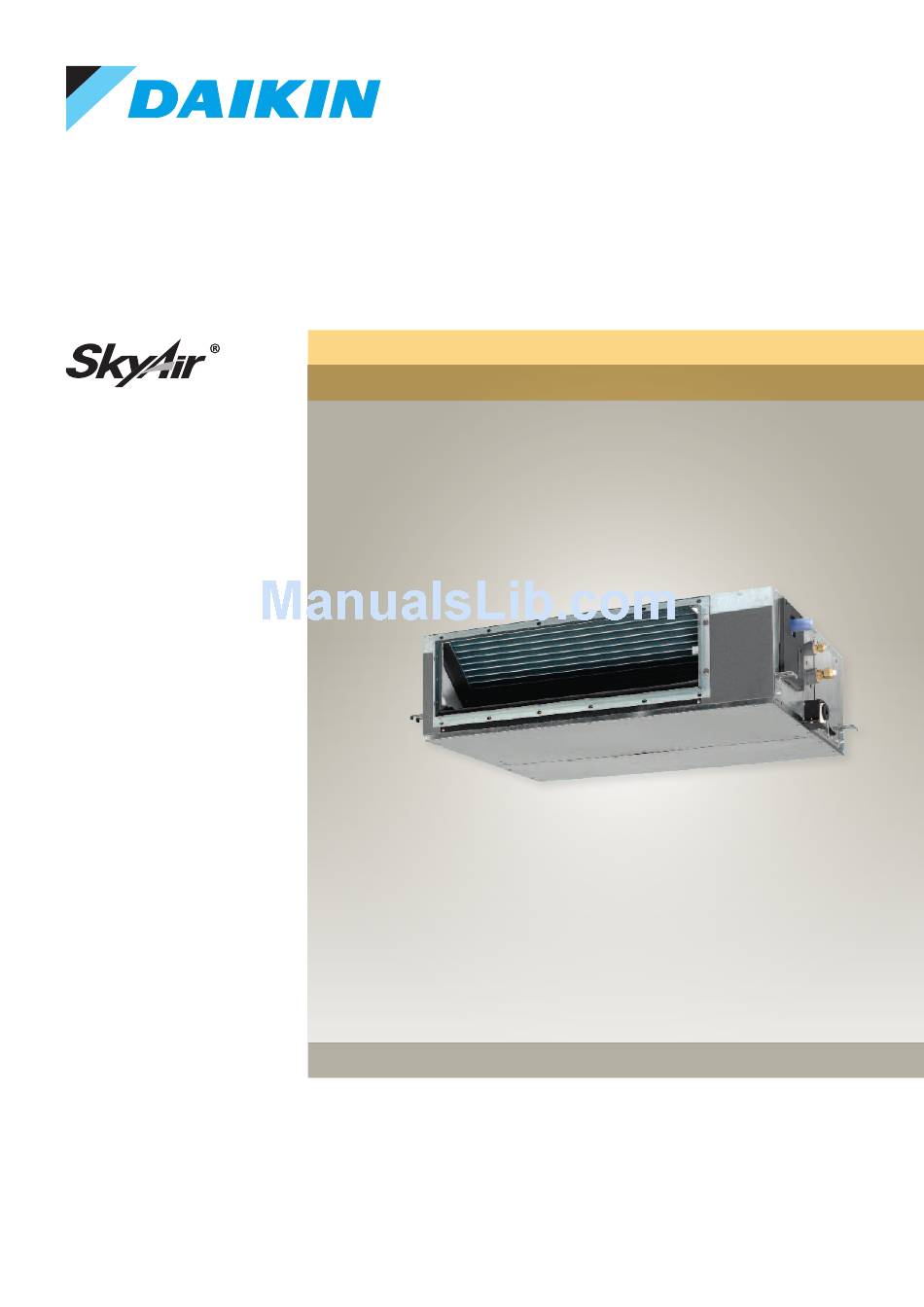

  • Page 1: Technical Data

    Air Conditioners Technical Data C o n c e a l e d C e i l i n g U n i t E E D E N 1 0 - 1 0 0 FBQ-C...
  • Page 2 Air Conditioners Technical Data C o n c e a l e d C e i l i n g U n i t E E D E N 1 0 - 1 0 0 FBQ-C...

  • Page 3: Table Of Contents

    • Indoor Units • R-410A • FBQ-C7VEB TABLE OF CONTENTS FBQ-C7VEB Features ............. 2 Specifications .

  • Page 4: Features

    • Indoor Units • R-410A • FBQ-C7VEB Features U n i V E B o o r - C 7 1 0 a I n d F B Q R - 4 • Reduction in power consumption thanks to DC inverter fans •...

  • Page 5: Specifications

    • Indoor Units • R-410A • FBQ-C7VEB Specifications 2-1 For indoor units only FBQ35C7VEB FBQ50C7VEB FBQ60C7VEB FBQ71C7VEB FBQ100C7VEB FBQ125C7VEB FBQ140C7VEB Nominal input (Indoor Cooling 0.14 0.14 0.35 0.35 0.35 0.35 0.35 only) Heating 0.14 0.14 0.35 0.35 0.35 0.35 0.35 2-2 Technical Specifications FBQ35C7VEB FBQ50C7VEB...
  • Page 6 • Indoor Units • R-410A • FBQ-C7VEB Specifications 2-2 Technical Specifications FBQ35C7VEB FBQ50C7VEB FBQ60C7VEB FBQ71C7VEB FBQ100C7VEB FBQ125C7VEB FBQ140C7VEB Decoration Panel Model BYBS45DJW1 BYBS45DJW1 BYBS71DJW1 BYBS71DJW1 BYBS125DJW1 BYBS125DJW1 BYBS125DJW1 Colour White (10Y9/0,5) Dimensions 1,100 1,100 1,500 1,500 1,500 Weight Air Filter Resin net with mold resistance Safety Devices PC board fuse...

  • Page 7: Safety Device Settings

    • Indoor Units • R-410A • FBQ-C7VEB Safety device settings Safety devices PC Board Fuse 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A PC Board Fuse (Fan Driver) 250V 5A 250V 5A 250V 6.3A 250V 6.3A 250V 6.3A 250V 6.3A...
  • Page 8 • Indoor Units • R-410A • FBQ-C7VEB Options EKRORO3 Operating method Wire specifications T1,T2Switch Terminal X2M Screw to control box Remote replacing the original controller Connector (White) terminal connect to indoor PCB (X30A) Standard setting: ’forced off’ Alternative setting: ’on/off’ Input ’ON’...

  • Page 9: Dimensional Drawing & Centre Of Gravity

    • Indoor Units • R-410A • FBQ-C7VEB Dimensional drawing & centre of gravity 5 - 1 Dimensional drawing FBQ35C NOTES Refer to ‘outlook drawing for installing optional accessories’ when installing optional accessories. The required ceiling depth varies according to the configuration of the specific system.
  • Page 10 • Indoor Units • R-410A • FBQ-C7VEB Dimensional drawing & centre of gravity 5 - 1 Dimensional drawing FBQ60C View A-A Detail B Suspension bolt Detail B or more (Service space) (Suspension position) NOTE Name Description Liquid pipe connection ø 6.35 flare (connection) Refer to ‘outlook drawing for installing optional Gas pipe connection ø...
  • Page 11 • Indoor Units • R-410A • FBQ-C7VEB Dimensional drawing & centre of gravity 5 - 1 Dimensional drawing FBQ100-140C Name Description Liquid pipe connection ø 9.52 flare (connection) Gas pipe connection ø 15.90 (flare connection) Drain pipe connection VP25 (O.D. ø 32 /I.D. ø 25) Remote control wiring connection Power supply connection Drain hole...

  • Page 12: Centre Of Gravity

    • Indoor Units • R-410A • FBQ-C7VEB Dimensional drawing & centre of gravity 5 - 2 Centre of gravity FBQ35-140C Model FBQ35,50 FBQ60,71 1000 FBQ100~140 1400 4TW31189-1B • Split Sky Air • Indoor Units...

  • Page 13: Piping Diagram

    • Indoor Units • R-410A • FBQ-C7VEB Piping diagram FBQ35-140C Refrigerant flow Cooling Heat exchanger Heating Refrigerant pipe connection port diameters Model Liquid FBQ35C 9.52 6.35 FBQ50C 12.70 6.35 FBQ60C 12.70 6.35 FBQ71C 15.90 9.52 FBQ100C 15.90 9.52 FBQ125C 15.90 9.52 FBQ140C 15.90...

  • Page 14: Wiring Diagram

    • Indoor Units • R-410A • FBQ-C7VEB Wiring diagram 7 - 1 Wiring diagram FBQ35-50C7VEB : Field wiring : Live indoor : Neutral : Connector : Wire clamp norm.emg : Protective earth (screw) Transmission wiring central 1N~220-240V 50Hz remote control 1N~220V 60Hz Colors note 2...

  • Page 15: Sound Data

    • Indoor Units • R-410A • FBQ-C7VEB Sound data 8 - 1 Sound pressure spectrum FBQ35-50C FBQ60C Octave band center frequency (Hz) Octave band center frequency (Hz) High-tap High-tap Medium-tap Medium-tap Low-tap Low-tap 3TW31217-2 3TW31297-2 NOTES NOTES Data is valid at free field condition Data is valid at free field condition Data is valid at nominal operation condition Data is valid at nominal operation condition...
  • Page 16 • Indoor Units • R-410A • FBQ-C7VEB Sound data 8 - 1 Sound pressure spectrum FBQ125C FBQ140C Octave band center frequency [dB] Octave band center frequency [dB] High-tap High-tap Medium-tap Medium-tap Low-tap Low-tap 3TW31267-2 3TW31337-2 Notes Notes Data is valid at free field condition Data is valid at free field condition Data is valid at nominal operation condition Data is valid at nominal operation condition...

  • Page 17: Sound Power Spectrum

    • Indoor Units • R-410A • FBQ-C7VEB Sound data 8 - 2 Sound power spectrum FBQ35-50C FBQ60C Octave band center frequency (Hz) Octave band center frequency (Hz) High-tap High-tap Medium-tap Medium-tap Low-tap Low-tap 3TW31217-1 3TW31297-1 NOTES NOTES dBA= A-weighted sound power level. (A-scale according to IEC) dBA= A-weighted sound power level.
  • Page 18 • Indoor Units • R-410A • FBQ-C7VEB Sound data 8 - 2 Sound power spectrum FBQ125-140C Octave band center frequency [dB] High-tap Medium-tap Low-tap 3TW31267-1 Notes dBA = A-weighted sound power level. (A-scale according to IEC) Reference acoustic intensity 0dB = 10E-6μW/m Measured according to ISO 3744 •...

  • Page 19: Fan Characteristics

    • Indoor Units • R-410A • FBQ-C7VEB Fan characteristics FBQ35-50C Fan characteristics (3) Fan characteristics (1) (airflow auto adjustment) H (max ESP) Upper limint of ESP Upper limint of ESP (max ESP ) Upper limint of ESP by airflow auto adjustment Lower limit of ESP (max ESP) M (max ESP)
  • Page 20 • Indoor Units • R-410A • FBQ-C7VEB Fan characteristics FBQ71C Fan characteristics (1) Fan characteristics (3) (Airflow auto adjustment) H (max. ESP) Upper limit of ESP (max. ESP) Upper limit of ESP Upper limit of ESP by M (max. ESP) Lower limit of ESP airflow auto adjustment (max.
  • Page 21 • Indoor Units • R-410A • FBQ-C7VEB Fan characteristics FBQ125C Fan characteristics (1) Fan characteristics (3) (Airflow auto adjustment) H (max. ESP) Upper limit of ESP Upper limit of ESP (max. ESP) Upper limit of ESP by airflow auto adjustment M (max.

  • Page 22: Installation

    • Indoor Units • R-410A • FBQ-C7VEB Installation 10 - 1 Installation method FBQ35-140C Rear Suction Bottom Suction Ceiling return Ceiling return Drain pump up height Direct installation of inlet panel Installation with duct EKBYBSD is required for direct installation Wide variety of installation methods Number Description...

  • Page 23: Filter Installation Method

    • Indoor Units • R-410A • FBQ-C7VEB Installation 10 - 2 Filter installation method FBQ35-140C (or less) Installation without air inlet duct Installation with air inlet duct OTES Description When installing the unit with rear Suspended Ceiling suction, a service opening is Ceiling opening necessary for the maintenance of Service access panel (optimal)

  • Page 24: Switch Box Connection

    • Indoor Units • R-410A • FBQ-C7VEB Installation 10 - 3 Switch box connection FXSQ35-140C Emerg. Norm. Common power supply 3TW31184-5A • Split Sky Air • Indoor Units...
  • Page 25 The present publication is drawn up by way of information only and does not constitute an offer binding conditioning equipment, compressors and refrigerants upon Daikin Europe N.V.. Daikin Europe N.V. has compiled the content of this publication to the best of its has led to its close involvement in environmental issues.
