Summary of Contents for Excelltel CDX-IPH303

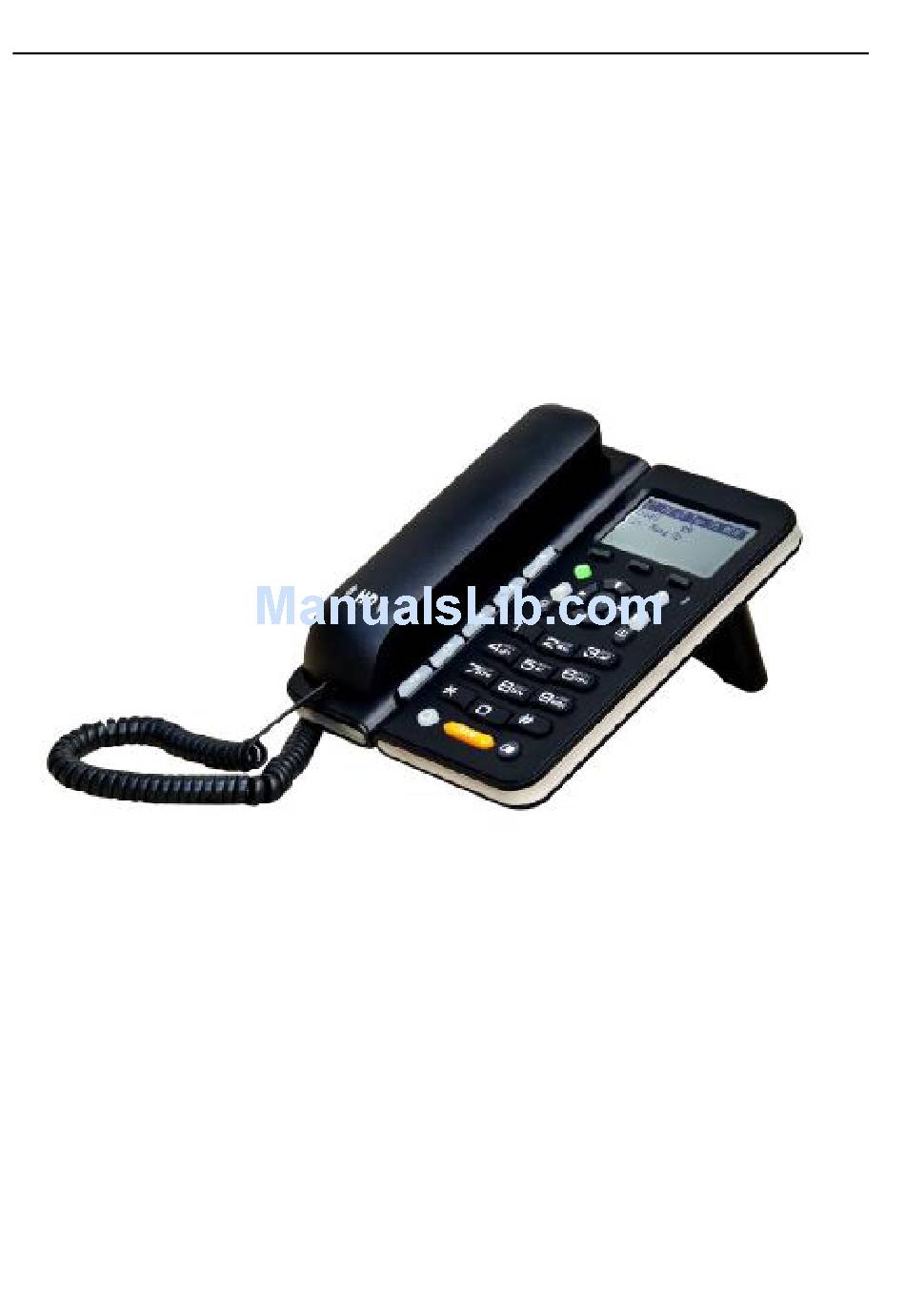

- Page 1 CDX-IPH303 -VoIP User Manual V1.3 IP Phone User Manual This Manual provides basic information on how to install and connect IPH303 IP Phone to the network. It also includes features and functions of IPH303 IP phone components, and how to use them.
-
Page 2: Table Of Contents
CDX-IPH303-VoIP User Manual V1.3 Contents ................5 AFETY NSTRUCTIONS ................ 7 EFORE ETTING TARTED ................... 7 ACKAGE CONTENTS 4 SPEC ................. 8 EATURES 4.1 Hardware Spec ..................8 4.2 DSP Spec....................8 4.3 Software feature..................8 4.5 Networking Standards................9 4.6 Others .................... - Page 3 CDX-IPH303-VoIP User Manual V1.3 8.2 Phone book operation................22 8.3 Call list check ..................22 9. WEB I ............23 NTERFACE ONFIGURATION 9.1 Logon Web................... 23 9.2 Current State ..................24 9.3 Network Configuration ................. 25 10 VOIP C ................29 ONFIGURATION 10.1 IAX2 Configuration................
- Page 4 CDX-IPH303-VoIP User Manual V1.3 15.2 Command structure ................59 15.3 Structure of Configuration terminal ............ 60...
-
Page 5: Safety Instructions
IP phones. You make an excellent choice; we hope you will fully enjoy all the features of the product. CDX-IPH303 is a highly innovative enterprise IP telephone, to provide you the plenty of features and beautiful sound quality. Products fully comply with the SIP protocol standard, and Interconnection with the majority of SIP interoperability of hardware and software equipment of the market. - Page 6 Don’t drop your phone. Safety Standards CDX-IPH303 follows various safety standards, including FCC / CE. The power adapter of product follows the UL standard, the phone can only be used the power adaptor provided by inner packaging, the damage caused due to the use of other power adapter, which does not belong to the scope of quality assurance of the manufacturer.
-
Page 7: Before Getting Started
CDX-IPH303-VoIP User Manual V1.3 Before Getting Started Before you can connect CDX-IPH303 to the network and use it, you must have a high-speed Internet connection installed. A high-speed connection includes such environments as DSL, cable modem, and a leased line. -
Page 8: Spec And Features
CDX-IPH303-VoIP User Manual V1.3 4 SPEC and Features 4.1 Hardware Spec 32-bit 150MHz MIPS CPU 16-bit 100MHz DSP 4MB flash memory 16MB SDARM 128x64 pixel graphic LCD with backlight 34 KEYS, 1 LED WAN: 10/100M RJ45 LAN: 10/100M RJ45 RJ9 Headset Jack(option) 2.5MM earphone Jack(option) -
Page 9: Networking Standards
CDX-IPH303-VoIP User Manual V1.3 DTMF Mode: RFC2833, RELAY, SIP INFO DNS name of SIP server SIP signaling port setting NAT traverse, STUN NAT traverse, SIP Express router Flexible Dial Map: Fix length; End with #; Dial with time out 9 Kinds of ringer able select by number of Phone Box and 2 kinds of... -
Page 10: Others
Use the cable for Internet connection; connect the ‘WAN’ port of CDX-IPH303 to router. Get the cable from box and connect the LAN port of phone to your PC. Connect the power adapter in the box to ‘DC’. Then start... - Page 11 CDX-IPH303-VoIP User Manual V1.3 Power Jack 7.5V DC power connected port 10/100Mbps RJ-45 PC connected port 10/100Mbps RJ-45 Ethernet connected port RJ9 Headset Jack Handset Jack Desktop installation: Wall installation This phone can be installed on the wall, the back of base has two wall...
-
Page 12: General Appearance
CDX-IPH303-VoIP User Manual V1.3 Use the handset, pull out the wall-mounted label (extension of the down) from the handset bracket, rotate the wall label and then insert to wall-mounted label slot, caught by the extension of the handset. 6 General Appearance 6.1 LCD Display... - Page 13 CDX-IPH303-VoIP User Manual V1.3 LCD illustration Definitions Call forwarding enabled Call on hold Connected call Incoming call Conference call active Conference call on hold Conference call disabled Outgoing call Outgoing call not completed Transferring a call Line 1 (idle) Line 2 (idle)
-
Page 14: Key Function Definitions
CDX-IPH303-VoIP User Manual V1.3 Message waiting Missed call 6.2 Key function Definitions Key Button Key Button Definitions Digital, star and pound keys are also used for setting 0 - 9, *, # and call process. Soft key 1、2、3 , Display functions as per the LCD... -
Page 15: Indicator Instruction
CDX-IPH303-VoIP User Manual V1.3 LINE1 and LINE2 : It is the transparent key, it will be flash when incoming call, it will be normal on the call, it will be flash on Hold. Hold: hold the active call. The transparent key has red indicator. -
Page 16: Phone Operations
Two-SIP account and line CDX-IPH303 support 2 independent SIP accounts. Each account can support independent SIP server, user name and NAT configuration. Line button 【 】、【 】 are match to sole SIP account , when picking, press... -
Page 17: Make A Call
CDX-IPH303-VoIP User Manual V1.3 a free line (【 】 or【 】) button, and at the same time hear the dial tone. In this state, use UP / Down keys can be cut between the two lines. Make a call 1. Use headset, press <SPEAKER> or LINE1/LINE2 key Step 1: pick up / press 【... -
Page 18: Phone Book Number Store / Edit / Delete
CDX-IPH303-VoIP User Manual V1.3 Press Soft Key 2 to enter the Calllog menu，use 【 】 key to check the Missed Call/Incoming Call/Outgoing Call record ， select the dialed number, then pick up or press 【 】 【 】 【 】 to make the call. -
Page 19: Volume Adjustment In Conversation
CDX-IPH303-VoIP User Manual V1.3 Volume adjustment in conversation During conversation, press navigation 【 】 key to adjust receiving volume, or adjust the volume on menu. Rejected call During new incoming call, as per the prompt of the LCD Soft Key，press soft Key 3 <REJECT>... -
Page 20: Create/New . Send Message
CDX-IPH303-VoIP User Manual V1.3 7.13.1 Create/New . send message 1. On standby state, press Soft Key1 <SMS>to enter SMS menu , see below photo Inbox x/x：The first letter X means the missed message number, and last letter X means the total message number. -
Page 21: Configuration With Keypad And Lcd Display
CDX-IPH303-VoIP User Manual V1.3 2． Press Soft Key 2<Enter>，you can delete or enter to the message as per the prompt of the Soft Key. 3． Press Soft Key 2 <Enter> to check the messge，you can reply or delete the message as per the prompt of the Soft Key. -
Page 22: Phone Book Operation
CDX-IPH303-VoIP User Manual V1.3 Use 【 】and【 】key to select the related sub item ，and process the operation as per the LCD soft key. The instruction for the main menu list as below 8.2 Phone book operation On Standby, press Phone Book to enter the phone book menu list, use 【... -
Page 23: Web Interface Configuration
CDX-IPH303-VoIP User Manual V1.3 as per the LCD soft key. the instruction for call list as below： 8.4 SMS operation 】and【 】key On standby, press Soft Key 1to enter SMS menu，use【 to select the related sub item, and process the related operation as per the LCD soft key. -
Page 24: Current State
CDX-IPH303-VoIP User Manual V1.3 There are two level login as: -Guest account: the default username and password is "guest", user can have a browse of system. -Administrator account: the default username and password is "admin", this user can configure the system. -
Page 25: Network Configuration
CDX-IPH303-VoIP User Manual V1.3 9.3 Network Configuration 9.3.1 Wide area network（WAN） User can view the current network IP linking mode of the system on this page. User will be authorized to set the network IP, Gateway and DNS if the system adopts the static linking mode. - Page 26 CDX-IPH303-VoIP User Manual V1.3 Configuration Explanation: Current phone IP, subnet mask, MAC address and current phone IP; Select acquisition way of IP for WAN; This is single option; Configure static IP parameter for WAN; Configure static IP address; Configure subnet mask;...
- Page 27 CDX-IPH303-VoIP User Manual V1.3 resolved, then the phone will add and resolve the "domain" after user has input; Main DNS server IP address; The second DNS server IP address; Configure PPPoE: Service name, if PPPoE ISP has no special requirement for this name, generally is the default;...
- Page 28 CDX-IPH303-VoIP User Manual V1.3 Configure LAN static IP; Configure LAN subnet mask; Enable LAN port DHCP server; after user modify LAN IP, the phone will automatically modify the adjustment and save the configuration according to IP and subnet mask team DHCP Lease Table, user need to restart the phone to make DHCP server configuration go into effect;...
-
Page 29: Voip Configuration
CDX-IPH303-VoIP User Manual V1.3 ※ Set the HTTP port as 0 ,then the http service will be disabled. 10 VOIP Configuration 10.1 IAX2 Configuration Configuration Explanation: Explanation: IAX2 registration state display ； If register successfully, it will display [Registered], otherwise will display [Unregistered];... -
Page 30: Sip Configuration
CDX-IPH303-VoIP User Manual V1.3 Config equipment iax2 monitor port； Config voice mail number，If the IAX2 support voice mailbox, the voice mailbox is the letter form, the gateway is unable to input the letter, uses this number to replace voice mail the name；... - Page 31 CDX-IPH303-VoIP User Manual V1.3 Configuration Explanation: Select SIP1 or SIP2，then you can register and configure SIP1 or SIP2; Show SIP register state; if register successfully, there will show Registered in the square bracket, otherwise show Unregistered; Configure the name of registration server;...
- Page 32 CDX-IPH303-VoIP User Manual V1.3 Configure display name; Configure proxy server IP address or Domain Name （usually SIP will provide user with service of proxy server and register server which have the same configuration, so the configuration of proxy server is usually the same with...
- Page 33 CDX-IPH303-VoIP User Manual V1.3 Configure expire time of SIP server register, the default is 60 seconds. If the expire time that server requires is more or less than that configured by the phone, the phone can automatically modify it to the recommended time limit and register;...
- Page 34 CDX-IPH303-VoIP User Manual V1.3 Configure enable/disable PRACK Configure enable/disable Long Contact; Configure enable/disable URI Convert; Configure enable/disable Dial without register; Configure enable/disable Ban Anonymous Call; Call forwarding. The default is Disable; when busy is selected, if the number dialed is engaged after the phone has received a call, then it will automatically transfer to the configured number according to the following configuration;...
-
Page 35: Stun Configuration
CDX-IPH303-VoIP User Manual V1.3 Select the RFC Privacy Edition(none,RFC3323 or RFC3325); Configure Subscribe expire time Configure enable/disable Conference Number; Configure enable/disable DNS service; Configure enable/disable Click To Talk; Configure enable/disable Signal Encode; Configure enable/disable RTP Encode; Configure enable/disable Session Timer;... -
Page 36: Dial Peer Configuration
CDX-IPH303-VoIP User Manual V1.3 Display the application status of the STUN NAT; Configure IP address of SIP STUN server; Configure port of SIP STUN; Interval time for STUN's detection on NAT type, the unit is second; Configure Local SIP port;... - Page 37 CDX-IPH303-VoIP User Manual V1.3 Configuration Explanation: Display of calling number IP image list; It is to add outgoing call number, there are two kinds of outgoing call number setup: One is exactitude matching, after this configuration has been done, when the number is totally the same with the user's calling number, the phone will make the call with this number's IP address image or configuration;...
- Page 38 CDX-IPH303-VoIP User Manual V1.3 Configure the protocol signal port, when nothing is input, the default of sip protocol is 5060; Configure alias, this is optional configuration item: it is the number to be used when the other party's number has prefix; when no configuration has been made, shown as no alias;...
- Page 39 CDX-IPH303-VoIP User Manual V1.3 for user to make a call; Delete selective number IP image; If user want to modify a certain current number image, first select in the drop-down menu and then load the image parameter of the said number, click modify to make modification;...
-
Page 40: Phone Configuration
CDX-IPH303-VoIP User Manual V1.3 11 Phone Configuration 11.1 DSP configuration On this page, user can set speech coding, IO volume control, cue tone standard, caller ID standard and so on. Configure the first codec; Configure the second codec; Configure the third codec;... -
Page 41: Call Service Configuration
CDX-IPH303-VoIP User Manual V1.3 Configure input volume; Configure output volume; Configure handfree volume; Configure ring volume; Configure G729 payload length; Configure signal standard; Configure G.722 timestamps; Configure G.723 bit rate; Configure default ring type; Configure enable/disable VAD. 11.2 Call service configuration... - Page 42 CDX-IPH303-VoIP User Manual V1.3 Configuration Explanation: Configure hot-line number of the port. With this number of the port, this hot-line number will be dialed automatically as soon as off-hook and user can't dial any other number; Configure no answer time;...
-
Page 43: Phone Book Configuration
CDX-IPH303-VoIP User Manual V1.3 second part, then the three way call concurrently; Configure enable/disable Accept Any Call; Configure enable/disable Auto Answer; Configure add/delete blacklist. If user doesn't want to answer a certain number, please add this number to the list, and then this number will be unable to get through the phone. -
Page 44: Save And Clear Configuration
CDX-IPH303-VoIP User Manual V1.3 registration state will show as incorrect! 11.4 Save and Clear Configuration User can save the current configuration on this page. The system configuration can be set as factory default configuration on clear config page and the phone will restart automatically. -
Page 45: Firewall Configuration
CDX-IPH303-VoIP User Manual V1.3 Configure enable/disable MMI Filter. 12.2 Firewall configuration On the page, user can configure the function of the firewall. Select firewall type; Display firewall input rule table; Display firewall output rule table; in the table，Src address and Src Mask... - Page 46 CDX-IPH303-VoIP User Manual V1.3 confirm the range of the source address, For example ： Src addr(192.168.10.10) and Src Mask(255.255.255.255) can confirm that the host is 192.168.10.10；Dse addr(192.168. 0.120) and Des Mask(0.0.0.0) confirm host; addr(192.168.10.20) Mask(255.255.255.0) confirm any host within the 192.168.10.0 network segment.
-
Page 47: Nat And Dmz Configuration
CDX-IPH303-VoIP User Manual V1.3 Configure source IP address; Configure destination IP address; Configure source Mask; Configure destination Mask; 12.3 NAT and DMZ configuration On the page, user can configure NAT and DMZ. T function of the NAT is a network port mapping and the function of the DMZ is a network address mapping. - Page 48 CDX-IPH303-VoIP User Manual V1.3 Display NAT table; Add and delete NAT table (configure NAT of the Transport Layer, the protocol includes: TCP and UDP); Select transfer type; Configure Inside IP; Configure Inside port; Configure Outside port; Add or delete NAT table;...
-
Page 49: Vpn Configuration
CDX-IPH303-VoIP User Manual V1.3 Display DMZ table； Configure the DMZ rule. Configure the outside IP of the DMZ; Configure the inside IP of the DMZ; Configure outside IP and inside IP, then click the Add, user can add the DMZ table. - Page 50 CDX-IPH303-VoIP User Manual V1.3 Display the VPN IP of the CDX-IPH303; Select VPN mode, and configure enable/disable VPN; (1) Select UDP tunnel, and configure VPN: Select UDP tunnel mode; Configure VPN server address; Configure VPN server port; Configure VPN server group ID;...
-
Page 51: Upgrade On-Line
CDX-IPH303-VoIP User Manual V1.3 Configure enable/disable VPN tunnel; (2) Select L2TP, and configure VPN: Select L2TP mode; Configure VPN server address; Configure VPN User Name; Configure VPN Password; Configure enable/disable VPN; 13 Upgrade on-line 13.1 Upload WEB page On this page, user can select the upgrade document (firmware or config file) on hard disk of the computer directly to run the system upgrade. -
Page 52: Configuration Explanation
CDX-IPH303-VoIP User Manual V1.3 13.3 Configuration Explanation: Configure upload or download FTP/ TFTP server IP address; Configure username of the upload or download FTP server. If user select TFTP mode, username and password are not required to be configured; Configure upload or download of FTP server password;... -
Page 53: Configure File Encryption
CDX-IPH303-VoIP User Manual V1.3 Select Config file import type and click the Apply, the phone will download configuration files of FTP/TFTP server to the phone and the configuration will go into effect after restarting; Output configure file can be edit, delete, or make comment starting by # on each command. -
Page 54: Configuration Files Web Download
CDX-IPH303-VoIP User Manual V1.3 Input IP add. of desired FTP server. Input user name of desired FTP server. Input user password of desired FTP server. Input name configuration file. Software version must be different for each upgrade file. If configuration file is encrypted, password needed. -
Page 55: System Management
CDX-IPH303-VoIP User Manual V1.3 of the computer, and then make modification to the system configuration, after the download, restart the phone and the configuration will go into effect. 14 System management 14.1 Account management On this page, user can set the keyboard password, the same time, user can add and delete users according to own needs and can modify user's authorities there have been. - Page 56 CDX-IPH303-VoIP User Manual V1.3 figure, of which: Add new accounts; account level; root possesses authorities to modify configuration,general possesses read-only authority;as corresponding password of the additive account; As second confirmation of password, to ensure correct setup of password; Clicks submit to go into effect.
-
Page 57: Time Zone Configure
CDX-IPH303-VoIP User Manual V1.3 Make confirmation of the modified user password; Submit the modification; Owing to the phone's default account: accounts of the administrator level-admin and the ordinary level－guest are all weak account and weak password, the username and password will be easily to be guessed on public network, so the user had better modify the administrator and ordinary user. -
Page 58: Configuration Via Telnet
CDX-IPH303-VoIP User Manual V1.3 Configure the desired time zone. 15 Configuration via Telnet In DOS window, input telnet 192.168.10.23, enter: Then input USER NAME：admin PASWORD：admin... -
Page 59: Basic Command
CDX-IPH303-VoIP User Manual V1.3 15.1 Basic Command input “help” or “？”under terminal to check all sub-terminal and globe command; input “help” or “？”under command to check parameters; input “！” or“exit”to quit former path. 。 while partly input terminal or command, press“TAB”, system will auto finish balance command or list all option. - Page 60 CDX-IPH303-VoIP User Manual V1.3 ---telnet ---trancert ---update ---upload Most command parameters are under terminal “config”, which structures as follows: <config># ---accesslist ---dialpeer ---digitalmap ---fastethernet ---mmifilter ---nat ---port --qos ---syslog ---time ---user ---voip ---vpn 15.3 Structure of Configuration terminal Access list firewall configuration Path：<config-accesslist>#...
- Page 61 CDX-IPH303-VoIP User Manual V1.3 Del protocol ---no entry –I/O xxx –index xxx Ex： <config-accesslist>#no entry – I/O input – index 1 Fastethernet–Lan configuration Path： <config–fastethernet–lan># [no] bridgemode - <command>Enable/Disable bridge mode [no] dhcp-server - <command>Enable/Disable DHCP Server dhcpshow - <command>Show DHCP current leased...
- Page 62 CDX-IPH303-VoIP User Manual V1.3 show - <command>Show IP filter table [no] start-filter - <command>Enable/Disable MMI IP filter Path： <config-nat># [no] ftpalg - <command>Set NAT FTP application level gateway [no] ipsecalg - <command>Set NAT IpSec application level gateway [no] pptpalg - <command>Set NAT Pptp application level gateway show - <command>Show current NAT state...
- Page 63 CDX-IPH303-VoIP User Manual V1.3 [no] input - <command>Set Input gain [no] out-limit - <command>Set the number which can not be dialed [no] output - <command>Set Output gain [no] ringvolume - <command> set ring volume show - <command>Show port configuration [no] shutdown - <command>Disable/Enable the port...
- Page 64 CDX-IPH303-VoIP User Manual V1.3 Path: # ---update ftp –user xxx –password –ip x.x.x.x –file x.x.x Via FTP Ex: #update ftp –user abc –password 123 –ip 202.112.20.15 –file abc.dlf ---update tftp –ip x.x.x.x –file xxx Via TFTP ---upload ftd –user xxx –password xxx –ip Via FTP uploading file x.x.x.x –file xxx...
- Page 65 CDX-IPH303-VoIP User Manual V1.3 trace ---trancert x.x.x.x If user has accounts of a certain SIP server and each account has different password, then user should add each account and its corresponding password to the account& password table. Configure display of account & password list;...
