Summary of Contents for Excelltel CDX-IPH301

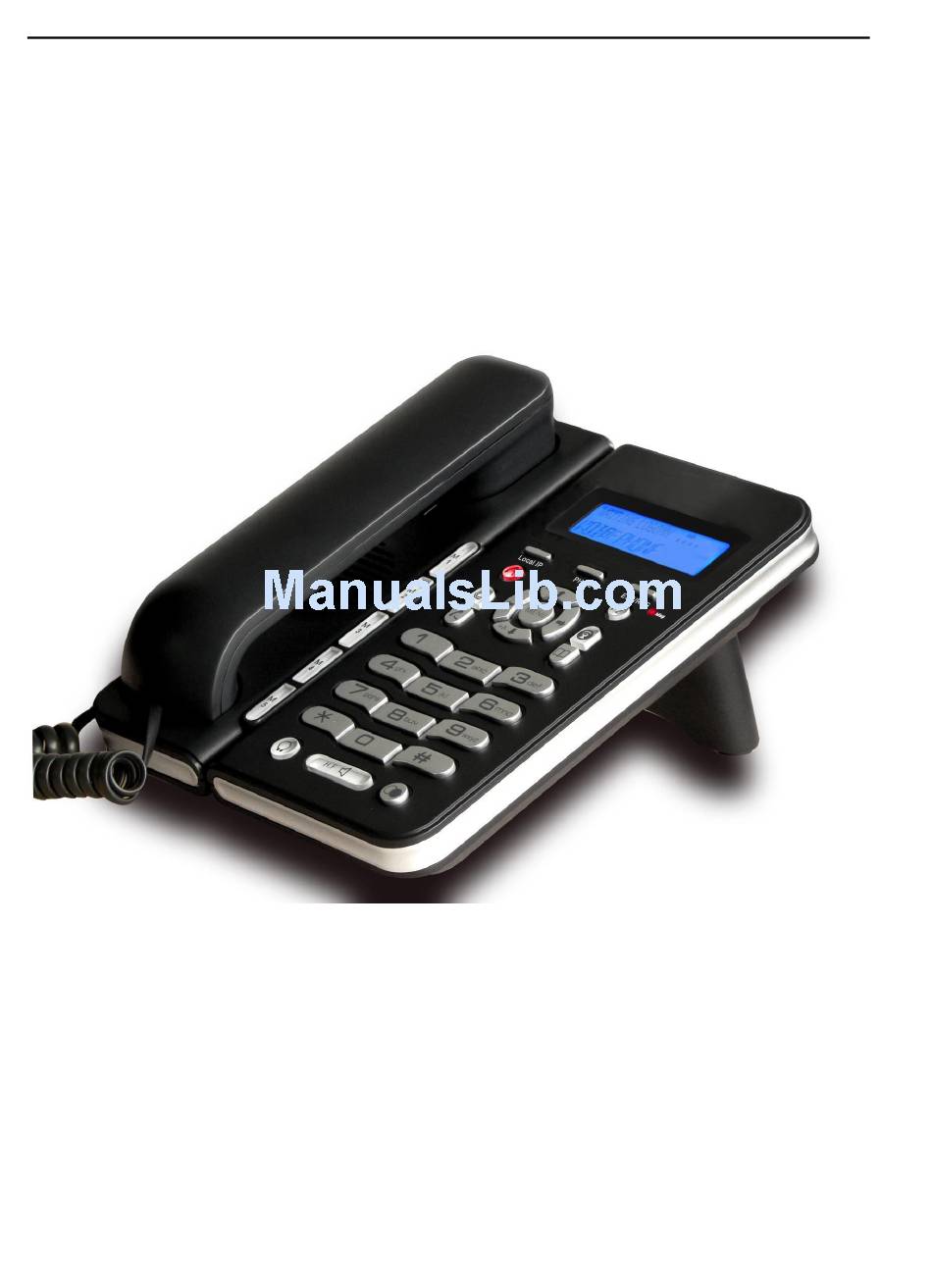

- Page 1 CDX-IPH301 -VoIP User Manual V1.0 IP Phone User Manual This Manual provides basic information on how to install and connect IPH301 IP Phone to the network. It also includes features and functions of IPH301 IP phone components, and how to use...
-
Page 2: Table Of Contents
CDX-IPH301 -VoIP User Manual V1.0 Contents ............. 5 EFORE ETTING TARTED ................ 5 ACKAGE CONTENTS 3 SPEC ............... 5 EATURES 3.1 H ................5 ARDWARE 3.2 DSP S ..................6 3.3 SIP P ..............6 ROTOCOL 3.4 S ..............7 OFTWARE FEATURE 3.5 N... - Page 3 CDX-IPH301 -VoIP User Manual V1.0 ..........17 NTERFACE ONFIGURATION 8.1 L ................. 18 OGIN 8.2 C ................19 URRENT STATE 8.3 N ............19 ETWORK CONFIGURATION （WAN）..........19 8.3.1 W IDE AREA NETWORK 8.3.2 S ..........22 ERVICE ORT CONFIGURATION 9 VOIP C ..............24...
- Page 4 CDX-IPH301 -VoIP User Manual V1.0 13.5 A ................54 UPDATE 13.6 C ......... 55 ONFIGURATION FILES DOWNLOAD 14 S ..............56 YETEM MANAGEMENT 14.1A ............56 CCOUNT MANAGEMENT 14.2C :..........56 ONFIGURATION XPLANATION 14.3 T ............. 59 IME ZONE CONFIGURE 15 C ............
-
Page 5: Before Getting Started
CDX-IPH301 -VoIP User Manual V1.0 1 Before Getting Started Before you can connect IPH301 to the network and use it, you must have a high-speed Internet connection installed. A high-speed connection includes such environments as DSL, cable modem, and a leased line. IPH301 IP phone is a stand-alone device, which requires no PC to make Internet calls. -
Page 6: Dsp Spec
CDX-IPH301 -VoIP User Manual V1.0 2*16 character LCD 34 KEYS, 1 LED WAN: 10/100M RJ45 LAN: 10/100M RJ45 (Option) 3.2 DSP Spec G.711A/u, G.723.1（5.3k/6.3k）, G.729a/b,G.722,G.726 G.168 echo cancel Full duplex hand-free VAD (Voice Activity Detection) ... -
Page 7: Software Feature
CDX-IPH301 -VoIP User Manual V1.0 at the same time9 Dual back- up servers Peer to peer SIP call 3.4 Software feature Languages: English Flexible Dial Map: Fix length; End with #; Dial with time out ... -
Page 8: Others
CDX-IPH301 -VoIP User Manual V1.0 DHCP Client on WAN DNS client with 2 servers IP SNTP RTP: RFC3550 802.1P QOS 3.6 Others Boot Monitor Upgrade firmware through POST mode Keyboard Configuration ... -
Page 9: Installation
CDX-IPH301 -VoIP User Manual V1.0 4 Installation Use the cable for Internet connection; connect the ‘WAN’ port of IPH301 to router. Get the cable from box and connect the WAN port of phone to your PC. Connect the power supply in the box to ‘DC’. Then start your phone. -
Page 10: General Appearance
CDX-IPH301 -VoIP User Manual V1.0 5 General Appearance... - Page 11 CDX-IPH301 -VoIP User Manual V1.0 Key Button Key Button Definitions Digital, star and pound keys are also used for 0 - 9, *, # setting and call process. Menu: enter the main menu, or confirm current Menu/OK status delete the current editing content or delete the...
-
Page 12: Phone Operations
CDX-IPH301 -VoIP User Manual V1.0 Used as Mute Used as phonebook Navigation key used as UP in menu or Increase handset / speakerphone volume Navigation key used as DOWM in menu or reduce handset / speakerphone volume Navigation key used as LEFT in menu or reduce... -
Page 13: Phone Book Number Store / Edit / Delete
CDX-IPH301 -VoIP User Manual V1.0 1. Pick up handset or press button,then dial the desired numbers. 2. Press the button directly to redial the last call. 3. While checking call logs in menu such as Dialed call / Received call / Missed call, press【... -
Page 14: Call List Check / Delete / Dial Out
CDX-IPH301 -VoIP User Manual V1.0 number, ring types. During the operation, press Local IP/DEL to delete wrong digit. -press till LCD display “Search”, then press , input name of desired number and press to check the item, if you want to edit it, press Local IP/DEL while LCD displays “0=mod 1=del”, then press 0/1 to... -
Page 15: Hold
CDX-IPH301 -VoIP User Manual V1.0 check latest miss call, press to review other and press “#” to dial out; press Local IP/DEL to delete. 6.4 Hold During conversation, press to keep line, press it again to release. 6.5 Volume adjustment in conversation During conversation, press navigation key to adjust receiving volume. -
Page 16: Unit Configuration
CDX-IPH301 -VoIP User Manual V1.0 while line connected, press to make conference call; 7. Unit Configuration 7.1 IP distribution mode selection Press and hold 【1】 button for 5s, the LCD displays “STATIC MODE”; Press and hold 【2】 button for 5s, the LCD display “DHCP MODE”;... -
Page 17: Web Interface Configuration
CDX-IPH301 -VoIP User Manual V1.0 192.168.10.1 0[OFF] Bridge Mode 1[ON] NetMask 255.255.255.0 Network Netmask Gateway Static net DNS2 User name PPPoE Password 8 Web Interface Configuration The IP Phone Web Configuration Menu can be accessed by the following URI: http://Phone-WAN IP-Address/. The default WAN IP address is dynamic acquisition, press can access the IP address. -
Page 18: Login Web
CDX-IPH301 -VoIP User Manual V1.0 If the web login port of the phone is configured as non-80 standard port, then user need to input http://xxx.xxx.xxx.xxx:yyyy, otherwise the web will show that no server has been found. 8.1 Login Web While input correct IP address as above, logon menu pop out as follows: There are two level login as: -Guest account: the default username and password is "guest", user can... -
Page 19: Current State
CDX-IPH301 -VoIP User Manual V1.0 8.2 Current state On this page user can gather information of each normal parameters, as: -the network section shows the current WAN configurations of the phone, including access way of WAN IP and IP（static state, DHCP, PPPoE), MAC address, WAN IP address of the phone. - Page 20 CDX-IPH301 -VoIP User Manual V1.0 User will be authorized to set the network IP, Gateway and DNS if the system adopts the static linking mode. If the system selects DHCP service in the network which is using DHCP service, IP address will be gained dynamically.
- Page 21 CDX-IPH301 -VoIP User Manual V1.0 Current phone IP, subnet mask, MAC address and current phone IP; Select acquisition way of IP for WAN; This is single option; Configure static IP parameter for WAN; Configure static IP address; Configure subnet mask;...
-
Page 22: Service Port Configuration
CDX-IPH301 -VoIP User Manual V1.0 Service name, if PPPoE ISP has no special requirement for this name, generally is the default; PPPoE account; PPPoE password; Configure the parameter and then click "apply" to go into effect. 8.3.2 Service Port configuration User can set up Telnet, HTTP, RTP port on this page and view DHCP table. - Page 23 CDX-IPH301 -VoIP User Manual V1.0 Enable RTP initial port configuration. It is dynamic allocation; Configure the maximum quantity of RTP port. The default is 200; Leased IP-MAC correspondence table of DHCP; ※The configuration on this page needs to be saved after modified and will go into effect after restarting.
-
Page 24: Voip Configuration
CDX-IPH301 -VoIP User Manual V1.0 9 VOIP Configuration 9.1 IAX2 Configuration Configuration Explanation: Explanation: IAX2 registration state display ； If register successfully, it will display [Registered], otherwise will display [Unregistered]; Config IAX2 the server address, also can use domain name form;... - Page 25 CDX-IPH301 -VoIP User Manual V1.0 Config IAX2 account password； Config IAX2 phone number； Config equipment iax2 monitor port； Config voice mail number ， If the IAX2 support voice mailbox, the voice mailbox is the letter form, the gateway is unable to input the letter, uses this number to replace voice mail the name；...
-
Page 26: Sip Configuration
CDX-IPH301 -VoIP User Manual V1.0 in makes the choice 60 to 3600 between； config the permission/prohibition registers the server； Config whether supports G.729; 9.2 SIP Configuration Sip register Configuration Explanation: Select SIP1 or SIP2，then you can register and configure SIP1 or SIP2;... - Page 27 CDX-IPH301 -VoIP User Manual V1.0 Configure the name of registration server; Configure SIP register server IP address or Domain Name; Configure SIP register server signal port; Configure SIP register account（usually it is the same with the port number that configured, some special SIP servers will have different port configurations, then the port configuration needs to be configured to be numbers, here the configuration account can be arbitrary character string）;...
- Page 28 CDX-IPH301 -VoIP User Manual V1.0 Configure proxy server account; Configure proxy server password; Configure domain realm; Configure enable/disable register; Advanced sip setting Configure expire time of SIP server register, the default is 60 seconds. If the...
- Page 29 CDX-IPH301 -VoIP User Manual V1.0 expire time that server requires is more or less than that configured by the phone, the phone can automatically modify it to the recommended time limit and register; Configure the NAT keep alive interval; Configure the User Agent;...
- Page 30 CDX-IPH301 -VoIP User Manual V1.0 Configure enable/disable Keep Authentication; Configure enable/disable NAT Keep Alive Configure enable/disable Via rport Configure enable/disable PRACK Configure enable/disable Long Contact; Configure enable/disable URI Convert; Configure enable/disable Dial without register; Configure enable/disable Ban Anonymous Call; Call forwarding. The default is Disable; when busy is selected, if the number...
- Page 31 CDX-IPH301 -VoIP User Manual V1.0 Select the Server type; DTMF sending mode configuration; three kinds: the above are basic configurations of SIP. Enable the phone to use protocol edition. When the phone need to communicate with phones which is using SIP1.0 such as CISCO5300 and so on, then it should be configured into RFC2543 to communicate normally.
-
Page 32: Stun Configuration
CDX-IPH301 -VoIP User Manual V1.0 Configure enable/disable RTP Encode; Configure enable/disable Session Timer; Configure enable/disable answer with single codec; Configure enable/disable Auto TCP; Configure enable/disable Strict Proxy; Configure enable/disable GRUU; Configure enable/disable Displayname Quote; 9.3 STUN configuration SIP STUN is a kind of server that used to realize the SIP's enablement of NAT, when the STUN server IP of the phone has been configured（generally the... -
Page 33: Dial Peer Configuration
CDX-IPH301 -VoIP User Manual V1.0 Display the application status of the STUN NAT; Configure IP address of SIP STUN server; Configure port of SIP STUN; Interval time for STUN's detection on NAT type, the unit is second; Configure Local SIP port;... - Page 34 CDX-IPH301 -VoIP User Manual V1.0 Configuration Explanation: Display of calling number IP image list; It is to add outgoing call number, there are two kinds of outgoing call number setup: One is exactitude matching, after this configuration has been done, when the number is totally the same with the user's calling number, the phone will make the call with this number's IP address image or configuration;...
- Page 35 CDX-IPH301 -VoIP User Manual V1.0 user's calling number(the prefix number length),then the phone will use this number's IP address image or configuration to make the call. When configuring the prefix matching, letter "T" should be added behind the prefix number to be distinguished from the exactitude matching; the longest length is 30 bits.
- Page 36 CDX-IPH301 -VoIP User Manual V1.0 replacing length to make the setup: Add: xxx, add xxx before number. in this way it can help user save the dialing length; All: xxx, the number is all replaced by xxx; speed dialing can be implemented, for example, user configure the dialing number as 1, with the configuration "all", the actual calling number will be replaced;...
-
Page 37: Phone Configuration
CDX-IPH301 -VoIP User Manual V1.0 this is the modified number. read-only; To modify call mode; To modify destination address; this is optional configuration item; To modify destination phone port; this is optional configuration item; To modify alias; this is optional configuration item;... -
Page 38: Dsp Configuration
CDX-IPH301 -VoIP User Manual V1.0 10.1 DSP configuration On this page, user can set speech coding, IO volume control, cue tone standard, caller ID standard and so on. Configure the first codec; Configure the second codec; Configure the third codec;... -
Page 39: Call Service Configuration
CDX-IPH301 -VoIP User Manual V1.0 Configure the fifth codec; Configure handdown time, that is, if the hooking time is shorter than this time, then the gateway will not consider the user has handdown. Configure input volume; Configure output volume; Configure handfree volume;... - Page 40 CDX-IPH301 -VoIP User Manual V1.0 forwarding, call transfer (CT), call-waiting, three way call, blacklist, out-limit list and so on. Configuration Explanation: Configure hot-line number of the port. With this number of the port, this hot-line number will be dialed automatically as soon as off-hook and user can't dial any other number;...
- Page 41 CDX-IPH301 -VoIP User Manual V1.0 modes call transfer as below: UNATTENDED TRANSFER: During conversation, press button and input transferred number end with 【#】 to transfer the phone to the third part and hang up automatically HALF ATTENDED TRANSFER: During conversation, press button to hold this line, and input transferred number end with【...
-
Page 42: Phone Book Configuration
CDX-IPH301 -VoIP User Manual V1.0 the three way call concurrently; Configure enable/disable Accept Any Call; Configure enable/disable Auto Answer; Configure add/delete blacklist. If user doesn't want to answer a certain number, please add this number to the list, and then this number will be unable to get through the phone. -
Page 43: Save And Clear Configuration
CDX-IPH301 -VoIP User Manual V1.0 NOTE: SOME ISP INTERNET MAY INHIBIT THE PHONE TO REGISTER AND CANCEL THE REGISTER IN SUCCESSION, SO USER HAD BETTER NOT APPLY OR REGISTER AND CANCEL SOON IN SUCCESSION AND SUBMIT REGISTRATION REPEATEDLY. SERVER MAY STOP RESPONSE OF DIALOGUE... -
Page 44: Firewall Configuration
CDX-IPH301 -VoIP User Manual V1.0 page. On the MMI filter table, user can modify and delete the MMI filter; Add MMI filter table; Configure enable/disable MMI Filter. 12.2 Firewall configuration On the page, user can configure the function of the firewall. - Page 45 CDX-IPH301 -VoIP User Manual V1.0 Select firewall type; Display firewall input rule table; Display firewall output rule table; in the table ， Src address and Src Mask confirm the range of the source address, For example ： Src...
- Page 46 CDX-IPH301 -VoIP User Manual V1.0 addr(192.168.10.10) and Src Mask(255.255.255.255) can confirm that the host is 192.168.10.10；Dse addr(192.168. 0.120) and Des Mask(0.0.0.0) confirm host; addr(192.168.10.20) Mask(255.255.255.0) confirm any host within the 192.168.10.0 network segment. So, when the Index is “1” in the output rule table, and the definition of rule is: the UDP package of the host(192.168.10.10) can’t...
-
Page 47: Nat And Dmz Configuration
CDX-IPH301 -VoIP User Manual V1.0 Configure port range; Configure source IP address; Configure destination IP address; Configure source Mask; Configure destination Mask; 12.3 NAT and DMZ configuration On the page, user can configure NAT and DMZ. T function of the NAT is a network port mapping and the function of the DMZ is a network address mapping. - Page 48 CDX-IPH301 -VoIP User Manual V1.0 Configure NAT of the Application Layer Gateway(ALG);the protocol includes: IPSec, FTP and PPTP. Display NAT table; Add and delete NAT table (configure NAT of the Transport Layer, the protocol includes: TCP and UDP); Select transfer type;...
- Page 49 CDX-IPH301 -VoIP User Manual V1.0 Display DMZ table； Configure the DMZ rule. Configure the outside IP of the DMZ; Configure the inside IP of the DMZ; Configure outside IP and inside IP, then click the Add, user can add the DMZ table.
-
Page 50: Vpn Configuration
CDX-IPH301 -VoIP User Manual V1.0 12.4 VPN configuration On this page, user can save and configure VPN setting. Display the VPN IP of the IPH301; Select VPN mode, and configure enable/disable VPN; (1) Select UDP tunnel, and configure VPN: Select UDP tunnel mode;... -
Page 51: Upgrade On-Line
CDX-IPH301 -VoIP User Manual V1.0 Configure VPN server port; Configure VPN server group ID; Configure VPN server area code; Configure enable/disable VPN tunnel; (2) Select L2TP, and configure VPN: Select L2TP mode; Configure VPN server address; Configure VPN User Name;... -
Page 52: Ftp/Tftp Download
CDX-IPH301 -VoIP User Manual V1.0 on hard disk of the computer directly to run the system upgrade. After the upgrade has been completed, restart the phone and it will be usable at once. 13.2 FTP/TFTP download On this page, user can upgrade system and configure files by FTP or TFTP mode. - Page 53 CDX-IPH301 -VoIP User Manual V1.0 Select server type; Select Application update type, the phone will upgrade system file; Select Config file export type and click the Apply, the phone will upload its configuration files to FTP/TFTP server and save with names of user-defined configuration files;...
-
Page 54: Configure File Encryption
CDX-IPH301 -VoIP User Manual V1.0 13.4 Configure file encryption Configure file can be encryption with DOS command: dsc.exe <key.txt> <e/d> <old configure> <new configure>. Dsc.exe-encryption software tool <key.txt>-user made encryption key file <e/d> e（encrypt）, d (decrypt) < Old configure >former configure file name and path, <... -
Page 55: Configuration Files
CDX-IPH301 -VoIP User Manual V1.0 Input user name of desired FTP server. Input user password of desired FTP server. Input name configuration file. Software version must be different for each upgrade file. If configuration file is encrypted, password needed. Chose server type as either FTP or TFTP. -
Page 56: Syetem Management
CDX-IPH301 -VoIP User Manual V1.0 14 Syetem management 14.1Account management On this page, user can set the keyboard password, the same time, user can add and delete users according to own needs and can modify user's authorities there have been. - Page 57 CDX-IPH301 -VoIP User Manual V1.0 To add phone account; it will be shown at lower part of page as the following figure, of which: Add new accounts; account level; root possesses authorities to modify configuration,general possesses read-only authority;as corresponding password of the additive account;...
- Page 58 CDX-IPH301 -VoIP User Manual V1.0 The modified username; Modify user authorities; Modify user password; Make confirmation of the modified user password; Submit the modification; Owing to the phone's default account: accounts of the administrator level-admin and the ordinary level － guest are all weak account and weak password, the username and password will be easily to be guessed on public network, so the user had better modify the administrator and ordinary user.
-
Page 59: Time Zone Configure
CDX-IPH301 -VoIP User Manual V1.0 14.3 Time zone configure On this page, user can save and configure time zone setting. Configure the desired time zone. 15 Configuration via Telnet In DOS window, input telnet 192.168.10.23, enter:... -
Page 60: B Asic Command
CDX-IPH301 -VoIP User Manual V1.0 Then input USER NAME：admin PASWORD：admin 15.1Basic Command input “help” or “ ？ ”under terminal to check all sub-terminal and globe command; input “help” or “？”under command to check parameters; input “！” or“exit”to quit former path. 。... -
Page 61: Elnet
CDX-IPH301 -VoIP User Manual V1.0 each help is with comment as <command> or <node> to identify. parameter of each command including two types:“required” and“optional”: all “required”start as “-”; all option，start as“_”. Also partly input available like point 3. after configure, make sure save with command “write”, other wise, all setting lost while re-start. -
Page 62: Onfiguration Terminal
CDX-IPH301 -VoIP User Manual V1.0 ---fastethernet ---mmifilter ---nat ---port --qos ---syslog ---time ---user ---voip ---vpn 15.3 Structure of Configuration terminal Access list firewall configuration Path：<config-accesslist># [no] entry - <command>Set access list table [no] in-access - <command>Enable/Disable In-access [no] out-access - <command>Enable/Disable Out-access show - <command>Show access list... - Page 63 CDX-IPH301 -VoIP User Manual V1.0 Path： <config–fastethernet–lan># [no] bridgemode - <command>Enable/Disable bridge mode [no] dhcp-server - <command>Enable/Disable DHCP Server dhcpshow - <command>Show DHCP current leased table [no] ip - <command>Set lan IP ipshow - <command>Show LAN interface configuration [no] nat - <command>Enable/Disable NAT...
- Page 64 CDX-IPH301 -VoIP User Manual V1.0 Ex： <config-mmifilter>#entry –start 202.112.20.1 –end 202.112.20.255 ---no entry –start x.x.x.x Ex： <config-mmifilter>#no entry –start 202.112.20.1 [no] entry - <command>Set IP filter table modifyfilter - <command> modify mmifilter table show - <command>Show IP filter table [no] start-filter - <command>Enable/Disable MMI IP filter...
- Page 65 CDX-IPH301 -VoIP User Manual V1.0 ports, if input as PORT X, valid only to port X. Some parameter only valid to some port, then PORT X is needed, otherwise, error report as “Error: Missing parameter”. Path: <config–port># [no] accept-relay - <command>Set accept relay mode [no] calltransfer - <command>Enable/Disable call transfer...
- Page 66 CDX-IPH301 -VoIP User Manual V1.0 show - <command>Show QOS configuration [no] vlanid - <command> Set VLAN ID USER management Path: <config–user># [no] entry - <command>add a user with given level password - <command>Change password show - Show all users Other configuration except Config terminal TIME Path: <config-time>#...
- Page 67 CDX-IPH301 -VoIP User Manual V1.0 Via TFTP uploading file ---upload tftp –ip x.x.x.x –file xxx Via FTP download file ---download ftp –user xxx –password xxx –ip x.x.x.x –file xxx Via TFTP download file ---download tftp –ip x.x.x.x –file xxx Other commands...
- Page 68 CDX-IPH301 -VoIP User Manual V1.0 PING host ---ping x.x.x.x trace ---trancert x.x.x.x If user has accounts of a certain SIP server and each account has different password, then user should add each account and its corresponding password to the account& password table.
- Page 69 CDX-IPH301 -VoIP User Manual V1.0 Passwords modified; Click submit to submit, click return to cancel the modification and then return. 1095 Budapest, Mester utca 34. 1141 Budapest, Fogarasi út 77. Tel.: *218-5542, 215-9771, 215-7550, Tel.: *220-7940, 220-7814, 220-7959, 216-7017, 216-7018 Fax: 218-5542...
