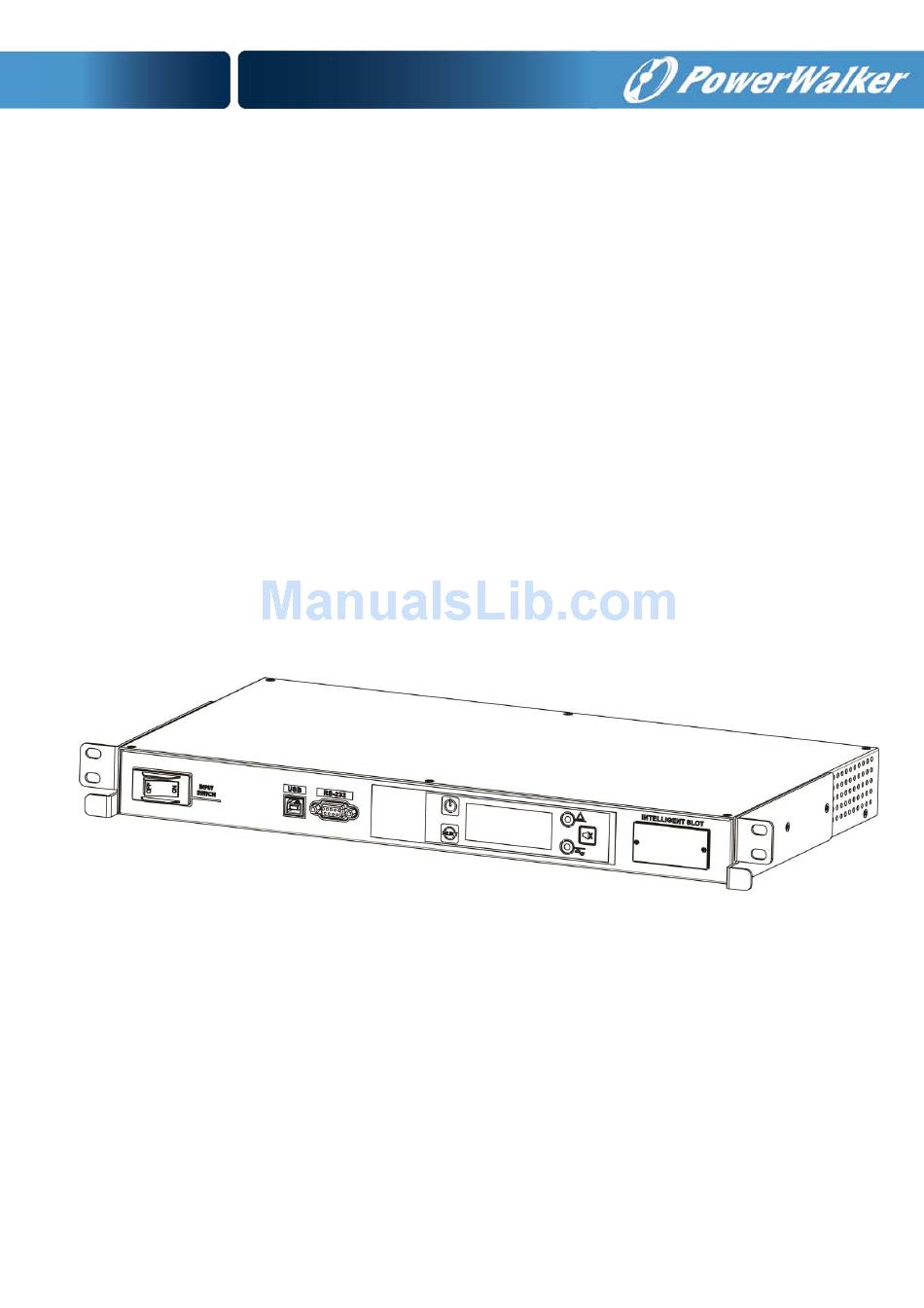

- Page 1 User Manual PowerWalker PDU RC-16A Power Distribution Unit Version: 1.0...
-
Page 2: Table Of Contents
Table Of Contents 1. Introduction ........................1 1-1 Package Contents ....................1 1-2 Safety ........................1 1-3 Disposing of PDU ....................1 1-4 Function ......................... 1 1-5 Overview ........................ 2 2. Installation ........................3 2-1 Rack Mounting ......................3 2-2 Connections ......................3 3 Operation &... -
Page 3: Introduction
1. Introduction 1-1 Package Contents PDU x 1 User Manual x 1 USB cable x 1 Input IEC-SCHUCKO 16A cable 1-2 Safety The PDU must be connected to earth while in use. Do not use extension cords or adapters with this PDU. ... -
Page 4: Overview
1-5 Overview FRONT VIEW REAR VIEW Input switch Fault indicator MUTE/FUNCTION button: to silence the USB communication port buzzer RS232 communication port Expansion slot for communication boards SELECT button: to toggle the different Output IEC 10A sockets status screens in LCD display ON/OFF button: to turn on or off the Input 16A plug outputs... -
Page 5: Installation
2. Installation 2-1 Rack Mounting Following figure shows how to install the PDU module in a 19-inch bay (with a depth of 600mm) at the desired height in the cabinet uprights. Secure the device adequately to cabinet with four screws. 2-2 Connections For connecting the PDU, plug the input to the mains or to the UPS depending on user’s requirements. -
Page 6: Operation & Display
3 Operation & Display 3-1 Panel Overview 1. On/Off button 2. Select button 3. LCD display: for detailed LCD operation, please check section 3-2. 4. Power indicator (Yellow) 5. Fault indicator (Red) 6. Mute/Function button On the LCD display, it will show the following information: ... - Page 7 3-2-1 SELECT Button The SELECT button allows you to scroll through different status screen. The LCD displayed information will be switched in turns by pressing SELECT button. The displayed information is switched as below order: Total input voltage/input current, input voltage/output current for each active numerical plug and fault codes.
- Page 8 Input Output 6 Current Voltage Input Output 7 Current Voltage Input Output 8 Current Voltage Alarm code F05: overload alarm on output 5. Current available outputs are plug 1, 5 and 8. Input Fault codes will be displayed in Voltage turns automatically if more than two faults or lock alarms occur.
- Page 9 3-2-3 Mute/Function Button Two functions by pressing Mute/Function button. Mute function by pressing and hold the button for at least 3 seconds. Function button by quick press the button Mute Operation When the buzzer is sounding due to alarms, the buzzer can be mute by pressing this button.
- Page 10 3-2-4 Alarm Code/LED/Buzzer MAINS CODE DESCRIPTION Fault LED Buzzer 0.5s ON / 1.0s Low input voltage Blinking 0.5s ON / 1.0s High input voltage Blinking Immediate shutdown on 0.5s ON / 0.5s Blinking Output 1 Immediate shutdown on 0.5s ON / 0.5s Blinking Output 2 Immediate shutdown on...
- Page 11 0.5s ON / 1.0s High input current Power Fail on Auxiliary 1 Power Fail on Auxiliary 2 Lock for overload on Output 1 Lock for overload on Output 2 Lock for overload on Output 3 Lock for overload on Output 4 Lock for overload on Output 5 Lock for overload on Output 6 Lock for overload on Output 7...
-
Page 12: Technical Specification
4. Technical Specification Input Input Plug IEC C20 16A 250V Cord Entry Rear feed Maximum Input Current 16A Rated Input Current Nominal Input Voltage 220V/230V/240V Rated Input Voltage 184 – 300V Input Frequency 50Hz/60Hz Power Capacity 3.68KVA at 230V Overload Protection 16A Breaker Output Nominal Output Voltage 220V/230V/240V...
