Omron BF206-BT Instruction Manual

Bluetooth body composition monitor
Hide thumbs Also See for BF206-BT:
Table of Contents

Advertisement

Quick Links

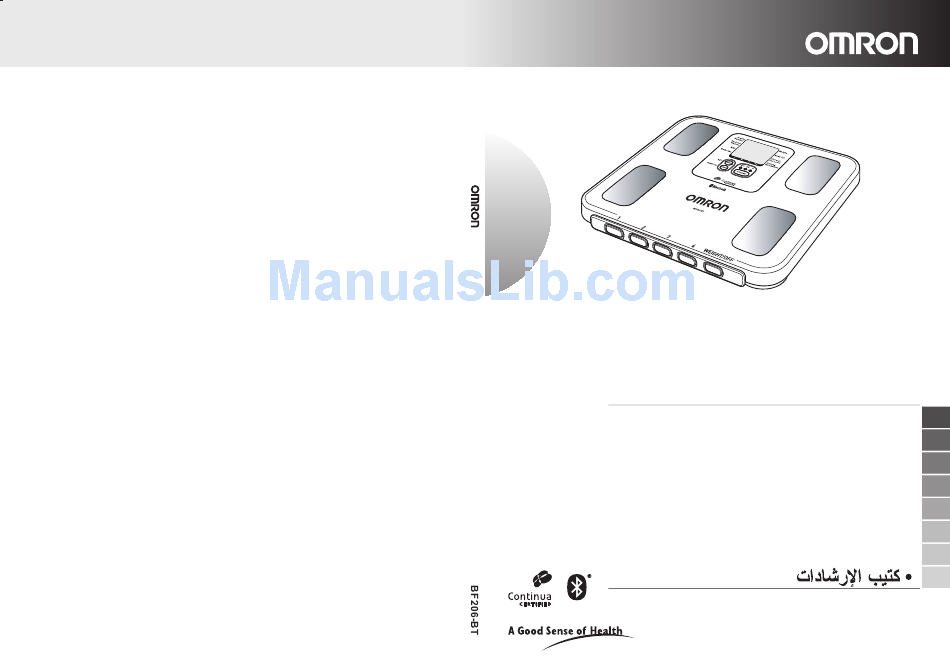

BF206-BT
Bluetooth
®
Body Composition Monitor
• Instruction Manual
• Mode d'emploi
• Gebrauchsanweisung
• Manuale di istruzioni
• Manual de instrucciones
• Gebruiksaanwijzing
•
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
Thank you for purchasing the OMRON Body Composition Monitor.
Before using this unit for the first time, please be sure to read this Instruction Manual
carefully and use the unit safely and properly.
Please keep this Instruction Manual at hand all the time for future reference.
EN
FR
DE
IT
ES
NL
RU
AR
IM-BF206-BT-01-02/2010
5328801-9A

Advertisement

Table of Contents
loading

Related Manuals for Omron BF206-BT

Summary of Contents for Omron BF206-BT

  • Page 1 • Gebruiksaanwijzing • РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ Thank you for purchasing the OMRON Body Composition Monitor. Before using this unit for the first time, please be sure to read this Instruction Manual carefully and use the unit safely and properly. Please keep this Instruction Manual at hand all the time for future reference.

  • Page 2: Table Of Contents

    Body Composition Monitor Intended Use Medical Purpose Dear customer, Thank you for purchasing this high-quality OMRON Body Composition Monitor. The BF-206BT is intended to measure and display the following body composition: - Body weight - Body Fat (in %) - Skeletal Muscle (in %)

  • Page 3: Notes On Safety

    Notes on Safety Symbols and definitions are as follows: Improper use may cause danger resulting in death or serious injury. Danger: Improper use may result in possible death or serious injury. Warning: Improper use may result in injury or property damage. Caution: •...

  • Page 4: Information On Body Composition

    Body fat is tissue that has little electric conductivity. The BF206-BT sends an extremely weak electrical current of 50 kHz and less than 500 μA through your body to determine the amount of fat tissue. This weak electrical current is not felt while operating the BF206-BT.
  • Page 5 Information on Body Composition What is Body Fat Percentage? Body fat percentage refers to the amount of body fat mass in regards to the total body weight expressed as a percentage. Body fat percentage (%) = {Body fat mass (kg) / Body weight (kg)} × 100 The device uses BI method to estimate your body fat percentage.

  • Page 6: Know Your Unit

    Operating instructions 1. Know Your Unit Display and Buttons Battery Low Indicator Display The illustration shows all display items. (When used, the unit does not display all the items at the same time.) SET/MODE Button Err/OK/P Indicators GUEST/ MEMO Button Turns the power ON and UPLOAD Button selects Guest mode.

  • Page 7: Setting The Date And Time

    3. Setting the Date and Time When the power is turned on for the first time, it is necessary to set the date and time. Press the GUEST/ MEMO button to Press the WEIGHT/OFF button to adjust the day and press the SET/MODE button to confirm.

  • Page 8: Setting And Storing Personal Data

    4. Setting and Storing Personal Data For the correct measurement of body composition, it is necessary to set your personal data (birth date, gender, height). The monitor saves up to four personal profiles. Press the GUEST/ MEMO button to Press the Personal Profile Number adjust the birth month and press the SET/ MODE button to confirm.
  • Page 9 4.Setting and Storing Personal Data Changing the Personal Data Press the Personal Profile Number Change the personal data. button to select your personal profile While “0.0 kg” is displayed, press the number. SET/MODE button. The birth year blinks on the display. The birth date appears on the display, then the display changes to “0.0 kg”...

  • Page 10: Taking A Measurement

    The birth date appears on the display, then the evenly distributed. display changes to “0.0 kg”. Bluetooth BF206-BT WEIGHT/OFF The display will show your weight and then Note: If you step onto the unit before “0.0 kg”...
  • Page 11 5.Taking a Measurement Check the measurement results. The results display rotates automatically. To stop the automatic rotation of results, or to view other measurement values, press the SET/MODE button. The display changes with each press of the SET/MODE button, as shown below. Note: Use the bar indicator as a guide to measurement.
  • Page 12 Level Classification 1 - 9 0 (Normal) 10 - 14 + (High) 15 - 30 ++ (Very High) According to OMRON HEALTHCARE figures Interpreting the BMI Result BMI (Designation by the WHO) Underweight BMI < 18.5 > BMI < 25 Normal 18.5...

  • Page 13: Measuring Weight Only

    6. Measuring Weight Only Press the WEIGHT/OFF button to Check the measurement result. turn on the power. Your weight is displayed and blinks twice to indicate that measurement is completed. The current date appears on the display, then the display changes to “0.0 kg”. When the measurement is completed, step down from the unit and turn off the power.

  • Page 14: Viewing The Last Measurement Results

    Care and maintenance 7. Viewing the Last Measurement Results Up to 30 measurement results are automatically stored for each personal profile number and the last (previous) measurement results can be displayed for this unit. Note: When using the Guest mode, measurement results are not stored. Press the Personal Profile Number Press GUEST/ MEMO button.

  • Page 15: Transferring The Data

    8. Transferring the Data ® You can transfer measurement data to a Bluetooth wireless technology device. You can transfer up to 30 sets of stored measurement results for each personal profile number. The content and display for the measurement results may vary depending on the application used to view them. For details, refer to the manual provided with the application you are using.
  • Page 16 8.Transferring the Data Transferring the Data Display the measurement results. Press the UPLOAD button. The display changes to the data transmission screen, and the unit starts transferring the data. Note: If you press the UPLOAD button while the data is being transferred, the transfer will be stopped and the display will revert to the previous screen.

  • Page 17: About The Wireless Communications Function

    - Places with the risk of sudden shocks or vibrations - In places where chemicals are stored or where corrosive gas is present. • Do not carry out repairs of any kind yourself. If a defect occurs, consult the OMRON distributor or Customer Services as mentioned on the packaging.

  • Page 18: Error Displays

    Insert the batteries again and repeat measurement. Device error. If this error still occurs, consult your OMRON service representative. You stepped on or moved the unit before Step on the unit after the display indicates the display indicated “0.0 kg”.

  • Page 19: Technical Data

    13. Technical Data Product ® Bluetooth Body Composition Monitor Model BF206-BT (HBF-206IT-E) Display Body Weight: 0 to 150 kg with an increment of 0.1 kg (0.0 to 330.0 lb with an increment of 0.2 lb) Body Fat percentage: 5.0 to 60.0% with an increment of 0.1% Skeletal Muscle percentage: 5.0 to 50.0% with an increment of 0.1%...
  • Page 20 Recommendation is to keep a minimum distance of 7 m. Verify correct operation of the device in case the distance is shorter. Further documentation in accordance with EN60601-1-2:2007 is available at OMRON HEALTHCARE EUROPE at the address mentioned in this instruction manual.
  • Page 21 13.Technical Data Manufacturer OMRON HEALTHCARE Co., Ltd. 24, Yamanouchi Yamanoshita-cho, Ukyo-ku, Kyoto, 615-0084, Japan EU-representative OMRON HEALTHCARE EUROPE B.V. Kruisweg 577, 2132 NA Hoofddorp, The Netherlands www.omron-healthcare.com OMRON HEALTHCARE UK LIMITED Opal Drive Fox Milne, Milton Keynes MK15 0DG, United Kingdom...
