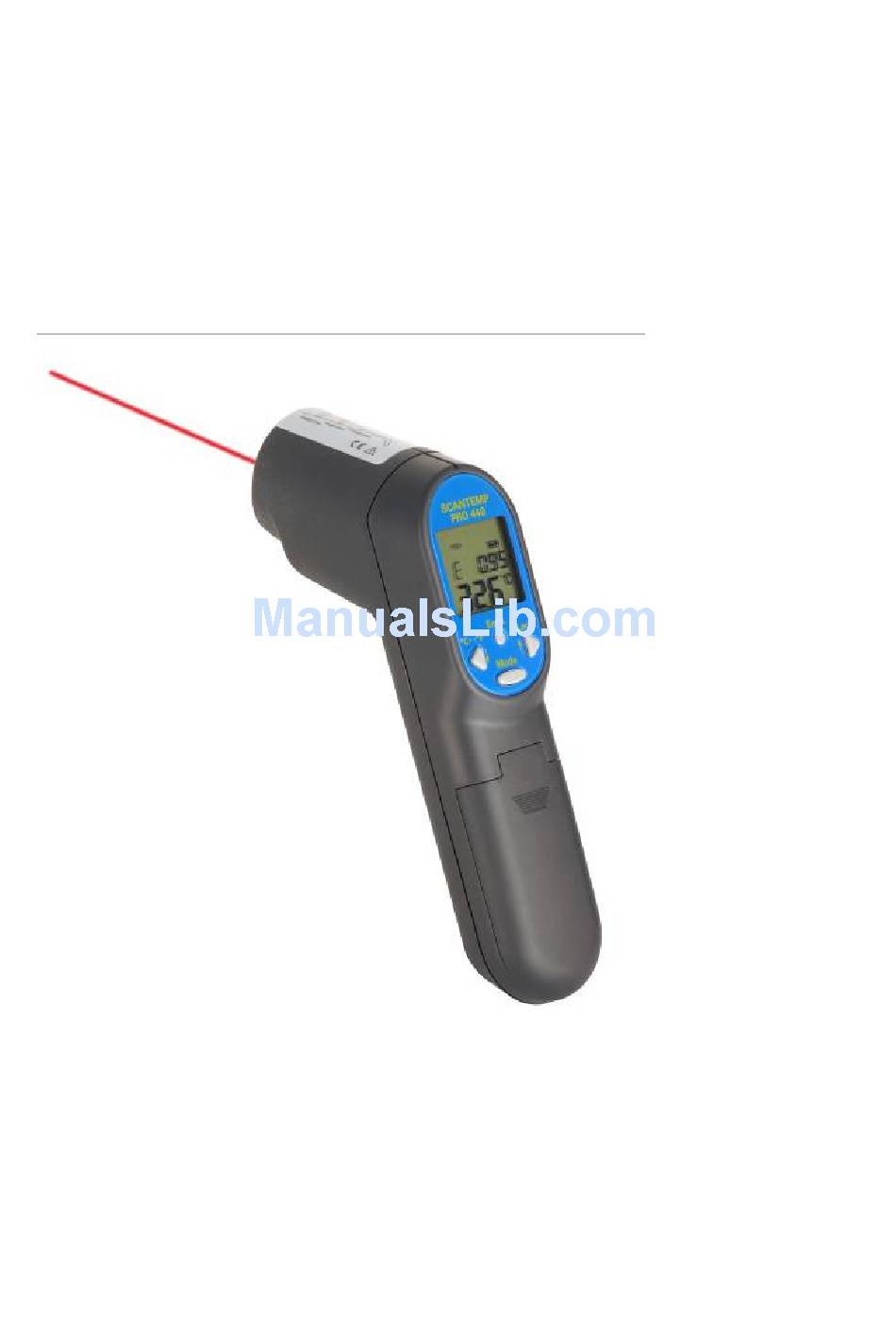

- Page 1 Infrared Thermometer SCANTEMP 440 User manual...

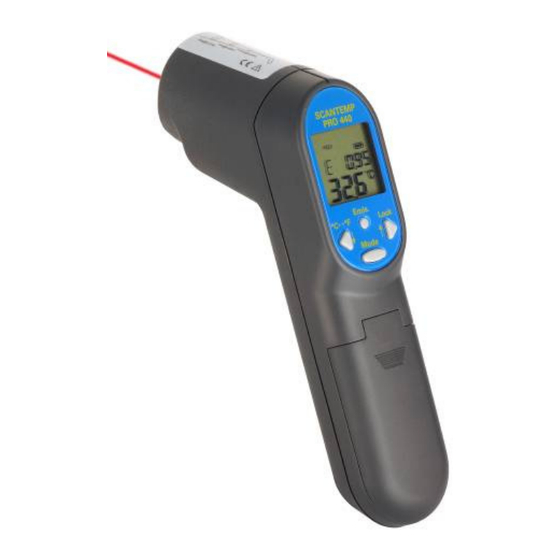

- Page 2 INTRODUCTION The ScanTemp440 infrared thermometer is a non-contact infrared thermometer with Thermocouple connector. For the infrared part, simply aim the thermometer at the target and press the measurement button to display the surface temperature in less than a second. Plug in the specific thermocouple (not included), ScanTemp440 may take contact temperature as high as 1400 The distance to target diameter ratio (field of view) is 11:1.
- Page 3 English...
- Page 4 FEATURES Long Battery Life Use the most affordable and available battery: AA size, instead of the low capacity 9V battery Large LCD Screen, with bright amber color Backlight Friendly User Interface: 4-Key with trigger with high-end arithmetic: Max; Min and DIF; AVG mode Auto Power Off in 1 minutes Precision K type Thermocouple Thermometer...
-
Page 5: Safety Cautions
Do not leave the device near objects of high temperature. After measure high temp, the probe may remain HOT for a while. Do not submerge any part of the ScanTemp 440. The thermometer is NOT watertight. Please keep the unit dry and away from water. English... -
Page 6: Parts Description
PARTS DESCRIPTION ＊ ＊ ＊ ＊ Simply aim the ScanTemp440 at the measure target and press the Meas. key to display the surface temperature. The Default Screen as follow: English... -
Page 7: Operating Instructions
C < LAL 27.1 C, the Low icon will flash and you will hear a beep sound. # The measurement range: -60 to +500 # ScanTemp will automatically shut off if left idle for more than 60 sec, unless in PRB mode. English... - Page 8 OPERATING INSTRUCTIONS Thermocouple Probe Scan Function Press the mode key(8) until PRB appears: on the LCD. Connect thermocouple with ScanTemp440’s thermocouple socket(10) and put the probe in or on the target, the temperature will be displayed beside the “PRB” icon. This mode can only be reference when thermometer probe is connected.
- Page 9 OPERATING INSTRUCTIONS Other Function Press Lock key for infrared LOCK In Default, Max, Min, mode ON/OFF. DIF, Press °C/°F key for C or AVG, PRB mode: transferred. Press Lock Backlight In all modes: First function ON/OFF. hold on the Meas. key Press °C/°F key for laser function ON/OFF.
-
Page 10: Cleaning And Storage
–20 to +65 The lens should be kept clean at all times. The sensor lens is the most delicate part of the ScanTemp. The lens should be kept clean at all times, care should be taken when cleaning the lens using only a soft cloth or cotton swab with water or medical alcohol, allowing the lens to fully dry before using the ScanTemp440. -
Page 11: Troubleshooting
TROUBLE SHOOTING LCD display Problem & Solution ‘Low Battery’ icon indicates the battery is low. The battery should be replaced with two AA(LR6), 1.5V batteries immediately. Please check the model with/without this function. don’t work Replace the battery. ‘Hi’ is displayed when the temperature being measured is outside of the settings of HAL. -
Page 12: Specifications
SPECIFICATIONS Item Infrared Scan function Thermocouple Probe Scan function Measurement -60 to +500 -64 to +1400 Range (-76 to +932 (-83.2 to +2552 Infrared +2% of reading or +2 +1% of reading or +1 Accuracy C which is greater C which is greater Operating 0 to +50 C (32 to 122...
