Cascadia HDH4 Quick Manual

Hd-sdi dvr / analog (960h) dvr
Hide thumbs Also See for HDH4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

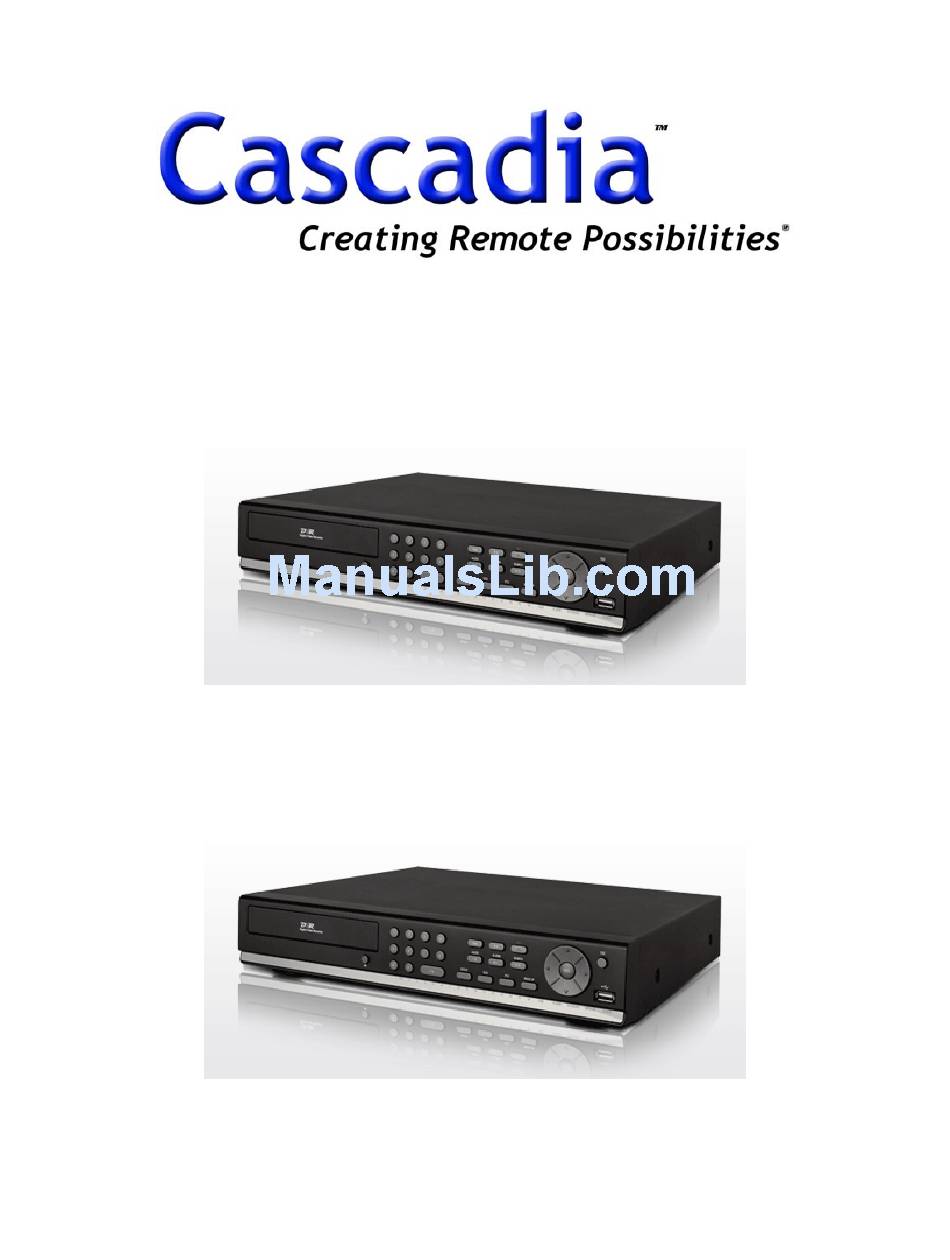

Quick Installation Guide V2.1.1
HD-SDI DVR / Analog (960H) DVR

Quick Guide


HD-SDI DVR Models: HDH4, HDH8, HDH16,
HDR4, HDR8, HDR16
Analog (960H) DVR Models: HR4, HR8, HR16
__________________________________________________________________________________________

PLEASE READ THIS QUICK GUIDE BEFORE OPERATING YOUR DVR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDH4 and is the answer not in the manual?

Questions and answers

Related Manuals for Cascadia HDH4

Summary of Contents for Cascadia HDH4

  • Page 1: Quick Guide

    Quick Installation Guide V2.1.1 HD-SDI DVR / Analog (960H) DVR Quick Guide   HD-SDI DVR Models: HDH4, HDH8, HDH16, HDR4, HDR8, HDR16 Analog (960H) DVR Models: HR4, HR8, HR16 __________________________________________________________________________________________       PLEASE READ THIS QUICK GUIDE BEFORE OPERATING YOUR DVR ...

  • Page 2: Product Components

    Quick Installation Guide V2.1.1 PRODUCT COMPONENTS   Client DVD & Quick Guide (Includes Detailed User Manual) Remote Control & Mouse Power Supply & AC Power Cord [HR4, HR8, HR16] [HDR4, HDR8, HDR16 INITIAL SYSTEM BOOTUP PREPARATION Turning on the DVR ...

  • Page 3: Main Menu

    Quick Installation Guide V2.1.1 MAIN MENU Login Information ADMIN 1111 Default Username: Default Password:  To enter the main menu, right-click the screen and select setup from the submenu or press the setup button on the remote control.  Enter the username and password. ...

  • Page 4: Recording Mode Setup

    Quick Installation Guide V2.1.1 RECORDING MODE SETUP All DVR models are preconfigured to record CONTINUOUSLY.  To setup a different recording schedule, select Schedule in the Record menu. Navigate through the items using the mouse or the remote control.  Select CHANNEL, select CONTINUOUS, MOTION, or SENSOR, and select desired Date &...

  • Page 5: Network Access Via Mobile Phone

    Quick Installation Guide V2.1.1 NETWORK SETUP (Continued)  Free DDNS service for Dynamic IP users is provided. Please follow these instructions if your public IP address is a dynamic IP address: ‐ Turn on DDNS and select SERVER1 from the DDNS. ‐...

  • Page 6: Network Access Via Web Browser

    Quick Installation Guide V2.1.1                         NETWORK ACCESS via WEB BROWSER  A Web Browser connection uses the Web Port (Default is “80”). Please be sure to open and forward the Web Port to the DVR’s IP address.  Be sure Internet Explorer has “Pop-ups” enabled. ...
  • Page 7 Quick Installation Guide V2.1.1  Ensure the message ‘Initialize Success’ appears on the bottom information bar.  Click on the button to open Login window.  Enter the DVR Port, DVR ID, and the DVR Password.  Click on the Connect button. ...
  • Page 8 Quick Installation Guide V2.1.1  Click on the Backup button to open the Backup window.    Select STILL IMAGE, NSF, or AVI format.  For less than an hour of recording, select a USB stick. For over an hour of recording, select “Use HDD.”...
