  • Page 1 CS-1 Active Full Range Integrated Commercial Audiovisual System User Manual...

  • Page 2: Safety Instructions

    Active Full Range Integrated Commercial Audiovisual System SAFETY INSTRUCTIONS PLEASE READ THROUGH THIS MANUAL FIRST BEFORE OPERATING THE CS-1 SYSTEM. Thank you for purchasing this Beta3 product which will provide you with many years of reliable service. If you require support for this product please contact your Dealer for assistance.

  • Page 3: Table Of Contents

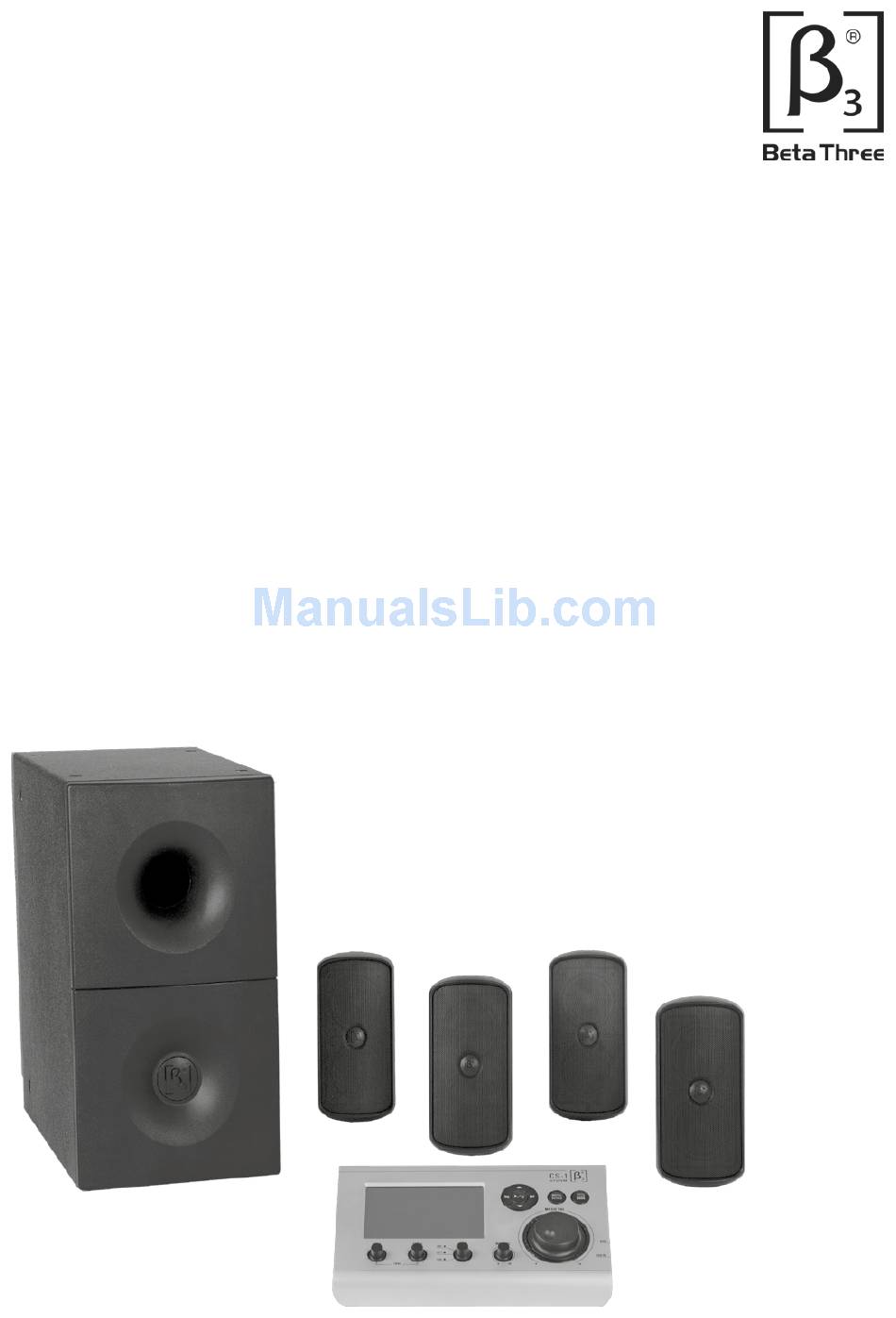

    2D Illustrations Installation Examples What’s In The Box? Each box contains a complete Beta3 CS-1 Active Full Range Integrated Commercial Audiovisual System (CS-1), including connection cables. You can extend the provided cabling if required. 1 x Sub Woofer speaker 1 x IEC Power cable...

  • Page 4: Introduction

    Setting the CS-1 up out of the box is very simple. You can have the whole system up and running in no time at all. The CS-1 includes a user-friendly Controller that can control the system by touchscreen, button selection or a combination of both.

  • Page 5: Controller

    18. 3.5mm AUX input Top Panel Side Panel 19. USB port Controller System Operation Please refer to the Beta3 CS-1 Operation Manual for guidance on how to operate the Controller. www.elderaudio.com Beta3 CS-1 User Manual | CREATING THE NEW NORMAL...

  • Page 6: Amplifier Module

    Front left satellite speaker output Front right satellite speaker output Input RJ45 to connect Controller Output RJ45 to connect to second CS-1 Single CS-1 System Connection Diagram Multi-System CS-1 Connection Diagram CREATING THE NEW NORMAL | Beta3 CS-1 User Manual www.elderaudio.com...

  • Page 7: Satellite Speaker Specification

    To attach the speaker to the bracket simply press onto the pole mount until you hear a ‘click’ securing the two together. www.elderaudio.com Beta3 CS-1 User Manual | CREATING THE NEW NORMAL...

  • Page 8: Subwoofer Technical Specification

    Painting: Cabinet coated by polyurethane paint Cabinet dimension (W x D x H): 216mm x 480mm x 400mm (8.5” x 18.9” x 15.7”) Net Weight: 15.5kg (34.1lbs) Frequency Response Curve CREATING THE NEW NORMAL | Beta3 CS-1 User Manual www.elderaudio.com...

  • Page 9: 2D Illustrations

    CS-1 Active Full Range Integrated Commercial Audiovisual System 2D Illustrations www.elderaudio.com Beta3 CS-1 User Manual | CREATING THE NEW NORMAL...

  • Page 10: Installation Examples

    CS-1 Active Full Range Integrated Commercial Audiovisual System INSTALLATION EXAMPLES Retail Space School Coffee bar Restaurant CREATING THE NEW NORMAL | Beta3 CS-1 User Manual www.elderaudio.com...
  • Page 11 CS-1 Active Full Range Integrated Commercial Audiovisual System NOTES: www.elderaudio.com Beta3 CS-1 User Manual | CREATING THE NEW NORMAL...
  • Page 12 Elder Audio Manufacture Company Ltd Tel: +86 769 8906 1666 Fax: +86 769 8906 1669 #28 Xianghe Rd., Xiangshan Industrial Park, Dalang, Dongguan, Guangdong Province, 523800 China Copyright © 2016 Elder Audio Manufacture Company Ltd www.elderaudio.com...
