Summary of Contents for Beta Three CS-1
-

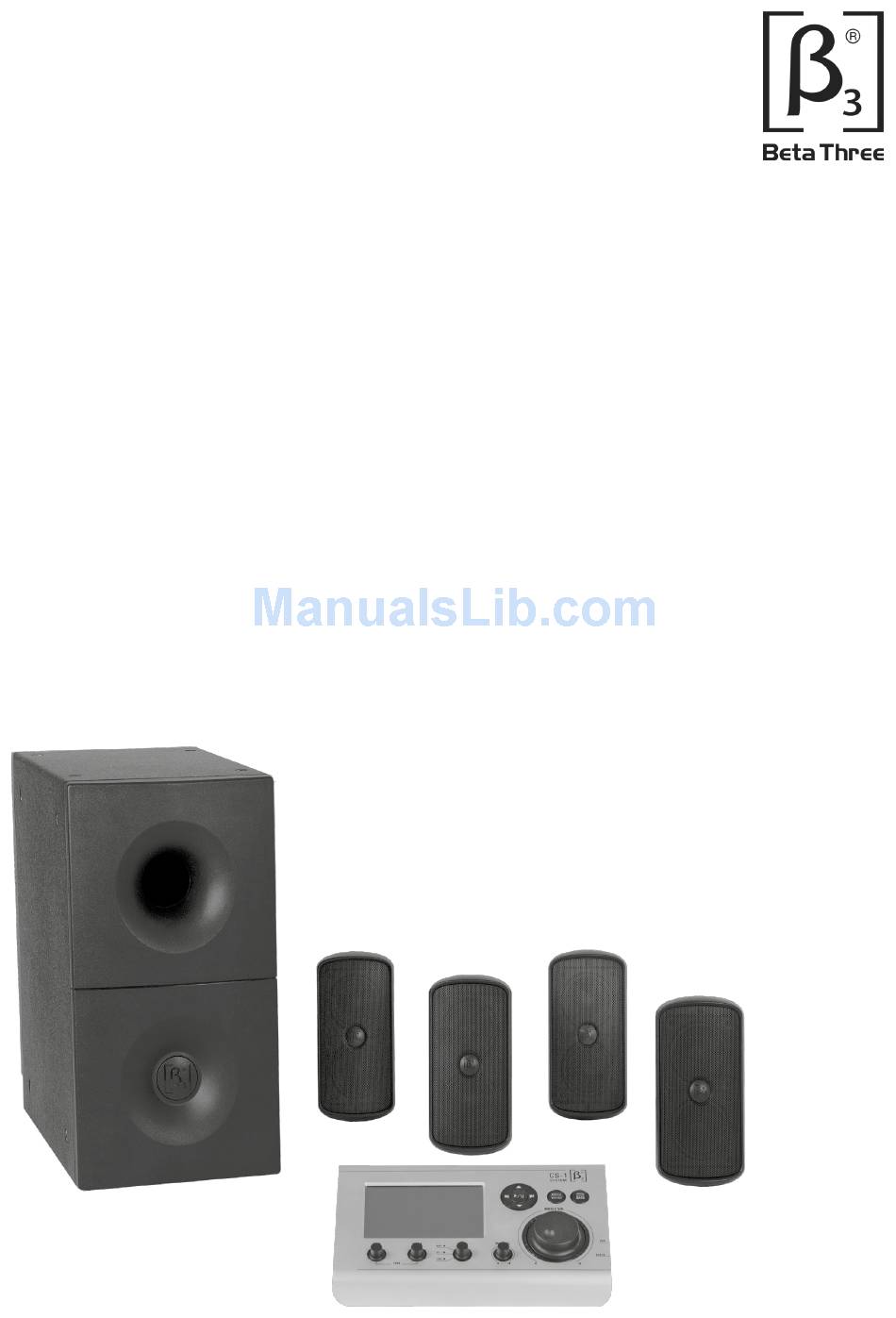

Page 1: Operation Manual
CS-1 Active Full Range Integrated Commercial Audiovisual System Operation Manual... - Page 2 Timed Play Mode Screen File Management Screen File Manager Standby Screen Master Operation Screen Toolbox Screen Process Info Screen Process Options Screen File Setting Screen Settings Screen Settings Standby Screen CREATING THE NEW NORMAL | Beta3 CS-1 Operation Manual www.elderaudio.com...
- Page 3 All the necessary control functions are available on the top panel of the Controller. You can either use the touchscreen, the control knobs or a combination of both. The Touchscreen (9) allows you to navigate the various functions of the CS-1. You can connect an external display to the HDMI socket (1) on the back panel.
- Page 4 • The VIDEO RCA socket (2) will allow you to connect an external display device which will show the same image as that on the Controller screen (9). • These 2 AUDIO RCA sockets (3) and (4) will allow you to connect the audio feed of the CS-1 to another device such as a recorder.
- Page 5 This will also turn on the Controller. Once the CS-1 is turned on the 3 blue INPUT LED’s on the top panel will flash. Next you will see the Beta3 logo and the label CS-1 flash on the screen, followed by the Beta3 logo appearing again in the middle of the screen. Once the system has fully loaded you will see the following screen.
-
Page 6: Video Screen
Once a video is being played you can jump forward to the next clip by pressing the forward button , or go back to the previous video clip by pressing the back button CREATING THE NEW NORMAL | Beta3 CS-1 Operation Manual www.elderaudio.com...
