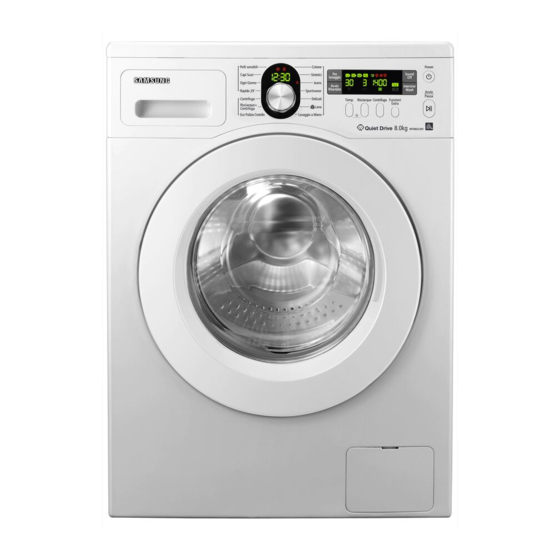

WF9904RWE
Washing Machine
user manual
This manual is made with 100% recycled paper.
imagine
the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service, please
register your product at
www.samsung.com/register
WF9904RW-02713A-01_EN(XEU)_ErP.indd 1
2011-8-24 17:09:47

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF9904RWE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samsung WF9904RWE

Summary of Contents for Samsung WF9904RWE

  • Page 1 WF9904RWE Washing Machine user manual This manual is made with 100% recycled paper. imagine the possibilities Thank you for purchasing this Samsung product. To receive a more complete service, please register your product at www.samsung.com/register WF9904RW-02713A-01_EN(XEU)_ErP.indd 1 2011-8-24 17:09:47...
  • Page 2 • Energy Saving A++AA We’ve made the grade! Samsung’s WF9904 the latest in our hightech 1400 rpm spin models, has achieved a triple ‘A’ rating. Samsung’s new premium washing machine achieved top levels of Energy Saving performance.
  • Page 3 This manual contains important information on the installation, use, and care of your new Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how to use the washing machine, and tips for making the most of its state-of-the-art features and functions.
  • Page 4 Congratulations on your new Samsung ActivFresh™ washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefits and features.
  • Page 5 Do not let children (or pets) play on or in your washing machine. The washing machine door does not open easily from the inside, and children may be seriously injured if trapped inside. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or WARNING instruction concerning use of the appliance by a person responsible for their safety.
  • Page 6 safety information SEVERE WARNING SIGNS FOR INSTALLATION WARNING The installation of this appliance must be performed by a qualified technician or service company. - Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury. The appliance is heavy, take care upon lifting it Plug the power cord into an AC 220V/50Hz/15A wall socket or higher and use the socket for this appliance only.
  • Page 7 Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or fire. Do not pull the power cord, when unplugging the power plug.
  • Page 8 safety information Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other flammable or explosive substances. - This may result in electric shock, fire or an explosion. Do not open the washer door by force while it is operating (high-temperature washing/ drying/spinning).
  • Page 9 The use for business purposes qualifies as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse.
  • Page 10 safety information Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fire, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance.
  • Page 11 Do not use natural hand-washing soap for the washer. - If it hardens and accumulates inside the washer, it may result in problems with the product, discoloration, rust or bad odors. Do not wash large laundry items such as bedding in the washing net. - Place socks and brassieres into the washing net and wash them with the other laundry.

  • Page 12: Table Of Contents

    contents SETTING UP YOUR WASHING Checking the parts MACHINE Meeting installation requirements Electrical supply and grounding Water Supply Drain Flooring Surrounding temperature Alcove or closet installation Installing your washing machine WASHING A LOAD OF LAUNDRY Washing for the first time Basic instructions Using the control panel Child lock...

  • Page 13: Setting Up Your Washing Machine

    Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer. Release lever...

  • Page 14: Meeting Installation Requirements

    setting up your washing machine MEETING INSTALLATION REQUIREMENTS Electrical supply and grounding Never use an extension cord. Use only the power cord that comes with your washing machine. WARNING When preparing for installation, ensure that your power supply offers: • 220V~240V 50Hz 15 AMP fuse or circuit breaker • Individual branch circuit serving only your washing machine Your washing machine must be grounded.

  • Page 15: Drain

    Drain Samsung recommends a standpipe height of 18 in (46 cm). The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory.
  • Page 16 setting up your washing machine STEP 2 Removing the shipping bolts Before installing the washing machine, you must remove all shipping bolts from the back of the unit. 1. Loosen all the bolts with the supplied wrench. 2. Hold the bolt with the spanner and pull it through the wide section of the hole.

  • Page 17: Connecting The Water Supply Hose

    STEP 3 Adjusting the levelling feet When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible. 1. Slide the washing machine into position. 2. Level your washing machine by turning the leveling feet in and out as necessary by hand.
  • Page 18 setting up your washing machine Connecting the water supply hose (selected models) 1. Remove the adaptor from the water supply hose. Adaptor Water supply hose 2. First, using a ‘+’ type screwdriver, loosen the four screws on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap.
  • Page 19 6. Turn on the water supply and ensure that no water leaks from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps. Do not use your washing machine if there is a water leak. This may cause electric shock or injury.
  • Page 20 setting up your washing machine Connecting the drain hose The end of the drain hose can be positioned in three ways: 1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60 and 90 cm.

  • Page 21: Washing A Load Of Laundry

    With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash first. WASHING FOR THE FIRST TIME Before washing laundry for the first time, you must run a complete empty cycle (i.e. no laundry).

  • Page 22: Using The Control Panel

    washing a load of laundry USING THE CONTROL PANEL DIGITAL GRAPHIC Displays the remaining wash cycle time, all cycle information, and error DISPLAY messages. Select the tumble pattern and spin speed for the cycle. For detailed information, refer to “Washing clothes using the cycle selector”.
  • Page 23 Quick 29’ - For lightly soiled garments that you require quickly. Spin - Performs an additional spin cycle to remove more water. Rinse + Spin - Use for a load that needs rinsing only or to add rinse- added fabric softener to a load. Eco Drum Clean - Use for drum cleaning.

  • Page 24: Child Lock

    washing a load of laundry Press it once to turn your washing machine on, press it again to turn your washing machine off. POWER BUTTON If the washing machine is left on for more than 10 minutes without any buttons being touched, the power automatically turns off. Child lock The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen can’t be changed.

  • Page 25: Air Refresh

    Air Refresh Air Refresh can refresh laundry without using water owing to its powerful airing system. Clothing that can be refreshed includes woolen coats, cotton or jumpers, sweaters and suits. (Two items or less (less than 1 kg) 1. Open the door, place the laundry into the washing machine and close the door. 2.

  • Page 26: Washing Clothes Using The Cycle Selector

    Washing clothes using the cycle selector Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed. 1. Turn on your sink’s water tap.

  • Page 27: Washing Clothes Manually

    Washing clothes manually You can wash clothes manually without using the Cycle Selector. 1. Turn the water supply on. 2. Press the Power button on the washing machine. 3. Open the door. 4. Load the articles loosely into the drum one at a time, without overfilling it. 5.
  • Page 28 washing a load of laundry Determining the load capacity Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing. Fabric Type Load Capacity Model WF9904 Cotton...

  • Page 29: Detergent And Additives Information

    DETERGENT AND ADDITIVES INFORMATION Which detergent to use The type of detergent you should use is based on the type of fabric (cotton, synthetic, delicate items, wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines. Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your area.

  • Page 30: Cleaning And Maintaining Your Washing Machine

    cleaning and maintaining your washing machine Keeping your washing machine clean improves its performance, wards off unnecessary repairs, and lengthens its life. ECO DRUM CLEAN This course is a self-cleaning course that removes mold that may occur inside the washing machine. 1. Press the Power button. 2.

  • Page 31: Draining The Washing Machine In An Emergency

    DRAINING THE WASHING MACHINE IN AN EMERGENCY 1. Unplug the washing machine from the power supply. 2. Open the filter cover using a coin or a key. Filter cover 3. Unscrew the emergency drain cap by turning it to the left. Emergency drain cap Emergency 4. Hold the cap on the end of the emergency drain tube and drain tube slowly pull it out about 15 cm.

  • Page 32: Cleaning The Detergent Drawer And Drawer Recess

    cleaning and maintaining your washing machine CLEANING THE DETERGENT DRAWER AND DRAWER RECESS 1. Press the release lever on the inside of the Release lever detergent drawer and pull the drawer out. 2. Remove the liquid detergent divider from the Liquid detergent divider detergent drawer 3. Wash all parts under running water. 4.

  • Page 33: Cleaning The Debris Filter

    CLEANING THE DEBRIS FILTER We recommend cleaning the debris filter 5 or 6 times a year, or when the error message of “5E” is displayed. (Refer to “Draining the washing machine in an emergency” in the previous page.) 1. Open the filter cover by using a key or coin. 2.

  • Page 34: Troubleshooting And Information Codes

    • Make sure the debris filter is not clogged. • The door will not open until 3 minutes after the machine stops or the Door is locked shut or will not open. power turns off. If the problem persists, contact your local Samsung Customer Service. 34_ troubleshooting and information codes WF9904RW-02713A-01_EN(XEU)_ErP.indd 34 2011-8-24 17:10:09...

  • Page 35: Calibrating Your Washing Machine

    • If the correct voltage is supplied, the cycle will resume automatically. For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung Service Centre or local Samsung dealer.
  • Page 36 cycle chart CYCLE CHART user option)  Max load(kg) DETERGENT Max Temp PROGRAM (˚C) WF9904 Pre-wash wash Softener Cotton   Synthetics   Denim   Sports Wear   Delicates Wool Handwash  Baby Care   Dark Garment   Daily Wash ...

  • Page 37: Appendix

    appendix FABRIC CARE CHART The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing (and dry cleaning when necessary). The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundery problems.
  • Page 38 2000-2400 Frequency Supplier name Samsung Electronics Co., Ltd. 1) Spin extraction is very important when you use a clothes dryer to dry your clothes. The energy for drying costs much higher than the energy for washing. Wasing with the high spin saves more energy in drying your clothes in a clothes dryer.
  • Page 39 memo WF9904RW-02713A-01_EN(XEU)_ErP.indd 39 2011-8-24 17:10:14...
  • Page 40 QUESTIONS OR COMMENTS? Country CALL OR VISIT US ONLINE AT 0845 SAMSUNG (7267864) www.samsung.com Code No. DC68-02713A-01_EN WF9904RW-02713A-01_EN(XEU)_ErP.indd 40 2011-8-24 17:10:14...
