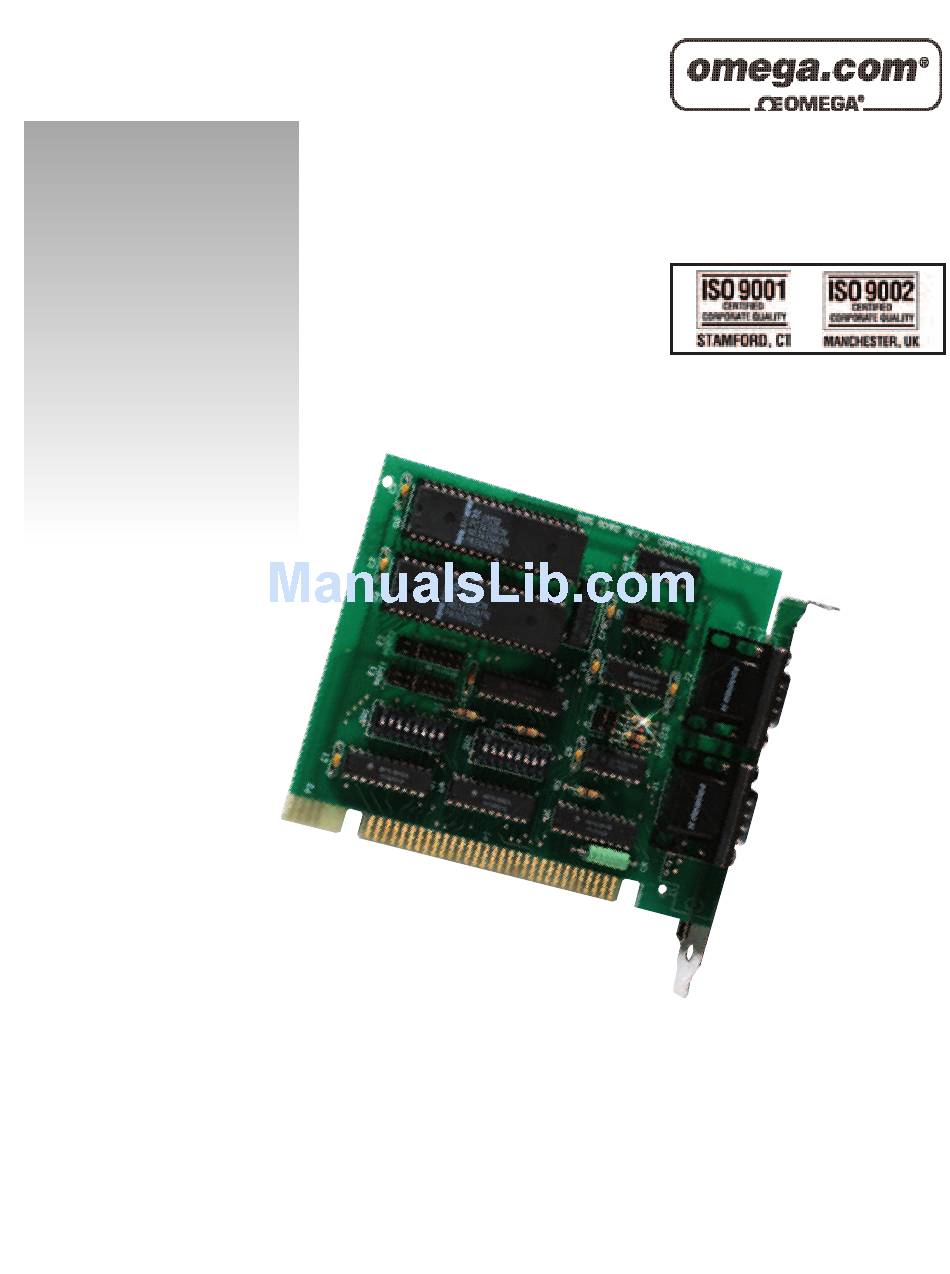

- Page 1 User’ s Guide Shop online at www.omega.com e-mail: info@omega.com OMG-COMM232-PCI Dual Port PCI RS-232 Interface Board...
- Page 2 OMEGAnet Online Service ® www.omega.com Servicing North America: USA: One Omega Drive, P.O. Box 4047 Stamford CT 06907-0047 ISO 9001 Certified TEL: (203) 359-1660 e-mail: info@omega.com Canada: 976 Bergar Laval (Quebec) H7L 5A1, Canada TEL: (514) 856-6928 e-mail: info@omega.ca For immediate technical or application assistance: USA and Canada: Sales Service: 1-800-826-6342 / 1-800-TC-OMEGA Customer Service: 1-800-622-2378 / 1-800-622-BEST...
-
Page 3: Table Of Contents
...1 NTRODUCTION ... 1 VERVIEW ’ NCLUDED ACTORY EFAULT ...2 ETUP DDRESS AND LOCK ODES ATES AND ATES AND ...7 NSTALLATION PERATING YSTEM 95/98/NT... 7 INDOWS INDOWS DOS... 7 THER PERATING ARDWARE NSTALLATION ECHNICAL ESCRIPTION ... 8 NTERRUPTS ISP?... 9 HY USE AN ONNECTOR RS-232... - Page 4 F - C PPENDIX OMPLIANCE EDERAL OMMUNICATIONS EMC D IRECTIVE Figure 1 - Clocking Mode 'Divide By 4’...2 Figure 2 - Clocking Mode 'Divide By 2’...3 Figure 3 - Clocking Mode 'Divide By 1’...5 Figure 4 - Asynchronous Communications Bit Diagram...14 ©...
-
Page 5: Introduction
Overview The Omega Engineering OMG-COMM+232.PCI is a two channel PCI Bus serial I/O adapter for the PC and compatibles. It provides two RS-232 serial ports supporting data rates up to 460.8K bps. The OMG-COMM+232.PCI works seamlessly with the standard operating system serial driver. -
Page 6: Card Setup
Card Setup Card Setup Address and IRQ selection The OMG-COMM+232.PCI is automatically assigned I/O addresses and IRQs by your motherboard BIOS. Only the I/O address may be modified by the user. Adding or removing other hardware may change the assignment of I/O addresses and IRQs. -
Page 7: Baud Rates And Divisors For The 'Div2' Mode
To double these rates up to a maximum rate of 230.4K bps place the jumper in the divide by 2 (silk-screen DIV2) position. Figure 2 - Clocking Mode 'Divide By 2’ Baud Rates and Divisors for the ‘DIV2’ mode The following table shows some common data rates and the rates you should choose if using the adapter in the ‘DIV2’... - Page 8 Notes Page Omega Engineering COMM+232.PCI Page 4...
-
Page 9: Baud Rates And Divisors For The 'Div1' Mode
To select the maximum data rate (460.8K bps) place the jumper in the divide by 1 (silk-screen DIV1) position. Figure 3 - Clocking Mode 'Divide By 1’ Baud Rates and Divisors for the ‘DIV1’ mode The following table shows some common data rates and the rates you should choose if using the adapter in the ‘DIV1’... - Page 10 Notes Page Omega Engineering COMM+232.PCI Page 6...
-
Page 11: Installation
Operating System Installation Windows 95/98/NT Run Setup on Disk 2 of the Serial Utilities Software. Windows 3.1x Refer to the Win3x.hlp file in the \Win31 directory on Disk 1 of the Serial Utilities Software. Refer to the Readme.txt file found in the \DOS directory on Disk 1 of the Serial Utilities Software. -
Page 12: Technical Description
Technical Description Technical Description The Omega Engineering OMG-COMM+232.PCI provides a PCI interface adapter with 2 asynchronous serial ports providing a versatile interface for modems, printers and plotters. The OMG-COMM+232.PCI utilizes the 16550 UART. This chip features programmable baud rates, data format, interrupt control and a 16-byte input and output FIFO. -
Page 13: Why Use An Isp
polling’. This method required the interrupt service routine to ‘poll’ or interrogate each UART as to its interrupt pending status. This method of polling was sufficient for use with slower speed communications, but as modems increased their throughput abilities this method of servicing shared IRQs became inefficient. -
Page 14: Specifications
Environmental Specifications Specification Temperature Range Humidity Range Manufacturing All Omega Engineering Printed Circuit boards are built to U. L. 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Consumption Supply line Rating... -
Page 15: Appendixa - Troubleshooting
Appendix A - Troubleshooting A Serial Utility Diskette is supplied with the Omega Engineering adapter and will be used in the troubleshooting procedures. By using this diskette and following these simple steps, most common problems can be eliminated without the need to call Technical Support. -
Page 16: Appendixb - How T O Get Assistance
Appendix B - How To Get Assistance Please refer to Appendix A - Troubleshooting prior to calling Technical Support. Read this manual thoroughly before attempting to install the adapter in your system. When calling for technical assistance, please have your user manual and current adapter settings. -
Page 17: Appendixc - Electrical Interface
Appendix C – Electrical Interface Appendix C - Electrical Interface RS-232 Quite possibly the most widely used communication standard is RS-232. This implementation has been defined and revised several times and is often referred to as RS-232 or EIA/TIA-232. The IBM PC computer defined the RS-232 port on a 9 pin D sub connector and subsequently the EIA/TIA approved this implementation as the EIA/TIA-574 standard. -
Page 18: Appendixd - Asynchronous Communications
Appendix D - Asynchronous Communications Serial data communications implies that individual bits of a character are transmitted consecutively to a receiver that assembles the bits back into a character. Data rate, error checking, handshaking, and character framing (start/stop bits) are pre-defined and must correspond at both the transmitting and receiving ends. -
Page 19: Appendixe - Silk -Screen
Appendix E - Silk-Screen Appendix E - Silk-Screen 5.0" 4.2" Omega Engineering COMM+232.PCI Page 15... -
Page 20: Appendixf - Compliance Notices
Appendix F - Compliance Notices Federal Communications Commission Statement FCC - This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 21 OMEGA ENGINEERING, INC. warrants this unit to be free of defects in materials and workmanship for a period of 13 months from date of purchase. OMEGA’s WARRANTY adds an additional one (1) month grace period to the normal one (1) year product warranty to cover handling and shipping time. This ensures that OMEGA’s customers receive maximum coverage on each product.
