- Page 1 User Manual 51887 24V LITHIUM-ION CORDLESS DRILL WITH HAMMER ACTION Product Info www.powertoolsupport.com Read all safety warnings and all instructions thoroughly before operating this product. IM ed5; 06/2016...
- Page 2 QR codes take you where you want to go quicky and easily Whether you require product information, spare parts or accessories, details on warranties or aftersales service, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all.
-
Page 3: Table Of Contents
Contents Pack contents / parts Description of symbols General safety warning Additional Safety rules for chargers and batteries Parts List Important information – Product care Fitting and removing the battery pack Battery charging 2 Speed Gearbox Using the Drill/driver Drill/driver overload Temperature cut out Low voltage cut out Forward/reverse switch... -
Page 4: Pack Contents / Parts
24v Lithium-ion Cordless Drill with Hammer Action Pack contents / parts Congratulations on the purchase of your Workzone® Titanium 24V Lithium-Ion Cordless Drill. When you open your packaging, first remove all items and check there are no parts damaged or missing. If you find anything wrong, do not operate the product until the parts have been replaced or the fault has been rectified. -
Page 5: Description Of Symbols
Description of symbols The instruction manual, rating plate, or on the product itself, may show these symbols. These represent important information about the product or instructions on its use. Wear eye protection. Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss. Double insulated for additional protection. -
Page 6: General Safety Warning
General safety warnings WARNING. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. -
Page 7: Personal Safety
General safety warnings d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e. - Page 8 General safety warnings g. Keep handles dry, clean and free from oil and grease. Slippery handles do not allow for safe handling and control of the tool in unexpected situations. h. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 9 4. Power tool use and care a. Do not force the power tools. Use the correct power tool for your General safety warnings application. The correct power tool will do the job better and safer at the rate for which it was designed. a.
- Page 10 b. Only use chargers recommended by the manufacturer to recharge the battery. There is a risk of fire if it is used with other batteries. c. Never use to recharge third-party batteries. The charger is only designed to charge the supplied batteries (Li-Ion) using the voltages specified in the Technical Data.
- Page 11 24v Lithium-ion Cordless Drill with Hammer Action d) Position yourself to avoid being caught between the tool or side handle and walls or posts. Should the bit become bound or jammed in the work, the reaction torque of the tool could crush your hand or leg. e) If the bit becomes bound in the workpiece, release the trigger immediately, reverse the direction of rotation and slowly squeeze the trigger to back out the bit.
-
Page 12: Additional Safety Rules For Chargers And Batteries
Additional safety rules for charger & batteries a) Use only the charger and batteries supplied in this pack. b) Protect the charger and battery pack against moisture including rain and high humidity. c) Always check that the power cord is correctly connected before using the charger. - Page 13 24v Lithium-ion Cordless Drill with Hammer Action AFTER SALES SUPPORT 1800 909 909 e-mail: help@powertoolsupport.com (toll free) MODEL: №. 51887 • 06/2016 • 51887...
-
Page 14: Parts List

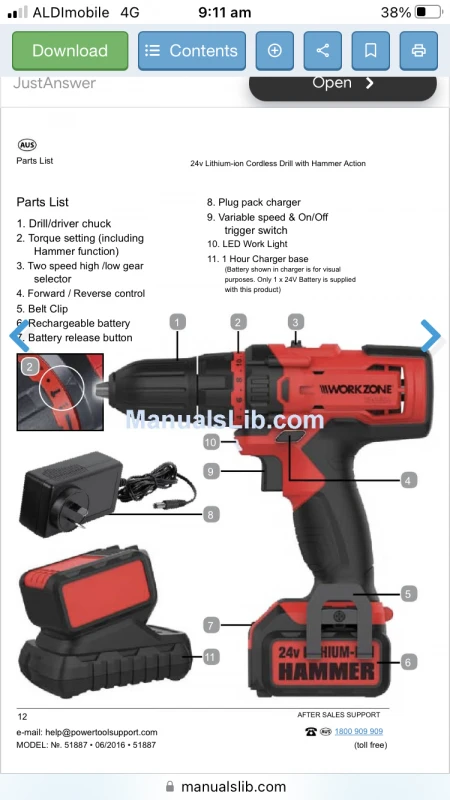

Parts List 24v Lithium-ion Cordless Drill with Hammer Action Parts List 8. Plug pack charger 9. Variable speed & On/Off 1. Drill/driver chuck trigger switch 2. Torque setting (including 10. LED Work Light Hammer function) 11. 1 Hour Charger base 3. -
Page 15: Important Information - Product Care
Product Care 24v Lithium-ion Cordless Drill with Hammer Action Important information – Product care This drill/driver uses Lithium Ion Battery Cells. Care MUST be taken to ensure both the safety and life of the pack is maintained. Ensure you have read all of the safety notes in the previous pages before using the drill/driver. -
Page 16: Fitting And Removing The Battery Pack
Battery Fitting / Battery Charging 24v Lithium-ion Cordless Drill with Hammer Action Fitting and removing the battery pack 1. To install the battery pack to the tool, align the raised portion of the battery pack (6) with the grooves on the bottom of the drill/driver, and slide it firmly into the handle until you hear the battery release button snap into place (Fig A). -
Page 17: Speed Gearbox
Speeds 24v Lithium-ion Cordless Drill with Hammer Action The small LED indicator on the plug pack charger (8) will also illuminate as a indication the plug pack charger (8) is on and operating. 3. Align the battery pack with the charger base (11). -
Page 18: Using The Drill/Driver
Usig the Drill / Driver 24v Lithium-ion Cordless Drill with Hammer Action Using the drill/driver Trigger switch Use the forward/reverse switch (4) to select the direction of rotation (Fig E), then pull the trigger (9) (Fig F). This trigger switch is an electronic variable speed control which enables the user to vary the speed continuously. -
Page 19: Temperature Cut Out
Temperature Cut out 24v Lithium-ion Cordless Drill with Hammer Action Temperature cut out If the drill/driver is constantly overloaded, or the drill/driver is used constantly at maximum rating in high ambient conditions, the battery cells may overheat causing the battery pack to shut down. When this occurs you will need to immediately stop drill/driving and allow the battery cells to reduce the temperature. -
Page 20: Forward/Reverse Switch
Forward/Reverse 24v Lithium-ion Cordless Drill with Hammer Action Forward/reverse switch NOTE: You can only change the direction of rotation of the drill/driver using the forward/reverse switch when the trigger is NOT depressed. This switch will allow you to change the direction of the motor while the trigger switch is not depressed. -
Page 21: Inserting And Removing Bits
Inserting//Removing bits 24v Lithium-ion Cordless Drill with Hammer Action Inserting and removing bits This drill/driver has a keyless chuck, which means that a chuck (1) key is not needed to secure a bit in the drill/driver. Open the chuck (1) by unscrewing it in an anti-clockwise direction, holding the drill/driver as shown (Fig H). -
Page 22: Drill/Driving Plastics And Plastic Coated Chipboard
Operation 24v Lithium-ion Cordless Drill with Hammer Action Drill/driving plastics and plastic coated chipboard • Use high speed drill/driver bits • See drill/driving wood below Drill/driving wood • C lamp a piece of scrap wood to the back of your work to prevent splintering. Hammer drill operations. • Where possible, use High speed. • Select the hammer position on the torque collar. • Use drill bits specifically for masonary applications. • Ensure to wear safety glasses. All drill/driving operations • Mark off the centre of the hole using a centre punch or nail. • Don’t force the drill/driver, let it work at its own pace • Keep the drill/driver bit sharp. -
Page 23: Belt Clip
Operatiion/Cleaning/Maintenance 24v Lithium-ion Cordless Drill with Hammer Action Belt clip The belt clip (5) is used to assist to clip the tool to your waist belt while working. Install the clip to the drill/driver by locating the belt clip tabs in the slots in the drill/driver and tighten the screw to fix the clip firmly (Fig I). -
Page 24: Warranty
Warranty/Service 24v Lithium-ion Cordless Drill with Hammer Action Warranty Your new Workzone® Titanium 24V Lithium-Ion Cordless Drill will more than satisfy your expectations. It has been manufactured under stringent Workzone® Quality Standards to meet superior performance criteria. You will find your new 24V Lithium-Ion Cordless Drill easy and safe to operate, and, with proper care, it will give you many years of dependable service. -
Page 25: Environmental Protection
Environmental Protection 24v Lithium-ion Cordless Drill with Hammer Action Environmental protection Recycle unwanted materials instead of disposing of them as waste. All tools, hoses and packaging should be sorted, taken to the local recycling centre and disposed of in an environmentally safe way. Dispose of used motor oil in a manner that is compatible with the environment. -
Page 26: Faq/Troubleshooting
Trouble Shooting 24v Lithium-ion Cordless Drill with Hammer Action FAQ/Troubleshooting Do I need to charge the battery before use? Yes, New battery packs are shipped in a low charge condition and must be fully charged before use. It takes approximately 1 hour to fully charge your new battery. Charging of batteries should not be undertaken casually. -
Page 27: Specifications
Specifications 24v Lithium-ion Cordless Drill with Hammer Action Specifications 24 V– . .. Motor: Low speed: n0-Lo = 0 – 400 min- High speed: n0-Hi = 0 – 1100 min- Impact Frequency: 0-5200 / 0-14,300 BPM Drill/driver diam Ø: - Wood 28 mm - Steel 10 mm Chuck: 13 mm Keyless... - Page 28 Customer Service Hotline. Made in China Workzone® Titanium is a registered trademark of ALDI Stores DISTRIBUTED BY: ALDI STORES...
