  • Page 1: User Manual

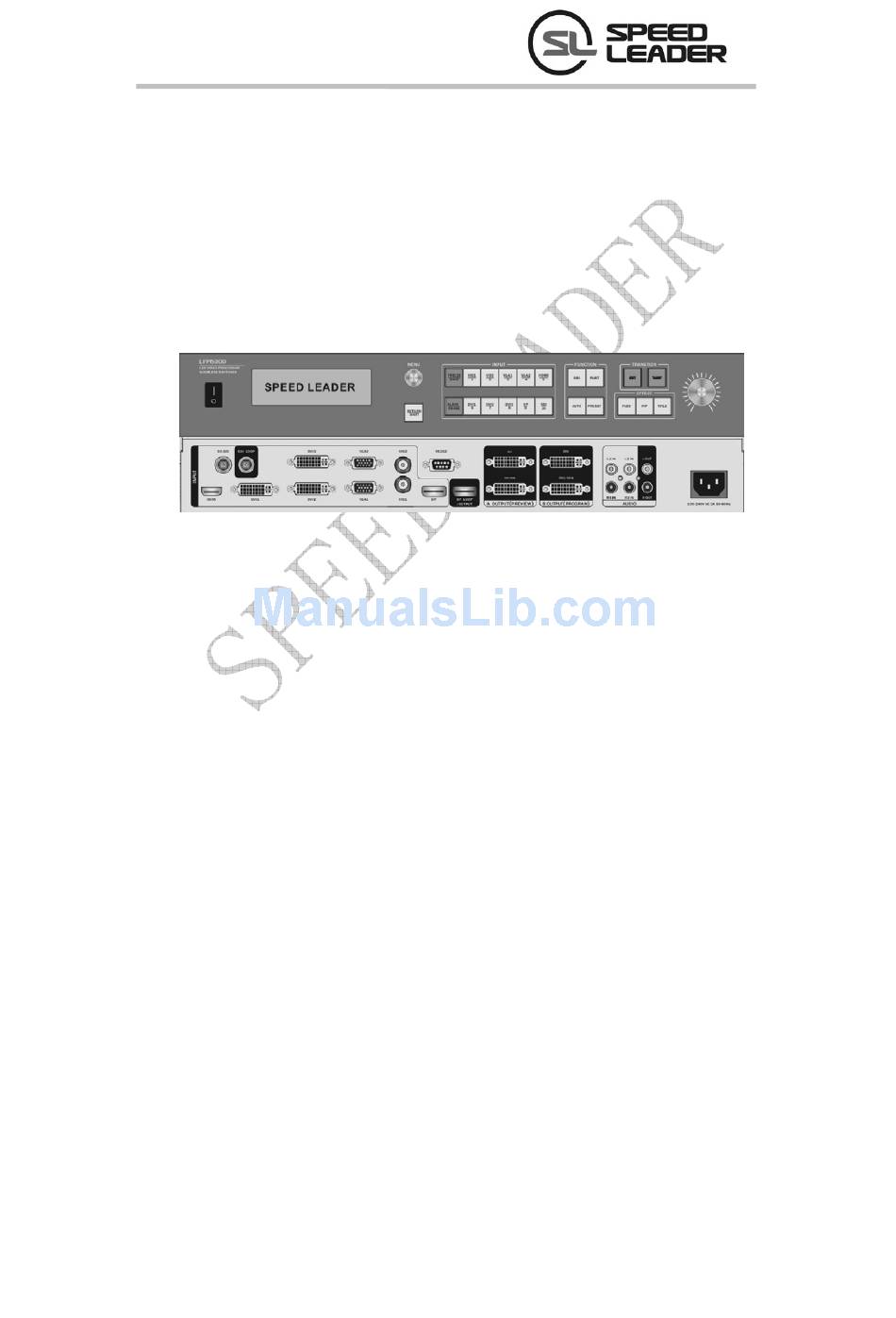

                                                                                              SHENZHEN SPEEDLEADER TECHNOLOGY User Manual LVP6000 ...

  • Page 2: Table Of Contents

    Install LVP6000 .................... 7 Rear panel ...................... 8 Definitions .................... 10 Operation ..................... 10 Mode descriptions of LVP6000 ..............10 Introduction to front panel and keys ............11 Menu system overview ................16 Default menu introductions ................. 17 Main menu introductions ................19 Image quality menu ..................
  • Page 3 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Splice operation ................... 37 Setting and application of single-machine splice ......37 Setting and application of multi-machine splice .......... 39 Specifications ................... 46 Troubleshooting ..................52     Page 2 of 53...

  • Page 4: Safety Instructions

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   About the Manual Without the written permission of the company, it is forbidden for any company or individual to imitate, copy, or transcribe part or all of the contents of the manual. It is not...
  • Page 5 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   45 ℃, and the relative humidity is 90% or less than that. 　 Do not use this equipment in certain special circumstances, such as, closing to a heat source, which may cause overheating of the equipment and damage it.

  • Page 6: Overview

    The original knob switching mode and rich switching effects can meet the demands of various advanced functions required by the high-end presentation environment. Fig. 1-1 shows a typical application of the LVP6000. It can receive a variety of signals and various resolution (which can support SD to UHD) inputs as follows:...
  • Page 7 ● 3G-SDI video (optional) Fig. 1-1 Typical Application of LVP6000 LVP6000 has two channels outputs for preview(A) and program(B), each output applies DVI-I and DVI-D interface, which can realize two-channel DVI and one-channel VGA (using DVI to VGA connector to connect the DVI-I interface) and meet more device attachment.

  • Page 8: Installation

    The user can define the resolution of the input video and output signal freely, meeting various special application requirements. LVP6000 is more humanized in design, stronger in function and easy to use. Only tapping your fingers on the simple button panel and menu system can finish complex settings. Rich physical interfaces are provided to meet the requirements of the common output equipment.

  • Page 9: Rear Panel

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Rear panel The rear panel is as shown in Fig. 2-2: Fig. 2-2 Connection Terminals of LVP6000 Rear Panel ①Video input VID1, VID2 2-channel composite video input port (BNC seat) VGA1, VGA2...
  • Page 10 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor     ③DP looping-out interface DP LOOP(OUTPUT) DP looping-out port (DP seat)   ④⑤Output interface Preview output interface which is connected to a A OUTPUT（PREVIEW） preview display usually. Program output interface which output to an LED B OUTPUT（PROGRAM）...

  • Page 11: Definitions

    LED Video Processor   LVP6000 provides a standard IEC power, with the input power of 100 ~ 240VAC, 50Hz or 60Hz, at the same time, the ground wire of the power supply must be grounded to avoid equipment damage or the electric shock to human body.

  • Page 12: Introduction To Front Panel And Keys

    LED screens. Introductions to Front Panel and Keys A 240*64 LED is adopted by the LVP6000 processor to indicate the current state, menu selection, data state and other parameters. Background lights of the keys can reflect the current input selection and operation, etc.
  • Page 13 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   ①MENU area The area includes RETURN and MENU key, the MENU key can be rotated left and right and be pressed down. MENU key 1. Rotate the MENU key left and right can adjust menu options and parameters left and right or up and down, or adjust the size and position of the output window.
  • Page 14 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   1. Freeze and lock the preview picture. Press\ the key can enable the freeze function, pressing the key again or choosing the other inputs can cancel the freeze function.When the FREEZE key is enabled, key light turns on.
  • Page 15 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   ③FUNCTION area The area comprises BRI, PART, AUTO and PRESET keys. Table 4-1 Functions of BRI, PART, AUTO and PRESET Keys Descriptions on key function Background light of key Tap BRI key to enter the shortcut menu and...
  • Page 16 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Directly switching Background light normally is on in default state; after the key is pressed, the light flashes once and then normally on. TAKE Effect switching Background light is normally on in common state;...

  • Page 17: Menu System Overview

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   In a selected effect mode, press another mode key can switch to the other effect modes and press the same mode key can open the shortcut menu of the mode itself. ⑥ Rotary knob switching area The rotary knob switching area is precisely the rotary knob with scales.

  • Page 18: Default Menu Introductions

    Default menu introductions With different splicing methods, the default menu can be divided into two types: When multi-machine splicing of the LVP6000 is off (refer to descriptions on multi-machine splicing for more information), the default menu is as shown in Fig. 4-3:...
  • Page 19 Lower line displays the effect switching time (0-5S). Note: The effect switching time can be adjusted directly by the knob. When the multi-machine splicing method of the LVP6000 is on, the default menu is as shown in the Fig. 4-4:...

  • Page 20: Main Menu Introductions

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Input area: Display the input video name and resolution Output area: Display the resolution of A output and B output. Splicing mode area: Display the current splicing mode (equal or unequal). Main menu introductions Tapping and rotating the MENU key in the default menu can enter the main menu interface.

  • Page 21: Image Quality Menu

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   IMAGE – Brightness, contrast, color, sharpness and color temperature, etc. CAPTURE –Settings of the input video crop parameters OUTPUT - Output resolution setting, output window setting, part or full function, etc. SPLICE – Parameter settings for equal or unequal splicing EFFECT –Parameter settings in FADE, PIP and TITLE mode.

  • Page 22: Crop Menu

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   BRIGHTNESS – Default: 50; range: 0-100 CONTRAST – Default: 50; range: 0-100 COLOR – Default: 50; range: 0-100 SHARPNESS – Default: 12; range: 0-24 COLOR TEMP – Default: Normal; options: Warm,Normal, Cool and User WHITE BALANCE –...

  • Page 23: Output Menu

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Output menu 1280x1024 60Hz SWITCHER Output Timing     1920x1080 60Hz SWITCHER Width 1920 3840x1080 60Hz SPLICER Height 1080 2304x1920 60Hz SPLICER H Star t User Timing SPLICER V Start Part or Full    ...

  • Page 24: Resoluting Mode

    AOUTPUT                                   Fig. 4-7 LVP6000 Splicer Mode Resolution selection For the output resolution, the user shall select the switcher mode or splicer mode upon...
  • Page 25 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   HEIGHT - Default: the height of selected resolution Range: 96- the height of selected resolution H START - Default: 0 Range: 0-( the width of selected resolution –width) V START - Default: 0 Range: 0-( the height of selected resolution –height)
  • Page 26 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   FULL PART Fig. 4-9 Sketch Map of LED Display Screen When the output resolution is in the splicing mode, the output menu is as shown in the Fig. below: Output Timing   A Output Width  ...

  • Page 27: Splice Menu

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   AOutputHStart BOutputHStart V Start Height LEDDisplayA LEDDisplayB A Output Width   B Output Width Fig. 4-10 Schematic Diagram for Output Parameters Splice menu Multi-machine splicing function is to solve the problem that the single video processor cannot drive ultra-large LED screen.
  • Page 28 H Splice Unit – Quantity for horizontal splicing led wall V Splice Unit –Quantity for vertical splicing led wall Splice Pos: Positions of the splicing units controlled by LVP6000 equipment in splicing; calculation order for the positions is from left to right and top to bottom...

  • Page 29: Effect Menu

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Unequal splicing menu Splice Way UnEqual H Total Size     3840 V Total Size   1080 H Splice Pos     V Splice Pos     Reset    H Total Size: Total horizontal pixels of the spliced wall.
  • Page 30 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Same as left Width Height H Star t   V Start   Reset   Same as left TITLE Black Time – Effect switching time Mode – Effect switching mode.23 switching modes are provided and described in the shortcut menu explicitly.

  • Page 31: Function Menu

                          Fig. 4-12 Schematic Diagram of LVP6000 Image Matting Function As seen in the Fig. above, white characters on black background are input to the preview channel; when the two pictures are added, the title effect can be seen once the...
  • Page 32 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   LOOP: the DP output picture is DP input signal. iDP: the DP output picture is the spliced picture of the preview and the program output. EDID – EDID setting of the DP channel, including five common EDID of 1024*768/60, 1280*1024/60, 1680*1050/60, 1920*1080/60 and 1920*1200/60 and User EDID.

  • Page 33: Advanced Menu

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   V Flip: The pictures is reversed vertically. Advanced menu Port PREV Contrast PT   Natural  Motion Mode   Normal BLK Extend   MPEG  N R   PORT – Port can be adjusted only when PIP is on when the splicing mode. In other conditions, the port only is displayed the current state.

  • Page 34: Shortcut Menu

    RESET –Reset system to factory settings. Shortcut menu LVP6000 is provided with six shortcut keys which can take the shortcut menu quickly. The six shortcut keys are BRI, PRESET and AUTO in FUNCTION area as well as FADE, PIP and TITLE in EFFECT area.
  • Page 35 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Press the PRESET key can pop out the Preset shortcut menu as shown in the Fig. below: Press Num Key to Read Mode           Fig. 4-13 Preset shortcut Menu The user can save up to 10 templates and each number represents a group of templates.
  • Page 36 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   lights of SAVE and ERASE key Function Both key light is off Preset calling function SAVE key light is on Preset saving function ERASE key light is on Preset erase function Press RETURN or PRESET key can return to the default menu from PRESET mode.
  • Page 37 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   D ISSOLVE Fig. 4-14 Switching Effects PIP SHORTCUT MENU Width Height H Star t   V Start     WIDTH – Default: the width of PIP’s resolution Range: 192- the width of PIP’s resolution HEIGHT - Default: the height of PIP’s resolution Range: 96- the height of PIP’s...

  • Page 38: Splice Operation

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   TITLE shortcut menu                 Black   Refer to effect menu introduction for the color key setting. Brightness shortcut menu PREV Brightness           The brightness of preview or program can be adjusted AUTO shortcut menu Auto Adjust doing...
  • Page 39 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   2. Ensure that the multi-machine splice is Off. Example of 2*1 splice of LED video wall Table 5-1 Current Equipment and Relevant Parameters Equipment name/model Function/parameter Quantity LED video wall A 1152*1024 LED video...

  • Page 40: Setting And Application Of Multi-Machine Splice

      Setting and application of multi-machine splice LVP6000 has simple and practical splice function which can be realized only by the splice menu. The multi-machine splice is based on the single-machine splice. The multi-machine splice can be classified into equal splicing and unequal splicing, in...
  • Page 41 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   then connect the equipment by DP cables to realize hardware connection of the multiple LVP6000. The Fig. below demonstrates the splicing of three LVP6000 by the DP cables: Signal      ...
  • Page 42 4*2. LED sending card Support 1280*1024 at maximum. LVP6000 Video splicer A single LVP6000 can splice two LED video walls, so one LVP6000, two sending cards and two LED video walls form a splicing unit. Display Sending Card Display LVP6000 Sending Card...
  • Page 43 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   LED sending cards are connected to each part of the spliced wall by CAT5 cables; and the output resolution shall be set to 1920x1080/60 SPLICER mode). Adjust other parameters as shown in the Fig. below: Output Timing...
  • Page 44 V Splice Unit   V Splice Unit   Splice Pos   3  Splice Pos   4  Fig. 5-4 Schematic Diagram of LVP6000 Multi-machine Equal Splice Connection SpliceUnit1 SpliceUnit2 LVP6000-1 LVP6000-2 SpliceUnit3 SpliceUnit4 LVP6000-3 LVP6000-4 Fig. 5-5 Schematic Diagram of Multi-machine Equal Splice Connection 2.
  • Page 45 Fig. 5-3 to form a splicing unit. The two channels of DVI output of each LVP6000 are respectively connected with the LED sending cards; the LED sending cards are connected to each part of the spliced wall by CAT5 cables;...
  • Page 46 H Splice Pos     V Splice Pos     V Splice Pos     Fig. 5-7 Schematic Diagram of LVP6000 Multi-machine Equal Splice Connection SpliceUnit1 SpliceUnit2 LVP6000-2 LVP6000-1 Fig. 5-8 Schematic Diagram of Multi-machine Unequal Splice Connection Page 45 of 53...

  • Page 47: Specifications

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Specifications DP video output Input quantity Connector Signal standard DP1.2 downward compatibility Supported resolution VESA standard, PC to 3840*2160 DP video input Input quantity Connector Signal standard DP1.2 downward compatibility Supported resolution...
  • Page 48 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Signal standard HDMI 1.4 downward compatibility Supported resolution VESA standard, PC to 1920*1200, HD to 4K*2K@30Hz DVI video input Input quantity Connector DVI-I Signal standard DVI-I 1.0 Supported resolution VESA standard, PC to 1920*1200，HD to 1080p...
  • Page 49 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   VIDEO video input Input quantity Connector Signal standard PAL/NTSC/SECAM 1Vpp±3db (0.7V Video+0.3v Sync ) 75 ohm Supported resolution 480i, 576i 3G-SDI video input optional Input quantity Connector Signal standard SD-SDI, HD-SDI, 3G-SDI...
  • Page 50 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Input quantity Connector Signal standard SD-SDI, HD-SDI, 3G-SDI Supported resolution 1080p 60/50/30 720p 60/50 1080i 60/50 625/525 line Preview (PREVIEW) video output Output quantity One channel of VGA; two channels of DVI...
  • Page 51 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Supported resolution 1280*1024@60Hz 1920*1080@60Hz 3840*1200@60Hz (A+B) 2304*1920@60Hz (A+B) Custom resolution (A+B) Program (PROGRAM) video output Output quantity One channel of VGA; two channels of DVI Connector DVI-I Signal standard VGA standard: R, G, B, Hsync, Vsync: 0 to1Vpp±3dB (0.7V Video+0.3v Sync)
  • Page 52 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Supported resolution 1280*1024@60Hz 1920*1080@60Hz 3840*1200@60Hz (A+B) 2304*1920@60Hz (A+B) Custom resolution (A+B) Equipment parameters Weight 4.5kg Dimension 6.5cm (height)*44cm (width)*32cm (depth) Input power 100VAC-240VAC 50/60Hz Maximum power Working temperature 0-45℃ Storage humidity 10-90% Specification parameters are subject to improvement without notice.

  • Page 53: Troubleshooting

    SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   Troubleshooting Problems may be encountered during installation or use. Here, the user can follow the steps below to remove the troubles; if the steps below still cannot fix the problems for you, please contact the local dealer.
  • Page 54 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD. LED Video Processor   I n d u s t r y S a l e s a n d S e r v i c e H o t l i n e : 4 0 0 - 6 2 8 6 - 9 5 9 SHENZHEN SPEEDLEADER TECHNOLOGY CO.,LTD.
