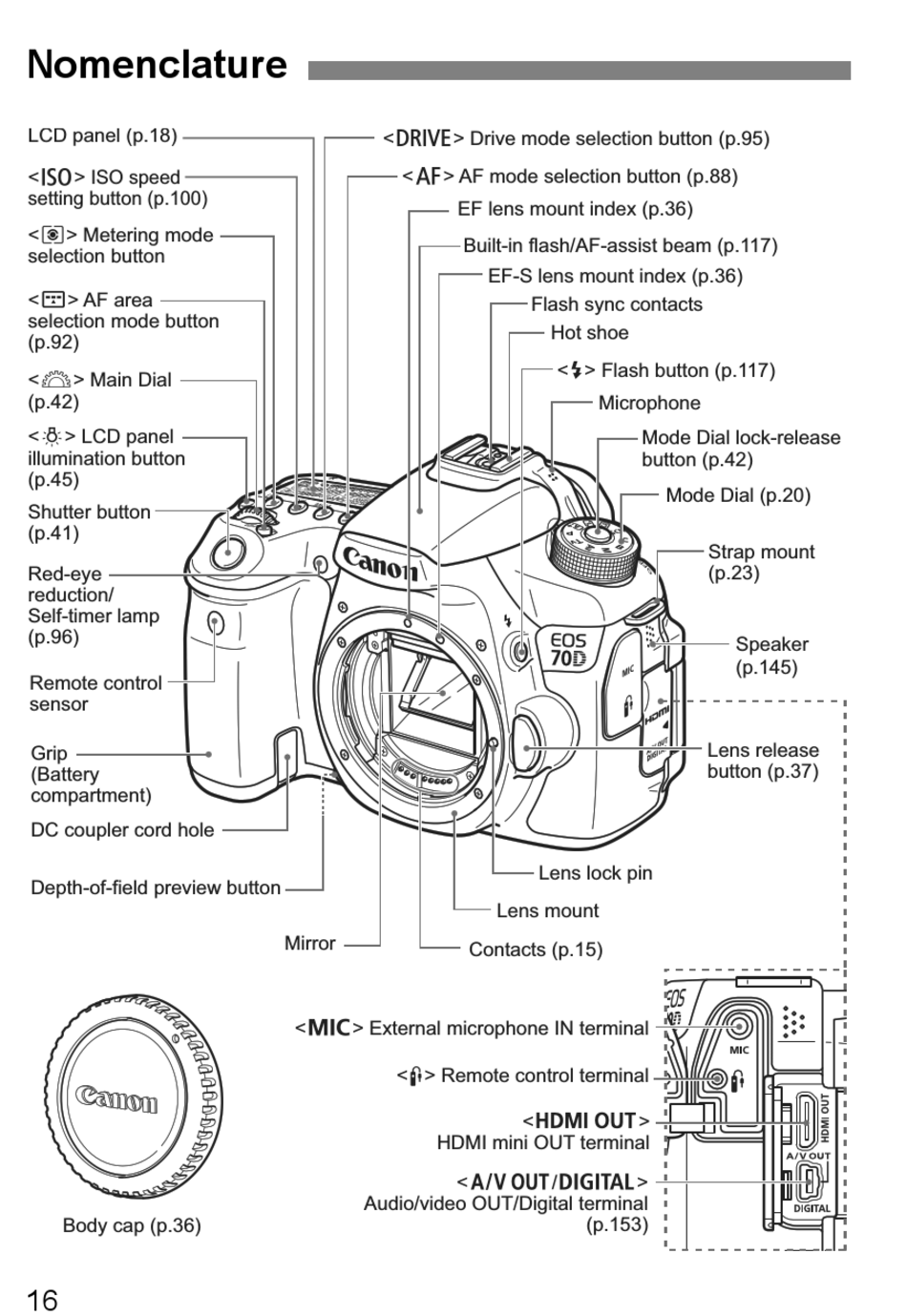

Nomenclature

LCD panel (p.18)
<i> ISO speed
setting button (p.100)
<q> Metering mode
selection button
<B> AF area
selection mode button
(p.92)
<6> Main Dial
(p.42)
<U> LCD panel
illumination button
(p.45)
Shutter button
(p.41)
Red-eye
reduction/
Self-timer lamp
(p.96)
Remote control
sensor
Grip
(Battery
compartment)
DC coupler cord hole
Depth-of-field preview button
Body cap (p.36)
16
<R> Drive mode selection button (p.95)
<f> AF mode selection button (p.88)
Mirror
<Y> External microphone IN terminal
<F> Remote control terminal
HDMI mini OUT terminal
<q/C>
Audio/video OUT/Digital terminal
EF lens mount index (p.36)
Built-in flash/AF-assist beam (p.117)
EF-S lens mount index (p.36)
Flash sync contacts
Hot shoe
<D> Flash button (p.117)
Microphone
Lens lock pin
Lens mount
Contacts (p.15)
<D>
(p.153)
Mode Dial lock-release
button (p.42)
Mode Dial (p.20)
Strap mount
(p.23)
Speaker
(p.145)
Lens release
button (p.37)
