Chapter 1 Before Operation

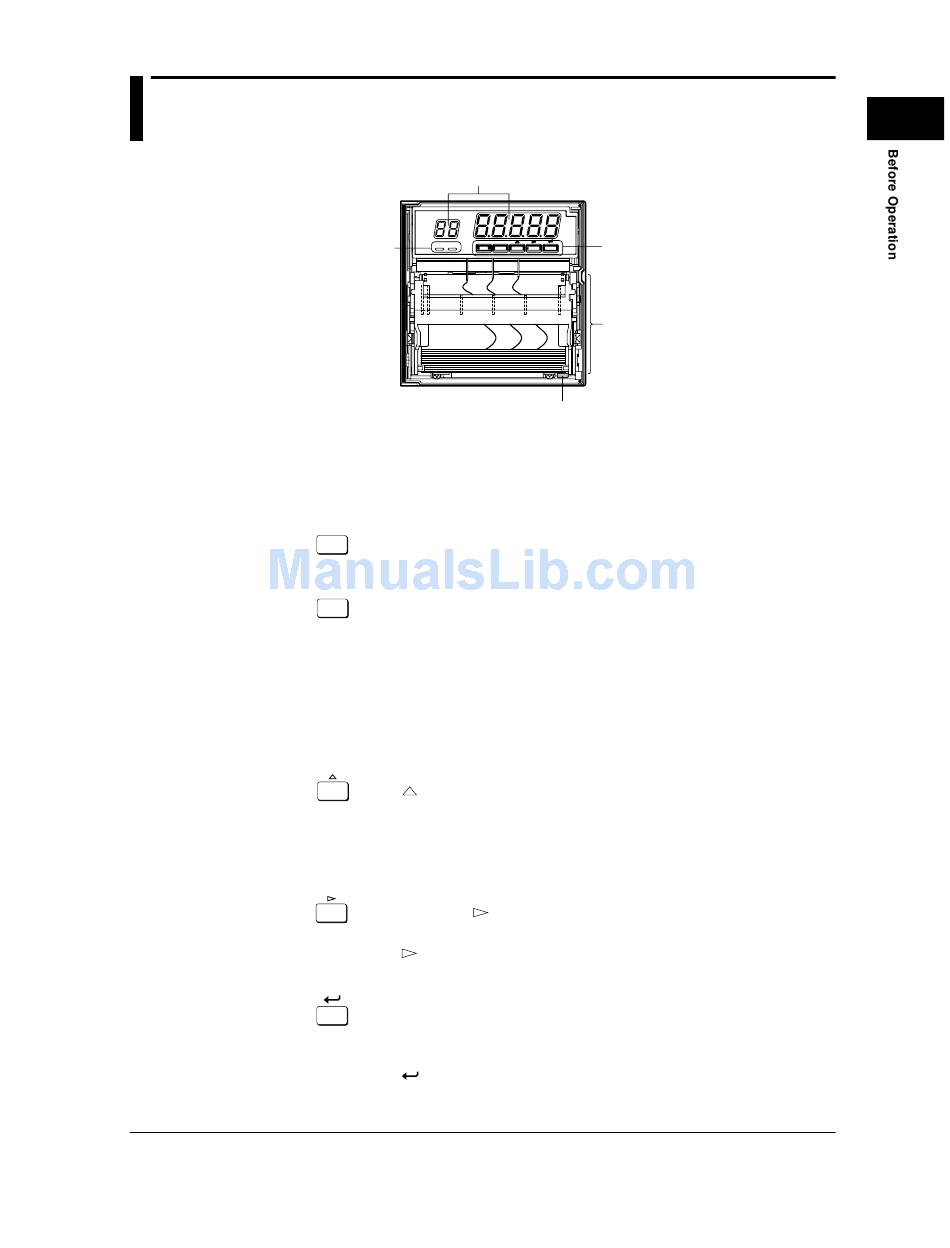

1.1 Front/Rear Panels: Functions and Display
Front Panel
4 Status display
5 Display
CH
DATA
RCD
ALM
RCD
1. Power switch (push-button type)
Pressing the switch turns the power ON and OFF.
2. Key panel (push-key type)
The panel contains the follwing five keys:
RCD key
RCD
Pressing the key starts or stops the recording.
ESC
DISP key, ESC key
DISP
DISP function: Cycles through the modes of display in the order of
AUTO, MANUAL, and OFF. Also selects between the Regular Setting
and Operation modes.
If this key is pressed for three seconds, the recorder enters the Regular
Setting Mode.
ESC function: Exits from the menu in the middle of setting or selecting
procedures.
key
Selects setting parameters (numerics or command codes). Selecting
step is upward circulation.
If the recorder is a pen model, pressing this key for three seconds
causes the recorder to enter the pen-replacement mode.
FEED key,
key
FEED
FEED function: The chart is fed as long as this key is being pressed.
key function: Changes the number of digits for setting numeric
values. The digit moves from high to low.
CH UP key, ENT key
CH UP
CH UP function: Selects a channel for which the display shows the
screen in the MANUAL display mode.
function: Makes a parameter entry or executes a function after
selecting parameters (numerals or command codes). Pressing the key
executes the settings.
ESC
2 Key panel
MENU
FEED
CH UP
3 Chart cassette
1 Power switch
1
1-1
