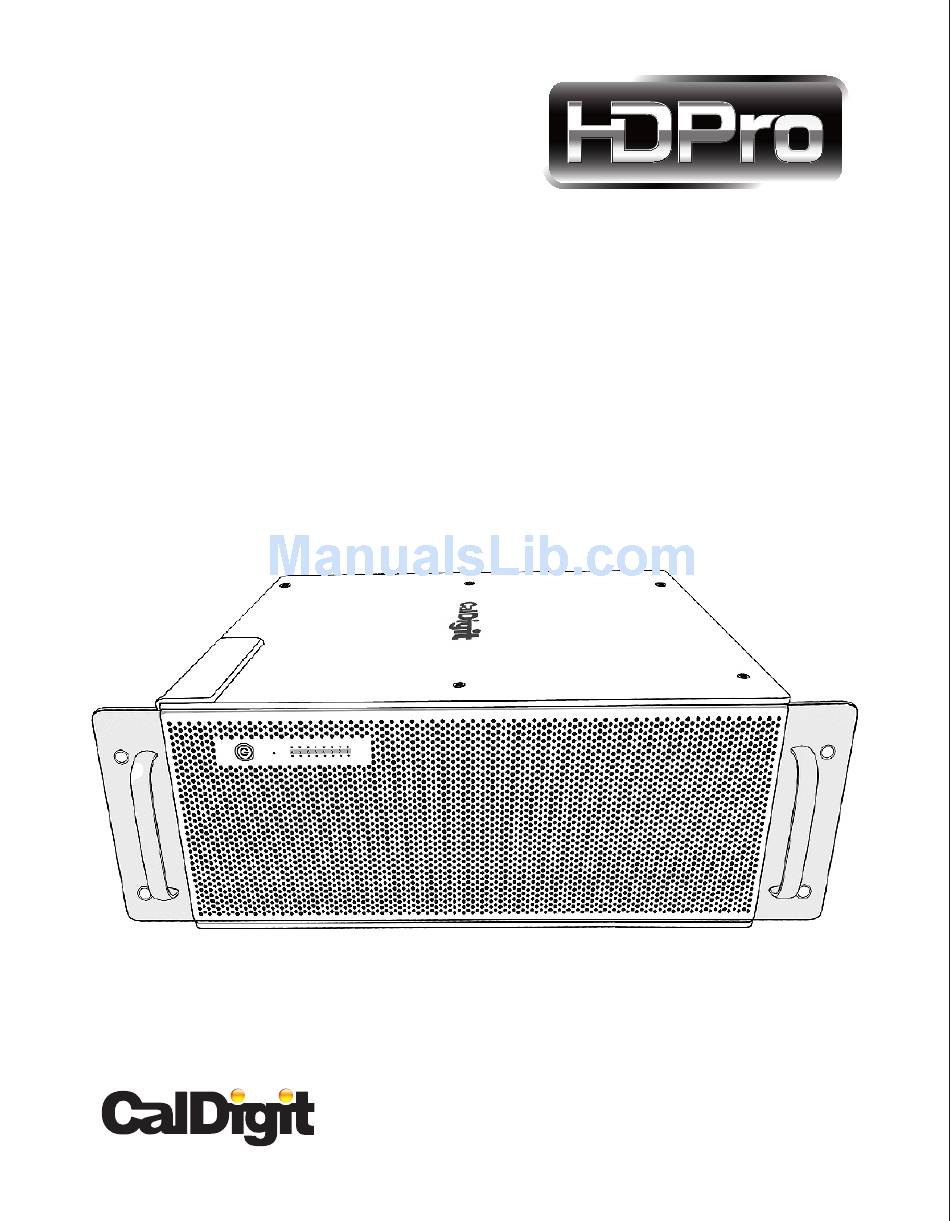

- Page 1 Getting Started HDPro RackMount Kit Installation Guide...
- Page 2 First of all, please verify the following components. 1. 1 x HDPro Rackmount UPPER / LEFT Kit AND 5 x Type-I screws. 2. 1 x HDPro Rackmount LOWER / RIGHT Kit AND 10 x Type-II screws 3. 5 x Rackmount Rack Rail Mounting screws.
- Page 3 Please follow these installation steps: 1. Place the HDPro on a table or a smooth surface area. 2. Using a Phillips “crosshead” screwdriver, please unscrew the three screws (shown in the following picture), then remove the top handle bar module...
- Page 4 3. The top handle bar module will be replaced with the HDPro Rackmount UPPER / LEFT Kit AND Type-I screws. 4. Insert the HDPro Rackmount UPPER / LEFT Kit into the HDPro chassis, and then secure the kit with 3 Type-I screws.
- Page 5 5. Using a Phillips “crosshead” screwdriver, please unscrew the six screws from the HDPro chassis (shown in the following picture), and then remove the two rubber feet. 6. The HDPro Rackmount LOWER / RIGHT Kit and Type-II screws will be installed at this portion.
- Page 6 7. Using the HDPro Rackmount LOWER / RIGHT Kit to cover the HDPro chassis, and then secure the kit with 6 Type-II screws. 8. Place the HDPro Front LED label at the HDPro front light module. (See the following picture) Make sure the LED positions are correct.
- Page 7 9. Open the HDPro's rear gate, then place the HDPro Internal Disk label along the right side of the internal wall. (See the following picture) Make sure the hard drive positions are correct. 10. When the installation is complete, your HDPro will look like this.
- Page 8 11. Using the Rackmount Rack Rail Mounting screws, you can now mount the HDPro on to the Rack rails. CalDigit HDPRo RackMount Kit Installation Guide v1.0 www.caldigit.com ©Copyright 2009 CalDigit, Inc. All Rights Reserved...
