Summary of Contents for XTA GQ600
-
Page 2: Table Of Contents
Declaration Of Conformity ......................1 Important Safety Instructions ..................... 2 Instructions De Securite Importantes..................3 Thanks ............................4 Unpacking the GQ600 ........................ 4 Introduction ..........................5 GQ600 Filter Characteristics ...................... 5 1/3 Octave Centre Frequencies ....................7 Front Panel Functions ......................... 8 Rear Panel Functions ......................... -
Page 3: Declaration Of Conformity
Technical Regulations: EN55103-1:1996, EN55103-2:1996 in accordance with the Low Voltage Directive 2006/95/EC, in compliance with the following norm(s) or document(s): Technical Regulations: EN/IEC60065:1993 Signed: ………………………………………………………………… Name: Alex Cooper Position: Research and Development Manager Date: January 2012 GQ600 Page 1... -
Page 4: Important Safety Instructions
DISCONNECTED IN ANY CIRCUMSTANCE. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. GQ600 Page 2... -
Page 5: Instructions De Securite Importantes
électrique et de pouvoir de 3 fils. Pour les raisons de sécurité, l’endroit où il est relié à l’appareil; cela est également L'AVANCE DE TERRE NE DEVRAIT ÊTRE valable pour une éventuelle rallonge électrique. DÉBRANCHÉE DANS AUCUNE CIRCONSTANCE. GQ600 Page 3... -
Page 6: Thanks
Thanks Thank you for choosing the XTA GQ600 for your application. Please spare a little time to digest the contents of this manual, so that you obtain the best possible performance from this unit. All XTA products are carefully engineered for world-class performance and reliability. -
Page 7: Introduction

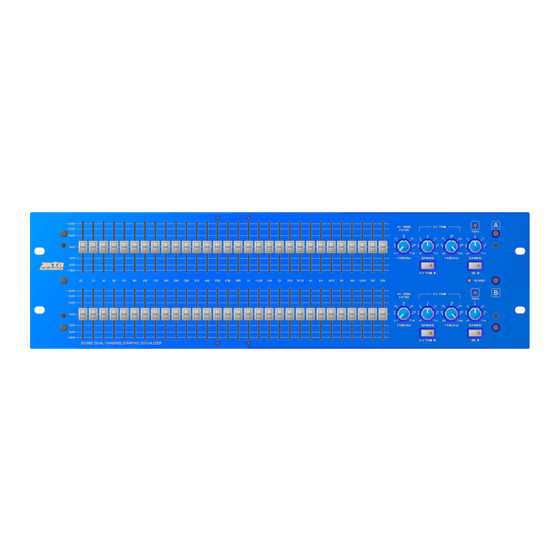

The GQ600 combines innovative features with impressive specification, to produce a new level of performance in professional equalisation. The GQ600 is a precision dual channel 1/3 octave graphic equaliser, which provides up to 10dB of boost or cut at 30 centre frequencies between 25Hz and 20kHz. Filter design has been carefully optimised for good interpolation and improved narrow band performance, whilst high quality long-throw 45mm sliders are used for better resolution. - Page 8 Response of a single 1/3 octave filter section. Combining effect with sliders set to achieve +10dB overall gain. Note lack of amplitude ripple. Response of H.F. Trim frequency control. At maximum and minimum gain. GQ600 Page 6...
-
Page 9: 1/3 Octave Centre Frequencies
This leads to unequal spacing of filters if these marked frequencies are used to calculate filter values. The GQ600 uses true 1/3 octave frequencies based on 1kHz as a reference, and each filter is automatically tested and adjusted when required, to achieve a centre frequency accuracy of within ±3% of these true 1/3 octave frequencies. -
Page 10: Front Panel Functions
'flat' position. 8. Peak LED - illuminates as clipping point is approached anywhere within the equaliser circuitry. Threshold is +20dB. 9. Power LED - indicates unit is powered on. 10. Fixing Holes - for security cover. GQ600 Page 8... -
Page 11: Rear Panel Functions
5. XLR Inputs and Outputs - separate 3 pin XLR connectors are provided for each audio input and output. All terminations are fully balanced where pin 2 = Hot, pin 3 = Cold and pin 1 = Screen (shield). See page 8 "Grounding" for more information. GQ600 Page 9... -
Page 12: Specifications
80VAC – 260VAC @ 50/60Hz. Power < 20W Consumption 5kg. Nett (6.7kg. shipping ) Weight 5.25"(3U) x 19" x 9.3" (133 x 482 x 237mm) Size excluding connectors. Input transformers available. Options Output transformers available. Perspex security cover. GQ600 Page... -
Page 13: Operating Notes
Operating Notes Generally, operating the GQ600 is very straightforward, however certain functions may not be immediately obvious and these are discussed here. Low Pass Filter. 18dB/octave filters are provided for each channel to provide additional H.F. driver protection against unwanted high frequency signals. These have negligible effect on frequency response at 20kHz. -
Page 14: Warranty
This product is warranted against defects in components and workmanship only, for a period of one year from the date of shipment to the end user. During the warranty period, XTA will, at it's option, either repair or replace products which prove to be defective, provided that the product is returned, shipping prepaid, to an authorised XTA service facility.
