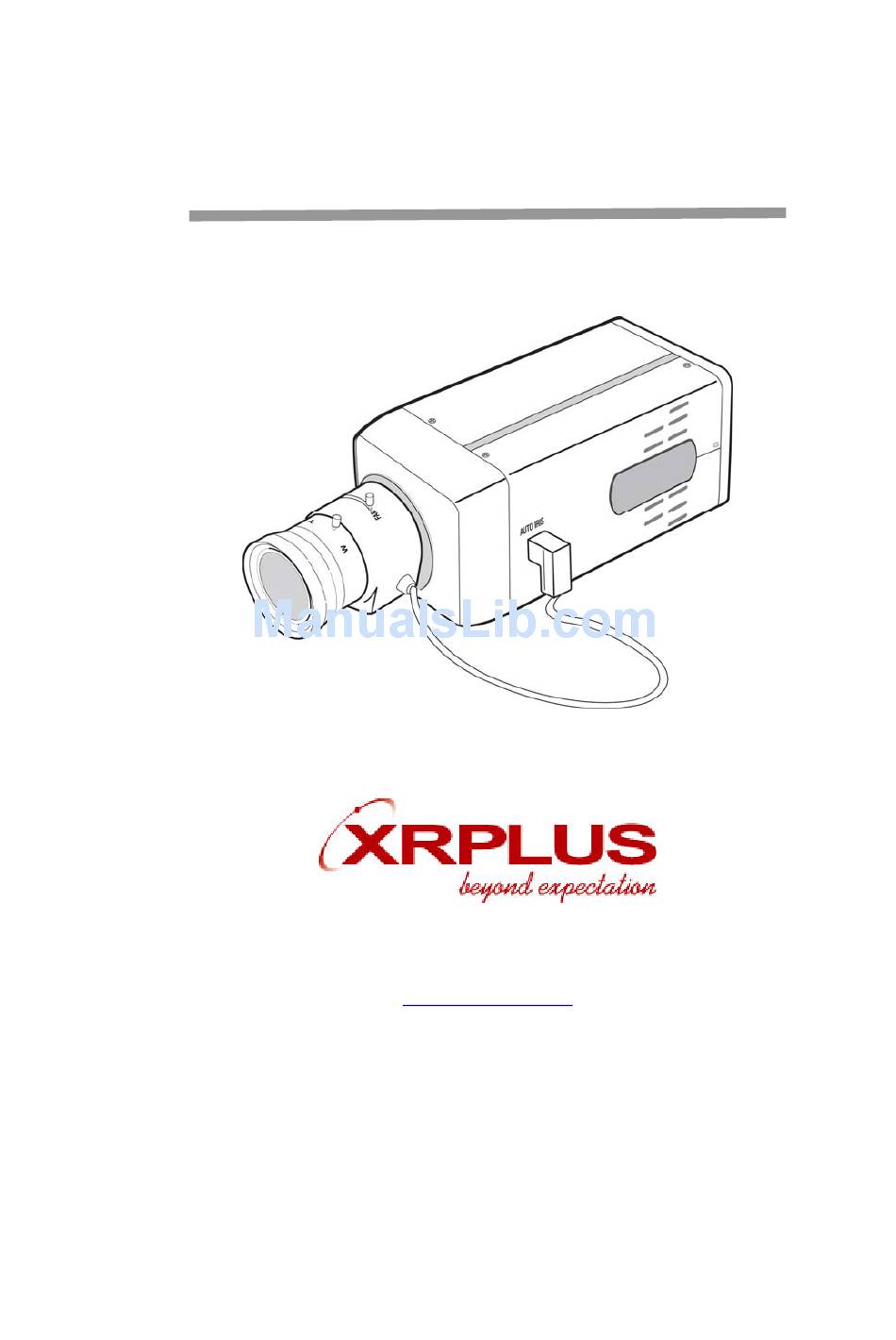

Page 1: Network Camera
Network Camera IPC-100 User Manual XRPLUS INCORPORATED WWW.XRPLUS.CO.KR sales@xrplus.co.kr... -
Page 2: Safety Precaution
We appreciate your purchasing IPC series. Before installing the product, please read the following with care. Make sure to turn off the power before installing IPC-100. Do not install under the direct sunlight or in dusty areas. Make sure to use the product within the temperature and humidity specified in the specification. -
Page 3: Table Of Contents
3. System Operation ...................9 Remote Video Monitoring ..............9 Initialization of IP Address..............10 4. Remote Configuration ...................12 1. Using Internet Explorer ................12 2. IPC-100 Configuration ................13 2.1 System Configuration ..............13 2.2 Video Configuration ..............15 2.3 Audio Configuration ..............18 2.4 Network Configuration ..............19 2.5 Serial Port Configuration ..............21... -
Page 4: Introduction
The User Manual is to provide information on operation of the high quality Network Camera, IPC-100. In this guide, information on installation, operation, configuration of IPC-100 is written as well as how to trouble shoot in case problems arise. 2. Feature IPC-100 is a network camera and a video and audio surveillance transmission system based on IP network through LAN, ADSL/VDSL, and Wireless LAN. -
Page 5: Product And Accessories
IPC-100 User Manual Sensor and Alarm Connections to external sensor and alarm devices Event Alarm User Interface System status display utilizing OSD(On Screen Display) System configuration using Internet Explorer Reliability Reliable embedded system System recovery utilizing dual watch-dog functions 3. Product and Accessories... -
Page 6: Part Names And Functions

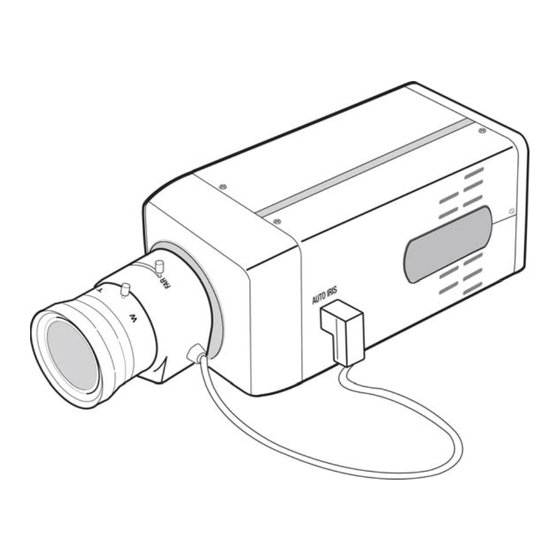

IPC-100 User Manual <Picture 1> Product and Accessories 4. Part Names and Functions Rear 6, 7 Connector Function LAN/802.3af LAN port/802.3af PoE (Power over Ethernet) AUDIO OUT Audio output AUDIO IN Audio input... -
Page 7: System Connections
Generally, the IPC-100 and the PC & decoder are connected in 1-to-1 mode or 1-to- many connection is also supported. 1:1 Connection (Unidirection) Remote Center Site Decoder Remote Center Site Mostly used configuration is 1 to 1 connection. An IPC-100 is installed at a site where... - Page 8 PC or Decoder In this configuration, a site can be monitored from many remote center locations. Although up to 64 PCs or decoders can be connected to on IPC-100, in the real network environment, network bandwidth can limit the maximum connections.
-
Page 9: Installation
Decoder CMS (Central Monitoring System) is a Windows based remote monitoring program to access multiple IPC-100 for real-time monitoring or control of the encoders and connected cameras. Please refer to CMS User Manual for more information on CMS. 2. Installation 1. -
Page 10: Connecting Serial Ports
PTZ receiver etc. Then, PC client can send PTZ commands to the external equipment via serial port. When a decoder system instead of PC client is connected to IPC-100, the serial port of IPC-100 and that of the decoder system works in pass-through mode. -
Page 11: Initialization Of Ip Address
IPC-100 User Manual Video Monitoring with Decoder System Once the IPC-100 IP address is set in the remote IP address section of the decoder, the decoder system will connect to the IPC-100 and start receiving the video images. Normally, a monitor connected to the decoder will display video images. - Page 12 IPC-100 User Manual - IP address: 192.168.10.100 - Subnet mask: 255.255.255.0 - Gateway : 192.168.10.1 - Base port : 2222 - Http port : 80 -11-...
-
Page 13: Remote Configuration
4. Remote Configuration 1. Using Internet Explorer The server can be configured using web browser. Type IP address of IPC-100 in the address input area of Internet Explorer, then a live viewing screen will be displayed. Press Setup button located in the upper right area of the monitoring screen, then the se page for server setup will be displayed. -
Page 14: Ipc-100 Configuration
IPC-100 User Manual 2. IPC-100 Configuration 2.1 System Configuration Video Standard Video signal type: Select NTSC or PAL System ID -13-... - Page 15 IPC-100 User Manual System ID: Alphanumeric System ID to be transferred to remote software Language Language to be used for web-based configuration (English, Japanese and Korean) Firmware version Current firmware version Start Time Latest system boot date and time Current Time Current date &...
-
Page 16: Video Configuration
IPC-100 User Manual 2.2 Video Configuration Preference Preference in video compression and transmission: With ‘Bitrate’ selected, the video compression will be effected by the ‘Bitrate’ value entered. With ‘Quality’ selected, the video compression will be effected by the quality of... - Page 17 IPC-100 User Manual image selected. Therefore, ‘Bitrate’ and ‘Quality’ corresponds to CBR and VBR respectively. Resolution Selectable video compression resolution: NTSC: 720X480, 720x240, 352X480, 352X240 PAL: 720X576, 720X288, 352X576, 352X288 Frame rate Selectable video frame rate: Determine the maximum number of frames of video images to compress.
- Page 18 IPC-100 User Manual Select cells using the right button of the mouse. Multiple cells can be selected conveniently by press and dragging. Press Apply Edited Area to save the editing. Sensitivity A condition to trigger events with motion detection. The value determines the sensitivity of the motion detection within a block: the smaller, the more sensitive.
-
Page 19: Audio Configuration
IPC-100 User Manual Contrast Controls input video contrast by selecting values between 0 and 100. Controls input video Hue by selecting values between 0 and 100. Saturation Controls input video saturation by selecting values between 0 and 100. 2.3 Audio Configuration Mode Select audio operation mode. -
Page 20: Network Configuration
IPC-100 User Manual Input Gain Set audio input gain. 2.4 Network Configuration IP Mode Three IP modes are supported. Depending on the selected mode, further configuration items come as follows. IP Mode Selection Description -19-... - Page 21 IPC-100 User Manual Local IP Fixed IP address Fixed IP Local Gateway Gateway IP address Local Subnet Subnet mask DHCP ☞ Please ask an IP address information from ISP provider or network manager. Set DNS server IP address. Base Port Network base port use for communication between systems.
-
Page 22: Serial Port Configuration
DDNS server, the MAC address is used in DDNS registration. 2.5 Serial Port Configuration In case for the user who uses IPC-100 / 200 / 300, there might be very seldom case to use this Serial port. Serial Port Configuration Differ to IPE-3100 Video server, There are one serial ports, RS-485, in IPC-100. -
Page 23: Event Configuration
IPC-100 User Manual configured to the following. Function Operation Not used The port is normally open and activated when NO (Normally Open) closed. The port is normally closed and activated when NC (Normally Closed) opened. The function of the sensor port is set based on the type of the sensor connected. - Page 24 When a decoder system instead of a PC client is connected to a IPC-100, one system becomes a Local system and the other a Remote system (Generally a system which is being used by the user is called as Local system).
- Page 25 IPC-100 User Manual On Disconnect Configure the actions when the link (connection) with peer system is disconnected. Multiple actions can be set for a single event. Alarm activation duration Set the duration of alarm activation in case of an event. If it is set to continuous, it will be in active state until an operator reset it manually.
-
Page 26: Preset Configuration
Press Set Button Save This function is available for using IPC-100 / 300 in order to control PTZ effectively. Configure up to 15 preset positions. Preset function is not available on some PTZ receivers. Make sure to check if a PTZ receiver supports preset. -
Page 27: User Configuration
IPC-100 User Manual Move to Preset Position Select a preset from the Preset and press Go To button, then, the camera will move to the selected preset position. 2.8 User Configuration User can be registered and privilege level of a user can be specified. User configuration is allowed only to admin user. - Page 28 IPC-100 User Manual User ID and password need to be entered and privilege level need to be selected. User ID and password consist of alphanumeric string of max 15 characters. Delete User A user is deleted by pressing Delete button.
-
Page 29: Camera Configuration
IPC-100 User Manual Login Policy Skip Login is provided for convenient access to the server when authentication is not required. When Skip Login is set to Enable, login step is skipped. The privilege level after login in this way is determined by the setting of Privilege Level After Login Skipped.
