PL18 Owner's Manual
Replacement tip for aerating
tines.
IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE
Part No 100381

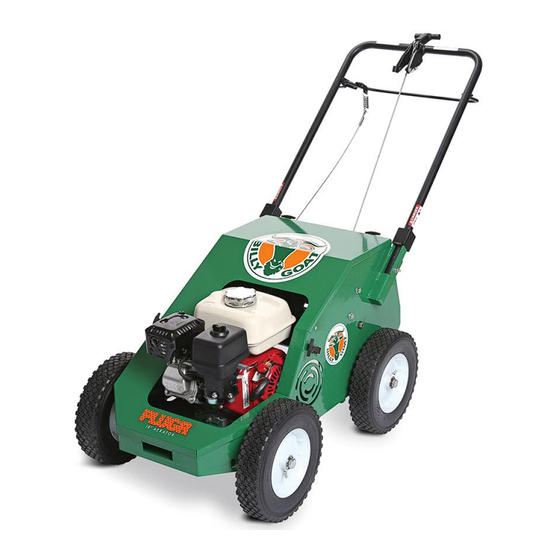

AERATOR Owner's Manual
PL1800H and PL1800V
U.S. PATENT #6892821
Beginning Serial #: 102115001
Replacement Parts
TINE REPLACEMENT
P/N 381057
Original Instructions
TINE BUSHING REPLACEMENTS
Replacement bushings for the tines
P/N 380213
1
Form No F102115A

Advertisement

Table of Contents
loading

Related Manuals for Billy Goat PL18

Summary of Contents for Billy Goat PL18

  • Page 1 PL18 Owner’s Manual AERATOR Owner's Manual PL1800H and PL1800V U.S. PATENT #6892821 Beginning Serial #: 102115001 Replacement Parts TINE REPLACEMENT TINE BUSHING REPLACEMENTS Replacement bushings for the tines Replacement tip for aerating tines. P/N 381057 P/N 380213 Original Instructions IMPORTANT- READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE...

  • Page 2: Table Of Contents

    PL18 Owner’s Manual CONTENTS SPECIFICATIONS INTENDED USE INSTRUCTION LABELS PACKING CHECKLIST & ASSEMBLY OPERATION MAINTENANCE AND TROUBLE SHOOTING WARRANTY INFORMATION ILLUSTRATED PARTS & PARTS LIST 10-11 DECLARATION OF CONFORMITY 12-14 Part No 100381 Form No F090815A...

  • Page 3: Specifications

    PL18 Owner’s Manual SPECIFICATIONS PL1800V PL1800H Engine: cc 205cc 118cc Engine: B&S 5.5hp Intek HONDA GX120 w/Gearbox W. gearbox Engine: Fuel Capacity 3.0 qt. (2.84 L) 2.1 qt. (2 L) Engine: Oil Capacity 0.66 qt. (0.62 L) 0.59 qt. (0.56 L)

  • Page 4: Intended Use

    PL18 Owner’s Manual INTENDED USE AERATOR This machine is designed for aerating established lawns and large grass covered areas. The machine should not be used for any other purpose than that stated above. DO NOT OPERATE IF EXCESSIVE VIBRATION OCCURS! If excessive vibration occurs, shut engine off immediately and check for damaged or worn reel, loose reel bearing, loose engine or lodged debris.

  • Page 5: Instruction Labels

    INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT Aerator. If any labels are damaged or missing, replace them before operating this equipment. Part numbers from the Illustrated Parts List are provided for convenience in ordering replacement labels.

  • Page 6: Packing Checklist & Assembly

    PL18 Owner’s Manual PACKING CHECKLIST Your Billy Goat is shipped from the factory in one carton, completely assembled with the cables detached. READ all safety instructions before assembling unit. TAKE CAUTION when removing the unit from the box. PUT OIL IN ENGINE BEFORE STARTING PARTS BAG &...

  • Page 7: Operation

    PL18 Owner’s Manual OPERATION STARTING ENGINE See engine manufacturer’s instructions for type and amount of oil and gasoline used. Engine must be level when checking and filling oil and gasoline. ENGINE SPEED: Controlled by lever on the engine. Under normal conditions, operate at the minimum throttle speed to accomplish your task.

  • Page 8: Maintenance And Trouble Shooting

    PL18 Owner’s Manual MAINTENANCE NOTE: Items in ( ) can be referenced in the Part Illustration and Part List on pages 10-11. PERIODIC MAINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use Every 10 Hrs...

  • Page 9: Warranty Information

     The machine must be taken to the dealer from whom it was purchased or to an authorized Servicing BILLY GOAT Dealer. ...

  • Page 10: Illustrated Parts & Parts List

    PL18 Owner’s Manual PL1800/H PARTS DRAWING Part No 100381 Form No F090815A...
  • Page 11 371275 1/4" RUE RING 381769-10 LOWER BELT TENSIONER BRACKET 381042 CARTRIDGE BEARING 1" DIA 381770-WA COVER WA PL18 8171004 3/8" FLAT WASHER 381543 HANDLE WA PL18 12 GA 8160003 NUTLOCK 3/8-16 381772 CLUTCH ARM 610363 ZERK FITTING GREASE 381777 PL1800 DECAL KIT 381110 NUT JAM 5/8"-11 2 WAY LOCKNUT ZP...

  • Page 12: Declaration Of Conformity

    PL18 Owner’s Manual Руccкий Latviešu English Suomi Slovenščina български език Français Nederlands Čeština Slovák Ελληνικά Norsk Svenska Dansk Hrvatski Polski Türkçe Deutsch Magyar Português Română Español Italiano Lietuvių eesti keel Δήλωση συμμόρφωσης ΕΚ Deklaracja zgodności UE EC Declaration of Conformity Декларация...
  • Page 13 PL18 Owner’s Manual Directive: 2006/42/EC Irányelv: 2006/42/EC Diretiva: 2006/42/EC Директива: 2006/42/EC Οδηγία: Директива: 2006/42/EC 2006/42/EC Směrnice č. 2006/42/EC Direktiva: 2006/42/EC Directiva: 2006/42/EC Direktiv: 2006/42/EF Direttiva: 2006/42/EF Direktiva: 2006/42/EF Richtlinie: 2006/42/EG Direktyva: 2006/42/EG Smernica: 2006/42/EG Direktīva: Directriz: 2006/42/EC 2006/42/EC Direktiv: 2006/42/EC Direktiiviga: 2006/42/EÜ...
  • Page 14 PL18 Owner’s Manual (1) ISO 5395-1:2013 F.7 (EN 4871:1996) (2) ISO 5395-1:2013 G.8 (EN 12096:1997, D.1) Miejsce produkcji / Osoba odpowiedzialna za Manufacturing Place / Keeper of Documentation Τόπος κατασκευής / Υπεύθυνος τήρησης αρχείων Място на производство / Архивар przechowywanie dokumentów τεκμηρίωσης...
