AE RC10B6 Instruction Manual

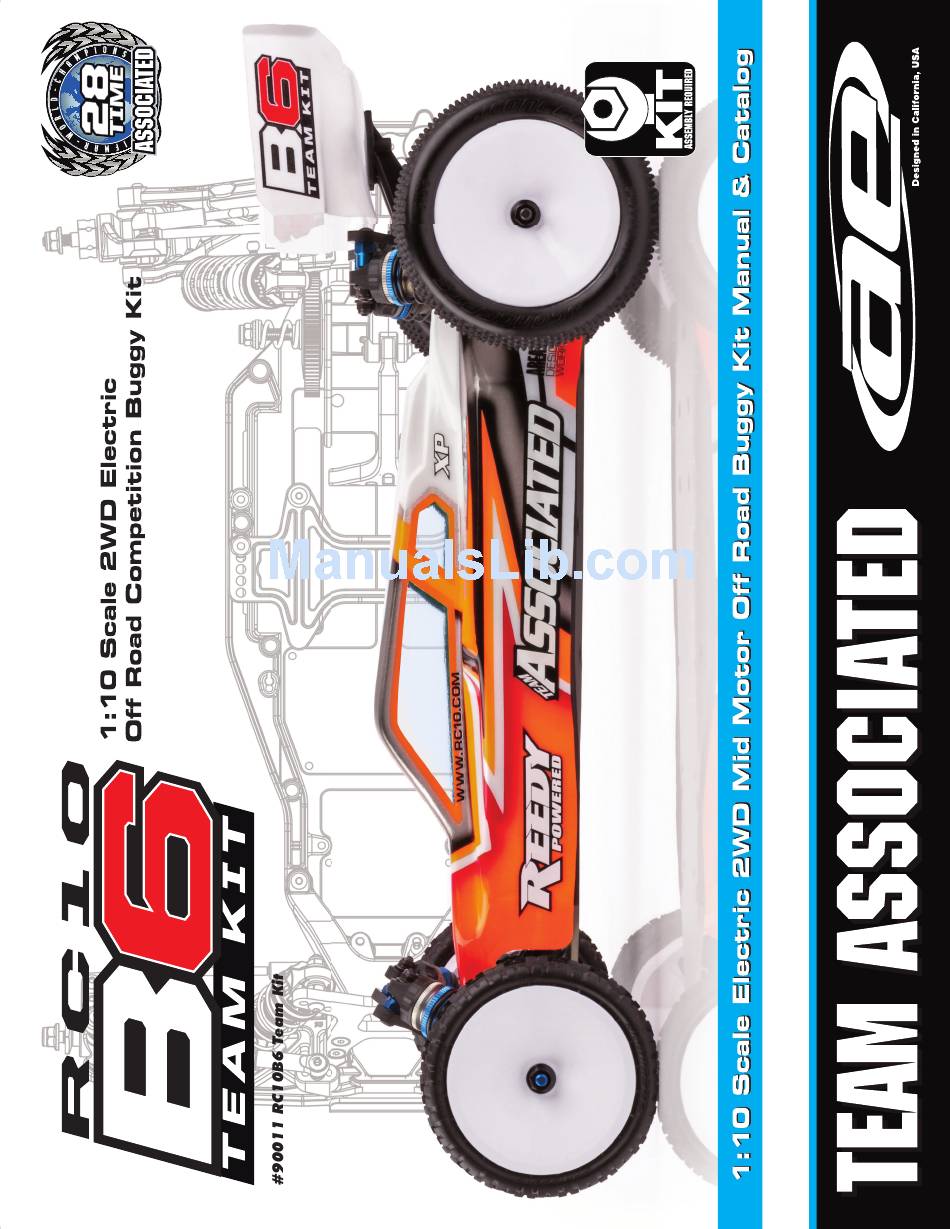

90011 team kit, 1/10 scale 2wd electric off road competition buggy kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC10B6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AE RC10B6

Summary of Contents for AE RC10B6

  • Page 2 • Body Scissors (AE Part # 1737) • Reamer / Hole Punch • Shock Pliers (#1675) • Wire Cutters • FT Hex/Nut Wrenches (AE Part # 1519)• Needle Nose Pliers • Multi Tool (AE Part #7494) • Hobby Knife • Soldering Iron •...
  • Page 3 :: Hardware - 1:1 Scale View Button Head (bhcs) Flat Head (fhcs) Ball Bearings 2x4mm (31510) 3x8mm (25201) 3x7x3mm (91475) Aluminum (8545) Aluminum (8553) Titanium (91592) 2.5x6mm (31520) 5x8x2.5mm (31400) 3x10mm (25202) 2.5x8mm (31521) Aluminum (8555) Titanium (91593) 5x10x4mm (91560) 3x4mm (91158) 3x12mm (25203) 3x5mm (31530)
  • Page 4 :: Table of Contents 1....Cover 14....Bag 18 - 19 2....Introduction 14 - 16..Bag 20 - 22 3....1 :1 Hardware “Fold Out” 16....Bag 23 4....Table of Contents 16 - 18..Bag 24 - 26 5....Bag 1 19 - 21..Tuning Tips 5 - 7 ....Bag 2 - 4 22 - 30..
  • Page 5 4/16 :: Bag 1 - Step 1 Front 91475 31286 3 x 7 x 3 FT Ballstud Ball Bearing 91667 Washer, Note orientation Steering of steering rack. Aluminum 91475 Bellcrank (2mm) 3 x 7 x 3 (Right) Ball Bearing 91667 Steering Rack 31286...
  • Page 6 :: Bag 2-4 - Step 2 Step 2 Step 2 91652 Servo not 31284 31286 Side Rails included! 8mm Ball FT Ballstud (L & R) Washer, Stud, Long aluminum (2mm) 89009 Servo Horn Servo screw Ring not included! 25202 9180 25201 M3 x 10mm Servo...
  • Page 7 :: Bag 2-4 - Step 5 91656 89202 Front Hinge M3 x 12mm Pin Brace, BHCS The front hinge pin brace has a sharp edged side, and a rounded edge side. Mount the sharp edge side towards the bulkhead. 31510 M2 x 4mm BHCS 91673...
  • Page 8 :: Bag 5-8 - Step 2 91049 91675 25215 31532 Heavy-duty Caster M3 Locknut, M3 x 8mm Ballstud, Block black BHCS There are three caster 10mm block inserts included (0°, +/- 2.5 °, +/- 5 °). +5 ° is the standard insert used.
  • Page 9 :: Bag 9-10 - Step 2 91692 91695 Rear Rear Gearbox Arms Brace 91670 Hinge Pin 91685 (rear, Inner) Rear Bumper 91692 25204 Arm Mount, M3 x 16mm FHCS :: Bag 11-14 - Step 1 91465 91463 Gear Diff Gear Diff washer Sun Gear 91462...
  • Page 10 :: Bag 11-14 - Step 3 4675 91463 M2.5 x 6mm Gear Diff FHCS Sun Gear 91465 Gear Diff Outdrive 91463 Gear Diff Gasket :: Bag 11-14 - Step 4 91560 5 x 10 x 4, Bearing 91716 91563 Idler Gear 10 x 15 x 4, Bearing 91560...
  • Page 11 :: Bag 11-14 - Step 6 9603 Slipper 7485 FT V2 91715 Slipper Hub Lay-down There’s also a 72T Motor Plate 48P spur gear 25202 (#9649) 9652 M3 x 10mm included for stock 78T 48P motor use! FHCS Spur Gear :: Bag 11-14 - Step 7 Set nut 9739...
  • Page 12 :: Bag 15-16 - Step 1 91563 91697 25215 Screw the ballstud 10 x 15 x 4 into the rear hub Rear Hub M3 Locknut, link nut first. Then Bearing black Link Insert secure ballstud with M3 Locknut. 91698 Rear Hub Link Setting 89218 Rear Hub (Right Side Shown):...
  • Page 13 :: Bag 17 - Step 1 91722 91723 91722 Ball Cup Turnbuckle Ball Cup 3x48mm Steering Turnbuckle Racers Tip: 28.75mm Orient the notch Orient the notch Use black grease to the left throughout the to the left throughout the (#6588) on the car.
  • Page 14 :: Bag 18-19 - Step 1 91533 Shock Bushing, Short 25188 25203 M3 x 20mm M3 x 12mm BHCS FHCS 91663 Front Shock Tower, Gull-Wing :: Bag 18-19 - Step 2 89204 91718 M3 x 24mm Rear Wing BHCS Mount 91665 Rear Shock Tower...
  • Page 15 :: Bag 20-22 - Step 2 91491 There is a short and 91480 long shock eyelet. 12mm 12x23mm V2 Front shocks use Shock Cap Shock Bodies the short eyelet, O-Ring (front) rear shocks use Lightly rub shock oil the long eyelet. on the o-ring before 91481 installation!
  • Page 16 :: Bag 20-22 - Step 5 91447 Shock 25612 Bushing M3 Locknut w/Flange Use outside hole in 91447 front arm! Shock Bushing Use inside hole in rear arm! 25188 25612 M3 x 20mm 25187 M3 Locknut BHCS M3 x 14mm w/Flange Build x2 (right and left side) BHCS...
  • Page 17 :: Bag 24-26 - Step 2 91734 Battery 91730 Foam, B6 Battery Strap Shoulder Screw :: Bag 24-26 - Step 3 Front Battery not included! Make sure the battery strap shoulder screw is flush with the top of your battery pack! :: Bag 24-26 - Step 4 91729 89218...
  • Page 18 :: Bag 24-26 - Step 5 Body Trimming / Mounting: 25203 91718 M3 x 12mm There are 3 body trimming options depending on what transmission and Wing shock position you choose to run. FHCS Button Cut Line A: Laydown Transmission / Rear Shocks mounted in rear of arm. 91741 Cut Line B: Laydown Transmission / Rear Shocks mounted in front of arm.
  • Page 19 :: Painting Tips Your B6 Team Kit comes with a clear polycarbonate body. You will need to prep the body before you can paint it. Wash the INSIDE thoroughly with warm water and liquid detergent (do not use any detergents with scents or added hand lotion ingredients!).

  • Page 20: Slipper Clutch

    :: Tuning Tips (cont.) Gear Box Type: Selecting the correct gear box is dependent on the type of track it will be used on. The optional 4 gear stand-up gear box is for the lowest grip conditions. This gear box moves the weight towards the rear of the car and also uses the rotation of the motor to transfer weight to the rear while on-power.

  • Page 21: Ride Height

    :: Tuning Tips Ackermann: Ackermann is the angle difference between the front wheels when they are turned to steer the car. For minimal tire slip, it is standard for the inside wheel to steer to a greater angle than the outside wheel. The B6 allows ackermann adjustments by changing the washer thickness used behind the steering rack ballstuds.
  • Page 22 :: Shocks :: Optional Ball Differential 4187 .030 Nylon Washer 1733 Diff Shims 31327 VCS3 Shock Bottom Cap and O-Ring 2 ea. 6573 Diff Thrust Washer & Bolt 31510 2x4mm BHCS 6574 Precision Diff Thrust Balls, 5/64” 89278 2.5mm Washer 6575 Locking T-Nut, Diff Thrust Bolt, &...
  • Page 23 :: Transmission 25202 M3 x 10mm FHCS 91716 91560 91048 91560 31286 Ball Stud Washers, Alum. 4 ea. (1mm, 2mm) 91710 31532 M3 x 8mm BHCS 89203 M3 x 16mm BHCS 89218 3 x 8mm Washer 25202 91048 Heavy-duty Ballstud, 8mm 31286 31532 91132...
  • Page 24 :: Gear Differential 4675 M2.5 x 6 FHCS 9831 Gear Diff O-Ring Set 9831 91605 91462 Gear Diff Gear and Cover 4675 91463 Gear Diff Rebuild, B5 91464 91464 FT Aluminum Gear Diff Cover 91465 Gear Diff Outdrives, B5 91465 91605 CVA Axle Shims 91465...
  • Page 25 :: Front Arm 25187 M3 x 14mm BHCS 25188 M3 x 20mm BHCS 25187 25215 M3 Locknut, Black 91048 31286 FT Ballstud Washer, aluminum 4 ea. (1mm, 2mm) 31510 M2 x 4mm BHCS 91049 31531 M3 x 6mm, BHCS 31286 25215 31532 M3 x 8mm, BHCS...
  • Page 26 :: Front Shock Tower 25188 M3 x 20mm BHCS 25203 M3 x 12mm FHCS 25612 M3 Locknuts w/Flange 91533 91447 Shock Bushing Balls 91447 91533 Shock Bushings, Short w/Balls 4 ea. 91663 Front Tower, Gull-Wing, B6 25612 25188 25203 91533 91447 25203 91663...
  • Page 27 :: Front Bulkhead / Steering 25188 M3 x 20mm BHCS 25204 M3 x 16mm FHCS 25188 25225 M3 x 3mm Set Screw 31283 Ball Studs, Long, 5mm 31286 FT Ball Stud Washer, aluminum 4 ea. (1mm, 2mm) 91667 89202 M3 x 12mm BHCS 91048 Heavy-duty Ballstud, 8mm 91475...
  • Page 28 RC10B6 Flat Front Arm, Hard Wolfpack LiPo 3800mAh 7.4V 25C Shorty 91673 RC10B6 Gull Front Arm - Req. #91663 91674 RC10B6 Gull Front Arm, Hard - Req. #91663 91683 RC10B6 Titanium Front Axle 91687 RC10B6 Brass Arm Mount (C) 91688...
  • Page 29 :: Reedy Motors / Spare Parts / Accessories :: Reedy Servos & Accessories Sonic 540-M3 25.5 27100 RS1206 Digital HV Hi-Speed Competition Servo Sonic 540-M3 21.5 27101 RT1508 Digital HV Hi-Torque Competition Servo Sonic 540-M3 17.5 27102 RS1206 Servo Case Set w/screws Sonic 540-M3 13.5 27103 RS1206 Servo Gear Set...
  • Page 30 :: Apparel / Promotional 1673 FT 1/4” Hex Drive 2.5mm Ball End Tip SP13** AE Lite Jacket - Black - (S, M, L, XL, 2XL) 1674 FT 1/4” 5 Piece Power Tool Tips Set (5/64-2.0mm, SP14** AE 2015 Worlds T-Shirt - Blue (S, M, L, XL-5XL) 1.5mm, 2.5mm, 5/64”- 2.0mm ball, 2.5mm ball)
  • Page 31 :: Notes :: Contact Information Associated Electrics, Inc. 26021 Commercentre Drive Lake Forest, CA 92630-8853 USA http://www.TeamAssociated.com http://www.RC10.com http://twitter/Team Associated http://bit.ly/AEonFacebook call: (949) 544-7500 fax: (949) 544-7501 Check out the following web sites for all of our electric kits, current products, new releases, setup help, tips, and racing info! www.TeamAssociated.com.
  • Page 32 Team Kit Stock Setup Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: 19mm Ride Height: Anti Roll Bar: Axle Height: Bump Steer Spacing: Ball Stud Spacing: None -1° Camber: White (0.8mm) 0° Toe: Gray (0.9mm) Gull-Wing Arm Type: Blue (1.0mm) Gull-Wing...
  • Page 33 Driver: Event: Date: Track: Qualify: Main: Finish: Best Lap Time: Front Suspension: Ride Height: Anti Roll Bar: Axle Height: Bump Steer Spacing: Ball Stud Spacing: None Camber: White (0.8mm) Toe: Gray (0.9mm) Arm Type: Blue (1.0mm) Tower Type: Other: Caster Block Insert: Steering Plate: Bulkhead Type: Kick-Up Angle:...
