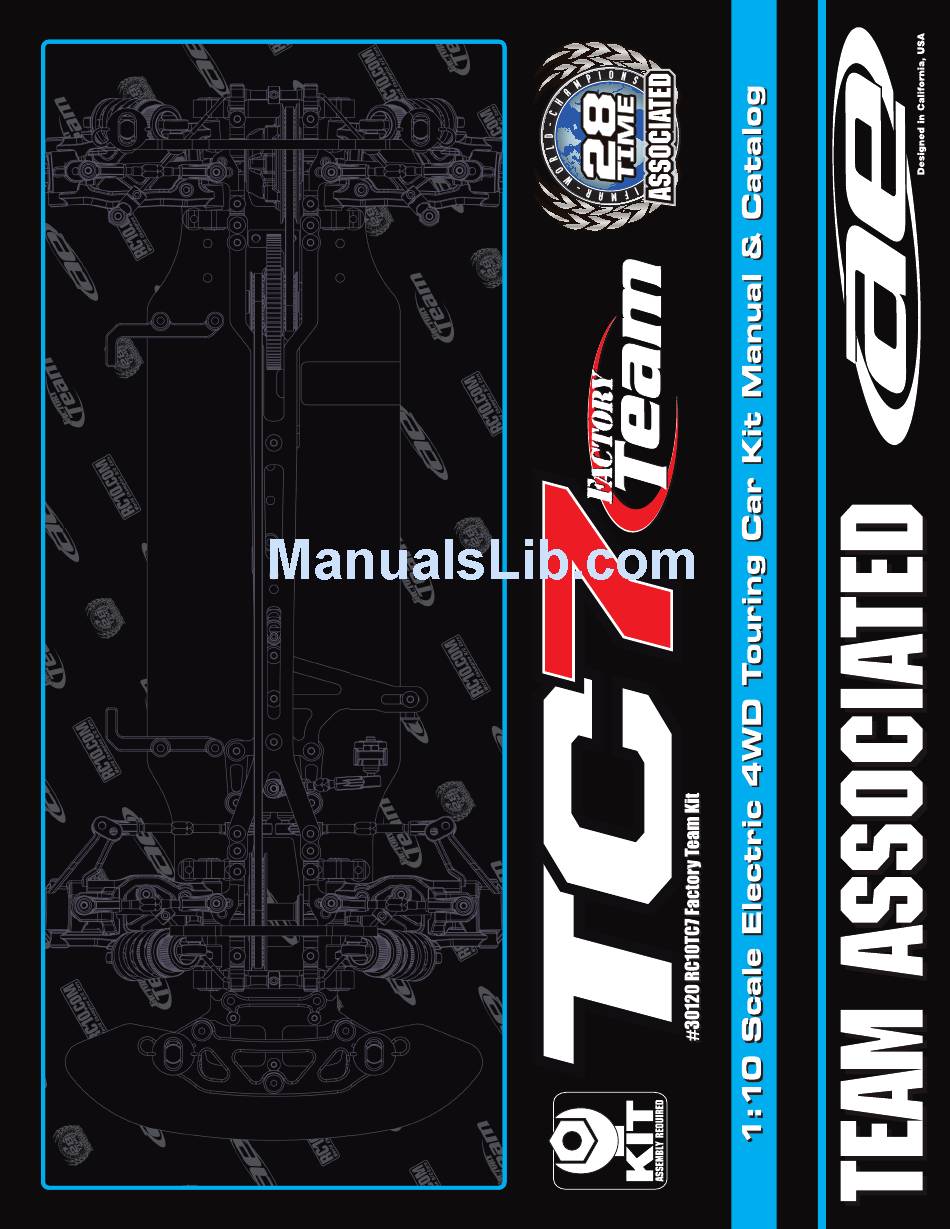

AE TC7 Assembly Manual

1:10th scale 4wd electric touring car kit
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TC7 and is the answer not in the manual?

Questions and answers

Related Manuals for AE TC7

Summary of Contents for AE TC7

  • Page 2: Bags

    The touring car racing class has matured to a competition level higher than ever before, and the Engineers behind the doors of Area-51 have been hard at work to make sure the TC7 can keep pace. The RC10TC7-FT car kit comes packed full of Factory Team options and a refined suspension package with precise adjustment resulting in a level of consistency to be unequalled.
  • Page 3 :: Hardware - 1:1 Scale View Cap Head (shcs) Flat Head (fhcs) Button Head (bhcs) 1.6x5mm (91611) 2.5x6mm (4675) 2x4mm (31510) 2x5mm (31511) 2.5x10mm (31350) 2x5mm (31511) 3x6mm (31541) 2.5x4mm (4673) Setscrew 3x8mm (25201) 2.5x6mm (31520) 3x2.5mm (31500) 3x10mm (25202) 2.5x8mm (31521) 3x3mm (25225) 3x5mm (31530)
  • Page 4 :: Table of Contents 1....Cover 13-16..Bulkheads, Spur Gear, and Steering Rack Build (Bags 12, 13) 2....Introduction 16-19..Caster Blocks /Rear Hubs Build 3....1 :1 Hardware “Fold Out” (Bags 14, 15, 16) 4....Table of Contents 19-23..Bumper, Anti Roll Bar, and Electronics Build (Bags 17 , 18) 5-6....Shock Build (Bags 1, 2)
  • Page 5 3/16 :: Shock Build - Bag 1 & 2 - Step 1 31510 M2x4mm bhcs Thread lock 31687 31689 not included! TC7 FT TC7 shock shock body piston 21139 5407 (Fox (3x1.1) Steel washer Kashima (2.6x6x0.5mm) o-rings Coat) 31688 31327...
  • Page 6 :: Shock Build - Bag 1 & 2 - Step 4 31717 31698 TC Spring, TC7 shock Blue spring cup (15.9lbs) Build four shocks :: Spool and Differential Build - Bag 3, 4 & 5 - Step 1 31342 31510...

  • Page 7: Gear Diff

    :: Spool and Differential Build - Bag 3, 4 & 5 - Step 3 31341 TC6 spool outdrive 31350 M2.5x10mm fhcs 91563 FT bearing 10x15x4mm 31162 Shim Thread lock not included! :: Spool and Differential Build - Bag 3, 4 & 5 - Step 4 31348 31348 TC6 gear...
  • Page 8 :: Spool and Differential Build - Bag 3, 4 & 5 - Step 6 31348 31345 TC6 gear TC6 gear diff shim diff sun 31348 (1 small, 1 big) gear TC6 gear diff pin 31347 TC6 gear diff pulley 31349 TC6 gear diff seals :: Spool and Differential Build - Bag 3, 4 &...
  • Page 9 :: Spool and Differential Build - Bag 3, 4 & 5 - Step 9 Cam Position Belt Tension Number Left Side Mid-Low Mid-High 31615 31615 Diff holder bearing Use belt tension (mid-low) position 7 for standard setup View from left High side of car on the rear.
  • Page 10 :: CVA Build - Bag 7 - Step 1 31367 31367 TC6.1 CVA 31368 coupler TC6.1 CVA cross pin bones 31369 TC6.1 CVA axle :: CVA Build - Bag 7 - Step 2 31500 M3x2.5mm setscrew RACERS TIP! place a drop of CA glue on the pin retainer gap.

  • Page 11: Bulkhead

    :: Suspension Arms Build - Bag 8, 9, 10, & 11 - Step 2 25227 Build left M4x8mm and right 31621 setscrew sides Inner hinge pin ball 31677 TC7 Inner hinge pin 31673 TC7 Front suspension 4670 Wheel Base Shims 31286 M3x8mm Wheelbase set screw shim (1mm) :: Suspension Arms Build - Bag 8, 9, 10, &...
  • Page 12 :: Suspension Arms Build - Bag 8, 9, 10, & 11 - Step 4 31620 Build two, one for TC6.2 arm front, one for rear. mount insert (Front: -3 dot, -1°) (-3 dot, -1°) (-3 dot, -1°) (Rear: 1 dot, 0°) (Rear: 1 dot, 0°) Arm Mount Inserts Arm Mount Inserts...
  • Page 13 :: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 3 89229 Blue 31541 countersunk M3x6mm washer fhcs 31664 TC7 spur 31731 gear shaft FT bearing 4x8x3mm flanged 31320 TC6 spur pulley (20T)
  • Page 14 :: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 4 Rear Belt Front Belt Front Belt 31659 TC7 Rear belt 31658 TC7 Front belt 25202 M3x10mm fhcs :: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 5...
  • Page 15 31613 cap (B) TC6.2 bearing cap (A) :: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 8 31653 31530 TC7 top M3x5mm plate bhcs Note! Place top plate between the front belt. :: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 9...
  • Page 16 FT ballstud FT Bearing, washer, 4 x 7 x 2.5mm aluminum (1mm) 31665 31283 TC7 steering Ballstud, rack hat long, bushing :: Bulkheads, Spur Gear, and Steering Build - Bag 12 & 13 - Step 11 31667 25211 TC7 steering...
  • Page 17 (5mm) :: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 3 31286 Build two 31285 31678 FT ballstud 10mm TC7 caster washer, ballstud block, aluminum (long) (4 degree) (1mm) 31680 TC7 king pin bushing :: Caster Blocks and Hubs Build - Bag 14, 15, &...
  • Page 18 :: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 7 Build left Build left 31284 and right and right ballstud sides sides (long) 31286 Aluminum ballstud washer 31370 (2mm) TC6.1 axle crush tube 31681 TC7 rear 91560 FT bearing carrier 5x10x4mm...
  • Page 19 Build left Clamping 25225 31677 wheel hex and right M3x3 TC7 hinge (5mm) sides set screw pin, outer :: Caster Blocks and Hubs Build - Bag 14, 15, & 16 - Step 9 Orient the notch to the left throughout the car.
  • Page 20 :: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 2 4673 1736 31624 M2.5x4mm FT body TC6.2 bhcs clips, blue foam (short) 3897 bumper Pivoting Transponder body mounts not included! 31623 TC6.2 31625 25201 bumper TC6.2 front M3x8mm brace...
  • Page 21 :: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 5 31701 Anti Roll Bar TC7 anti- Color/Size Chart 31703 roll bar Green 1.1mm TC7 Front Anti Roll Bar eyelet anti-roll bar, White 1.2mm ment Link Adjust 31500 1.4mm (blue)
  • Page 22 7337 M3x6mm .250x.125x.015 fhcs washer :: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 10 31530 M3x5mm bhcs 31667 TC7 steering Receiver not ESC not included! bellcrank included! post 31657 TC7 servo mount brace 31286...
  • Page 23 :: Bumper, Anti-Roll Bar, and Electronics Build - Bag 17 & 18 - Step 11 Gearing will depend on the motor and track size. Gear chart on page 27. Motor, pinion gear, and set screw are not included! 31286 Aluminum ballstud washer (1mm)

  • Page 24: Ride Height

    Rear Toe-In: The TC7 allows rear toe adjustments in two positions: inner hinge pin, and outer hinge pin at the rear hub. In general, decreasing rear toe-in will decrease rear traction and increase corner speed.
  • Page 25 The camber link is used to set static camber at ride height, but it is also an effective setting to adjust roll center height and camber gain. The TC7 has three optimized length positions at the front, and six at the rear, for a wide range of camber gain adjustments.
  • Page 26 Note! Charts show left side cam positions from the left side of the car. Match right side cam position to left side cam position. Motor Gearing: The gear charts on the following page show final drive ratio numbers for the TC7. Refer to motor manufacturer’s suggested gear ratio for starting point. You may need to adjust the gearing according to your track size.
  • Page 27 :: Gear Chart 48 Pitch Blank spaces in the gear charts designates a gear ratio that will not fit in the vehicle. Gear fitment will also depend on the motor brand. :: Gear Chart 64 Pitch...
  • Page 28 31696 31684 TC7 Shock Kit 31369 TC6.1 Stub Axle (Fox Kashima Coat), builds 2 31500 M3 x 2.5mm Set Screw 31687 TC7 Shock Body (Fox Kashima Coat) 4637 31238 31688 TC7 Shock Shaft 31367 31689 TC7 Shock Piston (3x1.1) 31693...
  • Page 29 31320 Spur Pulley, 20T 31319 31333 Spur Gear (87T/48P) 31530 M3 x 5mm BHCS 89229 31541 M3 x 6mm FHCS 31664 TC7 Spur Gear Shaft 31731 FT 4x8x3mm Flanged Bearing 31314 31320 89229 Blue Countersunk Washers 31530 31731 31333 31320...
  • Page 30 TC7 Servo Mount Brace 31732 31669 31665 TC7 Steering Rack Set 25202 31666 31286 31666 TC7 Steering Bellcrank 31667 TC7 Steering Bellcrank Post Set 31732 31665 31541 31669 TC7 Servo Mount Set 31669 31732 FT 4x7x2.5mm Bearing 31667 31732 89007 Steering Servo Horn &...
  • Page 31 TC7 Wheel Hex, 5mm 31286 31673 TC7 Front Suspension Arm (1mm) 31677 TC7 Hinge Pin Set 31677 31678 TC7 Caster Block, 4 deg 31621 31679 TC7 Steering Block 31680 TC7 King Pin Bushing 91560 91148 M4 Locknut, w/flange and knurl...
  • Page 32 Aluminum Ballstud Washers, Set 31532 M3x8mm BHCS 31541 M3x6mm FHCS 31286 31626 TC6.2 LiPo Brace Set 31532 31663 31663 TC7 Motor Mount 31626 31541 31626 31541 31541 31541 31541 31541 :: Chassis / Top Plate / Belts / Antenna / Arm Mounts 4617...
  • Page 33 TC6.2 30mm Cooling Fan 5452 Silicone Diff Fluid 3,000CST 31652 TC7 Chassis, Aluminum 5444 Silicone Diff Fluid 4,000CST 31668 TC7 Floating Steering Bellcrank Post 5453 Silicone Diff Fluid 5,000CST 31671 TC7 Wheel Hex, 4mm 5446 Silicone Diff Fluid 6,000CST 31672...
  • Page 34 FT B44.3 4WD Buggy Kit 4.0mm Bullet Plugs (100F) 30101 TC4 Club Racer 4WD Touring Car Race Roller 4.0mm Bullet Plugs (10M) 30120 FT TC7 Kit 4.0mm Bullet Plugs (30M) 70001 RC10T5M Team Kit 5.0mm Bullet Plugs (2M) 70006 RC10SC5M Team Kit...
  • Page 35 8 Inch Nylon Wire Ties SP92** AE Retro T-shirt, White (S, M, L, XL-5XL) 3987 FT Droop Gauge SP93** AE 2013 Worlds T-shirt - Blue (S, M, L, XL-5XL) 6429 Shock Building Tool SP96** AE Womens Retro - Pink (S, M, L, XL) 6956...
  • Page 36 Front...
  • Page 37 Front...
