User Manual
Philips Consumer Lifestyle

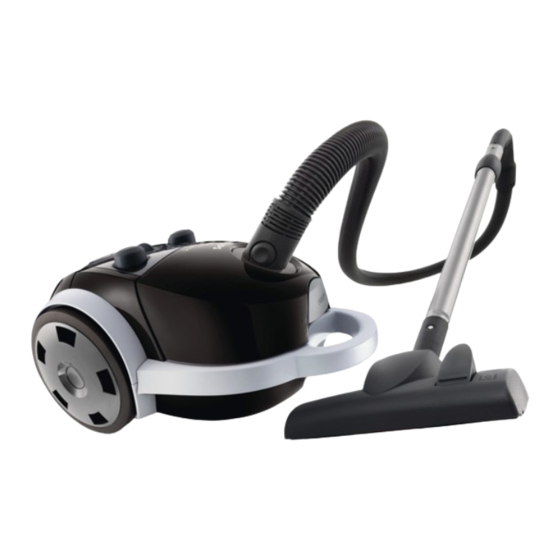

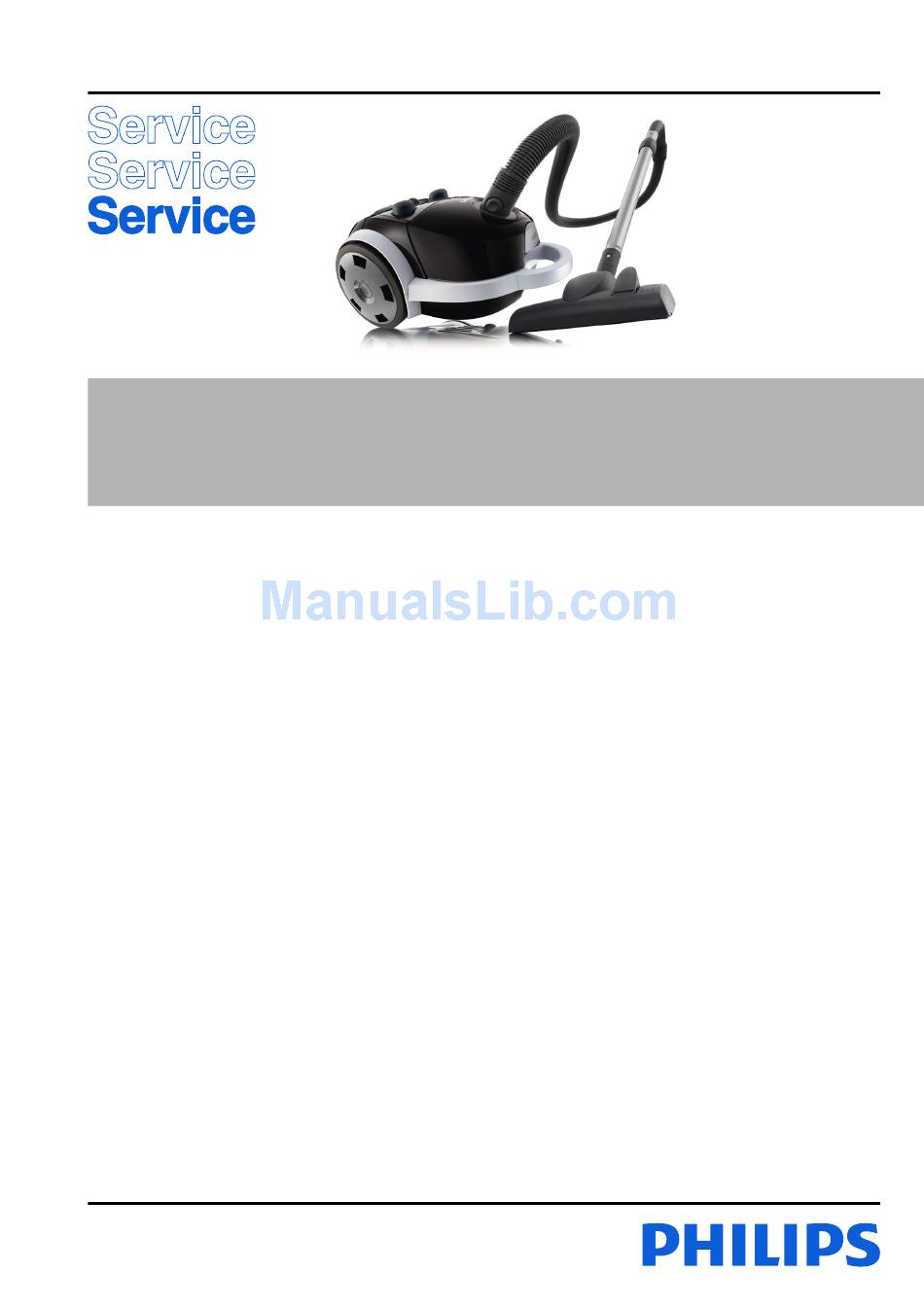

Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Colour
- Power consumption
(IEC) 230V
- Maximum Air displacement : 43 l/s
- Vacuum
- Type number dustbag
- Duststorage capacity
- Cord length
- Fiter system
- Dimensions of cleaner
- Dimensions of packaging
- Net weight
Published by Philips Consumer Lifestyle
11/05
: Dark Raven
: 1800 W
: 300 mbar / 30.0 kPa
: FC8021
: 3 L
: 7 m
: Double layered
compatible s-bag™
: 3 layer permanent motor
protection filter
: Super Clean Air
exhaust filter
: 449 x 324 x 250 mm
: 593 x 393 x 296 mm
: 5.7 kg
Printed in the Netherlands
Vacuum cleaner
ACCESSORIES
- Nozzle
: RD262 Nozzle
- Tubes
: Metal lacquered telescopic tubes
- Accessories
: Brush, crevice nozzle and
small nozzle
- Accessory storage
: Active accessory storage bridge in
handgrip
- Coupling
: Button coupling
OPTIONAL (accessories)
- FC 8021
: S-bag Classic
- FC 8022
: S-bag Clinic
- FC 8023
: S-bag Anti-Odour
- FC 8024
: S-bag Long Performance
- FC 8025
: S-fresh scent granules
- FC 8030
: Super Clean Air filter, High-Flow
AFS exhaust filter
- FC 8031
: Super Clean Air HEPA filter,
HEPA12 exhaust filter
© Copyright reserved
FC9062/01
Subject to modification
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Philips FC9062/01
Summary of Contents for Philips FC9062/01
- Page 1 : 449 x 324 x 250 mm - Dimensions of packaging : 593 x 393 x 296 mm - Net weight : 5.7 kg Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification 11/05...
-
Page 2: Repair Instruction
FC9062/01 REPAIR INSTRUCTION DISASSEMBLY- AND RE-ASSEMBLY ADVISE - Cotton dustbags, are used in countries in which paper dustbags are not available. - To open the apliance, First remove the filter cover - If the reel half spring unit is replaced, shaft... -
Page 3: Parts List
PARTS LIST FC9062/01 Service code Description Service code Description 4322 005 19470 Dustcover / Pr / Dark Raven 4322 001 73360 Exhaust sealing 4322 003 23610 Dustcover lock / Light grey 4322 000 38790 Silencer 4 wall backpanel 4322 000 67810... - Page 4 EXPLODED VIEW FC9062/01 Black/ White Black brown blue...
- Page 5 EXPLODED VIEW FC9062/01...
- Page 6 EXPLODED VIEW FC9062/01 Black/ White Black 40 41 blue brown...
- Page 7 EXPLODED VIEW FC9062/01 Swiss U.K. / H.K. Europe Ø 4.8mm Italy...
Need help?
Do you have a question about the FC9062/01 and is the answer not in the manual?
Questions and answers
Disassemble motor vacuum fc-9062
To disassemble the motor of the Philips FC9062/01 vacuum cleaner, follow these steps:
1. Use a torx screwdriver with a 14.5 cm long shank.
2. Remove the button panel by loosening the mounting screws (A) and unlocking the four snap connections with a screwdriver.
3. Separate the panel from the housing.
4. Remove the display cover from the button panel.
5. Proceed to access and remove the motor.
These steps ensure proper disassembly while maintaining safety.
This answer is automatically generated
