Summary of Contents for Hyco MBS3

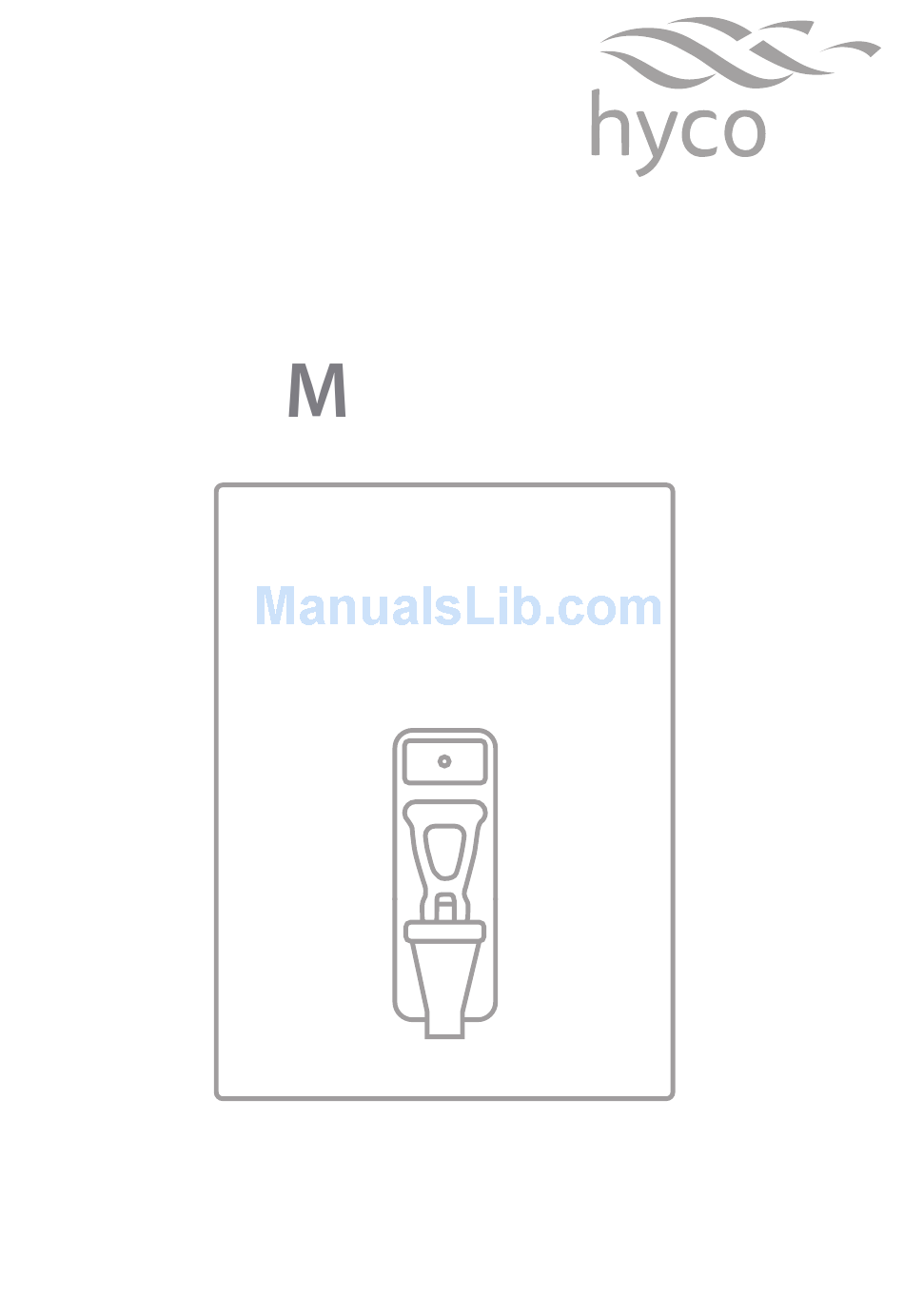

- Page 1 Product Instruction Manual icroboil Available in 3-25 Litre models Automatic Boiling Water Unit Version 3.2 Jan 2015 V16.3/4...
-
Page 2: Important Safety Points
Available in sizes ranging from 3 to 25 Litres, the Hyco Microboil is a great way to provide the hot drinks that will keep a busy work team happy and productive.The Microboil comes with a white powder coated steel outer casing as standard, stainless steel covers are available on request. -
Page 3: Installation
2. Installation Step 1: Remove the Cover The cover is attached to the back by means of two pins located at the top of the unit and two screws at the base of the unit. Remove the screws first, then lift cover upwards over the tap stem (see right). - Page 4 Upper key slot Step 3: Fixing The unit should be fixed to the wall using the three key hole slots as shown in the picture. With the aid of a spirit level or similar, mark and drill the two upper wall plug positions.
- Page 5 It is possible to pipe the vent beyond the 400mm specification but to do so a tundish or other air gap device must be fitted within the 400mm distance to the unit (see example below). >400mm Failure to comply with the requirements for venting the boiler will invalidate the warranty and my cause damage to the boiler or damage to property.
- Page 6 Step 6: Commissioning and Operation • Ensure water supply is on. • Turn on the power, the Power LED on the front of the boiler will illuminate to indicate power is present. • The unit will now commission by first filling the tank to maximum capacity and then bringing the water to temperature.
-
Page 7: User Operation
4. User operation The unit can be left on permanently or controlled by any timer capable of switching 13A. • Always switch the electrical power off if the water supply needs to be disconnected for more than a few minutes. Failure to do this can damage the solenoid valve. The tap can be set to self-return or remain open (for filling larger vessels), to adjust between the two modes rotate the tap handle 180 C. - Page 8 5. Care and service policy Before attempting any maintenance on this product ensure it is isolated from the electrical supply and the water contained within has cooled. Clean with a damp cloth only - do not use abrasives. • The unit is fitted with a resettable thermal cut-out located on the element, •...
-
Page 9: Technical Specification
6. Technical specification Model MBS3 MBS6 MBS8 MBS16 MBS25 Power 2.4 kW 2.4 kW 2.4 kW 2.4 kW 2.4 kW Initial draw off (Cups) Recovery rate (Cups/hr) Voltage 230V ~ 230V ~ 230V ~ 230V ~ 230V ~ Frequency 50 Hz... -
Page 10: Troubleshooting
7. Troubleshooting Symptom Possible Cause Solution Unit fills but This could be normal - it can Allow sufficient time - water should takes a long time take up to 15 minutes to boil get progressively warmer. to heat up from from cold. - Page 11 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
- Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
