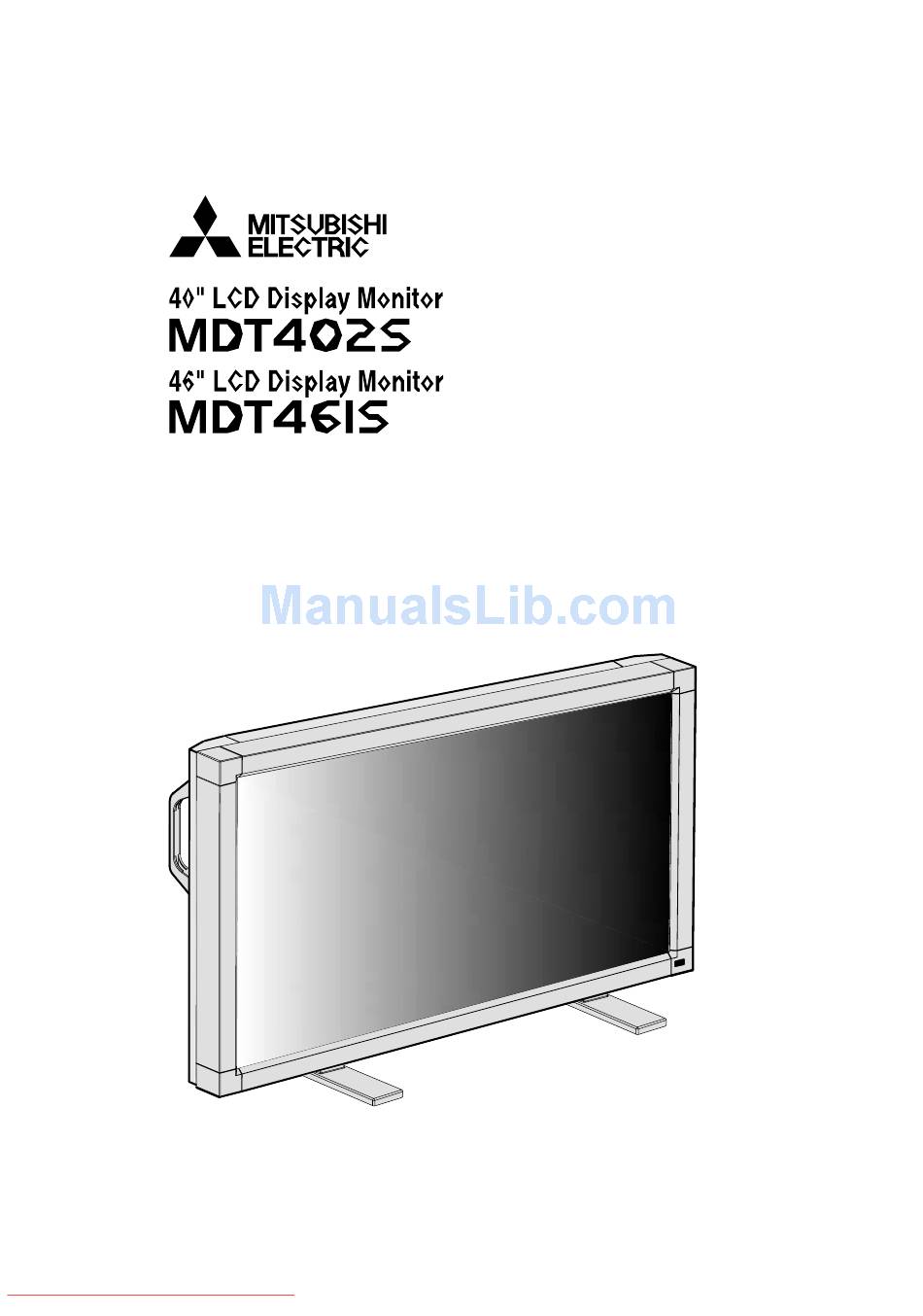

- Page 1 User's Manual USER’S MANUAL MANUEL UTILISATEUR MANUAL DEL USUARIO Downloaded From TV-Manual.com Manuals...
-
Page 2: Table Of Contents
Important Information ..................... English-2 Safety Precautions, Maintenance & Recommended Use ..........English-4 Contents ......................... English-5 Parts Name and Functions Control Panel ..................... English-6 Terminal Panel ....................English-7 Wireless Remote Control ................... English-8 Operating Range for the Remote Control ............English-9 Handling the Remote Control ................ -
Page 3: Important Information
Important Information DECLARATION OF CONFORMITY This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 4 Declaration of the Manufacturer Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
-
Page 5: Safety Precautions, Maintenance & Recommended Use
Safety Precautions, Maintenance & Recommended Use FOR OPTIMUM PERFORMANCE, PLEASE NOTE Immediately unplug your monitor from the wall outlet and refer THE FOLLOWING WHEN SETTING UP AND USING servicing to qualified service personnel under the following THE MDT402S / MDT461S LCD COLOR MONITOR: conditions: •... -
Page 6: Contents
Contents Your new MDT402S / MDT461S monitor box* should contain the following: • LCD monitor • CD-ROM • Power Cord (3m) for North America • Band x 2 • Power Cord (3m) for EU • Ferrite Core x 2 • Video Signal Cable —... -
Page 7: Parts Name And Functions
Parts Name and Functions Control Panel EXIT INPUT MUTE Button Location EXIT INPUT MUTE POWER button ( ) DOWN ( ) button Switches the power on/off. See also page 18. Activates the OSD menu when the OSD menu is turned-off. Acts as button to move the highlighted area down to select the adjustment with OSD menu. -
Page 8: Terminal Panel
Terminal Panel AC IN connector AUDIO IN 1,2,3 Connects with the supplied power cord. Input audio signal from external equipment such as a computer, VCR or DVD player. RGB 1 IN (DVI-D) To input digital RGB signals from a computer or HDTV AUDIO OUT device having a digital RGB output. -
Page 9: Wireless Remote Control
Wireless Remote Control MUTE button To switch the mute function on/off. VOLUME UP button Increases the audio output level. VOLUME DOWN button Decreases the audio output level. PIP (Picture in Picture) button ON/OFF button: Toggle switches between PIP, POP, side-by-side (aspect) and side-by-side (full). See page 23. -
Page 10: Operating Range For The Remote Control
Operating Range for the Remote Control Point the top of the remote control toward the LCD monitor’s Handling the remote control remote sensor during button operation. Use the remote control within a distance of about 7 m/23 ft. Do not subject to strong shock. from the front of the LCD monitor’s remote control sensor Do not allow water or other liquid to splash the remote and at a horizontal and vertical angle of within 30°... -
Page 11: Setup Procedure
Setup Procedure 1. Determine the installation location 3. Connect external equipment (See pages 13-17) CAUTION: DO NOT ATTEMPT TO INSTALL THE LCD MONITOR BY YOURSELF. • To protect the connected equipment, turn off the main power before making connections. Installing your LCD display must be done by a qualified •... - Page 12 10. Recommended Adjustment To reduce the risk of “image persistence”, please adjust the following items based on the application being used. “SCREEN SAVER” (See page 24), “SIDE BORDER COLOR” (See page 24), “DATE & TIME” (See page 28), “SCHEDULE” (See page 28). 11.
-
Page 13: How To Mount And Attach Options To The Lcd Monitor
VESA-compatible mounting method and the screws must be M6 of size and 10mm or longer of length under consideration of the thickness of the mounting method. (Recommended torque: 470 - 635N•cm). MITSUBISHI ELECTRIC recommends using mounting interface that comply with TÜV-GS and/or UL1678 standard in North America. -
Page 14: Connections
Connections Before making connections: First turn off the power of all the attached equipment and make connections. Refer to the user manual included with each separate piece of equipment. Wiring Diagram Personal computer LCD monitor DVD player Personal computer Equipment with LCD monitor (second monitor) digital interface Mounting Position of Ferrite Core... -
Page 15: Connect The Lcd Monitor To A Personal Computer
Connecting a Personal Computer Connecting your computer to your LCD monitor will enable you to display your computer’s screen image. Some video cards may not display an image correctly. Connect the LCD Monitor to a Personal Computer • To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal cable (mini D-sub 15 pin to mini D-sub 15 pin). -
Page 16: Connect The Lcd Monitor To A Computer With A Digital Output
Connecting with Digital Interface Equipment Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface) standard. Connect the LCD Monitor to a Computer with a Digital Output • The RGB 1 IN connector also accepts a DVI-D cable. •... -
Page 17: Connect The Lcd Monitor To A Dvd Player
Connecting a DVD Player with component out Connecting your DVD player to your LCD monitor will enable you to display DVD video. Refer your DVD player user’s manual for more information. Connect the LCD Monitor to a DVD Player • To connect the DVD/HD IN connector (BNC) on the LCD monitor, use a separately available BNC connector cable. -
Page 18: Connect The Lcd Monitor To A Stereo Amplifier
Connecting to a Stereo Amplifier You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner’s manual for more information. Connect the LCD Monitor to a Stereo Amplifier • Turn on the LCD monitor and the amplifier only after all connections have been made. •... -
Page 19: Basic Operation
Basic Operation Power ON and OFF Modes The LCD monitor power indicator will turn green while powered on, or red when in off mode. The monitor can be powered on or off using the following three options: 1. Pressing the power button. Note: Before pressing the power button, be sure to turn on the Main Power Switch on the LCD monitor. -
Page 20: Power Indicator
Power Indicator NORMAL: Display by the inputed signal aspect ratio by PC signal, or display in 4:3 aspect ratio at DVD/HD or VIDEO signal. Status FULL: Display in entire screen. Power ON Green WIDE: Expand 16:9 letter box signal to entire screen. Power OFF ZOOM (DYNAMIC): Expand 4:3 pictures to the entire screen with non-linearity. -
Page 21: Osd (On-Screen-Display) Controls
OSD (On-Screen-Display) Controls Press MENU button to Press SET button to Press UP or DOWN, and PLUS or Press MENU or EXIT open Main menu. decide. MINUS button to select function, or button to exit. Press UP or DOWN button control which you like. -
Page 22: Screen
Adjust the tint of the screen. PICTURE BRIGHTNESS TINT CONTRAST SHARPNESS TINT TINT COLOR Press + button the flesh tone color becomes greenish. BLACK LEVEL NOISE REDUCTION Press - button the flesh tone color becomes purplish. + -:ADJ EXIT :RETURN MENU :EXIT MENU :SEL... -
Page 23: Audio
Adjusts the vertical size by increasing or decreasing the SCREEN setting. H POSITION V RESOLUTION V POSITION V RESOLUTION CLOCK Press + button to expand the height of the image on the CLOCK PHASE H RESOLUTION V RESOLUTION screen. ZOOM MODE + -:ADJ EXIT :RETURN... -
Page 24: Picture In Picture
Main-Menu MAIN MENU PICTURE SCREEN AUDIO PICTURE IN PICTURE CONFIGURATION 1 CONFIGURATION 2 ADVANCED OPTION :SEL :NEXT EXIT :RETURN MENU :EXIT MENU Sub-Menu Selecting the size of picture inserted at the PIP SIZE PIP SIZE “Picture-in-Picture” (PIP) mode. PIP AUDIO LARGE PIP RESET MIDDLE... -
Page 25: Configuration 2
Select “SCREEN SAVER” functions to reduce the risk of the “image persistence”. GAMMA: The display gamma is changed and fixed when selected “ON”. COOLING FAN: The built in cooling fan is always on when set “ON”. BRIGHTNESS: The brightness is decreased when CONFIGURATION 1 SCREEN SAVER AUTO SETUP... - Page 26 To compensate for image degradation, which is caused by using a long cable. RED/GREEN/BLUE DELAY To adjust the each phase of RED, GREEN and BLUE signal. LEVEL: 0 - 6 RED/GREEN/BLUE SHARPNESS To adjust the each performance degradation of RED, GREEN and BLUE signal.
-
Page 27: Advanced Option
Selects the method of input detection when more than two computers are connected. FIRST DETECT: When the current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. - Page 28 Selects the image flipping or rotation. IMAGE FLIP ADVANCED OPTION S-VIDEO MODE NORMAL NORMAL: Normal display. BLACK LEVEL EXPANSION H MIRROR GAMMA SELECTION V MIRROR IMAGE FLIP IMAGE FLIP ROTATE H MIRROR: Mirror image for horizontal direction. SCAN MODE SCAN CONVERSION FILM MODE V MIRROR: Mirror image for vertical direction.
- Page 29 Information of status for COOLING FAN, BRIGHTNESS and TEMPERATURE. HEAT STATUS ADVANCED OPTION STATUS COOLING FAN comes to run when inside temperature MONITOR ID COOLING FAN1 IR CONTROL COOLING FAN2 TILING HEAT STATUS BRIGHTNESS NORMAL is over a guaranteed limit. HEAT STATUS POWER ON DELAY TEMPERATURE...
- Page 30 3. Reducing the environmental temperature is effective for long life use. When Protection board (glass, acryl) is installed over the LCD surface, enclosed into the box / wall, or stack the monitor, please utilize the temperature sensors inside monitor. To reduce the environmental temperature, the monitor should be set Low Brightness or Cooling Fan "ON" by using Screen sever Function. 4.
-
Page 31: Controlling The Lcd Monitor Via Rs-232C Remote Control
Controlling the LCD monitor via RS-232C Remote Control This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal. Functions that can be controlled by a personal computer are: • Power ON or OFF • Switching between input signals Connection LCD Monitor + PC to RS-232C... - Page 32 3) Control sequence (1) The command from a computer to the LCD monitor will be sent in 400ms. (2) The LCD monitor will send a return command 400ms* after it has received and encoded. If the command isn’t received correctly, the LCD monitor will not send the return command. (3) The personal computer checks the command and confirms if the command, which has been sent, has been executed or not.
-
Page 33: Features
Features Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another. Color Control Systems: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards. -
Page 34: Troubleshooting
NOTE: As with all personal display devices, MITSUBISHI ELECTRIC recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use. -
Page 35: Specifications For Mdt402S
Specifications for MDT402S Product Specifications Analog Input Digital Input LCD Module 40" / 101.6cm diagonal Pixel Pitch: 0.648mm Resolution: 1366 x 768 dots Color: Over 16 million colors (depending on video card used) Brightness: 450cd/m (Typ.) Contrast Ratio: 1000:1 Response time: 16ms(Tr+Tf) Viewing Angle: Up 85°/ Down 85°/ Left 85°/ Right 85°... -
Page 36: Specifications For Mdt461S
Specifications for MDT461S Product Specifications Analog Input Digital Input LCD Module 46" / 116.8cm diagonal Pixel Pitch: 0.7455mm Resolution: 1366 x 768 dots Color: Over 16 million colors (depending on video card used) Brightness: 450cd/m (Typ.) Contrast Ratio: 800:1 Response time: 16ms (Tr+Tf) Viewing Angle: Up 85°/ Down 85°/ Left 85°/ Right 85°... -
Page 37: Pin Assignment
Pin Assignment 1) Analog RGB input (MiniDsub15p): R G B 2 Pin No Name Video Signal Red Video Signal Green Video Signal Blue Mini D-SUB 15P DDC-GND Red-GND Green-GND Blue-GND +5V (DDC) SYNC-GND DDC-SDA H-SYNC V-SYNC DDC-SCL 2) S-VIDEO input : VIDEO PIN No Name Y (Luminance)
