Summary of Contents for Audio Physic Luna

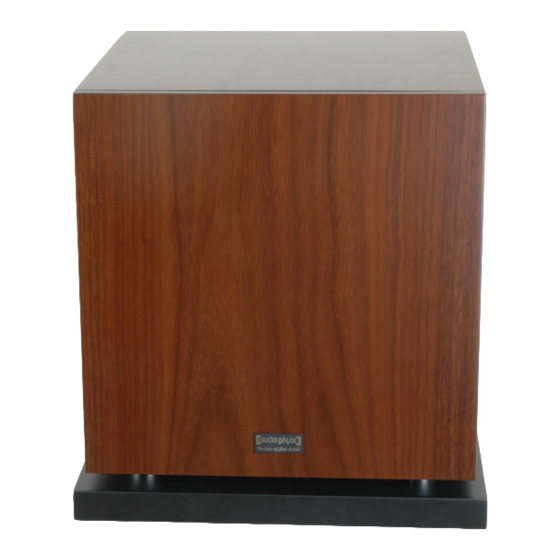

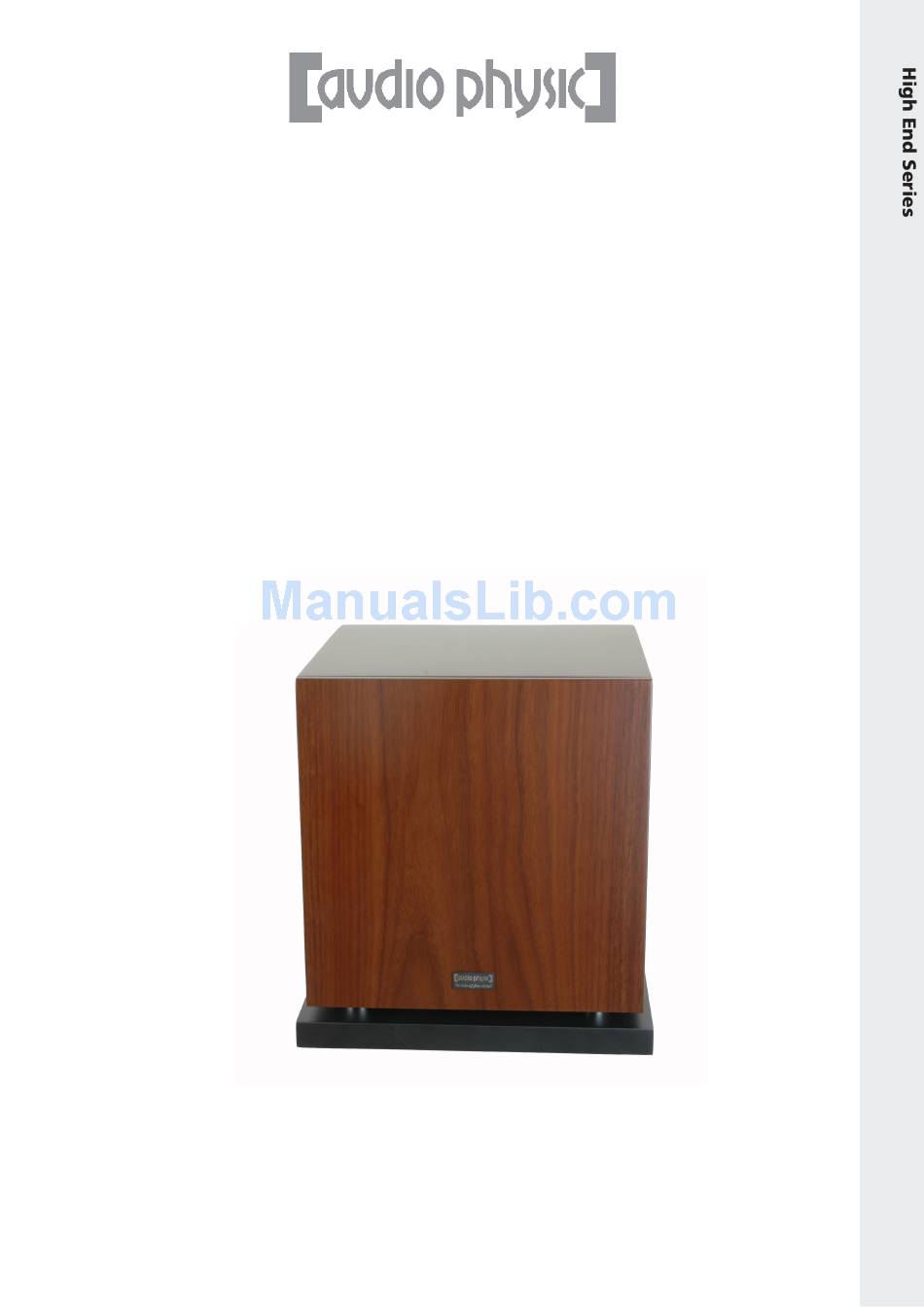

- Page 1 Luna Subwoofer Owner´s Manual...
-
Page 2: Table Of Contents
Contents Included in the Delivery page 3 Welcome page 4 General Tips page 5 Safety Instructions page 6 Unpacking and Assembly page 6 Setup page 7-9 Connecting Your Subwoofer page 10-11 Setting Up Your Subwoofer page 12 • Activating the Subwoofer page 12 •... -
Page 3: Included In The Delivery
This box contains one subwoofer and an accessory pack , as well as your „Welcome to the Audio Physic Family“ package containing this Owner‘s Manual and the Final Inspection Certificate. • “Welcome to the Audio Physic Family“ package and a spirit level to optimise setup •... -
Page 4: Welcome
Have fun with your Luna! No loss of fine detail: If you want a close-... -
Page 5: General Tips
AUDIO PHYSIC dealer. Burning In Your Subwoofer The LUNA driver is technically tested and burnt in prior to assembly. Your subwoofer will therefore reach its full sound potential after a burn-in period of as little as approx. 15 hours of operation. We... -
Page 6: Safety Instructions
Your subwoofer should only be opened and, where necessary, repaired by an authorised AUDIO PHYSIC dealer. Any repairs to or work on your subwoofer that are not carried out by an authorised AUDIO PHYSIC dealer shall result in a voided warranty. In the case of functional problems that cannot be solved or suspected damage to your subwoofer, unplug the device and take it to your AUDIO PHYSIC dealer to be checked. -
Page 7: Setup
You can, however, use the electronics of the LUNA to compensate for these influences in order to achieve optimal results in all positions. You can find out more about this issue in the chapter “Adjusting Your Subwoofer”. - Page 8 Depending on how close your subwoofer is to the walls, placing it in the corner of the room will result in a broad bass reinforcement of up to 9 decibels. You can use the LUNA’s control electronics to compensate for this reinforcement.
-
Page 9: Setup
Positioning your subwoofer by a side wall in a one-third to two-thirds ratio is highly recommended in terms of acoustics if, where applicable, your subwoofer cannot be placed between or next to the front loudspeakers for optical or spatial reasons. In rooms in which the lengths of the side walls and the distance between the floor and the ceiling are almost identical, your subwoofer should not be placed in a corner because this may result in particularly strong room modes that disturb the sound reproduction. -
Page 10: Connecting Your Subwoofer
2) Connecting your subwoofer with a loudspeaker cable: You can also control your LUNA by using a second loudspeaker output on your amplifier. To do so, you need to connect the loudspeaker outputs, normally marked as “B”, of your integrated or power amplifier with the loudspeaker terminals on your subwoofer. -
Page 11: Connecting Your Subwoofer
This noise normally does not indicate a technical problem with your subwoofer. You can rectify this humming noise by using the RCA cable supplied with your AUDIO PHYSIC subwoofer. This cable only establishes a connection using the ground wire. Connect this cable to one of the free RCA jacks on your... -
Page 12: Setting Up Your Subwoofer
LUNA to suit your front loudspeakers. Operating switch: You can use this switch to activate the LUNA and to disconnect it from the power supply if you do not plan to use it for a long time. When the switch is set to the middle position marked “AUTO”,... -
Page 13: Setting Up The Phase
4. Setting Up the Phase (Stereo/Surround Sound) If you choose to use the LFE output of your receiver or surround sound processor to control your LUNA, the phase can normally be adjusted via your receiver (using the setup menu). If you want to adjust the phase on your LUNA, you can use the same process as that used for stereo operation. - Page 14 In this case, you may have to slightly turn the volume of the LUNA back up. Step 3: Finely adjusting the volume...
-
Page 15: Recommended Software For The Adjustment Process
Troubleshooting Solutions for Functional Problems Below you can find some tips on how to deal with certain disturbances that may occur when using your LUNA. • You cannot switch on the LUNA. / The indicator lamp does not light up. -
Page 16: Technical Specifications
“Low level input” input impedance: 30 kOhm Frequency response 30Hz - 150Hz Loudspeaker Systems Woofer 260mm AUDIO PHYSIC GmbH Distributed in North America by: Almerfeldweg 38 VANA, Ltd. 59929 Brilon / Deutschland 2845 Middle Country Road Germany Lake Grove, NY 11755 Tel.
