Antunes Filtration Technologies TAC-05 System 9700905 Manual

PARTS INCLUDED:

1 - TAC 20" Blue Housing (P/N 2180254)
1 - TAC Housing Head Bracket with Filter Head Screws
(P/N 0504359)
1 - Filter Wrench (P/N 2180226)
1 - Giant Bowl O-Ring Kit (P/N 7000556)
1 - TAC-05 Cartridge - Single (P/N 7000554)
1 - Installation Instructions (P/N 1010462)

TOOLS:

• Mounting Hardware (Not Provided)
• Drill with Bits
• Tape Measure
• Pipe Wrenches
• Adjustable Wrenches
• Level
• Pipe Dope, Teflon ® Tape, or Loctite ® 55 Cord
• Screwdriver (Flat Blade and Phillips)
• Two Gallon Bucket
• Fresh 6% Unscented Liquid Chlorine Bleach (Clorox ® )

General

If you experience any problems with these instructions, or if any
parts are damaged or missing, contact the factory Technical
Service Department at 630-784-1000 or toll free in the U.S. at
877-392-7836.
The TAC System improves the quality of the water by address-
ing scale issues on hot water applications. The TAC System
should be installed upstream of equipment using hot water.
CAUTiON
Do NOT use this system with water that is microbiologi-
cally unsafe or of unknown quality without adequate
disinfection installed before or after the system.

Equipment Setup

When installing the system, follow these guidelines:
• Do NOT install above electrical equipment.
• Allow space below the TAC Housing to allow for easy TAC
Cartridge replacement.

PLUmBiNG

NOTE: This system is designed to be used on tap water not
to exceed 100°F (38°C) or 100 psig (690 kPa). The kit must
be connected to the COLD water line. Do NOT connect the
kit to the hot water line.
The TAC System has the following connections:
• Inlet 1" NPT
• Outlet 1" NPT
1-877-392-7836 Fax: 630-784-1000
A. J. ANTUNES & CO. 180 Kehoe Blvd., Carol Stream, Illinois 60188
TAC-05 SySTEm (P/N 9700905)
When making a plumbing connection to the system, use a back-
up wrench on the supporting plumbing. Always use a quality,
approved pipe sealant or Teflon® tape on the pipe threads. Be
careful not to get the pipe sealant inside the pipe when making
connections.
Do NOT over tighten the connections. The use of plastic fittings
when connecting to the plastic head will reduce the possibility of
cracking the head due to over tightening.
If soldered plumbing is used, do NOT apply heat to, or near, the
filter head. The use of union (O-ring seal) connections is highly
recommended for ease of installation and future servicing.

iNLET WATER PLUmBiNG

The plumbing leading to the TAC System must be flushed clear
of all debris before connecting to the TAC Housing Head inlet.
Hold a bucket at the inlet water line and slowly open the inlet
water valve. Allow the pipe to flush until all debris is removed.
This equipment must be installed to comply with the
basic plumbing code of the Building Officials and Code
Administrators, inc. (BOCA) and the Food Service
Sanitation manual of the Food and Drug Administration
(FDA).
Water pressure must not exceed 100 psig. To reduce
water pressure, install a Water Pressure Regulator and
set the water pressure to below 100 psig.
TAC
Cartridge
(Single)

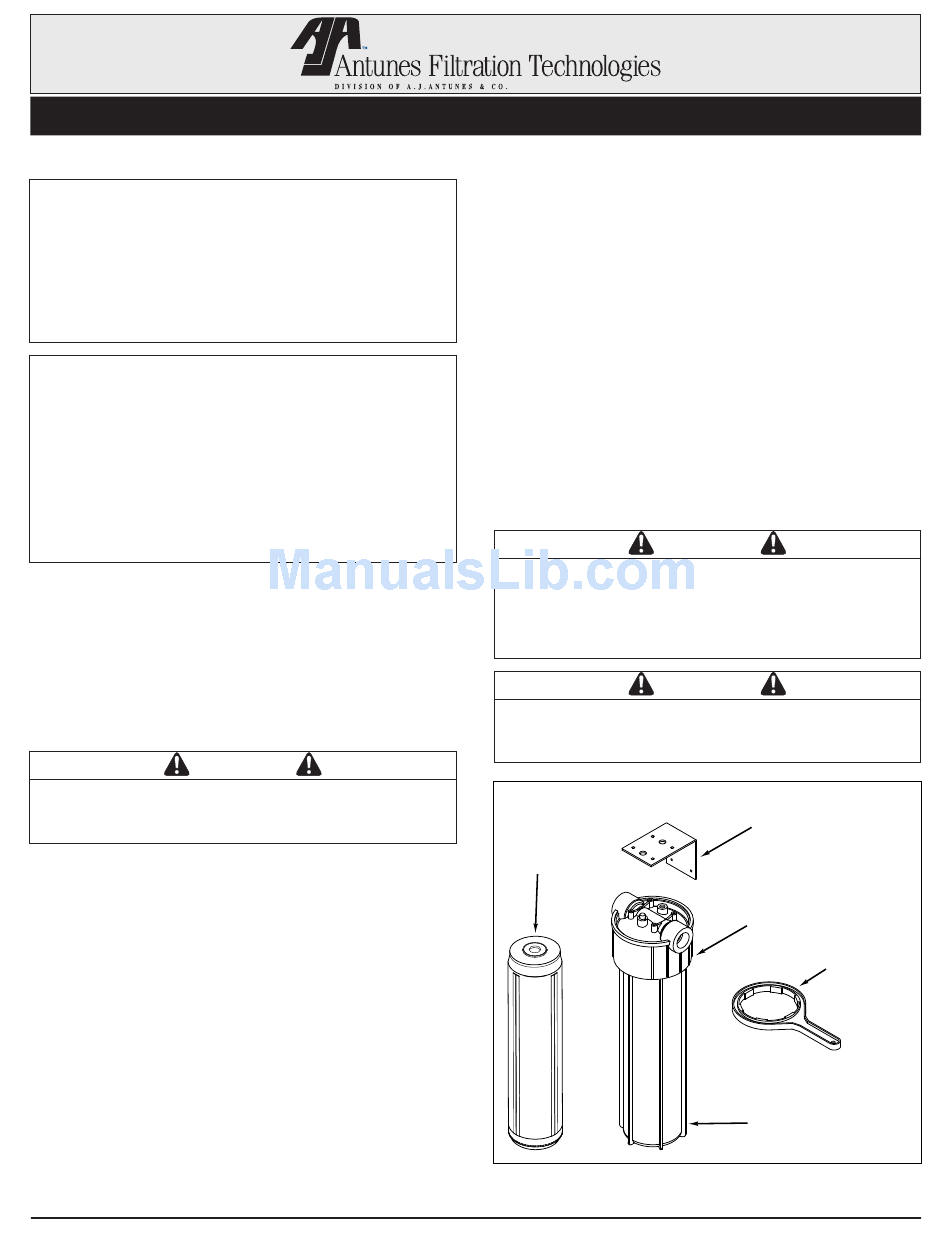

Figure 1. TAC System
Page 1 of 4
CAUTiON
CAUTiON
TAC Housing Head Bracket
(Mounting Hardware
not shown)
TAC Housing
Head
Filter Wrench
TAC Housing
P/N 1010462 Rev. C 02/10
