Page 1: Table Of Contents
Table of Contents Introduction ………………………………………………. 1 Safety note ……………………………………………..… 2 Explanation Controls Indicators …………………... 3 3-1. Product illustration ………………………………………. 3-2. Functional push button ……………………………………. 3-3. LCD display ………………………………………………. 5 Specification ………………………………………………. 6 4-1. General Specification ……………………………………... 4-2. Electrical Specification …………………………………. 7- 9 Measurement operation ………………………………….. -
Page 2: Introduction
5-4. DC/AC ¸ A or mA measurement ………………….……. 5-5. DC/AC 10A measurement …………………………..…. Temperature measurement ………..…. 12 6. Maintenance ………………………………………………. 6-1. Replacing the battery …………………………...………. 6-2. Replacing the fuse ………………………………………. 6-3. Cleaning Decontamination …………………………. 13 Introduction This Meter is a handheld and battery operated Digital Multi Meter(DMM) with multi function. -
Page 3: Safety Note
Safety note Warning To avoid possible electric shock or personal injury and to avoid possible damage to the meter or to the equipment under test, adhere to the following rule: Do not apply more than the rated voltage, of marked on the meter, between the input terminal and grounding terminal.. -
Page 4: Explanation Of Controls And Indicators

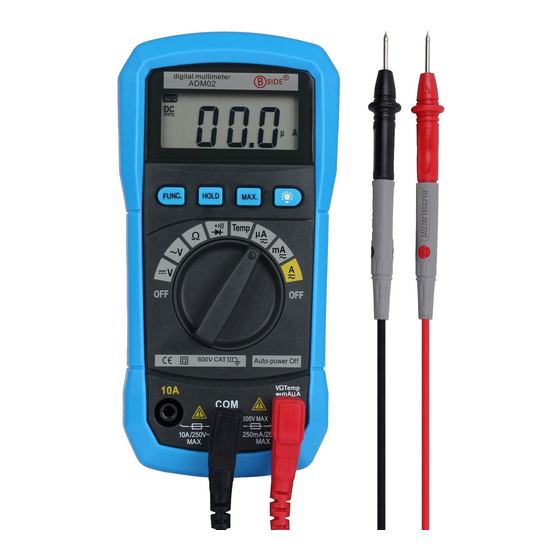

DC (Direct Fuse Current) AC or DC Measurement category(over voltage category): This instrument is meet the safety condition of CAT II. The equipment is used for measurement in building facilities. Examples are measurements on distribution boards, circuit breaker and industrial equipment located in fixed facilities, as a fixed motor. - Page 5 Fig. 1 Exterior view 1. LCD display 2. ‡ MAX· push button 3. ‡ BACK LIGHT· push button 4. “ HOLD· push button 5. ‡ FUNC· Push button 6. Rotary Switch (Knob) 7. ‡ V/Ω /uA/mA/Temp· Input terminal 8. ‡ COM· input terminal 9.
- Page 6 This key is used control Backlight. This key is act with trigger. When press and hold the key over 2 sec, will enable Backlight. Press the key again , the backlight will disable. 3-3. Display indicators Fig. 2 Indicator Meaning DC voltage or current AC voltage or current Diode...
-
Page 7: Lcd Display
mV ,V is unit of voltage ¸ mVA ¸ A, mA, A is unit of current １ Indicate negative reading 4．Specification 4-1. General Specification ◤ Auto ranging DMM , that full scale is 2000 counts ◤ Display : 3 1/2 digit LCD display.. ◤... -
Page 8: Electrical Specification
112g 4.1.1 Accessory : 1. User”s Manual ---------------------------- 2. Test lead ---------------------------- 1set 3. 9V Battery --------------------------- 4. K-type temperature probe[P3400]---- 4-2. Electrical Specification ( at 23±5₤ ; <75% RH) 4.2.1 DC Voltage Accuracy Range Resolutio 200m 0.1mV 0.001V ±，0.5% rdg + 2dgt－ 0.01V 200V 0.1V... -
Page 9: Resistance
200V 0.1V (40Hz-400Hz) 600V ±，1.2% －rdg + 3dgt (40Hz-200Hz) * SG(Spark Gap) used to protect High voltage that is over 1500V. 4.2.3 Resistance Accuracy Range Resolution 200έ 0.1έ 2kέ 0.001kέ ±，0.8% rdg + 2dgt－ 20kέ 0.01kέ 200k 0.1kέ έ 2Mέ 0.001Mέ... - Page 10 If measured resistance less than 100 έ , will buzzer is sounded. * Open voltage: about 0.5V 4.2.6 DC Current Resoluti Accuracy Range 200¸ A 0.1πA 2000¸ 1¸ A 20mA 0.01mA ±，1.5% rdg + 3dgt－ 200m 0.1mA 0.01A * Over Load protection＞ use the fuse(F250mA/250V) at ¸ A /mA range, and use the fuse(F10A/250V) at 10A range.
- Page 11 /mA range, and use the fuse(F10A/250V) at 10A range. * Max input current:＞250mA at “mA” input terminal and 10A at “10A” input terminal... * Frequency response＞40 ￣ 400Hz 4.2.8 Temperature You can selecting [₤ ] or [₦ ] by ‡ FUNC· key.
- Page 12 200.0V and 600V and then. The AC voltage ranges are 2.000V, 20.00V, 200.0V and 600V. To measure DC or AC voltage: ④ Insert the red test lead into the ‡ VΩ· input terminal and the black test lead into the COM terminal. ⑤...
-
Page 13: Check
◤ For high-resistance measurement (>10M έ ), it is normal taking several second to obtain stable reading. ◤ The LCD display ‡ OL· indicating open-circuit for the tested resistor or the resistor value is higher than the maximum range of the meter. 5-3. - Page 14 ④ Press the ‡ FUNC· key to enter to the continuity mode. ⑤ The buzzer sound if the resistance of a circuit under test is less than 100έ . 5-4. DC/AC µA or mA measurement Current range 200.0¸ A/2000¸ A 20.00mA,/200.0mA and then 10A range.
- Page 15 probe :P3400. ④ Set the rotary switch to the ‡ TEMP· range. In this time, The environment temperature value displayed on the LCD. ⑤ Insert the K-type probe to the two ‡ COM · ‡ TEMP· terminals. The two ‡ +· and ‡...
- Page 16 any oil, grease or grim. Do not use liquid solvent or detergent.
