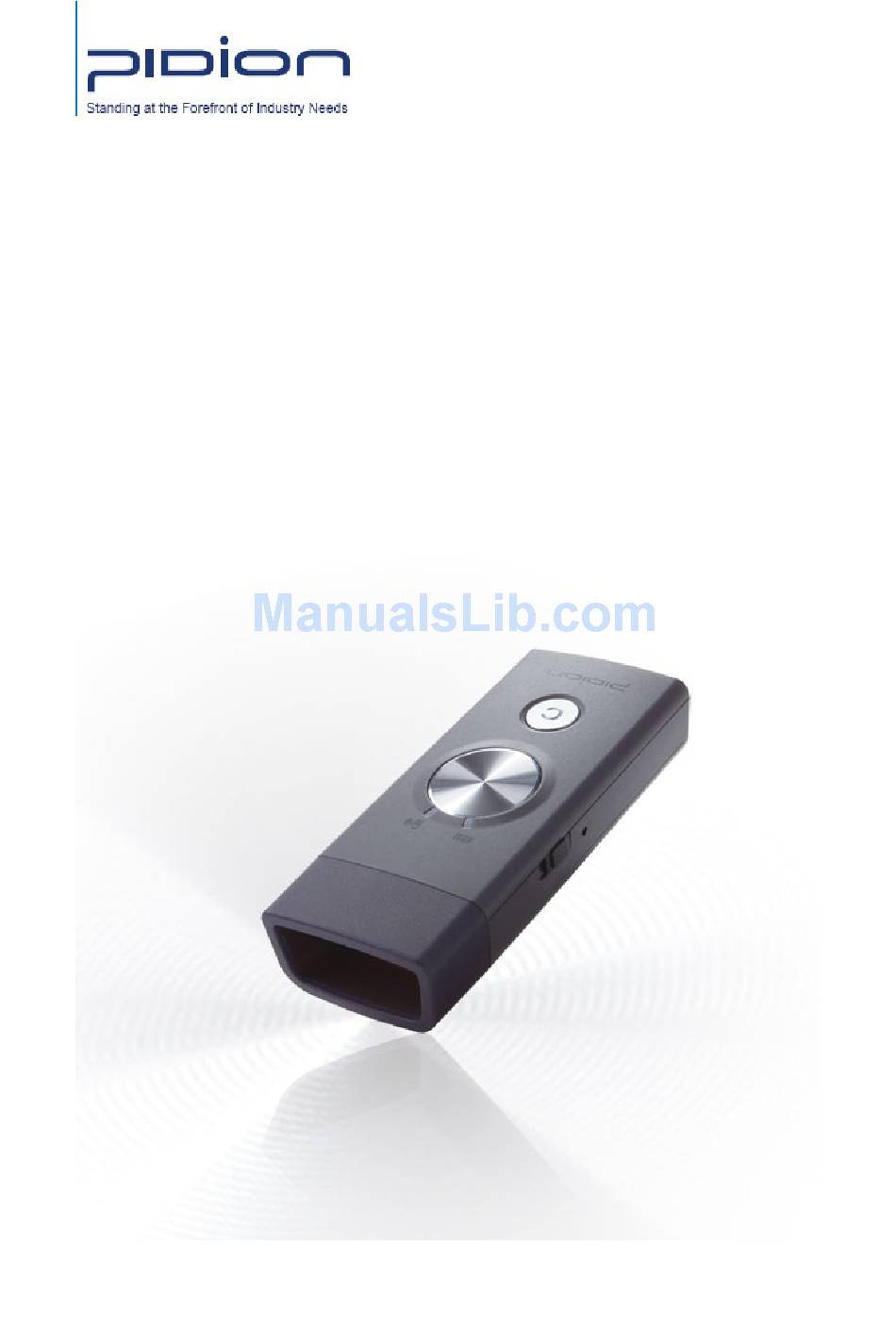

  • Page 1 BI-300 Barcode configuration and commands Manual...
  • Page 2 This instruction manual is designed to set-up bar code scanner particularly to optimize the function of BI-300 bar code scanner. Terminal setting can be done by Pidion Scan Program in connection with PC/PDA and setting of volume and function of terminal can be done by scanning bar code.
  • Page 3 ※ Configuration Set Barcode Phase Bar Code Remark START 2. Setting up the scan mode of scan button Scan mode can be set up for scan buttons ① SINGLE: One bar code is scanned for each time scan button is pressed. ②...
  • Page 4 ※ Configuration Set Barcode Phase Bar Code Remark START SINGLE MULTIPLE CONTINUOUS Bar code table for entering TIMEOUT character (19-30p) [TIP] Basic modes are marked in bold letters.

  • Page 5: Volume Control

    3. Volume Control Volume of beep can be set up to 4 phase’s Off/Low/Medium/High. ※ Configuration Set Barcode Phase Bar Code Remark START MEDIUM HIGH [TIP] Basic modes are marked in bold letters.

  • Page 6: Setting Up Time

    4. Setting up Time Time can be set up on terminal. Year, month, day, hour, minute, second and day of the week is to be set up respectively. ① YEAR: Year can be set up on the terminal. Standard year is 1900s and enter the desired numbers without ▪...
  • Page 7 Numbers 1~23 represents hours 1~23 and 0 represents 24 hour. ▪ Number Hour Number Hour AM 1:00 PM 1:00 AM 2:00 PM 2:00 AM 3:00 PM 3:00 AM 4:00 PM 4:00 AM 5:00 PM 5:00 AM 6:00 PM 6:00 AM 7:00 PM 7:00 AM 8:00 PM 8:00...
  • Page 8 cancelled. ※ Configuration Set Barcode Phase Bar Code Remark START YEAR MONTH MDAY Bar code table for entering HOUR character (19-30p) MINUTE SECOND WDAY...

  • Page 9: Set Suffix

    5. Prefix/Suffix In order to allow character to each bar code value, functions can be edited. PREFIX: Able to grant characters and symbols in front of bar code value. ① (Example) When bar code is entered in the order of [START], ▪...
  • Page 10 6. Setting Up Bar Code Symbol Bar code symbols can be set up. Scan ON/OFF bar code after scanning the bar code on bar code symbols. (Example) To set up and use with UPC-A Leading zero symbol, ▪ enter [START], [UPC-A Leading zero], [ON], [END] For symbols on bar code below, enter set point after scanning the symbol bar code.
  • Page 11 Number Check Digit check_1 check_2 Numbers 0~1 to be entered otherwise setting will be cancelled. ▪ (Example) To set up MSI check digit to Check 2, enter the bar ▪ code in the order of [START], [MSI check digit], [1], [END] MSI check digit algorithm: Modulo_10_10/ modulo_10_11 / modulo_10_12 can be set by check digit algorithm.
  • Page 12 UPC-E Transmit check digit UPC-E Transmit numeric system Convert UPC-E to UPC-A EAN8 EAN13 EAN13 Bookland Basic Set Bar Code point Bar code table for entering Supplementcode character (19-30p) UCC coupon extended code...
  • Page 13 CODE39 CODE39 check digit CODE39 transmit check digit CODE39 full ascii CODE93 CODE93 transmit check digit CODE128 CODE128 transmit check digit CODE128 UCCEAN Interleaved 2 of 5 Interleaved 2 of 5 check digit...
  • Page 14 Interleaved 2 of 5 transmit check digit Bar code table for Interleaved 2 of 5 Basic Set entering Bar Code point Length Min character (19-30p) Bar code Basic Set Bar Code table for point Interleaved 2 of 5 entering Length Max character (19-30p) CODABAR...
  • Page 15 Bar code Basic Set Bar Code table for point entering character check digit (19-30p) Basic Set Bar Code point Bar code table for MSI check digit entering character algorithm (19-30p) MSI transmit check digit PDF417 ON/OFF...
  • Page 16 [TIP] Basic modes are marked in bold letters. 7. Select your personal identification number Personal Identification Numbers can be selected in connection with Bluetooth. Setting Personal Identification Numbers can be up to 4 digits. ▪ Basic Set Point: 1234 ▪ (Example) When Personal Identification Number is 0000.

  • Page 17: Delete Memory

    8. Delete Memory All the data stored in the terminal can be deleted. ※ Configuration Set Barcode 단계 바코드 비고 START ERASE DATA [Warning] Store data separately for when memory is deleted it can delete all the data. 9. Set up Energy Saving Mode Energy saving mode can be selected for power saving on terminal.
  • Page 18 10. Initialization (Hard Reset) All of set point in the terminal will be initialized. When executed, terminal will reboot by initialization. ※ Configuration Set Barcode 단계 바코드 비고 START HARD RESET...
  • Page 19 11. Bar code table for entering character 문자 바코드...
  • Page 21 SPACE...
  • Page 22 “ & ‘...
  • Page 24 < >...
