  • Page 1: Table Of Contents

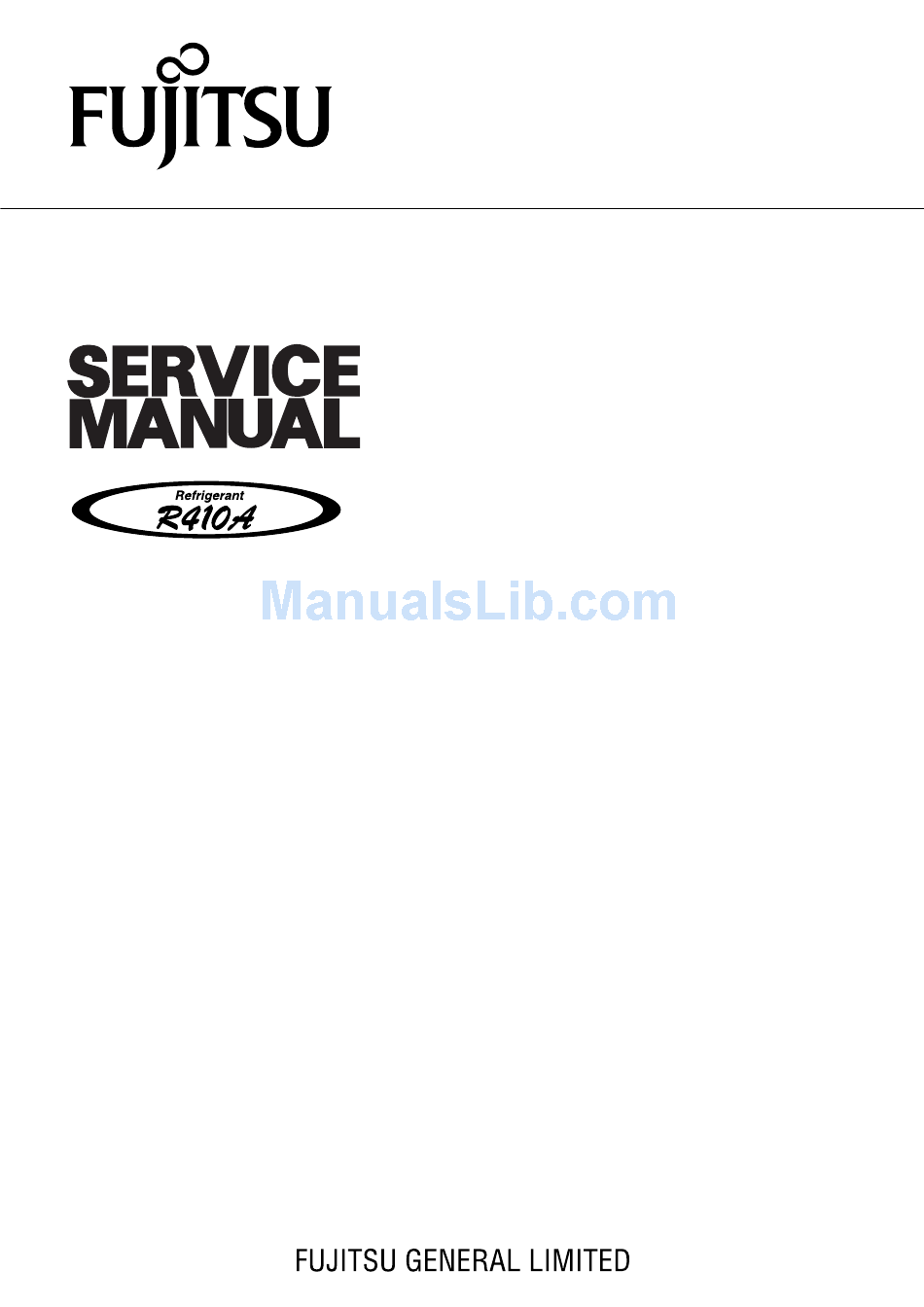

    ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor unit Outdoor unit ASYG09LTCA AOYG09LTC CONTENTS SPECIFICATIONS....DIMENSIONS ..... .

  • Page 2: Specifications

    SPECIFICATIONS ELECTRICAL DATA NOISE LEVEL TYPE Cool & heat inverter High speed 42 dB INDOOR INDOOR UNIT ASYG09LTCA Medium speed 36 dB UNIT Low speed OUTDOOR UNIT AOYG09LTC 32 dB Cooling Quiet 21 dB COOLING CAPACITY 2.50 kW High speed...

  • Page 3: Dimensions

    DIMENSIONS unit : mm INDOOR UNIT Drain pipe diameter 16.2 mm Liquid pipe diameter : 6.35 mm Gas pipe diameter : 9.52 mm OUTDOOR UNIT 2011.05.06...

  • Page 4: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Heat exchanger (indoor unit) 2-Way valve 3-Way valve Muffler Muffler Strainer 4-Way valve Expansion valve Compressor Heat exchanger (outdoor unit) Strainer Refrigerant direction Cooling Heating Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8" (9.52 mm) 2010.04.12...

  • Page 5: Circuit Diagram

    CONTROLLER PCB ASSY ( MAIN PCB ) INDOOR UNIT CN201 WHITE ORANGE CIRCUIT DIAGRAM WHITE YELLOW LOUVER INDICATOR WHITE PINK PCB ASSY WHITE BLUE WHITE WHITE OUTDOOR UNIT WHITE ORANGE OPEN PANEL CN12 BLUE YELLOW YELLOW PINK WHITE BLUE BLACK REACTOR FAN MOTOR R(U)

  • Page 6: Indoor Pcb Circuit Diagram

    EARTH TERMINAL INDOOR PCB OUTDOOR CIRCUIT DIAGRAM GREEN UNIT THERMAL EMI FILTER FUSE 102 ESD-R-19 TRCB-19-10-10 WHITE CONTROL UNIT TERMINAL BLACK EZ-0100YHSE THERMISTOR ( PIPE TEMP. ) BLACK BLACK 2013485-1 B04B-PL I RK-1 THERMISTOR ( ROOM TEMP. ) BLACK BLACK FAN MOTOR BLACK WHITE...
  • Page 7 POWER SOURCE D1FL20U AC230V TP00351-31 x 2 50Hz 2013485-1 <SS11V> 0.6A - 10mH 340V S1NBC60 100/ 100k TO TERMINAL <1/10W> 0.01 3.15A <F> 250V 470V INDOOR UNIT <ERZ10V> <LE> 0.01 D1FL20U CONTROLLER PCB ASSEMBLY <F> EE16 5V-2 330/ ( MAIN PCB ) BLm18 ST03D-140 D1FL20U...
  • Page 8 INDOOR UNIT INDICATOR PCB ASSEMBLY K10CX-1000HSE-D0 CN201 8 - JB / PL I D204 L=250 #26 / 1061 UDZS6.2B D201 SLR-343ECT <GREEN> D205 UDZS6.2B D202 SL I-343DCT <ORANGE> SW201 D206 KSHC611BT UDZS6.2B D203 SLR-343ECT <GREEN> R202 <1/4W> C203 C204 <F> I C201 GP1UM271R R201...

  • Page 9: Outdoor Pcb Circuit Diagram

    OUTDOOR PCB CIRCUIT DIAGRAM INVERTER ASSEMBLY EZ-01009HUE COMPRESSOR EMI FILTER TO INDOOR UNIT EMI FILTER EMI FILTER W101 UL1015 AWG20 BLACK WHITE W102 BLACK UL1015 AWG20 WHITE UL3271 AWG16 x 3 SERIAL UL3271 UL1015 AWG20 AWG14 WHITE REACTOR EMI FILTER 13mH, 8A UL1015 AWG14 POWER SOURCE...
  • Page 10 OUTDOOR UNIT CONTROLLER PCB ASSEMBLY K10BO-1002HUE-C1 F100 R401 - R410 POWER SOURCE REACTOR 250V W101 0.1 <3/4W> 1% x 10 AC230V L300 50Hz D102 47uH C201 C200 FH100 FH101 DCV-F UF4007 <ELC0607> J512Q35E400X290 0.22 TP00351-31 D100, D101 R103 250V SC-10-E55J <F>...

  • Page 11: Error Detection

    Indoor unit display ER R OR D ETEC TION INDOOR UNIT REMOTE CONTROL If you use a wireless remote control, the lamp on the photo detector unit will output error codes by way of blinking patterns. If you use a wired remote control, error codes OPERATION indicator lamp (green) will appear on the remote control display.
  • Page 12 OUTDOOR UNIT ERROR Discharge temperature abnormal 0.5 second on / 0.5 second off IPM overcurrent protection 0.1 second on / 0.1 second off Thermistor abnormal CT abnormal 2.0 second on / 2.0 second off 0.1 second on / 2.0 second off Compressor location abnormal 5.0 second on / 5.0 second off Fan abnormal...

  • Page 13: Parts (Indoor Unit)

    PARTS INDOOR UNIT Ref. Description Part number Bracket Panel 9318913002 Wire Cover 9318911008 Wire Shield 9318919004 Under Cover 9318879001 Louver (Upper) 9318880007 Louver (Lower) 9318881004 Remote Control 9319207001 Remote Control Holder 9318912005 Air Clean Filter Assy 9317250009 2011.04.25...
  • Page 14 INDOOR UNIT Front panel Ref. Description Part number Front Panel Total Assy 9319348018 Air Filter 9318883008 Intake Grille Assy 9319351018 Front Panel 9318876000 Front Panel Cover T 9318909005 Display Plate Holder L 9318894004 Display Plate Holder R 9318895001 Display Plate R 9318893007 Arm Cover 9318900002...
  • Page 15 INDOOR UNIT Evaporator Ref. Description Part number Evaporator Total Assy 9319327006 Joint Pipe Assy 9319322001 Joint Pipe Holder 9318901009 Base 9318874006 Filter Guide 9318887006 Evaporator Holder L 9318875003 Air Seal 9319295008 2011.03.08...
  • Page 16 INDOOR UNIT Control box Ref. Description Part number Ref. Description Part number Cover Shield A 9318916003 Gear B 9319294001 Control Box 9318882001 Panel Gear 9319293004 43 Box Shield Assy 9319344003 Gear Case 9318903003 Controller PCB Assy 9708713052 Switch Case 9319332000 Terminal 9900638009 Grille Key Top...
  • Page 17 INDOOR UNIT Casing assy Ref. Description Part number Ref. Description Part number Fan Motor 9602947003 Pipe Bracket 9318889000 Crossflow Fan Assy 9319361000 Panel Cover 9319296005 Bearing C Assy 9306628017 Louver Holder 9318886009 Casing Assy 9319342009 R and L Louver 9318885002 Casing 9318873009 Motor Step...

  • Page 18: Parts (Outdoor Unit)

    PARTS OUTDOOR UNIT Ref. Description Part number Ref. Description Part number 1 Front Panel Assy 9317760010 10 Separator Assy 9318340013 Cabinet Left Assy 9318247008 11 Reactor Assy 9900583002 3 Top Panel Assy 9317761055 12 Motor Bracket Assy 9332289039 4 Protective Net 9313941055 13 Fan Motor 9602864003...
  • Page 19 OUTDOOR UNIT Ref. Description Part number Ref. Description Part number Condenser Total Assy 9332359008 3 way Valve Assy 9315574015 Condenser Assy 9332360004 Muffler 9308625007 Inlet Pipe Assy 9315578013 4 way Valve Assy 9332365009 Separate Pipe Assy 9317200011 Solenoid 9970110023 Exit Pipe Assy 9332361001 Pulse Motor Valve Assy 9332368000...
  • Page 20 OUTDOOR UNIT Ref. Description Part number 41 Sealed Panel 9318181005 Controller PCB Assy 9708683034 43 PCB Holder 9318182002 Inverter Case Assy 9318242003 45 Terminal Bracket 9317603010 46 Terminal 9900435028 -- Outdoor Thermistor 9900565008 -- Thermistor Assy 9900614010 2011.05.06...

  • Page 21: Accessories

    ACCESSORIES INDOOR UNIT Name and Shape Part number Bracket panel 9318913002 Remote control 9319207001 Remote control holder 9318912005 Battery (penlight) 0600185046 Cloth tape 9308117007 Tapping screw (big) 4 x 25) 0700076046 Tapping screw (small) 0700019036 3 x 12) OPTION Name and Shape Part number Air cleaning filter UTR-FA16...
  • Page 22 1103G3923...
