RECOMMENDATIONS FOR THE USE,
INSTALLATION AND MAINTENANCE OF
Dear customer,
thank you for buying one of our products.
We are sure that this new, modern, functional and practical appliance, made using the finest quality
materials, will fully satisfy your requirements. This new appliance is very easy to use, but in order to
obtain the best results, we strongly recommend that you read this booklet carefully before use.
These instructions are valid exclusively for countries the identification symbols of which appear
on the cover of the instruction booklet and the label on the appliance.
The manufacturer cannot be considered responsible for any damages to people or to things in the
event of incorrect installation or improper use of the appliance.
The staff of
Felix Storch, Inc.
Summit Appliance Division
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com
The Manufacturer cannot be held responsible for any imprecision due to printing or copying errors
contained in this booklet. The figures shown are purely indicative. We reserve the right to make any
changes to our products which we consider to be necessary or useful, also in the interest of the user,
without affecting their essential characteristics in terms of functionality and safety.
This cook top was designed to be used exclusively as a cooking appliance: any other use (such as
heating rooms) is to be considered improper and dangerous.
INSTRUCTIONS AND

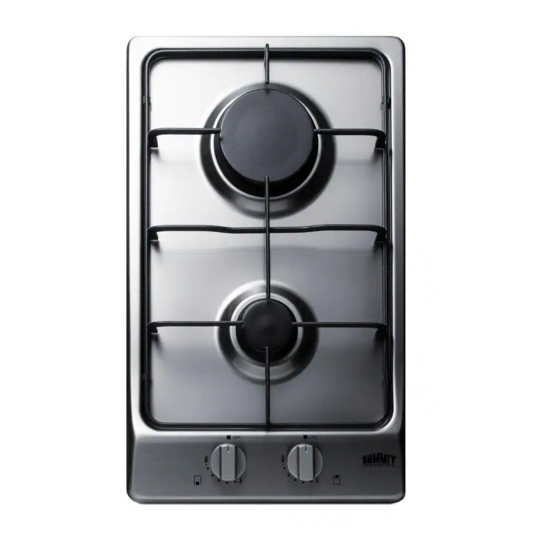

BUILT-IN GAS HOBS
MODEL: GC22SS
COD. 04037GT - 11.06.2015
Advertisement
Table of Contents
Related Manuals for Summit GC22SS
Summary of Contents for Summit GC22SS
- Page 1 The manufacturer cannot be considered responsible for any damages to people or to things in the event of incorrect installation or improper use of the appliance. The staff of Felix Storch, Inc. Summit Appliance Division 770 Garrison Avenue Bronx, New York 10474 www.summitappliance.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safeguards................3 Location of Parts ................4 Installation..................5 - 6 Installing the Cooktop..............5 Sealing the Cooktop..............6 Room Ventilation...............6 Gas Connection.................7 Electrical Connection..............8 Adjustments..................9 Conversions.................10-11 Using the Cooktop................12 Lighting the Burners..............12 Proper Use of the Burners..........12-13 Cleaning....................14 Servicing...................15 Replacing Components Limited Warranty................16... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS 1) SAFE GUARD INSTRUCTIONS For all appliances: ● the product shall be installed according with the a statement that the installation must conform with local codes or, in absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54. ●... -
Page 4: Location Of Parts
LOCATION OF PARTS MODEL: GC22SS Part No. Description Heat supplied Fast burner 10 000 Btu/h Auxiliary burner 3 550 Btu/h Grate Burner no. 3 control knob Burner no. 2 control knob NOTICE: This appliance has been manufactured for residential use only. -
Page 5: Installation
Fig. 1 and the following chart. Always comply with the measurements given for the hole into which the appliance will be recessed (see Figs. 1 and 2). 30” Min. 6” FIG.1 FIG.2 Use These Dimensions (in inches) Model No. GC22SS 11¼ 2-½ 2¼ 2⅞ Use These Dimensions (mm) Model No. GC22SS... -
Page 6: Sealing The Cooktop
Sealing the Cooktop The cooktop has a special seal which prevents liquid from infiltrating into the cabinet. Strictly comply with the following instructions in order to correctly apply this seal: - Take off all the movable parts of the cooktop. - Detach the seals from their backing, checking that the transparent protection still adheres to the seal itself. -
Page 7: Gas Connection
Gas Connection Natural Gas and Propane Gas Natural gas installations require the connection of a gas regulator to the cooktop. You will find this regulator among the accessories supplied with the appliance. Assemble the regulator (noting the direction of gas flow) and transition pieces (supplied) in accordance with the figure below. -
Page 8: Electrical Connection
Electrical Connection The electrical connections of the appliance must be carried out in compliance with local standards and provisions. Before connecting the appliance, check that: 1. The electrical capacity of the main electrical supply and current sockets suit the maximum power rating of the appliance. (See the data label attached to the bottom of the cooktop.) 2. -
Page 9: Adjustments
ADJUSTMENTS Always disconnect the appliance from the electrical power source before making any adjustments. All seals must be replaced by the technician when any adjustments are completed. Taps "Reduced rate" adjustment: 1.Switch on the burner and turn the relative knob to the “Reduced rate” position (small flame fig. 8 page 10). -
Page 10: Conversions
CONVERSIONS Replacing Nozzles The burners can be adapted to suit different types of gas by fitting the nozzles that correspond to the gas used. To do this, it is necessary to remove the burner heads and use a straight key "B", to unscrew the nozzle "A"... - Page 11 NOMINAL HEAT BURNERS INPUT (Btu/h) NORMAL INJECTOR PRESSURE DIAMETER inches water 1/100 mm column N° DESCRIPTION Min. Max. 2 500 10 000 PROPANE HD - 5 FAST BURNER NATURAL GAS 2 500 10 000 1 200 3 550 PROPANE HD - 5 AUXILIARY NATURAL GAS 1 200...
-
Page 12: Using The Cooktop
USING THE COOKTOP Lighting the burners A diagram is screened beside each knob on the control panel of your cooktop. This diagram indicates to which burner the knob in question corresponds. After having opened the gas main or bottled gas tap, light the burners as described below: The knobs of the burners are equipped with a safety cut-off device. - Page 13 WARNINGS: • Burners will only ignite when the corresponding knob has been set to the Full-on position (large flame icon, Fig. 8). • Matches can be used to ignite the burners during a power outage, but use caution. • Never leave the appliance unattended when the burners are being used. Make sure there are no children in the vicinity.
-
Page 14: Cleaning
CLEANING IMPORTANT: WARNINGS: always disconnect the appliance from the gas comply with the following instructions, before and electricity mains before carrying out any remounting the parts: cleaning operation. - check that burner head slots have not become clogged by foreign bodies. - Check that enamelled burner cap “A-B-C”... -
Page 15: Servicing
SERVICING Always disconnect the appliance from the electric and gas mains before proceeding with any servicing operation. Replacing Components To replace the components housed inside the appliance, remove the trivets and the burners from the upper part of the cooktop. Remove the fixing screws "V" of the burner (Fig. 13) and the knobs by pressure from the hands, in order to take off the appliance. -
Page 16: Limited Warranty
Call customer service toll free in the U.S.A. @ 1-800-932-4267, Monday to Friday 9:00 am. - 5:00 p.m. (ET). Order parts online at www.summitappliance.com/support Phone: (718) 893-3900 Felix Storch, Inc. Fax: (844) 478-8799 Summit Appliance Division Web Site: 770 Garrison Avenue www.summitappliance.com Bronx, NY 10474...
