Summary of Contents for Rockford Fosgate AF/2HD

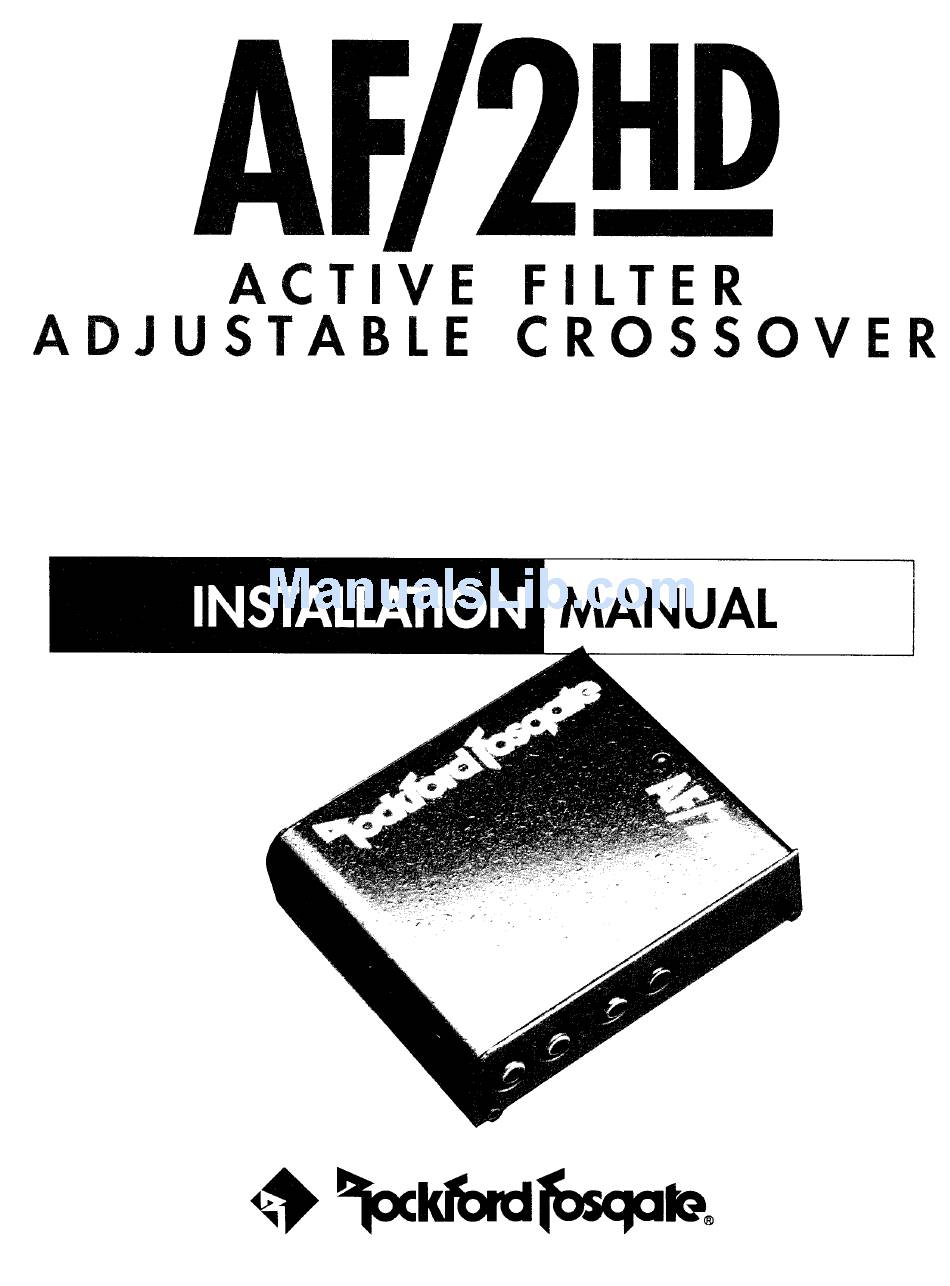

- Page 1 AF/2HD...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ................................. Input and Output Levels ............................. Power Wiring Instructions ........................... Fuse Protection ..............................Figure 1 Illustration View ........................... Frequency Selection ............................Band Selection ..............................Figure 2 Illustration View ............................ Switching Examples ............................Crossovers ........................... Active vs. Passive Choosing Crossover Frequencies ........................ -
Page 3: Introduction
The AF/2HD has a built-in 1/2 amp fuse for protection from excessive current drives. C O N C E A L E D M O U N T I N G The AF/2HD’s concise cabinet gives the installer the option of concealing the unit anywhere in the automobile without worrying about heat dissipation. -
Page 4: Input And Output Levels
Speaker-level inputs must be attenuated to under 1.O VRMS. Net gain in the filter passband of the AF/2HD is unity. (Output levels are equal to input levels) POWER WIRING INSTRUCTIONS The Black 16-gauge wire should be grounded to the chassis. The White 16-gauge wire should be connected to a source of constant +12-Volt power. -
Page 5: Frequency Selection
See Fig. 1 for module locations. WARNING! TURN OFF SYSTEM BEFORE REMOVING MODULES! BAND SELECTION Both channels in the AF/2HD can be defined as either high or low pass fiters allowing the following combinations: CHANNEL B: LOWPASS CHANNEL A: HIGHPASS... - Page 6 The selection is done simply by placing the capacitor module (C) in the socket location marked High or Low on the PC board (See Figure 2). The empty location is where the resistor frequency module (R) is placed. See the pictures in band and frequency section. Note: Each channel can do both types of filters depending on where you put the capacitor module.
- Page 7 AF/2HD BAND & FREQUENCY MODULE LOCATIONS Capacitor Module Low Pass Location High Pass Location Crossover Module _ Capacitor Module FIGURE 2...
-
Page 9: Choosing Crossover Frequencies
The use of 1/3 octave RTA can help you determine if a problem exists and at what frequency. The following crossover frequencies work the best with Rockford Fosgate drivers, and provide a good foundation for any autosound system. -
Page 11: Specifications
Cascading from output to input to create 24dB per octave slope. Cascading outputs to inputs to create a bandpass crossover. High Pass 1OOHz AF/2HD Pass 275Hz AF/2HD SPECIFICATIONS Input Level: mV RMS 20,000 Ohms input impedance: 750 mV RMS Output... -
Page 12: Warranty Information
(2) years parts and one (1) year labor providing the product was purchased from and installed by an Authorized Rockford Fosgate dealer. Warranty on products purchased from but not installed by an authorized dealer is one (1) year parts, no labor. This warranty is not transferable. Electronics found to be defective during the warranty period will be repaired or replaced at Rockford Fosgate’s discretion.
