BRUSHCUTTER
MODEL HYBC5080AV
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai HYBC5080AV

Summary of Contents for Hyundai HYBC5080AV

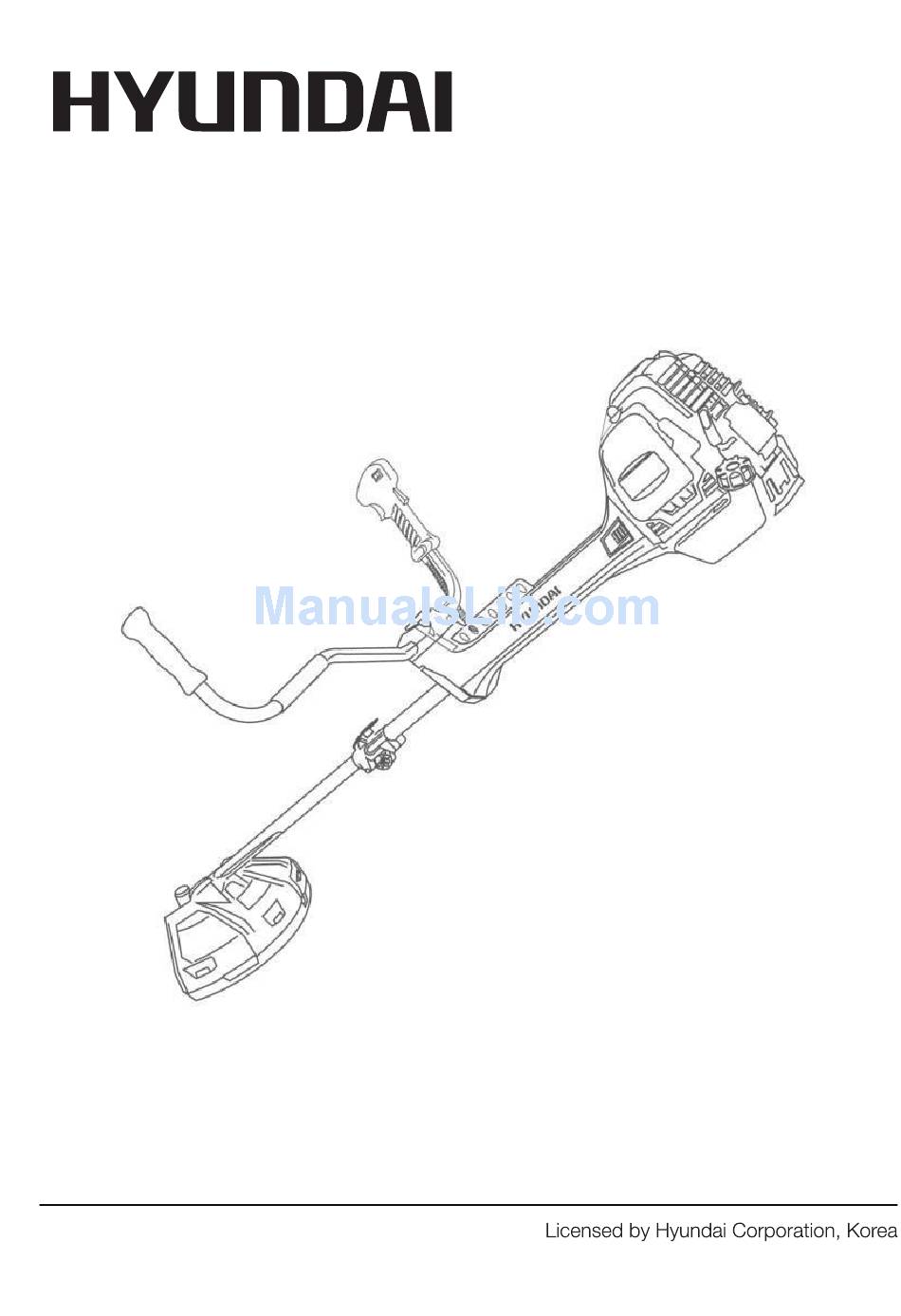

  • Page 1 BRUSHCUTTER MODEL HYBC5080AV User Manual...
  • Page 2 Page 2...

  • Page 3: Table Of Contents

    TABLE of CONTENTS 1. SAFETY 4 – 8 2. SPECIFICATION 3. COMPONENT LOCATIONS 4. ASSEMBLY 11 - 16 5. FUEL 6. STARTING/STOPPING & USING MACHINE 18 - 21 7. MAINTENANCE 22 - 24 8. STORING THE MACHINE 9. TROUBLESHOOTING 10. DISPOSAL OF MACHINE 11.

  • Page 4: Safety

    1. SAFETY 1.1 The operator of the machine is responsible for and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Please note the following safety points. 1.2 The machine should never be left it in a condition which would allow an untrained or unauthorised person/s to operate this machine.
  • Page 5 Carbon monoxide. 1.3.1 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.3.2 The symptoms of carbon monoxide poisoning can include but not limited to the following;...
  • Page 6 1.4.4 Hot work on tanks that have contained fuel is extremely dangerous and should not be carried out. 1.4.5 Keep work area clean and tidy. 1.4.6 Clean up all spills promptly using correct methods i.e. absorbent granules and a lidded bin. 1.4.7 Dispose of waste fuels correctly.
  • Page 7 1.7.2 Noise emissions for this equipment is unavoidable. Carry out noisy work at approved times and for certain periods. Limit the working time to a minimum. For your personal protection and protection of people working nearby it is advisable for them to wear hearing protection. 1.8 Additional safety guidelines.
  • Page 8 1.8.1.17 Keep hands and feet away from the nylon cutting head or metal blade during operation. 1.8.1.18 Do not use the machine if you are tired, ill or under the influence of medication, drugs or alcohol. 1.8.1.19 Only use an undamaged nylon cutting head. If you strike a rock or other obstacle, stop the engine and check the cutting head.

  • Page 9: Specification

    2. SPECIFICATION Type HYBC5080AV Engine Air cooled two stroke Displacement – cc 50.8 cc Maximum output power – kw/rpm 1.56/7500 min Maximum motor speed – rpm 8500 min Idle motor speed – rpm 3000 ±300 min Maximum spindle speed grass trimmer – rpm...

  • Page 10: Component Locations

    3. COMPONENT LOCATIONS 3.1. Engine. 3.2. Machine. Page 10...

  • Page 11: Assembly

    4. ASSEMBLY 4.1. Mounting of the handle. 4.1.1. The handle (2) MUST be assembled before use. 4.1.2. Lift cover (1) 4.1.3. Place the handle (2) into cradle (3), take clamp (4) and place over handle. 4.1.4. Using knurled knob (5) screw through clamp (4) and into cradle (3). Once fully tighten replace cover (1).
  • Page 12 4.2.2. N.B. The drive shaft rod in the lower half is free to move and may come out of the tube. This is not a fault, if it does come out all you need to do is to hold the pole vertical with the head towards the floor re-insert the drive shaft twisting gently to align with the gear.
  • Page 13 4.4.3. Use the supplied box spanner to remove the remove the nut (5) in a clockwise direction then remove cover (4), clamping flange (3) and key piece (2). 4.4.4. Once above is complete you can proceed to install the brush cutter blade. 4.4.4.1.
  • Page 14 4.5.2. As in 4.4.1 to 4.4.3 you will need to lock the shaft and remove the nut, cover, clamping flange (blade if fitted) and key piece. 4.5.3. Keep items (4), (5) & (6) in a safe place. Fit spacer (2) over shaft (1), then screw trimmer head(3) onto threaded shaft in a 4.5.4.
  • Page 15 4.6.4. Spectators should be informed how to arouse the users attention, otherwise it could cause an unsafe situation. 4.6.5. Never touch the nylon cutting head or the metal sheet when the machine is running. 4.6.6. If it is necessary to replace the guard or the cutting tool, be sure that the machine and the cutting tools have come to a standstill.
  • Page 16 4.7. Notes on working with the brush cutter (metal blade). 4.7.1. A metal blade with 3 teeth is delivered with the machine. This is used for cutting of bushes and weeds. The use of a saw blade with this machine is prohibited. 4.7.2.

  • Page 17: Fuel

    5. FUEL 5.1. Fuel and 2 stroke oil. 5.1.1. You MUST only use fresh unleaded fuel and 2 stroke engine oil mixture. For the first time ONLY a mixing ratio of 25:1 should be used to lubricate all engine parts to an optimum level. Thereafter the mix is 40:1. 5.1.3.

  • Page 18: Starting/Stopping & Using Machine

    6. STARTING/STOPPING & USING THE MACHINE 6.1. Engine - Cold start. 6.1.1. Fill the machine with fuel as described in section 5. 6.1.2. Turn the power switch (1) to the on position (I). 6.1.3. Set the machine on a firm and flat surface. 6.1.4.
  • Page 19 6.2. Engine - Warm start. 6.2.1. Fill the machine with fuel as described in section 5. 6.2.2. Turn the power switch (1) to the on position (I). 6.2.3. Set the machine on a firm and flat surface. 6.2.4. Move the choke lever (5) to the lower (open) position. 6.2.4.1.
  • Page 20 6.4.7. ALWAYS clear the area of cans, bottles, rocks, etc. Flying or whirling objects may cause serious injury and damage to users or viewers. If an object is accidentally flung out from machine, immediately stop and check the machine. 6.4.8. Never let the machine run with damaged or defective parts.
  • Page 21 6.7. Replacing the nylon cord. 6.7.1. Turn off the engine 6.7.2. Put the brush cutter on the ground and dismantle the nylon head. 6.7.3. Unlock the head by pressing the nylon head unlocking tab (1) and turning locking ring (2) in an clockwise direction. 6.7.4.

  • Page 22: Maintenance

    7. MAINTENANCE 7.1. Maintenance schedule. Maintenance cycle Every 3 Every 6 Every 12 Every 24 Every months months months months month or Component Each use or 15 or 50 or 100 or 300 10 hours hours hours hours hours Check ○...
  • Page 23 7.2.2. Remove the filter (4) by pressing clip (5) and lifting filter clear. Wash with soap and water. Never use petrol or benzene! 7.2.3. Allow to dry the filter in the air. 7.2.4. To replace the filter reverse the above process. 7.3.

  • Page 24: Storing The Machine

    7.4. Trimmer blade sharpening. When sharpening the blade wear safety to help avoid injury. 7.4.1. Remove the cutting blade (2) from the shield (1). 7.4.2. Put cutting blade securely into a vice. 7.4.3. Sharpen the blade with a suitable flat file. 7.4.4.

  • Page 25: Troubleshooting

    9. TROUBLESHOOTING If troubleshooting does not solve the problem, contact your dealer or the manufacturer directly. Use only original parts approved by the manufacturer, otherwise a hazard risk arises. 9.1 Difficulties in starting. Situation Cause Solution Clean the spark plug. Adjust the Carbon deposit between electrodes Spark plug gap to 0.6 ~ 0.7mm,...

  • Page 26: Disposal Of Machine

    10. DISPOSAL OF MACHINE 10.1. Should it become necessary to dispose of your machine please contact your local Council for the disposal advise of the device, or take unit to your local recycling center. Make sure all oil and fuel is correctly disposed of either beforehand or at amenity center. 11.

  • Page 27: Certificate Of Conformity

    12. GENPOWER CONTACT DETAILS Postal address; Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. Telephone contact number; Office ; +44 (0) 1646 687880 Email contact; Technical; service@genpower.co.uk Web site; www.hyundaipowerequipment.co.uk Page 27...
  • Page 28 Isaac Way, London Road Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 info@hyundaipowerequipment.co.uk www.hyundaipowerequipment.co.uk...
