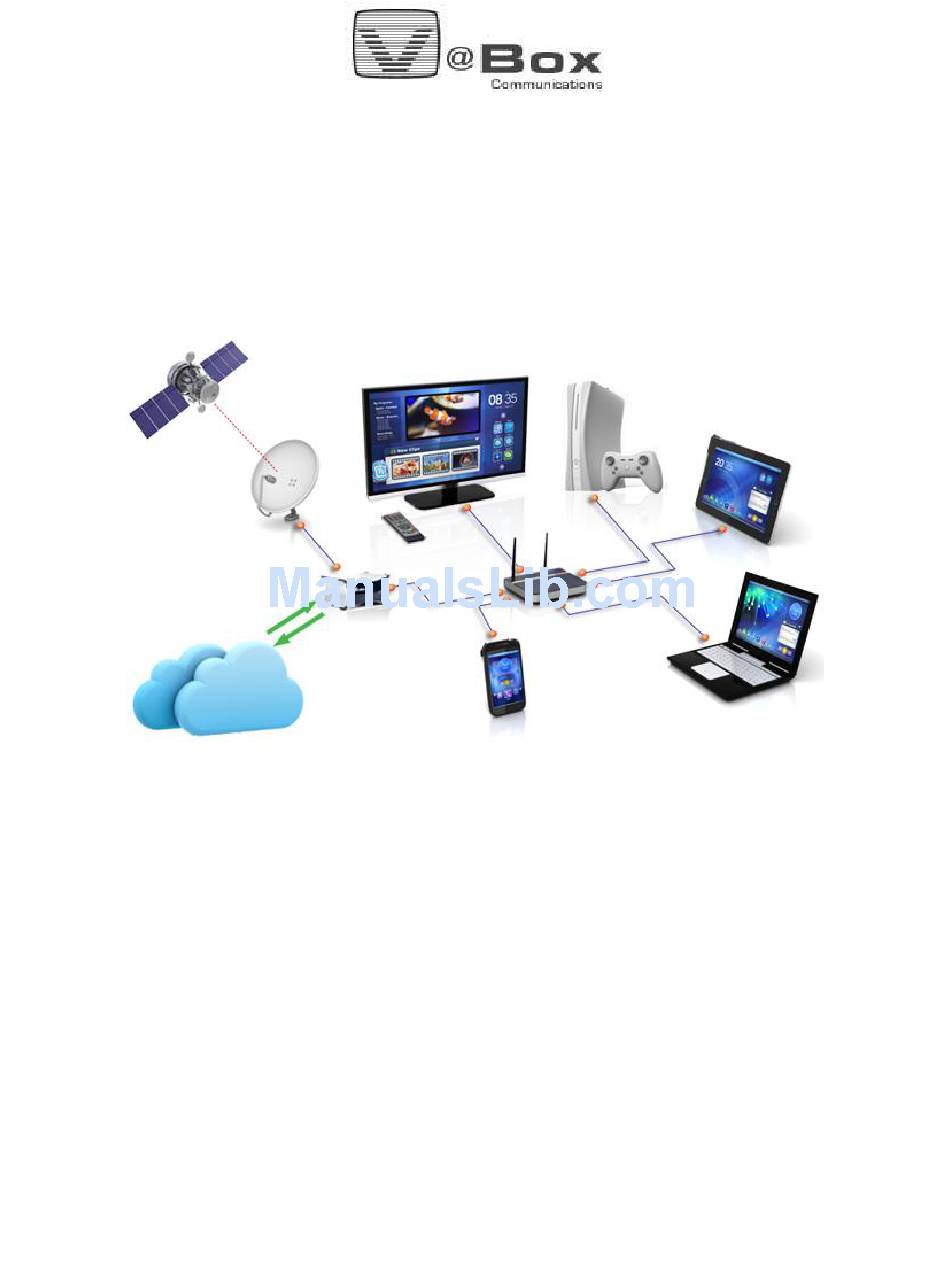

- Page 1 XTi–VBox TV Gateway 33xx family Quick Installation Product Version: 1.0 Release Date: Jan 2014 Document Revision: 1.3...
-
Page 2: Table Of Contents
Error! No text of specified style in document. Contents Introduction to XTi–VBox TV Gateway .......................2 XTi-VBox TV Gateway 33XX family Product Line ..................2 Quick Installation for XTi ............................3 Front and Rear Panels ............................4 Front Panel ..............................4 Rear Panels ..............................5 3.2.1 XTi-3330 Dual Tuner Rear Panel ......................6... -
Page 3: Introduction To Xti-Vbox Tv Gateway
1 Introduction to XTi–VBox TV Gateway XTi-VBox TV Gateway is a set-top box that gives you the freedom to consume all types of television broadcasts - satellite (DVB-S), cables (DVB-T) and terrestrial (DVB-T), as well as video - through a single media gateway. -
Page 4: Quick Installation For Xti
Follow the instruction Players- reopen VBox Apps and enjoy Players- Additional information regarding the possible can Additional information regarding the possible can be found at VBox site or in full user guide be found at VBox site or in full user guide... -
Page 5: Front And Rear Panels
3 Front and Rear Panels This section describes the front and rear panels of the XTi-VBox TV Gateway set-top box. 3.1 Front Panel All XTi-VBox TV Gateway products share the same front panel, illustrated in Figure 1. Figure 1: XTi Front Panel... -
Page 6: Rear Panels
3.2 Rear Panels This section describes the rear panel of each XTi-VBox TV Gateway product: XTi-3330 Dual Tuner Rear Panel XTi-3330 Dual Tuner Rear Panel TheXTi-3330 Dual Tuner 2Smodel includes two active RF connectors: one for each satellite tuners. -
Page 7: Xti-3330 Dual Tuner Rear Panel
XTi-3332/3332 CI Unicable Rear Panel XTi-3340-50/3340-50 CI Rear Panel XTi-3340-50/3340-50 CI Rear Panel 3.2.1 XTi-3330 Dual Tuner Rear Panel TheXTi-3330 Dual Tuner 2Smodel includes two active RF connectors: one for each satellite tuners. Figure 2: XTi 3330 Dual Tuner (Model Dual Tuner 2S) – Rear Panel Item Description RF1–... -
Page 8: Xti-3332/3332 Ci Unicable Rear Panel
3.2.2 XTi-3332/3332 CI Unicable Rear Panel XTi-3332 Unicable models (4S and 4S CI) have a rear panel with one RF connector for all satellite tuners. Note that the second RF connector is not in use. Figure 3: XTi 3332 Unicable (Models Unicable 4S CI & Unicable 4S)–Rear Panel Item Description CI –Optional 2 CAM slot * 3332 CI... -
Page 9: Xti-3340-50/3340-50 Ci Rear Panel
3.2.3 XTi-3340-50/3340-50 CI Rear Panel The XTi-3340 rear panel includes two satellite tuners and two DVB-T or two DVB-C tuners. Figure 4: XTi 3340-50 (Models 2S-2T/2C CI & 2S-2T/2C) – Rear Panel Item Description CAM/CI – Optional CI slot for DVB-T/C RF-3 only RF1–... -
Page 10: Xti-3342-52 Ci Rear Panel
3.2.4 XTi-3342-52 CI Rear Panel XTi-3342-52 Dual Tuner 2T/2C has a rear panel with a single connector (RF3) for either two DVB-T tuners or two DVB-C tuners (Figure 5). (See How to switch between DVB-T and DVB-C Configuration Paragraph 14.1) Figure 5: XTi 3342 Dual Tuner (Model 2T/2C) –...
