Page 1 59382001_cvr.jpg...
Page 2: Copyright Information • 2
The most up-to-date drivers and manuals are available from the web site: Trademark Information _______________________________ Oki and Microline are registered trademarks of Oki Electric Industry Company Ltd. Apple, Macintosh, EtherTalk, LaserWriter, Mac, and Mac OS are registered trademarks of Apple Computers Inc.
Page 3: Table Of Contents
Options ....... . . 10 Parts of the Printer ......11 Front .
Page 4 General Information ..... . . 36 Printer Menu ......36 Multi-Purpose Tray (MP Tray) [Manual Feed] .
Page 5 General Information ..... . 117 If paper jams are frequent ....118 C5650n/C5650dn User’s Guide Contents • 5...
Page 6 Cleaning Page ......145 Printer Drivers......146 General Information.
Page 7 General Information ..... . 216 Windows ......217 C5650n/C5650dn User’s Guide Contents • 7...
Page 8 Utilities ........224 Summary of Utilities Provided ....224 C5650n/C5650dn User’s Guide Contents • 8...
Page 9: Notes, Cautions, Etc
A warning appears like this. A warning provides additional information which, if ignored, may result in a risk of personal injury. C5650n/C5650dn User’s Guide NOTE Important! CAUTION! WARNING!
Page 10: Introduction
Introduction Your new printer is designed with advanced features to give you clear, vibrant color printing and crisp black and white pages at high speed on a range of print media. Features _________________________ • Up to 22 pages per minute full color.

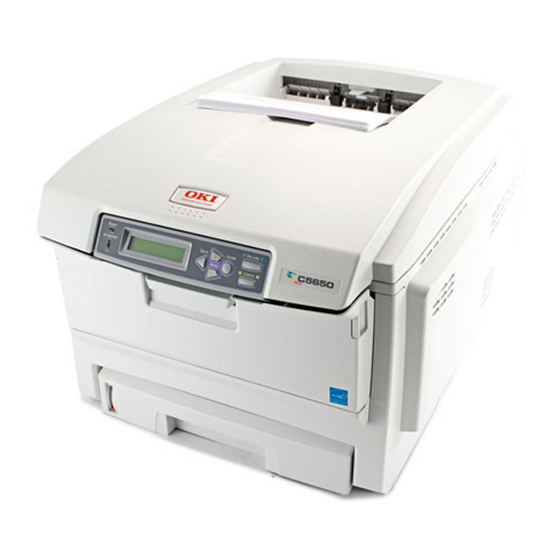

Page 11: Parts Of The Printer
Holds up to 300 sheets of 20-lb. (75 g/m²) paper. Multi-Purpose Tray Used for feeding transparencies, heavier paper stocks, envelopes and other special media. Also for manual feeding of single sheets when required. C5650n/C5650dn User’s Guide Parts of the Printer • 11...
Page 12: Rear
Rear Stacker (face up) Capacity 100 sheets When the rear paper stacker is folded down, paper exits the printer through the rear of the printer and is stacked face up. This is used for labels, heavy print media, envelopes and custom paper sizes.
Page 13: Paper (Print Media)
For weight, refer to the correct paper type. Each paper type has a table (matrix) of paper size, paper weight, paper feed, paper exit, simplex/duplex correlations. For general information on paper sizes, see “Paper Size, Feed, and Exit” on page 35. C5650n/C5650dn User’s Guide CAUTION! Paper (Print Media) • 13...
Page 14: Paper Weights
On the Setup tab, under Weights, make your selection. Macintosh OS 10.3 and later Open the file you want to print. Click File → Open the drop-down list below Presets. Select Printer Option. C5650n/C5650dn User’s Guide Feed Tray Tray 1 Tray 2 Tray 1 Tray 2 MP Tray...
Page 15 Select the thickness/type of media on which you are printing a particular job, to produce optimum print results. This setting overrides the setting in the printer menu. The default printer menu setting is Medium. Light 16-19 lb.
Page 16: Paper, Us Bond
• which paper exit path can be used • whether you can use double sided (duplex) printing Single sided printing is also known as simplex printing. These settings can be made in the printer menu or in the printer driver. Application settings override driver settings.
Page 17: Paper: Us Bond (Metric)
– Paper with perforations, cut-outs or ragged edges. – Carbon paper, recycled paper, NCR paper, photosensitive paper, pressure sensitive paper or thermal transfer paper. C5650n/C5650dn User’s Guide ® Laser Printer Radiant White, 24 lb. US Paper, US Bond • 17...
Page 18: Paper, Index
• which paper exit path can be used • whether you can use double sided (duplex) printing Single sided printing is also known as simplex printing. These settings can be made in the printer menu or in the printer driver. Application settings override driver settings.
Page 19 – Paper with perforations, cut-outs or ragged edges. – Carbon paper, recycled paper, NCR paper, photosensitive paper, pressure sensitive paper or thermal transfer paper. C5650n/C5650dn User’s Guide ® Laser Printer Radiant White, 24 lb. US Paper, Index • 19...
Page 20: Letterhead
• which paper exit path can be used • whether you can use double sided (duplex) printing Single sided printing is also known as simplex printing. These settings can be made in the printer menu or in the printer driver. Application settings override driver settings.
Page 21: Recommendations
– Paper with perforations, cut-outs or ragged edges. – Carbon paper, recycled paper, NCR paper, photosensitive paper, pressure sensitive paper or thermal transfer paper. C5650n/C5650dn User’s Guide CAUTION Letterhead • 21...
Page 22: Loading
Loading Trays 1 and 2 Long edge feed Face down, top toward the back of the printer. Letr_lef.bmp Short edge feed face down, top to the right ltrhd_se.jpg C5650n/C5650dn User’s Guide Letterhead • 22...
Page 23 Loading Manual Feed (MP Tray) Long edge feed Face up, top to the back of the printer manl_le.jpg Short edge feed Face up, top to the left manl_se.jp C5650n/C5650dn User’s Guide Letterhead • 23...
Page 24: Envelopes
Print media must be able to withstand 446°F (230°C) for 0.2 second. Envelopes.jpg Use only recommended envelopes. Oki 52206301 and 52206302 For more information, see "Print Media" in your Handy Reference Guide or www.okiprintingsolutions.com. Store envelopes flat and away from •...
Page 25: Loading
Loading Trays 1 - 2 Envelopes cannot be fed from paper trays 1 - 2. Multi-purpose Tray Face up (flap side down), top to the left (into the printer) C96_LoadPaperMPTray_Envelopes_crop.JPG C5650n/C5650dn User’s Guide Envelopes • 25...
Page 26: Labels
The carrier sheet or adhesive must not be exposed to any part of the printer. Loading Trays 1 - 2 Labels cannot be fed from paper trays 1 - 2. Manual Feed (MP Tray) Face up (print side up) C5650n/C5650dn User’s Guide CAUTION Labels • 26...
Page 27: Windows
Recommended labels for best print results: Avery 5161 White Laser Label (Letter size); Avery 7162, 7664, 7666 White Laser Labels (size A4). Open the file you want to print. Click File → Print. C5650n/C5650dn User’s Guide NOTE NOTE Labels • 27...
Page 28 Open the drop-down list below Presets. Select Printer Option. At Media Weight, make your selection. Labels1: For labels 0.1 to 0.169 mm thick. Labels2: For labels 0.17 to 0.2 mm thick. Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide Labels • 28...
Page 29: Transparencies
These will melt in the fuser and cause damage. Loading Trays 1 - 2 Transparencies cannot be fed from paper trays 1 - 5. Manual Feed (MP Tray) Face up (print side up) C5650n/C5650dn User’s Guide CAUTION Transparencies • 29...
Page 30: Windows
Macintosh OS 10.3 and later Use only recommended transparencies (3M CG3720, Oki 52205701). Open the file you want to print. Click File → Print. Open the drop-down list below Presets. Select Printer Option. C5650n/C5650dn User’s Guide NOTE Transparencies • 30...
Page 31 At Media Weight, select Transparency. Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide Transparencies • 31...
Page 32: Paper Trays
Make your selection. Auto The printer automatically selects the paper tray. Multi Purpose Tray / Tray1 / Tray 2 Tray 2 appears only if an optional tray is installed. Select a specific paper tray. For example: C5650n/C5650dn User’s Guide Windows • 32...
Page 33 You are printing a job on special media (letterhead). Place the media in the Multi Purpose Tray. Select the Multi Purpose Tray here (in the driver) when printing the job. Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide Macintosh • 33...
Page 34: Paper Size Check
General Information If Paper Size Check is turned on (enabled), the printer checks whether the size paper loaded in the selected tray matches that required for the document being printed. Windows Open the file you want to print. Click File → Print.
Page 35: Paper Size, Feed, And Exit
Switch to the Rear Exit (Face Up Stacker) when you are print- ing paper heavier than 47 lb. US Bond (98 lb. Index, 177 g/ c. S = Simplex; D = Duplex (printing on both sides) C5650n/C5650dn User’s Guide Tray 1 and Optional Tray 2 • 35 Feed...
Page 36: Auto Switching
General Information If a paper tray (Tray 1) runs out of paper, your printer can automatically switch to another paper tray (MP Tray, optional Tray 2) loaded with the same type of paper. This is called Auto Switching. This feature is enabled either through the printer menu or the printer driver.
Page 37 At Auto tray switch, make your selection. If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide Auto Switching • 37...
Page 38: Multi-Purpose Tray (Mp Tray) [Manual Feed]
Use the Multi-Purpose Tray (MP Tray) for printing card stock, labels, envelopes and transparencies. If a paper tray (Tray 1) runs out of paper, your printer can automatically switch to another paper tray (MP Tray, optional Tray 2) loaded with the same type of paper. This is called Auto Switching.
Page 39: Duplexing Restrictions
58 lb. Index 105 g/m You cannot duplex • labels • envelopes • transparencies • paper weights above 28 lb. US Bond 58 lb. Index 105 g/m C5650n/C5650dn User’s Guide Multi-Purpose Tray (MP Tray) [Manual Feed] • 39 Important! metric metric...
Page 40: Paper Sizes And Exit Paths
– Weight Range = 28 to 34 lb. US Bond (105 to 128 g/m2) – Path = Rear Exit (Face Up Stacker) only – Feed one sheet at a time. C5650n/C5650dn User’s Guide Multi-Purpose Tray (MP Tray) [Manual Feed] • 40 Feed...
Page 41: Paper Exit Paths
Page 1 first; last page on top, facing down Face Up (Rear Exit) ________________ c53_72_rear3.jpg Open the face up stacker at the rear of the printer and pull out the tray extension. When the face up stacker is open, paper exits via this path, regardless of driver settings.
Page 42 Papers are printed face up. For multi-page documents, Select “Reverse order printing” in your application Print dialog box (Click File → Print). This puts the printed stack in the correct order. C5650n/C5650dn User’s Guide Face Up (Rear Exit) • 42 NOTE...
Page 43: Duplex Unit
Duplex Unit_______________________ General Information The Duplex Unit (optional on the C5650n) enables your printer to print on both sides of the page. See “Duplex Printing” on page 197. Paper Types Paper only Cannot duplex labels envelopes transparencies Paper Sizes Size...
Page 44: Paper Weights
28 lb. US Bond 58 lb. Index 105 g/m You cannot duplex • labels • envelopes • transparencies • paper weights above 28 lb. US Bond 58 lb. Index 105 g/m C5650n/C5650dn User’s Guide Important! metric metric Duplex Unit • 44...
Page 45: Loading Paper
• If you are printing from the 2nd (lower) tray, do not pull out the 1st (upper) tray while printing. This will cause a paper jam. Remove the paper tray from the printer. c53_11_opntra.jpg C5650n/C5650dn User’s Guide NOTE Loading Paper • 45...
Page 46 Fan the paper to be loaded at the edges (1) and in the middle (2). Then tap the edges of the stack on a flat surface to make it flush again (3). Fan Paper.eps C5650n/C5650dn User’s Guide Loading Paper • 46...
Page 47 Load paper print side down. Make sure the rear stopper (1) and paper guides (2) are snug against the paper. c53_13_instlpapr.jpg Load letterhead paper face down. The top edge is aimed towards the front of the printer. c53_76_trayabc.jpg C5650n/C5650dn User’s Guide NOTE Loading Paper • 47...
Page 48 • Do not load paper of different sizes or types at the same time. • Do not pull the paper tray out during printing (except as described above for the 2nd tray). C5650n/C5650dn User’s Guide NOTE Loading Paper • 48...
Page 49: Multi-Purpose (Mp) Tray
• a stack of media about 3/8'' (10 mm) high • about 10 envelopes • about 50 transparencies. Do not exceed the 3/8'' (10 mm) media stack height. Open the MP Tray. c53_40_mptrayopen1_crop.jpg, c53_41_mptrayopen2_crop.jpg, c53_42_mptrayopen3_crop.jpg C5650n/C5650dn User’s Guide Multi-Purpose (MP) Tray • 49 NOTE...
Page 50 Double-sided printing (duplex) load with pre-printed side down and top edge away from the printer. (Optional duplex unit must be installed.) C5650n/C5650dn User’s Guide Multi-Purpose (MP) Tray • 50...
Page 51 Load print side up (flap down) with top edge to the left and short edge into the printer. You cannot duplex envelopes. Press the blue tray latch (1) toward the paper stack to lift the paper platform into the feed position. c53_86_mptraylevercolr.jpg C5650n/C5650dn User’s Guide Multi-Purpose (MP) Tray • 51...
Page 52: Consumables
Yellow, High Capacity Black, standard Cyan, standard Magenta, standard Yellow, standard Image Drum Type C8 Black Cyan Magenta Yellow Fuser* 120 V 230V C5650n/C5650dn User’s Guide 43324404 43324403 43324401 43381904 43381903 43381902 43381901 43381704 43381703 43381702 43381701 43363201 43363202 Consumables • 52...
Page 53: Belt
*Fusers and transfer belts are replaceable maintenance items. They are warranted against defects for 90 days. When the printer display indicates that they are near end of life, a replacement must be purchased. C5650n/C5650dn User’s Guide 43363401 43347601 43347501 Consumables • 53...
Page 54: Replace A Toner Cartridge
REPLACE TONER nnn: zzzz TONER EMPTY nnn: ZZZZ = 410: YELLOW 411: MAGENTA 412: CYAN 413: BLACK C5650n/C5650dn User’s Guide Replace a Toner Cartridge • 54...
Page 55 Press the cover release. Open the printer’s top cover fully. c53_02_opencvr.jpg If the printer has been powered on, the fuser is HOT. This area is clearly labelled. Do not touch it. C5650n/C5650dn User’s Guide Replace a Toner Cartridge • 55...
Page 56 Magenta (2), Yellow (3), Black (4). c53_09_lidup.jpg Pull the colored toner release lever on the cartridge to be replaced towards the front of the printer. Shown: replacement of the black toner cartridge c53_74_tonerlvropen.jpg C5650n/C5650dn User’s Guide Replace a Toner Cartridge • 56...
Page 57: Install A Toner Cartridge
Install a Toner Cartridge Unpack the new toner cartridge. Gently shake it from side to side to loosen and distribute the toner evenly inside the cartridge. c53_04_shk_tnr.jpg C5650n/C5650dn User’s Guide Replace a Toner Cartridge • 57...
Page 58 Hold the cartridge by its top center with the colored release lever to the right. Insert the left end of the C5650n/C5650dn User’s Guide Replace a Toner Cartridge • 58 CAUTION!
Page 59 Push it firmly against the spring on the drum unit. c53_80_tonrout.jpg and c53_73_tonerdrum.jpg C5650n/C5650dn User’s Guide Replace a Toner Cartridge • 59...
Page 60 Press back on the lever again. To avoid toner spillage, DO NOT open the toner release lever until the toner cartridge is firmly seated in the image drum. C5650n/C5650dn User’s Guide Replace a Toner Cartridge • 60 IMPORTANT!
Page 61 Use the provided LED lens cleaner. Gently wipe the LED. c5x_ledarray_bw.jpg 10. Close and latch the top cover. c53_45_latchcvr.jpg C5650n/C5650dn User’s Guide Replace a Toner Cartridge • 61...
Page 62: Replace An Image Drum
353: BLACK You must replace the toner cartridge when you replace the image drum. The life expectancy of the cartridge will be reduced as the toner charges the new drum. C5650n/C5650dn User’s Guide Replace an Image Drum • 62 Important!
Page 63 Press the cover release and open the top cover fully. c53_02_opencvr.jpg If the printer has been powered on, the fuser is HOT. This area is clearly labelled. Do not touch it. Note the positions of the four image drums: Cyan (1), Magenta (2), Yellow (3), Black (4).
Page 64 Lift the image drum, complete with its toner cartridge, out of the printer. Discard it in accordance with your local regulations. c53_53_drumremove.jpg C5650n/C5650dn User’s Guide Replace an Image Drum • 64...
Page 65 Unpack the new image drum. CAUTION! Image drum handling The image drum contains toner. To avoid spilling toner, be careful to keep it upright. c53_31_drum.jpg, Checkmark.bmp, c53_79_drumtilt_3.jpg, c53_78_drumtilt_2.jpg C5650n/C5650dn User’s Guide Replace an Image Drum • 65...
Page 66 • Do not expose it to normal room light for more than 5 minutes. • If the image drum must be out of the printer for longer than 5 minutes, place the image drum inside a black plastic bag or carefully place it in a drawer or cabinet to keep it away from light.
Page 67 Remove the paper sheet. Then, remove the clear plastic film. c53_26removepaper.jpg, c53_25_removeclearsheet.jpg If present, remove the silica gel pack. c53_24_removejell.jpg C5650n/C5650dn User’s Guide Replace an Image Drum • 67...
Page 68 Place the image drum in the printer. c53_84_removedrumwithorange.jpg Remove the orange drum seal. c53_83_removeorangething.jpg C5650n/C5650dn User’s Guide Replace an Image Drum • 68...
Page 69 10. Install the new toner cartridge in the image drum. See “Install a Toner Cartridge” on page 57. C5650n/C5650dn User’s Guide Replace an Image Drum • 69...
Page 70 11. Use the provided LED lens cleaner. Gently wipe the LED. c5x_ledarray_bw.jpg 12. Close and latch the top cover. c53_45_latchcvr.jpg C5650n/C5650dn User’s Guide Replace an Image Drum • 70...
Page 71: Replace The Fuser
REPLACE FUSER 354: FUSER LIFE If the printer has been powered on, the fuser is HOT. This area is clearly labelled. Do not touch it. Handle the fuser with extreme care. Hold it only by its handle, which is only mildly warm to the touch.
Page 72 Press the cover release. Fully open the printer’s top cover. c53_02_opencvr.jpg Pull the two blue fuser lock levers (1) towards the front of the printer. c53_59_fuser1.jpg C5650n/C5650dn User’s Guide Replace the Fuser • 72...
Page 73 Hold the fuser by its handle. Lift the fuser out of the printer. If the fuser is still warm, place it on a flat surface which will not be damaged by heat. After letting the fuser cool down, discard it.
Page 74 (1) should be on the right. Lower the fuser into the printer. c53_60a_fuser2.jpg Push the two blue retaining levers (1) toward the rear of the printer to lock the fuser in place. c53_61a_fuser3.jpg C5650n/C5650dn User’s Guide Replace the Fuser • 74...
Page 75 Close and latch the top cover. c53_45_latchcvr.jpg C5650n/C5650dn User’s Guide Replace the Fuser • 75...
Page 76: Replace The Belt Unit
The belt unit is located under the four image drums. Press the cover release and open the top cover fully. c53_02_opencvr.jpg If the printer has been powered on, the fuser is HOT. This area is clearly labelled. Do not touch it. C5650n/C5650dn User’s Guide WARNING! Replace the Belt Unit •...
Page 77 • Do not expose it to normal room light for more than 5 minutes. • If the image drum must be out of the printer for longer than 5 minutes, place the image drum inside a black plastic bag or carefully place it in a drawer or cabinet to keep it away from light.
Page 78 Locate the two blue locks (1) and the handle (2). c53_48_belt1.jpg Turn the two locks about 45° counterclockwise to release the belt. c53_49_belt2.jpg C5650n/C5650dn User’s Guide Replace the Belt Unit • 78...
Page 79 Pull up the handle and lift the belt unit out of the printer. c53_50_belt3.jpg Unpack the new belt unit. Hold it with the blue handle toward the front of the printer. Place the drive gear at the back of the belt unit in the gear at the left rear corner of the printer.
Page 80 10. Place the four image drums/toner cartridges back in the printer = Cyan, It is essential that they go back in the correct order! c53_09_lidup.jpg C5650n/C5650dn User’s Guide Replace the Belt Unit • 80 = Magenta, = Yellow, = Black).
Page 81 11. Close and latch the top cover. c53_45_latchcvr.jpg C5650n/C5650dn User’s Guide Replace the Belt Unit • 81...
Page 82: Printer Settings (Menu Settings)
Many of these settings can be overridden by settings in the printer driver. However, several of the driver settings can be left at “Printer Setting,” which will then default to the settings entered in these printer menus Print a list of the current settings _____ Menu Map ...
Page 83: Changing Settings
5 though 7. –To change the setting for an item in a different menu, press BACK again, then follow steps 2 through 7. C5650n/C5650dn User’s Guide Printer Settings (Menu Settings) • 83 NOTE...
Page 84: Example: Power Save Time
Example: Power Save Time To change the time interval for the printer to wait before going into Power Save mode (default setting is 60 MIN): Press + to enter the menu mode. Press + and/or – repeatedly until you see SYS CONFIG MENU Press ENTER to go into the Sys Config Menu.
Page 85: Reset To Factory Defaults
Reset to Factory Defaults ____________ … = keep pressing the button repeatedly until you see the display indicated. To reset the printer menu to its original default settings: Press + to enter the Menu mode. Press + … MAINTENANCE MENU Press ENTER.
Page 86: Lists Of Available Settings By Menu
Lists of Available Settings by Menu ____ Information Menu Item PRINT MENU MAP DEMO1 NETWORK SHUTDOWN C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 86 Action Explanation EXECUTE Prints the MenuMap (menu listing) with current settings shown. Information about your printer is also shown at the top of each MenuMap page.
Page 87: Print Menu
USAGE WHEN MISMATCHXXX MEDIA ENABLE CHECK DISABLE C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 87 Explanation Enter the number of copies of a document to be printed. Selects the default tray for paper feed. If two trays contain identical print...
Page 88: Media Menu
TRAY1 PAPERSIZE TRAY1 MEDIATYPE TRAY1 MEDIAWEIGHT TRAY2 PAPERSIZE† TRAY2 MEDIATYPE† C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 88 Explanation Sets the print engine speed. If you are printing only color documents, switch to COLOR SPEED. If you are printing only monochrome documents, switch to MONO 24PPM.
Page 89 3 to 8.5 INCH Default = 8.5 INCH Y-DIMENSION 5 to 35.5 INCH Default = 11 INCH C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 89 Explanation Adjusts the printer for the weight of paper stock loaded in optional Tray 2.
Page 90: Color Menu
Color Menu Note: Factory default settings are shown in bold. The printer automatically adjusts color balance and density at appropriate intervals, optimizing the printed output for bright white paper viewed in natural daylight conditions. The items on this menu provide a means of changing the default settings for special or particularly difficult print jobs.
Page 91: System Configuration Menu
LOW TONER CONTINUE STOP JAM RECOVERY ERROR REPORT ON C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 91 Explanation Adjusts the time before the printer automatically switches into power saving mode. In this mode power consumption is reduced, but when a job is sent the printer will require a warm-up time of up to 1 minute before printing can begin.
Page 92: Usb Menu
SPEED 480Mbps 12Mbps SERIAL ENABLE NUMBER DISABLE C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 92 Explanation Enables or disables the SOFT RESET command. Sets the maximum transfer speed for the USB interface. ENABLE allows your computer to identify the printer by its USB interface serial number.
Page 93: Network Menu
Default = 192.168.100.254 FACTORY [EXECUTE] DEFAULTS WEB/IPP ENABLE DISABLE C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 93 Explanation Enables or disables this network protocol. Enables or disables this network protocol. Change this to Manual to specify the IP address through the front panel (see next entry).
Page 94 AUTO NEGOTIATE SETTING 100BASE-TX FUL 100BASE-TX HALF 10BASE-T FULL 10BASE-T HALF C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 94 Explanation Enables or disables Telnet config. facility. This item will not appear in the menu if TCP/IP is set to DISABLE.
Page 95: Memory Menu
AUTO SIZE 0.5MB 16MB FLASH [EXECUTE] INITIALIZE C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 95 Explanation Sets the size of the receive buffer. Initializes Resident Flash memory. When ENTER is pressed, the following message displays. ARE YOU SURE? YES=ENTER/NO=CANCEL Press ENTER.
Page 96: System Adjust Menu
Factory default settings are shown in bold. Item X ADJUST Y ADJUST DUPLEX X ADJUST DUPLEX Y ADJUST DRUM CLEANING C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 96 Settings -2.00MILLIMETER TO +2.00MILLIMETER Default = 0.00 -2.00MILLIMETER TO +2.00MILLIMETER...
Page 97: Maintenance Menu
–2 to +2 in COLOR increments of 1 SETTING Default = 0 C5650n/C5650dn User’s Guide Lists of Available Settings by Menu • 97 Explanation Resets menus to the default settings. Saves current menu settings as default values. At confirmation prompt, press ENTER to confirm save, or CANCEL.
Page 98: Usage Menu
Usage Menu This menu is for information only. It provides an indication of total usage of the printer and the expected life left in its consumable items. This is particularly useful if you do not have a full set of replacement consumables on hand and you need to know how soon you will need them.
Page 99: Menu Defaults
Information, Print, and Media Menus Note: Menus/Items with a dagger (†) only appear when the appropriate option is installed. Menu INFORMATION MENU SHUTDOWN MENU PRINT MENU MEDIA MENU C5650n/C5650dn User’s Guide Item PRINT MENU MAP NETWORK DEMO1 SHUTDOWN START COPIES DUPLEX...
Page 100: Color, System Configuration, And Usb Menus
Note: Menus/Items with a dagger (†) only appear when the appropriate option is installed. Menu COLOR MENU SYS CONFIG MENU USB MENU C5650n/C5650dn User’s Guide Item DENSITY CONTROL ADJUST DENSITY AJST REGSTRATION C REG FINE AJST M REG FINE AJST...
Page 101: Network And Memory Menus
Network and Memory Menus Note: Menus/Items with a dagger (†) only appear when the appropriate option is installed. Menu NETWORK MENU MEMORY MENU† C5650n/C5650dn User’s Guide Item TCP/IP NETBEUI IP ADDRESS SET IP ADDRESS SUBNET MASK GATEWAY ADDRESS FACTORY DEFAULTS...
Page 102: System Adjust And Maintenance Menus
System Adjust and Maintenance Menus Note: Menus/Items with a dagger (†) only appear when the appropriate option is installed. Menu SYS ADJUST MENU MAINTENANCE MENU C5650n/C5650dn User’s Guide Item X ADJUST Y ADJUST DUPLEX X ADJUST DUPLEX Y ADJUST DRUM CLEANING...
Page 103: Usage Menu
Usage Menu Menu USAGE MENU C5650n/C5650dn User’s Guide Item TOTAL PAGE COUNT TRAY1 PAGE COUNT TRAY2 PAGE COUNT† MPT PAGE COUNT COLOR PAGE COUNT MONO PAGE COUNT K DRUM LIFE C DRUM LIFE M DRUM LIFE Y DRUM LIFE BELT LIFE...
Page 104: Options
The basic printer comes equipped with 64 MB of main memory. This can be upgraded with an additional memory board containing • 64 MB (Oki 70042801), increasing the memory to 128 • 256 MB (Oki 70042901), increasing the memory to 320 C5650n/C5650dn User’s Guide...
Page 105: Second Paper Tray
The second paper tray takes: • Up to 530 sheets of 20-lb. paper. • All the same size media as Tray 1 except A6. • Paper weight range 16 to 57 lbs. (60 to 203 g/m C5650n/C5650dn User’s Guide Options • 105...
Page 106: Specifications
Multi-Purpose Tray: 20 to 54 lb. (75 to 203 g/m²) Paper output Top Exit (Face Down Stacker): 250 sheets 20-lb. 75 g/m² paper Rear Exit (Face Up Stacker): 100 sheets 20-lb. 75 g/m² Printer life 420,000 pages or 5 years, whichever comes first C5650n/C5650dn User’s Guide Specifications • 106...
Page 107 Standard cartridge: approximately 2,000 pages at 5% coverage High-capacity cartridge: approximately 5,000 pages at 5% coverage Image drum life 20,000 pages at 3 pages per job Belt life 60,000 letter-size pages Fuser life 60,000 letter-size pages C5650n/C5650dn User’s Guide Specifications • 107...
Page 108: Troubleshooting
• “Paper Size Change Request” see page 142 • “Printer does not go online” see page 142 • “Printer makes a strange noise” see page 142 • “Printer takes a long time to start printing” see page 143 • “Printing cancels” see page 143 •...
Page 109: Display Panel Messages
* TONER SENSOR ERROR ADD MORE MEMORY 420: MEMORY OVERFLOW CANCELLING JOB (JAM) CHECK BELT 330: BELT MISSING C5650n/C5650dn User’s Guide Display Panel Messages • 109 Meaning What to Do Flashes across the Open the top cover second line of the...
Page 110 CLOSE COVER nnn: COVER OPEN INSTALL PAPER CASSETTE 430: TRAY 1 MISSING INSTALL PAPER CASSETTE 440: TRAY 1 OPEN C5650n/C5650dn User’s Guide Display Panel Messages • 110 Meaning What to Do The fuser unit is not Open the top cover properly installed.
Page 111: Paper Jams
OPEN FRONT COVER nnn: PAPER JAM OPEN TOP COVER nnn: PAPER JAM ORDER xxx POWER ON/OFF 300: NETWORK ERROR C5650n/C5650dn User’s Guide Display Panel Messages • 111 Meaning What to Do Print job from MP Load the requested Tray has been...
Page 112 REPLACE TONER nnn: * TONER EMPTY REPLACE yyyy nnn: yyyy LIFE tttt EMPTY xxx LIFE YYYY nnn: FATAL ERROR C5650n/C5650dn User’s Guide Display Panel Messages • 112 Meaning What to Do The printer has Press ON-LINE. received invalid Reprocess and resend data.
Page 113: Print Quality Problems
Fading, in patches Possible cause The paper is moist. C5650n/C5650dn User’s Guide Print Quality Problems • 113 Remedy Clean LED with lens cleaner or soft tissue. Replace toner cartridge. See “Replace a Toner Cartridge” on page 54.
Page 114: Fading, Vertically
The toner cartridge is incorrectly installed. Toner is low. The paper is moist. Paper is unsuitable for printer. C5650n/C5650dn User’s Guide Print Quality Problems • 114 Remedy Clean LED head with lens cleaner or soft tissue. Change toner cartridge. Use recommended paper.
Page 115: Lines, Black (Vertical)
The fuser roller is damaged. Change the fuser. See “Replace the Fuser” on page 71. The image drum Remove the image drum from the printer and store it in has been a dark place for several hours. If this does not work, exposed to replace the image drum.
Page 116: Shading On Unprinted Sections
Media Type settings may not be appropriate. Packing materials were left on the fuser when it was installed. C5650n/C5650dn User’s Guide Print Quality Problems • 116 Remedy Store paper within specified temperature and humidity levels. See “Specifications” on page 106.
Page 117: Paper Jams
Configuration Menu. It must be set to ON. See “Changing Settings” on page 83. • If paper jams are frequent: see page 118 • Jam is cleared, but printer does not print: see page 118 • Jam 370: see page 119 • Jam 371: see page 121 •...
Page 118: If Paper Jams Are Frequent
Possible cause The top cover has not remained open until all paper jams have been cleared. C5650n/C5650dn User’s Guide Remedy Place the printer on a stable, level surface. Use the correct type of paper. See “Paper Weights” on page 14.
Page 119: Jam 370, 373 And 383
Jam 370, 373 and 383 OPEN DUPLEX COVER nnn: PAPER JAM nnn = 370, 373, 383 Press the duplex cover release. Open the duplexer cover. c53_54_duplex1.jpg Remove any jammed sheets. c53_65a_jamduplex1.jpg C5650n/C5650dn User’s Guide Paper Jams • 119...
Page 120 Close the duplex unit cover. c53_95a_duplexjam.jpg C5650n/C5650dn User’s Guide Paper Jams • 120...
Page 121: Jam 371
Jam 371 OPEN DUPLEX COVER 371: Paper Jam Turn off the printer. Pull out the duplexer. c53_96_jam371a.jpg Pull the duplexer lid to unlock it. c53_97_jam371b.jpg C5650n/C5650dn User’s Guide Paper Jams • 121...
Page 122 Open the lid. Remove the jammed sheet. c53_98_jam371c.jpg Close the lid. Push it back to lock it in place. c53_97_jam371b.jpg C5650n/C5650dn User’s Guide Paper Jams • 122...
Page 123 Push the duplexer back into the printer. c53_96_jam371a.jpg Turn on the printer. C5650n/C5650dn User’s Guide Paper Jams • 123...
Page 124: Jam 372 And 380
Jam 372 and 380 OPEN FRONT COVER nnn: PAPER JAM nnn = 372 or 380. Lift the front cover release. Pull open the front cover. c53_58_frcvropen.jpg Remove any jammed sheets. c53_66_jamfront.jpg C5650n/C5650dn User’s Guide Paper Jams • 124...
Page 125 Close the front cover. c53_57_frcvrclose.jpg C5650n/C5650dn User’s Guide Paper Jams • 125...
Page 126: Jam 381
Jam 381 OPEN TOP COVER 381: Paper Jam Press the cover release. Fully open the printer’s top cover. c53_02_opencvr.jpg Note the positions of the four image drums: Cyan (1), Magenta (2), Yellow (3), Black (4). It is essential that they go back in the correct order! c53_09_lidup.jpg...
Page 127 This area is clearly labelled. Do not touch it. Lift each of the image drum/toner cartridge units out of the printer. Place them on a flat surface in a safe place away from direct sources of heat and light.
Page 128 • Do not expose it to normal room light for more than 5 minutes. • If the image drum must be out of the printer for longer than 5 minutes, place the image drum inside a black plastic bag or carefully place it in a drawer or cabinet to keep it away from light.
Page 129 To remove a sheet trapped in the fuser: Grasp the edge of the sheet. Push the fuser pressure release lever (1) towards the front and down. Lift out the sheet. Let go of the fuser pressure release lever. c53_64_jambelt2.jpg C5650n/C5650dn User’s Guide Paper Jams • 129 NOTE...
Page 130 Place the four image drums/toner cartridges back in the printer. Be sure to place them in the proper sequence = Cyan, = Magenta, c53_09_lidup.jpg Close the top cover. c53_45_latchcvr.jpg C5650n/C5650dn User’s Guide = Yellow, Paper Jams • 130 = Black).
Page 131: Jam 382
Open the top cover. c53_02_opencvr.jpg Gently pull the sheet out. • If the sheet does not come out easily, go to the next step. • If the sheet does come out, close the cover. c53_68_jamtop_crop.jpg C5650n/C5650dn User’s Guide Paper Jams • 131...
Page 132 Lower the rear exit tray. c53_70a_rear1.jpg Pull out the jammed sheet. c53_67a_jamrear.jpg C5650n/C5650dn User’s Guide Paper Jams • 132...
Page 133 To get it out, reach around the top cover and press down on the fuser pressure release lever (1) before pulling the sheet out. Then let go of the fuser pressure release lever. c53_91_jam382_3.jpg Close the rear exit. c53_70a_rear1.jpg C5650n/C5650dn User’s Guide Paper Jams • 133...
Page 134 Close the top cover. c53_45_latchcvr.jpg C5650n/C5650dn User’s Guide Paper Jams • 134...
Page 135: Jam 390
Sheet has just entered the printer Gently pull the sheet out of the printer. c53_81_jammptray.jpg Sheet can’t easily be pulled out from the front Lift the front cover release. Pull open the front cover. c53_102_jam390.jpg C5650n/C5650dn User’s Guide Paper Jams • 135...
Page 136 Remove any jammed sheets. c53_94_jam390.jpg Close the front cover. c53_102_jam390.jpg C5650n/C5650dn User’s Guide Paper Jams • 136...
Page 137: Jam 391 And 392
PAPER JAM nnn = 391 or 392 Pull out the appropriate tray. 391 = Tray 1 392 = Optional Tray 2. Remove any sheet jammed as it exited the tray. c53_101a_jam392.jpg, c53_100a_jam391.jpg C5650n/C5650dn User’s Guide Paper Jams • 137...
Page 138 Open the front cover. c53_58_frcvropen.jpg Remove any jammed sheets. c53_66_jamfront_crop.jpg Close the front cover. c53_57a_frcvrclose.jpg C5650n/C5650dn User’s Guide Paper Jams • 138...
Page 139: Usb Problems
Configuration procedure was not correctly followed or cancelled. USB cable is disconnected or faulty. A USB hub is being used. The printer cannot be used with a USB hub. The USB cable is installed in the Ethernet port. C5650n/C5650dn User’s Guide Remedy Use USB cable to specification Ver.2.0.
Page 140: Cannot Print
Cannot print • PRNUSBx write error is displayed. Possible cause Interface is disabled. In the printer menu settings, enable the USB Printer is switched OFF. Printer interface cable is disconnected. A converter, buffer, extension cable or USB hub is being used.
Page 141: Application Error
Print file is corrupted. Memory is insufficient for application. Printer driver is incorrectly configured. C5650n/C5650dn User’s Guide Remedy Upgrade the application. Close all other applications. Correct or recreate the file. Increase computer’s memory. Correctly configure printer driver. Application error • 141...
Page 142: Paper Size Change Request
ON-LINE. Remedy Switch off the printer and disconnect the power cable. Reconnect the power cable and switch the printer on. If this does not clear the fault, call for service. Remedy Place the printer on a stable, level surface.
Page 143: Printer Takes A Long Time To Start Printing
The time out setting is too short. C5650n/C5650dn User’s Guide Printer takes a long time to start printing • 143 Remedy In the printer menu settings, set power save to a higher value to increase the length of time before entering power save mode (SYS CONFIG MENU →...
Page 144: Printing Does Not Start
Print resolution is set high. Data is too complex. C5650n/C5650dn User’s Guide Printing does not start • 144 Remedy Check the control panel. If an error message is displayed, correct the problem. Remedy Use a computer with a faster processor.
Page 145: Cleaning
OS 10.3 and later Use this to generate a cleaning page which runs through the printer before the job is printed. This should eliminate any fading, streaking or erratic marks from the printed pages. Open the file you want to print.
Page 146: Printer Drivers
See your printed Setup Guide for information on installing the driver supplied with your printer. You can also go to http://my.okidata.com to see/download a copy of the Setup Guide or for the latest information on printer drivers. For more information about working with your printer driver, refer to the appropriate operating system.
Page 147: Macintosh
Select “Reverse page order” to print the last page of the document first. This is useful when you are printing to the straight-through, rear (face up) exit required for heavy paper, labels, envelopes and transparencies. See “Paper Handling” on page 150. C5650n/C5650dn User’s Guide Printer Drivers • 147...
Page 148: Summary
Standard Preset. Create a New Preset Make all the printer settings you wish to save as a Preset. Select Summary. Review the settings to make sure you have all the settings you want to save.
Page 149: Delete A Preset
On Hold [until you come back and select Now] At Priority, select the urgency of your print job. If your job competes with other documents in the print queue, this setting determines the printing priority of your job. C5650n/C5650dn User’s Guide CAUTION! Printer Drivers • 149...
Page 150: Paper Handling
(face up) exit required for heavy paper, labels, envelopes and transparencies. Print All Pages Odd numbered pages Even numbered pages Use this to print only the odd or only the even pages in your document. C5650n/C5650dn User’s Guide Printer Drivers • 150...
Page 151: Printer Features
N Up (multiple pages on one sheet): see page 204 Photographs: see page 207 Posters: see page 210 Print Resolution: see page 211 Save as File: see page 215 Toner Saving: see page 216 Watermarks: see page 220 C5650n/C5650dn User’s Guide Printer Features • 151...
Page 152: Banners
Width Range = 8¼ to 8½'' (210 to 215.9 mm) • Weight Range = 28 to 34 lb. US Bond (105 to 128 g/m2) • Path = Rear Exit (Face Up Stacker) only • Feed one sheet at a time. C5650n/C5650dn User’s Guide Banners • 152...
Page 153: Windows
Information, on page 152. Before you print a banner, you must set Multi Purpose Tray is Manual feed to ON in the printer driver. The default is OFF. The printer operator panel will prompt you to load the media before the job prints.
Page 154: Black Printing
General Information Your printer prints the color black in one of two ways: • Composite Black • True Black Composite Black The cyan, magenta, yellow, and black toners are combined to create composite black. Use composite black when printing photographs.
Page 155: Windows
True Black Normally, the printer prints black using all four toner colors (Composite Black). If you do a lot of black-only printing, set the printer to use only black toner (True Black). Individual Print Jobs When you print a job, click on the driver’s Color tab Click in the box next to Grayscale.
Page 156: Black Finish
Click Print. The document prints. All Print Jobs (Default) Click Start → Settings → Printers [Printers and Faxes in Windows XP]. Right-click the printer name. Next Windows 2000/XP: Select Properties. Click Printing Preferences. C5650n/C5650dn User’s Guide NOTE Black Printing • 156...
Page 157 This option produces printing with a more glossy finish. Matte This option uses more Black and less CMYK while producing a flatter black. Change any other settings as desired. Click Print. The document prints. C5650n/C5650dn User’s Guide Black Printing • 157...
Page 158: Macintosh
Choose the type of black finish. Gloss This option produces printing with a more glossy finish. Matte This option uses more Black and less CMYK while producing a flatter black. Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide Black Printing • 158...
Page 159: Booklets (Binding Print)
Both the duplex unit and additional memory must be installed and enabled in the driver before using booklet printing. Some applications do not support booklet printing. Please read the Notes (below). C5650n/C5650dn User’s Guide Booklets (Binding Print) • 159...
Page 160 • print an 8½ x 11 inch booklet on 11 x 17 inch paper Most applications allow the printer properties to be accessed from within the document print dialog box. Application settings override driver settings. Driver settings override printer menu settings. C5650n/C5650dn User’s Guide Booklets (Binding Print) • 160 NOTES...
Page 161: Windows
Booklets. Click Options. Enter your settings. Click OK. Next: Windows Vista/XP: click OK. Windows 2000: go to the next step. Next: Windows Vista/XP: click Print. Windows 2000: click Print. C5650n/C5650dn User’s Guide Booklets (Binding Print) • 161 NOTES...
Page 162: Collating
General Information If your software application has a collate option, use it instead of the collate option in the printer driver. This prevents any conflicts between the software application and the printer driver. Most applications allow the printer properties to be accessed from within the document print dialog box.
Page 163: Windows
Windows If your software application has a collate option, use it instead of the collate option in the printer driver. This prevents any conflicts between the software application and the printer driver. Most applications allow the printer properties to be accessed from within the document print dialog box.
Page 164: Macintosh
Pages. At Collated, make your selection. If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. Change any other settings as desired. Click Print C5650n/C5650dn User’s Guide Collating • 164...
Page 165: Color Matching
• background information The background information explains the factors that affect color matching. See page 166. • how-to information The how-to information explains how to perform color matching with your printer. See page 182. C5650n/C5650dn User’s Guide NOTE Color Matching • 165...
Page 166: Background Information
Factors that Affect Color Printing: see page 167 Choosing a Color Matching Method: see page 173 Printing Vivid Colors: see page 178 Color Settings: see page 179 Hue, Brightness, and Saturation: see page 180 C5650n/C5650dn User’s Guide NOTE Color Matching • 166...
Page 167: Factors That Affect Color Printing
There are many factors that affect color printing. Some of the most important factors are: • the differences between the range of colors a monitor can reproduce versus the range of colors that a printer can reproduce. See page 168. • monitor settings. See page 169.
Page 168 (Differences between the range of colors a monitor or printer can reproduce) Neither a printer nor a monitor can reproduce the full range of colors seen by the human eye. Each device is limited to a certain range of colors.
Page 169: Monitor Settings
The default setting for many monitors and television sets. *k = degrees Kelvin, a measurement of temperature Macintosh You can calibrate your monitor’s color regimen in System Preferences → Displays → C5650n/C5650dn User’s Guide NOTE Color. Color Matching • 169...
Page 170: Software Settings
, Adobe ® ® Photoshop , or Macromedia Freehand may display color ® differently from "office" applications such as Microsoft Word. For more information, please see your application’s online help or user manual. C5650n/C5650dn User’s Guide Color Matching • 170...
Page 171: Printer Driver Settings
Color Matching Factors that Affect Color Printing Printer Driver Settings The color settings in your printer driver can change the appearance of a document. There are several options available to help match the printed colors with those displayed on screen.
Page 172: Lighting (Viewing) Conditions
Paper Type The type of paper used can also significantly affect the printed color. For example, a printout on recycled paper can look duller than one on specially formulated glossy paper. C5650n/C5650dn User’s Guide Color Matching • 172...
Page 173: Choosing A Color Matching Method
• professional desktop publishing and graphics [CMYK]. See page 175. • photographic images. See page 176. • specific colors (i.e., a company logo). See page 177. • printing vivid colors. See page 178. C5650n/C5650dn User’s Guide NOTE Color Matching • 173...
Page 174 See “Advanced Color” on page 185. Grayscale This option prints all documents as monochrome. No color prints. The printer interprets all colors as a variation of grays. See “Grayscale” on page 187. C5650n/C5650dn User’s Guide Color Matching • 174...
Page 175 Desktop Publishing and Graphics applications. Windows and Macintosh 10.3 and later The driver and Color Swatch Utility supplied with your printer support only RBG. If you wish to use CMYK, you might be able to use the software application’s Soft Proofing feature.
Page 176: Matching Photographs
See “Color Settings” on page 179. RGB or CMYK If you are printing photographic images from a graphics application such as Adobe Photoshop, you may be able to use Soft-Proofing to simulate the printed image on your monitor. C5650n/C5650dn User’s Guide Color Matching • 176...
Page 177 Enter the values in your application's color picker RGB or CMYK If you are printing from a graphics application such as Adobe Photoshop, you may be able to use Soft-Proofing to simulate the printed image on your monitor. C5650n/C5650dn User’s Guide Color Matching • 177...
Page 178: Printing Vivid Colors
RGB or CMYK Windows Auto is a generally a good choice. See “Auto Color” on page 183. Macintosh OS 10.3 and later Auto is a generally a good choice. See “Auto Color” on page 183. C5650n/C5650dn User’s Guide Color Matching • 178...
Page 179: Color Settings
Natural. See “Advanced Color” on page 185. Monitor (6500k) Auto The default setting (in Macintosh) that selects the best options for your printer. This selection works best for office situations. Optimized for printing general documents when using a monitor with a color temperature of 6500K.
Page 180: Digital Camera
"dark" colors. Windows and Macintosh 10.3 Brightness can be adjusted when using the Advanced Color or Gray Scale color modes (color matching methods). Advanced Color: see page 185 Gray Scale: see page 187 C5650n/C5650dn User’s Guide Color Matching • 180...
Page 181 Windows and Macintosh 10.3 Saturation can be adjusted when using the Advanced Color or Gray Scale color modes (color matching methods). Advanced Color: see page 185 Gray Scale: see page 187 C5650n/C5650dn User’s Guide Color Matching • 181...
Page 182: List Of Color Matching Methods
The list you see varies according to your computer platform, operating system, color production method, and printer driver type. To change these settings in your printer driver, refer to the appropriate section. • Auto Color: see page 183 • Advanced Color: see page 185 •...
Page 183: Auto Color
Auto Color Your printer automatically uses the best method to match color, depending on the type of document you are printing. Windows Individual Print Jobs The driver’s color options are only designed to work with RGB data. Open the file you want to print.
Page 184 Below Color Mode, at Auto Color, make your selection. If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. Click Print. The document prints. C5650n/C5650dn User’s Guide Color Matching • 184...
Page 185: Individual Print Jobs
Preferences. Click on the Color tab. At Advanced Color, make your selection. If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. C5650n/C5650dn User’s Guide NOTE Color Matching • 185...
Page 186 Below Color Mode, at Advanced Color, make your selection. If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. Change any other settings as desired. Click Print. The document prints. C5650n/C5650dn User’s Guide Color Matching • 186...
Page 187 Grayscale This option prints all documents as monochrome. No color prints. The printer interprets all colors as a variation of grays. Windows Individual Print Jobs The driver’s color options are only designed to work with RGB data. Open the file you want to print.
Page 188 Below Color Mode, at Gray Scale, make your selection. If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide NOTE Color Matching • 188...
Page 189: Color Synch
The following section has examples and explanations of each filter. To see the affect of any of these filters on your document, select Add Filters. Click the filter in the list. Click Apply. C5650n/C5650dn User’s Guide NOTE Color Matching • 189 → Print.
Page 190 Color Matching ____________________ Color Synch Macintosh OS 10.3 Filters None The default. No filters are applied to the document. C32_Mac_10.3_11a.jpg Black & White Converts the document to black and white, with no gray shades. C32_Mac_10.3_11b.jpg C5650n/C5650dn User’s Guide Color Matching • 190...
Page 191 Gray Tone Converts the document to shades of gray. C32_Mac_10.3_11d.jpg Lightness Decrease (A) / Lightness Increase (B) Darkens or lightens the document. The middle picture below is with no filters applied. C32_Mac_10.3_11e.jpg, C32_Mac_10.3_11a.jpg, C32_Mac_10.3_11f.jpg C5650n/C5650dn User’s Guide Color Matching • 191...
Page 192 Reduce File Size This filters the document to reduce its file size. Sepia Tone Converts the document to shades of brown. C32_Mac_10.3_11g.jpg C5650n/C5650dn User’s Guide Color Matching • 192...
Page 193 You can also • add New filters of your choice • Delete filters you have added to the list • set color conversion options such as Rendering Intent (Automatic, Perceptual, Relative, Saturation, Absolute), etc. C32_Mac_10.3_11.jpg C5650n/C5650dn User’s Guide Color Matching • 193...
Page 194: Custom Page Sizes
8½'' x 14'' [216 x 356 mm] • banners from 8¼'' to 8½'' (210 to 215.9 mm) wide by up to 47¼'' (1.2 m) long. Banners must be fed one sheet at a time. C5650n/C5650dn User’s Guide NOTE Custom Page Sizes • 194...
Page 195: Windows
On the Setup tab, under Media, in the Size drop-down list, select User Defined Size from the bottom or select a custom size you have already defined See “Creating and Saving Custom Page Sizes” on page 196. C5650n/C5650dn User’s Guide NOTE Custom Page Sizes • 195...
Page 196 On the Setup tab, click Paper Feed Options. Click Custom Size. For each size, enter a name, width and height. Click Add. When done, click OK. Click OK three more times. C5650n/C5650dn User’s Guide NOTE Custom Page Sizes • 196...
Page 197: Duplex Printing
Paper must be loaded print side up. • Any tray (Tray 1, optional Tray 2, MP tray) can be used for duplex printing. Paper Types Paper only Cannot duplex labels envelopes transparencies C5650n/C5650dn User’s Guide NOTE NOTE Duplex Printing • 197...
Page 198: Paper Sizes
Legal-13 Executive Custom Paper Weights 20 to 28-lb. US Bond 42 to 58 lb. Index 75 to 105 g/m² metric C5650n/C5650dn User’s Guide Inches 8½ x 11 8½ x 14 8½ x 13.5 8½ x 13 7¼ x 10½ 8.27 x 11.69 5.71 x 8.27...
Page 199: Duplexing Restrictions
You cannot duplex • labels • envelopes • transparencies • paper weights above 28 lb. US Bond 58 lb. Index 105 g/m Long Edge vs. Short Edge Long Edge C5650n/C5650dn User’s Guide Important! metric metric Short Edge Duplex Printing • 199...
Page 200: Windows
On the Setup tab, under 2-Sided Printing, make your selection. Choices are Long Edge or Short Edge. Long Edge Next: Windows Vista/XP: Click OK. Windows 2000: go to the next step. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Short Edge Duplex Printing • 200...
Page 201 Follow steps below. Note that the screen for setting defaults will have more tabs. On the Setup tab, under 2-Sided Printing, make your selection. Choices are Long Edge or Short Edge. Long Edge Next: Windows Vista/XP/2000: Click OK twice. C5650n/C5650dn User’s Guide Short Edge Duplex Printing • 201...
Page 202: Macintosh
Open the drop-down list below Presets. Select Duplex. At Duplex, make your selection. Choices are: Off, Long-Edge Binding, and Short-Edge Binding. Long Edge Binding Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide Short Edge Binding Duplex Printing • 202...
Page 203: Grayscale
Grayscale ________________________ This feature is described in the Color Matching section. See “Grayscale” on page 187. C5650n/C5650dn User’s Guide Grayscale • 203...
Page 204: N-Up Printing
Driver settings override printer menu settings. Open the file you want to print. Click File → Print. In the Print dialog box, select your printer. Next: Windows Vista/XP: click Properties. Windows 2000: go to the next step. C5650n/C5650dn User’s Guide NOTE N-Up Printing • 204...
Page 205 When printing multiple pages on one sheet, use this to print a border between the sheets, if desired. Make your selections. Click OK. Next: Windows Vista/XP: Click OK. Windows 2000: go to the next step. Next: Windows 2000: click Print. C5650n/C5650dn User’s Guide N-Up Printing • 205...
Page 206: Macintosh
Use this to set the orientation in which multiple pages are printed on the sheet. Border When printing multiple pages on one sheet, use this to print a border between the sheets, if desired. Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide N-Up Printing • 206...
Page 207: Photographs
On the Job Options tab, select Photo Enhance. Change any other settings as desired. Next: Vista/XP: click OK Windows 2000: go to the next step. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Photographs • 207...
Page 208 Windows 2000: go to the next step. On the Job Options tab, select Photo Enhance. Change any other settings as desired. Next: Vista/XP: click OK Windows 2000: go to the next step. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Photographs • 208...
Page 209: Macintosh
OS 10.3 and later Open the file you want to print. Click File → Print. Open the drop-down list below Presets. Select Print Quality. Select Photo Enhance Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide Photographs • 209...
Page 210: Posters
Click Options... and enter the configuration details. Note: an overlap of at least 0.2 mm must be specified. Click OK. Next: Vista/XP: click OK. Windows 2000: go to the next step. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Posters • 210...
Page 211: Print Resolution
The best quality image the printer provides. Choose this for optimum results when printing graphics. Fine/Detail (600 x 1200) high resolution printing Normal standard resolution. The default. Change any other settings as desired. C5650n/C5650dn User’s Guide Print Resolution • 211...
Page 212 Next: Vista/XP: click OK. Windows 2000: go to the next step. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Print Resolution • 212...
Page 213: Windows Individual Print Jobs
Fine/Detail (600 x 1200) high resolution printing Normal standard resolution. The default. Change any other settings as desired. Next: VistaXP: click OK. Windows 2000: go to the next step. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Print Resolution • 213...
Page 214: Macintosh
The best quality image the printer provides. Choose this for optimum results when printing graphics. Fine/Detail (600 x 1200) high resolution printing Normal standard resolution. The default. Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide Print Resolution • 214...
Page 215: Save As File
If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. At Format, make your selection. Choices are: ® Adobe Acrobat PostScript Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide ® ® Save as File • 215...
Page 216: Toner Saving
Toner Save does not work if Gray Scale is the selected print mode. Toner Save does not work with applications and operating systems that create print data in CIE color space. C5650n/C5650dn User’s Guide NOTES Toner Saving • 216...
Page 217: Windows
If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. Change any other settings as desired Next: Vista/XP: click OK. Windows 2000: go to the next step. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Toner Saving • 217...
Page 218 If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. Change any other settings as desired Next: Vista/XP: click OK. Windows 2000: go to the next step. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Toner Saving • 218...
Page 219: Macintosh
Checking this will enable toner saving, but reduce print quality. If the box has a check mark, the feature is ON. If the box is empty, the feature is OFF. Change any other settings as desired. Click Print. C5650n/C5650dn User’s Guide Toner Saving • 219...
Page 220: Watermarks
Your printer can print an element that performs as a watermark. This element is separate from the actual contents of a document. Examples are printing SAMPLE or INTERNAL USE ONLY on copies of document.
Page 221: Windows
The new watermark appears in the Watermark list. 11. Change any other settings as desired 12. Click OK. 13. Next: Vista/XP: click OK. Windows 2000: go to the next step. 14. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Watermarks • 221...
Page 222 Choices are: On first page only, In background, As outline only 13. Change any other settings as desired 14. Click OK. 15. Next: Windows Vista/XP: click OK. Windows 2000: go to the next step. 16. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Watermarks • 222...
Page 223 Choices are: On first page only, In background, As outline only 10. Change any other settings as desired 11. Click OK. 12. Next: Windows Vista/XP: click OK. Windows 2000: go to the next step. 13. Next: Windows XP/2000: click Print. C5650n/C5650dn User’s Guide Watermarks • 223...
Page 224: Utilities
Utilities screen. Windows • Admin Manager For quick discovery and setup of the Oki network card in your printer. Runs directly off the CD. • Direct Network Printing Utility (LPR) For printing on an Ethernet network without the need for a print server.
Page 225: Installing The Utilities
• Job Accounting Use to control printer access and to monitor consumables usage. Utilities on the Web (Windows Only) Here is a list of the utilities provided via a download from the internet, accessed through the Menu Installer on the CD. For more information, click “Tell me more”...

This manual is also suitable for:

C5650 C 5650n

Oki C5650dn User Manual

Copyright Information •

Notes, Cautions, Etc

Introduction

Parts of the Printer

Paper (Print Media)

Paper Trays

Paper Size, Feed, and Exit

Paper Exit Paths

Loading Paper

Consumables

Printer Settings (Menu Settings)

Options

Specifications

Troubleshooting

Printer Drivers

Printer Features

Utilities

Quick Links

Need help?

Questions and answers

Related Manuals for Oki C5650dn

Summary of Contents for Oki C5650dn
