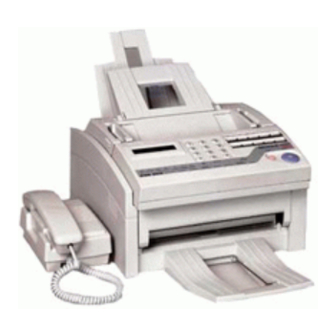

Oki B 4100 Maintenance Manual

Facsimile transceiver
Hide thumbs Also See for B 4100:
1
2
Table Of Contents
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instructions, User Manual
OKIOFFICE44,
OKIFAX 4100/5000 Series

Maintenance Manual

Fourth Edition
2001-08-16
Oki Data Corporation
1 / 637
40055101TH Rev.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B 4100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oki B 4100

Summary of Contents for Oki B 4100

  • Page 1: Maintenance Manual

    OKIOFFICE44, OKIFAX 4100/5000 Series Maintenance Manual Fourth Edition 2001-08-16 Oki Data Corporation 1 / 637 40055101TH Rev.4...
  • Page 2 OKIFAX 5600 Note: 5000 series written in this maintenance manual shows OKIFAX 5200, OKIFAX 5300, OKIFAX 5500, and OKIFAX 5600 model name. © Copyright 1996 Oki Data Corporation This manual is subject to alteration without prior notification. 40055101TH Rev.4 PREFACE...

  • Page 3: Table Of Contents

    4.1.3.5 Roller Assembly-ADF, CIS (contact image sensor), Lever-PC1 and PC2 ...164 4.1.3.6 Board-R44, OKIOFFICE 44/OKIFAX 4100 Power Supply Unit ... 167 4.1.3.7 Option (Board-Memory: MEM, Board-CTR; PC Interface) ...168 4.1.3.8 Printer Unit Section ...169 4.1.3.9 Transfer Roller ... 170 4.1.3.10 High-Voltage Power Supply Unit (TLHV/OLHV) ...171 40055101TH Rev.4...
  • Page 4 4.1.3.16 Pressure Roller B (Back Up Roller) ...177 4.1.3.17 Hopping Shaft Assembly ... 178 4.1.3.18 Paper Sensor E, Paper Sensor Exit and Toner Sensor Assembly ...179 4.1.3.19 Printer Unit ... 180 4-2.MECHANICAL DISASSEMBLY AND REASSEMBLY FOR OKIFAX 5100 SERIES ... 181 General ...
  • Page 5 7.2.21 Document Jam ... 319 7.2.22 Printer Unit ... 320 7.2.22.1 Precautions ...320 7.2.22.2 Troubleshooting Flow Charts of Printer Unit ... 321 8.DIPSWITCHS SETTING TABLE LIST ...337 APPENDIX A PC BOARD DESCRIPTIONS AND OPERATION ... 361 APPENDIX B1 DESCRIPTIONS OF PRINT OPERATION (OKIOFFICE44/OKIFAX 4100) ...

  • Page 6: General Information

    (7) Automatic document feeder (ADF) • 20 sheets for OKIOFFICE44/OKIFAX 4100 ((NA Letter/A4-size: 20-1b bond. Oki Data recom- mended paper) • 30 sheets for OKIFAX 5000 series (NA Letter/A4-size: 20-1b bond. Oki Data recommended paper) • 15 sheets (NA Letter/A4-size: 13 to 28-1b bond)
  • Page 7 (11) Copy stacker • Max. 30 sheets for OKIOFFICE44/OKIFAX 4100 (20-lb bond) • Max. 100 sheets for OKIFAX 5000 series (20-lb bond) *: Oki Data recommended paper (12) Scanning resolution a) Horizontal: • 8 pels/mm for OKIOFFICE44/OKIFAX 4100 • 8 pels/mm for OKIFAX 5200/5500 of INT’L version •...
  • Page 8 This is Phase C time at 3.85 line/mm and 28800 bps for 3 sec. and 14400 bps for 6 sec. in MMR code transmission. (22) Protocol • ITU-T Rec. T.30 • OKI special protocols: (23) Error correction mode (ECM) (24) Communication mode • Half duplex (25) Memory capacity •...

  • Page 9: General User's Function

    General User's Function (1) Transmit mode • Automatic transmit mode • Manual transmit mode (2) Receive mode • Automatic receive mode • Manual receive mode • TEL/FAX automatic switchover mode • TAD mode (3) Dual access (OKIFAX 5000 series) (4) Voice request (5) Automatic redial (6) Last number redial (Manual redial) (7) Local copy including multiple copies...
  • Page 10 (35) Closed users group (Direct mail rejection) (36) Transmission contrast and resolution control (37) Key touch tone (38) Printer counter display (For drum, toner, total print) (39) Total page counter (Scan) (40) Quick scanning 6 sec. minimum Quick scanning 3 sec. minimum 40055101TH Rev.4...
  • Page 11 (41) Date and clock adjustment (42) PC interface (option) • Standard: OKIOFFICE44 • Option: OKIFAX 4100/5200/5300/5500/5600 (43) Language selection • 2 languages (LCD and Reports) (42) Fax fowarding (for OKIFAX 5500/5600) (44) Reports (Rev.2) • Activity report • Protocol report (Service man setting) •...

  • Page 12: General Maintenance Functions

    General Maintenance Functions (1) Self-diagnosis • CPU ROM/RAM check • FLASH (/MASK) memory check (Program, Language, Default) • RAM check • RAM check (MEMORY board: option) • PC-IF board (parallel) check • Print test (2) Sensor calibration (Adjustment of scanning level) (3) LED test (4) Tone send test (5) Multi-frequency (MF) send test...

  • Page 13: General Appearance

    General Appearance Figure 1.4.1 shows the general appearance of the OKIOFFICE44/OKIFAX 4100. Figure 1.4.2 shows the general appearance of the OKIFAX 5000 series. Figure 1.4.3 shows the control panel of the OKIOFFICE44/OKIFAX 4100. Figure 1.4.4 shows the control panel of the OKIFAX 5200/5300. Figure 1.4.5 shows the control panel of the OKIFAX 5500/5600.
  • Page 14 Document stacker Control panel Document tray Telephone handset (option) Copy stacker Sub-paper tray Recording paper cassette Manual paper feeder cover Figure 1.4.2 General Appearance of OKIFAX 5000 series 14 / 40055101TH Rev.4...
  • Page 15 8.5" A4 PQRS EX FINE PHOTO FINE LIGHT NORMAL DARK HOOK HYPHEN AUTO REC SEARCH V.REQUEST BROADCAST DELAYED CONF.TX FEEDER TX REPORT COUNTER LOCATION PRINT DISPLAY PROG. WXYZ OKIFAX STOP UNIQUE ALARM SELECT REDIAL AUTO DIAL FUNCTION COPY RELAY POLLNG INIT.-TX 9/PAUSE 10/PAUSE...
  • Page 16 AUTO REC FUNCTION SERCH AUTO DIAL HYPHEN COPY V.REQUEST PHOTO RX FINE PQRS WXYZ TONE UNIQUE 8.5" A4 SELECT DELAYED BROADCAST CONF.TX RELAY FEEDER TX INIT.-TX REPORT COUNTER LOCATION USER MSG. PRINT PRINT DISPLAY PROG. PROG. FROM MEMORY REDIAL 13/+ 14/SPACE HOOK OKIFAX...

  • Page 17: Basic Performance Specifications

    Basic Performance Specifications Table 1.5.1 shows basic performance specifications. Note: Technical function setting Function program setting One-touch key pressed SELECT FUNCTION key pressed Table 1.5.1 (1/10) Basic Performance Specifications Item Applicable line Line interface 1) Impedance Rev.3 2) Sending power level 3) Receiving power level Type of document to be transmitted Rev.3...
  • Page 18 Table 1.5.1 (2/10) Basic Performance Specifications Item Effective reading width Rev.2 Communication Document width Mode/Paper width ISO A4 (210 mm) [INT'L/FTZ] NA letter (216 mm) [US/CANADA] NA legal (216 mm) [US/CANADA] Note Local copy: Pritable reading width in local copy mode Automatic document feeder (ADF) Rev.3 Document skew...
  • Page 19 3) Weight, thickness and condition: Note: One single sheet only should be loaded on the manual loading feeder for any one occasion. For best results use Oki Data recommended papers 1) Xerox 4200 (20 - lb/base weight paper) 2) L-type paper for photo-printers...

  • Page 20: For Okioffice44/Okifax 4100

    Table 1.5.1 (4/10) Basic Performance Specifications Item Effective recording area Rev.2 Note: These tables do not include vertical and horizon- tal addressing deviations (+ or –2 mm) of recording paper. For OKIOFFICE44/OKIFAX 4100: Printable area NA LETTER SIZE inch 279.4 10.76 273.4 203.2...
  • Page 21 Maximum sheets on the copy stacker: 30* For OKIFAX 5000 series: The fax can discharge printed copies and stack them facedown. Maximum sheets on the copy stacker: 100* Note*:Oki Data recommended paper Horizontal: • 8 pel/mm for OKIOFFICE44/OKIFAX 4100 and OKIFAX 5200/5500 of INT’L version.
  • Page 22 LCD display will show “MSG. IN MEMORY”, and the ALARM LED turns on. 0 ms, when receiving from an Oki Data facsimile. 5 ms at 7.7 line/mm and 10 ms at 3.85 line/mm when receiving from a non-Oki Data facsimile.
  • Page 23 Note 2: V.34 modern performs the fall-back depending upon the line condition automatically. 1) ITU-T Rec. T.30 2) Oki Data special protocol High-speed protocol The T.30 protocol signal from the transmitting station is sent at message transmission speed instead of 300 bps.
  • Page 24 This is Phase C time at 3.85 line/mm and 28800 bps for 3 sec. and 14400 bps for 6 sec. in MMR code transmission. ITU-T Error correction mode (ECM) Oki Data ITU-T ECM Half-duplex 25 to 150 V r.m.s. Inoperative below 10 V 20 to 68 Hz One-ringing signal or 5 to 30 seconds.
  • Page 25 3) PC FaxModem function 4) Location Programing function Note: This function will be supplied as the OKIFAX 4100/5200/ 5300/5500/5600 option in case Oki Data can get the approval in respective countries without modifying the optional unit. For, details, see product specification for MFP.
  • Page 26 Table 1.5.1 (10/10) Basic Performance Specifications Item 0 C64% 0 C10% Area enclosed by lines with Area enclosed by lines with (Note) Dimension (Main body) Rev.2 Weight (Main body) Attachment (to the main body) 40055101TH Rev.4 Temperature and Humidity Conditions 28 C85% 18 C80% 27 C80%...

  • Page 27: Reports And Lists

    Reports and Lists Table 1.6.1 shows Reports and Lists Specifications. Note: F +OT: Press FUNCTION and One-touch key Function program setting Technical function setting Table 1.6.1 (1/2) Reports and Lists Specifications Item Call-back message Sender ID Transmitting subscriber identification(TSI) printing Cancel report (Power outage report) Activity report...
  • Page 28 Table 1.6.1 (2/2) Reports and Lists Specifications Item Confidential reception report Rev.3 Telephone directory Configuration report 40055101TH Rev.4 Specifications OKIFAX 5000 series can print out this report automatically on completion of a confidential reception. This directory is printed manually. (REPORT PRINTING +3) This report is printed manually.

  • Page 29: Sender Id Format: (Example)

    (6) Sender's call back telephone number 07/01/96 15:06 Date and Time Sender ID Receiver's CSI/Personal ID Session number Page number 40055101TH Rev.4 OKI SHIBAURA OKI HONJO CALL BACK SHIBAURA Sender ID Format: (Example) OKI ABC 1234 3454 2000 NO.002 (F050-C1-002) NO.021 (F050-C1-003) 29 /...
  • Page 30 TSI Printing and Local Date and Time Printing Format: (Example) 07/01/96 15:48 3454 1999 TSI printing Local date and time printing (F050-C1-004) Note: TSI printing (TF+05) Local date and time printing (TF+04) 30 / 40055101TH Rev.4...

  • Page 31: Power Outage Report

    Note: Memory reception only is printed on the mode in the report as called. 40055101TH Rev.4 Cancel Report Format: (Example) 05/19/96 ID=OKI DISTANT STATION ID MODE 0485-88-3385 ODS TAKASAKI OKI FAX BOX=01 03-5476-4300 CALLED 034567092222 FWD-T 0495-22-5400 CALLED B.C. 17:05...

  • Page 32: Activity Report

    03'25" 05/19 16:04 03'30" 40055101TH Rev.4 Activity Report Format: (Example) ACTIVITY REPORT 05/19/96 ID=OKI CALLED=17:30' DISTANT STATION ID MODE OKI FAX CALLING 0485 88 3385 CALLING ODS TAKASAKI CALLING OKI FAX CALLING 03 5476 4300 CALLING ODS TAKASAKI BOX=01 OKI FAX...
  • Page 33 (10) Number of transmitted pages or received pages (11) Result code OK (Note1)/NO/STOP (Note 2)/BUSY/PAPER (Out of recording paper)/S_JAM (Document jam)/R_JAM (Recording paper jam)/COVER/COMP (Completion of a broadcast)/PUNIT (Printer Alarm)/CANCL (Confidential reception T.O.) Note 1: The following cases are included: • Unmatched handshaking to the received NSF.

  • Page 34: Message Confirmation

    Message Confirmation Report Format (1/2): (Example) DATE S.R-TIME 07/01 00'20" 40055101TH Rev.4 MESSAGE CONFIRMATION DISTANT STATION ID MODE OKI FAX CALLING 07/01/96 08:05 ID=OKI (10) PAGES RESULT 0000 (F050-C1-008 1/2) 34 /...
  • Page 35 (8) Number of transmitted pages or received pages (9) Result of the communication Reference to ACTIVITY REPORT (10) Service code (11) Message 40055101TH Rev.4 MESSAGE CONFIRMATION DISTANT STATION ID MODE OKI FAX B.C. OKIFAX No.022 150 km 07/01/96 17:05 ID=OKI (10) PAGES RESULT...

  • Page 36: Broadcast Entry Report

    94 = 94 97 = 97 KEYPAD 1234 2345 3456 4567 40055101TH Rev.4 07/01/96 ID=OKI LOCATION ID 2 = OT2 5 = OT5 8 = OT8 11 = OT11 14 = OT14 17 = OT17 20 = OT20 23 = OT23...

  • Page 37: Broadcast Confirmation Report

    DATE TIME S,R-TIME 07/01 00:20 00'00" *2: Identification of remote station Personal ID or CSI 40055101TH Rev.4 07/01/96 17:05 ID=OKI PAGES RESULT LOCATION ID 2 = OT2 4 = OT4 02 = AD2 04 = GERMAN 07/01/96 ID=OKI DISTANT STATION ID...
  • Page 38 111 222 333 456 456 456 444 555 666 789 789 789 777 888 999 000 111 222 444 555 666 1234 5678 90123 0273 28 1234 07/01/96 19:19 ID=OKI DATA CORP. PRM. ECHO (OFF) (OFF) (OFF) (OFF) (OFF) (OFF) (OFF) (OFF)
  • Page 39 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 #2 ONE TOUCH AUTO DIAL #3 ONE TOUCH AUTO DIAL #4 ONE TOUCH AUTO DIAL #5 ONE TOUCH AUTO DIAL 40055101TH Rev.4 9 10 07/01/96 19:20 ID=OKI DATA CORP. 39 /...
  • Page 40 Telephone Directory for OKIFAX 5200/5300 (1/4): (Example) TELEPHONE DIRECTORY P1 LOCATION ID ONE TOUCH OKI SERVICE 40055101TH Rev.4 TEL NO. 123 123 456 111 222 333 07/01/96 18:31 ID=OKI PRM. ECHO (OFF) (OFF) (OFF) (OFF) (OFF) (OFF) (OFF) (OFF) (OFF)
  • Page 41 Telephone Directory for OKIFAX 5200/5300 (2/4): (Example) TELEPHONE DIRECTORY P2 LOCATION ID AUTO DIAL ODC TAKASAKI 40055101TH Rev.4 07/01/96 18:31 ID=OKI TEL NO. 1234 56 7890 1234 56 7780 (F050-C1-017) 41 /...
  • Page 42 5 10 15 AUTO DIAL 07 30 40 ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL 40055101TH Rev.4 9 10 11 12 13 14 15 07/01/96 18:32 ID=OKI 42 /...
  • Page 43 Telephone Directory for OKIFAX 5200/5300 (4/4): (Example) TELEPHONE DIRECTORY P4 GROUP NUMBER = #8 #9 #10 ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL #10 ONE TOUCH AUTO DIAL 40055101TH Rev.4 07/01/96 18:32 ID=OKI (F050-C1-019) 43 /...
  • Page 44 Telephone Directory for OKIFAX 5500/5600 (1/6): (Example) TELEPHONE DIRECTORY P1 LOCATION ID ONE TOUCH OKI SERVICE NEW YORK OT4 ABC XYZ CO. UK PLANT GERMANY FRANCE TOKYO 40055101TH Rev.4 TEL NO. 0001 123 345 0101 123 567 0002 0102 0003...
  • Page 45 TOKYO 5 FRANCE GERMANY ITALY SPAIN DENMARK FINLAND SWITLAND OSAKA TAKASAKI HONJO SHIBAURA 40055101TH Rev.4 07/01/96 17:05 ID=OKI TEL NO. 1001 111 222 1002 111 333 1003 1004 1005 1006 1007 1008 1009 1010 1011 567 890 1012 571 123...
  • Page 46 Telephone Directory for OKIFAX 5500/5600 (3/6): (Example) TELEPHONE DIRECTORY P3 LOCATION ID AUTO DIAL OKIDATA 40055101TH Rev.4 07/01/96 17:05 ID=OKI TEL NO. 234 5678 46 /...
  • Page 47 GROUP NUMBER = #1 #2 #3 #4 #5 #6 #7 ONE TOUCH AUTO DIAL #2 ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL 40055101TH Rev.4 07/01/96 17:05 ID=OKI 47 /...
  • Page 48 ONE TOUCH AUTO DIAL ONE TOUCH AUTO DIAL #10 ONE TOUCH AUTO DIAL #11 ONE TOUCH AUTO DIAL #12 ONE TOUCH AUTO DIAL #13 ONE TOUCH AUTO DIAL #14 ONE TOUCH AUTO DIAL 40055101TH Rev.4 07/01/96 17:05 ID=OKI 48 /...

  • Page 49: Telephone Directory P6

    GROUP NUMBER = #15 #16 #17 #18 #19 #20 #15 ONE TOUCH AUTO DIAL #16 ONE TOUCH AUTO DIAL #17 ONE TOUCH AUTO DIAL #18 ONE TOUCH AUTO DIAL #19 ONE TOUCH AUTO DIAL #20 ONE TOUCH AUTO DIAL 40055101TH Rev.4 07/01/96 17:05 ID=OKI 49 /...
  • Page 50 *4 Function 19 is only for OKIFAX4100/5200/5500(See page 1-20, No.35 and 36) 40055101TH Rev.4 Configuration Report (User) CONFIGURATION 07/01/96 ID=OKI 02:MCF (MULTI-LOC.) 03:ERR.REPORT (MCF) 05:SENDER ID. 06:MONITOR VOLUME 08:CLOSED NETWORK...
  • Page 51 TYPE1 31:SYMBOL RATE 3200 Note: No. 30 is only for OKIOFFICE44/OKIFAX4100. No. 31 is only for OKIFAX5500/OKIFAX5600. 40055101TH Rev.4 CONFIGURATION 07/01/96 ID=OKI 02:MONITOR CONT. 03:COUNTRY CODE 05:TSI PRINT 06:NO TONER MEM. RX 08:REAL TIME DIAL 09:TEL/FAX SWITCH TYPE2 11:LONG DOC. SCAN...

  • Page 52: Installation Procedure

    INSTALLATION PROCEDURE Setup Information General The following flowchart outlines the installation procedure. Site selection Unpacking Check of contents Installation of attachments AC cord connection Telephone and line connections Packing for shipment General procedure key operations Technical functions Technical functions example User's functions User's functions example Clock adjustment...
  • Page 53 Dual access operations System data programming One-touch key programming Two-digit auto dial programming Group setting Dial parameter settings Programming mail box password Memory operations Off-line tests On-line tests Installation of optional units * : See user's guide 40055101TH Rev.4 (See 2.9.7) (See 2.9.8) TSI/sender ID included.

  • Page 54: Site Selection

    Site Selection INSTALLATION Precautions for Installation (1) Fluctuation in line voltage • 120VAC (102V to 127V) • 230VAC (198V to 264V) (2) Room temperature 50 to 90 F (10 to 32 C) (3) Humidity 20 to 80% RH (4) Operating environment Pressure: Equivalent to altitude of 2500 m and below.
  • Page 55 (196mm) (46mm) 11.81" (300mm) In case of scanning length (Max. 14 inches: 356mm) Note: This space is necessary for handling the handset. (option) (page 2-3) This space is necessary for removing the recording paper cassette. This space is necessary for installing the document stacker and to allow space for the fan exhaust.

  • Page 56: Unpacking

    Unpacking 2.3.1 Unpacking for OKIOFFICE44/OKIFAX 4100 Procedure (1) Remove tape on the top of the carton box and open its cover. External carton box Packing tape Carton label (2) Take out the accessory box from the carton box. (See Figure 2.3.1.1) (3) Take out the machine with plastic wrapper from the box.
  • Page 57 Tray-document Toner cartrige Connectiong cords ed cellophane tape Tray-paper (4 points) Carton box sheet (40240101) Machine ad-Side (L) 40240201) Pad-Side (R) External carton box FX048-C2-004 Figure 2.3.1.1 Unpacking Procedure (2) 57 / 40055101TH Rev.4...

  • Page 58: Unpacking For Okifax 5000 Series

    2.3.2 Unpacking for OKIFAX 5000 Series Procedure (1) Remove tape on the top of the carton box and open its cover. External carton box Packing tape Packing tape Carton label FX050-C2-003 Figure 2.3.2.1 Unpacking Procedure (1) (2) Take out the accessory box from the carton box. (See Figure 2.3.2.1) (3) Take out the machine with plastic wrapper from the box.
  • Page 59 Accessories box Right cushion assembly (Top) Left cushion assembly (Top) Front Fixed tape Machine Right cushion assembly Left cushion assembly (Bottom) (Bottom) Polyethylene film External carton box FX050-C2-004 Figure 2.3.2.1 Unpacking Procedure (2) 59 / 40055101TH Rev.4...
  • Page 60 Top carton box Cushion Cellophane tape AC power cord Modular cord Polyethylene bag Polyethlene bag Toner cartridge (In damp proof bag) Document stacker Carton frame Accessories box Separation frame Packing tape Accessories box FX050-C2-005 Figure 2.3.2.2 Unpacking Procedure (3) 60 / 40055101TH Rev.4...

  • Page 61: Check Of Contents

    Check of Contents After having taken out the machine and accompanied accessories from the carton box, check the contents according to the following list: Table 2.4.1 Contents List for OKIOFFICE 44/OKIFAX 4100 Item No. OKIOFFICE44/ OKIFAX4100 facsimile AC power cord I/D unit Toner cartridge Line cord...

  • Page 62: Installation Of Attachments

    Installation of Attachments 2.5.1 Installation of Attachments for OKIOFFICE44/OKIFAX 4100 (1) Items • Image Drum (ID) Unit (already installed) • Toner cartridge • Recording paper • Tray-paper, Tray-document and Document-stacker (2) Procedure 1) Toner cartridge • Peel off the fixed tape attached to the cover-top. •...
  • Page 63 • Take out the toner cartridge from the damp proof bag, shake it five or six times as shown in the illustration to eliminate the toner deflection, and peel off the seal gently. Figure 2.5.1.3 Toner Cartridge Installation (3) • Ensure that the plastic tab on the right-hand side of the toner cartridge recess lines up with the groove on the toner cartridge.
  • Page 64 • Push the gray tab forward until it stops. Toner cartrige Gray tab FX048-C2-010 Figure 2.5.1.5 Toner Cartridge Installation (5) • Clean the toner scattered in the vicinity of the toner cartridge using a cloth moistened with cold water. Do not use hot water since it makes the toner stick there. •...
  • Page 65 (3) Recording paper Note: About 100 sheets of the new paper can be set on the tray-paper. Loading the new paper. Sheets must not exceed 100 sheets of the new paper on the tray-paper. If excessive sheets are set, it will cause paper jams.
  • Page 66 (4) Tray-paper, Tray-document and Document-stacker (option) • Hang the tray-paper, the tray-document and the stacker-document (option) onto hanging position. Tray-paper Tray-document Cover-top Stacker-document FX048-C2-013 Figure 2.5.1.7 Document Stacker Installation 66 / 40055101TH Rev.4...

  • Page 67: Installation Of Attachments For Okifax 5000 Series

    2.5.2 Installation of Attachments for OKIFAX 5000 Series (1) Items • Image Drum (ID) Unit (already installed) • Toner cartridge • Recording paper • Document stacker (2) Procedure 1) Toner cartridge • Peel off the fixed tape attached to the copy stacker. •...
  • Page 68 • Take out the toner cartridge from the damp proof bag, shake it five or six times as shown in the illustration to eliminate the toner deflection, and peel off the seal gently. Figure 2.5.2.3 Toner Cartridge Installation (3) • Ensure that the plastic tab on the right-hand side of the toner cartridge recess lines up with the groove on the toner cartridge.
  • Page 69 • Push the blue tab forward until it stops. Toner cartridge Blue tab FX-050VP-C2-010 Figure 2.5.2.5 Toner Cartridge Installation (5) • Clean the toner scattered in the vicinity of the toner cartridge using a cloth moistened with cold water. Do not use hot water since it makes the toner stick there. •...
  • Page 70 (3) Recording paper Note: About 250 sheets of the new paper can be set in the recording paper cassette. • Remove the paper cassette from the facsimile by pulling the cassette tab. Paper cassette Figure 2.5.2.6 Recording Paper Cassette Installation (1) •...
  • Page 71 (4) Document stacker • Hang the document stacker onto hanging position. Hanging position Document stacker FX-050VP-C2-013 Figure 2.5.2.8 Document Stacker Installation 71 / 40055101TH Rev.4...

  • Page 72: Ac Cord Connection

    AC Cord Connection The power supply is provided as follows. Nominal input voltage 120VAC (Voltage range 102 to 127VAC) Nominal input voltage 230VAC (Voltage range 198 to 250VAC) Check whether the AC voltage of your input is within the above-mentioned voltage range and if so, check that the power switch is turned OFF.
  • Page 73 2) For OKIFAX 5000 series AC Inlet AC Power Switch FX050VP-C2-014 73 / 40055101TH Rev.4...

  • Page 74: Telephone And Line Connections

    Telephone and Line Connections (1) Procedure • Connect the lines. 1) For OKIOFFICE44/OKIFAX 4100 2) For OKIFAX 5000 series Exchange line Optional or external telephone cable Figure 2.7.1 Telephone and Line Connections Packing for Shipment CAUTION: When packing the OKIOFFICE44, OKIFAX 4100/5000 series for shipment, REMOVE THE IMAGE DRUM AND TONER FROM THE UNIT AND SHIP SEPARATELY! Failure to do this will result in damage to the machine.”...

  • Page 75: Programming And Initial Settings

    Programming and Initial Settings Initial Settings 2.9.1 General Procedure of Key Operation Figure 2.9.1 shows the general procedure of key operation. 40055101TH Rev.4 75 /...
  • Page 76 (STNDBY MODE) (Press the SELECT FUNCTION key.) SELECT FUNCTION (OT) Selection by One-touch key OT1: DELAYED TX OT2: BROADCAST/FEEDER TX OT3: CONFIDENTIAL TX OT4: RELAY INITIATE TX OT5: POLLING TX/RX OT6: REPORT PRINT In case of Germany, Austria and Switzeland version, ACTIVITY REPORT message dose not appear on the LCD display.
  • Page 77 [OFF/ON] : (FRE only) (for Mail box) (except for OKIOFFICE44/ OKIFAX 4100) (for OKIFAX 5500/5600) SUBST. MSG-PRINT CONF. RX MSG. PRINT PRINTER CLEANING 01: MCF. (SIGNLE-LOC.) 02: MCF. (MULTI-LOC.) 03: ERR. REPORT (MCF.) 04: IMAGE IN MCF. 05: SENDER ID 06: MONITOR VOLUME...
  • Page 78 Powered on while holding the COPY key down. Selection by YES/NO keys or digit (1 to 4) TECHINICAL PROGRAMMING 1: LOCAL TEST 2: TECHCICAL FUNCTION Selection by YES/NO keys or digit (1 to 3) 3: SYSTEM RESET 4: DEFAULT TYPE SET * Space for OKIFAX 5500/5600 Function 30 is used as “V.34 Learning Parameter for OKIFAX 5500/5600 40055101TH Rev.4...

  • Page 79: Technical Functions

    2.9.2 Technical Functions T.F. Item This section explains setting items generally conducted by service personnel, not by users. Table 2.9.1 shows the initial setting items and their purposes. (The default setting is different by the individual countries.) Each item can be accessed by entering the corresponding service number on Technical Function. The detailed procedures of the initial setting items will be explained on the following pages.
  • Page 80 Table 2.9.1 (1/6) Service Personnel Initial Settings T.F. Item Service bit Rev.3 Line monitor control Country code Rev.2 Time and date print TSI print 40055101TH Rev.4 Specifications Switching serviceman/user operation. ON : Service personnel’s features are available. OFF : Service personnel’s features are not avail- able.
  • Page 81 Table 2.9.1 (2/6) Service Personnel Initial Settings T.F. Item No-toner memory reception TAD mode (For external telephone answering de- vice.) Real time dialing TEL/FAX switching 40055101TH Rev.4 Specifications Enables or disables the memory reception when the fax is in no toner condition. ON : The messages are printed when toner has been newly supplied or an operator per-...
  • Page 82 Table 2.9.1 (3/6) Service Personnel Initial Settings T.F. Item MDY/DMY Long document SCAN Tone for Echo MH only High-speed modem rate Rev.2 T1 (TX), timeout value 40055101TH Rev.4 Specifications Switches LCD display and report print from month/ day/year to day/month/year or vice versa. MDY/DMY selectable.
  • Page 83 Table 2.9.1 (4/6) Service Personnel Initial Settings T.F. Item T1 (RX), timeout value T2, timeout value DIS bit32 Error criterion Off-hook bypass NL equalizer Modem attenuator 40055101TH Rev.4 Specifications T1 (RX), timeout value (later) Registers the time duration (in seconds) for which the fax waits for the remote station’s answer of individual country’s specification.
  • Page 84 Table 2.9.1 (5/6) Service Personnel Initial Settings T.F. Item T/F tone attenuator (for TEL/FAX SW) MF attenuator Ring duration detection time CML timing Strobe for LED head 40055101TH Rev.4 Specifications Note: The send signal power level should meet your country’s regulation. Some countries may specify the power level at a telephone exchange.
  • Page 85 Table 2.9.1 (6/6) Service Personnel Initial Settings T.F. Item Rev.3 Setting Rank Marking 291–313 269–290 248–268 229–247 212–228 196–211 181–195 168–180 155–167 143–154 132–142 122–131 113–121 105–112 100–104 Head width Rev.3 Media type Transfer roller latch current Rev.3 Symbol rate Rev.2 40055101TH Rev.4 Specifications...
  • Page 86 TEL/FAX automatic switching This function is used for the purpose of TEL/FAX automatic switching as follows. If the machine detects a call with a CNG signal indicating an auto send facsimile call, it starts an automatic document receiving operation. If machine detects a call without a CNG signal, machine generates the buzzer sounds as a telephone call.
  • Page 87 TEL/FAX Automatic Switch Over Time (20/35 sec) NSF, CSI, DIS CNL"OFF" To detect CNG signal Indication of LCD 14:14 [T/F] Detection Period LIFT HANDSET AUTO REC. START OKI TOKYO RECEIVING /144 1 sec 1 sec 3.2 sec FX050VP-C2-018 87 /...
  • Page 88 • TAD mode flow chart In case of TYPE 1; Even though the fax does not detect CNG signal, the fax will go to receiving mode. Telephone call Calling or manual party transmission Message from answer machine To record your message in answering machine NSF, CSI, DIS To enable the manual TX mode.
  • Page 89 • TAD mode flow chart In case of TYPE 2: If the fax does not detect CNG signal during working of TAD, the machine will go to standby mode. Telephone call Calling or manual party transmission Message from answer machine To record your message in answering machine 40055101TH Rev.4...

  • Page 90: Technical Functions Example

    Protocol dump report printing • Ring response time setting • Dial parameters setting • Printer counters clearing Procedure Operations: To bring the LCD up to the desired message press SELECT FUNCTION key once, COPY key twice and "2"key. (In case of no message...

  • Page 91: Local Test

    Technical functions Operations: Press SELECT FUNCTION key. Press COPY key twice. Press key. Press key. Press key. Enter two-digit function number, then the display will show the set item corresponding to the number entered. If you want to set up all or several items starting with 01, then enter 01.
  • Page 92 T.F. Name of Function Service bit Line monitor control Country code Time and date print TSI print No toner memory reception TAD mode (For external telephone answering device.) Real-time dialling TEL/FAX switching MDY/DMY format Long document transmission 40055101TH Rev.4 Table 2.9.2 (1/5) Technial Functions The Display Shows 01:SERVICE BIT [ X ] YES( ) NO( )
  • Page 93 T.F. Name of Function Tone for echo (echo protection) MH only High-speed modem rate (28.8k and 33.6k for OKIFAX Rev.3 5500/5600) T1 (TX), timeout value (XTTO value) Rev.3 T1 (RX), timeout value Rev.3 40055101TH Rev.4 Table 2.9.2 (2/5) Technial Functions The Display Shows 12:TONE FOR ECHO [ X ] YES( ) NO( )
  • Page 94 T.F. Name of Function T2, timeout value Rev.3 DIS bit 32 Error criterion Rev.3 Off-hook bypass NL equalizer Modem attenuator T/F tone attenuator (for TEL/FAX switch) 40055101TH Rev.4 Table 2.9.2 (3/5) Technial Functions The Display Shows 17:T2 TIMER *100MS [ X ] YES( ) NO( ) 17:T2 TIMER *100MS ] ENTER 000-255 –...

  • Page 95: Ring Dura. *10 Ms

    T.F. Name of Function MF attenuator Rev.3 Ring duration detection time Rev.3 CML timing Rev.3 LED Head strobe Rev.3 40055101TH Rev.4 Table 2.9.2 (4/5) Technial Functions The Display Shows 24:MF ATT. [ X ] YES( ) NO( ) 25:RING DURA. *10 MS [ X ] YES( ) NO( ) 25:RING DURA.

  • Page 96: Media Type

    T.F. Name of Function LED Head Width Rev.3 Media type Transfer roller clatch current (for OKIOFFICE44/ OKIFAX 4100) Symbol rate (for OKIFAX 5500/5600) Rev.3 40055101TH Rev.4 Table 2.9.2 (5/5) Technial Functions The Display Shows 28:LED HEAD WIDTH [ X ] YES( ) NO( ) 29:MEDIA TYPE [ X ] YES( ) NO( ) 30:TR LATCH CURRENT...

  • Page 97: User's Functions

    2.9.4 User’s Functions This section explains the items usually set up by general users. Table 2.9.3 shows the initial setting items and their purposes. Each F.P.can be accessed by entering the corresponding function number on Function Programming. The detailed procedure of the initial setting items will be explained on the following pages. Note: S-ON: Effective if the service bit has been set on.
  • Page 98 User's Functions Item Auto dial 1) One-touch dial 2) Two-digit dial 3) Keypad dial 4) Chain dial 5) Mixed dial (Rev. 3) Manual dial Receive mode 1) Auto receive mode 2) Manual recevice mode 3) Telephone/fax automatic switchover 40055101TH Rev.4 Table 2.9.3 (1/6) User's Functions Specifications 10 one-touch keys are provided.
  • Page 99 Item Automatic redial Last No. redial Rev. 3 Group dial Telephone directory and location ID (Alpha search) Voice request Local copy Rev.2 Multiple local copy 40055101TH Rev.4 Table 2.9.3 (2/6) User's Functions Specifications * FP + 10 (To determine the timer.) Note: Refer to page 2-36.
  • Page 100 Item Manual loading feeder Rev. 3 Broadcast (Memory transmission) Delayed transmission from the memory Polling transmission (To be polled) Polling reception Transmission preparation (Hopper) 40055101TH Rev.4 Table 2.9.3 (3/6) User's Functions Specifications For OKIFAX 5000 series: One single sheet from the feeder above the first recording paper cassette can be copied.
  • Page 101 Condition for operation a) Copy is invalid when the machine is already engaged in an operation which is using or could use the printer. 3) Call reception while the fax is engaged in scanning documents for memory transmission when the auto receive mode is in “FAX”...

  • Page 102: Specifications

    Item Machine Status TX from Feeder Program- During ming Scanning Scanning Dual Access Programming Setting TX from Feeder Dial & TX Setting Polling Dial & RX Scanning to Memory TX from Memory RX to Paper Auto RX to Memory Answer Poll TX RX to Paper Manual...
  • Page 103 Item Machine Status Page by During Page Scanning Dual Access Programming Setting TX from Feeder Dial & TX Setting Polling Dial & RX Scanning to Memory TX from Memory RX to Paper Auto RX to Memory Answer Poll TX RX to Paper Manual RX to Memory Answer...
  • Page 104 NO( /1-4) DRUM COUNT CLEAR( ) NEXT( ) LOCATION PROGRAMMING ENTER(SRCH,OT,A/D,#) 1:FUNC. PROGRAMMING YES( ) NO( /1-6) PRINTER CLEANING YES( ) NO( ) PRINT MEMORY MSG. ? YES( ) NO( ) PRINT CONF. RX MSG ? YES( ) NO( )
  • Page 105 Table 2.9.4 (1/4) User's Initial Settings (One-touch key Program) F+OT Item Delayed transmission (Tx) Broadcast/memory transmission Confidential transmission Relay broadcast initiate transmission Rev.3 Polling transmission/reception Report printing 40055101TH Rev.4 Specifications This function enters a message transmission time(s) and location(s) for execution at a specified time. To make a one-time selection of the memory transmission mode.
  • Page 106 Table 2.9.4 (2/4) User's Initial Settings (One-touch key Program) F+OT Item Counter display (clear) Rev. 2 Location program 1. One-touch key 2. Two-digit auto dial program (Rev.3) 3. Group setting 40055101TH Rev.4 Specifications Log. report TF + 01 (Sets to on Service bit) The operation for displaying and clearing the print counters in five ways are as follows: 1.
  • Page 107 Table 2.9.4 (3/4) User's Initial Settings (One-touch key Program) F+OT Item User’s programs Rev.3 1. Function program 2. Dial parameters 3. Clock adjustment 40055101TH Rev.4 Specifications Function program 01: MCF (SINGLE-LOC.) 02: MCF (MULTI-LOC.) 03: ERR. REPORT (MCF.) 04: IMAGE IN MCF. 05: SENDER ID 06: MONITOR VOLUME 07: BUZZER VOLUME...
  • Page 108 (for OKIFAX 5500/5600) Print operation 1. Substitutive message print (Rev.3) 2. Confidential reception message print 3. Printer cleaning 40055101TH Rev.4 Specifications (1) TSI/CSI (except for SUI and AUT) Registration of TSI/CSI/CIG (numbers, + and space) in 20 digits. TSI:Transmitting Subscriber Identification...
  • Page 109 2)-2 Function Program Table 2.9.4 (1/4) User's Initial Settings (Function Program) P.F. Item Message confirmation report (Single location) Message confirmation report (Multiple locations) Error report (MCF) Image in MCF Rev.3 Sender ID Line monitor volume Buzzer volume 40055101TH Rev.4 Specifications Enables or disables the automatic message confirma- tion report printing after a single location call.
  • Page 110 Table 2.9.4 (2/4) User's Initial Settings (Function Program) P.F. Item Closed network TX mode default Telephone/fax automatic switchover time Ring response time Distinct ring Rev.3 1’st cassette paper size 40055101TH Rev.4 Specifications The fax compares lower four digits of TSI/CSI re- ceived from remote station with fax numbers regis- tered locally for one-touch dial and two-digits autodial.
  • Page 111 Table 2.9.4 (3/4) User's Initial Settings (Function Program) P.F. Item 2’nd cassette paper size (option) User language Incoming ring Rev.2 Remote receive Memory and feeder switch Power save mode Rev.3 ECM function 40055101TH Rev.4 Specifications Selects A4, LETTER or LEGAL 13˜, LEGAL 14˜/ OTHER (when installing Bi-Centro board) by this function.
  • Page 112 Table 2.9.4 (4/4) User's Initial Settings (Function Program) P.F. Item Remote diagnosis PC/FAX switch One-touch key parameters 40055101TH Rev.4 Specifications Enables or disables the remote diagnosis function when the machine can allow remote diagnosis from remote center. Enables OFF: Disables When the host side does not respond at the time of incoming call to PC, specifies whether to starts forc- ibly as fax reception or not.

  • Page 113: User's Functions Example

    2.9.5 User's Functions Example Note: The fonts displayed on the LCD operation panel may differ from fonts written this manual. Function Program Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once and one-touch key No. 9 in the standby mode. (In case of no message in memory) Press key.
  • Page 114 Tap No. Name of Function Message confirmation report (Single location) Message confirmation report (Multiple locations) Error report Rev. 2 Image in MCF. Sender ID Line monitor volume Buzzer volume Closed network TX mode default Telephone/fax automatic switchover timer Ring response time Distinct ring Rev.
  • Page 115 Tap No. Name of Function 1st cassette paper size 2ndcassette paper size (option for OKIFAX 5000 series) User language Incoming ring Rev. 3 Remote receive Rev. 3 Memory and feeder selection Power save mode (not available for OKIOFFICE44/ Rev. 3 OKIFAX5300/5600) ECM function Remote diagnosis...
  • Page 116 Note1: RESOLUTION & ORIGINAL of Tx mode defult setting can be selected by using STD / NORMAL EX. FINE / NORMAL EX. FINE / DARK Note2: When the service bit is set to "off" and the corresponding bit of XPARA of national code is set to "off", Rev.

  • Page 117: The Display Shows

    Ring response time Before specifying the ring response time, set the service bit on following the operations shown in 2.9.3 (1). (Service Bit Setting). Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once and one-touch key No. 9 in the standby mode.
  • Page 118 Dial parameters (In case the service bit is "OFF".) To get the "DIAL PARAMETER" message on the display, perform the same operetion as Table 2.9.6. (Dial parammeters settings). 2:DIAL PARAMETER YES( ) NO( /1-6) REDIAL TRIES [2 TRY] YES( ) NO( ) REDIAL INTERVAL [1 MIN] YES( ) NO( ) DIAL TONE DETECT...
  • Page 119 The following table can be set depending on the National codes even if the service bit is "off". Table 2.9.10 Dial parameters setting if the service bit "OFF" NATIONAL CODE USA INT'L GBR IRL NOR SWE FIN DEN GER HUN TCH POL Redial tries Redial interval Dial tone detect...

  • Page 120: Clock Adjustment

    2.9.6 Clock Adjustment Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once and one-touch key No. 9 in the standby mode. (In case of no message in memory) Enter 3 using the ten-key pad. Press key.

  • Page 121: Dual Access Operation (For Okifax 5000 Series)

    2.9.7 Dual Access Operation (for OKIFAX 5000 series) OKI TOKYO SENDING /144 Set documents during memory TX or set documents during feeder TX after the end of the pre-scanning SELECT LOCATION Select LOC. OKI TAKASAKI YES(START) NO(LOC.) Press START key...

  • Page 122: System Data Programming

    2.9.8 System Data Programming • TSI/CSI (Defalut: Blank) • Registration of sender ID (Defalut: Blank) • Registration of telephone number for the call-back message (Defalut: Blank) Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once and one-touch key No. 9 in the standby mode.
  • Page 123 Operations: START Press key. Press START key. 40055101TH Rev.4 The display shows: Continued from the previous page. NO=03 3404 7123 ID=OKI (Example) START NO=<CALL BACK NO.> 3 SEC LATER NO=_ 03...5 NO=03 3404 7765_ (Example) START 123 /...

  • Page 124: Dial Parameters Settings

    2.9.9 Dial Parameters Settings Procedure The following shows the case in which the service bit is on. Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once and one-touch key No. 9 in the standby mode. (In case of no message in memory) Enter 2 using the ten-key pad.
  • Page 125 The display shows: Continued from the previous page. 2:DIAL PARAMETER YES( ) NO( /1-6) REDIAL TRIES [2 TRY] YES( ) NO( ) REDIAL INTERVAL [1 MIN] YES( ) NO( ) DIAL TONE DETECT [ ON ] YES( ) NO( ) BUSY TONE DETECT [ ON ] YES( ) NO( )
  • Page 126 Table 2.9.11 Default Settings of Dial Parameters 126 / 40055101TH Rev.4...
  • Page 127 Item Dial parameters Redial tries Redial interval Dial tone detect Busy tone detect MF (TONE) or DP (Pulse) Pulse dial rate Pulse make ratio Pulse dial type MF (Tone) duration PBX line Flash/Earth/Normal Auto start Access digit Rev. 2 IT2 detect (FRE only) 40055101TH Rev.4 Table 2.9.6 Dial Parameters Settings Switches on the re-dial times to meet the regulations of the installed...

  • Page 128: Off-Line Tests

    2.9.10 Off-line Tests Purpose Activate self-diagnosis which includes: • Print test • CPU-ROM version printing • CPU-RAM check • PROG version printing • LANGUAGE version printing • DEFAULT version printing • RAM check • RAM check (memory board: optional) • PC-I/F version printing (optional) Procedure Operations: To bring the LCD up to the desired message,...
  • Page 129 CPU-ROM VERSION AA00 HASH DACD CPU-RAM PROG1 VERSION AA00 HASH 3142 PROG2 VERSION AA00 HASH 1234 LANGUAGE VERSION LL10 HASH 3F06 DEFAULT VERSION DD10 HASH A683 RAM1 RAM2 OPT-RAM1 OPT-I/F PARALLEL DEFAULT TYPE 07/01/96 *1 marked item is shown for condition of all RAM except EXCEED RAM. *2 marked item is shown to SRAM for EXCEED.

  • Page 130: On-Line Tests

    2.9.11 On-line Tests Transmission Load documents Make sure that • The loaded documents are fed in automatically. • The STD and NORMAL lamps light. • The display shows SELECT LOCATION. Dial the telephone number of the remote machine by the ten-key pad. Make sure that the telephone number of the remote machine is shown on the display.
  • Page 131 ( ABOUT 1 SEC.) 14:14[FAX] STANDBY) Fig. 2.9.5 Typical Transmission Flow MANUAL SEND MODE OFF HOOK MANUAL DIALING PRESS START KEY PERSONAL ID OKI SHIBAURA SENDING /144 REMOTE TEL NO.(CSI) 03 3456 7890 SENDING /144 DISTANT ID OKI TOKYO SENDING /144 DIAL NO.
  • Page 132 ( ABOUT 1 SEC.) 14:14[FAX] STANDBY) Fig. 2.9.6 Typical Reception Flow MANUAL RECEIVE MODE OFF-HOOK AND CONVERSATION PRESS START KEY PERSONAL ID OKI SHIBAURA RECEIVING/144 REMOTE TEL NO.(CSI) 03 3456 7890 RECEIVING/144 DISTANT ID (polling RX) OKI TOKYO RECEIVING/144 DIAL NO. (polling RX)

  • Page 133: Installation Of Optional Units

    Installation of Optional Units Items • Memory board • PC interface board • Telephone handset • Second paper cassette unit (OKIFAX 5000 series) Procedure • Turn the facsimile power switch OFF and remove the AC power cord. Note: Unplug the AC power cord from the wall outlet first and then from the facsimile. •...
  • Page 134 Instllation of the memory board • In OKIOFFICE44/OKIFAX 4100, MEM memory board can be mounted on to the connector CN13 of R44 board. • In OKIFAX 5000 series, MEM, 1 or 2MB for OKIFAX 5000 series memory board can be mounted on to the connector CN13 of M17 board.
  • Page 135 In case of OKIFAX 5000 series Remove Rear Cover. Remove the rear cover by removing the two screws S1 and S2 . Install Memory Board: First, install the memory board on to the connector CN13 of M17 board, and then tighten the screw to the separation plate.
  • Page 136 Installation of CTR (PC interface) board In case of OKIOFFICE44/OKIFAX 4100 Remove Cover-rear. Remove the Cover-rear by removing the screw 1. Install CTR board. First, install CTR board on to the con- nector CN11, CN12 of R44 board, and then tighten the two screws to the sepa- ration plate.
  • Page 137 In case of OKIFAX 5000 series Remove Rear Cover. Remove the rear cover by removing the two screws S1 and S2 . Install CTR board. First, install CTR board on to the connector CN12, CN17 of M17 board, and then tighten the two screws to the separation plate.
  • Page 138 a) Insert the tip of a cutter or Nipper between the mold of Rear Cover and cut out it. Note: Be careful not to rotate the cutter or Nipper, since this can cause scratching on the Rear Cover. b) Grasp the mold of Rear Cover, and rotate it up and down until you can able to easily remove it. 138 / 40055101TH Rev.4...
  • Page 139 3. Installation of an optional telephone set Dial Mode Setting (For TEL-UK) Set the DIAL MODE slide switch on the rear side of the telephone set according to the dial mode of the connecting line. (Set to MF for UK, Norway, Denmark, Belgium and Italy) Ringer Volume Setting (For TEL-UK and TEL-S)
  • Page 140 After installing the connection cable to the telephone set, extend the connection cable like Fig. C.3.3. After installing the cradle assembly to the telephone set, fix the screw like Fig. C.3.4. (OKIFAX 5000 series) Install the telephone assembly on the facsimile transceiver unit.
  • Page 141 Connect the terminal on the other side of the connection cable formed on the rear side of the equipment (TEL1), like Fig. C.3.6, to the telephone set. Fig. C.3.6 141 / 40055101TH Rev.4...
  • Page 142 2) Second Paper Cassette Unit This item explains how to install the Second Paper Cassette Unit option for the OKIFAX 5000 series Facsimile Transceivers. Second Paper Cassette Unit installation Turn the facsimile power switch off and remove the ACpower cord. Note: Unplug the AC power cord from the wall outlet first and then from the facsimile.
  • Page 143 3. Gently lower the facsimile on the Second Paper Cassette Unit. Note: Make sure that the positioning boss of the Second Paper Cassette Unit fits into the 2 holes at the bottom of the facsimile transceiver main unit. Peel off the tape attached on the Second Paper Cassette Unit. 40055101TH Rev.4 Hole Positioning boss...
  • Page 144 Install the Second Paper Cassette. Approximately 500 sheets of recording paper (20-Ib bond) can be loaded. Reconnect the power cord to the wall and the facsimile, and Turn the facsimile power on. 40055101TH Rev.4 Second Paper Cassette Figure C.2.5 Paper can be loaded up to this line.

  • Page 145: Brief Technical Description

    BRIEF TECHNICAL DESCRIPTION Electro-photographic Process Flow 145 / 40055101TH Rev.4...

  • Page 146: Fundamentals Of The Electro-Photographic Process

    Fundamentals of the Electro-Photographic Process The electro-photographic process involves six sub-processes: (1) Charging (2) Exposure (3) Development (4) Transfer (5) Fusing (6) Cleaning Outline of each process is explained below. Process Illustration Power Supply EP drum Power Supply EP drum EP drum 40055101TH Rev.4 The surface of the electro-photographic...
  • Page 147 Process Illustration EP drum Transfer roller Heater Cleaning roller Power supply 40055101TH Rev.4 The recording paper is placed over the Image drum surface and a positive charge, opposite in polarity to the toner, is applied to the reverse side of the paper from the transfer roller.

  • Page 148: Actual Electo-Photographic Process

    Actual Electo-photographic Process The electro-photographic process of the OKIOFFICE44/OKIFAX 4100/5000 series consists of six essential processes. The following Figure 3.2.1 provides a general description. 6 Cleaning roller 5 Heater roller Back-up roller * Process: 1 : Charging 2 : Exposure 3 : Developing 4 : Transfer 5 : Fusing...

  • Page 149: Boards And Units

    Operation panel assembly unit • Power supply unit • Printer unit Figure 3.3.1 shows the related drawing of OKIOFFICE44/OKIFAX 4100 facsimile transceiver. 3.3.2 OKIFAX 5000 Series Boards and Units The following three boards, Memory board (option), Telephone interface board (option), PC interface board (option) and three units constitute the OKIFAX 5000 series facsimile transceiver machine.
  • Page 150 150 / 40055101TH Rev.4...
  • Page 151 151 / 40055101TH Rev.4...

  • Page 152: Overall Dimension And Mechanical Structure Of Okioffice44/Okifax 4100

    Document exit Manual paper feeder inlet Figure 3.4.1 Overall Dimension and Mechanical Structure 40055101TH Rev.4 Scanner block LED head ID unit Image sensor Printer block Roller - Hopping NCU board CTR board (option for OKIFAX4100) Memory board (option) EP drum...

  • Page 153: Overall Dimension And Mechanical Structure Of Okifax 5000 Series

    Overall Dimension and Mechanical Structure of OKIFAX 5000 series 1VP/2VP (Power supply unit) CNT board Heater roller EP drum Hopping roller Resist roller Transfer roller Figure 3.5.1 Overall Dimension and Mechanical Structure 40055101TH Rev.4 Transformer Separation rubber Pinch roller ADF roller Sub roller Back-up roller SPSU board...

  • Page 154: Mechanical Disassembly And Reassembly For Okioffice44/Okifax 4100

    MECHANICAL DISASSEMBLY AND REASSEMBLY FOR OKIOFFICE44/OKIFAX 4100 This chapter explains the procedures for replacement of assemblies and units in the field. General 4.1.1 Precautions for Parts Replacement Before starting disassembly and reassembly, always pull out the AC plug. Note: Unplug the AC power cord from the wall outlet first and then from the facsimile. Do not try to disassemble as long as the facsimile is operating normally.

  • Page 155: Tools

    4.1.2 Tools Table 4.1.1 shows the tools required for the replacement of parts such as circuit boards and mechanical units. 4.1.3 How to Disassemble and Reassemble This section explains how to disassemble and reassemble the fax. • Figure 4.2 shows the disassembly procedure flow as generalization. •...
  • Page 156 Figure 4.1 (1/2) OKIOFFICE44/OKIFAX 4100 Disassembly Procedure Flow 40055101TH Rev.4 (4.1.3.1) LED Print Head (4.1.3.2) ID Unit (4.1.3.2) (4.1.3.2) Cover-Rear Cover-NCU (4.1.3.4) Separation Rubber (4.1.3.3) (4.1.3.3) Printer Unit Bracket-package Assembly Board-R44 (4.1.3.3) (4.1.3.3) OPE Panel PCB Assembly Assembly -O4W (4.1.3.4) (4.1.3.4) Back-up Roller Assembly...
  • Page 157 Printer Unit Start Open the Cover Assembly-Top Open the OPE Panel Assembly Figure 4.1 (2/2) OKIOFFICE44/OKIFAX 4100 Disassembly Procedure Flow 40055101TH Rev.4 (4.1.3.9) ID Unit (4.1.3.9) Transfer roller (4.1.3.2) (4.1.3.2) Cover Rear Cover NCU (4.1.3.10) High-voltage Power Supply (TLHV/OLHV) (4.1.3.10) Holder Assembly (4.1.3.18)
  • Page 158 Appearance of the OKIOFFICE44/OKIFAX 4100 (FX048 CP4.1 Fig.01) 158 / 40055101TH Rev.4...

  • Page 159: Led Print Head

    4.1.3.1 LED Print Head It is used two kind of head as the LED print head. (208 mm width or 216 mm width) Disassembly procedure Open the cover assembly-top by raising. Disconnect the PC connector from the LED print head. Remove the LED head while spreading the left clamp on the cover assembly-top.

  • Page 160: Id Unit, Rear-Cover, Cover-Ncu, Cover-Main And Board-Ncu

    4.1.3.2 ID Unit, Rear-Cover, Cover-NCU, Cover-Main and Board-NCU Disassembly procedure Open the cover assembly-top by raising. Take out the ID unit from the equipment. Cover-Rear: Remove the Cover-Rear by removing the screw 1 and the part of the fixing hooks (2).
  • Page 161 First, move the center of Guide-paper (L) and (R) of Holder assembly, and then, open the Cover-Main from the rear side. Board-NCU: Remove the Board-NCU by removing the two screw 3 and disconnect the connector (CN3) from Board-NCU. Note: Board-NCU can be removed without removing the Cover-Main. Reassembly procedure Reverse the disassembly procedures.

  • Page 162: Unit-048 Ope-Panel

    4.1.3.3 Unit-048 OPE-Panel Disassembly procedure First, carry out the disassembly proce- dure up to the point of the 4.1.3.2 (Item (e). Cover-main). Dismount the Printer-Unit. (See Section 4.1.3.19) Open the OPE-panel assembly. OPE panel assembly: Remove the OPE panel assembly by re- moving two screws 3, the eight screws 4 and the part of fixing hooks.

  • Page 163: Separation Rubber, Roller Assembly Sensor

    4.1.3.4 Separation Rubber, Roller Assembly Sensor Disassembly procedure Separation rubber: The separation rubber can be removed from the Frame Assembly-Scanner (U). Roller Assembly Sensor: Remove the Plate-Support by removing the two screws 1. Note: Just fitting to two bossess. Remove the two springs (L) and (R). Remove the Roller Assembly-Sensor by removing the Gear (Z31).

  • Page 164: Roller Assembly-Adf, Cis (Contact Image Sensor), Lever-Pc1 And Pc2

    4.1.3.5 Roller Assembly-ADF, CIS (contact image sensor), Lever-PC1 and PC2 Disassembly procedure First, carry out the disassembly procedure up to the point of the 4.1.3.2 and 4.1.3.3. Dismount the Printer-Unit. (See Section 4.1.3.19) Remove the Frame assembly-Scanner (L) by removing the four screws 1 and the four connectors.
  • Page 165 Plate Scanner (L) Speaker Turn the Frame Assembly-Scanner inside out and perform the disassembly proce- dure. Remove the Plate Scanner (L) by remov- ing the two screws. Remove the Speaker. Remove the Plate Assembly-Scanner (R) and Plate Earth ADF by removing the three screws.
  • Page 166 Motor-S: Remove the Motor-S by removing the connector of motor and the two screws Photo-Sensor (PC1, PC2): After disconnecting the two connectors, remove the photo-coupler sensors PC1 and PC2 on the Plate Scanner B by press- ing the latch using the flat screwdriver or like.

  • Page 167: Board-R44, Okioffice 44/Okifax 4100 Power Supply Unit

    4.1.3.6 Board-R44, OKIOFFICE 44/OKIFAX 4100 Power Supply Unit Disassembly procedure First, carry out the disassembly procedure up to the point of the 4.1.3.2 (Cover-Rear, Cover-Main etc.). Board-R44: Disconnect the all connectors. Remove the Board-R44 by removing the five screws. OKIOFFICE 44/OKIFAX 4100 Power Supply Unit: Disconnect the all connectors.

  • Page 168: Option (Board-Memory: Mem, Board-Ctr; Pc Interface)

    4.1.3.7 Option (Board-Memory: MEM, Board-CTR; PC Interface) Disassembly procedure Remove the Cover-Rear by removing the screw 1 and the part of the fixing hooks. Remove the Plate-Earth (PC I/F) Board-Memory (MEM): Remove Board-Memory on the connector CN13 of the Board-R44, and removing the screw to the separation plate.

  • Page 169: Printer Unit Section

    4.1.3.8 Printer Unit Section [Base Frame Unit] Paper guide (R) Transfer roller Papr guide (L) Hopper Paper holder spring Stopper spring High-voltage power supply board Sheet guide 40055101TH Rev.4 LED head Flat cable assy Pressure roller (B) (Back up roller)

  • Page 170: Transfer Roller

    4.1.3.9 Transfer Roller Disassembly procedure Open the cover assembly-top by raising and remove the ID unit. Remove the right claw. Then, dismount transfer roller, two regis- tration bearing, and gear T. Reassembly procedure Reverse the disassembly procedures. 40055101TH Rev.4 Registration bearing Transfer roller Registration bearing Gear T...

  • Page 171: High-Voltage Power Supply Unit (Tlhv/Olhv)

    4.1.3.10 High-Voltage Power Supply Unit (TLHV/OLHV) Disassembly procedure First, carry out procedure up to the point of the 4.1.3.2 (ID Unit, Cover-Rear, Cover- NCU and Cover-MAIN). Remove three screws 1 and draw out high-voltage power supply board (TLHV/ OLHV). Disconnect all the cables 3 and 4 from high-voltage power supply board (TLHV/ OLHV) and dismount high-voltage power supply board.

  • Page 172: Holder Assembly

    4.1.3.11 Holder Assembly Disassembly procedure First, carry out procedure up to the point of the 4.1.3.2 (ID Unit, Cover-Rear, Cover- NCU and Cover-MAIN). Dismount the Bracket-Package. Dismount the Holder-Paper. Unlock and dismount the Guide-Paper (L) and Guide Paper (R). Remove the claw and dismount Spring- Holder.

  • Page 173: Plate-Side M And Gear-Idle

    4.1.3.12 Plate-Side M and Gear-Idle Disassembly procedure Perform parts replacement while making the base frame assembly stand so that Plate-Side M will face upward. First, carry out procedure up to the point of the 4.1.3.2 (ID Unit, Cover-Rear, Cover- NCU and Cover-MAIN). Remove two screws 1 and two claws, then dismount Plate-Side M.

  • Page 174: Registration Roller

    4.1.3.13 Registration Roller Disassembly procedure First, carry out procedure up to the point of the 4.1.3.2 (ID Unit, Cover-Rear, Cover- NCU and Cover-MAIN). Move registration roller to the right and dismount it by lifting. (Two registration bearings also come off at the same time. Take care not to lose them.) Reassembly procedure Reverse the disassembly procedures.

  • Page 175: Drive Shaft E (Eject) And Eject Roller

    4.1.3.14 Drive Shaft E (Eject) and Eject Roller Disassembly procedure First, carry out procedure up to the point of the 4.1.3.2 (ID Unit, Cover-Rear, Cover- NCU and Cover-MAIN). Remove two screws 1 from Cover Heat Assembly (section 4.3.7), lift the heat assay, and dismount idle gear E (A) and idle gear E (B).

  • Page 176: Heat Assembly

    4.1.3.15 Heat Assembly This section explains how to dismount the heat assembly and parts in the assembly. Disassembly procedure < Dismounting the heat assembly> First, carry out procedure up to the point of the 4.1.3.2 (ID Unit, Cover-Rear, Cover- NCU and Cover-MAIN). Dismount the high-voltage power supply board.

  • Page 177: Pressure Roller B (Back Up Roller)

    4.1.3.16 Pressure Roller B (Back Up Roller) Disassembly procedure First, carry out procedure up to the point of the 4.1.3.2 (ID Unit, Cover-Rear, Cover- NCU and Cover-MAIN). Dismount the high-voltage power supply board. (See Section 4.1.3.10) Dismount heat assembly. (See section 4.1.3.15) Dismount the engagement with the left ground, then pressure roller B.

  • Page 178: Hopping Shaft Assembly

    4.1.3.17 Hopping Shaft Assembly Disassembly procedure First, carry out procedure up to the point of the 4.1.3.2 (ID Unit, Cover-Rear, Cover- NCU and Cover-MAIN). Dismount the high-voltage power supply board. (See Section 4.1.3.10) Dismount the paper holder assembly. (See Section 4.1.3.11) Dismount the sheet guide.

  • Page 179: Paper Sensor E, Paper Sensor Exit And Toner Sensor Assembly

    4.1.3.18 Paper Sensor E, Paper Sensor Exit and Toner Sensor Assembly Disassembly procedure First, carry out procedure up to the point of the 4.1.3.2 (ID Unit, Cover-Rear, Cover- NCU and Cover-MAIN). Dismount the high-voltage power supply board. (See Section 4.1.3.10) Dismount the paper holder assembly.

  • Page 180: Printer Unit

    (See Section 4.1.3.10) Disconnect cable 1 and 2 from connector on Board-R44 (M-CNT), and disconnect cable 3 from Connect on Power Supply Unit. Remove the Printer Unit by removing three screws. Bracket-Package Cable 1, 2 40055101TH Rev.4 Cable-Flat Holder Assy...

  • Page 181: Mechanical Disassembly And Reassembly For Okifax 5100 Series

    MECHANICAL DISASSEMBLY AND REASSEMBLY FOR OKIFAX 5100 SERIES This chapter explains the procedures for replacement of assemblies and units in the field. General 4.2.1 Precautions for Parts Replacement Before starting disassembly and reassembly, always turn the AC power switch OFF, and pull out the AC plug.

  • Page 182: Tools

    4.2.2 Tools Table 4.2.1 shows the tools required for the replacement of parts such as circuit boards and mechanical units. 4.2.3 How to Disassemble and Reassemble This section explains how to disassemble and reassemble the fax. • Figure 4.2 shows the disassembly procedure flow as generalization. •...
  • Page 183 Start (4.2.3.1) Open the Doc. Table, Copy Stacker (4.2.3.2) Open the Doc. Table (4.2.3.2) Open the Copy Stacker (4.2.3.3) Open the Control Panel Unit (4.2.3.2) Document Table Ass'y (4.2.3.4) Scanner Base (L), (R) Scanner Bottom Plate Figure 4.2 (1/2) OKIFAX 5000 Series Disassembly Procedure Flow 40055101TH Rev.4 (4.2.3.1) LED Print Head...
  • Page 184 (4.2.3.4) Scan Frame Assembly Figure 4.2 (2/2) OKIFAX 5000 Series Disassembly Procedure Flow 40055101TH Rev.4 (4.2.3.4) Scan Motor (4.2.3.5) Release Guide Assembly (4.2.3.4) Eject Roller Assembly (4.2.3.5) Manual Feed Assembly (4.2.3.5) Copy Stacker, Fusing Unit (4.2.3.7) Resist Motor, Drum Motor (4.2.3.6) (4.2.3.6) Lower Base...

  • Page 185: Led Print Head

    4.2.3.1 LED Print Head It is used two kind of head as the LED print head. (208 mm width or 216 mm width) Disassembly procedure Open the Document Table assem- bly. Open the Stacker Cover by pushing the Buttons. Disconnect the PC connector from the LED print head.

  • Page 186: Id Unit, Rear Cover, Ncu Cover, Main Cover, Separation Plate, Ncu Board, Modem Board

    4.2.3.2 ID Unit, Rear Cover, NCU Cover, Main Cover, Separation Plate, NCU Board, Modem Board Disassembly procedure ID Unit, Rear Cover, NCU Cover, Main Cover Open the Document Guide as- sembly. Open the stack cover by remov- ing the buttons. Take out the ID Unit from the equipment.
  • Page 187 First, open the Main Cover from the front side, and then, remove the Main Cover by removing the nails at both sides on the rear side. Separation Plate Remove the Separation Plate by removing the two screws 4. NCU Board, MODEM Board Remove the NCU Board by re- moving the two screws 5.

  • Page 188: Control Panel Assembly, Paper Guide (U) Assembly

    4.2.3.3 Control Panel Assembly, Paper Guide (U) Assembly. Disassembly procedure Control Panel Assembly and Paper Guide (U) Assembly First, carry out the disassembly procedure up to the point of the 4.2.3.2 (Main Cover, NCU Cover and Rear Cover). Remove the ground cable by re- moving the screw 1.
  • Page 189 Paper guide (U) Assembly Separation Rubber The Separation Rubber can be removed from the Paper Guide (U) Assembly. Feed Roller Remove the ground cable by re- moving the two screws 5. Remove the Feed Roller by re- moving the gear and ADF bear- ings.

  • Page 190: Sub-Roller, Adf Roller Assembly, Pinch Roller, Contact Image Sensor, Document Detectors

    4.2.3.4 Sub-roller, ADF Roller Assembly, Pinch Roller, Contact Image Sensor, Document Detectors (PC1 and PC2). Disassembly procedure Scanner Unit First, carry out the disassembly procedure up to the point of the 4.2.3.2 (Rear Cover and Main Cover) and 4.2.3.3 (Control Panel Assembly and Paper Guide (U) Assembly).
  • Page 191 Remove the Sub-roller from the Scanner Frame. Remove the spring 1 from the Scanner Frame. Remove the ADF Roller Assem- bly by removing the gear on the Scanner Frame. After removing the ADF Roller, remove the Pinch Roller by hold- ing up the two springs 2 while the Pinch Roller Shaft is pushed and released.

  • Page 192: Resist Motor, Drum Motor, Release Guide Assembly, Manual Guide Assembly, Stacker Cover, Fusing Unit

    4.2.3.5 Resist Motor, Drum Motor, Release Guide Assembly, Manual Guide Assembly, Stacker Cover, Fusing Unit Disassembly procedure • First, carry out the disassembly proce- dure up to the point of the Scanner Unit Assembly removal (Refer to Sub-sec- tion 4.2.3.4.) Resist Motor and Drum Motor Remove the Resist Motor by re- moving the two screws 1.
  • Page 193 Stacker Cover Disconnect the flat cable. Remove the Copy Stacker by pressing inward the two latches on it from the two reset levers. Remove the Copy Stacker by spreading it from the lower base. Fusing Unit Remove the Fusing Unit by re- moving the four screws 2.

  • Page 194: Lower Base, Motor Assembly, Back-Up Roller, Transfer Roller

    4.2.3.6 Lower Base, Motor Assembly, Back-up Roller, Transfer Roller Disassembly procedure Lower Base, Motor Assembly First, carry out the disassembly procedure up to the point of the Fusing Unit removal. (Refer to sub-item 4.2.3.5.) Disconnect the two connectors (CN3 and CN4 on the MCNT board).
  • Page 195 Release the gear by unlocking the latch on the Lower Base. Lift the right side of the Transfer Roller and shift rightwards, then pull it out from the Lower Base. Reassembly procedure Reverse the disassembly procedures. 40055101TH Rev.4 Latch Lower Base Gear Transfer Roller (FX050-C4-026)

  • Page 196: Resist Roller, Hopping Roller, Sensor Plates

    4.2.3.7 Resist Roller, Hopping Roller, Sensor Plates Disassembly procedure Resist Roller, Hopping Roller First, carry out the disassembly procedure up to the point of the Lower Base removal. (Refer to sub-item 4.2.3.6.) Remove the One-way Clutch Gear. Press the Resist Roller to the right side and lift up the left side of it, then take off the Resist Roller.
  • Page 197 Press and hold the Clutch while pushing the Toner Sensor up and out. Reassembly procedure Reverse the disassembly procedures. 40055101TH Rev.4 Toner Sensor (FX050-C4-030) 197 /...

  • Page 198: Mcnt Board, Power Supply Unit, Contact Assembly, Transformer, Sub-Psu

    4.2.3.8 MCNT Board, Power Supply Unit, Contact Assembly, Transformer, Sub-PSU Disassembly procedure • First, carry out the disassembly procedure up to the point of the Printer Unit removal. (Refer to sub-section 4.2.3.6.) Note: MCNT board is shown below: MCNT Board Remove the MCNT Board by removing the five screws 2.

  • Page 199: Adjustments

    ADJUSTMENTS Setting of LED Print Head Drive Time • Adjustment point: Technical Function No. 27. * To bring the LCD up to Technical Function, press SELECT FUNCTION key once, COPY key twice and "2" key (In case of no message in memory). Note: When the rank marking of the replaced LED print head (new part) is the same as that of the used LED print head (old part), you do not always have to set the LED print head drive time.

  • Page 200: Okioffice44/Okifax 4100 Confirmation Items

    5.2.1 OKIOFFICE44/OKIFAX 4100 Confirmation Items The clock frequency and power voltage of the machine are not possible to adjust in the field. However, their measurement procedures are described here for confirmation of clock frequency and each voltage. Clock Frequency • Measurement point: •...

  • Page 201: Okioffice44/Okifax 4100 Measurement

    5.2.2 OKIOFFICE44/OKIFAX 4100 Measurement Remove the AC power cord. Carry out the disassembly procedure up to Cover assembly-top, Frame assembly-scanner, and Unit- printer. (Refer to the Mechanical Disassembly and Reassembly in Chapter 4-1.) Connect extension cables to the R44 board.

  • Page 202: Okifax 5000 Series Confirmation Items

    5.3.1 OKIFAX 5000 Series Confirmation Items The clock frequency and power voltage of the machine are not possible to adjust in the field. However, their measurement procedures are described here for confirmation of clock frequency and each voltage. Clock Frequency •...

  • Page 203: Okifax 5000 Series Measurement

    5.3.2 OKIFAX 5000 Series Measurement Turn AC power OFF. Carry out the disassembly procedure up to Main Cover and Scanner Unit removal. (Refer to the Mechanical Disassembly and Reassembly in Chapter 4-2.) Connect extension cables to the M17 board. Connect the frequency counter (for clock frequency), digital voltmeter (for power voltage) and Oscilloscope (for SIG signal).
  • Page 204 204 / 40055101TH Rev.4...

  • Page 205: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Replacement of Consumable Parts The user (or service personnel) is required to replace the following items as consumable parts. User side Part name Toner Cartrige I/D Unit (Image drum unit) Service personnel side Part name Fuser Unit Separation Rubber (1) Toner cartridge (4) Separation rubber...
  • Page 206 (2) I/D (image drum) unit (4) Separation rubber (3) Fuser unit (1) Toner cartridge Figure 6.1.2 Consumable Parts for OKIFAX 5000 Series 206 / 40055101TH Rev.4...
  • Page 207 Others Item Document feeder Recording paper feeder Battery MTBF Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type 40055101TH Rev.4 Table 6.1.1 Reliability Jam occurrence and misfeeds in the automatic document feeder will be less than one in 500 operations for all specified documents.

  • Page 208: Routine Inspection

    Clean the surface of the head by moving the tissue paper back and forth several times. Clean the inside of the printer unit by using a cloth moisturized with cold water. Apply silicone oil to the following parts: a.
  • Page 209 (4) Separation rubber (2) Roller - ADF (5) LED head Paper exit ID unit (1) Roller - Scan Document exit (3) Image sensor (6) Printer block Fifure 6.2.1 Parts of Routine Inspection for OKIOFFICE44/OKIFAX 4100 209 / 40055101TH Rev.4...

  • Page 210: Routine Inspection For Okifax 5000 Series

    Clean the surface of the head by moving the tissue paper back and forth several times. Clean the inside of the printer unit by using a cloth moisturized with cold water. Apply silicone oil to the following parts: a.
  • Page 211 (7) Separation rubber (4) Pinch roller (3) Sub roller (1) Scan roller (8) LED print head (2) Feed roller (5) ADF roller (6) Image sensor Fifure 6.2.2 Parts of Routine Inspection for OKIFAX 5000 Series 211 / 40055101TH Rev.4...

  • Page 212: Printer Counter Display/Clear

    Printer Counter Display/Clear Note: The fonts displayed on the LCD operation panel may differ from the fonts written this manual. Purpose A user can clear the image drum unit and check some of the counters (such as the print counter, scan...

  • Page 213: Printer Counter Display/Clear

    Printer Counter Display/Clear Purpose The service personnel can clear and check the following data: • Image Drum • Toner • Image Drum (Total) • Print • Scan Procedure The following shows the case when the service bit has been set ON.

  • Page 214: Self-Diagnosis Test

    Self-diagnosis Test Purpose To check ROMs, RAMs and printing function. Procedure Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once and COPY key twice in the standby mode. (In case of no message in the memory) Press key.
  • Page 215 • Test report will be automatically printed out with the following items: In case of OKIFAX 4100 Pattern 1 All white (32 lines) Pattern 2 Stair pattern (32 lines in each step) Pattern 3 All black (32 lines) Pattern 4 Alternate printing of black dots and white dots (32 lines x 2) Pattern 5 All white (32 lines)
  • Page 216 • Test report will be automatically printed out with the following items: In case of OKIFAX 5000 series Pattern 1 All white (32 lines) Pattern 2 Stair pattern (32 lines in each step) Pattern 4 All black (32 lines) Pattern 4 Alternate printing of black dots and white dots (32 lines x 2) Pattern 5 All white (32 lines)
  • Page 217 CPU-ROM VERSION AA00 HASH DACD CPU-RAM PROG1 VERSION AA00 PROG1 HASH 3142 PROG2 VERSION AA00 PROG2 HASH 1234 LANGUAGE VERSION LL10 HASH 3F06 DEFAULT VERSION DD10 HASH A683 RAM1 RAM2 OPT-RAM1 OPT-I/F PARALLEL DEFAULT TYPE 07/01/96 *1 marked item is shown for condition of all RAM except EXCEED RAM. *2 marked item is shown to SRAM for EXCEED.

  • Page 218: Sensor Calibration Test

    Sensor Calibration Test Purpose To adjust the linearity of output levels of contact image sensor. Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once and COPY key twice in the standby mode. (In case of no message in the memory) Press key.

  • Page 219: Scanning Error

    Operations: Enter "2". Press key. Load document(s). For adjustment of levels, use white plain bond paper(s) of NA Letter or A4 size. Observe and check the document feed operation. Check that the followings do not occur: Document skew. Multiple document feeding. No feeding.

  • Page 220: Led Test

    LED Test Purpose To check all LEDs on operation panel by lighting. Procedure Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once and COPY key twice in the standby mode. (In case of no message in memory) Press key.

  • Page 221: Tone Send Test

    Tone Send Test Purpose To send the G3 tonal frequencies to the line. Procedure Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once, COPY key twice and key twice. (In case of no message in memory) Enter "4".

  • Page 222: High-Speed Modem Send Test

    High-speed Modem Send Test Purpose To check the telephone line quality in combination with a remote station programmed to the high- speed modem receive test mode. Procedure Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once, COPY key twice and key twice.
  • Page 223 5:MODEM SEND TEST YES( ) NO( /1-8) Press key. CML relay operates. The display shows: 5:MODEM SEND TEST " MODEM rate (e.g. 9.6K means 9600 bps) Test time ": (minute, second) Press STOP key. CML relay goes off. Figure 6.9.1 High-speed Modem Send and Receive Test 40055101TH Rev.4 TX Side RX Side...

  • Page 224: High-Speed Modem Receive Test

    6.10 High-speed Modem Receive Test Purpose To check the telephone line quality in combination with a remote station programmed to the high- speed modem send test mode. Procedure Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once, COPY key twice and key twice.

  • Page 225: Mf Send Test

    6.11 MF Send Test Purpose To send the multi-frequencies of tone dialling to the line. Procedure Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once, COPY key twice and key twice. (In case of no message in memory) Enter 7.

  • Page 226: Tone (Tel/Fax)

    6.12 Tone (TEL/FAX) Purpose To check the pseudo-ring back tone of TEL/FAX automatic switching. Procedure Operations: To bring the LCD up to the desired message, press SELECT FUNCTION key once, COPY key twice and key twice. (In case of no message in memory) Enter 8.

  • Page 227: Protocol Dump Data Printing

    6.13 Protocol Dump Data Printing Purpose To analyze the transmitted/received G3 protocol signals. Procedure • Manual print-out of the last communication. (a) Manual print-out Operations: Press SELECT FUNCTION key, provided that the service bit is ON. Press one-touch key No.6 Enter 5.

  • Page 228: Protocol Dump

    FF C0 C2 2C CC 4C 8C 04 6C EC 2C AC 04 CC 0C 04 04 04 04 04 04 04 04 Figure 6.13.1 Protocol Dump Data (Sample: at transmitter side) 40055101TH Rev.4 PROTOCOL DUMP 07/01/96 ID=OKI SHIBAURA DISTANT STATION ID MODE OKI HONJO CALLING...
  • Page 229 Analysis from the data The printed out data permits to analyze G3 facsimile communication protocol signals between two facsimile machines. Figure 6.13.2 shows the result of an analysis on the printed data referring to Figure 6.13.1 (Protocol dump data). (Transmitter) (C2) (C4) (FD,F4)
  • Page 230 FCF (Facsimile Control Field) conversion table Table 6.14.1 shows all FCF signals which are needed to analyze the printed out protocol dump data. Some signals have two different hexadecimal codes in accordance with the calling party or called party. Table 6.14.1 FCF Signals Conversion Table Abbreviation Hex.

  • Page 231: System Reset

    6.14 System Reset Purpose To clear or initialize the following data: (a) Location data (b) Configuration data (default) Procedure Operations: Press SELECT FUNCTION key, COPY key twice. (In case of no message in the memory) Enter 3. To bring the LCD up to the desired message, press key and key.

  • Page 232: Service Code

    6.15 Service Code The service code can be printed on Activity Report to recognize the result of each communication. The activity report indicates the code ”0000", should a communication terminates on normal status as a service code. The activity report indicates one of the codes of “90XX”, should a communication terminates on abnormal status, as an error code.
  • Page 233 Code 0000 Successful end of communication. 1080 STOP key has been pressed while calling a remote fax. 10A2 Busy tone detected. 14C0 Dial tone not detected. 14C1 Line current not detected. 14C2 Calling-and-waiting for line connection time out. 14C3 Dialling limit time out. 21A0 Received signal other than DIS/DTC.
  • Page 234 Code 39C1 DECODER hardware error. (cannot detect end of picture) 41A0 There was no response each time in response to the three post commands. 41A6 Received signal other than the desired signal in responce to the post command. 41A9 Fall back in Phase C is not possible. 41C8 T5 time out.

  • Page 235: 7-1.Troubleshooting And Repair For Okioffice44/Okifax 4100

    7-1. TROUBLESHOOTING AND REPAIR FOR OKIOFFICE44/OKIFAX 4100 235 / 40055101TH Rev.4...
  • Page 236 7.1.14 MF (Tone) send test 7.1.15 Tone (TEL/FAX) send test 7.1.16 No acoustic line monitor 7.1.17 Power supply unit 7.1.18 No document feeding 7.1.19 Multiple document feeding 7.1.20 Document skew 7.1.21 Document jam 7.1.22 Printer unit 40055101TH Rev.4 Page 7.1-2 7.1-3 7.1-4 7.1-5 7.1-6 7.1-7...

  • Page 237: Overall Troubleshooting Flow Chart

    7.1.1 Overall Troubleshooting Flow Chart Start LCD works? ALARM LED lights? Key operation activates the OKIFAX 4100/ OKIOFFICE44 (Pressing SELECT FUNCTION key causes "SELECT FUCTION (OT) MEMORY AVALI=100%" to appear on LCD? Pressing STOP key makes a key touch-tone?) Perform SELF-DIAGNOSIS. Print test OK? FLASH memory check OK? RAM check OK?

  • Page 238: No Lcd Operation

    7.1.2 No LCD Operation Start TIME on LCD? Return to section 7.1.1 40055101TH Rev.4 AC power cord ON? Reconnect the AC +5V SUB at Pin 12 of CN7 (R44)? Check SPSU, MCNT (R44) boards and their connectors. +5V SUB at Pin 6 and 7 of CN1 (OPE UNIT)? Replace OPE UNIT (O4W).

  • Page 239: Alarm Led On

    "DOCUMENT JAM" alarm? 1. Check that the document 2. Check PC2. 3. Replace MCNT board. Note* : "PRINTER ALARM i" will be shown as follows: PRINTER ALARM 2 and PRINTER ALARM 4. Checking Points: board. transport path up to PC2 is normal.

  • Page 240: Printing Test Failure

    7.1.4 Printing Test Failure Perform SELF DIAGNOSIS. Replace MCNT Board Go to 7.1.22 (printer unit) 40055101TH Rev.4 Start Print test OK? Solved? Return to section 7.1.1 240 /...

  • Page 241: No Local Copy

    7.1.5 No Local Copy Start Printing function of self-diagnosis is OK? Load a document. The document is fed by any length? The document is fed by about 7cm and stops with the SELECT LOCATION message dispoayed? Press COPY key. Any document copied in black? Copy quality OK? Return to section 7.1.1...

  • Page 242: Auto Dial Failure

    7.1.6 Auto Dial Failure Start Manual dial OK? Test other fax machines under the same conditions. Do they dial automatically? DIALING on LCD? TELEPHONE BUSY on LCD? Hang up external telephone set Solved? Replace NCU Board. Solved? Replace MCNT Board. Return to section 7.1.1 40055101TH Rev.4 Can you hear dial tone when...

  • Page 243: Transmission Problem

    7.1.7 Transmission Problem This section explains how to localize the cause of problems occurred after completion of connection with a remote station. Step 1: Set MH ONLY (Technical function No. 13) to ON. Step 2: Set HIGH-SPEED MODEM RATE (Technical function No. 14) to 4800 bps. Step 3: Adjust send signal power level.
  • Page 244 Test other fax machine under the same conditions, especially concerning Step 1-4. Do they transmit normally? The hardware of the troubled fax machine may be damaged. Go to 7.1.13 (High-speed Modem Test) to localize the cause. Description: Protective tone is 1700 Hz/200 ms. This signal is added to training signal to protect the training signal against echo as follows.

  • Page 245: Auto Reception Failure

    7.1.8 Auto Reception Failure Start Manual reception OK? Placed in the auto receive mode? If not, place the fax machine in that mode by pressing AUTO REC key. Solved? Set CLOSED NETWORK (Function program No. 08) to OFF. Solved? Ringing signal is detected at Pin 4 of CN3 (NCU)? Replace MCNT Board.

  • Page 246: Reception Problem

    7.1.9 Reception Problem This section explains how to localize the cause of problems occurred after completion of connection with a remote station. Return to section 7.1.1 40055101TH Rev.4 Start Step 1: Set MH ONLY (Technical function No. 13) to ON. Solved? Step 2: Set HIGH-SPEED MODEM RATE...
  • Page 247 Test other fax machine under the same conditions, especially concerning step 1-4. Do they receive normally? The hardware of the troubled fax machine may be damaged. Go to 7.1.13 (High-speed Modem Test) to localize the cause. 40055101TH Rev.4 Check the line and the network. Note: Even if the high-speed modem test results in success, 300 bps signal route remains unchecked.

  • Page 248: Sensor Calibration Test

    7.1.10 Sensor Calibration Test Start Perform SENSOR CALI- BRATION. (See 6.6) "SCANNING ERROR" appears on LCD while adjusting for level. Abnormal feeding is observed during SCANNING CHECK? 40055101TH Rev.4 Checking Points: Check that white plain bond paper of NA Letter or A4 size is loaded on the feeder. No document feeding Go to 7.1.18.

  • Page 249: Led Test

    7.1.11 LED Test Start Perform LED TEST. (See 6.7) All LEDs light? 40055101TH Rev.4 No (No LED lights) Any LED does not light? Yes (One LED or some LEDs light.) 1. Check the connection cable. 2. Check the oscillator OSC (OPE). 3.

  • Page 250: Tone Send Test

    7.1.12 Tone Send Test Start Perform TONE SEND TEST. (See 6.8.) Connect leads of frequency counter (or oscilloscope) across the line terminals L1 and L2. Tones appear at L1 and L2? and Pin A12, B12 (0V) of CN10 (MCNT)? 40055101TH Rev.4 Note 1: The tonal frequency (2100 Hz) will be sequentially sent for 5 seconds on the line terminals L1 and L2.

  • Page 251: High-Speed Modem Test

    7.1.13 High-speed Modem Test Start Connect oscilloscope probe across the line terminals L1 and L2 Perform H-MODEM SEND TEST for the transmitter and H-MODEM REC TEST for the receiver. (See Fig. 6.9.1) Which mode, TX or RX? Modem's signal appears across L1 and L2? Modem's signal appears across...
  • Page 252 The error counter of LCD stops counting up? Receive signal appears across L1 and L2? Receive signal appears across CN3-19, 20 (R) and CN3-7 (GND) of WN5 board? Replace MCNT Board. Signal route: CN10-A6, B6 (R) IC12-3 IC8-60 (RXA1) IC8-26 to 33 (AD0 to AD7) Return to section 7.1.1 40055101TH Rev.4 RX (Receiver)

  • Page 253: Mf Send Test

    7.1.14 MF Send Test Start Connect oscilloscope probe across the line terminals L1 and L2. Perform MF SEND TEST. (See 6.11.) MF signal appears across L1 and L2? Return to section 7.1.1 40055101TH Rev.4 MF signal appears across CN10-A8, B8 (S) and CN10-A12, B12 (0V) of MCNT Board? Replace WN5 Board.

  • Page 254: Tone (Tel/Fax) Send Test

    7.1.15 Tone (TEL/FAX) Send Test Start Connect oscilloscope probe across the line terminals L1 and L2. Perform TONE (TEL/FAX) SEND TEST. (See 6.12.) Pseudo-Ring Back Tone signal appears across L1 and L2? Return to section 7.1.1 40055101TH Rev.4 Note: The pseudo-ring back tone is sent to the telephone line for TEL/FAX automatic switching.

  • Page 255: No Acoustic Line Monitor

    7.1.16 No Acoustic Line Monitor There are two source routes of acoustic line monitor: General communication signal DP pulse signal Start MONITOR VOLUME (Function program No. 06) has been set to LOW or HIGH? MONITOR CONTROL (Technical function No. 02) has been set to OFF? Connect oscilloscope probe across CN8-01 (SP) and...

  • Page 256: Power Supply Unit

    7.1.17 Power Supply Unit (1) The main power supply is not turned ON. Start Is the MPON set to high? Is the VCE voltage of Q5 set to almost 0 V? Is the voltage across C26 at 4.8 V or more? Is the triac side of PC2 set to ON? Is the voltage applied...
  • Page 257 Low-voltage Selection. (2) No 5 V(S) output Start Isn't fuse Fl blown? Isn't fuse F2 blown? Is the voltage across C26 at 6 V or more? Is the voltage across C27 at 5.6 V or more? 40055101TH Rev.4 To flowchart (6) for no heater output.
  • Page 258 (3) No 5 V output Start Isn't fuse F1 blown? Isn't fuse F2 blown? Is the output wave- form at VCE of Q1 as shown in Fig. 1? (page A3-49) 40055101TH Rev.4 To flowchart (6) no heater output. 1. D1 to D4 short circuit Replacement 2.
  • Page 259 (4) No 24 V output Start Is there oscillation waveform at VCE of Q1? Is the voltage across C22 at 24 V or more? Is the voltage across C23 at 24 V or more? 40055101TH Rev.4 Replacement Replacement Replacement 1. Q1 short circuit 2.
  • Page 260 (5) No –8 V output Start Is there oscillation waveform at VCE of Q1? Is the voltage across C19 at 9 V or more? Is the output voltage of C20 at -8V. 40055101TH Rev.4 Replacement Replacement Replacement 1. Q1 short circuit 2.
  • Page 261 (6) No heater output Start Is 5 V output provided? Is the ACON signal set to low? Is the triac side of PC3 ON? Is TRC1 ON? 40055101TH Rev.4 To flowchart (3) no 5 V output. Replacement Replacement Replacement 1. Check the signal line. 1.
  • Page 262 High-voltage Selection. (7) SB, DB, CB, TR, and CH output voltage Start Is SB2 (+450V) output votage lower or higher than the specified value? No SB2 output voltage is provided. Are DB1 (+300V)/DB2 (-300V) output voltage lower or higher than the specified value? No DB1/DB2 output voltages are provided.
  • Page 263 Is CH (-1.3KV) output voltage lower or higher than the specified value? No CH output voltage 40055101TH Rev.4 is provided. See ACTION 7. (TLHV board) See ACTION 8. (TLHV board) 263 /...
  • Page 264 ACTION Item: Probable cause 1: D83 is defective. Check item 1: Replace D83. Probable cause 2: The load is larger than the normal value. Check item 2: Check if the load current is 2 A or less. Probable cause 3: D52 is defective.

  • Page 265: No Document Feeding

    7.1.18 No Document Feeding Note: This section places an emphasis on troubleshooting of mechanical portions. Start Load a document(s). LCD works? Control panel unit is closed firmly? Leading edge of document(s) is curled? Too thick document(s)? (>0.15 mm?) Too many document(s)? (>20/A4?) Coated document(s)? Are there bits of paper or...

  • Page 266: Multiple Document Feeding

    7.1.19 Multiple Document Feeding Definition: Multiple document feeding. Multiple documents are not separated and they are fed in the same one feeding operation. Start The leading edges of the documents are aligned? The separation rubber is dirty? After pushing the separation rubber assembly, does it return to the original position?

  • Page 267: Document Skew

    7.1.20 Document Skew Start Are the document guides set to meet the document width? Are the documents straightly loaded along the guides? The documents have the same width? The thickness of the document: < 0.08 to 0.13 mm (Multiple doc.)? <...
  • Page 268 Is separation rubber dirty? Are pinch rollers pressed normally by the springs? (After pushing them by fingers, do they return back to the original positions?) Are roller-scan dirty? Are roller-scan worn or slippery? Is roller-ADF dirty? Replace the roller-ADF, the roller-scan and/or the pinch rollers.

  • Page 269: Document Jam

    7.1.21 Document Jam Start Load a document. Is document fed by any length? Is document fed by about 5.5 cm and stops with the SELECT LOCATION message displayed? Press Copy key. Document jammed. Are documents abnormal? Check points: 1. Adhesive such as paste, tape, etc. on the surface of the documents? 2.

  • Page 270: Printer Unit

    7.1.22.1 Precautions Points to check before correcting image troubles (1) Is the printer being run in proper ambient conditions? (2) Have the supplies (toner) and the routine replacement part (EP unit) been replaced properly? (3) Is the recording paper normal?

  • Page 271: Troubleshooting Flow Charts Of Printer Unit

    7.1.22.2 Troubleshooting Flow Charts of Printer Unit Overall troubleshooting flow chart: Troubles Troubles indicated by LCD message Image troubles (Trouble not indicated by LCD messages) Table 7.1.22.1 LCD Message Trouble List Category LCD message display 14:14 Cover open COVER OPEN...
  • Page 272 Troubleshooting flow chart 1: Cover (Cover-top) is open. ** COVER OPEN ** Close the cover Solved? Is the cover open switch Connect the cover open connector out of position? switch connector. Return to section 7.1.1. See ACTION 2. 272 / 40055101TH Rev.4...
  • Page 273 Troubleshooting flow chart 2: Warning message to replace ID unit because of its life. ** CHANGE DRUM SOON ** Turn on power again. Does the CHANGE DRUM SOON message remain on display? Is the MCNT Board mounted properly? See ACTION 4. 40055101TH Rev.4 See ACTION 3.
  • Page 274 Troubleshooting flow chart 3: Engine controller error (ROM/RAM error) ** PRINTER ALARM 2 ** Turn on power again. Does the PRINTER See ACTION 5. ALARM 2 message remain on display? See ACTION 6. 274 / 40055101TH Rev.4...
  • Page 275 Troubleshooting flow chart 4: Fuser unit thermal error ** PRINTER ALARM 4 ** Turn on power again. Is the PRINTER ALARM 4 message displayed with a delay? Turn on power again. Is the fuser unit heater Is the heater free from 40055101TH Rev.4...
  • Page 276 Troubleshooting flow chart 5: Recording paper feed jam, transport jam, ejection jam, Does the error occur while paper is under the EP drum? 40055101TH Rev.4 recording size error PAPER OUT/JAM REPLACE PAPER Is the paper tray loaded properly? Is the paper of specified size? Does the same error occur many times?
  • Page 277 Troubleshooting flow chart 6: No recording paper tray or not recording paper No recording paper on the tray PAPER OUT/JAM REPLACE PAPER Has the paper Load it. tray been loaded? Is recording paper Load recording paper. out? See ACTION 14. 277 / 40055101TH Rev.4...
  • Page 278 Table 7.1.22.2 Action Items (Printer Unit-LCD Message) ACTION Check MCNT Board. Check PWU-HV Board cover open switch, cover open switch connection. Check MCNT Board. Return to Section 7.1. Replace the EP Unit. And clear Drum Count, Section 6.3. Check installation of MCNT board, POWER SUPPLY UNIT board.
  • Page 279 Abnormal Symptom Images are light or blurred as a whole. The blank background is smeared. Blank paper is output. Black belts or black stripes in vertical direction. Periodic abnormal printing. Some parts not printed. White belts or some white stripes in vertical direction Poor fusing (Images are blurred or peeled off when touched by hands)
  • Page 280 Replace the transfer roller, EP unit or Power Supply Unit. 40055101TH Rev.4 Is toner low? Supply toner. Use paper of OKI Is paper of OKI specified grade. specified grade? Replace the paper. Clean the lens. Install the LED print head properly.
  • Page 281 Troubleshooting flow chart 8: The blank background is smeared. Has the Image Drum been exposed to external light? Is the heat roller of the fuser unit dirty? Is the contact of the cleaning roller of the EP unit in contact with the contact assembly properly? Replace the EP unit or PWU-HV Board...
  • Page 282 Troubleshooting flow chart 10: Black belts or stripes in the vertical direction. Replace the EP Unit End. Solved? Replace the LED print head or Power Supply Unit. 282 / 40055101TH Rev.4...
  • Page 283 Troubleshooting flow chart 11: Periodic abnormal printing 1.44" (36.6 mm) period? 1.98" (50.3 mm) period? 2.63" (66.8 mm) period? 0.81" (20.6 mm) period? 0.81" (20.6 mm) period? 1.71" (43.4 mm) period? 2.46" (62.5 mm) period? 1.98" (50.3 mm) period? Check the fax control side. 40055101TH Rev.4 Developing roller (inside EP unit) failure.
  • Page 284 Troubleshooting flow chart 12: Some parts not printed Is the print paper folded, bent, or scratched? Is the transfer roller Check EP unit or Power Supply Unit. 40055101TH Rev.4 Replace the paper. Clean it. dirty? 284 /...
  • Page 285 Troubleshooting flow chart 13: White belts or streakes in the vertical direction Is the lens surface of the LED print head dirty? Is the contact plate of the transfer roller in contact with the contact assembly properly? Replace the transfer roller Is the LED print head installed properly? Replace the LED print head.
  • Page 286 Troubleshooting flow chart 14: Poor fusing Is the paper OKI specified grade? Is the (Bias) spring normal? (Tension: 2.5 kg) Is the contact of the fuser unit contacted with the contact assembly prolerly? Check the thermister, the heater (inside the fuser unit), MCNT board and Power Supply Unit.

  • Page 287: 7-2.Troubleshooting And Repair For Okifax 5000 Series

    7-2. TROUBLESHOOTING AND REPAIR FOR OKIFAX 5000 SERIES 287 / 40055101TH Rev.4...
  • Page 288 7.2.14 MF (Tone) send test 7.2.15 Tone (TEL/FAX) send test 7.2.16 No acoustic line monitor 7.2.17 Power supply unit 7.2.18 No document feeding 7.2.19 Multiple document feeding 7.2.20 Document skew 7.2.21 Document jam 7.2.22 Printer unit 40055101TH Rev.4 Page 7.2-2 7.2-3 7.2-4 7.2-5 7.2-6 7.2-7...

  • Page 289: Overall Troubleshooting Flow Chart

    7.2.1 Overall Troubleshooting Flow Chart Start TIME on LCD? Retrun to section 7.2.1 40055101TH Rev.4 AC power switch ON? Turn ON power switch. SUB +5V at Pin 1 of CN16 (MCNT)? Check SPSU, MCNT boards and their connectors. SUB +5V at Pin 6 and 7 of CN1 (05W)? Check MCNT board and the cable between MCNT...

  • Page 290: No Lcd Operation

    7.2.2 No LCD Operation Start TIME on LCD? SUB +5V at Pin 6 and 7 of the cable between MCNT Retrun to section 7.2.1 40055101TH Rev.4 AC power switch ON? Turn ON power switch. SUB +5V at Pin 1 of CN16 (MCNT)? Check SPSU, MCNT boards and their connectors.

  • Page 291: Alarm Led On

    "DOCUMENT JAM" alarm? 1. Check that the document 2. Check PC2. 3. Replace MCNT board. Note* : "PRINTER ALARM i" will be shown as follows: PRINTER ALARM 2 to PRINTER ALARM 4. Checking Points: board. transport path up to PC2 is normal.

  • Page 292: Printing Test Failure

    7.2.4 Printing Test Failure Perform SELF DIAGNOSIS. Replace MCNT Board Go to 7.2.22 (printer unit) 40055101TH Rev.4 Start Print test OK? Solved? Return to section 7.2.1 292 /...

  • Page 293: No Local Copy

    7.2.5 No Local Copy Start Printing function of self-diagnosis is OK? Load a document. The document is fed by any length? The document is fed by about 7cm and stops with the SELECT LOCATION message dispoayed? Press COPY key. Any document copied in black? Copy quality OK? Return to section 7.2.1...

  • Page 294: Auto Dial Failure

    7.2.6 Auto Dial Failure Start Manual dial OK? Test other fax machines under the same conditions. Do they dial automatically? DIALING on LCD? TELEPHONE BUSY on LCD? Hang up external telephone set Solved? Replace NCU Board. Solved? Replace MCNT Board. Return to section 7.2.1 40055101TH Rev.4 Can you hear dial tone when...

  • Page 295: Transmission Problem

    7.2.7 Transmission Problem This section explains how to localize the cause of problems occurred after completion of connection with a remote station. Step 1: Set MH ONLY (Technical function No. 13) to ON. Step 2: Set HIGH-SPEED MODEM RATE (Technical function No. 14) to 4800 bps. Step 3: Adjust send signal power level.
  • Page 296 Test other fax machine under the same conditions, especially concerning Step 1-4. Do they transmit normally? The hardware of the troubled fax machine may be damaged. Go to 7.13 (High-speed Modem Test) to localize the cause. Description: Protective tone is 1700 Hz/200 ms. This signal is added to training signal to protect the training signal against echo as follows.

  • Page 297: Auto Reception Failure

    7.2.8 Auto Reception Failure Start Manual reception OK? Placed in the auto receive mode? If not, place the fax machine in that mode by pressing AUTO REC key. Solved? Set CLOSED NETWORK (Function program No. 08) to OFF. Solved? Ringing signal is detected at Pin 4 of CN3 (NCU)? Replace MCNT Board.

  • Page 298: Reception Problem

    7.2.9 Reception Problem This section explains how to localize the cause of problems occurred after completion of connection with a remote station. Return to section 7.2.1 40055101TH Rev.4 Start Step 1: Set MH ONLY (Technical function No. 13) to ON. Solved? Step 2: Set HIGH-SPEED MODEM RATE...
  • Page 299 Test other fax machine under the same conditions, especially concerning step 1-4. Do they receive normally? The hardware of the troubled fax machine may be damaged. Go to 7.2.13 (High-speed Modem Test) to localize the cause. 40055101TH Rev.4 Check the line and the network. Note: Even if the high-speed modem test results in success, 300 bps signal route remains unchecked.

  • Page 300: Sensor Calibration Test

    7.2.10 Sensor Calibration Test Start Perform SENSOR CALI- BRATION. (See Chapter 6.6) "SCANNING ERROR" appears on LCD while adjusting for level. Abnormal feeding is observed during SCANNING CHECK? 40055101TH Rev.4 Checking Points: Check that white plain bond paper of NA Letter size or A4 is loaded on the feeder. No document feeding Go to 7.2.18.

  • Page 301: Led Test

    7.2.11 LED Test Start Perform LED TEST. (See Chapter 6.7) All LEDs light? 40055101TH Rev.4 No (No LED lights) Any LED does not light? Yes (One LED or some LEDs light.) ALARM LED lights? DARK LED lights? NORMAL LED lights? LIGHT LED lights? STD LED lights? FINE LED lights?

  • Page 302: Tone Send Test

    7.2.12 Tone Send Test Start Perform TONE SEND TEST. (See Chapter 6.8.) Connect leads of frequency counter (or oscilloscope) across the line terminals L1 and L2. Tones appear at L1 and L2? and Pin A12, B12 (0V) of CN6 (MCNT)? 40055101TH Rev.4 The tonal frequency (2100 Hz) will be sequentially Note 1:...

  • Page 303: High-Speed Modem Test

    7.2.13 High-speed Modem Test Start Connect oscilloscope probe across the line terminals L1 and L2 Perform H-MODEM SEND TEST for the transmitter and H-MODEM REC TEST for the receiver. (See Fig. 6.9.1) Which mode, TX or RX? Modem's signal appears across L1 and L2? Modem's signal appears across...
  • Page 304 The error counter of LCD stops counting up? Receive signal appears across L1 and L2? Receive signal appears across CN3-19, 20 (R) and CN3-7 (GND) of NCU board? Replace MCNT Board. Signal route: CN6-A6, B6 (R) IC12-3 IC8-60 (RXA1) IC8-26 to 33 (AD0 to AD7) Return to section 7.2.1 40055101TH Rev.4 RX (Receiver)

  • Page 305: Mf Send Test

    7.2.14 MF Send Test Start Connect oscilloscope probe across the line terminals L1 and L2. Perform MF SEND TEST. (See 6.11.) MF signal appears across L1 and L2? (S) and CN6-A12, B12 (0V) of MCNT Board? Return to section 7.2.1 40055101TH Rev.4 MF signal appears across CN6-A8, B8 Signal route:...

  • Page 306: Tone (Tel/Fax) Send Test

    7.2.15 Tone (TEL/FAX) Send Test Start Connect oscilloscope probe across the line terminals L1 and L2. Perform TONE (TEL/FAX) SEND TEST. (See 6.12.) Pseudo-Ring Back Tone signal appears across L1 and L2? Return to section 7.2.1 40055101TH Rev.4 Note: The pseudo-ring back tone is sent to the telephone line for TEL/FAX automatic switching.

  • Page 307: No Acoustic Line Monitor

    7.2.16 No Acoustic Line Monitor There are two source routes of acoustic line monitor: General communication signal DP pulse signal Start MONITOR VOLUME (Function program No. 06) has been set to LOW or HIGH? MONITOR CONTROL (Technical function No. 02) has been set to OFF? Connect oscilloscope probe across CN8-01 (SP) and...

  • Page 308: Power Supply Unit

    7.2.17 Power Supply Unit Turn on AC power. Primary Circuit Protection. F2 blows when SW is turned ON? Secondary Circuit Protection. F3 blows when SW is turned ON? Low-voltage Selection. Is 30V output voltage lower or higher than the specified value? No 30V output is provided.
  • Page 309 No +/-8V output voltages are provided. Is 5V output voltage higher or lower than the specified value? No 5V output is provided. No 5V output is provided. High-voltage Selection. Is SB2 (+450V) output votage lower or higher than the specified value? No SB2 output voltage is provided.
  • Page 310 No DB1/DB2 output voltages are provided. No CB (+400V) output voltage is provided. Is TR1 (+1KV) current in the CC (Constant Current) mode smaller or lager than the specified value? No current in the CC mode flows. Is output voltage in the CV (Current Voltage) mode smaller or larger than specified value or is not...
  • Page 311 Is CH (-1.3KV) output voltage lower or higher than the specified value? No CH output voltage is provided. Does heater remain in ON or OFF state? 40055101TH Rev.4 See ACTION 15. See ACTION 16. See ACTION 17. 311 /...
  • Page 312 ACTION Item: Probable cause 1: A double AC voltage is applied (200V is applied to a 120V transformer). Check item 1: Check the input AC voltage. Probable cause 2: A short-circuit between lines after F2. Check item 2: Check the pattern on PCB and T1. Probable cause 2: Short-circuit in 30V output circuit.
  • Page 313 ACTION Item: Probable cause 1: D85 is defective. Check item 1: Replace D85. Probable cause 2: The load is larger than the normal value. Check item 2: Check if the load current is 2 A or less. Probable cause 3: D52 is defective.
  • Page 314 ACTION Item: 16 Check item 1: Check the PWM waveform of CH (cycle: 42 s, ON time: 36 s). 17 Probable cause 1: D1 is detective. Check item 1: Check if both D1 and T1 or D1 and T2 are shorted. Probable cause 2: The D1 drive circuit is defective.

  • Page 315: No Document Feeding

    7.2.18 No Document Feeding Note: This section places an emphasis on troubleshooting of mechanical portions. Start Load a document(s). Sub-roller rotates? Control panel unit is closed firmly? Leading edge of document(s) is curled? Too thick document(s)? (>0.15 mm?) Too many document(s)? (>30/A4?) Coated document(s)? Are there bits of paper or...

  • Page 316: Multiple Document Feeding

    7.2.19 Multiple Document Feeding Definition: Multiple document feeding. Multiple documents are not separated and they are fed in the same one feeding operation. Start The leading edges of the documents are aligned? The separation rubber is dirty? After pushing the separation rubber assembly, does it return to the original position?

  • Page 317: Document Skew

    7.2.20 Document Skew Start Are the document guides set to meet the document width? Are the documents straightly loaded along the guides? The documents have the same width? The thickness of the document: < 0.08 to 0.13 mm (Multiple doc.)? <...
  • Page 318 Is separation rubber dirty? Are pinch rollers pressed normally by the springs? (After pushing them by fingers, do they return back to the original positions?) Are feed rollers dirty? Are feed rollers worn or slippery? Is ADF roller or the sub-roller dirty? Replace the ADF roller, the sub-roller, the feed rollers...

  • Page 319: Document Jam

    7.2.21 Document Jam Start Load a document. Is document fed by any length? Is document fed by about 8 cm and stops with the SELECT LOCATION message displayed? Press Copy key. Document jammed. Are documents abnormal? Check points: 1. Adhesive such as paste, tape, etc. on the surface of the documents? 2.

  • Page 320: Printer Unit

    7.2.22.1 Precautions Points to check before correcting image troubles (1) Is the printer being run in proper ambient conditions? (2) Have the supplies (toner) and the routine replacement part (ID unit) been replaced properly? (3) Is the recording paper normal?

  • Page 321: Troubleshooting Flow Charts Of Printer Unit

    7.2.22.2 Troubleshooting Flow Charts of Printer Unit Overall troubleshooting flow chart: Troubles Troubles indicated by LCD message Image troubles (Trouble not indicated by LCD messages) Table 7.2.22.1 LCD Message Trouble List LCD message display Category 14:14 Cover open COVER OPEN...
  • Page 322 Troubleshooting flow chart 1: Return to section 7.2.1. 40055101TH Rev.4 Cover (copy stacker) is open. ** COVER OPEN ** Close the cover (Scan unit). Solved? If the FAN motor halted? Is the cover open switch connector out of position? See ACTION 2. See ACTION 1.
  • Page 323 Troubleshooting flow chart 2: Warning message to replace ID unit because of its life. ** CHANGE DRUM SOON ** Turn on power again. Does the CHANGE DRUM SOON message remain on display? Is the MCNT Board mounted properly? See ACTION 4. 40055101TH Rev.4 See ACTION 3.
  • Page 324 Troubleshooting flow chart 3: Engine controller error ** PRINTER ALARM 2 ** Troubleshooting flow chart 4: Fan motor rotation error ** PRINTER ALARM 3 ** Open the cover, then close. 40055101TH Rev.4 (ROM/RAM error) Turn on power again. Does the PRINTER...
  • Page 325 Troubleshooting flow chart 5: Fuser unit thermal error ** PRINTER ALARM 4 ** Turn on power again. Is the PRINTER ALARM 4 message displayed with a delay? Turn on power again. Is the fuser unit heater Is the heater free from See ACTION 10.
  • Page 326 Troubleshooting flow chart 6: Recording paper feed jam, transport jam, ejection jam, REPLACE PAPER & "STOP". while paper is in the paper Does the error occur while paper is under the EP drum? 40055101TH Rev.4 recording size error Is the paper cassette loaded properly? Is the paper of specified size?
  • Page 327 Troubleshooting flow chart 7: No recording paper cassette or not recording paper No recording paper cassette or not recording paper ** NO PAPER ** REPLACE PAPER Has the paper cassette been loaded? Is recording paper See ACTION 16. 40055101TH Rev.4 Load it.

  • Page 328: Power Supply Unit

    Table 7.2.22.2 Action Items (Printer Unit-LCD Message) ACTION Check MCNT Board. Check POWER SUPPLY UNIT. cover open switch, cover open switch connection. Check MCNT Board. Return to Section 7.2. Replace the ID Unit. And clear Drum Count, Selection 6.3. Check installation of MCNT board, POWER SUPPLY UNIT board.
  • Page 329 Abnormal Symptom Images are light or blurred as a whole. The blank background is smeared. Blank paper is output. Black belts or black stripes in vertical direction. Periodic abnormal printing. Some parts not printed. White belts or some white stripes in vertical direction Poor fusing (Images are blurred or peeled off when touched by hands)
  • Page 330 Replace the transfer roller, ID unit or Power Supply Unit. 40055101TH Rev.4 Is toner low? Supply toner. Use paper of OKI Is paper of OKI specified grade. specified grade? Replace the paper. Clean the lens. Install the LED print head properly.
  • Page 331 Troubleshooting flow chart 9: The blank background is smeared. Has the Image Drum been exposed to external light? Is the heat roller of the fuser unit dirty? Is the contact of the cleaning roller of the ID unit in contact with the contact assembly properly? Replace the ID unit and Power Supply Unit.
  • Page 332 Troubleshooting flow chart 11: Black belts or stripes in the vertical direction. Replace the ID Unit End. Solved? Replace the LED print head or Power Supply Unit. 332 / 40055101TH Rev.4...
  • Page 333 Troubleshooting flow chart 12: Periodic abnormal printing 1.66" (44.4 mm) period? 3.71" (94.2 mm) period? 2.27" (57.8 mm) period? 1.56" (39.6 mm) period? 1.24" (31.4 mm) period? 2.01" (51.1 mm) period? 2.47" (62.8 mm) period? 2.72" (69.1 mm) period? Check the fax control side. 40055101TH Rev.4 Developing roller (inside ID unit) failure.
  • Page 334 Troubleshooting flow chart 13: Some parts not printed Is the print paper folded, bent, or scratched? Is the transfer roller Check ID unit or Power Supply Unit. 40055101TH Rev.4 Replace the paper. Clean it. dirty? 334 /...
  • Page 335 Troubleshooting flow chart 14: White belts or streakes in the vertical direction Is the lens surface of the LED print head dirty? Is the contact plate of the transfer roller in contact with the contact assembly properly? Replace the transfer roller Is the LED print head installed properly? Replace the LED print head.
  • Page 336 Troubleshooting flow chart 15: Poor fusing Is the paper OKI specified grade? Is the pressure roller spring normal? Is the contact of the fuser unit contacted with the contact assembly prolerly? Check the thermister, the heater (inside the fuser unit), MCNT board and Power Supply Unit.

  • Page 337: Dipswitchs Setting Table List

    DIPSWITCHS SETTING TABLE LIST Each country's hardware parameters comparison table. Dip-switch Sweden Finland Dip-switch Belgium Spain 40055101TH Rev.4 Ireland Portugal Netherlands Zealand Greece Italy Norway Denmark (Setting as of September 17, 1996) OKIFAX 4100/5000 series Australia Remarks Cascade connection Ring impedance DC loop resistance Ring sensitivity adjustment...
  • Page 338 1 Sweden (40044301) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "S" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "275".
  • Page 339 2 Finland (40044302) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "SF" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 340 3 Holland (40044303) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "NL" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 341 4 Ireland (40044304) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "IRL" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 342 5 Portugal (40044305) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "P" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 343 6 New Zealand (40044306) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "NZ" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "370".
  • Page 344 7 Australia (40044307) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "AUS" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "220".
  • Page 345 8 Belgium (40044308) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "B" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 346 9 Spain (40044309) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "E" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 347 10 Greece (40044310) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "GR" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 348 11 Italy (40044312) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "I" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 349 12 Norway (40044313) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "N" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 350 13 Denmark (40044314) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Put short-plug (40095701) into designated connector. For detail, see the figure below. Marking a portion "DK" with red oil ink. 40055101TH Rev.4 Put short-plug (40095701) into connector indicated "600".
  • Page 351 Each country's hardware parameters comparison table. Dip-switch Germany Switzer- land Each country's hardware parameters comparison table. Dip-switch United France Kingdom 40055101TH Rev.4 Austria (Setting as of September 17, 1996) OKIFAX 4100/5000 series Remarks Cascade connection Not used Ring impedance Ring sensitivity adjustment Impedance matching switch...
  • Page 352 1 German (40044101) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. For detail, see the figure below. 1 2 3 4 Magnified figure A C H Marking a portion "D" with red oil ink. 352 / 40055101TH Rev.4...
  • Page 353 2 Swiss (40044102) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. For detail, see the figure below. 1 2 3 4 Magnified figure A C H Marking a portion "CH" with red oil ink. 353 / 40055101TH Rev.4...
  • Page 354 3 Austria (40044103) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. For detail, see the figure below. 1 2 3 4 Magnified figure A C H Marking a portion "A" with red oil ink. 354 / 40055101TH Rev.4...
  • Page 355 1 United kingdam (40044401) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Setting connector (40095601) For detail, see the figure below. COMON Marking a portion "UK" with red oil ink. 40055101TH Rev.4 Connect these two connectors (COMON and UK) with the cable 40095601.
  • Page 356 2 France (40044402) This section gives the following instruction. • DIP switch setting • Instructions of marking with red oil ink. • Setting connector (40095601) For detail, see the figure below. COMON Marking a portion "F" with red oil ink. 40055101TH Rev.4 Connect these two connectors (COMON and F) with the cable 40095601.
  • Page 357 TEL-W2 (1/2) Each country's hardware parameters comparison table. Dip-switch Sweden Finland 40055101TH Rev.4 Ireland Portugal Zealand Netherlands (Setting as of September 17, 1996) OKIFAX 4100/5000 series Australia Remarks Balancing Network Impedance Matching DC Resistance Impedance Setting Sending Frequency Setting Sending Level Setting Not Used Rx Frequency (FLUP)
  • Page 358 TEL-W2 (2/2) Each country's hardware parameters comparison table. Dip-switch Spain Greece 40055101TH Rev.4 (Setting as of September 17, 1996) Switzer- Austria land OKIFAX 4100/5000 series Remarks Balancing Network (Side-tone Setting) Impedance Matching Setting DC Resistance Impedance Setting Sending Frequency Setting Sending Level Setting Not Used...
  • Page 359 TEL-W1 Each country's hardware parameters comparison table. Dip-switch United Italy Kingdom 40055101TH Rev.4 Denmark Norway Belgium (Setting as of September 17, 1996) OKIFAX 4100/5000 series Remarks Balancing Network (Side Tone Setting) Impedance Matching Setting MF-tone Level Setting Seding Level Setting MF-tine Level Setting Automatic Gain Control...
  • Page 360 NTIF Each country's hardware parameters comparison table: Dip-sw 3 Setting Table (U.K.) Setting Remarks Route change Not used 40055101TH Rev.4 Dip-sw 3 Setting Table (Except U.K.) Setting Remarks Route change Not used 360 /...

  • Page 361: Appendix Apc Board Descriptions And Operation

    APPENDIX A PC BOARD DESCRIPTIONS AND OPERATION A1.1 Unit Configuration and Block Diagram The unit configuration of the OKIOFFICE 44/OKIFAX 4100 is as follows: OKIOFFICE 44/OKIFAX 4100 ASSEMBLY Board-NCU UNIT-LED UNIT-ID Board-TLHV/OLHV Board-R44 Board-FX048PSU Figure A.1.1.1 Unit Configuration of OKIOFFICE 44/OKIFAX 4100 Main control board (R44) Network control unit (NCU) PC interface board (CTR): option...
  • Page 362 Power supply unit (SUB POW) Operation panel board (05WH) Optional board • Telephone interface board (TEL) • NCU-TEL interface board (NTIF) • Ten-key board (10KY) • Hook board (HOOK) 40055101TH Rev.4 Printer Assembly Base Assembly (OKIFAX 5200/5300: M17-3 for ODA/M17-4 for INT'L) 362 /...
  • Page 363 363 / 40055101TH Rev.4...
  • Page 364 364 / 40055101TH Rev.4...
  • Page 365 Meaning of abbreviations used in Block Diagram : Analog-to-digital converter : Amplifier BATT : Battery : Connector number i : Central processing unit D-MOTOR : Drum motor : Motor drive DRAM : Dynamic random-access memory EXSEED : Image proccessing gate array : Fan motor FLASH : Flash memory...

  • Page 366: Function Of Each Unit

    A1.2 Function of Each Unit The section describes the principal functions of the individual units of the OKIOFFICE44/OKIFAX 4100/5000 series electrical sections. Figure A1.2.1 and A1.2.2 shows the pertinent block diagram. R44 (OKIOFFICE44/OKIFAX 4100)/(OKIFAX 5500/5600: M17 for ODA/M17-2 for INT'L) (OKIFAX 5200/5300: M17-3 for ODA/M17-4 for INT'L) board •...
  • Page 367 NCU board UNC5 -------- For US and Canada WN5 --------- For Denmark, Norway, Sweden, Finland, The Netherlands, ireland, portugal, New Zealand, Australia, Belgium, Spain, Greece and Other countries DN5 ---------- For Germany, Switzerland and Austria FN5 ---------- For France and UK •...
  • Page 368 (11) TEL-W2 board (Option): For Sweden, Finland, The Netherlands, Ireland, Portugal, New • Basic speech functions included. • Separate receive pre-amp with signal output terminal. • Separate receive power amp input terminal, because it is possible to mix input. • Balanced input for microphone input to provide immunity to common mode noise.
  • Page 369 A2.1 Explanation of Signal Flow for OKIOFFICE44/OKIFAX 4100/5000 Series Note : Regarding the difference of the signal flow between OKIFAX 4100 and OKIFAX 5000 series, since one-line scanning processing speed of OKIFAX 5000 series is faster in comparison with OKIOFFICE 44/OKIFAX 4100, to the circuit diagram of OKIFAX 5000 series has been added the EXSEED (image processing LSI) and SRAM (dark/light level correction data).
  • Page 370 CPU. When the data for one page has been stored in the DRAM/P-SRAM, the data is read out from the DRAM and sent to IOGA. The picture data is converted into a signal data by the printer control of IOGA and transferred to the LED print head for printing as HDATA 0/1.
  • Page 371 (DRAM), the data is read out from the memory and sent to IOGA. The printed data is converted into a serial data by the printer control of IOGA and transferred to the LED print head for printing as HDATA 0/1.
  • Page 372 372 / 40055101TH Rev.4...
  • Page 373 373 / 40055101TH Rev.4...
  • Page 374 374 / 40055101TH Rev.4...
  • Page 375 375 / 40055101TH Rev.4...
  • Page 376 376 / 40055101TH Rev.4...
  • Page 377 377 / 40055101TH Rev.4...
  • Page 378 378 / 40055101TH Rev.4...
  • Page 379 379 / 40055101TH Rev.4...
  • Page 380 380 / 40055101TH Rev.4...
  • Page 381 381 / 40055101TH Rev.4...
  • Page 382 382 / 40055101TH Rev.4...
  • Page 383 383 / 40055101TH Rev.4...
  • Page 384 A3.1 R44 Circuit Diagram (for OKIOFFICE 44/OKIFAX 4100) A3.1.1 R44 Circuit Diagram (Page 1/12) Block diagram The circuit diagram shown on page 1/12 consists of the CPU, crystal oscillator circuit and reset signal generator. Figure A3.1.1 shows the block diagram of CPU and the peripheral circuits. Function Crystal oscillator circuit X1 is a 20 MHz crystal ocillator.
  • Page 385 A4 image sensor Data/address bus Various sensor Data/address bus Data/address bus Figure A3.1.2 Related Signals of IOGA 40055101TH Rev.4 Scanning control Printer control OST-EX Buffer 640 bytes Decoding (RLE, TIFF, ACC32) 200-300 converter smoothing High-voltage controller Peripheral control 1284 control...
  • Page 386 A3.1.3 R44 Circuit Diagram (Page 3/12) Block diagram The circuit diagram shown on page 3/12 consists of Flash memory, Mask ROM, DRAM, Real time clock IC and Back up battery circuit. Figure A3.1.3 shows the block diagram of Flash memory, Mask ROM, DRAM and Real time clock.
  • Page 387 A01 to A18 CASH-N/CASL-N/ RASI-N RD-N/WRL-N +24V RP/PP F12VON circuit MDMRD-N/ MDWR-N RTCCS Figure A3.1.3 Block Diagram of DRAM/Flash Memory/Mask ROM and Real-time Clock IC 40055101TH Rev.4 RAM2 RAM1 DRAM 512 KB Flash memory 512 KB MASK Mask ROM 512 KB Real time clock IC 32.768 KHz...
  • Page 388 A3.1.4 R44 Circuit Diagram (Page 4/12) Block diagram The audio monitor circuit on page 4/12 that consists of IC11 (analog switch IC) and IC5 (ampli- fier) generates the following audio monitor. • Line monitoring • Buzzer signals Figure A3.1.4 shows the block diagram of audio monitor circuit. Function Line monitoring Send and receive signals are input from the transformer on the NCU board to this circuit as...
  • Page 389 Block diagram The circuit diagram shown on page 5/12 consists of the following functions: • IC6 (A/D converter) • 30 V/24 V conversion circuit • Connector CN5 that provides an interface between R44 board and CIS (contact image sensor). Figure A3.1.5 shows the related signals and block diagram of CIS. Function One-line picture data is read in the sequence from the scanning unit (CIS) as SIG signal (analog data) to A/D converter (analog/digital converter) of IC6.
  • Page 390 Block diagram The circuit diagram shown on page 6/12 consists of Modem (14.4 kbps). Modem consists the following functions: • Modulation/demodulation Modulation type: ITU-T Rec. V17 (14400/12000/9600/7200 bps) for G3 picture data. ITU-T Rec. V29 (9600/7200 bps) for G3 picture data. ITU-T Rec.
  • Page 391 Block diagram The circuit diagram shown on page 7/12 consists of connector CN14 that provides an interface between R44 board and LED print head. Figure A3.1.7 shows the related signals and block diagram of LED print head. Function Data of 1664 LEDs on the LED print head is loaded into the shift registers by the HCLCK (1.0 MHz) signal.
  • Page 392 Block diagram The circuit diagram shown on page 8/12 consists of the following connectors: • Connector CN10 that provides an interface between R44 board and NCU board. • Connector CN3 that provides an interface between R44 board and external electro-mechanical conponents (PC1 and PC2).
  • Page 393 Modem IOGA Figure A3.1.8 Interface between R44 Board and NCU Board TXDOPE RXDOPE PSMODE OPRST-N OPECHK IOGA +5 V PCI-N RIINT HUP-N Figure A3.1.9 Interface between R44 Board and OPE (operation unit) 40055101TH Rev.4 CN10 A8, B8 A4, B4 A6, B6 MUTE PBXE B1, B2...
  • Page 394 to OPE PC1-N PC2-N PC1V (+5 V) to OPE PC1G (0 V) PC2V (+5 V) PC2G (0 V) Figure A3.1.10 Related Signals of PC1/PC2 40055101TH Rev.4 Note: PC1 (presence of document on hopper) PC2 (presence of document at scanning position) 394 /...
  • Page 395 Block diagram The circuit diagram shown on page 9/12 consists of the following functions and connectors: • IC9 (Drum motor driver) • TR4/TR2 (Clutch driver) • Connector CN15 that provides an interface between R44 board and the resist motor. • Connector CN2 that provides an interface between R44 board and the clutch.
  • Page 396 Block diagram The circuit diagram shown on page 10/12 consists of the following function and connectors: • TA1 (Send motor driver) • Connector CN1 that provides an interface between R44 board and the send motor. Figure A3.1.12 shows the related signals of the send motor and fan motor. Function Send motor rotation and chopper control Send motor drive signals are generated by the IOGA3 and output to send motor via TA1...
  • Page 397 Block diagram The circuit diagram shown on page 11/12 consists of the following connectors: • Connector CN13 that provides an interface between R44 board and optional memory board. • Connector CN11 and CN12 that provides an interface between R44 board and optional CTR board.
  • Page 398 IOGA3 PD0-PD7 Busy nAck PError Select nFault nStrobe nInit nSelectIn nAutoFd BREQ BACK BREQ BACK RD/WRT/CASL/RMCS AD0-AD7 SH7034 AD8-AD15 Figure A3.1.14 Interface between R44 Board and CTR Board (PC interface unit) 40055101TH Rev.4 Transceiver CN12 20pin Driver Receiver nStrobe nSelectIn nAutoFd BREQ-I BREQ-O...
  • Page 399 Connector CN6 that provides an interface between R44 board and power supply unit. Function Sensor and switch control Five types of sensors are used in the printer as listed below. All of their output enter IOGA ports for referring to and processing by the CPU. Figure A3.1.15 shows sensors and switch control.
  • Page 400 OLHV CVOPN-N CVOPN-N IOGA Figure A3.1.15 Sensor and Switch Control 40055101TH Rev.4 COVER open switch Write sensor WRSNS Outlet sensor PSOUT Inlet sensor PSIN Toner end sensor TNR5N5 400 /...
  • Page 401 The heater in the fuser unit is controlled by the thermister, IOGA and CPU to keep the heater roller surface within a prescribed temperature range. The CPU supervises the status of PC0 (A/D converter input section) periodically, turning HEATON- N signal on and off according to CPU of PC0 status to exercise temperature control.
  • Page 402 High voltages are activated by IOGA and generated by the high-voltage circuit inside the power supply unit. The CH (charge) voltage of about -1.35kV is used for the charge roller. The TR1/TR2 (transfer) voltage of about +3.5kV/-0.75kV is used for the transfer roller. Medium voltages are activated by IOGA and generated by the medium-voltage circuit inside the power supply unit.
  • Page 403 A3.2 M17 Circuit Diagram (for OKIFAX 5000 series) A3.2.1 M17 Circuit Diagram (Page 1/17) Block diagram The circuit diagram shown on page 1/17 consists of a CPU, crystal oscillator circuit and reset signal generator. Figure A3.2.1 shows the block diagram of CPU and the peripheral circuits. Function Crystal oscillator circuit X1 is a 20 MHz crystal ocillator.
  • Page 404 AD00 AD15 HDATA HCLCK (6.67 MHz/10MHz): to LED head OPCLK-N (156.25 kHz): to 2'nd tray Peripheral control 1284 control CS generation I/O port Printer control OST-EX Buffer 640 bytes Decompressed (RLE, TIFF, ACC32) 200-300/300-200 con- verter High-voltage control smoothing Bi-Centro...
  • Page 405 A3.2.3 M17 Circuit Diagram (Page 3/17) Block diagram The circuit diagram shown on page 3/17 consists of Flash memory, Mask ROM, IC3 (Real time clock IC) and Back up battery circuit. Figure A3.2.3 shows the block diagram of Flash memory, Mask ROM and Real time clock. Function Flash memory (FLS) Flash memory (electrically erasable and programmable device) is used for the main...
  • Page 406 A3.2.4 M17 Circuit Diagram (Page 4/17) Block diagram The audio monitor circuit on page 4/17 that consists of IC11 (analog switch IC) and IC5 (ampli- fier) generates the following audio monitor. • Line monitoring • Buzzer signals Figure A3.2.4 shows the block diagram of audio monitor circuit. Function Line monitoring Send and receive signals are input from the transformer on the NCU board to this circuit as...
  • Page 407 A3.2.5 M17 Circuit Diagram (Page 5/17) Block diagram The circuit diagram shown on page 5/17 consists of the following function: • IC6 (A/D converter) and amplifier • 30 V/24 V conversion circuit • Connector CN10 that provides an interface between M17 board and CIS (contact image sensor).
  • Page 408 A3.2.6 M17 Circuit Diagram (Page 6/17) Block diagram The circuit diagram shown on page 6/17 consists of the IEXSEED (image processing LSI) of IC20 and SRAM. Figure A3.2.6 shows the related signals of IEXSEED. Functions IEXSEED is newly developed LSI for the image processing of OKIFAX 5000 series. IEXSEED contains the following functions: •...
  • Page 409 A3.2.7 M17 Circuit Diagram (Page 7/17, 8/17, 17/17) Block diagram The circuit diagram shown on page 8/17 consists of connector CN15 that provides an interface between M17 board and the Modem board (28.8 kbps). The circuit diagram shown on page 7/17 consists of Modem (14.4kbps). The circuit diagram shown on page 17/7 consists of Modem (V34 modem or S34).
  • Page 410 A3.2.8 M17 Circuit Diagram (Page 9/17) Block diagram The circuit diagram shown on page 9/17 consists of the following connectors: • Connector CN6 that provides an interface between M17 board and NCU board. • Connector CN7 that provides an interface between M17 board and external electro-mechanical devices (PC1 and PC2).
  • Page 411 IC19 Modem IOGA MUTE PBXE to OPE to OPE RI-N Figure A3.2.9 Interface between M17 Board and NCU Board TXDOPE RXDOPE PSMODE MPREQ OPERST-N OPECHK IOGA +5 V PCI-N RIINT ACON HUP-N Figure A3.2.10 Interface between M17 Board and OPE (operation unit) 40055101TH Rev.4 A8, B8 A4, B4...
  • Page 412 to OPE PC1-N PC2-N PC1V (+5 V) to OPE PC1G (0 V) PC2V (+5 V) PC2G (0 V) Figure A3.2.11 Related Signals of PC1/PC2 40055101TH Rev.4 Note: PC1 (presence of document on hopper) PC2 (presence of document at scanning position) 412 /...
  • Page 413 A3.2.9 M17 Circuit Diagram (Page 10/17) Block diagram The circuit diagram shown on page 10/17 consists of connector CN2 that provides an interface between M17 board and LED print head. Figure A3.2.12 shows the related signals and block diagram of LED print head. Function Data of 1664 LEDs on the LED print head is loaded into the shift registers by the HCLCK (6.67 MHz) signal.
  • Page 414 A3.2.10 M17 Circuit Diagram (Page 11/17) Block diagram The circuit diagram shown on page 11/17 consists of the following functions and connectors: • IC21 (Send motor drive) • Connector CN5 that provides an interface between M17 board and the send motor. Figure A3.2.13 shows the related signals of the send motor.
  • Page 415 A3.2.11 M17 Circuit Diagram (Page 12/17) Block diagram The circuit diagram shown on page 12/17 consists of the following functions and connectors: • IC9 (Drum motor driver) • IC22 (Resist motor driver) • Connector CN3 that provides an interface between M17 board and the resist motor. •...
  • Page 416 Control method: When second tray is installed on the facsimile transceiver unit, the tray is connected to the facsimile transceiver unit by a connector. The tray controls by the command from CPU of PU (printer unit) section. FANON IOGA3 FANSNS Figure A3.2.15 Related Signals of Fan Motor...
  • Page 417 CN14 CN1 OPSDR-N OPCLK-N (156.25 kHz) IOGA OPSD-N 0 VP +30 V +5 V SGND Figure A3.2.16 Interface between M17 Board and 2'nd Tray 40055101TH Rev.4 2'nd tray (option) X'tal Transistor MOS CPU Motor drive 0 VP +30 V +5 V SGND Motor Inlet sensor...
  • Page 418 Connector CN1 that provides an interface between M17 board and main power supply unit. Function Sensors and switch control Six types of sensors are used in the printer as listed below. All of their output enter IOGA3 ports for referring to and processing by the CPU. Figure A3.2.17 shows sensors and switch control.
  • Page 419 1VP/2VP (Power supply unit) M/17 Cover open SW CVOPN-N Outlet sensor PSOUT-N WRSNS-N Write sensor IOGA PSIN-N Inlet sensor PAPER-N Paper sensor PSIN2-N Inlet sensor 2 TONER-N Toner sensor Figure A3.2.17 Sensors and Switch Control 40055101TH Rev.4 419 /...
  • Page 420 Fuser unit temperature control The heater in the fuser unit is controlled by the thermister, IOGA3 and CPU to keep the heater roller surface within a prescribed temperature range. The CPU supervises the status of the port PC0 periodically, turning HEATON signal on and off according to CPU of PC0 (A/D converter input section) status to exercise temperature control.
  • Page 421 High-voltage and medium-voltage control High voltages are activated by IOGA3 and generated by the high-voltage circuit inside the power supply unit. The CH (charge) voltage of about -1.35 kV is used for the charge roller. The TR1/TR2 (transfer) voltage of about +3.5 kV/-0.75 kV is used for the transfer roller. Medium voltages are activated by IOGA3 and generated by the medium-voltage circuit inside the power supply unit.
  • Page 422 A3.2.14 M17 Circuit Diagram (Page 15/17) Block diagram The circuit diagram shown on page 15/17 consists of the following connector: • Connector CN13 that provides an interface between M17 board and optional memory board. • Connector CN12 and CN17 that provides an interface between M17 board and CTR (PC interface) board.
  • Page 423 IOGA3 PD0-PD7 Busy nAck PError Select nFault nStrobe nInit nSelectIn nAutoFd BREQ BACK BREQ BACK RD/WRT/CASL/RMCS AD0-AD7 SH7034 AD8-AD15 Figure A3.2.21 Interface between M17 Board and CTR Board (PC interface unit) 40055101TH Rev.4 Transceiver CN17 20pin Driver Receiver nStrobe nSelectIn nAutoFd BREQ-I BREQ-O...
  • Page 424 A3.2.15 M17 Circuit Diagram (Page 16/17) Block diagram The circuit diagram shown on page 16/17 consists of the following functions and connectors: • RAM3 to RAM5 Figure A3.2.22 shows the block diagram of DRAM. Function PSRAM 2 MByte DRAM x 1 (RAM3) for ODA version 512 KByte DRAM x 2 (RAM4 and RAM5) for INT'L version •...
  • Page 425 A3.3 OPE (04W) Circuit Diagram for OKIOFFICE 44/OKIFAX 4100 Block diagram Figure A3.3.1 shows a block diagram of OPE (04W). The 04W (operation unit) circuit consists of the following blocks: IC1 (one chip MOS-CPU) • Output ports Setting LEDs on and off: 8 ports Specifies the row during key switch matrix scanning: 8 ports •...
  • Page 426 TXDOPE RXDOPE OPECHK PC1-N from PC1 OPERST PSMODE IOGA HUP-N RIINT from NCU MP/OFF to Main power supply (AC ON) Figure A3.3.1 Block Diagram of OPE (operation unit) 40055101TH Rev.4 OPE (04W) for OKIOFFICE 44/OKIFAX 4100 X'tal MOS CPU Internal ROM Eight LEDs LEDs KSCAN0...
  • Page 427 A3.4 OPE (05W) Circuit Diagram for OKIFAX 5000 Series Block diagram Figure A3.4.1 shows a block diagram of OPE (05W). The O5WH (operation unit) circuit consists of the following blocks: IC1 (one chip MOS-CPU) • Output ports Setting LEDs on and off: 8 ports Specifies the row during key switch matrix scanning: 8 ports •...
  • Page 428 OPECHK PC1-N from PC1 OPERST PSMODE IOGA HUP-N RIINT from NCU MP/OFF to Main power supply (AC ON) Figure A3.4.1 Block Diagram of OPE (operation unit) 40055101TH Rev.4 OPE (05W) for OKIFAX 5000 series. X'tal MOS CPU Internal ROM Eight LEDs LEDs KSCAN0 KSCAN7...
  • Page 429 A3.5.1 048 POW (120V/230V) Circuit Diagram IMPORTANT: Oki Data Corporation recommends that maintenance of the Power supply unit (048 POW board) be performed by replacement of a unit, not by replacement of components. Therefore, circuit descriptions in this section are for reference.
  • Page 430 Output ratings Rated Pin No. Voltage CN3-1 to 3 CN3-8 +24V CN3-9 CN3-12 +5VS Block diagram Figure A3.5.1 shows a block diagram of 048 POW. * The information contained herein can change without notice owing to product and/or technical improvements. 40055101TH Rev.4 Rated Current...
  • Page 431 AC IN Heater control Heater OUT circuit Main power supply Rectifying ON/OFF Noise filter circuit smoothing Switching circuit circuit, RCC type Standby power supply circuit Regulator circuit Regulator -8 V circuit Regulator 24 V circuit Control circuit MPON Main power supply ON/OFF ACON Heater ON/OFF...
  • Page 432 Explanation on Operation Noise filter circuit The noise filter consists of L and C to reduce the normal mode noise and common mode noise incoming from the AC line. Rectifying and smoothing circuit The input AC voltage is rectified by diodes D1 to D4 and smoothed by capacitor C6 for DC voltage supply to the inverter.
  • Page 433 5V output circuit The 5V output is supplied by rectification and smoothing of the output of transformer T1 by means of diode D8, capacitor C16, choke coil L3 and capacitor C17. Variable resistor VR1 is used for adjusting the output voltage level. –8V and 24V output regulator circuits The -8V output is stabilized by regulator IC2 after rectification and smoothing of transformer T1 output by diode D10 and capacitor C19.

  • Page 434: High Voltage

    A3.5.2 OLHV/TLHV Circuit Diagram (2/2) This circuit consists of photo-sensors and high voltage generation unit. Note: If the high-voltage unit inside the OLHV/TLHV circuit board is replaced, the output voltage and current output from the terminals must be checked and adjusted. This section does not describe the checking and adjustment methods, however.
  • Page 435 High-voltage section 5-6-1 Functional overview The high-voltage outputs consist of TR1 (3.5 kV), TR2 (-0.75 kV), DB1 (+300 V), DB2 (-300 V), SB2 (- 450V), CB (+400 V) and CH (-1.35 kV) and are obtained as follows. The control signal obtained from IOGA of R44 board is applied to High-voltage power supply circuit.
  • Page 436 The photosensors mounted on this circuit board/sensor board supervise the paper running state during printing. These four photosensors are used in this printer as listed below. All of their outputs enter IOGA for referring to and processing by the CPU.
  • Page 437 A3.6.1 1VP (for 120 V)/2VP (for 230 V) Circuit Diagram (1/2) IMPORTANT: Oki Data Corporation recommends that maintenance of the Power supply unit (1VP/2VP board) be performed by replacement of a unit, not by replacement of components. Therefore, circuit descriptions in this section are for reference.
  • Page 438 Output ratings Transformer type B Rated Pin No. Voltage CN3-B11-B13 +5 V CN3-A15, B15 +30 V CN3-A14 +8 V CN3-B14 -8 V Block diagram Figure A3.6.1 shows a block diagram of 1VP (120V)/2VP (230V). Note: The differences between 1VP (AC120V) and 2VP (AC230V) board are shown in the following table.
  • Page 439 439 / 40055101TH Rev.4...
  • Page 440 General functional description General The power supply unit consists mainly of AC transformer and a power PCB (1VP board for AC120V/2VP board for AC230V). A block diagram of the power supply unit is shown in Figure A3.6.1 The power PCB is composed of five main circuits: AC input section, heater control section, low-voltage section, high-voltage section and protection circuit.
  • Page 441 5-3-3 +5 V circuit +5 V circuit provides +5 V output by lowering +30 V output by means of DC-DC concerter circuit. IC1 is a control IC of frequency fixed type (operating at about 30 kHz in present power supply unit) Q1 is a power transistor, D7 is a flywheel diode, and L3 , C10 and C20 compose a smooth- ing circuit.
  • Page 442 A3.6.2 1VP (for 120 V)/2VP (for 230 V) Circuit Diagram (2/2) This circuit consists of photo-sensors and high voltage generation unit. Note: If the high-voltage unit inside the 1VP/2VP circuit board is replaced, the output voltage and current output from the terminals must be checked and adjusted. This section does not describe the checking and adjustment methods, however.
  • Page 443 High-voltage section 5-6-1 Functional overview The high-voltage outputs consist of TR1 (3.5 kV), TR2 (-0.75 kV), DB1 (+300 V), DB2 (-300 V), SB2 (- 450V), CB (+400 V) and CH (-1.35 kV) and are obtained as follows. The control signal obtained from IOGA of M17 board is applied to High-voltage power supply circuit.
  • Page 444 The photosensors mounted on this circuit board/sensor board supervise the paper running state during printing. These six photosensors are used in this printer as listed below. All of their outputs enter IOGA for referring to and processing by the CPU.

  • Page 445: Unc, Wn5, Fn5 And Dn5 Circuit Diagram

    A3.7 UNC, WN5, FN5 and DN5 Circuit Diagram The NCU board is selected from UNC, WN5, FN5 and DN5 because it differs depending on country’s specifications. Therefore, the NCU circuit diagram is destined for the following countries. Note: The relationship between NCU and optional boards (NTIF, TEL, HOOK, etc.) are shown in A3.11 OKIFAX 4100/5000 series facsimile transceiver (page A3-101).
  • Page 446 Explanation on CN3 Terminals Terminal pin No. name REV2 Detection and output of the direction of DC l i n e c u r r e n t . Detection of off-hook of terminal connected to TEL-1 or TEL-2. Output upon circuit current detection after fax line seizure 0 - 5 V signal output synchronized with the ringing signal frequency...
  • Page 447 Description on the NCU Block Diagram UNC circuit diagram Lightning arresters (AR1, 2) The nominal operating voltage is 350 V. When connecting the ground of the arrestor to the chassis, tighten ARG on the PCB with a screw. At this time, the PCB is grounded through the power cable. The TB1 arrestor ground terminal can also be used to connect to the earth directly.
  • Page 448 CN2 (1/2) TEL1 TEL2 OFF HOOK Detector CN2 (2/2) LINE , AR arresters Ring Detector C31 R5 Impedance matching to Modem Receiving Sensitivity...
  • Page 449 WN5 circuit diagram Lightning arresters (AR1, 2) The nominal operating voltage is 500 V. When connecting the ground of the arrestor to the chassis, tighten ARG on the PCB with a screw. At this time, the PCB is grounded through the power cable. The TB1 arrestor ground terminal can also be used to connect to the earth directly.
  • Page 450 Ring detectors (IC1) These circuits detect a ring signal arriving to the line. If the input ring signal exceeds a specific voltage, the circuits output a signal of RI having the same frequency as incoming Line transformer (T1) This circuit processes send/receive signals required for facsimile transmission, dial tone receive signals required for automatic dialing, and MF tone send and remote receive signals.
  • Page 451 (1/2) TEL1 S1.1~2 TEL2 (2/2) I SW S1 - 3~6 TEL CN1 Loop Current Detection LINE , AR arresters OFF-HOOK Detector Ring Detector Impedance C31 R590 matching MUTE MUTE circuit CN15 ~ CN45 to Modem Receiving sensitivity...
  • Page 452 FN5 circuit diagram Lightning arresters (AR1, 2) The nominal operating voltage is 500 V. When connecting the ground of the arrestor to the chassis, tighten ARG on the PCB with a screw. At this time, the PCB is grounded through the power cable. The TB1 arrestor ground terminal can also be used to connect to the earth directly.
  • Page 453 Off-hook detectors (IC2, RL7) These circuits detect the off-hook state of the telephone connected to the TEL1, TEL2, through LINE terminals. IC2 uses a high detection sensitivity than of RL7. In TEL/FAX mode, the higher sensitive IC2 is used to detect the off-hook state of the telephone while the main equipment is hunting a line.
  • Page 454 (1/2) TEL1 RL7 F TEL2 (2/2) Shunt LINE , AR arresters Q1, Q2 Constant current CN26/CN36 (F) (UK) CN26, CN36 OFF-HOOK Detector Ring Detector Impedance matching NT MUTE FICC Q3 4 current MUTE S5-1, 2 to Modem Receiving sensitivity S5-3 to 6...
  • Page 455 DN5 circuit diagram Lightning arresters (AR1, 2) The nominal operating voltage is 500 V. When connecting the ground of the arrestor to the chassis, tighten ARG on the PCB with a screw. At this time, the PCB is grounded through the power cable. The TB1 arrestor ground terminal can also be used to connect to the earth directly.
  • Page 456 Ring detectors (IC1) These circuits detect a ring signal arriving to the line. If the input ring signal exceeds a specific voltage, the circuits output a signal of RI having the same frequency as incoming Line transformer (T1) This circuit processes send/receive signals required for facsimile transmission, dial tone receive signals required for automatic dialing, and MF tone send and remote receive signals.
  • Page 457 457 / 40055101TH Rev.4...
  • Page 458 A3.8 TELU, TEL-W2, TEL-W1, TEL-W2D and TEL-W2F Circuit Diagram (option) TEL board is used for the control board of the telephone set when the optional telephone assembly is installed on the facsimile transceiver, and TEL board is selected from TELU, TEL-W2, TEL-W1, TEL- W2D and TEL-W2F because it differs depending on country’s specifications.
  • Page 459 Explanation of TEL circuit diagram This section describes functional blocks of individual TEL circuit diagram. TELU circuit diagram TELU circuit diagram is formed by Speech IC and interface of UNC, HOOK SW and HANDSET. Speech IC The hybrid circuit is formed by Speech IC. Handset Interface •...
  • Page 460 TEL-U (option) Connected to HOOK Circuit Connected to UNC Circuit Speech Network Circuit Speech IC (IC1) Rectifier Microphone Handset Receiver...
  • Page 461 461 / 40055101TH Rev.4...
  • Page 462 462 / 40055101TH Rev.4...
  • Page 463 463 / 40055101TH Rev.4...
  • Page 464 464 / 40055101TH Rev.4...
  • Page 465 465 / 40055101TH Rev.4...
  • Page 466 466 / 40055101TH Rev.4...
  • Page 467 467 / 40055101TH Rev.4...
  • Page 468 468 / 40055101TH Rev.4...
  • Page 469 469 / 40055101TH Rev.4...
  • Page 470 470 / 40055101TH Rev.4...
  • Page 471 471 / 40055101TH Rev.4...
  • Page 472 472 / 40055101TH Rev.4...
  • Page 473 473 / 40055101TH Rev.4...
  • Page 474 TEL-W2F circuit diagram Note: Each country’s hardware parameters comparison table refer to page A3-82 ~ 83. Speech IC General functions of the speech IC are as follows: • Basic speech functions included. • Separate receive pre-amplifier with signal output terminal •...
  • Page 475 Manual Pad Adjustment is unavailable. (1) DC resistance (2) Return loss (3) Sending level (4) Receiving level (5) Side tone level 475 / 40055101TH Rev.4...
  • Page 476 TEL-W2 (option) Characteristics Connected to HOOK Circuit Connected to NTIF Circuit Rectifier Speech IC (IC1) DC V-1 Circuit Side Tone Adjustment Return Loss Adyustment Receiving Level Adjustment Sending Frequency Circuit Manual Pad MPAD Adjustment Automatic Gain Control TIN+ Sending Sending Level Frequence Adjustment Responce...
  • Page 477 TEL-W2 (1/2) Each country's hardware parameters comparison table. Dip-switch Sweden Finland 40055101TH Rev.4 Ireland Portugal Zealand Netherlands (Setting as of Jul. 7, 1996) OKIFAX 4100/5000 series Australia Remarks Balancing Network Impedance Matching DC Resistance Impedance Setting Sending Frequency Setting Sending Level Setting Not Used Rx Frequency (FLUP)
  • Page 478 TEL-W2 (2/2) Each country's hardware parameters comparison table. Dip-switch Spain Greece 40055101TH Rev.4 Switzer- Austria land (Setting as of Jul. 7, 1996) OKIFAX 4100/5000 series Remarks Balancing Network (Side-tone Setting) Impedance Matching Setting DC Resistance Impedance Setting Sending Frequency Setting Sending Level Setting Not Used...
  • Page 479 TEL-W1 circuit diagram Note: For each country’s hardware parameter comparison table refer to page A3-88. Speech IC General functions of the speech IC are as follows: • Basic speech functions included. • Separate receive pre-amplifier with signal output terminal • Separate receive power amplifier input terminal. •...
  • Page 480 Sending Frequency Response Adjustment The adjustment of the high range frequency response is performed by changing the capacitance of the capacitor C33. Increase the value of C33 to lower the amplitude of the high range level. Decrease the value of C33 to raise the amplitude. The adjustnent of the low range frequency response is performed by changing the capacitance of the capacitors C35 and C37.
  • Page 481 Return Loss Adjustment The return loss adjustment is performed by the installed C-R networks corresponding to the individual country. For adjusting the return loss, select the corresponding C-R network by the designated DIP switch and adjust the return loss by changing the values of capacitors and resistors.
  • Page 482 TEL-W1 (option) CO1 to CO4 RO1 to RO4 Connected to TEN-KEY circuit Connected to HOOK Circuit Rectifier PB/DP Setting CN1/CN2 Connected to Pulse Dialling NTIF Circuit Adjustment (Make ratio) DC V-1 Characteristics Circuit Side Tone Adjustment Dialling Circuit Return Loss Adyustment MUTE Receiving...
  • Page 483 TEL-W1 Each country's hardware parameters comparison table. Dip-switch United Italy Kingdom 40055101TH Rev.4 Denmark Norway Belgium (Setting as of Jul. 7, 1996) OKIFAX 4100/5000 series Remarks Balancing Network (Side Tone Setting) Impedance Matching Setting MF-tone Level Setting Seding Level Setting MF-tine Level Setting Automatic Gain Control...
  • Page 484 TEL-W2D circuit diagram TEL-W2D board is for the Germany version only. Speech IC General functions of the speech IC are as follows: • Basic speech functions included. • Separate receive pre-amplifier with signal output terminal • Separate receive power amplifier input terminal, cause it is possible to mixing input. •...
  • Page 485 Return Loss The circuit section which determines the return loss is formed by R26, R29 and C21. AGC (automatic gain control) The gain of the AGC is determined by the resistor value of R41. To lower the AGC gain, raise the resistor value of R41. To raise the gain, decrease the resistor value. Charge Pulse Elimination Characteristics The Germany network sends 16kHz pulses for charging to the terminal while the terminal is connected to the line.
  • Page 486 TEL-W2 (option) DC V-1 Characteristics Charge Pulse Elimination Connected to Characteristics HOOK Circuit Circuit Connected to NTIF Circuit Rectifier Speech IC (IC1) Circuit Side Tone Adjustment Return Loss Circuit Receiving Level Circuit Sending Frequency Circuit Manual Pad MPAD Adjustment Automatic Gain Control TIN+...
  • Page 487 A3.9 NTIF (NCU and TEL interface) Circuit Diagram (option) NTIF board is used as an interface board of NCU, TEL and HOOK board. (Expect US version) The relationship between NTIF and the peripheral block diagram is shown in A3.11 OKIFAX 4100/5000 series facsimile transceiver (page A3-101).
  • Page 488 A3.10 MEMO (memory) Circuit Diagram for OKIOFFICE 44/OKIFAX 4100 (option) By mounting this optional memory board (MEM/MEM-2), it can be used for the expansion memory. Block diagram Figure A3.10.1 shows a related signal of memory board. MEMO/MEMO-2 circuit consists of the following block. 512 kbyte pesudo static RAM x 4 (RAM1 to RAM4).
  • Page 489 Image memory capacity With Option Board Note: No. of sheets are counted provided that ITU-T No.1 sample document is used. No. of sheets are typical value. AD0 to AD7 A0 to A18 RD-N WRL-N PCS1-N to PCS4-N PSREAD-N IOGA Figure A3.10.1 Related Signals of Memory Board for OKIOFFICE 44/OKIFAX 4100 (option) 40055101TH Rev.4 Memory OKIFAX 4100...
  • Page 490 A3.11 MEMO (memory) Circuit Diagram for OKIFAX 5000 Series (option) By mounting this optional memory board (MEM/MEM-2), it can be used for the expansion memory. Block diagram Figure A3.11.1 shows a related signal of memory board. Memory board circuit consists of the following block. 512 kbyte MOS Dynamic RAM x 4 (IC3 to IC6).
  • Page 491 Image memory capacity (without option) With Option Board Note: No. of sheets are counted provided that ITU-T No.1 sample document is used. No. of sheets are typical value. MAD00 to MAD07 MA00 to MA18 WRL-N RD-N PCS1-N to PCS4-N IOGA PSREAD-N Figure A3.11.1 Related Signals of Memory Board for OKIFAX 5000 Series (option) 40055101TH Rev.4...
  • Page 492 A3.12 CTR (PC interface unit) Circuit Diagram (option) CTR board is used as an interface board of PC and FAX when PC is connected to facsimile machine. Block diagram CTR board circuit is formed by Receiver, Driver, and 1284-I/F. Figure A3.12.1 shows related signals of CTR board. IOGA AD8 to AD15 Figure A3.12.1 Related Signals of P050 (PC interface unit)
  • Page 493 PC Multiplex function Disable Enable Interface between Fax machine and Host PC consists of three layer structure as detailed below, each sub-system can be operated at the same time by adopting a Oki-MFPI protocol in both Fax machine and Host PC.
  • Page 494 Encodes a rater image data in Host PC and transfers a data with HIPER-W emulation. Scanner (Oki-SCL 1: Oki-Scanner Control Language 1) Transfers and image data of document scanned in Fax machine to the Host PC with Oki-SCL 1 command.

  • Page 495: A3.13 Tqsb (Second Tray) Circuit Diagram: Option

    When second tray is installed with the facsimile transceiver unit, the tray is connected to the facsimile transceiver unit by a connecting cable. The tray is controlled by the command from CPU of PU (printer unit) section. 2nd tray (option)
  • Page 496 A3.14 OKIOFFICE44/OKIFAX 4100/5000 series facsimile transceiver Note: The relationship between countries names and boards names (NCU, Option board: TEL, NTIF, HOOK etc.) is shown below: US version Countries names: US and Canada The circuit diagram is destined for the following boards: UNC, TELU, HOOK board and HANDSET Refer to Figure A3.14.1.
  • Page 497 UK version Countries names: The circuit diagram is destined for the following boards: FNS, NTIF, TEL-W1, HOOK, 10 KY board and HANDSET Refer to Figure A3.14.6. France version Countries names: France The circuit diagram is destined for the following boards: FNS, NTIF, TEL-W2F, HOOK, 10 KY board and HANDSET Refer to Figure A3.14.7.
  • Page 498 Option HOOK LINE CN2-2 TEL-2 Dial pulse genelator Ringing detection Hookup detection Relay driver Sending level Receiving level CN2-1 TEL-1 TELU ON HOOK HOOK HAND Speech Circuit...
  • Page 499 Option HOOK LINE CN2-2 Route change TEL-2 Loop current detection Dial pulse genelator Ringing detection Network matching Relay driver Transmission level Receiving sensitivity CN2-1 TEL-1 TEL-W2 ON HOOK HOOK NTIF R1 0 R3 0 Speech Circuit HAND...
  • Page 500 Option HOOK LINE CN2-2 Route change TEL-2 Loop current detection Dial pulse genelator Ringing detection Network matching Relay driver Transmission level Receiving sensitivity CN2-1 TEL-1 TEL-W1 ON HOOK HOOK NTIF PB a (uhunt) SW3-1 Ringer circuit SW3-2 SW3-3 Speech Circuit &...
  • Page 501 Option HOOK LINE CN2-2 TEL-2 Route change Loop current detection Dial pulse genelator Ringing detection Network matching Relay driver Transmission level Receiving sensitivity CN2-1 TEL-1 TEL-W1 ON HOOK HOOK NTIF R1 0 Ringer circuit R3 0 Speech Circuit HAND...
  • Page 502 Option HOOK LINE CN2-2 TEL-2 Route change Loop current detection Dial pulse genelator Ringing detection Network matching Relay driver Sending level setting Receiving sensitivity CN2-1 TEL-1 TEL-W2D ON HOOK HOOK NTIF R1 0 R3 0 Speech Circuit HAND...
  • Page 503 Option HOOK LINE CN2-2 Route change TEL-2 Loop current detection Dial pulse genelator Ringing detection Network matching Relay driver Transmission level Receiving sensitivity CN2-1 TEL-1 UK setting TEL-W1 ON HOOK HOOK NTIF PB a (uhunt) SW3-1 Ringer circuit SW3-2 SW3-3 Speech Circuit &...
  • Page 504 Option HOOK LINE CN2-2 Route change TEL-2 Loop current detection Dial pulse genelator Ringing detection Network matching Relay driver Transmission level Receiving sensitivity CN2-1 TEL-1 France setting TEL-W2 ON HOOK HOOK NTIF R2 0 Speech Circuit HAND...

  • Page 505: Appendix B1 Descriptions Of Print Operation

    APPENDIX B1 DESCRIPTIONS OF PRINT OPERATION (OKIOFFICE44/OKIFAX 4100) B1.1 Electro-Photographic Processor The electro-photographic processor prints out the image data to be sent from the main control board on sheets of paper. Figure B1-1 shows the layout drawing of the electro-photographic processor. (1) Image drum unit The image drum unit makes a toner adhere to the formed electrostatic latent image with static electricity.
  • Page 506 506 / 40055101TH Rev.4...
  • Page 507 (3) Pulse motor (Main) This pulse motor of 48 steps/rotation is two-phase excited by the signal from the main control board; it performs feeding control by switching normal rotation to reverse rotation or vice versa and turning on/off the electromagnetic clutch. The relationship between the main motor, electromagnetic clutch, regist gear, drum gear, hopping roller is shown in the table below and on the subsequent pages.
  • Page 508 508 / 40055101TH Rev.4...
  • Page 509 B1.2 Electro-Photographic Process (1) Electro-photographic process The electro-photographic process is outlined below. 1 Charging The surface of the OPC drum is charged negatively and uniformly by applying the DC voltage to the CH roller. 2 Exposure Light emitted from the LED head irradiates the negatively charged surface of the OPC drum. The surface potential of the irradiated surface attenuates to form the electrostatic latent image correspond- ing to the image signal.
  • Page 510 Power supply Paper delivery Charge roller Power supply Paper eject Paper feeding Cleaning roller roller Outlet sensor Fusing Back-up Heat roller roller Paper ejection Fusing Cleaning Control signal LED head Exposure Power Charging supply Developing Cleaning Development roller Transfer Paper sensor Power Transfer roller Feed roller...
  • Page 511 B1.2.1 Explanation of Each Process Operation (1) Hopping As shown in the figure below, the clutch for hopping is turned on/off according to current ON/OFF to a coil. When the clutch is OFF Hopping roller When the clutch is ON When the clutch is on, the hopping gear engages with the clutch plate to rotate the hopping roller.
  • Page 512 (2) Printing and warm-up At warm-up Transfer gear Resist gear Hopping gear Rotate the pulse motor (main) in the a direction. The planetary gear rotates in the a’ direction, dislocating its position in the a” direction. This causes the planetary gear to be separated from gear A. The hopping gear will not rotate.
  • Page 513 (3) Charging Charging is performed by applying DC voltage to the charge roller that is in contact with the surface of the OPC drum. High- voltage power supply (4) Exposure Light emitted from the LED head irradiates the negatively charged surface of the OPC drum. The surface potential of the irradiated surface attenuates to form the electrostatic latent image corresponding to the image signal.
  • Page 514 (5) Development The electrostatic latent image on the surface of the OPC drum is changed to a visible toner image by applying a toner to it. Development is performed in the contact part between the OPC drum and developing roller. 1 The sponge roller negatively charges a toner and applies it to the developing roller.
  • Page 515 (6) Transfer The transfer roller is composed of conductive sponge material. This roller is set so that the surface of the OPC drum and sheets of paper will adhere closely. A sheet of paper is placed on the surface of the OPC drum and the positive charge opposite to the negative charge of a toner is applied from the reverse side by the transfer roller.
  • Page 516 (7) Fusing The transferred unfused toner image is fused to a sheet of paper because heat and pressure are applied when it passes between the heat roller and back-up roller. The Teflon-coated heat roller contains a 400 W heater (Halogen lamp) that heats the heat roller. The thermistor on the surface of the heat roller keeps the temperature of the heat roller constant.
  • Page 517 B1.3 Paper Jam Detection The OKIOFFICE 44/OKIFAX 4100 monitors the paper status when the power supply is on and during printing. In the following cases, the OKIFAX 4100 interrupts the printing process as a paper jam. Printing can be recovered by opening the cover, removing the jammed paper, and closing the cover. Error Paper inlet jam •...
  • Page 518 Normal rotation Pulse motor (main) Reverse rotation Electromagnetic clutch Manual feed sensor Paper sensor Outlet sensor Warm-up Operation mode Timing Chart for Paper Feed (Tray Feed) 40055101TH Rev.4 Paper feed Printing 518 /...
  • Page 519 B1.4 Toner Low Detection • Hardware configuration of toner sensor The figure below shows the hardware configuration of the toner sensor. Photointerrupter • Toner detection method (1) Toner sensor monitoring conditions are shown in the figure below. Toner sensor Caution: The toner sensor is not monitored when the drum is inactive. (a) When the toner-low state continues twice, Toner Low occurs.
  • Page 520 (2) The basic rotation cycle of the toner sensor is as follows: Basic rotation cycle of toner sensor Toner low time Toner full time B1.5 Cover Open Opening the stacker cover turns off the microswitch on the high-voltage power supply board to suspend +5 V supply to the high voltage power supply.

  • Page 521: Appendix B2 Descriptions Of Print Operation (Okifax 5000 Series)521

    APPENDIX B2 DESCRIPTIONS OF PRINT OPERATION (OKIFAX 5000 SERIES) B2.1 Mechanical Components EP drum cartridge The EP (image) cartridge consists of an EP (image) drum, a charger, and a developer. The cartridge forms a toner image on the drum, using an electrostatic latent image formed by the LED print head.
  • Page 522 Figure B2.1 Layout of Print Station Components 522 / 40055101TH Rev.4...

  • Page 523: Description Of Print Operations

    B2.2 Description of Print Operations B2.2.1 Process Operations Hopping and feeding Hopping and feeding are affected by a single resist motor in the mechanism shown below. Resist motor Motor gear Turning the resist motor in the "a" direction drives the hopping roller. Turning the resist motor in the "b"...
  • Page 524 Hopping Hopping turns the resist motor in the "a" direction (in the CW direction) and drives the hopping roller to advance the paper until the inlet sensor turns on. (In this case, the resist gear also turns, but the resist roller is prevented from turning by the one-way clutch gear.) After the paper has turned on the inlet sensor, the paper is further advanced by a predeter- mined length until the paper hits the resist roller.
  • Page 525 Feeding After end of hopping, turning the resist motor in the "b" direction (in the CCW direction) drives the resist roller to advance the paper. (In this case, the hopping gear also turns, but the hopping roller is prevented from turning by the one-way clutch gear.) The paper is further advanced in synchrony with the print data.
  • Page 526 Charging Charging is affected by applying a DC voltage to the charge roller thta is in contact with the EP (image) drum surface. The charge roller is composed of two layers consisting of a conductive layer and a surface protective layer that has elasticity, in order to secure a good contact with the EP (image) drum. When the DC voltage (-1.35 KVDC) applied from the Power Supply Unit exceeds a threshold value, charging begins.
  • Page 527 Exposure Light emitted from the LED head irradiates the EP (image) drum surface with negative charges. The surface potential of the irradiated part of the EP drum drops, thereby forming an electrostatic latent image associated with the image signal. Charge roller EP drum The EP (image) drum is coated with an underlayer (UL), a carrier generation layer (CGL), and carrier transfer layer (CTL) on the aluminum base.
  • Page 528 The EP (image) drum surface is charged to about -750 V by the contact charge of the charge roller. When light from the LED head irradiates the EP (image) drum surface, the light energy generates positive and negative carriers in the CGL. The positive carriers are moved to the CTL by an electrical field acting on the EP (image) drum.
  • Page 529 Developing Toner is attracted to the electrostatic latent image on the EP (image) drum surface to convert it into a visible toner image. Developing takes place at the contact between the EP (image) drum and the developing roller. As the toner supply roller rotates while rubbing on the developing roller, a friction charge is generated between the developing roller and the toner, allowing the toner to be attracted to the developing roller.
  • Page 530 Note: The toner supply roller and the developing roller are supplied with bias voltages required during the developing process as shown below. -450 VDC is supplied to the toner supply roller, -300 VDC to the developing roller. 40055101TH Rev.4 Developing roller Base EP drum Connected and bias voltage...
  • Page 531 Transfer The transfer roller is composed of conductive sponge material and is designed to make the EP (image) drum surface and the paper closely into contact. Paper is placed over the EP (image) drum surface, and a positive charge, opposite in polarity to the toner, is applied to the paper from its reverse side.
  • Page 532 Fusing After the end of the transfer operation, the unfused toner image is fused on the paper under heat and pressure as it passes between the heater roller and the back-up roller. The heater roller with a Teflon coating incorporates a 500 W heater (Halogen lamp), which heats the heat roller. A thermister, which is in contact with the heater roller, regulates the heater roller at a predeter- mined temperature (about 185 ˚C for OKIFAX 5000 series).
  • Page 533 Cleaning After the end of the transfer, residual toner on the EP (image) drum is attracted to the cleaning roller temporarily by static electricity to clean the EP (image) drum surface. Power supply unit Cleaning of rollers The charge roller, transfer roller and cleaning roller are cleaned in the following cases: •...

  • Page 534: B2.3.1 Errors List

    B2.3 Errors B2.3.1 Errors List The errors are listed below. Major trouble errors • Fuser error • Fan error • Paper supply error • Paper transport system error • Paper exit jam • Paper size error • 2'nd tray communication error •...

  • Page 535: B2.3.2 Major Trouble Errors

    B2.3.2 Major Trouble Errors B2.3.2.1 Fuser Error The fuser error indicates an error in thermister on heater. In case the fuser error occurs at the time of printing, the heater is turned off soon but the printing contin- ues of that page. However, if the error occurs before the write sensor is turned on, the motor stops soon.

  • Page 536: B2.3.2.3 Paper Feed Monitoring

    B2.3.2.3 Paper Feed Monitoring Status Indicates monitoring error in hopping. Paper supply error Hopping is retried 3 times. Indicates an error in the paper transport path. Error on resist roller section. Transport system jam 1 From resist ON to write sensor (PS2) ON. Transport system jam 2 From inlet sensor OFF up to write sensor OFF.

  • Page 537: B2.3.3 Recoverable Errors

    B2.3.3 Recoverable Errors The three recoverable errors are listed in the table below. Status 2'nd tray route open No paper in 1'st cassette No paper in 2'nd cassette 40055101TH Rev.4 Description and Supervising Sensor Paper supply route from the option 2'nd tray to the main body is open, recording paper of the 1'st tray is being replaced.
  • Page 538 B2.3.3.1 Toner Low Detection • Composition The device consists of the stirring gear which rotates at a constant rate, the stirring bar and the magnet on the stirring bar. The stirring bar rotates through the link on the protrusion in the stirring gear. The configuration of stirring bar in the figure below may differ.
  • Page 539 Low Toner Alarm A check for low toner is carried out at all times when the drum is rotating (rotation in opposite direction is excluded). • The toner sensor is not monitored while the drum motor is in halt. TONER FULL state TNRSNS-N TONER LOW state TNRSNS-N...

  • Page 540: Other Special Cases

    B2.4 Other Special Cases B2.4.1 Manual Paper Feed Turning on of the inlet sensors without the hopping operation indicates manual paper feeding for OKIFAX 2350/2450 (excluding when power is on). B2.4.2 Cleaning The image drum needs cleaning since it gets dirty after having printed copies for a number of times. The two kinds of cleaning are listed in the table below: Cleaning Type Cleaning...

  • Page 541: Appendix Ccircuit Diagram And Parts List

    APPENDIX C CIRCUIT DIAGRAM AND PARTS LIST ITEMS R44 Circuit diagram and Parts list 04W Circuit diagram and Parts list UNC Circuit diagram and Parts list WN5 Circuit diagram and Parts list DN5 Circuit diagram and Parts list FN5 Circuit diagram and Parts list 048_POW (120V) Circuit diagram and Parts list 048_POW (230V) Circuit diagram and Parts list TLHV Circuit diagram and Parts list...
  • Page 542 Board Name R44 (main board) (for OKIOFFICE44/OKIFAX 4100) 04W (operation board) (for OKIOFFICE44/OKIFAX 4100) UNC (for US) WN5 (for OEL-INT, OKI-INT) DN5 (for GER) FN5 (for UK, FRANCE) 048_POW (main + sub: 120VAC) (for OKIOFFICE44) 048_POW (main + sub: 230VAC)
  • Page 543 OKIOFFICE44, OKIFAX 4100/5000 series Drawing No. Board Name SUB-POW (120VAC) (for OKIFAX 5300/5600) SUB-POW (230VAC) (for OKIFAX 5200/5500) MEM (memory): option (for OKIFAX 5000 series) TQSB (second tray): option (for OKIFAX 5000 series) 40055101TH Rev.4 Drawing Circuit diagram YB4049-1876P1 Parts list 4049-1876P1 Circuit diagram YB4049-1878P1...

  • Page 544: (Okioffice44/Okifax 4100)

    APPENDIX D1 MECHANICAL EXPANDED VIEW DRAWING AND PARTS LIST (OKIOFFICE44/OKIFAX 4100) OKIOFFICE44/OKIFAX4100 ASSEMBLY 40055101TH Rev.4 SECTION 1 SECTION 9 SECTION 8 SECTION 2, 11, 12 SECTION 5, 6, 7 SECTION 10 OPTION TELEPHONE SECTION 3, 4 544 /...

  • Page 545: Section 1 Cabinet Assembly (Fax Nip-Fx048)

    SECTION 1 CABINET ASSEMBLY (FAX NIP-FX048) 545 / 40055101TH Rev.4...
  • Page 546 Section 1 CABINET ASSEMBLY (FAX NIP-FX048) 1/2 Rev. Oki parts Number 4YA4116-1228G001 4YX4083-1134G001 4YB4049-1874P001 4YB4049-1875P001 40092201 40587401 40044501 40044401 40044101 40044303 40044307 40023701 40023901 40236401 41767001 40021001 40022703 40022704 40025401 40025402 40025301 40025302 40025501 40025502 40025601 40025602 40022101 40022102 40026101 40055101TH Rev.4...

  • Page 547: Carrier Sheet

    Section 1 CABINET ASSEMBLY (FAX NIP-FX048) 2/2 Rev. Oki parts Number 40024001 4PP4083-6168P001 40024101 4PB4120-1136P001 40140801 40148201 40025701 40025702 40025801 40025802 40375801 40375802 NB3201-1211P001 223A7010P0003 40123402 40123403 4PP4120-1187P001 40332701 40055101TH Rev.4 Description Guide-Paper (U) HEAD Spring Guide-Paper (L) Knob Screw...

  • Page 548: Section 2 Unit-Printer

    SECTION 2 UNIT-PRINTER 548 / 40055101TH Rev.4...
  • Page 549 Section 2 UNIT-PRINTER Rev. Oki parts Number 4YA4130-1024G001 40055101TH Rev.4 Description Printer Unit Assembly PCB Assembly HV Screw F Q’ty Remarks See Section 11 549 /...

  • Page 550: Section 3 Unit-048 Ope Panel

    SECTION 3 UNIT-048 OPE PANEL 550 / 40055101TH Rev.4...
  • Page 551 Section 3 UNIT-048 OPE PANEL Rev. Oki parts Number 40022701 40022702 40022703 40022704 40023401 40023402 40023403 40023404 40023405 40023406 40023407 40023408 40023409 40023410 40023413 40023414 40023430 40023431 40023501 40023502 40023503 40023504 40023505 40023506 40023507 40023508 40023509 40023510 40023520 40023521 40023601 40055101TH Rev.4...

  • Page 552: Section 4 Opepanel (Operation Panel) Assembly

    SECTION 4 OPEPANEL (OPERATION PANEL) ASSEMBLY 552 / 40055101TH Rev.4...

  • Page 553: Section 4 Ope Panel Assembly

    Section 4 OPE PANEL ASSEMBLY Rev. Oki parts Number 40086701 40023201 40023202 40023301 40023302 4YB4134-1009P001 4PB4120-1113P001 40055101TH Rev.4 Description Case-OPE(T) Board-04W Holder-LCD Button-Function Ten Key (Round) Button-Start Button-Start Button-Stop Button-Stop B SCREW A Rubber Connector Q’ty Remarks OKI, TN LANIER...

  • Page 554: Section 5 Frame Assembly-Scanner (L)

    SECTION 5 FRAME ASSEMBLY-SCANNER (L) 554 / 40055101TH Rev.4...
  • Page 555 Section 5 FRAME ASSEMBLY-SCANNER L Rev. Oki parts Number 40019401 40019501 40019601 40020201 40020601 40020701 40127501 4YB4120-1121P001 40020301 40020501 40153801 40025201 40024501 40899901 40055101TH Rev.4 Description Frame-Scanner (L) Lever-PC1 Lever-PC2 Roller Assy.-ADF Plate-Earth ADF Piece-Exit Spring-Exit CONN Cord-Speaker CONTACT IMAGE SENSOR-A4 Plate-Scanner (L) Plate Assy.-Scanner (R)

  • Page 556: Section 6 Plate Assembly-Scanner (B)

    SECTION 6 PLATE ASSEMBLY-SCANNER (B) 556 / 40055101TH Rev.4...
  • Page 557 Section 6 PLATE ASSEMBLY-SCANNER (B) Rev. Oki parts Number 40135301 40055101TH Rev.4 Description Plate-Scanner (B) Photo-Interrupter Q’ty Remarks 557 /...

  • Page 558: Section 7 Plate Assembly-Scanner (R)

    SECTION 7 PLATE ASSEMBLY-SCANNER (R) 558 / 40055101TH Rev.4...
  • Page 559 Section 7 PLATE ASSEMBLY-SCANNER (R) Rev. Oki parts Number 40084301 40055101TH Rev.4 Description Plate-Scanner (R) Motor-S (FX-048) B SCREW FA Q’ty Remarks 559 /...

  • Page 560: Section 8 Frame Assembly-Scanner (U)

    SECTION 8 FRAME ASSEMBLY-SCANNER (U) 560 / 40055101TH Rev.4...
  • Page 561 Section 8 FRAME ASSEMBLY-SCANNER (U) Rev. Oki parts Number 4PP3527-5153P001 40267001 40021401 40021501 40021701 40481101 40021201 40022001 40020801 40021301 40026301 40461301 40055101TH Rev.4 Description Frame-Scanner (U) BACK-UP PLATE SEPARATION RUBBER ASSEMBLY Spring-Pinch (L) Spring-Pinch (R) Guide-Sensor (B) ADF SPRING Cord-Earth B SCREW FA Roller Assy.-Sensor...

  • Page 562: Section 9 Cover Assembly-Top

    SECTION 9 COVER ASSEMBLY-TOP 562 / 40055101TH Rev.4...
  • Page 563 Section 9 COVER ASSEMBLY-TOP Rev. Oki parts Number 40022301 4PP4128-1268P001 4PP4083-2024P001 4PP4083-2328P003 40093201 40175801 40022601 40055101TH Rev.4 Description Cover-Top Holder-LED Guide-Document (L) Guide-Document (R) PLATE EXIT EJECT ROLLER A PINION GEAR B B SCREW FA Spring-Support Film-Exit (A) Spring-D Q’ty...

  • Page 564: Section 10 Plate Assembly-Base

    SECTION 10 PLATE ASSEMBLY-BASE 564 / 40055101TH Rev.4...
  • Page 565 Section 10 PLATE ASSEMBLY-BASE Rev. Oki parts Number 40026001 40128001 40055101TH Rev.4 Description Plate-Base RUBBER A Sheet-Insulation Cord-Falt (FUJI CARD) Sheet-FG Q’ty Remarks 565 /...

  • Page 566: Section 11 Printer Base Frame Unit

    SECTION 11 PRINTER BASE FRAME UNIT 40055101TH Rev.4 Heat assy 566 /...
  • Page 567 Section 11 PRINTER BASE FRAME UNIT 1/2 Rev. Oki parts Number 2PP4083-1502G001 3PP4083-1191P001 40721301 4PP4083-1246P001 3PA4083-1193G001 4PB4083-1172P001 4YA4083-1600G002 4YA4083-1600G003 40035001 4YA4083-1450G003 4PB4083-1129P001 3PP4083-1128P001 3PB4083-1127P001 3PA4083-1133G001 NK2-10-SUS 4PP4083-1143P001 3PP4083-1184P001 3PP4083-1142P001 2PP4083-1181P001 3PP4083-1189P001 3PP4083-1188P001 3PP4083-1182P001 3PP4083-1183P001 4PP4083-1165P001 3PP4083-1185P001 4PP4083-1186P001 3PP4083-1187P001 3PP4083-1170P001 40074601 3PP4083-1141P001 40055101TH Rev.4...
  • Page 568 Section 11 PRINTER BASE FRAME UNIT 2/2 Rev. Oki parts Number 3PB4083-1140P001 40457001 41802101 3PP4083-1151P001 3YB4083-1150P002 40456901 4PP4083-1136P001 3PP4083-1161P001 3PB4083-1160P002 3PP4083-1233P001 3PP4083-1232P001 1PP4083-1231P001 3PP4083-1192P001 41802001 4PP4083-1137P001 1PP4083-1241P001 1YX4083-1200G001 1YX4083-1200G002 40034001 4PB4091-6047P001 40055101TH Rev.4 Description Resistration Roller Resistration Roller Film-Guide_F Gear T...

  • Page 569: Section 12 Printer Heat Assy

    SECTION 12 PRINTER HEAT ASSY 569 / 40055101TH Rev.4...
  • Page 570 Section 12 PRINTER HEAT ASSY. Rev. Oki parts Number 3PB4083-1202P001 3PB4083-6103P004 3PB4083-6103P005 4PB4083-1204P001 3PB4083-1205P001 4PB4083-1213P001 4PB4012-3213P001 40274101 40055101TH Rev.4 Description Heat Roller Halogen Lamp Halogen Lamp Thermostat Thermistor Heat Cord Caution Label J Label-Caution Korea Q’ty Remarks 120V 230V 570 /...

  • Page 571: Section 13 Cables

    SECTION 13 CABLES 571 / 40055101TH Rev.4...
  • Page 572 Section 13 CABLES Rev. Oki parts Number 40048101 40040001 40040201 40040301 105A1070C0003 105A1070C0004 105A1073C4002 1051070C0001 105A1067C1001 236A3161P0002 4YB3522-1297G001 3YS4011-1329P002 4YS3512-1485P001 236A6058P0001 40483802 4YS4111-5581P001 105A1062C0002 105A1068C1004 Note 1: Parts will be supplied by ODA. 40055101TH Rev.4 Description Connection Cord-Wire (AC) Connection Cord-Wire (OPE)

  • Page 573: Appendix D2 Mechanical Expanded View Drawing And Parts List

    APPENDIX D2 MECHANICAL EXPANDED VIEW DRAWING AND PARTS LIST (OKIFAX 5200/5300/5500/5600) SECTION1 CABINET ASSEMBLY SECTION2 CONTROL PANEL ASSEMBLY SECTION6 PAPER GUIDE U ASSEMBLY SECTION5 SCAN UNIT OPTION TELEPHONE 40055101TH Rev.4 ASSEMBLY PRINTER ASSEMBLY SECTION3 SECTION4 BASE ASSEMBLY 573 /...

  • Page 574: Section 1 Cabinet Assembly

    SECTION 1 CABINET ASSEMBLY 574 / 40055101TH Rev.4...
  • Page 575 Section 1 CABINET ASSEMBLY Rev. Oki parts Number 1PA4120-1079G001 1PA4120-1079G004 2PP4120-1084P001 2PP4120-1084P004 2PP4120-1091P001 2PP4120-1091P004 1PP4120-1089P001 1PP4120-1089P004 2PA4083-6130G001 40051902 40044501 40044401 40044101 40044303 40044307 40044502 40044305 40274601 40274602 3PP4120-1088P001 1PP4120-1090P001 1PP4120-1090P004 40545301 1PP4120-1093P001 4PB4120-1136P001 4PP4120-1161G001 223A7010P0003 40275501 Note 1: Required number of this part is arrenged by each country.
  • Page 576 SECTION 2 CONTROL PANEL ASSEMBLY (OKIFAX 5200/5300) 576 / 40055101TH Rev.4...
  • Page 577 SECTION 2 CONTROL PANEL ASSEMBLY (OKIFAX 5500/5600) 577 / 40055101TH Rev.4...

  • Page 578: Section 2 Control Panel Assembly

    Section 2 CONTROL PANEL ASSEMBLY Rev. Oki parts Number 40105301 40105302 40105305 40105306 40079101 40079102 40079105 40079106 40105308 40079108 4PB4120-1074P001 4PB4120-1073P101 40047011 40047110 40047101 3PB4120-1070P022 40076810 40076801 40047131 40076830 4PB4014-4776P201 4PB4014-4776P211 4PB4014-4776P221 40047001 40047010 1PP4120-1111P001 1PP4120-1072P001 40086801 40075001 40075002 40075101 40075102 Note 1: Not includes items 2, 4, 5,6 for OEL version.

  • Page 579: Section 3 Printer Assembly

    SECTION 3 PRINTER ASSEMBLY 579 / 40055101TH Rev.4...
  • Page 580 Section 3 PRINTER ASSEMBLY 1/2 Rev. Oki parts Number 2PA4120-1214G001 4PB3517-1567P001 4YB4120-1117P001 4YB4120-1118P001 4PP4083-2593P001 3PP4083-6076P001 2YX4120-1128G001 2YX4120-1128G002 3PA4122-1295G001 4PP4083-6022P002 4PP4083-6086G001 4PP4083-6083P001 4PB4083-6024P001 4PP4083-6080P001 3PP4083-6054P001 4PP4083-6081P001 3PB4083-6030P001 4PP4083-6042P001 3YB4083-7640P002 3PB4083-6064P002 4PP4083-6052P001 4PP4083-6065P001 1PP4083-6035G001 3PP4083-6058P001 3PP4083-6053P001 4PP4083-6057P001 4PB4083-6197P001 4PP4083-6191G001 4PA4083-6025G001 2PA4120-1129G001 40055101TH Rev.4 Description Stacker Cover Assy.
  • Page 581 Section 3 PRINTER ASSEMBLY 2/2 Rev. Oki parts Number 2PA4120-1085G001 4PP4120-1087P001 4YA4116-1228G001 224A1286P0140 4YX4120-1124G001 4PA4120-1170G001 4PP4120-1209P001 4PP4120-1210P001 3PP4083-6071G001 3PB4120-1105P001 3PB4120-1105P002 4PB4083-6106P001 4PB4083-6293P001 4PB4083-6128P001 4PP4083-6113P001 40055101TH Rev.4 Description Release Guide Assy. Release Spring LED Head PX-14 PC Connector LED Cable Assy.

  • Page 582: Section 4 Base Assembly

    SECTION 4 BASE ASSEMBLY 582 / 40055101TH Rev.4...
  • Page 583 Section 4 BASE ASSEMBLY 1/2 Rev. Oki parts Number 4YB4049-7082P001 4YB4049-7083P001 3PA4083-6090G001 41319201 41319202 40488501 40476111 40476112 40476113 40476114 40476105 40476106 40476115 40476116 40476117 40476118 2YX4076-7012G001 3PP4083-7653P001 4PP4083-7655P001 4PP4122-1170P001 4PP4083-7666P001 4PP4083-7658G001 1PA4120-1162G001 3PP4083-5663G001 3PP4083-7660P001 2PA4076-7011G001 1PP4120-1078P001 3PP4083-6154P001 4PP4083-7667P001 2PB4120-1103P001 4YB4120-1119P001...
  • Page 584 Section 4 BASE ASSEMBLY 2/2 Rev. Oki parts Number 40123401 40544901 4PP4083-7665P001 4YC4061-5115P001 4PB4120-1130P001 40545401 40055101TH Rev.4 Description Plate Assy.-PC I/F Plate Assy.-ENC FG Plate D Polyethylene Tape Screw-Hexagon Sheet-Shield Q’ty Remarks Option For 5300ENC For 5300ENC For 5300ENC 584 /...

  • Page 585: Section 5 Scan Unit

    SECTION 5 SCAN UNIT 585 / 40055101TH Rev.4...
  • Page 586 Section 5 SCAN UNIT Rev. Oki parts Number 1PP4120-1015P001 2PP4120-1034P001 4PP4120-1023P001 3PP4120-1017P001 3PP4120-1016P001 3PP4120-1038P001 2PP4120-1037P001 4PP4120-1032P001 4PP3529-5045P001 4PP4120-1020P001 4PP4120-1022P001 4PP4120-1021P001 4PP3529-5033P001 4PA3529-5082G001 2PP4120-1029P001 4PP3529-5039P001 4PB3527-5803P001 40135301 4PP4120-1030P001 4YB4120-1121P001 40141401 3PA4120-1018G001 40047601 4PB4120-1024P001 4PP4120-1025P001 40055101TH Rev.4 Description Scanner Frame Scanner Base (L)

  • Page 587: Section 6 Paper Guide U Assembly

    SECTION 6 PAPER GUIDE U ASSEMBLY 587 / 40055101TH Rev.4...
  • Page 588 Section 6 PAPER GUIDE U ASSEMBLY Rev. Oki parts Number 3PA4120-1045G001 4PP4120-1226P001 4PP4120-1227P001 4YS4011-1714P002 1PP4120-1040P001 4PA4120-1041G001 4PB4120-1051P001 4PP3529-5035P001 4PA3529-5087G001 3PA4120-1049G001 4PP3529-5034P001 3PA4120-1052G001 4PP3527-5153P001 4PP4120-1044P001 4PB4120-1051P002 4PP3522-3568P001 4YS4011-1714P003 4PP3527-5034P001 4PB4013-3501P003 40055101TH Rev.4 Description Feed Roller (1) Assy. Earth Plate (SR) Earth Plate (SL)
  • Page 589 SECTION 7 CABLES 589 / 40055101TH Rev.4...
  • Page 590 Section 7 CABLES Rev. Oki parts Number 40040002 4YB4120-1026P001 3YS4111-3527P002 4YS4111-3441P001 4YS4111-3442P001 1051070C0001 3YS4011-1329P002 4YS3512-1485P001 236A6058P0001 4YS4111-5581P001 236A3161P0002 4YB3522-1297G001 105A1051C3002 40048201 40040101 105A1062C0002 105A1068C1004 105A1070C0004 105A1070C0003 4YB4120-1094P001 4LP-1466 Note 1: Parts will be supplied by OUK. Note 2: Parts will be supplied by ODA.

  • Page 591: Section 8 Option Telephone (Us)

    SECTION 8 OPTION TELEPHONE (US) 591 / 40055101TH Rev.4...
  • Page 592 Section 8 OPTION TELEPHONE (US) Rev. Oki parts Number 1PP4120-1095P011 4YA4129-1006G001 4YA4129-1005G001 1PP4120-1096P001 3PP4120-1097P001 3PA4120-1140G001 4YB3512-2029G004 4YS4111-5552P001 4YS4111-5551P001 4YS3522-1252G002 4PB4120-1136P001 4PB4016-1960P001 40055101TH Rev.4 OKIFAX 1050/2350/2450/5000 series/OKIOFFICE44 Description Cradle Board-Hook Board-TELU Base-Cradle Cover-Terminal Attachment-Assembly Handset Connection-Cord Moduler-Jack-Cord Cord-Handset Tapping-Screw Screw Knob-Screw Rubber-Hoot Q’ty...
  • Page 593 Section 8 OPTION TELEPHONE (AG) Rev. Oki parts Number 1PP4120-1095P012 4YA4129-1006G001 4YA4129-1005G001 1PP4120-1096P002 3PP4120-1097P002 3PA4120-1140G001 4YB3512-2029G001 4YS4111-5552P001 4YS4111-5551P001 4YS3522-1252G002 4PB4120-1136P001 4PB4016-1960P001 40055101TH Rev.4 Description Cradle Board-Hook Board-TELU Base-Cradle Cover-Terminal Attachment-Assembly Handset Connection-Cord Moduler-Jack-Cord Cord-Handset Tapping-Screw Screw Knob-Screw Rubber-Hoot LANIER 4110/4160FAX Q’ty...
  • Page 594 SECTION 8 OPTION TELEPHONE (UK, ITA, NOR, DEN, BEL) 594 / 40055101TH Rev.4...
  • Page 595 Section 8 OPTION TELEPHONE (UK, ITA, NOR, DEN, BEL) Rev. Oki parts Number 1PP4120-1095P011 4YA4129-1006G001 2PP4120-1068P001 4YA4129-1003G001 4YU3528-1022G014 4YA4129-1004G001 1PP4120-1096P001 3PP4120-1097P001 3PA4120-1140G001 4YB3512-2029G004 4YS4111-5553P001 4YS4111-5552P001 4YS4111-5556P001 4YS4111-5551P001 4YS4111-5554P001 4YS4111-5555P001 4YS3522-1252G002 4PB4120-1136P001 4PB4016-1960P001 40055101TH Rev.4 OKIFAX 1050/2350/2450/4100/5000 series Description Cradle Board-Hook...
  • Page 596 Section 8 OPTION TELEPHONE (ABX) Rev. Oki parts Number 1PP4120-1095P002 4YA4129-1006G001 2PP4120-1068P002 4YA4129-1003G001 4YU3528-1022G014 4YA4129-1004G001 1PP4120-1096P002 3PP4120-1097P002 3PA4120-1140G001 4YB3512-2029G001 4YS4111-5553P001 4YS4111-5552P001 4YS4111-5556P001 4YS4111-5551P001 4YS4111-5554P001 4YS4111-5555P001 4YS3522-1252G002 4PB4120-1136P001 4PB4016-1960P001 40055101TH Rev.4 Description Cradle Board-Hook Ten-Key Board-Tenkey Board-TEL W1 Board-NTIF Base-Cradle Cover-Terminal...
  • Page 597 SECTION 8 OPTION TELEPHONE (HOL, GER, FRA, SWITZ, AUT, INT'L) 597 / 40055101TH Rev.4...
  • Page 598 Board-TEL 13 Board-TEL W2F Board-TEL 7 Board-NTIF Board-NTIF Board-NTIF Base-Cradle Cover-Terminal Attachment-Assembly Handset Connection-Cord Connection-Cord Moduler-Jack-Cord Connection-Cord Cord-Handset Tapping-Screw Screw Knob-Screw Rubber-Hoot Q’ty Remarks SWITZ, AUS HOL, OEL-INT'L OKI-INT'L SWITZ, AUS HOL, OEL-INT'L, GER, OKI-INT'L Except OKIFAX4100 Except OKIFAX4100 598 /...
  • Page 599 Section 8 OPTION TELEPHONE (ABB, AB, FTZ, FR) Rev. Oki parts Number 1PP4120-1095P012 4YA4129-1006G001 4YU3528-1037G011 4YU3528-1037G009 4YU3528-1038G013 4YU3528-1033G018 4YA4129-1004G002 4YA4129-1004G003 4YA4129-1004G004 1PP4120-1096P002 3PP4120-1097P002 3PA4120-1140G001 4YB3512-2029G001 4YS4111-5553P001 4YS4111-5552P001 4YS4111-5551P001 4YS4111-5555P001 4YS3522-1252G002 4PB4120-1136P001 4PB4016-1960P001 40055101TH Rev.4 Description Cradle Board-Hook Board-TEL 11 Board-TEL 9...

  • Page 600: Appendix Eboard Layout

    APPENDIX E BOARD LAYOUT ITEMS R44 Package layout 04W Package layout UNC Package layout WN5 Package layout DN5 Package layout FN5 Package layout 048_POW (120V) Package layout 048_POW (230V) Package layout TLHV Package layout CTR Package layout (option) MEM Package layout (option) TELU Package layout (option) TEL-W1 Package layout (option) TEL-W2(AB) Package layout (option)

  • Page 601: External View And Component Names

    APPENDIX F SECOND PAPER FEEDER MAINTENANCE MANUAL (OKIFAX 5000 SERIES) OUTLINE Functions When the Second Paper Feeder is installed with the OKIFAX 5000 series facsimile transceiver, the Second Paper Feeder is connected to the facsimile by a connector. The Second Paper Feeder supplies paper automatically through the operation of pulse motor (hopping), which is driven by signals sent from CPU of the Second Paper Feeder under the control of the facsimile.

  • Page 602: Mechanism Description

    MECHANISM DESCRIPTION General Mechanism The Second Paper Feeder feeds the paper into the facsimile by receiving the signal from the facsimile, which drives the pulse motor inside the Second Paper Feeder, and this motion is transmitted to rotate the one-way clutch of the hopping frame assembly.

  • Page 603: Precautions Concerning Parts Replacement

    PARTS REPLACEMENT This section covers the procedures for the disassembly, reassembly and installations in the field. This section describes the disassembly procedures, and for reassembly procedures, basically proceed with the disassembly procedures in the reverse order. Precautions Concerning Parts Replacement Parts replacements must be carried out, by first turning the facsimile power switch off “O”...
  • Page 604 [Service Tools] Table 3-1 shows the tools required for the replacement of printed circuit boards, assemblies and units in the field. 40055101TH Rev.4 Table 3-1 Service Tools Service Tools Q'ty No. 1-100 Philips screwdriver No. 2-100 Philips screwdriver No. 3-100 screwdriver Digital multimeter Pliers Application...

  • Page 605: Parts Layout

    Parts Layout This section describes the layout of the main components. Upper plate Hopping Roller Shaft Assy Hopping Frame Assy Guide L (2nd) Assy 40055101TH Rev.4 One-way Clutch Gear Guide R (2nd) Assy (includes stepping motor and TQSB-2PCB) Stepping Motor Fig.

  • Page 606: Parts Replacement Methods

    Parts Replacement Methods This section describes the parts replacement methods for the components listed in the disassembly order diagram below. Second Paper Feeder 40055101TH Rev.4 Stepping motor (hopping) (3.3.1) TQSB-2PCB (3.3.2) Hopping roller shaft assy and One-way clutch gear (3.3.3) 606 /...
  • Page 607 3.3.1 Stepping Motor (Hopping) Turn the facsimile power switch off, pull out the AC cord from the outlet. Remove the facsimile off Second Paper Feeder. Take the paper cassette assy 1 out of Second Paper Feeder. Remove six screws 2 and remove the upper plate 3. Remove two screws 5 and remove the hopping frame assy 6.
  • Page 608 Remove three screws 9 which are holding the guide R (2nd) assy 0 to the bottom plate A. Remove the screw B which is keeping the rear cover C and guide R (2nd) assy 0. Remove the guide R (2nd) assy 0.
  • Page 609 3.3.2 TQSB2-PCB Remove the pulse motor (see 3.3.1). Remove the connector O from the TQSB-2PCB P. Remove the screw Q and remove the TQSB-2PCB P. Note : Refer to Detall A in the previous page. 3.3.3 Hopping Roller Shaft Assy and One-way Clutch Gear Follow up to step (3) of 3.3.1 and remove the hopping frame assy.

  • Page 610: Precautions Prior To The Troubleshooting

    TROUBLESHOOTING Precautions Prior to the Troubleshooting Go through the basic checking items provided in the facsimile Handbook. Obtain detailed information concerning the problem from the user. Go through checking in the conditions similar to that in which the problem occurred. Preparations for the Troubleshooting Display on the Operator panel The status of the problem is displayed on the LCD (Liquid Crystal Display) on the Operator panel.

  • Page 611: Troubleshooting Method

    Troubleshooting Method When a problem occurs, go through the troubleshooting according to the following procedure. Problem occurs Problem displayed by the LCD message 4.3.1 LCD Status Message List The listing of the statuses and problems displayed in the form of messages on the LCD is provided in Table 4-1.
  • Page 612 • ( JAM error ) ** Paper Inlet Jam ** Does paper jam at the inlet when the power is turned on? When the paper is fed in, does the paper inlet jam occur? 40055101TH Rev.4 Is the paper located above the sensor plate (inlet)? Is the sensor plate (inlet)
  • Page 613 Are the hopping roller and feed roller rotating? Is the pulse motor turning? Is the connector being connected properly? Check the coil resistance (approx. 4.3 ) of the pulse motor. Is it normal? Replace the TQSB-2PCB board. 40055101TH Rev.4 Set the paper properly. Replace the hopping roller shaft assy or one-way clutch gear on...

  • Page 614: Interconnection Diagram

    CONNECTION DIAGRAM Interconnection Diagram "PU" To OKIFAX 2350/2450 facsimile transceiver 40055101TH Rev.4 "MOTOR" TQSB-2PCB Stepping motor 2 M-T3 1 M-T4 4 M-T1 3 M-T2 614 /...

  • Page 615: Pcb Layout

    PCB Layout TQSB-2PCB CONTROLLER 40055101TH Rev.4 MOTOR MOTOR DRIVER SEN2 615 /...

  • Page 616: Parts List

    PARTS LIST SECTION1 CABINET & CASSETTE ASSEMBLY 40055101TH Rev.4 Figure 6-1 616 /...

  • Page 617: Section2 Mechanical Assembly

    SECTION2 MECHANICAL ASSEMBLY Figure 6-2 617 / 40055101TH Rev.4...
  • Page 618 OKI Oarts Number 1PP4122-1401P001 3PA4122-1370G001 1PA4122-1369G001 3PA4122-1371G001 1PA4122-1362G004 4PP4120-1009G001 1PP4122-1323P001 4PB4122-1441P001 1PA4122-1366G001 4PP3522-3568P001 4PP4122-1207P001 3PP4122-1331P001 3PA4122-1393G001 3YS4111-3528P001 3PB4122-1399P001 4PP4122-1384G001 4PP4122-1383P001 4PP4122-1226P001 2PP4122-1389P001 1PA4122-1365G001 3PA4122-1367G001 1YX4122-1364G002 4PB4122-1382P001 4YA4046-1651G002 3PA4122-1372G001 4PP4122-1238P002 4PP4122-1184P001 4PP4122-1347P001 4PP4122-1217P001 4PP4122-1398P002 4PP4122-1339G001 4PP4122-1338G001 40055101TH Rev.4 Table 6-1 Paper Feeder...

  • Page 619: Appendix G Rmcs System Manual(For Model 20)

    APPENDIX G RMCS SYSTEM MANUAL(FOR MODEL 20) Introduction RMCS stands for the Remote Management Center System. RMCS refers to setting registration data and conducting the following types of maintenance operations from a remote location. (Refer to Figure 1) The purpose of this system is to speed up customer service and reduce maintenance costs. RMCS model for FX050 series is only Model 20.

  • Page 620: Notes To Users

    COMx START ADDRESS COM1 COM2 COM3 COM4 Connectable Peripheral Equipment Printer Mouse Telephone To use a mouse, a mouse driver program ia required. This program is automatically incorporated by the installation program. 40055101TH Rev.4 IBM PC/AT or compatible model 300KB or more...
  • Page 621 Setup Mounting This sysrem (RMCS Model 20) is used FX050 series Facsimile with PC-I/F. Conceptual connection diagram of RMCS Model 20 with other devices Conceptual connection diagram of RMCS with other devices FX050 series facsimile with PC-I/F RS232C PC-I/F board cable No problem is caused for the basic operation of this system even if no telephone set connected.
  • Page 622 Installation When the PC/AT is activated by using the hard disk, insert an RMCS system disk into drive A. When C>_ is displayed, enter commands as shown below to activate the installation program. C> A:[Enter] A> INST[Enter] Select processing with the numeric keypad. [1] Register the RMCS basic system.

  • Page 623: Hard Disk Drive

    2.2.1 Registering the RMCS Basic System The flow of new registration is different from that of updating. First, the flow of new registration is described below. HARD DISK DRIVE 1) Enter the drive No. used to register the system. HARD DISK DRIVE DIRECTORY 40055101TH Rev.4 Remote Management Center System...
  • Page 624 2) Enter the directory name with up to eight alphanumeric characters. HARD DISK DRIVE DIRECTORY PASSWORD 3) Register a password of up to 15 alphanumeric characters excluding [\],[“]. If the system oprator is not defined, password registration not required. HARD DISK DRIVE DIRECTORY PASSWORD DIPSW (ON:0 OFF:1) = [11000000]...
  • Page 625 HARD DISK DRIVE DIRECTORY PASSWORD DIPSW (ON:0 OFF:1) = [11000000] Are you sure (Y or N)? 5) When the setting is correct, enter [Y]. The system is now registered. If not correct, enter [N]. Then repeat from step 1) again. When registering the system, also register ANSI.SYS required for screen control and MOUSE.SYS for using the mouse.
  • Page 626 2.2.2 Registering the Facsimile Model No. 1) Seach the directory in which the system is registered. when the systwm is found, register the model number. FAX Disk set Push any key 2) Insert a disk corresponding to the the model into drive A, then press any key. The model number is displayed and the confirmation screen is displayed.
  • Page 627 2.2.3 Deleting the Facsimile Model No. 1) Search the directory in which the system is registered. When the system is found, a list of registered models is displayed. [Page Up]: Previous page [Page Down]: Next page 2) Select the model number to be deleted. This number is then displayed in inverse video. The confirmation screen is also displayed.

  • Page 628: New Password

    2.2.4 Updating the Password 1) Search the directory in which the system is registered. When the system is found, the old password is displayed on the screen requesting entry of a new password is displayed. OLD PASSWORD NEW PASSWORD 2) Register a new password of up to 15 alphanumeric characters excluding [\], [“]. Press [Enter] to display the confirmation screen.
  • Page 629 2.2.5 UPdating the Dip Switches This setting is available for only RMCS Model 10. 1) Search the directory in which the system is registered. When the system is foud, the dip switch setting is displayed. DIP SW (ON:0 OFF:1) = [11010000] (For RMCS Model 10 only.) For the detail of setting, refer to 2.2.1.
  • Page 630 2.2.6 Deleting rhe RMCS Basic System 1) When to delete, enter [Y], then whole RMCS system is deleted. When not to delete, enter [N]. Then the installation menu appears. DIRECTORY : [C:\RMCS] Are you sure (Y or N)? N 40055101TH Rev.4 Remote Management Center System <<...

  • Page 631: Rmcs Basic Operation

    If you enter wrong password three times, ID and password entry screen is closed and return to the PC-DOS command input state. 40055101TH Rev.4 Remote Management Center System Copyright (C)1995 Oki Data Co., Ltd. Copyright (C)1995 Micro Technology Co. ID [ Password : •...

  • Page 632: Tel Directory

    TEL Directory You can select such services (items) registration and deletion of information related to users. We describe the detail of each service later. There are two ways to specify an item: select by using the [ ] and [ ] keys, then press [Enter] or enter the number before the item.

  • Page 633: Environment Setting

    Main Menu The main menu screen varies according to FAX models. For futher operation, refer to each FAX model manual. F1 : TEL directory F2 : Set the TEL number 12/10/1996 18:58 Operator ID [ There are two ways to specify an item: select by using the [ ] and [ ] keys, then press [Enter] or enter the number befor each item.

  • Page 634: Message Modifying Tool

    Message Modifying Tool Activating the Program After activating the PC/AT with a hard disk, insert the RMCS system disk into drive A. When C>_ is displayed, enter the following commands to activate the program. C>A:[Enter] A> SCRNED [Enter] Then the screen for menu selection is displayed. <...

  • Page 635: File Selection

    4.2.1 File Selection < REMOTE MANAGEMENT CENTER SYSTEM > SCRN1000.TX SCRN1010.TX SCRN1020.TX SCRN1030.TX SCRN1040.TX SCRN1050.TX SCRN1060.TX SCRN1070.TX SCRN1080.TX SCRN1090.TX Select the message title to modify. Select the position with [ ], [ ], [ • Press [Page Up] or [Page Down] to scroll the screen back to the previous page or up to the next page. •...

  • Page 636: Loading Message

    4.3.1 Confirmation < REMOTE MANAGEMENT CENTER SYSTEM > Select a drive with the [Space] key. Since it is assumed that data is stored on a floppy disk, you can select drive A or drive B. When setup is ready, insert a formatted floppy into the drive and press the [Enter] key, then saving is initi- ated.

  • Page 637: Rmcs System

    4.4.1 Confirmation < REMOTE MANAGEMENT CENTER SYSTEM > Select a drive with the [Space] key. It is assumed that a message is loaded on the machine from the floppy disk, you can select drive A or drive B. When setup is ready, insert a floppy disk which stores the message into the drive and press the [Enter] key.
