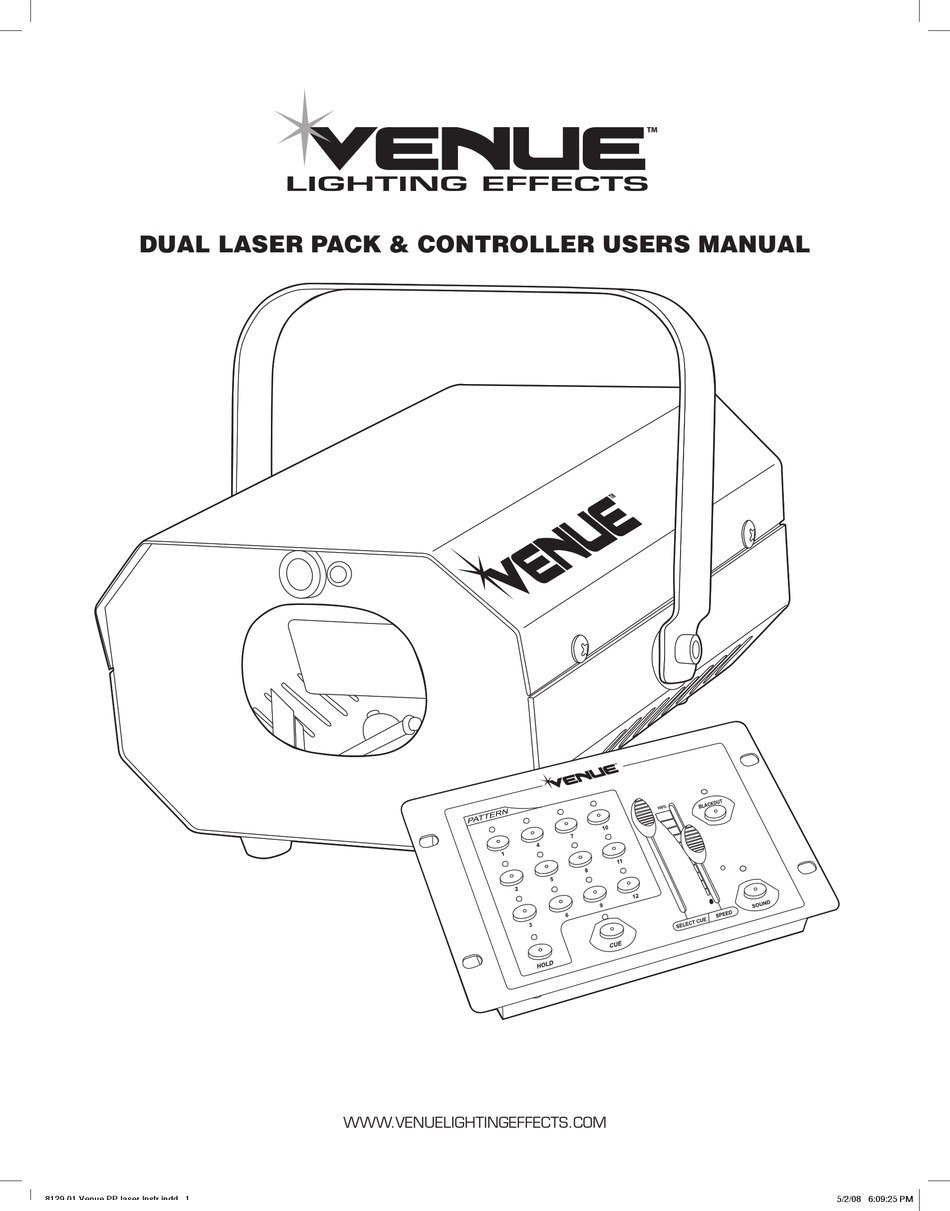

- Page 1 DUAL LASER PACK & CONTROLLER USERS MANUAL www.venuelightingeffects.com 8129.01 Venue PP laser Instr.indd 1 5/2/08 6:09:25 PM...
-
Page 2: Safety Information
DMX, Auto, Sound Active, Master/Slave DMX Control: 7 Channels Connector: 3-pin XLR DMX Size: L 9.3” x W 6.9” x H 6.4” Weight: 6.6 lbs. / 3 kg laser and controller instruction manual 8129.01 Venue PP laser Instr.indd 2 5/2/08 6:09:26 PM... -
Page 3: Function Introduction
DMX MODE: Controlled by DMX512 console only. Set the system function with the DIP switch. DIP switch 0=OFF 1=ON X=0FF or ON DIP switch CHART FUNCTION SOUND_ACTIVE AUTO_MODE SLAVE TEST_MODE SET DMX ADDRESS DMX MODE www.venuelightingeffects.com 8129.01 Venue PP laser Instr.indd 3 5/2/08 6:09:26 PM... -
Page 4: Address Setting
4. The laser can be controlled to play and edit programs by 1) a DMX controller in DMX mode, by 2) default program in auto mode, and 3) in sound active mode if the sound sensitivity knob is correctly adjusted. laser and controller instruction manual 8129.01 Venue PP laser Instr.indd 4 5/2/08 6:09:26 PM... -
Page 5: Master / Slave Modes
1. Via Master/Slave mode, there should be only one Master and no DMX512 controller. 2. Power on the Slaves, then the Master. N: SLAVE 1: MASTER (SOUND/AUTO) 2: SLAVE MASTER/SLAVE Connection www.venuelightingeffects.com 8129.01 Venue PP laser Instr.indd 5 5/2/08 6:09:26 PM... -
Page 6: Dmx Mode
4. Two seconds after master is turned on, it emits a beam. DMX512 1.DMX 2.DMX N.DMX DMX Connection laser and controller instruction manual 8129.01 Venue PP laser Instr.indd 6 5/2/08 6:09:26 PM... -
Page 7: Troubleshooting
Some patterns are Power on again and the system -------------------- blocked should correct itself If any other problems occur, please contact your dealer. www.venuelightingeffects.com 8129.01 Venue PP laser Instr.indd 7 5/2/08 6:09:26 PM... -
Page 8: Dmx Address Quick Reference Chart
44 47 34 37 44 47 34 37 44 47 34 38 44 47 34 38 44 47 35 38 44 47 35 38 44 47 DIP Switch Position DMX Address 8129.01 Venue PP laser Instr.indd 8 5/2/08 6:09:26 PM... -
Page 9: What Is Included
LASER CONTROLLER This controller is specially designed for the Dual Laser Pack. With this controller, you can easily run your system in Auto or Sound Active mode. Please read this manual carefully before operating. WHAT IS INCLUDED 1pc Laser-C controller... - Page 10 Static size dynamic speed Scan speed cue select laser and controller instruction manual 8129.01 Venue PP laser Instr.indd 10 5/2/08 6:09:27 PM...
-
Page 11: Important Safety Instructions
