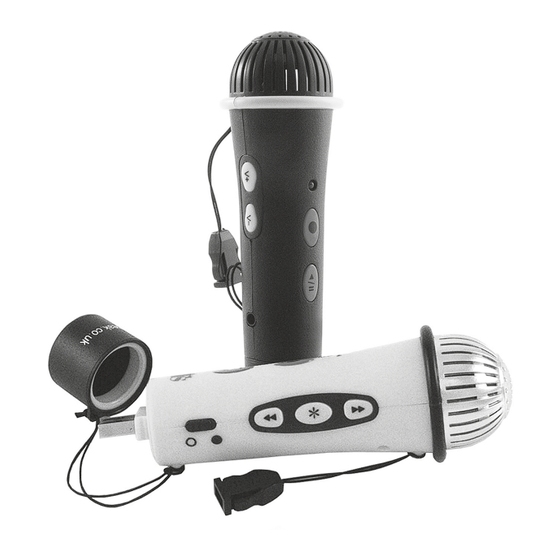

TTS Easi-Speak User Manual

Hide thumbs Also See for Easi-Speak:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Warranty & Support
This product is provided with a one year warranty for problems found during
normal usage. Mistreating the Easi-Speak® or opening the unit will invalidate this
warranty. Any data stored on the unit and any consequential loss is not covered by
this warranty. The battery is not user replaceable.All out of warranty repairs will be
subject to a replacement fee.

Technical Support

Please visit www.tts-group.co.uk for the latest product information.
Email feedback@tts-group.co.uk for technical support.
TTS Group Ltd.
Park Lane Business Park
Kirkby-in-Ashfield
Nottinghamshire,
NG17 9GU, UK.
Freephone: 0800 318686 Freefax: 0800 137525
Easi-Speak®
WARNING: Do not dispose of this product in
household waste. Hand it over to a collection point for
recycling electronic appliances.
WARNING! Not suitable for children under 36 months
due to small parts – choking hazard. Made in China, on
behalf of the TTS Group Ltd.
TTS is proud to be part of
Nxxxxx
N448
plc
TTS Product Code:
EL00455/EL00456/
EL00459

Advertisement

Table of Contents
loading

Related Manuals for TTS Easi-Speak

Summary of Contents for TTS Easi-Speak

  • Page 1: Technical Support

    This product is provided with a one year warranty for problems found during normal usage. Mistreating the Easi-Speak® or opening the unit will invalidate this warranty. Any data stored on the unit and any consequential loss is not covered by this warranty.
  • Page 2 Easi-Speak® Record voices, sounds or music on the move USER GUIDE...
  • Page 3 Easi-Speak® contains a non-replaceable, rechargeable battery. Do not attempt to remove the battery. Do not allow your Easi-Speak to come into contact with water or other liquids. In the event of an electro-static discharge, your Easi Speak may malfunction. In this event, please switch it off and then back on to reset it.
  • Page 4 Easi-Speak® Easi-Speak® Controls There are three groups of buttons which are used to control the Easi-Speak. Play/Pause Record (Red) Volume Up/Down (Green) Previous Track Mode Change Next Track Know Your Easi-Speak® Microphone Built-in Speaker Status LED Volume buttons Red ‘Record’ button Headphone Socket Green ‘Play’...

  • Page 5: Recording And Playback

    Press the green play button to play your track. The status LED will light green while the track is playing. When the track is finished, Easi-Speak will return to standby and the Status LED will be orange. The Easi-Speak will not store recordings of less than 2 seconds, so ensure you record for longer than this.

  • Page 6: Fast Forward And Rewind

    Easi-Speak® Status-LED The Status LED provides you with a clear indication of what is happening with your Easi-Speak. Please take note of the following information so that you can get the best results. Flashing Orange: Ready to Play/Record MP3 file...

  • Page 7: Deleting A Track

    Do not delete files when the battery is low Charging the Battery Easi-Speak is supplied with a partially charged battery and can be used immediately without charging first. The battery can be charged by connecting to the USB port of an active computer or the charger.
  • Page 8 Easi-Speak. Plug the Easi-Speak into an available USB socket. The first time Easi-Speak is connected to the PC, it will install the drivers and may require the PC to be rebooted depending on your operating system. If there is not sufficient space around the USB socket, then use the USB...

  • Page 9: Technical Specification

    Technical Specification Records directly into MP3 or WAV file format 256MB of flash memory, up to 4 hours recording MP3: Bit rate:) 128 kbps (44kHz sampling) Max time: Approx 2 hours WAV: Format: IMA ADPCM Bit rate: 64 kbps (4 bits per sample) Max time: Approx 8 hours For maximum recording time, delete the Audacity and user manual folders to...

  • Page 10: Troubleshooting

    Easi-Speak® Troubleshooting Easi-Speak is designed to work reliably and predictably in all normal conditions. However, it is possible that problems may occur. Please check the following suggestions before contacting technical support: Problem Status LED appears to flash randomly Battery is low. Charge the battery.
