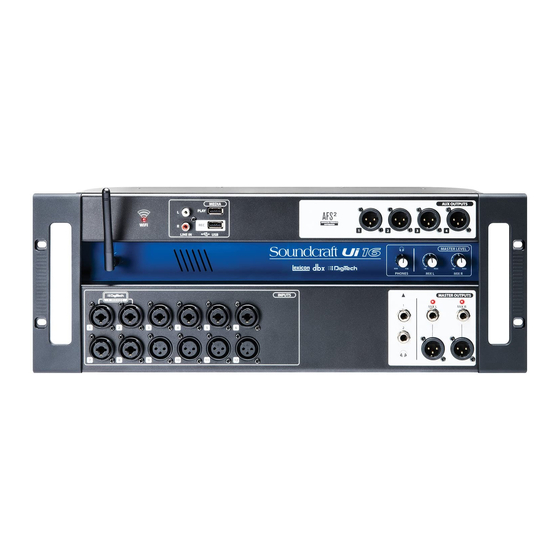

Summary of Contents for SoundCraft Ui12
-
Page 1: User Guide
® User Guide v2.9 For Soundcraft Ui12 & Ui16 ®... - Page 2 Soundcraft is a trading division of Harman International Industries Ltd. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. Soundcraft shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual. No part of this...
-
Page 3: Table Of Contents
Ui12, Ui16 User Manual CONTENTS CONTENTS 1.0 AN INTRODUCTION TO Ui 5.0: CHANNEL EDIT 1.1: Safety 5.1: DigiTech 1.2: Warranty 5.2: Parametric EQ 1.3: Specifications 5.3: Graphic EQ 5.3.1 AFS - Feedback Elimination 2.0: GETTING STARTED 5.4: Dynamics 2.1: System Overview 2.2: Hardware I/O &... -
Page 4: Ui12, Ui16 User Manual
The Ui Series mixers feature cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the Ui12 and Ui16 each feature built-in HARMAN signal processing from dbx, DigiTech and Lexicon, including dbx AFS DigiTech Amp Modeling, and more. -
Page 5: Safety
‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The internal power supply unit contains no user serviceable parts. Refer all servicing to a qualified service engineer, through the appropriate Soundcraft dealer. 1.1: INTRODUCTION > SAFETY... - Page 6 • The socket-outlet shall be installed near the equipment and shall be easily accessible. • It is recommended that all maintenance and service on the product should be carried out by Soundcraft or its authorised agents. Soundcraft cannot accept any liability whatsoever for any loss or damage caused by service, maintenance or repair by unauthorised personnel.
- Page 7 Ui12, Ui16 User Manual 1.1: SAFETY INTRODUCTION > SAFETY WARNINGS ADVICE FOR THOSE WHO PUSH THE BOUNDARIES Although your new console will not output any sound until you feed it signals, it has the capability to produce sounds which, when monitored through an amplifier or headphones, can damage hearing over time.
-
Page 8: Warranty
Equipment or the defective component should be returned to the Dealer or to Soundcraft and subject to the following conditions the Dealer or Soundcraft will repair or replace the defec- tive components. Any components replaced will become the property of Soundcraft. -
Page 9: Specifications
Humidity 0%-90% Gain -20dB to +20dB HPF 20Hz to 1kHz Storage Temperature -20°C to 60°C • De-esser E & OE. Threshold -90dB to 6dB Soundcraft reserves the right to change specifications and or images in this manual with- Ratio infinity to 1:1 Frequency 2kHz to 15kHz out notice. 1.3: SPECIFICATIONS... -
Page 10: Getting Started
GETTING STARTED - AN INTRODUCTION TO THIS MANUAL Anyone with minimal audio experience should be able to operate the Soundcraft Ui Series consoles without reading too much of this manual, though we do recommend you take the time to go through it. -
Page 11: System Overview
Ui12, Ui16 User Manual GETTING STARTED > SYSTEM OVERVIEW This Soundcraft Ui console uses a compact main unit with built-in I/O, processing, and web server. Phones, tablets, and PCs can connect to the web server via Wi-Fi for platform-independant software control. -
Page 12: Hardware I/O & Control
Ui12, Ui16 User Manual 2.2: HARDWARE I/O & CONTROL GETTING STARTED > HARDWARE The Ui main unit’s front panel hosts all local audio inputs and outputs plus three master level controls. On one side panel you will find the power connector and power switch; on the other you will find the RESET button, FOOTSWITCH connection, two USB ports, and the Ethernet (wired LAN) connection). -
Page 13: Aux Outputs
MEDIA - REC (Ui16, Ui12 with latest Firmware) USB Socket for USB Flash Drive - for recording audio The Soundcraft Ui 16mixer will record the Master Channel stereo output as a stereo file onto the storage device. See guide for playback and recording instructions - section 9.0. - Page 14 Ui12, Ui16 User Manual 2.2: HARDWARE I/O & CONTROL GETTING STARTED > HARDWARE Power Connector & Switch The Ui mixer has a power adapter with threaded locking ring. Insert the connector and screw the locking ring onto the socket to prevent accidental removal and to ensure a satisfactory electrical connection for best performance.
- Page 15 MEDIA - REC (Ui16, Ui12 with latest Firmware) USB Socket for USB Flash Drive - for recording audio The Soundcraft Ui mixer will record the Master Channel stereo output as a stereo file onto the storage device. See guide for playback and recording instructions - section 9.0.
-
Page 16: Input Channel Routing
2.3: INPUT CHANNEL ROUTING Ui12, Ui16 User Manual GETTING STARTED > INPUT CHANNEL ROUTING The diagram shows the audio signal path through an input channel - from physical input to bus sends (Aux, FX, Mix, and so on). Please note: The entire signal path (except for the hardware pre and output DACs) is clip-free with infinite headroom. It means that internal clipping is not introduced even by driving the EQ/Dyn to the max. -
Page 17: Getting Connected
2) Navigate to Wi-Fi set-up on your device and connect to the “Soundcraft Ui” access point. If this is the first time you have connected, the default password will be ‘scuiwlan’. 3) Launch your device’s browser, and enter the URL ui-mixer.io. For Android users, you must use Android browser 4.4 or later, or another modern browser like Chrome to use the Ui web app. -
Page 18: Software Control
Ui12, Ui16 User Manual 3.0: SOFTWARE CONTROL SOFTWARE CONTROL The browser-based software control for the Ui Series is available to any device in two versions. The small-screen version is optimised for phone-sized devices; the large-screen version is optimised for tablets and computers. In order to make best use of your Ui mixer, please read this section of software control. There are several navigation and menu access functions that will greatly simplify Ui control. -
Page 19: 1: Updates & Requirements
Up to 10 control devices can be used simultaneously. Software Updates Regular software updates are posted on the Soundcraft website and are available from the product page. In the Tablet software you can check your current Ui software version by navigating to the SETTINGS page and selecting the ABOUT tab. -
Page 20: Networking Reset
Ui12, Ui16 User Manual 3.0.2: RESET THE MIXER SOFTWARE > RESET THE MIXER There are two levels of reset for the Ui mixer. The first will reset network settings in the event that you are unable to connect. The second (uses a fullreset.txt file on a USB memory stick in conjunction with the reset button. This will fully reset the unit back to its factory firmware and default settings. Networking Reset Reset Networking and Admin password if you have forgotten the admin password or if you are no longer able to connect to the Ui. -
Page 21: Software Navigation
3.1: SOFTWARE NAVIGATION Ui12, Ui16 User Manual SOFTWARE > SOFTWARE NAVIGATION There are many navigation / gesture techniques common to both the Tablet and Phone versions of the Ui control software. This section describes the main ones. Section 3.7 summarises all control gestures. - Page 22 3.1: SOFTWARE NAVIGATION Ui12, Ui16 User Manual SOFTWARE > SOFTWARE NAVIGATION Double Tap Channel Strip Double tap anywhere except the fader to access the METERS screen or switch back to the MIX screen from the GAIN screen. Scroll Channel Names...
- Page 23 3.1: SOFTWARE NAVIGATION Ui12, Ui16 User Manual SOFTWARE > SOFTWARE NAVIGATION Long (held) Tap/Click A long tap/click on certain controls brings up a sub-menu specific to that control. For example, a long hold or click on a channel name gives access to channel presets, renaming, copy/paste settings, sub group assignment, stereo linking, channel reset, and the ASSIGN ME function.
-
Page 24: 1: Control / Gesture Summary
3.1.1: CONTROL / GESTURE SUMMARY Ui12, Ui16 User Manual SOFTWARE > CONTROL SUMMARY There are many control gestures, taps, and clicks to help navigate the Ui Control software quickly and intuitively. This is a summary of those control options. List selectors •... - Page 25 3.1.1: CONTROL / GESTURE SUMMARY Ui12, Ui16 User Manual SOFTWARE > CONTROL SUMMARY Channel EDIT page > EQ tab Parametric EQ: • Double click/tap in vacant space to navigate to MIX page. • Drag PEQ frequency balls to adjust dB gain and frequency values.
-
Page 26: Tablet Navigation
3.2: TABLET NAVIGATION Ui12, Ui16 User Manual SOFTWARE > TABLET / LARGE SCREEN NAVIGATION The MIX Screen is the default for the Ui tablet / large screen software - You can navigate from there to other screens and functions in a variety of ways. The Level 1 Navigation controls take you directly to various primary screens, Level 2 navigation (page tabs) switches layers within the selected screen, and Level 3 navigation controls select individual channels. - Page 27 3.2: TABLET NAVIGATION Ui12, Ui16 User Manual SOFTWARE > TABLET / LARGE SCREEN NAVIGATION MIX / GAIN Access the MIX and GAIN pages When the button is orange, the MIX page is shown (channel faders) and when the button is Red, the GAIN page is shown (remote gain faders and input stage controls).
- Page 28 3.2: TABLET NAVIGATION Ui12, Ui16 User Manual SOFTWARE > TABLET / LARGE SCREEN NAVIGATION SNAPSHOT Access the Show and Snapshots pop-up selector Load shows and snapshots directly from this pop-up. SLIDEOUT Access the SLIDEOUT view on the right hand side of the screen Offers fast view and status switching functionality.
-
Page 29: 1: Keyboard Control
3.2.1: KEYBOARD CONTROL Ui12, Ui16 User Manual SOFTWARE > KEYBOARD CONTROL For users mixing with a device that has a keyboard, please see below a set of easily accessible key com- mands, making it quick and efficient to access the most used features on the mixer. DASHBOARD MIX/GAIN EDIT AUX SENDS FX SENDS MEDIA... -
Page 30: Tablet Screens
3.3: TABLET SCREENS Ui12, Ui16 User Manual SOFTWARE > TABLET SOFTWARE SCREENS The main tablet software screens are accessed from the level 1 Navigation Buttons along the top of the screen area, or via fast-access routes, such as double-tapping on a fader to access the EQ screen (see section 3.1). - Page 31 3.3: TABLET SCREENS Ui12, Ui16 User Manual SOFTWARE > TABLET SOFTWARE SCREENS EDIT The EDIT page provides access to audio processing such as EQ, DYNAMICS, and FX. The specific audio processing tabs available depend on the selected channel type. For example, the aux outputs and Master Channel include Graphic EQ.
- Page 32 3.3: TABLET SCREENS Ui12, Ui16 User Manual SOFTWARE > TABLET SOFTWARE SCREENS MEDIA The Ui mixer has a built in media player. This can be used for backing tracks or for background music in between sets. The file playback is streamed directly from a USB stick. Press the MEDIA icon to enter the player page.
-
Page 33: Phone Navigation
3.4: PHONE NAVIGATION Ui12, Ui16 User Manual SOFTWARE > PHONE NAVIGATION The MIX screen is the default for the Ui software - You can navigate from there to other screens and functions in a variety of ways. To access the Menu screen, press the NAV icon in the top right corner of the screen. -
Page 34: Phone Screens
3.4: PHONE SCREENS Ui12, Ui16 User Manual SOFTWARE > PHONE SOFTWARE SCREENS From the MENU screen you can access the MIX screen (Return button, top right corner) and nine other primary screens via the large colour-coded buttons. PLAYER The Ui mixer has a built in media player. - Page 35 3.5: PHONE SCREENS Ui12, Ui16 User Manual SOFTWARE > PHONE SOFTWARE SCREENS AUX SENDS AUX SENDS is where the AUX mix is created. The AUX input channel faders determine the signal level sent to that aux bus. Select an aux mix on the right to adjust the mix from all channels.
-
Page 36: Mixer Channels
Ui12, Ui16 User Manual 4.0: MIXER CHANNELS MIXER CHANNELS The Ui mixers has a variety of input and output channel types. You can view all channels in the main MIX screen and drag-scrolling along the virtual console. You can also use the MIX page Slideout panels to select specific channel types and preset views. -
Page 37: Input Gain Page
4.1: INPUT: GAIN PAGE Ui12, Ui16 User Manual CHANNELS > INPUT: GAIN PAGE The Gain page allows you to control the input stage aspects of a Ui input channel. It is a channel strip-type display with red fader level indicators. -
Page 38: Input Mix Page
4.2: INPUT: MIX PAGE Ui12, Ui16 User Manual CHANNELS > INPUT: MIX PAGE The MIX page is the Ui control software’s default page and allows you to control the routing and panning and fader of a Ui input channel. Please note - the phone software displays panning/balance, solo, and mute status, but for control you should use the EDIT page. -
Page 39: Channel Name
4.2: INPUT: MIX PAGE Ui12, Ui16 User Manual CHANNELS > INPUT: GAIN PAGE MUTE Turn off the audio signal of a channel MUTE is an immediate audio off, rather than having to slide down the fader (and removes the possibility of forget- ting its original position). -
Page 40: 1: Input Sub Menu
4.2.1: INPUT SUB-MENU Ui12, Ui16 User Manual CHANNELS > INPUT SUB-MENU By long-clicking/tapping on a channel name you can access the channel sub-menu for access to various channel parameters... CHANNEL PRESETS Recall and save whole channel settings - Factory and User preset banks. -
Page 41: Aux Sends
They have dedicated outputs on the Ui hardware. The aux faders have orange level indicator lines and determine how much of each input channel is contributed to the Aux bus. Ui12 has four main Aux busses available, and Ui16 has six. The highest-numbered aux pairs (3/4 for Ui12 and 5/6 for Ui16) are available as physical outputs when the HEADPHONES OUT option is set to ‘AUX’... - Page 42 4.3: AUX SENDS Ui12, Ui16 User Manual CHANNELS > AUX SENDS M-AUX / COPY MIX Copy the main mix to this aux mix This button copies the fader positions from the MIX page and moves all aux send faders to the same position on the AUX SENDS page.
-
Page 43: 1: Aux Master
Aux 1 output. Ui12 has four Aux busses available, and Ui16 has six. The highest-numbered aux pairs (3/4 for Ui12 and 5/6 for Ui16) are available as physical outputs when the HEADPHONES OUT option is set to ‘AUX’ in SETTINGS... -
Page 44: Fx Sends
4.4: FX SENDS Ui12, Ui16 User Manual CHANNELS > FX SENDS FX SENDS faders effectively determine the amount of effect (delay, reverb, chorus) on each input channel. They work much like aux sends in that a mix of input channel contributions is created on the FX SENDS page - one for each FX processor. - Page 45 4.5: SUB GROUP MASTER Ui12, Ui16 User Manual CHANNELS > SUB GROUP MASTER CHANNEL (4 x Sub Groups) If you want to have control over the drum kit mix, for example, but also want single fader control over the whole kit’s contribution to the mix, you would use a Sub Group.
-
Page 46: Master Channel
These options are selectable in SETTINGS > CONFIGU- RATION. The options are: New Snapshot, Update Current Snap- shot, Play, Record (Ui12 latest Firmware, Ui16). If Record is selected, press record to start recording directly to your USB stick. The REC button will highlight in red. You must have a USB stick mounted to make a recording. -
Page 47: 1: Master Channel Sub-Menu
4.6.1: MASTER SUB-MENU Ui12, Ui16 User Manual CHANNELS > MASTER CHANNEL > SUB MENU By long-clicking/tapping on a the Master Channel name you can access the Master Channel sub-menu for access to the ‘Set To Zero’ function and the Master Channel Preset Manager. -
Page 48: Channel Edit
Ui12, Ui16 User Manual 5.0: CHANNEL EDIT CHANNEL EDIT The EDIT page is the basic access point for channel-based signal processing: EQ, dynamics, and FX and auxiliary sends. The actual processing and options available depend on the channel type. The selected channel strip will be shown on the left of the EDIT screen. In the phone software, the default EDIT page is a via-point for more detailed views and also offers access to basic channel parameters such as pan/balance, phase, phantom power, and more. -
Page 49: Digitech
Ui12, Ui16 User Manual 5.1: DIGITECH CHANNEL EDIT > DIGITECH DigiTech input processing and channel view is available to the first two Ui mixer channels, and includes Hi-Z (high input impedance) selection for sources such direct-input guitar pick-ups. The DigiTech processing includes amp modelling: Emulations of guitar amps (with associated param- eters) and cabinets. The DigiTech view also allows single-view editing of selected channel features via the ‘Jack-Plug Buttons’. -
Page 50: Channel Controls
Ui12, Ui16 User Manual 5.1: DIGITECH CHANNEL EDIT > DIGITECH DIGITECH ON/OFF Turn DigiTech processing on or off When DigiTech processing is turned off, the channel will revert to its standard input stage. PRESETS Open the PRESETS management pop-up You can save and load settings presets for the DigiTech processing using this pop-up. -
Page 51: Parametric Eq
Ui12, Ui16 User Manual 5.2: PARAMETRIC EQ CHANNEL EDIT > PARAMETRIC EQ EQ adjusts the amplitude of an audio signal at particular frequencies. Ui input channels, FX Return channels, and Sub Group master channels have a four-band parametric EQ, plus High Pass Filter (HPF), and a De-Esser controlled from the same screen. - Page 52 Ui12, Ui16 User Manual 5.2: PARAMETRIC EQ CHANNEL EDIT > PARAMETRIC EQ RESET Reset the EQ to default values The EQ is set ‘flat’, and frequency and Q values are reset to defaults. BYPASS Bypass the EQ section of channel processing This control bypasses only the parametric EQ.
- Page 53 Ui12, Ui16 User Manual 5.2: PARAMETRIC EQ CHANNEL EDIT > PARAMETRIC EQ H - HPF BALL Draggable graphic ‘ball’ for High Pass Filter control Drag this graphic element to control. Left/Right adjusts Cut-Off frequency. Double-click/tap to reset. DE-ESSER FREQUENCY Fader control of De-Esser Frequency Determines the centre frequency of the De-Esser dynamic filter - the frequency on which the de-essing process is focussed.
- Page 54 Ui12, Ui16 User Manual 5.2: PARAMETRIC EQ CHANNEL EDIT > PARAMETRIC EQ EQ Q Fader control of EQ ‘Q’ Q is effectively a measure of how tall and thin the bell shape of the EQ band is - the lower the Q, the wider the bandwidth affected, and vice versa.
-
Page 55: Graphic Eq
Ui12, Ui16 User Manual 5.3: GRAPHIC EQ CHANNEL EDIT > GRAPHIC EQ Ui Aux Send Master channels and the Stereo Master Channel incorporate Graphic EQ (GEQ) instead of the parametric EQ of the input channels. This includes 31 fixed frequency bands (selected in banks of 16 and 15 with the mini-GEQ graphic) with adjustable boost/cut. In addition, the GEQ screen gives access to the dbx AFS (Automatic Feedback Suppression) processing. - Page 56 Ui12, Ui16 User Manual 5.3: GRAPHIC EQ CHANNEL EDIT > GRAPHIC EQ BYPASS Bypass the GEQ processing dbx AFS SETUP Set up and operate the feedback elimination system for this bus. Only available with tablet software. See section 5.3.1 for more detail.
-
Page 57: Afs
Ui12, Ui16 User Manual 5.3.1: AFS CHANNEL EDIT > GRAPHIC EQ > AFS AFS2 is a dbx feedback suppression system that uses 12 intelligent filters to detect and eliminate feedback across the audio spectrum. You can set AFS2 up on the master stereo output and/or Aux bus master channels by navigating to the channel’s Edit screen and selecting the EQ tab. - Page 58 Ui12, Ui16 User Manual 5.3.1: AFS CHANNEL EDIT > GRAPHIC EQ > AFS MODE Choose LIVE, FIXED, or LOCK Fixed mode is for pre-performance set-up, Live mode is for use during performance, and LOCK prevents changes to the current filters status.
-
Page 59: Dynamics
Ui12, Ui16 User Manual 5.4: DYNAMICS CHANNEL EDIT > DYNAMICS The Ui dynamics section is a comprehensive audio compressor/limiter and gate section. Basically, a compressor reduces the level of the audio once it passes a particular threshold. You can set the Ui Compressor Release parameter to ‘Inf’ (Infinite) to create a Limiter. An audio gate uses a threshold to... - Page 60 Ui12, Ui16 User Manual 5.4: DYNAMICS CHANNEL EDIT > DYNAMICS ATTACK Adjust the compressor Attack This is the speed at which the compressor reacts and reaches the attenuation set by the RATIO parameter. RELEASE Adjust the compressor Release This is the speed at which the compressor returns to ‘no attenuation’ after the signal level has fallen below the threshold level.
- Page 61 Ui12, Ui16 User Manual 5.4: DYNAMICS CHANNEL EDIT > DYNAMICS SOFT KNEE / HARD KNEE Set SOFT KNEE or HARD KNEE mode for the compressor This determines how threshold level is interpreted. HARD KNEE mode means that the threshold represents an abrupt transition.
-
Page 62: Aux/Fx Sends
Ui12, Ui16 User Manual 5.5: AUX/FX SENDS CHANNEL EDIT > AUX/FX SENDS (4 on Ui12, 6 on Ui16) The AUX and FX SENDS tabs in the EDIT screen are a convenient way to access all output contributions for a single channel - as opposed to the ‘mix view’ approach of the dedicated AUX SEND and FX SEND pages. -
Page 63: Mix Features
Ui12, Ui16 User Manual 6.1: VIEW & MUTE GROUPS MIX FEATURES > VIEW & MUTE GROUPS In Ui software you can mute channels individually, or in Mute Groups. There are six Mute Groups available to be assigned to any muteable channels. To mute all channels in a Mute Group, simply select the required Mute Group button. View Groups work in much the same way, though these define... -
Page 64: Moreme
Ui12, Ui16 User Manual 6.2: MOREME MIX FEATURES > MOREME MOREME allows users to assign their own channels (which may include a vocal mic and an instrument channel for example) and mix the balance of those channels with a single large fader. - Page 65 7.0: FX EDIT FX EDIT Digital FX are used in all types of audio to help create depth and colour to a mix. The Ui12 has three internal Lexicon FX processors: Reverb, Delay, and Chorus. The Ui16 has an additional processor that can either be an additional reverb or delay.
-
Page 66: Reverb
Ui12, Ui16 User Manual 7.1: REVERB FX EDIT > REVERB Reverberation (or “reverb” for short) is the complex effect created by the way we perceive sound in an enclosed space. Reverb is dependent on many features of that space, including the size, shape and the type of materials that line the walls. -
Page 67: Delay
Ui12, Ui16 User Manual 7.2: DELAY FX EDIT > DELAY Delays repeat a sound a short time after it first occurs. Delay becomes echo when the output is fed back into the input (feedback). This turns a single repeat into a series of repeats, each a little softer than the last. The Ui delay time is set in Milliseconds or in musical values. Press the DIV display to access a drop down box with the available musical note values. -
Page 68: Chorus
Ui12, Ui16 User Manual 7.3: CHORUS FX EDIT > CHORUS Chorus creates a lush, full sound by combining two or more signals together where one is unaffected and the other signals vary in pitch very slightly over time. Chorus is commonly used to fatten up tracks and to add body to guitars without colouring the original tone. -
Page 69: Shows & Snapshots
Ui12, Ui16 User Manual 8.0: SHOWS & SNAPSHOTS SHOWS & SNAPSHOTS A SHOW is a collection of SNAPSHOTS. A SNAPSHOT is a record of every setting on the console. You can save and recall snapshots and shows via the Ui control software - Phone or Tablet. - Page 70 Ui12, Ui16 User Manual 8.0: SHOWS & SNAPSHOTS SHOWS & SNAPSHOTS The unit ships with the Default Show loaded, and the * Init * snapshot. It is a good idea to create a new Show to work with and use the Default Show is an easy route back to default settings.
-
Page 71: Media Player & Recorder
The Record (Ui16) and Playback features use one or two USB Memory sticks placed in the USB sockets on the Ui hardware. The Ui16 has both play and record sockets on the front panel, the Ui12 has a USB ‘PLAY’ socket. There are two more USB sockets on the side panel of the unit. - Page 72 It allows the next song to be played using the F1 or F2 PLAY button (above the Master fader), without hav- ing to jump to the media player page before every song. Recorder (Ui16, and Ui12 with latest available Firmware) Recording of the Master Stereo Output can be activated with a RECORD button. You can assign F1 and/or F2 buttons to this function.
-
Page 73: Settings
Choose a source for the headphones. MASTER/SOLO is normal operation (either Master stereo output or Solo bus if an AFL or PFL is selected). AUX selects the highest pair of Aux buses as the source (3/4 for Ui12 and 5/6 for Ui16). - Page 74 Ui12, Ui16 User Manual 10.0: SETTINGS SETTINGS RECORD MODE 32-bit, 24-bit, 16-bit Choose a sample rate for the media recording function. GUI PERFORMANCE FRAME RATE FULL, 1/2, 13, 1/4 Choose the highest frame rate that your device can reproduce for best performance.
- Page 75 Ui12, Ui16 User Manual 10.0: SETTINGS SETTINGS PIN SLIDEOUT IN MIX MODE OFF, ON When this option is on, your mixer page will always display the Ui SlideOut without having to re-open it each time you go back to the main mix screen.
- Page 76 Ui12, Ui16 User Manual 10.1: NETWORK CONFIG SETTINGS > NETWORK CONFIG The Ui Config page allows you to enable/disable and edit settings for Hotspot wireless connection to the Ui hotspot), WiFi (connection to an existing WiFi network), and LAN (wired connection via Ethernet). There is also an Administration password change page, and a summary ‘Network State’ page.
-
Page 77: 1: Hotspot Settings
Wi-Fi network, or a wired LAN connection (Ethernet). SSID (Service Set Identifier) Text Entry This is the name of the Ui Hotspot. The default is ‘Soundcraft Ui’ Wireless Regulatory Domain Region Selection Select the correct region - your current location. This will help select the correct channel selection. -
Page 78: 2: Wi-Fi Settings
Ui12, Ui16 User Manual 10.1.2: WI-FI SETTINGS > NETWORK CONFIG > WI-FI The Ui can connect to an existing Wi-Fi network / Hotspot, and you can access the control software via the unit’s IP number (shown in Settings > Network). Select the Wi-Fi Configuration menu in Network Config to edit the Wi-Fi settings. Use the Save/Update button to save Wi-Fi settings. -
Page 79: 3: Lan Settings
Ui12, Ui16 User Manual 10.1.3: LAN SETTINGS > NETWORK CONFIG > LAN The Ui can connect to an existing wired LAN (Local Area Network) by connection the Ethernet port on the side of the unit. This is the fastest, most secure method of connection to the Ui. Select the LAN Configuration menu in Network Config to edit the LAN settings. -
Page 80: Appendix 01: Troubleshooting: No Sound
Ui12, Ui16 User Manual APPENDIX 01: NO SOUND? NO SOUND? A TROUBLESHOOTING GUIDE A Troubleshooting Guide. One of the most common problems experienced with mixing consoles is finding that an input isn’t appearing at an output. There are many possible reasons for this, but the best way to troubleshoot it is to go through the expected signal path and workout where the ‘break’ is... - Page 81 Ui12, Ui16 User Manual APPENDIX 01: NO SOUND? NO SOUND? A TROUBLESHOOTING GUIDE Is the Gate shut? It is possible for an incorrectly set Gate process to stop all signal. This happens most often when the threshold is set too high and the signal never gets loud enough to 'open' the Gate. You can easily check this by bypassing active Gates in the dynamics (DYN) tab of the channel EDIT page.
-
Page 82: Appendix 02: Troubleshooting: System Faq
Ui12, Ui16 User Manual APPENDIX 02: SYSTEM FAQ SYSTEM FAQ The Ui is not just an audio mixer - it is a WiFi hotspot and a web server, and it runs sophisticated control software for phone and tablet-type devices. The following FAQ addresses any issues you might have with this ‘system’... - Page 83 Ui12, Ui16 User Manual APPENDIX 02: SYSTEM FAQ SYSTEM FAQ want to see the Start screen. Navigate to the website you want to pin, pull up the app bar by right-clicking or swiping up from the bottom of your screen and tap the star icon. Tap the pin icon, enter a name for the shortcut, and click Pin to Start.
- Page 84 Ui12, Ui16 User Manual APPENDIX 02: SYSTEM FAQ SYSTEM FAQ 8) The GUI will present a message stating whether the update has been successful or not. 9) You must power cycle the unit and reconnect their client device. 10) You can now browse to the about page to see the new firmware version information. Q: How do I attenuate the media player input? It is really hot signal? You can use adjust the Compressor Gain control down -24dB to compensate for the incredibly hot signal that many audio files are mastered at. This adjustment will act like a PAD and allow you additional range on...
-
Page 85: Appendix 03: F/W Update
Local user GUI reset to default Stereo recording for Ui12 The stereo recording feature found previously on the Ui16 has now been implemented on the Ui12. Please refer to SECTION 9 of this manual for more information. All playback and recording functionality as described for the Ui16 is now relevant for the Ui12. - Page 86 Ui12, Ui16 User Manual APPENDIX 03: F/W UPDATE Firmware Update Build xxxx “MOREME” Portrait Mode ON/OFF It is now possible to define whether MOREME is displayed automatically in portrait mode on devices offer- ing orientation support. Some users prefer to operate fader view pages (MIX, AUX, FX) in portrait display orientation so the faders are “long throw”.
- Page 87 Ui12, Ui16 User Manual APPENDIX 03: F/W UPDATE Firmware Update Build xxxx AFS2 Preset manager AFS2 settings are no longer saved in a SNAPSHOT /SHOW. AFS2 now has a dedicated preset manager whereby users LOAD/SAVE/RENAME/DELETE AFS2 pre- sets to connected USB media.
- Page 88 Ui12, Ui16 User Manual APPENDIX 03: F/W UPDATE Firmware Update Build xxxx AUX levels include: - Aux Levels - Aux send Mute - Aux master Mute - Aux Pre/Post - Aux Pan if stereo linked - Copy mix AUX Processing include:...
- Page 89 Ui12, Ui16 User Manual APPENDIX 03: F/W UPDATE Firmware Update Build xxxx LOCAL AUX CONTROL (SOFT ACCESS ENABLER) A local client soft access eabler for AUX control is provided for non logged in users. The user can define which AUX’s they want to control if the master pass user has allowed access for either AUX LEVELS or AUX PROCESSING.
