Summary of Contents for Fieldmann FDH 2001-E
-

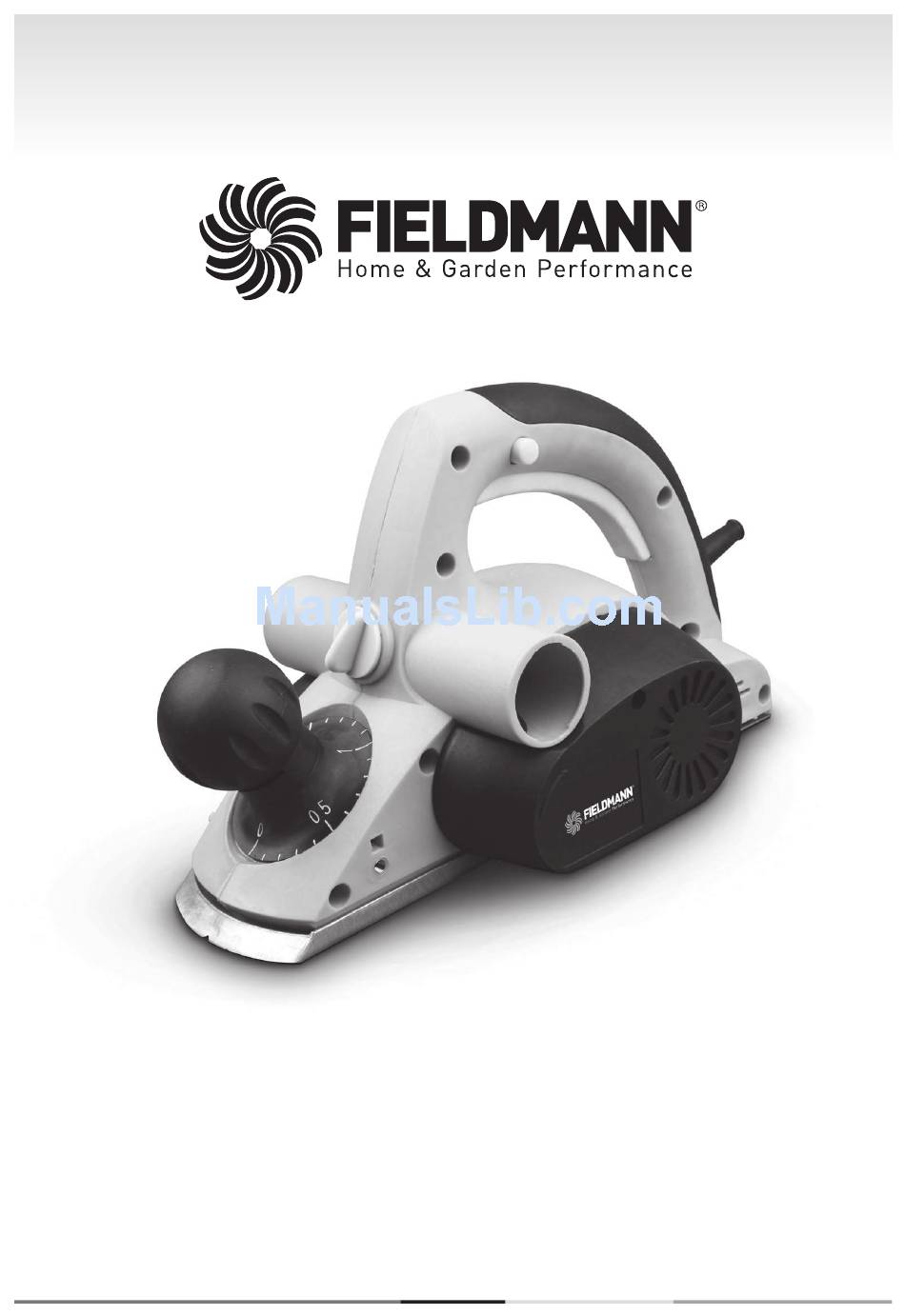

Page 1: Pictorial Appendix
FDH 2001-E... -
Page 5: Table Of Contents
Contents Electric Hand-held Planer INSTRUCTION MANUAL Thank you for your purchase of the electric hand-held planer. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference. CONTENTS PICTORIAL APPENDIX ............................ -
Page 6: General Safety Instructions
The operation manual includes also instructions for operation, maintenance andrepairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FDH 2001-E... - Page 7 General safety instructions Carefully read, remember and keep these safety instructions WARNING! In the use of electric machines and power tools, it is necessary to respect and follow the following safety instructions for the reasons of protection against electric shock, personal injury and danger of fire. The term “power tool” in the instructions below refers both to mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 8 Children must be supervised to make sure they are not playing with the equipment. FDH 2001-E...
- Page 9 General safety instructions Power Tool Use and Maintenance Always disconnect the power tool from the mains in case of any problem during the work, before cleaning the power tool or its maintenance, during each transportation and after the completion of the work! Never operate a power tool if it is damaged in any way. Immediately stop working if the power tool generates abnormal noise or smell.
- Page 10 (it could cause injury or damage to the user). Always have your power tool repaired in a certified service centre. Use only original or recommended replacement parts. This will ensure that your safety and the safety of your power tool is maintained. FDH 2001-E...
-
Page 11: Symbols
Symbols SYMBOLS The product complies with the applicable standards and regulations. Read the Instruction Manual attentively prior to use. Double-insulated. Use eyes protective equipment Use ears protectiove equipment Wear a breathing mask. Subjected to recycling ELECTRIC HAND HELD PLANER OPERATING INSTRUCTIONS... -
Page 12: Layout
You can adjust the chip depth in steps of 0.1 mm from 0 to 2 mm by turning the setting knob for the chip depth (1). Turn the setting knob for the chip depth (1) in a clockwise direction to set a greater chip depth: Greater chip depth FDH 2001-E... -
Page 13: Operation
Before starting the equipmen | Operation Turn the setting knob for the chip depth (1) in a counter-clockwise direction to set a lower chip depth: Lower chip depth After finishing work, set the chip depth so that the knives are lowered and thus protected from damage. Turn the setting knob for the chip depth to position “0”... -
Page 14: Replacing The Power Cable
We recommend you to set a cutting depth of 2 mm and to keep planing the workpiece until the required depth of step is reached. REPLACING THE POWER CABLE If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its aftersales service or similarly trained personnel to avoid danger. FDH 2001-E... -
Page 15: Cleaning, Maintenance And Ordering Of Spare Parts
Cleaning, maintanance and ordering of spare parts CLEANING, MAINTENANCE AND ORDERING OF SPARE PARTS Always pull out the mains power plug before starting any cleaning work. 8.1 Cleaning Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipent with a clean cloth or blow it with compressed air at low pressure. - Page 16 Please quote the following data when ordering replacement parts: Type of machine Article number of the machine Identification number of the machine Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info FDH 2001-E...
-
Page 17: Technical Specifications
Technical specifications 9. TECHNICAL SPECIFICATIONS Electric hand-held planer: Mains voltage: 230V/50Hz Power input: 750W Idling speed: 12 000rpm Chip depth: 0-2mm Rebate depth: 0-6mm Planer width: 82mm Protection class: Weight: 2.9kg Sound and vibration Sound and vibration values were measured in accordance with EN 60745. LpA sound pressure level 87dB(A) LWA sound power level... -
Page 18: Disposal
This product fulfils all basic requirements of the EU directives that apply to it. Text, design and technical specifications can change without prior notice and we reserve the right for their change. FDH 2001-E... -
Page 19: Declaration Of Conformit
Declaration of conformity 11. DECLARATION OF CONFORMITY Product / Name: ELECTRIC HAND-HELD PLANER / FIELDMANN Type / Model: FDH 2001-E ........................230V/50Hz/750W The product complies with the following directives: The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits. - Page 20 FDH 2001-E...
