Summary of Contents for Akai ACR-46MP

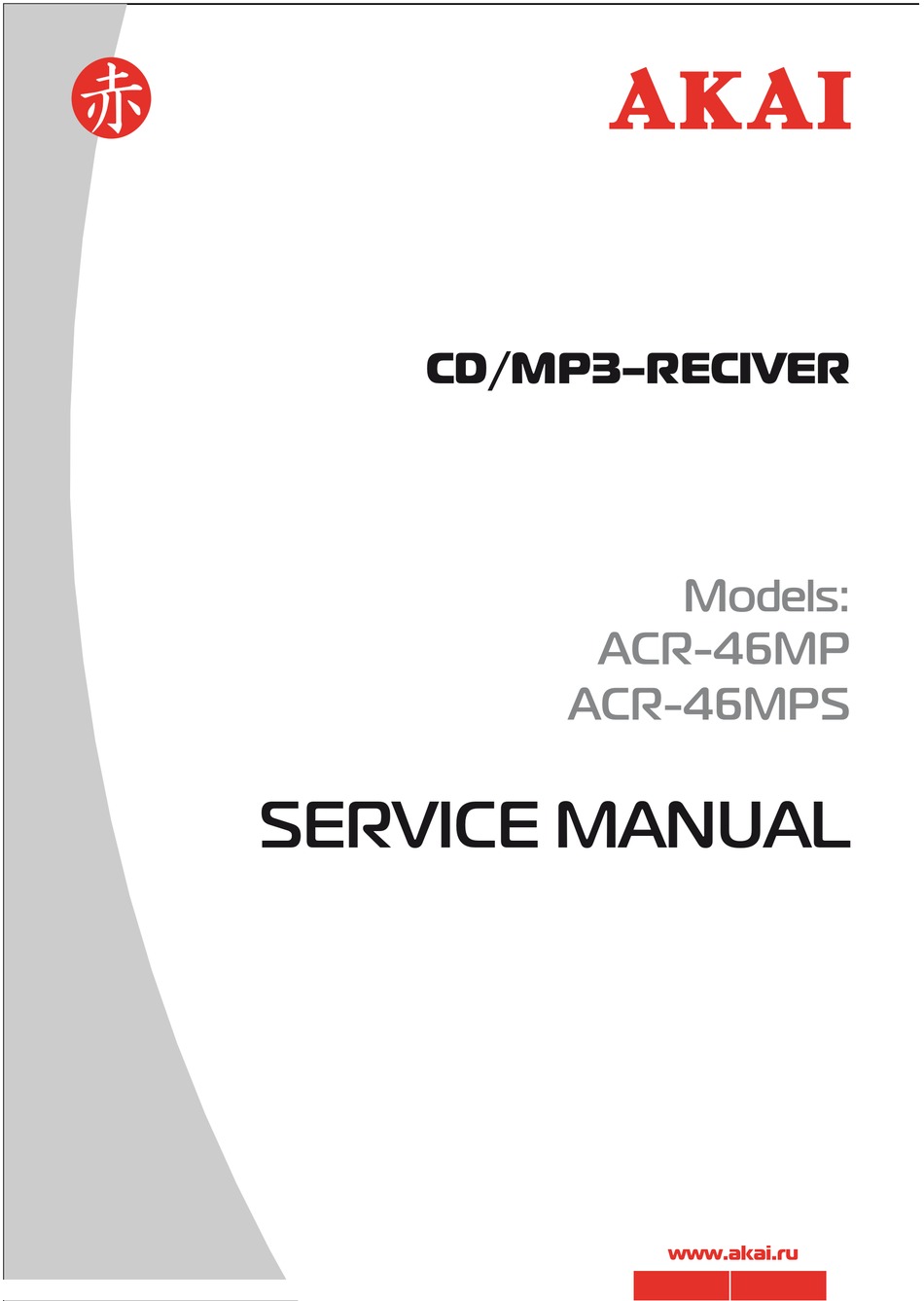

- Page 1 CD/MP3–RECIVER Models: ACR46MP ACR46MPS SERVICE MANUAL www.akai.ru...
- Page 10 AKAI ACR-46MP ITEM PARTS NO. DESCRIPTION-2 LOCATION PRICE REMARK 1 83-CM110-SB01-A CM110B-CD Deck 2 83-CM203-MB08-B CM203 2×2V RDS 3 84-CM203-KB06-A CM203A-SCE-RDS 4 84-CM203-SA00-A CM203 5 84-RMT203-0022-0 RDS NEW FORYOU REM 6 11-0901-0075-A IC TDA7384 IC801 7 11-1500-0002-A XT 4.500MHZ (-20°C~+70°C) HC...
- Page 11 30 11-0522-0001-A TR B1243 POWER SWITCH Q803,Q814 31 11-0901-0002-A IC DRAM 4MX4 TSOP 3.3V 32 11-0901-0003-A IC.S1L9226 IC201 33 11-0901-0004-A IC.KA9259D 34 11-0901-0005-A IC S5L9276 35 11-0901-0006-A IC.S5L9290 IC301 36 11-0901-0011-A IC.PT2313L SO-28 IC501 37 11-0901-0016-A IC.KIA7035AF TO-92 IC402 38 11-0901-0024-0 IC 78L05 REGULATOR ST IC803 39 11-0901-0026-A...
- Page 12 64 11-3400-0003-0 ZEBRA STRIP FOR CM203 65 13-0106-0701-0 PANEL-FRONT FOR 203 SILVER 66 13-0206-0001-1 PANEL BACK FOR 203 67 13-0206-0003-1 COVER ROTATE BRACKET 68 13-0206-0004-1 TRAY COVER FOR 203 69 13-0206-0005-0 BOTTOM COVER ABS FOR RMT203 70 13-0406-0813-0 LENS CM203 SCE/RDS NEW FORYOU 71 13-0506-0001-0 KNOB-SELECT FOR 203 NATVRAL 72 13-0506-0002-1...
- Page 13 98 14-0206-0006-0 SPRING-OPEN FOR 203 99 14-0209-0001-0 LOCKER SPRING FOR CM310 100 14-0306-0002-A LCD-COVER FOR 203 101 14-0306-0003-A SHAFT-ARM FOR 203 102 14-0306-0004-A SIDE-GUIDE-BRACKET FOR 203 R 103 14-0306-0005-A SIDE-GUIDE-BRACKET(L) FOR 203 104 14-0306-0006-A ROTATE-MOUNT-BRACKET FOR 203 105 14-0306-0008-A LOCK BRACKET FOR 203 106 14-0306-0009-A DECK SUPPORT BRACKE KOMEC 203 107 14-0306-0010-A...
