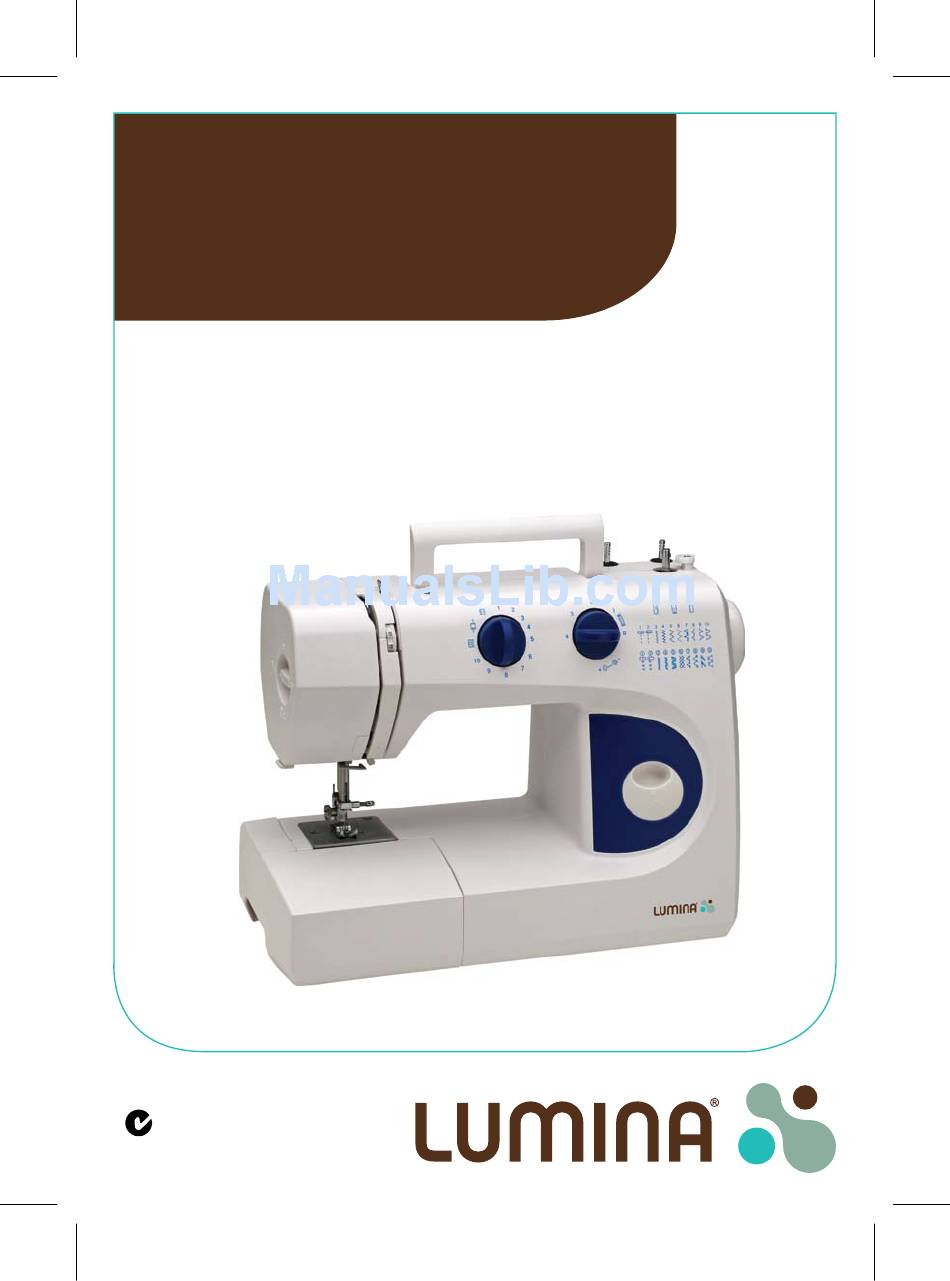

Barcode: 930 5026 10 000 3 00151
the household series
sewing machine
model number: ESM008
after sales support
tel: 1300 366 144
N11013 Q04532
Client:
ALDI Australia
Project:
Lumina ESM 008
Language:
EN
Date:
25.09.2007
Version: 02
Page:
Front (of 40 pages)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESM008 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lumina ESM008

  • Page 1 Barcode: 930 5026 10 000 3 00151 the household series sewing machine model number: ESM008 after sales support tel: 1300 366 144 N11013 Q04532 Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: Front (of 40 pages)
  • Page 2: Parts Description

    5. Upper cover (with accessories case) 6. Thread tension adjusting wheel 17. Carrying handle 7. Thread take-up lever 18. Sewing foot lever 8. Thread tensioner 19. Free arm table 9. Winding tension disc 20. Needle clamp screw 10. Thread spool holder 21. Foot pedal socket 11. Bobbin supporting arm 22. On/off switch for the light 12. Bobbin winder 23. Hand wheel Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 3: Accessories

    9. Cutting device (to be found in the brush’s handle) 10. Brush 11. Screwdriver (2 items) 12. Small squirt oiler 13. Double needle 14. Buttonhole foot 15. Power cable with foot pedal (not displayed) 16. Covering cap (not displayed) NOTE: The zig-zag foot is fixed to the machine on the sewing foot retainer. The small accessories are arranged in a folding compartment in the extension table. Please check the accessories with regard to completeness. TECHNICAL DATA Lumina ESM-008 sewing machine: Rated voltage 220-240 V ˜ 50 Hz, rated input 85 W, motor 70 W, TÜV-GS, CE, protection class II. Lamp:E14, max. 15 W. Foot pedal MODEL HKT7: Rated voltage 200-240 V ˜ 50 Hz, 0.5 A, CE, protection class II. The Lumina ESM-008 sewing machine may only be used with the MODEL HKT7 foot pedal. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language:...
  • Page 4: Table Of Contents

    Taking up the lower thread ...... 13 Adjusting the tension of the upper thread .. 14 Stitch pattern rotary switch ...... 14 Stitch length rotary switch ...... 15 Reverse sew button ........ 15 Lowering the feeder ........ 16 Rotary switch for adjusting the sewing foot pressure ...... 16 Starting the sewing work ......17 Straight stitch .......... 17 Altering the sewing direction ....... 17 Using the markings on the needle plate .. 18 Sewing a right angle ........ 18 Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 5: Intended Use

    Barcode: 930 5026 10 000 3 00151 SAFETY WARNINGS Getting to know your sewing machine Your Lumina ESM008 sewing machine is a top-quality modern appliance enabling you to perform numerous sewing operations. Among other things, these include: • 24 different sewing programmes • Inserting zippers by means of the zipper foot • Sewing buttonholes • Sewing on buttons • Seaming with a special seaming foot • Sewing with free arm NOTE: These Operating lnstructions only describe how to operate your sewing machine. The sewing know-how as well as the corresponding technical terms are considered as a prerequisite. The numbers used in the text refer to the main figure on the fold-out on the inner side of the front. There are, however, some exceptions. In such cases the text contains a corresponding note. Letters refer to parts marked in the adjacent drawing.
  • Page 6 • The power cable has to be uncoiled completely. Pay attention that the power cable does present a trip hazard. • When using an adaptor plug or an extension cord, observe that they comply with legal requirements. During operation • This sewing machine is not intended for use as a toy. Increased caution is advisable if the sewing machine is used by children or near children. • Do not use the appliance if it shows visible damages on the casing or the power cable. Repairs on the appliance are to be carried out by the service centre only. If the power supply cord of this appliance is damaged, it has to be substituted by our service centre, in order to prevent dangers. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 7: Safety Warnings

    PROTECTING THE ENVIRONMENT Packaging Please keep the packaging; when transporting the appliance it will be well protected in the original packaging. If you do throw the packaging away, please dispose of it in an environmentally friendly manner. Disposing of the appliance When the appliance reaches the end of its service life, please contact your local waste disposal authority; they will be able to tell you how to dispose of it properly. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 8 For a CLASS II appliance (Double Insulated), not requiring an earth connection. Fit a 13 amp plug conforming to BS 1363. Ensure that the plug is fitted with a 3 amp fuse. Rewire the plug in accordance with the following instructions: • Blue or Black : Neutral • Brown or Red : Live - Ensure that the Blue or Black wire is connected to the Neutral pin and the Brown or Red wire is connected to the Live pin. - Ensure that the copper wire at the end of the Blue or Black wire and Brown or Red wires are screwed securely to the correct pin connections. - Ensure that the plug cable anchor is secure. - Replace the plug cover. The electrical cable which acts as a sheath to the two connecting wires must lead into the plug. Do not allow the Blue/Black wire or Brown/Red wire to be exposed outside the plug. IF YOU ARE IN ANY DOUBT WHEN RE-WIRING A PLUG CONSULT A QUALIFIED ELECTRICIAN. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 9: Environment Protection

    Barcode: 930 5026 10 000 3 00151 Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 10: Operation

    1. You can define the sewing speed by means of the foot pedal. The more the foot pedal is pressed downwards, the more the sewing speed increases. 2. By letting go of the foot pedal, the machine is stopped. NOTE: Before carrying out initial operation of the sewing machine, practise using the foot pedal without a thread. Extension table The extension table increases the working area during sewing operations and can simply be removed. The use of the free arm enables sewing of places that are difficult to access. Removing the extension table 1. Remove the extension table as described in the figure. 2. In order to reinstall the extension table, connect it to the sewing machine again (quilting with sewing table). Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 11: Sewing Machine Light

    • Repairing places on knee and elbow, as well as children’s wear. Sewing machine light The sewing machine light is placed on the top end of the upper cover (5). Attention! Danger of electric shock! Before changing the light bulb, use the on/off switch to switch off the light and disconnect the power plug. If the sewing machine has been activated before, the light bulb is hot. There is burn hazard. Wait several minutes, in order to let the light bulb cool off. 1. Remove the screw covering on the left side on the sewing machine. 2. Remove the screw. 3. Remove the upper cover (5). 4. For removing, turn the light bulb to the left. 5. Insert the new light bulb and turn it to the right. 6. Replace the cover and screw it tight. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 12: Change The Sewing Foot

    5. Place the desired sewing foot on the needle plate, so that the bar of the sewing foot is positioned directly beneath the sewing foot retainer. 6. Press the sewing foot retainer lever (2) and lower the sewing foot lever (18). Like this, the sewing foot is connected and fixed to the sewing foot retainer. Changing the needle 1. Disconnect the power plug. 2. Place the needle in the highest position by moving the hand wheel (23) towards yourself. 3. Lower the sewing foot by means of the sewing foot lever (18). 4. Loosen the needle clamp screw (20) by turning anticlockwise. 5. Remove the used needle from the needle retainer. 6. Replace the new needle, so that the flat side points to the back. When inserting the needle, it has to be pushed into the needle retainer as far as possible. 7. Afterwards tighten the needle clamp screw (20). Attention! Risk of injury! Check in regular intervals whether the needle is still straight and sharp. A bent needle can break and cause injuries! Knots and skipped stitches in Jersey fabrics, finely woven silk or silk fabrics are often caused by damaged needles. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 13: Overview Needle And Thread

    40-50 60-70 No. 90-100 (#14-16) Wool 30-40 50-60 No. 90-100 (#14-18) Denims 45-50 Sewing of elastic fabrics no. 70 (#l0) Jersey fabric 70-80 100-140 Using the thread spool holder The thread spool holders (10) serve for taking up thread spools. 1. Before sewing, remove the thread spool holders (10) from the casing of the sewing machine. 2. Insert the thread spool holders (10) into the casing before putting the sewing machine away. (A) Upper thread (B) Opening in the thread spool holder NOTE: If the thread that is used often, winds itself round the thread spool holder or is knotted, you can guide the thread through the opening in the thread spool holder (B) (see figure above). In doing this, the opening is positioned in the direction of the thread spool. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 14: Removing And Inserting Of The Bobbin Case

    OPERATION Removing and inserting of the bobbin case 1. Disconnect the power plug. 2. Open the free arm lid (A). 3. Place the needle in the highest position by moving the hand wheel (23) towards yourself. 4. Grip the bobbin case bar (B) and pull the bobbin case out of the casing. 5. When reinserting, make sure that the bobbin case finger (C) engages firmly into the cut-out above in the casing. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 15: Winding

    Again press the foot pedal and wind the thread until the bobbin is filled. The machine will stop automatically. 6. Now press the bobbin supporting arm (11) to the left and cut off the thread. 7. Push the hand wheel (23) to the inside (into starting position), in order to reactivate contact. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 16: Inserting The Thread Into The Bobbin Case

    Inserting the thread into the bobbin case 1. Disconnect the power plug. 2. Place the needle in the highest position by moving the hand wheel (23) towards yourself. 3. Remove the bobbin case, see Page 11. 4. Insert the bobbin into the bobbin case. In doing this, make sure that the thread is guided in the direction of the arrowhead (clockwise). 5. Insert the thread into the slot of the bobbin case. 6. Then pull the thread through the bobbin tension spring to the outlet opening. Let approx. 10 cm of the thread hang out of the bobbin. 7. Reinsert the bobbin case. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 17: Threading The Upper Thread

    2. Pull the thread from the right upward around the thread tensioning disc. 3. Pull the thread tight and guide it through the opening of the thread take-up lever (7) from the right. 4. Guide the thread downwards and through the thread hook (3). 5. Guide the thread further downwards and through the next thread guide hook. 6. Thread the needle from the front to the back. NOTE: The thread run is clarified by numbers on the machine. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 18: Taking Up The Lower Thread

    2. Move the hand wheel (23) towards yourself until the thread take-up lever (7) is placed in its highest position. The needle must have been moving downward before. 3. Pull at the upper thread, in order to take up the lower thread. 4. Pull out both threads about 5 cm, and guide both threads underneath the sewing foot towards the back. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 19: Adjusting The Tension Of The Upper Thread

    Adjusting the tension of the upper thread When sewing with straight stitch, the upper and lower threads are connected to each other between the fabric parts. 1. Select the appropriate tension for the thread tensioning disc by means of the thread tension adjusting wheel (10). (A) Newly adjusted value The lower the numerical value, the lower the tension of the upper thread. To lower the tension of the upper thread, turn the adjusting wheel as indicated in the figure on the right. The higher the numerical value, the higher the tension of the upper thread. To increase the tension of the upper thread, turn the adjusting wheel as indicated in the figure on the right. Tension of the upper thread with regard to zig-zag stitch: In order to achieve good results when sewing with zig-zag stitches, the tension of the upper thread should be lower than when sewing with straight stitch. The upper thread should be visible on the back side of the sewing part. Stitch pattern rotary switch 1. Move the needle out of the fabric. 2. Select the desired stitch pattern by means of the adjusting wheel (14). 3. For the elastic stitches (lower row), select the desired number by means of the stitch pattern rotary switch (14). By means of the stitch length rotary switch (13; see below), you adjust the lower stitch pattern row by positions 1-10. Buttonholes are sewed with the symbols (A), see page 25. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 20: Stitch Length Rotary Switch

    The range between 0.5 to 4 is qualified for sewing zig-zag stitches. For sewing with an elastic stitch, the adjustment 1-10 is selected. How can the quality of the elastic stitch be improved? If this adjustment does not provide a satisfactory result when sewing with an elastic stitch, you can alter the stitch density by means of the stitch length rotary switch (13): • "-" denser stitches • "+" wider stitches. NOTE: The length of the stitch seamlessly changes with regard to an adjustment of the rotary switch between 0 and 1, and therefore should be adjusted correspondingly. Reverse sew button 1. Press the reverse sew button downward if you only want to sew backwards. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 21: Lowering The Feeder

    Then simply push forward the fabrics manually. The numbering on the figure corresponds to the following work steps: 1. Open the free arm lid (A). 2. Lower the feeder by pressing the feeder lever (B) downward and moving it in the direction identified by the arrow in the figure. 3. Lift the feeder by pressing the feeder lever (B) downward and moving it in the direction identified by the arrow in the figure. NOTE: For all usual sewing operations the feeder should be lifted. Rotary switch for adjusting the sewing foot pressure For all usual sewing operations, the sewing pressure is preset to level 3. 1. Set the rotary switch for the sewing pressure (4) to level 2, if you attach appliques and embroideries, or if you sew net fabrics. 2. Set the rotary switch (4) to level 3, if you work with chiffon, lace fabric, yam and other fine blended fabrics. 3. Set the rotary switch (4) to level 1, if you sew cotton flannel and stretch fabric. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 22: Starting The Sewing Work

    7. Lift the sewing foot and pull the fabric out, while holding the upper and lower thread to the back. 8. Cut off both threads with the scissors. Make sure that sufficiently long thread ends are overlapping, in order to prepare the sewing machine for the next work. Altering the sewing direction 1. Stop the sewing machine and move the hand wheel (23) toward yourself, so that the needle is lowered into the fabric. 2. Lift the sewing foot by means of the sewing foot lever (18), and turn the fabric into the desired direction by using the needle as a centre of rotation. 3. Lower the sewing foot and continue sewing. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 23: Using The Markings On The Needle Plate

    The markings on the needle plate are very useful to maintain the distance of the seam to the edge. (A) Needle plate markings (B) Corner marking (C) Needle plate (D) Needle hole (E) Distance from the edge to the eye The following data refers to the distance between the needle and the needle plate marking: Number on the needle Distance in cm Sewing a right angle 1. When sewing a right angle, make sure that a distance of 1.6 cm to the fabric edge is kept. 2. Stop the sewing machine if the fabric edge is placed on the same height as the corner marking on the needle plate (15). 3. Move the hand wheel (23) towards yourself, so that the needle is lowered into the fabric. 4. Lift the sewing foot by means of the sewing foot lever (18) and turn the fabric to the desired direction until its edge is flush with the needle plate marking 1.6 cm. 5. Lower the sewing foot and continue sewing. (A) Corner marking Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 24: Sewing Techniques

    Grid stitch embroidery stitch, e. g. as decorative seam on pleated skirts Elastic stitch with stitching of elastic straps with a breadth of more than two stitches 3 cm Closed overlock stitch for sewing together and trimming elastic fabrics in one work step. The closed seam prevents the fabric edges from fraying. 3 different sewing buttonhole buttonhole stitches Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 25: Zig-Zag Stitch

    Triple straight stitch Use the following settings: • Stitch pattern rotary switch: 1 or 2 • Stitch length: 1-1 0 • Sewing foot: zig-zag foot • Thread tension adjusting wheel: 4-6 This stitch produces a very hard seam, the needle moving two stitches forward and one stitch backward. This stitch type is especially suitable or gusset seams. Peg the fabric by using pins before you sew clothes. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 26: Sewing On Buttons (Zig-Zag Foot)

    • Lower the feeder (see page 18). 1. Place the button on the desired place on the fabric. 2. Adjust both buttonholes along the opening of the sewing foot (see figure), and place the left buttonhole directly beneath the needlepoint. 3. Lower the sewing foot. 4. By using the hand wheel (23), check whether the stitch length is adjusted in a way that enables the buttonholes to be exactly met. 5. If necessary, alter the stitch length by means of the stitch length rotary switch (13), or by means of the stitch pattern rotary switch (14). A sewing needle placed on the sewing foot serves to produce a bar during the sewing process, which facilitates wrapping a thread around the bottom side of the button later on. 6. Sew about five stitches and lift the needle. 7. Make sure that approximately 20 cm of the thread end remains if you want a tighter button neck. 8. Thread the upper thread downward through a buttonhole and wrap the thread several times round the thread connecting the button with the sewing part, in order to produce a button neck. 9. Pull the thread through to the bottom side of the fabric and fasten it with knots. NOTE: After sewing the button on, lift the feeder again. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 27: Sewing On Buttons (Button Sewing Foot)

    In case of heavier materials, a button shaft is often required. 1. For this purpose, place a needle or a match on the button before sewing, and before clamping it by lowering the sewing foot. 2. Sew the button on as described above. 3. Make sure that the upper thread is a bit longer, when you remove the workpiece from the machine. 4. Now thread the upper thread through a hole of the button and wrap it round the stitch threads, producing a button shaft. 5. Afterwards fasten the upper and lower thread on the back side by knots. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 28: Sewing A Buttonhole

    4. Set the stitch pattern rotary switch (14) to . 5. Sew in forward direction until you reach the buttonhole marking on the front. Then stop the sewing machine. At this point the needle has to be placed below on the left. 6. Set the stitch pattern rotary switch (14) to . Sew four to six stitches until you stop the sewing machine again. At this point the needle has to be placed below on the right. 7. Set the stitch pattern rotary switch (14) to . 8. Sew in reverse direction until you reach the buttonhole marking on the back. Then stop the sewing machine. At this point the needle has to be placed above on the right. 9. Set the stitch pattern rotary switch (14) to . 10. Sew four to six stitches until you stop the sewing machine again. At this point the needle has to be placed above on the left. 11. Remove the fabric when you have completed sewing the buttonhole. 12. Place a needle in front of the back buttonhole bar, so that you do not cut it through by mistake when cutting out the buttonhole. 13. Then carefully cut the buttonhole open by aid of the cutting device. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 29: Sewing In Zippers

    2. Place the zipper on the fabric, or fasten it by means of pins. 3. Place the workpiece underneath the sewing foot, so that the needle passes the zipper on the right side. 4. Place the thread to the back and lower the sewing foot. 5. Sew the right side of the zipper as close as possible to the teeth. 6. At the same time sew up the fabric closely with the zipper. 7. Lift the sewing foot and open the zipper before the sewing foot reaches the slide of the zipper! 8. Now fit the zipper foot in the right position, in order to sew on the left side. 9. Sew this side tight in the same way as the right side. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 30: Blind Stitch Using Guide Rail

    • Stitch pattern rotary switch: 7-8 • Stitch length: 1-3 • Sewing foot: zig-zag foot with guide rail: • Thread tension adjusting wheel: 4-6 1. Fold the fabric as described in the figure. (A) Back side of the fabric - (B) 0.4 - 0.7 cm 2. Lower the sewing foot, loosen the set screw of the sewing foot, and fix the guide rail between the set screw and the sewing foot. 3. Retighten the screw and make sure that the guide rail is tightly positioned in the centre of the sewing foot. 4. Lift the sewing foot, place the fabric beneath the sewing foot and adjust the pleat of the fabric along the guide rail. 5. Lower the sewing foot and sew slowly, in order to maintain a better control. 6. With the left stitch of the needle when performing the zig-zag stitch, the pleat is sewed closely to its edge. See that during sewing the pleat is always run alongside the guide rail. 7. After the right upper fabric layer has been ironed, the needle cuts are barely visible. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 31: Blind Stitch Using Blind Stitch Foot

    Blind stitch using blind stitch foot Use the blind stitch foot to sew invisible seams on trousers, skirts, etc. Use the following settings: • Stitch pattern rotary switch: 7 • Sewing foot: blind stitch foot • Stitch length rotary switch 1-3 • Thread tension adjusting wheel: 4-6 1. Fix the blind stitch foot, see paragraph Change the sewing foot, page 9. 2. Fold the fabric into the desired fabric breadth, as described in the figure. On the right, an edge of approx. 4 mm has to remain when the seam is refolded. 3. Place the seam beneath the blind stitch foot, so that the guide of the foot runs along the edge of the folded seam. 4. Adjust the guide on the blind stitch foot by means of the screw, so that in case of the highest overstitch the needle only meets the edge of the seam. On the other side of the seam only one point of the thread should be visible. 5. Remove the fabric from the machine and smooth it out. The unfolded fabric shows a blind stitch seam. NOTE: For retaining a better control, you should carry out stitching this seam very slowly! Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 32: Seaming

    2. Pull both of the lowered thread spool holders (10) upwards and attach two evenly filled thread spools. 3. Thread both threads through the thread guide, as you know it from the simple upper thread, see paragraph Threading the upper thread, page 14. 4. Thread one thread in every needle of the double needle. ATTENTION! Remove the double needle from the fabric before changing the seaming direction. Otherwise the needles are prone to break. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 33: Embroidery Stitches

    Grid stitch Use the following settings: • Stitch pattern rotary switch: 6 • Stitch length: 1 - 10 • Sewing foot: zig-zag foot • Thread tension adjusting wheel: 4 - 6 1. Sew several rows of straight stitch with a distance of 1 cm upon the fabric. 2. Select setting 4 as stitch length. 3. Fasten upper and lower thread on one side by knots. 4. Pull at the lower thread from the other side, so that pleats are produced at regular intervals. 5. Fix the threads on the other side. 6. Sew a decorative grid pattern across the pleats. 7. Afterwards thoroughly remove the auxiliary threads that served to produce the pleats. NOTE: A decreased tension of the upper thread facilitates the generation of piping cords. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 34: Elastic Stitch With Two Stitches

    1. Baste the applique onto the fabric or iron it on. 2. Thoroughly sew along the cut selvedge of the applique. 3. Lower the needle into the fabric if you have to alter the direction of the seam. 4. Lift the sewing foot and turn the fabric to the right or left. 5. Cut off fabric that you have possibly overlooked outside of the seam. NOTE: After having completed the sewing, reset the sewing foot pressure to 3. Closed overlock stitch Use the following settings: • Stitch pattern rotary switch: 10 • Stitch length: 1-2 • Sewing foot: zig-zag foot • Thread tension adjusting wheel: 4-6 1. Wrap both fabric edges round at approx. 1.5 cm and iron the edges down. 2. Fasten the fabrics with the wrapped side downward in a distance of 0.3 cm towards each other onto a fibrous web. 3. Sew slowly and make sure that every stitch of the needle reaches the fabric edge. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 35 Barcode: 930 5026 10 000 3 00151 Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 36: Maintenance And Care

    6. Lubricate the parts with oil by using a lint-free cloth that is lightly soaked in oil. 7. Put some oil on the point of the case movement enclosure (E) marked by the arrow. 8. Reassemble everything. For this purpose, take hold of the case (D) on the centre pin and replace it in the direction showed by the figure. 9. Hold the ring cover (C) so that the ring cover shoe (F) points downwards, and carefully replace it in the case movement enclosure (F). 10. Fasten the ring cover (C) and make sure that the ring cover shoe (F) is tightly fixed in the provided dent (G) in the case movement enclosure again. 11. Fix the ring cover (C) by replacing the clamping bar (A) into its initial position. 12. Replace the bobbin case with the bobbin again. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 37: Cleaning The Feeder

    Use sewing machine oil only! Only use one or two drops of sewing machine oil for lubricating he machine with oil, otherwise your fabric may be soiled. You should lubricate your sewing machine with oil every 2 - 3 months. If the machine does not function faultlessly after a long idle period, use several drops of sewing machine oil before starting. 1. Remove the screw covering (A), the screw (B) and the upper cover (C). (A) Screw covering - (B) Screw - (C) Upper cover 2. Clean and oil the points marked with an arrow, see figure. 3. Close the upper cover and screw it tight. NOTE: After lubrication with oil, you should place a piece of old fabric beneath the sewing foot and let the machine run for several minutes without a thread, in order to remove leaking oil. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 38: Troubleshooting

    The tension of the upper thread is See paragraph Adjusting the tension of the too high. upper thread, page 16. The fabric is not transported See paragraph Lowering the feeder, page 18. during the sewing process. The sewing needle is too thin for See paragraph Overview needle and thread, the fabric. page 10. The stitch pattern rotary switch is See paragraph Stitch pattern rotary switch, not adjusted correctly. page 16. Stitches are left The sewing needle is not inserted See paragraph Changing the needle, page 9. correctly. The sewing needle is bent or blunt. See paragraph Changing the needle, page 9. Needle or thread are not suited for See paragraph Overview needle and thread, the sewing operation. page 10. The upper thread is not properly See paragraph Threading the upper thread, threaded. page 14. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 39 The stitches are too short. See paragraph Stitch length rotary switch, page 17. The machine The power plug is disconnected. See paragraph Installing and connecting, does not start page 7. The thread is not caught in the See paragraph Taking up the lower thread, bobbin case finger. page 15. The hand wheel is placed in See paragraph Winding, page 12. winding position. The machine is The thread is caught in the bobbin See paragraph Inserting the thread into the loud or slow case finger. bobbin case, page 13. The feeder is blocked by fine See paragraph Cleaning the feeder, page 34. fabrics. Insufficient lubrication. See paragraph Oiling the parts beneath the upper cover, page 34. The light is not The light is switched off. Set the on/off switch for the light to “I“. Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: (of 40 pages)
  • Page 40 Barcode: 930 5026 10 000 3 00151 Client: ALDI Australia Date: 25.09.2007 Project: Lumina ESM 008 Version: 02 Language: Page: Back (of 40 pages)
