ATON A60C Product Manual

Storm series
Hide thumbs Also See for A60C:

Advertisement

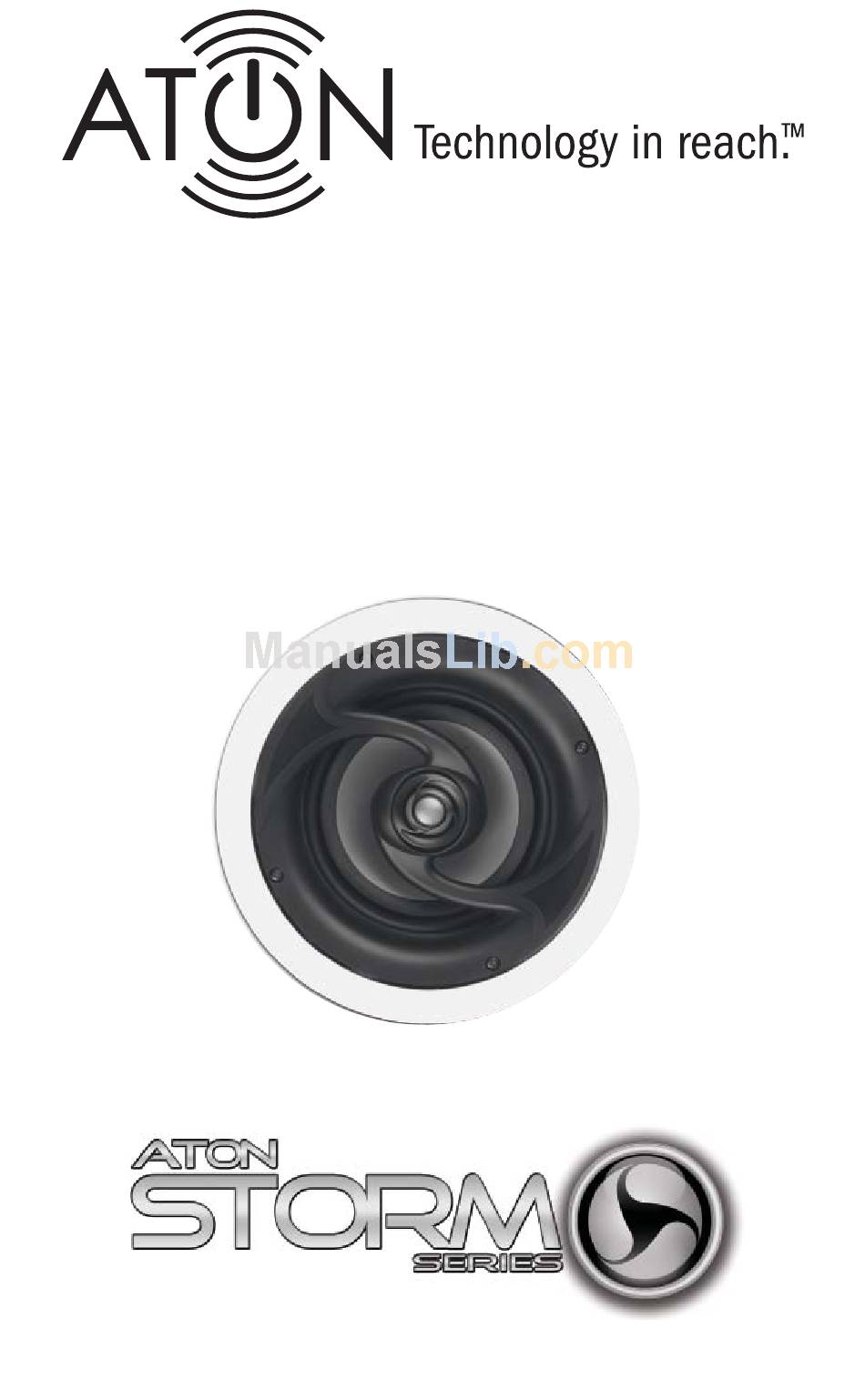

Storm Series

Ceiling Speakers

A60C/A61C/A62C/A63C/A62ST
A81C/A82C
www.atonhome.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A60C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATON A60C

  • Page 1: Ceiling Speakers

    Storm Series Ceiling Speakers A60C/A61C/A62C/A63C/A62ST A81C/A82C www.atonhome.com...
  • Page 3 Storm Series Ceiling Speakers are available in several confi gurations - for stereo or Home Theater listening, install two-way models like the A60C, A61C, A62C or A63C. A62ST Dual Voice Coil speakers are designed for rooms without designated listening areas. For the bass enthu- siast, install a pair of A81C or A82C 8"...
  • Page 4: System Design/Applications

    Storm Series Ceiling Speakers 2. System Design/Applications ATON Ceiling speakers are designed primarily to be installed in drywall ceilings, but it is pos- sible to install them in other materials. Prior to installation, it is essential to determine the type of application, and, therefore, the placement of the speakers in the ceiling.
  • Page 5 Storm Series Ceiling Speakers Home Theater ATON Ceiling Speakers provide unobtrusive, high-quality Home Theater sound when installed in the correct locations. It is critical to identify the primary listening position before installation! See Figure 2.3 for a system design utilizing all ceiling speakers and Figure 2.4 for a system design utilizing ceiling speakers as rear surround speakers.
  • Page 6 Look for routes through uncluttered parts of the stud wall or ceiling that allow you to group all low-voltage (video, speaker wires, Cat- 5, telephone, etc.) wires wherever possible. It is a good practice to label both ends of all cables and to protect wires by tying a plastic bag over the ends.
  • Page 7 Wire Figure 3.4 - Wiring: Amplifi er to Speakers w/ Volume Control • Use any of the stereo wiring methods to connect to a DVC speaker. This example shows 2 separate 2 conductor speaker wires run from the amplifier to the DVC speaker.
  • Page 8 Note 2: It is recommended that you use quality CL-2 or CL-3 rated stranded speaker wire when installing ATON speakers. Solid-core “Romex” type wire is not acceptable! Use at least 16AWG speaker wire for runs up to 100 feet, and at least 14 AWG speaker wire for runs up to 200 feet.
  • Page 9 If not using speaker rough-in brackets, staple speaker wire runs in a loose zigzag between the studs where the speaker is to be mounted to make it easier to fi nd the cable after the drywall is installed. Zig-zagging the cable also allows fl exibility in the placement of the speaker.
  • Page 10 Figure 3.10 - Rough-In Bracket Mounting Rough-In Brackets Once the mounting locations are decided upon, assemble the brackets and secure them to the ceiling joists using fl at-head screws or heavy-duty staples (see the ATON Ceiling/In-Wall Rough-In Brackets Manual for detailed steps). Retro-Fit Retro-fi...
  • Page 11: Setting Switches

    3. Connect the speaker wire. BE SURE TO OBSERVE CORRECT POLARITY! 4. Insert the speaker into the opening in the ceiling (or Rough-in Bracket opening) and care- fully tighten each of the four clamping screws, alternating diagonally between each screw position to ensure proper fi...
  • Page 12 4. Specifications A60C System Type ... 2-Way Woofer ... 6-1/2" Polypropylene Tweeter ... 1" Pivoting Mylar Crossover ...6dB/Octave Switches ...None Impedance ... 8 Ohms Sensitivity ... 90dB Frequency Response ...45Hz to 20kHz Power Handling ... 75 Watts Cutout Dimensions ... 8-1/16" (205mm) Outer Frame Dimensions ...
  • Page 13 Storm Series Ceiling Speakers A63C System Type ... 2-Way Woofer ... 6-1/2" Woven Kevlar Tweeter ... 1" Pivoting Titanium Crossover ... 12dB/Octave Switches ... 2 Position Bass/Treble Impedance ...8 Ohms Sensitivity ... 92dB Frequency Response ...32Hz to 22kHz Power Handling ...
  • Page 14 Storm Series Ceiling Speakers Notes: ©2007 • All rights reserved.
  • Page 16: Limited Lifetime Warranty

    Limited Lifetime Warranty ATON warrants to the purchaser/end user (“you”) that all Storm Series Speakers are to be free from defects in materials and workmanship. This warranty is transferable to subsequent owners of the product as long as the original proof of purchase is retained. If you discover a defect in material or workmanship, you can obtain warranty service by contacting ATON at (859)-422- 7137 or service@atonhome.com.

This manual is also suitable for:

A61cA62cA62stA63cA81cA82c
