Summary of Contents for ATON Storm O41

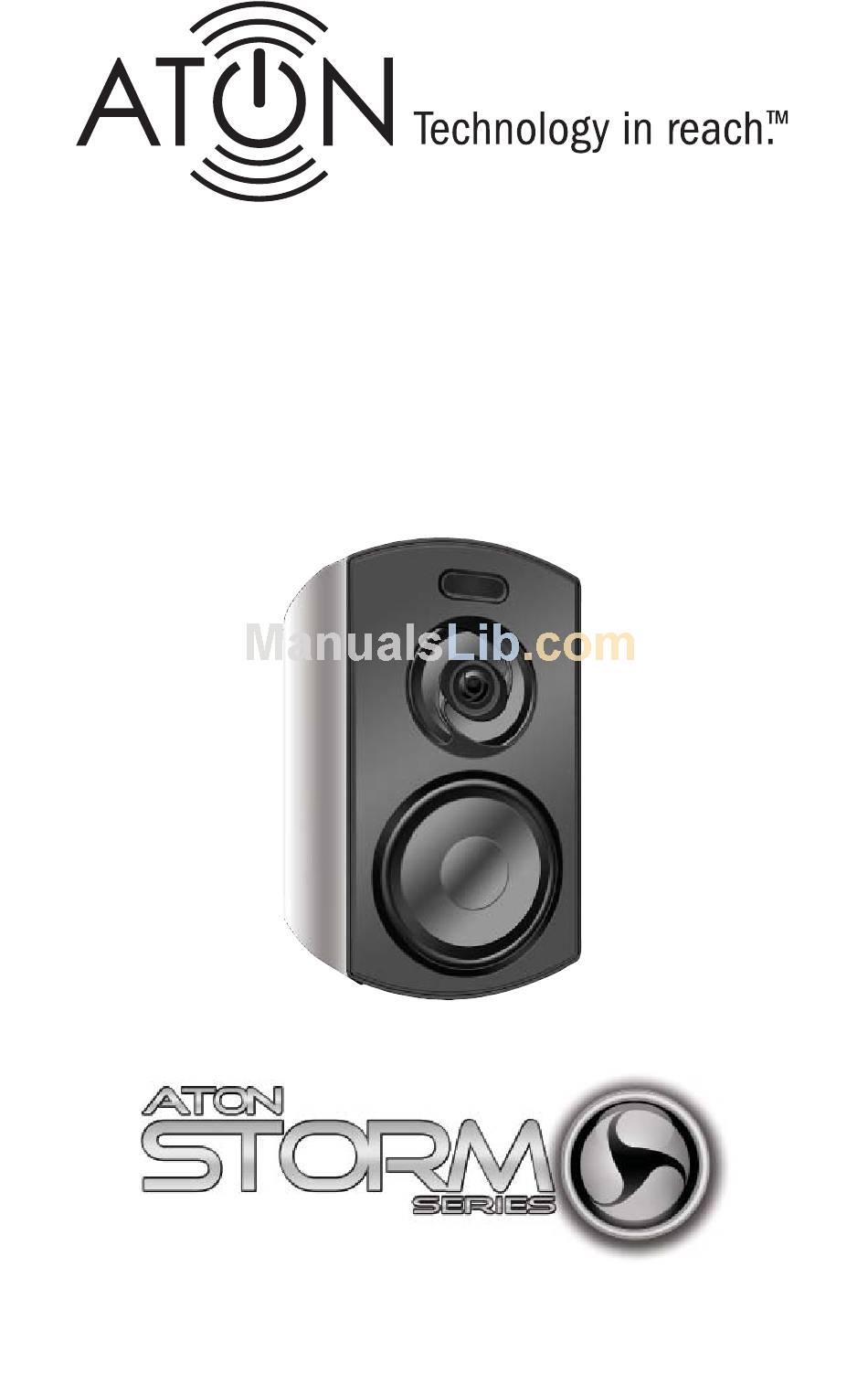

- Page 1 Storm Series Indoor/Outdoor Speakers O41/O51/O61/O62/O62ST www.atonhome.com...
- Page 3 Storm Series Outdoor Speakers 1. Introduction Thank you for choosing ATON Storm Series Outdoor Speakers. All models were voiced in our sound labs by musicians with years of critical listening experience and crafted for your listening enjoyment. To see the complete line of ATON products, visit us online at www.atonhome.com.
-
Page 4: System Design/Applications
Storm Series Outdoor Speakers 2. System Design/Applications ATON Outdoor speakers are designed primarily to be used in areas such as back yards, porches, decks, etc. Because of the diversity of possible installation scenarios, pay particular attention to which type of application is most appropriate for the environment in which the speakers will be installed. - Page 5 Storm Series Outdoor Speakers 3. Installation The Installation process is divided into three distinct processes: Connection. After carefully considering the intended application (defi ning a Listening Area, Mono/Stereo, etc.) specifi c mounting locations can be decided upon. Once the specifi c locations are determined, installation can commence.
- Page 6 Note 2: It is recommended that you use quality CL-2 or CL-3 rated stranded speaker wire when installing ATON speakers. Solid-core “Romex” type wire is not acceptable! Use at least 16AWG speaker wire for runs up to 100 feet, and at least 14 AWG speaker wire for runs up to 200 feet.
- Page 7 Storm Series Outdoor Speakers Mounting Use the included Mounting Brackets to securely mount the speakers in the desired location. To install the brackets on wood surfaces, vinyl siding, etc.: Place brackets in desired location. Mark location of holes at the narrow point of the keyhole cutout.
- Page 8 Once the brackets are mounted, place the speakers between each end of the bracket. Install a Bracket Knob on each end of the speaker as shown in Figure 3.10. Adjust the speaker to the desired location, and fi rmly tighten the Bracket Knob. Mounting Bracket Bracket...
-
Page 9: Specifications
Storm Series Outdoor Speakers 4. Specifications System Type ... 2-Way Woofer ...4.25" Injection Molded Graphite (IMG) Tweeter ... 1" (25mm) Treated Soft Dome Connectors ...5-Way Binding Posts Crossover ...Second Order customized “Q” Nominal Impedance ... 8 Ohms Sensitivity ... 87dB Frequency Response ...55Hz to 20kHz Power Handling... - Page 10 Storm Series Outdoor Speakers Notes: Page 8 ©2007 • All rights reserved.
-
Page 12: Limited Warranty
Warranty Period, you can obtain warranty service by contacting ATON during the Warranty Period at (859)-422-7137 or service@atonhome.com. If ATON determines that the product is in fact defective, ATON shall, at its option, repair or replace the product free of charge to you.
