Page 1: Advanced Operations

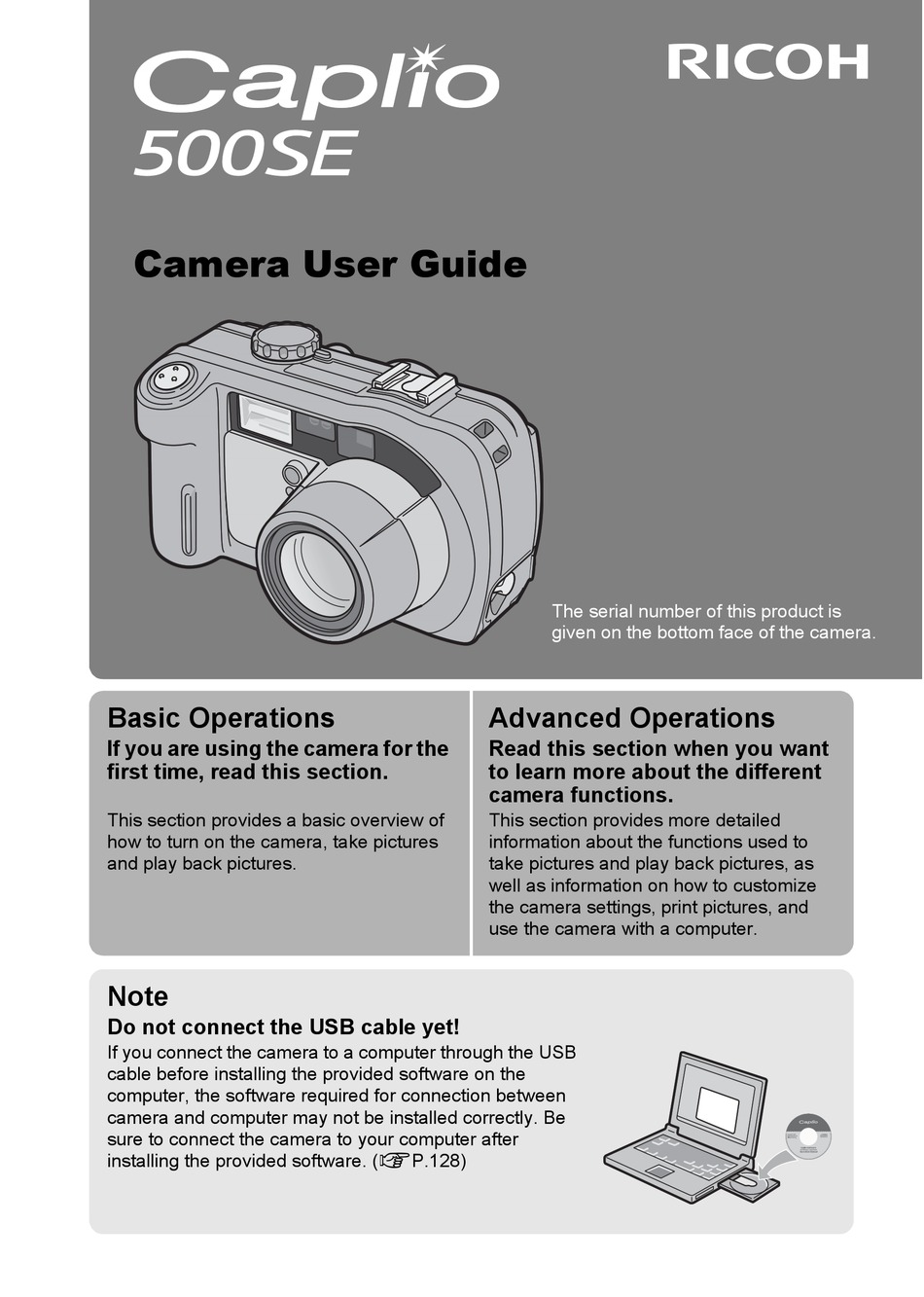

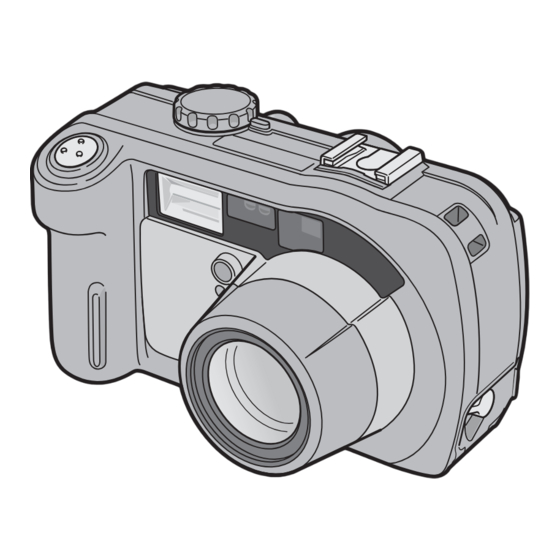

Camera User Guide The serial number of this product is given on the bottom face of the camera. Basic Operations Advanced Operations If you are using the camera for the Read this section when you want first time, read this section. to learn more about the different camera functions.
Page 2 • Reorient the TV or radio antenna. • Plug the devices into separate electrical outlets. This publication may not be reproduced in whole or in part without the express written permission of Ricoh. © 2006 RICOH CO., LTD. All rights reserved.
Page 3: Using The Manuals
Using the Manuals The following two manuals are included with your Caplio 500SE. “Camera User Guide” (This booklet) This guide explains the usage and functions of the camera. It also explains how to install the provided software on your computer.
Page 4: Key Features
Key Features Rugged camera body stands up to water, dust and shocks The camera body is water resistant (JIS protection grade 7, IEC IP67), dust resistant (JIS protection grade 6, IEC IP67) and shock resistant when dropped from a height of up to 1 meter.
Page 5 Large LCD monitor and optical viewfinder Depending on the subject and shooting conditions, you can use either the 2.5-inch LCD monitor or the real optical viewfinder to compose your shots. Taken pictures can be viewed on the large, bright LCD monitor. ADJ.
Page 6 Direct printing without the use of a computer (P.98) A Direct Print-compatible printer can be connected to the camera with the USB cable to directly transfer images to the printer. This allows for easy printing without using a computer. You can also print reports and camera memos.
Page 7: Table Of Contents
Contents Using the Manuals................. 1 Key Features ................. 2 Contents ..................5 Basic Operations If you are using the camera for the first time, read this section. Packing List ................. 12 Names of Parts................14 How to Use the Mode Dial............16 LCD Monitor Display ..............
Page 8 Advanced Operations Read this section when you want to learn more about the different camera functions. 1 Various Shooting Functions Using the ADJ. Button ..............56 Settings by Mode ..................56 Changing the Text Density (SCENE) ............57 Shifting the AF Target (Macro)..............58 Shooting Setting Menu ..............
Page 9 3 Recording/Playing Back Sound 2 Recording Sound.................86 Playing Back Sound................87 4 Other Playback Functions Playback Setting Menu..............88 Using the Menu ..................88 Displaying Photos in Order Automatically (SLIDE SHOW) ..89 Write-protecting Files (PROTECT) ..........90 Protecting a File ..................90 Protecting All Files ..................91 Protecting Multiple Files at Once ............92 Using a Printing Service (DPOF)..........
Page 10 Changing File Name Settings (SEQUENTIAL NO.) ....117 Setting the Date and Time (DATE SETTINGS)......119 Changing the Display Language (LANGUAGE/N) ....120 Changing the Step Zooming Setting (STEP ZOOM) ....121 Displaying a Settings Change Warning (SHTG STGS WARNG.)............122 Changing the USB Setting (USB CONNECTION).....
Page 11 ® 8 Using the Bluetooth Function ® About the Bluetooth Function ..........154 Expanded Settings Menu ............155 Using the Expanded Settings Menu............155 Sending Still Images to a Printer (PRINT) ......... 157 Printing One or All Still Images .............157 Printing Several Still Images ..............159 Entering an Authentication Passkey for a Destination Device ....162 Sending Still Images to Your Computer (FILE SEND) ....
Page 12 10 Appendices Troubleshooting................. 191 Error Messages..................191 Camera Troubleshooting ..............193 Software and Computer Troubleshooting ..........198 Specifications ................200 Number of Images That Can be Stored in Internal Memory/ SD Memory Card ................203 Optional Accessories..............204 Using a Wide Conversion Lens.............204 Using the External Flash ............205 Functions Whose Defaults are Restored When Camera is Turned Off................
Page 13: Basic Operations
Basic Operations If you are using the camera for the first time, read this section. Packing List ......12 Names of Parts ....14 How to Use the Mode Dial ... 16 LCD Monitor Display... 17 Getting Ready...... 20 Basic Shooting ....32 Playing Back Images ..
Page 14: Packing List
Packing List Open the package and make sure all the items are included. Caplio 500SE USB Cable The serial number of the camera is Used to connect the camera to a provided on the bottom face of the computer or Direct Print- camera.
Page 15 Includes the rechargeable battery (DB-43) and battery charger (BJ-2e). Caution----------------------------------------------------------------------------------------------- Operations are not guaranteed when using a rechargeable battery or battery charger other than that specified in this manual. Note --------------------------------------------------------------------------------------------------- For the latest information about accessories, visit the Ricoh website at http://www.ricohpmmc.com.
Page 16: Names Of Parts
Names of Parts Camera Front View 11 12 Item Name Refer to Shutter Release Button P.34 Mode Dial P.16 Flash P.39 AF Window Accessory Shoe P.205 Viewfinder P.32 Terminal Cover P.99, 149 Lens P.32 Flash Compensation AF Auxiliary Light USB Terminal P.99, 149 AUX Terminal...
Page 17: Rear View
Rear View 19 18 Item Name Refer to LCD Monitor P.17 Auto Focus/Flash Lamp P.35, 39 Viewfinder P.32 Battery/Card Cover P.25, 27 Power Button P.29 Z (Wide-angle)/9 (Thumbnail Display) Button P.37, 48 z (Telephoto)/8 (Enlarged View) Button P.37, 48 !/SCENE Button P.40 $/F (Flash) Button P.39...
Page 18: How To Use The Mode Dial
How to Use the Mode Dial Turn the mode dial to the desired mode before shooting or recording. Turn the mode dial to the symbol of the function you want to use. Mode Dial Symbols and Descriptions Symbol Function Description Still Image Mode Allows you to shoot still images.
Page 19: Lcd Monitor Display
LCD Monitor Display Example of LCD Monitor Display when Shooting Pictures 12 13 14 15 Movie Mode Still Image Mode Item Name Refer to Item Name Refer to Flash P.39 Color Depth P.72 Macro Shooting P.38 Exposure Compensation P.78 Self-timer P.45 ISO Setting P.81...
Page 20: Movie Mode
Note --------------------------------------------------------------------------------------------------- • The number of remaining shots available may differ from the actual number of shots, depending on the subject. • Movie and sound recording time and the maximum number of still pictures may vary depending on the capacity of the recording destination (internal memory or SD memory card), shooting conditions, and the type and manufacturer of the SD memory card.
Page 21: Battery Level Indication
Battery Level Indication A battery mark appears at the lower right of the LCD monitor to indicate the battery level. Recharge the battery before it is depleted or exchange with new batteries. Battery Mark Description The battery is sufficiently charged. Green The battery level begins to drop.
Page 22: Getting Ready
Getting Ready Turn the power on and get ready to shoot. Note --------------------------------------------------------------------------------------------------- • If you have already used this camera, make sure it is turned off before inserting or removing the battery. • For information on how to turn the camera off, see P.29.
Page 23 Number of shots you can take --------------------------------------------------------------- • Approximate number of shots you can take on a single charge Battery Type Number of Shots (Normal Mode) Rechargeable Battery (DB-43) approx. 400 AA Alkaline Batteries (available in stores) approx. 80 • Based on CIPA standard (Temperature: 23 degrees Celsius, LCD monitor on, 30 seconds between shots, changing the zoom setting from telephoto to wide-angle or wide-angle to telephoto for each shot, 50% flash usage, turning the power off after each 10 shots).
Page 24: Sd Memory Card (Available In Stores)
SD Memory Card (available in stores) You can store still images you have taken either in the camera’s internal memory or on an SD memory card (available in stores). The internal memory capacity is 26 MB. To record a lot of still images, movies or sounds at high resolutions, use a high-capacity SD memory card.
Page 25 Note --------------------------------------------------------------------------------------------------- • For information on switching between the SD memory card and internal memory during playback, see P.47. • Movie and sound recording time and the maximum number of still pictures varies depending on the capacity of the SD memory card. (GP.203) •...
Page 26: Charging The Rechargeable Battery (Sold Separately)
Charging the Rechargeable Battery (sold separately) The rechargeable battery needs to be charged before use. Insert the battery, making sure that the markings on the battery match those on the battery charger. • The battery label should face up. Caution----------------------------------------------------------------------------------------------- Be careful not to reverse the sides.
Page 27: Loading The Battery And Sd Memory Card
Loading the Battery and SD Memory Card The rechargeable battery (DB-43) can be used to power this camera. This battery is convenient because the battery power lasts long and it can be used over and over again by recharging. If you have already used this camera, make sure it is turned off before loading the battery and card.
Page 28: Removing The Sd Memory Card
Close the battery/card cover and turn the knob toward the L mark. Removing the SD Memory Card Turn the battery/card cover knob toward the M mark to open the cover. Push in the SD memory card and gently release to eject it. Pull the card out of the camera.
Page 29: Using The Ac Adapter (Sold Separately)
Using the AC Adapter (sold separately) When shooting or viewing still images for a long time, or when connecting to your computer, use of the AC adapter (sold separately) is recommended. If you have already used this camera, make sure it is turned off before loading the AC adapter coupler.
Page 30: Disconnecting The Ac Adapter
Caution----------------------------------------------------------------------------------------------- • Be sure to attach the AC cable and plug the power cord into the outlet firmly. • When you are not using the camera, unplug the AC adapter from the camera and the power outlet. • While in use, if you detach the AC adapter or unplug the power plug from the outlet, data may be lost.
Page 31: Turning The Power On/Off
Turning the Power On/Off To turn the power on: Press the power button. • After the start sound, the auto focus/ flash lamp blinks for several seconds. Using the Camera in Playback Mode • Pressing the 6 (Playback) button for more than one second turns on the camera in Playback Mode, allowing you to start playback at once.
Page 32: Setting The Language
Setting the Language When the power is turned on for the first time, the language setting screen appears (for the LCD monitor display language). After setting the language, go on to the date/time setting (for printing the date and time on your photos). You can shoot without these settings.
Page 33: Setting The Date And Time
Setting the Date and Time When the power is turned on for the first time, the date/time setting screen appears. Press the !"#$ buttons to set the year, month, date and time. • Change the value with !" and move the frame with #$. Setting at shipping In [FORMAT], choose the date and time format.
Page 34: Basic Shooting
Basic Shooting Now you are ready. Holding the Camera Hold the camera as shown below for best results. Hold the camera with both hands and lightly press both elbows against your body. Shooting while viewing Shooting while using the LCD monitor the viewfinder Put your finger on the shutter release button.
Page 35 Preventing Camera Shake --------------------------------------------------------------------- If you move the camera when pressing the shutter release button, the still image might not come out clearly due to camera shake. Camera shake tends to occur in the following cases: • When shooting in a dark place without using the flash •...
Page 36: Shooting
Shooting The shutter release button works in two steps. You can press the shutter release button halfway down (half-press) and press it all the way down (full-press). Quickly Shooting Pictures (Full-press) Full-press the shutter release button for quick focusing, so as not to miss a shooting opportunity.
Page 37 Checking the Focus and Shooting (Half-press/Focus Lock) When you press the shutter release button halfway (Half-press), the auto-focus function is triggered to determine the focal distance. Next, press it all the way down (Full-press) to shoot. When your subject is not in the center of your composition, compose your photo after focusing.
Page 38 To take a picture with the subject in the foreground in focus against a background, half-press the shutter release button to focus on the subject, and then compose your shot. Subject to be focused on Shooting range Gently press the shutter release button all the way.
Page 39: Using The Zoom Function
Using the Zoom Function Pressing the Z (Wide-angle) button allows you to take a wide- angle picture. Pressing the z (Telephoto) button allows you to take a close-up picture of the subject. Wide-angle Telephoto With the camera ready to shoot, press the Z (Wide- angle) button or the z (Telephoto) button.
Page 40: Shooting Close-Ups (Macro Shooting)
Shooting Close-Ups (Macro Shooting) Using the N (Macro) button allows you to take a tight close-up of the subject. (Macro shooting) This is good for shooting small subjects because you can shoot up to approximately 5 mm (0.2 in.) (from the lens surface) away. With the camera ready to shoot, press the N (Macro) button.
Page 41: Using The Flash
Using the Flash Press the F (Flash) button to change the flash mode. At the time of purchase, the camera is set to [FLASH OFF]. From the front edge of the lens, the flash light reaches about 0.2 to 10.0 m (7.9 in. to 32.8 ft.) (Wide-angle) or about 0.2 to 6.5 m (7.9 in.
Page 42: Shooting With Optimal Settings According To Shooting Conditions
Shooting with Optimal Settings According to Shooting Conditions You can use Scene Mode to select from among five Still Image Modes and shoot with settings automatically optimized for shooting conditions. Scene Modes Use when taking pictures in dimly lit places. The LCD monitor also becomes brighter.
Page 43 Turn the mode dial to 5. Press the SCENE button. • The Scene Mode selection screen appears. Press the !" buttons to select the Scene Mode. Press the MENU/OK button. • The Scene Mode type is displayed at the top of the LCD monitor. Press the shutter release button to shoot the picture.
Page 44: Using The Skew Correction Mode
Using the Skew Correction Mode Turn the mode dial to 5. Press the SCENE button. • The Scene Mode selection screen appears. Press the !" buttons to select [SKEW COR MODE]. Press the MENU/OK button. Press the shutter release button to shoot the picture.
Page 45 Shooting in Zoom Macro Mode Turn the mode dial to 5. Press the SCENE button. • The Scene Mode selection screen appears. Press the !" buttons to select [ZOOM MACRO]. Press the MENU/OK button. Press the Z (Wide-angle) or z (Telephoto) button. •...
Page 46: Shooting In Cals Mode
Shooting in CALS Mode In CALS Mode, [PIC QUALITY/SIZE] is fixed at [N1280] (Normal 1280 × 960) suitable to be submitted as official public works pictures (based on Japanese standards). With simple operation of the mode dial, you can shoot photos in a construction environment without being distracted by setting the picture quality mode or image size.
Page 47: Using The Self-Timer
t Using the Self-Timer You can set the Self-timer to shoot after either two or ten seconds. A setting of two seconds is useful for preventing camera shake. Turn the mode dial to 5/K. Press the t (Self-timer) button. • The Self-timer symbol appears on the screen.
Page 48: Playing Back Images
Playing Back Images Reviewing the Image You Just Took (Quick Review) You can view the image you just took on the LCD monitor. If you are not pleased with the way the photo came out, you can delete it then and there. In Shooting Mode, press the Q (Quick Review) button.
Page 49: Viewing Your Images
Viewing Your Images In Playback Mode, you can check still images you have taken. You can also delete or zoom in on the images. Press the 6 (Playback) button. • The camera switches to Playback Mode and the last still image you took is displayed.
Page 50: Three-Frame View/List View (Thumbnail Display)
Three-frame View/List View (Thumbnail Display) When playing back images on the LCD monitor, the playback screen can be divided into three frames (three-frame view) or 12 frames (list view). The three-frame view and list view allow you to select a still image to enlarge or delete. The playback screen changes as follows: Press the 6 (Playback) button.
Page 51 Press the 9 (Thumbnail Selected still image Display) button again during three-frame view. • The screen is divided into 12 frames and thumbnails are displayed. Switching to Single-Picture Display In three-frame view Press the #$ buttons to select a still image. Press the 8 (Enlarged View) button or the MENU/ OK button.
Page 52: Magnifying Images
Magnifying Images You can enlarge a still image displayed on the LCD monitor. Image Size Enlarged View (maximum magnification) 3264 × 2448, 2592 × 1944, 2048 × 1536 8 times 1280 × 960 6.7 times 640 × 480 3.4 times Press the 6 (Playback) button.
Page 53: Deleting Files
Deleting Files You can delete unwanted or failed files from the SD memory card or internal memory. Deleting a File Press the 6 (Playback) button. Press the #$ buttons to display the file you want to delete. Press the D (Delete) button. Press the !"...
Page 54: Deleting Multiple Files At One Time
Press the !" buttons to select [DELETE ALL]. Press the MENU/OK button. • You will be prompted to confirm that you want to delete all images. If so, press the $ button to select [YES], and then press the MENU/ OK button.
Page 55 Press the #$ buttons to select [YES] and then press the MENU/OK button. • The display indicates that the files are being deleted; once finished, it returns to the thumbnail display screen.
Page 56: Changing The Display With The Disp. Button
Changing the Display with the DISP. Button Pressing the DISP. button allows you to change the screen display mode and toggle the information displayed on the LCD monitor. Each time you press the DISP. button, the display changes in the following order: Grid Guide, No Display, LCD Monitor Off, and Normal Symbol Display.
Page 57: Advanced Operations
Advanced Operations Read this section when you want to learn more about the different camera functions. 1 Various Shooting Functions ....... 56 2 Shooting/Playing Back Movies ......83 3 Recording/Playing Back Sound ......86 4 Other Playback Functions ....... 88 5 Direct Printing....
Page 58: Various Shooting Functions
1 Various Shooting Functions Using the ADJ. Button You can use the ADJ. button to adjust the exposure compensation, white balance, and other settings with fewer operations. Two functions other than exposure compensation and white balance can also be assigned to the ADJ.
Page 59: Changing The Text Density (Scene)
Note ---------------------------------------------------------------------------------------------- When using a camera memo, the settings on P.56 cannot be set with the ADJ. button. (G “Software User Guide”) Changing the Text Density (SCENE) You can change the shading of text for shooting with [TEXT MODE] (GP.40) in Scene Mode. You can select from [DEEP], [NORMAL] and [LIGHT].
Page 60: Shifting The Af Target (Macro)
Shifting the AF Target (Macro) During macro shooting, the AF target shift function allows you to lock the focus (GP.35) by using the !"#$ buttons on the camera without moving the camera. This is useful for macro shooting on a tripod with focus lock. Use the !"#$ buttons to shift the cross-mark at the center of the screen to the subject you want the camera to focus on.
Page 61: Shooting Setting Menu
Shooting Setting Menu Press the MENU/OK button in Shooting Mode to display the Shooting Setting menu. The Shooting Setting menu can be used to set the following shooting settings. When Mode Dial is Set to 5/K Setting Options [Default Settings] Refer to PIC QUALITY/SIZE F3264(8M), N3264(8M), N2592(5M), N2048(3M),...
Page 62: Using The Menu
Using the Menu This explains how to make the settings. Use the !"$ buttons and MENU/OK button to select and set an item. Press the MENU/OK button in Shooting Mode. • The Shooting Setting menu is displayed. The menu items are provided on four screens.
Page 63: Choosing Picture Quality Mode/Image Size (Pic Quality/Size)
Choosing Picture Quality Mode/ Image Size (PIC QUALITY/SIZE) The file size of a shot still image depends on the picture quality mode and image size settings. For movies, choose the movie size. Figures inside the bold frame indicate those shown on the screen. Still Images Image Size Picture Quality...
Page 64 Note ---------------------------------------------------------------------------------------------- • For picture quality mode, select normal mode (N) or fine mode (F), depending on the desired compression ratio. Normal mode: The compression ratio is high, resulting in a small file. Normally, shooting is done in this mode. Fine mode: The compression ratio is low, resulting in a large file, but the picture quality is better than in Normal.
Page 65: Shooting With The Antiblur Function (Antiblur)
Shooting with the Antiblur Function (ANTIBLUR) This function minimizes camera shake and blurring during shooting. Turn the mode dial to 5/K. Press the MENU/OK button. • The Shooting Setting menu is displayed. Press the " button to select [ANTIBLUR] and press the $ button.
Page 66: Changing The Focusing Mode (Focus)
Changing the Focusing Mode (FOCUS) If you shoot the subject in the default focusing mode, the camera focuses automatically with Auto Focus (AF). Choose from the following five focusing modes. Focusing Modes Symbol Mode Description None MULTI AF Automatically measures the distances to a maximum of five AF areas from among 17 AF areas and focuses to the nearest AF area.
Page 67: Manual Focus Shooting (Mf)
Manual Focus Shooting (MF) If the camera fails to focus automatically, you can focus manually (MF: Manual Focus). Manual focus enables shooting at a fixed distance. Note ---------------------------------------------------------------------------------------------- • In Scene Mode, manual focus can be used only when [ZOOM MACRO] or [SKEW COR MODE] is selected.
Page 68 Press the # button to display the focus bar. • Each time the # button is pressed, the focus bar and zoom bar appear alternately. Press the z (Telephoto) button or the Z (Wide-angle) button to adjust the focus. • Pressing the z (Telephoto) button adjusts the focus to farther objects.
Page 69: Changing The Light Metering (Photometry)
Changing the Light Metering (PHOTOMETRY) You can change the metering method (the range to use for metering) used to determine the exposure value. There are three light metering modes. Light Metering Modes Symbol Mode Description None MULTI The entire shooting range is divided into 256 partitions, and each is metered to determine the overall exposure value.
Page 70: Changing The Edge Quality Of Still Images (Sharpness)
Changing the Edge Quality of Still Images (SHARPNESS) You can change the edge quality of your still images to either sharp or soft. Turn the mode dial to 5/K. Press the MENU/OK button. • The Shooting Setting menu is displayed. Press the "...
Page 71: Shooting With Multi-Shot (S-Cont/M-Cont)
Shooting with Multi-Shot (S-CONT/M-CONT) With Multi-shot, you can shoot consecutive images. Multi-shot has the following two modes: S (Stream)-CONT With just one full-press of the shutter release button, you can take 16 consecutive shots at intervals of 1/7.5 seconds in about 2 seconds. The 16 still images are grouped together as a set and are recorded as one image file (3264 ×...
Page 72: Release Button
Press the " button to select [CONT. MODE] and press the $ button. Press the !" buttons to select [S-CONT], or [M-CONT]. Press the MENU/OK button, or # button and press the MENU/ OK button. • The symbol appears on the screen. S-CONT (S Multi-Shot) Compose your picture and then press the shutter release button.
Page 73: Viewing An S-Cont Or M-Cont Still Image In Enlarged Display Mode
Viewing an S-CONT or M-CONT Still Image in Enlarged Display Mode While a still image (16 frames in an image file) taken with S-CONT or M-CONT is displayed, you can enlarge any one of the 16 frames. You can also switch between frames while viewing the image in enlarged display mode.
Page 74: Setting The Color Depth (Color Depth)
Setting the Color Depth (COLOR DEPTH) You can set the color depth of still images to [VIVID], [NORMAL], [NEUTRAL], or [B&W]. Turn the mode dial to 5/K. Press the MENU/OK button. • The Shooting Setting menu is displayed. Press the " button to select [COLOR DEPTH] and press the $ button.
Page 75: Using Long Time Exposure (Time Exposure)
Using Long Time Exposure (TIME EXPOSURE) You can select [1 SEC.], [2 SEC.], [4 SEC.], or [8 SEC.] for time exposure. By using long time exposure, you can capture the movement of moving subjects such as the trail of fireworks and car lights when shooting a night scene.
Page 76: Shooting Pictures Automatically At Set Intervals (Interval)
Shooting Pictures Automatically at Set Intervals (INTERVAL) You can set the camera to automatically take pictures at fixed intervals. You can set the shooting interval from 30 seconds to 3 hours in increments of 30 seconds. Turn the mode dial to 5/K. Press the MENU/OK button.
Page 77 Caution------------------------------------------------------------------------------------------ • The interval shooting setting is cleared when the camera is turned off. • The time until the next picture can be taken according to the shooting menu setting may be longer than the time set for interval shooting. In this case, the shooting interval becomes longer than the set time.
Page 78: Shooting A Still Image With Sound (Image With Sound)
2 Shooting a Still Image with Sound (IMAGE WITH SOUND) You can shoot a still image with a voice memo of up to eight seconds. Turn the mode dial to 5/K. Press the MENU/OK button. • The Shooting Setting menu is displayed. Press the "...
Page 79: Inserting The Date Into A Still Image (Date Imprint)
Inserting the Date into a Still Image (DATE IMPRINT) You can insert the date (YY/MM/DD) or the date and time (YY/MM/ DD hh:mm) at the lower right of a still image. Turn the mode dial to 5/K. Press the MENU/OK button. •...
Page 80: Changing The Exposure (Exposure Comp.)
Changing the Exposure (EXPOSURE COMP.) The exposure setting enables you to select the brightness level for your picture. Normally, if your subject is centered, backlight compensation is automatically activated, and you can shoot with the correct exposure. In the following cases, or when you intentionally want to change the exposure, you can adjust the exposure setting.
Page 81: Using Natural And Artificial Lighting (White Balance)
Using Natural and Artificial Lighting (WHITE BALANCE) Adjust the white balance so that a white subject will appear white. At purchase, the white balance is set to [AUTO]. Normally you do not need to change the setting, but if the camera is having difficulty determining the white balance when shooting an object of a single color or when shooting under multiple light sources, you can change the setting.
Page 82: Setting The White Balance Manually (Manual Settings)
Note ---------------------------------------------------------------------------------------------- • The white balance may not be adjusted correctly for a subject that is mostly dark. In this case, add something white to the subject. • When shooting with the flash, the white balance may not be adjusted correctly if [AUTO] is not selected.
Page 83: Changing The Sensitivity (Iso Setting)
Changing the Sensitivity (ISO SETTING) ISO sensitivity indicates how sensitive film is to light. A greater value means higher sensitivity. High sensitivity is suitable for shooting an object in a dark place or a fast-moving object while minimizing blurring. You can choose from the following ISO settings: AUTO, ISO 64, ISO 100, ISO 200, ISO 400, ISO 800, and ISO 1600.
Page 84: Returning The Shooting Setting Menu Settings To Their Defaults (Restore Defaults)
Returning the Shooting Setting Menu Settings to their Defaults (RESTORE DEFAULTS) To return the Shooting Setting menu settings to their defaults, follow the steps below. Turn the mode dial to 5/K. Press the MENU/OK button. • The Shooting Setting menu is displayed. Press the !"...
Page 85: Shooting/Playing Back Movies
2 Shooting/Playing Back Movies 3 Shooting Movies You can shoot movies with sound. You can set the image size to either 320 × 240 or 160 × 120 pixels. You can set the number of frames shot per second (frame rate) to either 30 or 15.
Page 86: Setting The Frame Rate (Frame Rate)
Note ---------------------------------------------------------------------------------------------- • The flash cannot be used. • While shooting movies, only digital zoom can be used. (GP.37) • When the shutter release button is pressed in Step 2, the camera focuses on the subject. • The remaining recording time may not change uniformly because it is recalculated from the remaining memory capacity during movie recording.
Page 87: Playing Back Movies
Note ---------------------------------------------------------------------------------------------- • Movie recording time may vary depending on the capacity of the recording destination (internal memory or SD memory card), shooting conditions, and the type and manufacturer of the SD memory card. • The table below shows the approximate recording time. Internal 32 MB 64 MB...
Page 88: Recording/Playing Back Sound
3 Recording/Playing Back Sound 2 Recording Sound You can record sound. Recorded data is stored as a WAV file. Turn the mode dial to 2 (Voice Memo Mode). Press the shutter release button. • Sound recording starts. Recording continues until you press the shutter release button again.
Page 89: Playing Back Sound
Playing Back Sound To playback sounds, follow the steps below. Press the 6 (Playback) button. • The last shot taken is displayed. Press the #$ buttons to select a sound file for playback (indicated with a speaker). • Press the $ button to display the next file.
Page 90: Other Playback Functions
4 Other Playback Functions Playback Setting Menu Press the MENU/OK button in Playback Mode to display the Playback Setting menu. The Playback Setting menu allows you to make the settings for the following functions. Setting Options Refer to SLIDE SHOW P.89 PROTECT Select/Cancel 1 FILE, Select/Cancel ALL FILES, Select...
Page 91: Displaying Photos In Order Automatically (Slide Show)
Displaying Photos in Order Automatically (SLIDE SHOW) You can display the recorded still images, movies, and sound files sequentially on the screen. This is called a slide show. To view a slide show, follow the steps below. Press the 6 (Playback) button. •...
Page 92: Write-Protecting Files (Protect)
Write-protecting Files (PROTECT) You can protect files from being accidentally deleted. Caution------------------------------------------------------------------------------------------ Protected files cannot be deleted normally. However, they will be deleted if you format the memory where the files are stored. Protecting a File Press the 6 (Playback) button. •...
Page 93: Protecting All Files
Protecting All Files To protect all your files, follow the steps below. Press the 6 (Playback) button. Press the MENU/OK button. • The Playback Setting menu appears. Press the " button to select [PROTECT] and press the $ button. Press the !" buttons to select [ALL FILES].
Page 94: Protecting Multiple Files At Once
Protecting Multiple Files at Once To protect selected files all at once, follow the steps below. Press the 6 (Playback) button. Press the 9 (Thumbnail Display) button twice. • The screen is divided into 12 frames and thumbnails are displayed. Press the !"#$ buttons to select the first file you want to protect.
Page 95: Using A Printing Service (Dpof)
Using a Printing Service (DPOF) The still images recorded on an SD memory card can be printed out if you take them to a store that offers a digital camera print service. To use a print service, you must make print settings on your camera.
Page 96: Setting Dpof For All Still Images
Setting DPOF for All Still Images To apply DPOF settings to all your still images, follow the steps below. Press the 6 (Playback) button. Press the MENU/OK button. • The Playback Setting menu appears. Press the " button to select [DPOF] and press the $ button.
Page 97: Setting Dpof For Multiple Still Images
Setting DPOF for Multiple Still Images To make the DPOF settings for selected still images all at once, follow the steps below. Press the 6 (Playback) button. Press the 9 (Thumbnail Display) button twice. • The screen is divided into 12 frames and thumbnails are displayed. Press the !"#$ buttons to select the first still image for which you want to make the DPOF setting.
Page 98: Changing The Image Size (Resize)
Changing the Image Size (RESIZE) You can reduce the image size of a shot still image to create a new file with a different image size. Original Resized F3264/N3264/N2592/N2048 N1280 N640 F1280/N1280 N640 Caution------------------------------------------------------------------------------------------ You can resize only still images and still images with voice memos. Movies cannot be resized.
Page 99: Copying The Contents Of The Internal Memory To An Sd Memory Card (Copy To Card)
Copying the Contents of the Internal Memory to an SD Memory Card (COPY TO CARD) You can copy all movies, still images, and sound data stored in the internal memory onto an SD memory card at once. Turn the camera off. Insert an SD memory card.
Page 100: Direct Printing
5 Direct Printing Direct Print Function The Direct Print standard enables direct printing from a camera to a printer by connecting them via a USB cable. Photos can be printed quickly and easily from your digital camera without using a computer.
Page 101: Connecting The Camera To A Printer
Connecting the Camera to a Printer Connect your camera to a printer using the USB cable provided. Make sure that the camera is off. Turn the terminal cover knob of the camera in the direction of the arrow to open the cover. Connect your camera to a printer using the USB cable provided.
Page 102: Printing Still Images
Printing Still Images You can print still images from the camera with a PictBridge- compatible printer. Still images are sent from the internal memory when no SD memory card is loaded or from an SD memory card when one is loaded. Caution------------------------------------------------------------------------------------------ Do not disconnect the USB cable during printing.
Page 103 • The following items can be selected. Each item appears only when supported by the printer connected to the camera. The items marked with an asterisk (*) appear only when [REPORT PRINT] is supported by a Ricoh printer connected to the camera. Item Name Description PAPER SIZE Sets the paper size.
Page 104: Printing Several Still Images
Note ---------------------------------------------------------------------------------------------- • To specify the settings as the default settings next time the camera is connected to the printer, press the ADJ. button when the screen in Step 7 is displayed. When the screen at the right appears, press the #$ buttons to select [SET] and press the MENU/OK button.
Page 105 Repeat Steps 7 and 8 to select all the still images to be printed and the number of copies for each. Press the MENU/OK button. • The Direct Print menu appears. Press the !" buttons to select an item, and then press the $ button to display the detailed options screen.
Page 106: Printing Reports
Printing Reports Select [REPORT PRINT] on the Direct Print menu. [REPORT PRINT] appears only when connected to a Ricoh printer that supports PictBridge. For the latest information about Ricoh printers, visit the Ricoh website at http://www.ricoh.com/. The layout that can be selected depends on the connected printer.
Page 107: Printing A Camera Memo On A Report
Printing a Camera Memo on a Report To print a camera memo on a report, select [REPORT PRINT] on the Direct Print menu and set [MEMO PRINT] to [ON]. Example of Printed Report with Camera Memo The content of the camera memo is printed.
Page 108: Changing Camera Settings Setup Menu
6 Changing Camera Settings SETUP Menu You can change the camera settings by displaying the SETUP menu from the Shooting Setting menu (GP.59) or Playback Setting menu (GP.88). The SETUP menu enables you to set the items listed in the table below.
Page 109: Using The Setup Menu
Using the SETUP Menu This explains how to make the settings. Use the !"$ buttons and MENU/OK button to select and set an item. Press the MENU/OK button. • The Shooting Setting menu (or the Playback Setting menu) appears. Press the $ button. •...
Page 110 Changing the display ---------------------------------------------------------------------- • You can select a screen by the screen number: 1 Press the # button to select a screen number on the left of the screen. !" 2 Press the buttons to change screens. 3 Press the button to return to menu item selection.
Page 111: Preparing The Sd Memory Card (Format [Card])
Preparing the SD Memory Card (FORMAT [CARD]) If the error message [CARD ERROR] is displayed when an SD memory card is loaded into the camera or the card has been used with a computer or other device, you must format the card prior to use with this camera.
Page 112: Formatting The Internal Memory (Format [Int. Mem.])
Formatting the Internal Memory (FORMAT [INT. MEM.]) If the error message [FORMAT INTERNAL MEMORY] is displayed, you must format the internal memory prior to use. Caution------------------------------------------------------------------------------------------ Formatting the internal memory deletes all of the images recorded in the memory. If you have images in the internal memory that you do not want to delete, copy the images to the SD memory card before formatting the internal memory.
Page 113: Adjusting The Brightness Of The Lcd Monitor (Lcd Brightness)
Adjusting the Brightness of the LCD Monitor (LCD BRIGHTNESS) To adjust the brightness of the LCD monitor, follow the steps below. Display the SETUP menu. • For the operating procedure, see P.107. Press the " button to select [LCD BRIGHTNESS] and press the $ button.
Page 114: Assigning A Function To The Adj. Button (Adj Btn. Set.)
Assigning a Function to the ADJ. Button (ADJ BTN. SET.) You can use the ADJ. button to display the screens for setting the exposure compensation and white balance with fewer button operations and without displaying the Shooting Setting menu. You can also use [ADJ BTN. SET.1] and [ADJ BTN. SET.2] to add a camera function that can be activated by pressing the ADJ.
Page 115: Changing The Auto Power Off Setting (Auto Power Off)
Changing the Auto Power Off Setting (AUTO POWER OFF) If you do not operate the camera for a set period of time, it will shut off automatically to conserve battery power (Auto Power Off). By default, auto power off is set to one minute, but you can change this setting.
Page 116: Changing The Beep Sound Setting (Beep Sound)
Changing the Beep Sound Setting (BEEP SOUND) During operation, the camera generates four types of sounds: start sound, shutter release sound, focus sound, and beep sound. Start sound : Sound when the camera is turned on. Shutter release sound : Sound when the shutter release button is pressed. Focus sound : Sound when the shutter release button is half-pressed and the camera focuses on the subject.
Page 117: Changing The Beep Sound Volume (Vol. Settings)
Changing the Beep Sound Volume (VOL. SETTINGS) The beep sound volume can be changed. Available Settings (Mute) (Small) (Medium) *Default setting (Large) To change the beep sound volume, follow the steps below. Display the SETUP menu. • For the operating procedure, see P.107. Press the "...
Page 118: Changing Image Confirmation Time (Lcd Confirm.)
Changing Image Confirmation Time (LCD CONFIRM.) Immediately after you press the shutter release button, the still image taken is displayed on the screen for a moment so you can check it. By default, the image confirmation time is set to 1 second, but this can be changed.
Page 119: Changing File Name Settings (Sequential No.)
Changing File Name Settings (SEQUENTIAL NO.) When you shoot a still image, it is stored on an SD memory card or in the internal memory with a consecutively numbered file name that is automatically assigned. When you switch SD memory cards, you can set your camera to continue consecutive numbering from the previously loaded card.
Page 120 • When recording data to the internal memory, files are assigned consecutively numbered file names, just as if [SEQUENTIAL NO.] is set to [OFF]. • When transferring images to a computer using RICOH Gate La (GP.150), the file being transferred is renamed and saved. The file is saved with the name “RIMG****.jpg”...
Page 121: Setting The Date And Time (Date Settings)
Setting the Date and Time (DATE SETTINGS) You can take still images with the time or date stamped onto the picture. The date/time setting on the SETUP menu is explained here. Display the SETUP menu. • For the operating procedure, see P.107. Press the "...
Page 122: Changing The Display Language (Language/N)
Changing the Display Language (LANGUAGE/N) You can change the language displayed on the screen. Available Settings (Japanese) ENGLISH *Default setting To change the display language, follow the steps below. Display the SETUP menu. • For the operating procedure, see P.107. Press the "...
Page 123: Changing The Step Zooming Setting (Step Zoom)
Changing the Step Zooming Setting (STEP ZOOM) Step zooming is the setting of the focal length with optical zooming, which can be fixed to any of four levels (28, 35, 50, 85 mm, equivalent to that on a 35mm camera). Available Settings ON (Use step zooming) OFF (Do not use step zooming) *Default setting...
Page 124: Displaying A Settings Change Warning (Shtg Stgs Warng.)
Displaying a Settings Change Warning (SHTG STGS WARNG.) If the initial settings are changed for the following functions, you can set the camera to have the icon of that function blink and to display a warning message about the function with the changed setting for a few seconds when the camera is turned on.
Page 125: Changing The Usb Setting (Usb Connection)
USB cable without installing the supplied software or USB driver. Usually, set [USB CONNECTION] to [ORIGINAL]. You can transfer images to your computer using the supplied RICOH Gate La software. USB CONNECTION MASS STR...
Page 126 Caution------------------------------------------------------------------------------------------ • When [USB CONNECTION] is set to [MASS STR], you cannot use RICOH Gate La to transfer camera data. • When [USB CONNECTION] is set to [MASS STR], files can only be read from the camera and cannot be written to or deleted from the camera.
Page 127: Enlarging Icon Display (Enlge Photo Icon)
Enlarging Icon Display (ENLGE PHOTO ICON) You can enlarge the icons displayed on the screen during shooting. The following icons are enlarged: Flash, Macro Shooting, Self-timer, White balance, Focus, Exposure compensation, ISO setting When the icons are enlarged, the following items are not displayed: Zoom bar/Focus bar, Date imprint, Sharpness, Color depth To enlarge the icons on the screen, follow the steps below.
Page 128: Registering The Power-On Settings (Reg. My Settings)
Registering the Power-on Settings (REG. MY SETTINGS) The My Setting function allows you to make your desired settings to be used at power-on. For example, when a digital camera is used in common by multiple persons, you can use the camera without regard to the settings made by the person who used the camera previously because the camera settings are restored to your settings each time the camera is turned on.
Page 129: Changing The Startup Settings (Start Settings)
Changing the Startup Settings (START SETTINGS) You can use the settings registered in [REG. MY SETTINGS] for the startup settings. Display the SETUP menu. • For the operating procedure, see P.107. Press the " button to select [START SETTINGS] and press the $ button.
Page 130: Downloading Images To Your Computer
7 Downloading Images to Your Computer The screen images shown here may differ from the images displayed on your computer depending on your computer OS. For Windows Refer to P.142 for Macintosh. You need to install software for transferring images to your computer before you can download images from the camera.
Page 131: Using The Caplio Software Cd-Rom
Using the Caplio Software CD-ROM Once you insert the Caplio Software CD- ROM in the CD-ROM drive, the installer screen appears automatically. Item Name Description Refer to Installing the Software Use this button to install software required for P.134 handling the camera and images. Installing DeskTopBinder Lite Use this button to install software required for P.136 handling the camera and images.
Page 132 When [Installing the software] is clicked: (GP.134) The following software will be installed: Software Windows Description RICOH Gate La Downloads images collectively. List Editor Used to create a camera memo list. ImageMixer Shot images can be displayed or edited and video CDs can be created.
Page 133 When [Installing DeskTopBinder Lite] is clicked: (GP.136) The following software will be installed: Software Windows Description DeskTopBinder Lite Software used to manage business documents. Images in the camera can be downloaded to DeskTopBinder Lite using the Auto Document Link that monitors document updating. USB Driver Used to connect the camera to the computer.
Page 134 When [Browse CD-ROM Content] is clicked: You can check folders and files on the CD-ROM. The CD-ROM contains not only the software installed by clicking [Installing the software] but also the following software. These software products run on Windows. For the installation of each software product, see the reference page in the table below.
Page 135: System Requirements For Using Caplio Software Cd-Rom
System Requirements for Using Caplio Software CD-ROM The following environments are necessary for using Caplio Software. Please check your computer, or the computer’s user manual. Operating Systems Windows 98/98 Second Edition Supported Windows 2000 Professional Windows Me Windows XP Home Edition/Professional Pentium lll: 500 MHz or faster Memory Windows 98/98SE: 128 MB or more...
Page 136: Installing The Software Required For Handling The Camera And Images On Your Computer
Installing the Software Required for Handling the Camera and Images on Your Computer Install the required software on your computer from the CD-ROM before connecting the camera. Caution------------------------------------------------------------------------------------------ • Do not install the software when the camera is connected to your computer with a USB cable.
Page 137: Restart Your Computer
Click [Next]. • The [Choose Destination Location] screen appears. Confirm where you want to install and then click [Next]. • The [Select Program Folder] screen appears. Confirm where you want to install and then click [Next]. • The ImageMixer installer starts. Install ImageMixer following the messages displayed on the screen.
Page 138: Installing The Desktopbinder Lite
Installing the DeskTopBinder Lite DeskTopBinder Lite is used for managing business documents. As well as still images captured with a digital camera, you can manage a variety of documents, including documents input by scanner, documents created with various applications and image files. You can also store files with different formats in a single document.
Page 139 [Option settings] dialog box displayed by selecting [Option settings] on the [RICOH Gate La Settings] menu. (Refer to the “Software User Guide”.) Before capturing images from the camera, set the date and time using the [DATE SETTINGS] option of the camera.
Page 140: Installing Other Software On Your Computer
Installing Other Software on Your Computer Caution------------------------------------------------------------------------------------------ • Do not install the software when the camera is connected to your computer with a USB cable. • For Windows XP or Windows 2000, administrator privileges are required to install the software. Acrobat Reader Acrobat Reader is required to display the operation manual (PDF file).
Page 141 DirectX DirectX is used to play movie files with ImageMixer. This camera requires DirectX 8.1 or later to play movie files in Windows. If you have an earlier version installed, please install the updated version available on the accompanying CD-ROM. For Windows XP, installation of DirectX is not needed because the updated version is already installed.
Page 142: Uninstalling The Software
Uninstalling the Software Caution------------------------------------------------------------------------------------------ • For Windows 2000/XP, administrator privileges are required to uninstall the software. • If any other program is active or unsaved data remains, save the data and terminate the program before uninstalling. • If you install both ImageMixer and the DeskTopBinder Lite and then uninstall either one, camera connection to the computer may fail.
Page 143 ImageMixer Click [Start] on the Windows task bar. Select [Settings]-[Control Panel] ([Control Panel] for XP). Double-click the [Add/Remove Programs] icon (or the [Add or Remove Programs] icon in Windows XP). Select [ImageMixer] and then click [Change/Remove]. Confirm file deletion and click [OK]. •...
Page 144: For Macintosh
X: Mac OS X 10.1.2 to 10.4.5 Note ---------------------------------------------------------------------------------------------- • For Mac OS 8.6 to 9.2.2, when the camera and computer are connected, RICOH Gate La automatically starts and the downloading of images begins. For details about the software, see the “Software User Guide”.
Page 145 For Mac OS 8.6 to 9.2.2, double- clicking the [Installer] icon displays the [Digital camera software installer] window. Note ---------------------------------------------------------------------------------------------- The “Digital camera software installer” window is not displayed in Mac OS X 10.1.2 to 10.4.5. (GP.146) Item Name Description Installing the Software Use this button to install software required for handling the camera and images.
Page 146: System Requirements For Using The Caplio Software Cd-Rom
System Requirements for Using the Caplio Software CD-ROM The following environments are necessary for using the Caplio Software. Please check your computer, or the computer’s user manual. Operating System Mac OS 8.6 to 9.2.2/Mac OS X 10.1.2 to 10.4.5 Macintosh A USB port standard-equipped Apple Macintosh Series Internal Memory Mac OS 8.6 to 9.2.2...
Page 147: Installing The Software Required For Handling The Camera And Images On Your Computer (Mac Os 8.6 To 9.2.2)
Installing the Software Required for Handling the Camera and Images on Your Computer (Mac OS 8.6 to 9.2.2) Install the required software on your computer from the CD-ROM before connecting the camera. Caution------------------------------------------------------------------------------------------ Do not install the software when the camera is connected to your computer with a USB cable.
Page 148: Installing The Software Required For Handling The Camera And Images On Your Computer (Mac Os X 10.1.2 To 10.4.5)
Installing the Software Required for Handling the Camera and Images on Your Computer (Mac OS X 10.1.2 to 10.4.5) Install the required software on your computer from the CD-ROM before connecting the camera. Caution------------------------------------------------------------------------------------------ Do not install the software when the camera is connected to your computer with a USB cable.
Page 149 Click the destination disk you want, and then click [Continue]. Click [Install]. • Click [Upgrade] to update the software. • A screen appears prompting you to enter the administrator’s password. Enter the administrator’s name and password, and then click [OK]. •...
Page 150: Uninstalling The Software
Mac OS 8.6 to 9.2.2 Delete the following files in the System Folder from your Macintosh. File Name Folder Name RICOH Gate La Control Panels RICOH Gate La Prefs Preferences Caplio Mounter Extensions Caplio Mounter Prefs Preferences Caplio USB Driver...
Page 151: Connecting The Camera To Your Computer
Connecting the Camera to Your Computer After installing the software on your computer, connect your camera to the computer. The following explanation is provided assuming that [ORIGINAL] (default) is selected at [USB CONNECTION] of the camera’s SETUP menu. (GP.123) If [MASS STR] is selected, change it to [ORIGINAL].
Page 152: Using The Caplio Software To Download Images
By default, the WIA driver is installed in the following location: Specify the folder if the CD-ROM is not available. My Computer Local Disk Program Files Caplio Software WIA driver Select [RICOH Gate La], check [Always use this program for this action] check box, and then click [OK].
Page 153: Downloading Images In Mass Storage Mode
• When downloading images from your camera, load a battery with adequate remaining power in the camera. Use of the AC adapter (sold separately) is recommended. • When transferring images to a computer using RICOH Gate La, the file being transferred is renamed and saved.
Page 154 From the displayed drive, copy a file to the desired location. • The figure at right shows the folder configuration in the drive. • When the contents of the internal memory are displayed, the drive name is [RICOHDCI]. Example of the display in Windows XP Caution------------------------------------------------------------------------------------------ •...
Page 155: Disconnecting The Camera From Your Computer
Card Reader This is a device connected to a computer to read the contents of cards. In addition to the memory card adapter-type, there are card readers compatible with various types of cards, into which you can directly load an SD memory card. Disconnecting the Camera from Your Computer For Windows The display is an example of Windows XP.
Page 156: Using The Bluetooth ® Function
® 8 Using the Bluetooth Function ® About the Bluetooth Function ® The Bluetooth function enables the camera to wirelessly connect ® to a Bluetooth -enabled computer, printer or other peripheral ® device. Bluetooth -enabled devices can be wirelessly connected without cables.
Page 157: Expanded Settings Menu
Expanded Settings Menu ® You can set the Bluetooth function or GPS information by displaying the Expanded Settings menu from the Shooting Setting menu (GP.59) or Playback Setting menu (GP.88). The Expanded Settings menu enables you to set the items listed in the table below.
Page 158 Press the !" buttons to select the desired menu item. • Press the " button at the bottom item to display the next screen. Press the $ button. • The menu item settings are displayed. Press the !" buttons to select the setting.
Page 159: Sending Still Images To A Printer (Print)
Sending Still Images to a Printer (PRINT) ® You can send still images from the camera to a Bluetooth -enabled printer to have them printed. Images are sent from the internal memory when no SD memory card is loaded or from an SD memory card when installed. There are three ways to send images to a printer.
Page 160 Press the " button to select [PRINT], and then press the $ button. ® • When the Bluetooth function is used for the first time, a screen appears confirming whether to search for a destination device. • If you have already searched for a destination device, a list of destination devices appears.
Page 161: Printing Several Still Images
Press the !" button and [SEND ONE] to send one image or [SEND ALL] to send all images, and then press the MENU/OK button. • Transmission of the images to the destination device begins and the progress is displayed. Pressing the DISP.
Page 162 Press the " button to select [PRINT], and then press the $ button. ® • When the Bluetooth function is used for the first time, a screen appears confirming whether to search for a destination device. • If you have already searched for a destination device, a list of destination devices appears.
Page 163 Repeat Step 8 to select all the files you want to send. • If you selected a file by mistake, you can deselect it by selecting the file and pressing the MENU/OK button again. Press the DISP. button. • A screen appears indicating the printing format and number of files. Press the MENU/OK button.
Page 164: Entering An Authentication Passkey For A Destination Device
Entering an Authentication Passkey for a Destination Device The authentication passkey is a code used to authenticate two ® devices connecting using the Bluetooth function. If the passkey is set on the destination device, a message appears when connecting to that device. Follow the procedure below to enter the passkey.
Page 165: Entering Characters
How to Use the Keyboard To use the keyboard, follow the steps below. Switching among letters, numbers and symbols When there is a cursor at the leftmost or rightmost character on the keyboard, press the #$ buttons to switch the character type among numbers, symbols, lowercase letters and uppercase letters.
Page 166 Entering a space Press the !"#$ buttons to select [SPACE]. Press the ADJ./MEMO button. Inserting a character Press the !"#$ buttons to select one of the characters at the top of the keyboard. Press the ! button. • The cursor moves to the right of the input characters.
Page 167 Deleting a character Press the !"#$ buttons to select one of the characters at the top of the keyboard. Press the ! button. • The cursor moves to the right of the input characters. Press the #$ buttons to position the cursor to the right of the character you want to delete.
Page 168: Sending Still Images To Your Computer (File Send)
Sending Still Images to Your Computer (FILE SEND) ® You can send still images from the camera to a Bluetooth -enabled computer. The sent images are processed according to the computer settings. Images are sent from the internal memory when no SD memory card is loaded or from an SD memory card when installed.
Page 169: Sending One Or All Still Images
Sending One or All Still Images Check that the destination device (computer) is turned Press the 6 (Playback) button. • To send all still images, go to Step 4. Press the #$ buttons to select an image to send. Press the MENU/OK button. •...
Page 170 Press the !" buttons to select the desired destination device and then press the MENU/OK button. • If the desired destination device is not listed, press the ADJ. button to search again for destination devices. • Select a destination device and press the $ button to display information about the destination device.
Page 171: Sending Several Still Images
Sending Several Still Images Check that the destination device (computer) is turned Press the 6 (Playback) button. • The last shot taken is displayed. Press the 9 (Thumbnail Display) button twice. • The screen is divided into 12 frames and thumbnails of the still images are displayed.
Page 172 Press the !" buttons to select the desired destination device and then press the MENU/OK button. • If the desired destination device is not listed, press the ADJ. button to search again for destination devices. • Select a destination device and press the $ button to display information about the destination device.
Page 173: Sending Images In Shooting Mode (Quick Send Mode)
Sending Images in Shooting Mode (QUICK SEND MODE) Immediately after you shoot a still image, you can send that image to another device. This is convenient if you want to send images to a predetermined device. You need to set [QUICK SEND MODE] on the Expanded Settings menu beforehand.
Page 174: Using Quick Review Send
Using Quick Review Send When [QUICK SEND MODE] is set to [1TOUCH] Check that the destination device is turned on. Turn the mode dial to 5/K and shoot the picture. • While the image is displayed after shooting, a screen appears confirming whether to send the image.
Page 175 When [QUICK SEND MODE] is set to [2TOUCH] Check that the destination device is turned on. Turn the mode dial to 5/K and shoot the picture. Press the Q (Quick Review) button. • A screen appears confirming whether to send the image. Press the MENU/OK button.
Page 176 Press the MENU/OK button. • Transmission of the images to the destination device begins and the progress is displayed. Pressing the DISP. button cancels the operation. • If a passkey is required to connect to the destination device, a message appears prompting you to enter the passkey. (GP.162) •...
Page 177: Making Advanced Bluetooth ® Settings
® Making Advanced Bluetooth Settings Registering an Authentication Passkey for a Device (PASS KEY) The authentication passkey is a code used to authenticate two ® devices connecting using the Bluetooth function. If a passkey is required to connect to a destination device, the authentication passkey can be registered in the camera beforehand so that the passkey can be authenticated automatically when connecting to the device.
Page 178: Changing The Number Of Discoverable Devices (Search Count)
Changing the Number of Discoverable Devices (SEARCH COUNT) ® You can set the maximum number of Bluetooth devices that can be discovered each time a search is performed. Select between one and ten devices. The default setting is [5]. Display the Expanded Settings menu. •...
Page 179: Connecting To Several Devices At The Same Time (Master/Slave)
Connecting to Several Devices at the Same Time (MASTER/SLAVE) ® You can connect the camera to one Bluetooth device or multiple devices at the same time. Available Settings MASTER (Connect to several devices at the same time) SLAVE (Connect to one device) *Default setting Display the Expanded Settings menu.
Page 180: Selecting The Size Of Images To Be Sent (Image File Size)
Selecting the Size of Images to Be Sent (IMAGE FILE SIZE) You can select the size of still images to be sent when using an OPP profile. Available Settings NO ALTER (Do not change the image size) 1280 640 *Default setting Display the Expanded Settings menu.
Page 181: Automatically Deleting Sent Images (Auto Del)
Automatically Deleting Sent Images (AUTO DEL) You can set the camera to automatically delete a still image from the camera after it has been sent to a computer or a printer. Available Settings ON (Automatically delete a still image after it has been sent) OFF (Do not delete a still image after it has been sent) *Default setting Display the Expanded Settings menu.
Page 182: Using The Gps Function
9 Using the GPS Function About the GPS Function This camera can obtain and use GPS (Global Positioning System) information (longitude and latitude) in two ways. The first is by connecting the camera directly to a GPS module. ® The second is by using a Bluetooth SPP (Serial Port Profile) to ®...
Page 183: Obtaining Gps Information
Obtaining GPS Information ® This section explains how to connect the camera to the Bluetooth GPS unit to receive GPS information using a SPP. There are two ways to connect the devices. • Manually connect to a device (GP.181) • Automatically connect to a previously connected device (GP.183) Manually Connecting to a Device (BT SERIAL) Display the Expanded Settings menu.
Page 184 Press the !" buttons to select the desired destination device. • If the desired destination device is not listed, press the ADJ. button to search ® for a Bluetooth GPS unit in your vicinity. • Select a destination device and press the $ button to display information about the destination device.
Page 185: Automatically Connecting To A Previously Connected Device (Bt Auto Conn)
Automatically Connecting to a Previously Connected Device (BT AUTO CONN) When [BT AUTO CONN] on the Expanded Settings menu is set to [ON], the next time the camera is turned on, the camera automatically searches for and connects to the previously ®...
Page 186 Automatically Establishing a Connection ® Check that the Bluetooth GPS unit is turned on. Turn the camera power on. • The camera attempts to automatically connect to the device and the connection status appears. Pressing the DISP. button cancels the operation.
Page 187: Displaying Gps Information
Displaying GPS Information ® When the camera is connected to a Bluetooth GPS unit in ® shooting mode, the Bluetooth antenna icon, GPS information and GPS icon appear on the LCD monitor. x3(4) Number of visible satellites captured at the current position Number of satellites used GPS positioning quality Display...
Page 188: Lcd Monitor Display
LCD Monitor Display When the shooting screen switches to GPS display, the current GPS detailed information is displayed. At shooting, the latitude and longitude displayed on the LCD monitor are recorded as part of the image information. You can change the display when playing back still images with GPS information.
Page 189: Shooting With Gps Information
Shooting with GPS Information You can shoot still images with GPS information. You can also shoot images with GPS information while using Scene Mode (except for TEXT MODE) or Multi-shot. With the GPS function enabled, turn the Mode Dial to 5/K.
Page 190: Advanced Gps Information Settings
Advanced GPS Information Settings Setting the Datum (GPS DATUM) You can set the GPS information datum. Available Settings TOKYO (Standard datum used in Japan) WGS-84 (World geodetic system) *Default setting Display the Expanded Settings menu. • For the operating procedure, see P.155. Press the "...
Page 191: Setting The Display Standard (Gps Disp Mode)
Setting the Display Standard (GPS DISP MODE) You can set the standard of the GPS information displayed on the monitor. Available Settings LAT/LON (Displays latitude and longitude) *Default setting UTM (Displays Universal Transverse Mercator Projection (UTM) coordinates.) MGRS (Displays Military Grid Reference System (MGRS) coordinates.) ALL (Displays all information above) Display the Expanded Settings menu.
Page 192: Locking The Gps Information (Gps Lock)
Locking the GPS Information (GPS LOCK) You can set up the Q (Quick Review) button to use when locking GPS information. When GPS information is locked, new GPS information cannot be acquired. Available Settings OFF (Q button cannot be used to lock GPS information.) *Default setting ON (Q button can be used to lock GPS information.) Display the Expanded Settings menu.
Page 193: Appendices Troubleshooting
10 Appendices Troubleshooting Error Messages If an error message is displayed on the screen, take the corresponding action. Error Message Cause and Action Refer to INSERT CARD No card is loaded. Insert a card. P.25 SET DATE. The date is not set. Set the date. P.119 FILE NUMBER OVER LIMIT The file number limit has been exceeded.
Page 194 ® Bluetooth related error messages Error Message Cause and Action Refer to REQUESTED FILE CANNOT You attempted to send an image other than still ones (.JPG). P.154 PRINT. Only still images (.JPG) can be sent. REQUESTED FILE CANNOT BE You attempted to send an image other than still ones (.JPG). P.154 SENT.
Page 195: Camera Troubleshooting
Camera Troubleshooting Power Supply Problem Cause Solution Refer to The camera does not Battery is not loaded or is Load the rechargeable battery P.24 P.25 turn on. exhausted. correctly or charge the battery as P.27 required. Use the AC adapter as required.
Page 196 Shooting Problem Cause Solution Refer to The camera does not Battery is exhausted. Charge the rechargeable battery P.24 P.27 shoot even if you press or use the AC adapter. Replace P.25 the shutter release the alkaline batteries with new button. batteries.
Page 197 Problem Cause Solution Refer to The flash does not fire or The flash cannot be used in the To shoot with the flash, change P.39 the flash cannot charge. following cases: the settings or mode. P.69 • In Multi-shot mode P.83 •...
Page 198 Playback/Deleting Problem Cause Solution Refer to Press the 6 (Playback) button. P.47 Cannot play back, or the The camera is not in Playback playback screen does Mode. not appear. The contents of the SD No SD memory card is loaded, or Load a card with stored images.
Page 199: Other Problems
Other Problems Problem Cause Solution Refer to Cannot load the SD The card is facing the wrong way. Load correctly. P.25 memory card. The camera does not Battery is running low. Charge the rechargeable battery P.24 operate even when the or use the AC adapter.
Page 200: Software And Computer Troubleshooting
(PDF file). Warning Messages Under Windows XP Service Pack 2 When software for your Ricoh digital camera is used on a computer with Windows XP Service Pack 2 installed, the following warning message may appear at software activation or USB connection.
Page 201 Click the [Exceptions] tab. Check that the software is in [Programs and Services]. Click the [Add Program] button to add software that uses the network. If you clicked the [Ask Me Later] button: Each time the program is activated, the [Windows Security Alert] dialog box appears.
Page 202: Specifications
Specifications General × Power Source Voltage Rechargeable Battery DB-43 (3.7 V) External (AC adapter): 3.8 V AA Dry Alkaline Battery, Nickel-Hydrogen Battery × External Dimensions 133.0 mm (W) × 74.0 mm (H) × 78.5 mm (D) (excluding projecting parts) Weight Camera: Approximately 430 g (excluding battery, strap) Accessories: Approximately 50 g (battery, strap) Tripod Hole Shape...
Page 203 Distance Control AF Method Normal Shooting: External Passive/CCD method Macro: CCD method AF Measurement Range Normal: approx. 0.3 m to A, Macro: approx. 0.005 m to A Internal Flash Method External modulated light sensor and pre-flash method Shooting Distance Approx. 0.2 to 10 m (Wide-angle), Approx. 0.2 to 6.5 m (Telephoto) (ISO: AUTO) Operating Modes Flash Off/Auto/Red-eye reduction/Forced flash/Flash synchro...
Page 204 ® Bluetooth Communication Port ® Communication Method Bluetooth standard Ver. 2.0 + EDR ® Output Bluetooth standard Power Class 2 Communication Range Approx. 10 m (line of sight) ® Supported Bluetooth BIP, OPP, SPP Profiles Frequency Band 2.4 GHz (2.4 GHz – 2.4835 GHz) *1 The communication range may vary depending on obstructions between the two devices, signal strength, software or operating system in use, and other factors.
Page 205: Number Of Images That Can Be Stored In Internal Memory/Sd Memory Card
Number of Images That Can be Stored in Internal Memory/SD Memory Card The following table shows the approximate number of images that can be recorded in the internal memory and onto an SD memory card at various image size and picture quality settings. Picture Internal Mode...
Page 206: Optional Accessories
Optional Accessories The Caplio 500SE can be used with the items (sold separately) listed below. Item Model Remarks Wide Conversion Lens DW-5 Used for wider angle shooting. Conforms to the specifications for JIS Class 7 waterproof construction. AC Adapter AC-4d Used for power supply from a household outlet to the camera.
Page 207: Using The External Flash
Using the External Flash You can attach an external flash and other accessories (available in stores) to the accessory shoe. Caution------------------------------------------------------------------------------------------ • The accessory shoe conforms to JIS B7101. • You cannot use an external flash with no spring or lock mechanism. •...
Page 208: Functions Whose Defaults Are Restored When Camera Is Turned Off
Functions Whose Defaults are Restored When Camera is Turned Off Turning the camera off may reset some function settings to their defaults. The table below indicates whether or not the function is reset to its default when the camera is turned off. O : setting is saved ×...
Page 209 O : setting is saved × : setting is restored Menu Function Default Settings SETUP LCD CONFIRM. 1 SEC. SEQUENTIAL NO. DATE SETTINGS LANGUAGE/N ENGLISH STEP ZOOM SHTG STGS WARNG. USB CONNECTION ORIGINAL ENLGE PHOTO ICON REG. MY SETTINGS START SETTINGS EXP SET GPS DATUM WGS-84...
Page 210: About Scene Mode
About Scene Mode Depending on the Scene Mode, the operation of functions may differ from when in normal shooting mode. Refer to the table below. Scene Mode Flash Macro Shooting HIGH SENS Initial setting: FLASH OFF Enabled FIREFIGHTING Initial setting: FLASH OFF Enabled SKEW COR MODE Initial setting: FLASH OFF...
Page 211: Using Your Camera Abroad
Using Your Camera Abroad AC Adapter (Model AC-4d), Battery Charger (Model BJ-2e) This AC adapter can be used in regions with a current of 100-240V, 50Hz/60Hz. If you are going to travel to a country that uses a different shaped wall outlet/plug, please consult your travel agent on a plug adapter suitable for wall outlets in your country of destination.
Page 212: Cautions On Use
• The internal mechanisms of the camera are neither waterproof nor dustproof. • Should water enter the inside of the camera, remove the batteries immediately and contact the Ricoh Repair Center. Cautions on Use • When opening and closing the camera, take care to prevent water droplets or contaminants adhering to the camera from getting inside.
Page 213 • In cold climates, if the camera has water droplets adhering to its surface, they may freeze. Using the camera with ice on it may cause it to fail. Do not leave the camera with water adhering to it. • This product was manufactured for use in the country in which it was purchased.
Page 214: Care And Storage
Finally, wipe water off its surface using a soft cloth. • If the rubber packing has gotten dirty, wipe dirt off its surface using a soft cloth. If the dirt cannot be removed, request the dealer or the Ricoh Repair Center to replace the packing.
Page 215 If you use the camera frequently in a wet, sandy, or dusty environment, we recommend replacing the packing every year. The replacement will be performed by the Ricoh Repair Center on a chargeable basis. Precautions regarding care of your camera 1.
Page 216: Warranty And Servicing
Ricoh Repair Center. Please note that you will be not be reimbursed for the cost of bringing the camera to the Ricoh Repair Center. 2. This warranty does not cover any damage resulting from: 1 failure to follow the instructions in the instruction manual;...
Page 217: Notes To Users
FCC emission limits. An AC adaptor with ferrite core must be used for RF interference suppression. Product Name: DIGITAL CAMERA Model Number: Caplio 500SE-B This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:...
Page 218 The CE Declaration of Conformity is available on the Internet at URL: http://www.ricoh.com/r_dc/support/ce_docs/ Hinweis für Benutzer in Ländern des europäischen Wirtschaftsraumes Dieses Produkt befindet sich in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG des...
Page 219: Index
COPY TO CARD......97 Index DATE IMPRINT......77 DATE SETTINGS ....31, 119 Delete...........51 AA Alkaline Batteries..... 20, 25 Delete/Self-timer Button...15, 45, 51 AC Adapter......13, 27 DENSITY ........57 Accessory Shoe ....14, 205 DeskTopBinder Lite ...131, 136 Acrobat Reader ....132, 138 Digital Zoom.........37 ADJ BTN.
Page 220 Macro Button ......15, 38 RESIZE ........96 Manual Focus (MF) ..... 65 RESTORE DEFAULTS....82 Mass Storage Mode (MASS STR) RICOH Gate La..130, 142, 150 ........123, 151 MASTER/SLAVE ....... 177 Maximum number of discoverable S (Stream)-CONT ......69 devices ........176 SCENE Button .......15, 41...
Page 221 Telephoto/Enlarged View Button ........15, 37, 49 Terminal Cover....14, 99, 149 TEXT MODE ....... 40 Three-frame View......48 Thumbnail Display ....... 48 TIME EXPOSURE ....... 73 Tripod Screw Hole....... 15 USB Cable......12, 98 USB CONNECTION ....123 USB Driver ....130, 131, 142 USB Terminal ....
Page 222: Telephone Support Numbers In Europe
Telephone Support Numbers in Europe (from within the UK) 02073 656 580 (from outside of the UK) +44 2073 656 580 Deutschland (innerhalb Deutschlands) 06331 268 438 (außerhalb Deutschlands) +49 6331 268 438 France (à partir de la France) 0800 91 4897 (en dehors de la France) +49 6331 268 409 Italia...
Page 223: If A Problem Arises
Ricoh is also trying to solve the great subjects of “Saving energy by reducing power consumption” and “Reducing environment-affecting chemical substances contained in products”. If a problem arises First of all, see “Troubleshooting” (GP.191) in this manual. If the issues still persist, please contact a Ricoh office. Ricoh Offices Ricoh Company, Ltd.

Ricoh Caplio 500SE User Manual

Various Shooting Functions

Shooting/Playing Back Movies

Recording/Playing Back Sound

Other Playback Functions

Direct Printing

Changing Camera Settings SETUP Menu

Downloading Images to Your Computer

Using the Bluetooth ® Function

Using the GPS Function

Appendices Troubleshooting

Quick Links

Advanced Operations

camera functions.

Troubleshooting

Need help?

Questions and answers

Related Manuals for Ricoh Caplio 500SE

Summary of Contents for Ricoh Caplio 500SE
