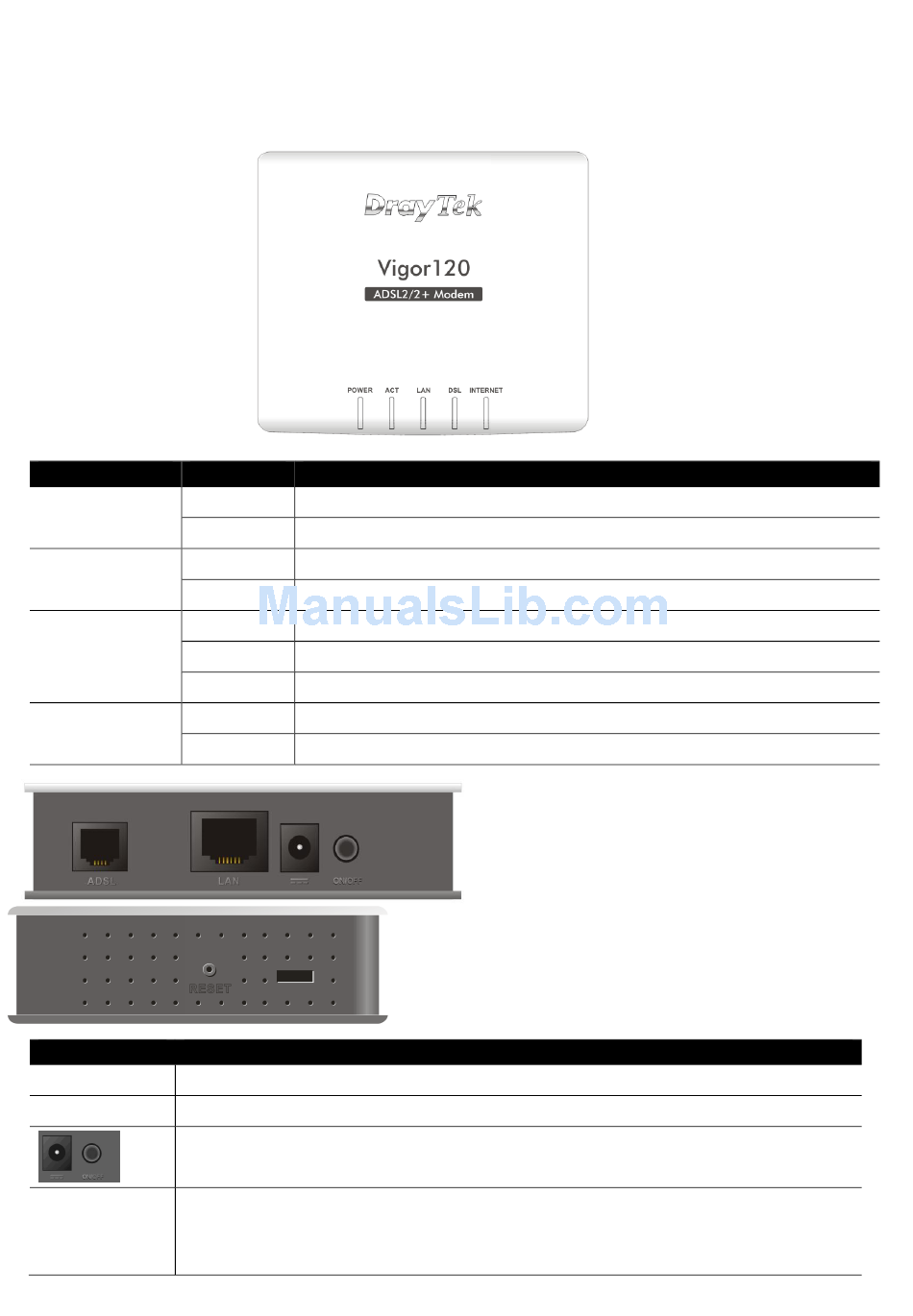

Descriptions of Components

LED
Power
ACT
LAN
DSL
Interface
ADSL
LAN
RESET
Status Explanation
On The modem is powered on.
Off The modem is powered off.
Off The system is not ready or is failed.
Blinking The system is ready and can work normally.
On A normal connection is through its corresponding port.
Off LAN is disconnected.
Blinking Data is transmitting (sending/receiving).
On DSL connection synchronized.
Blinking DSL connection is synchronizing.
Description
Connecter for accessing the Internet through ADSL 2+.
Connecter for local networked devices.
Connecter for a power adapter.
ON/OFF: Power switch.
Restore the default settings. Usage: Turn on the router. Press the
button and keep for more than 10 seconds. Then the router will
restart with the factory default configuration.
